2 |
05.803 WHEEL; DISC
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-1
27 WHITE(AVU)
(B) FRONT
19.5X6.00 OFFSET=127 WHITE 6-HOLE
|
8-98277-809-0 |
02 |
1 |
1407- |
● |
● |
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-1
27 WHITE(AVU)
(B) SPARE
19.5X6.00 OFFSET=127 WHITE 6-HOLE
|
8-98277-810-0 |
01 |
1 |
1407- |
● |
● |
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-1
27 WHITE(AVU)
(B) REAR
19.5X6.00 OFFSET=127 WHITE 6-HOLE
|
8-98277-810-0 |
04 |
1 |
1407- |
● |
● |
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT 195/85R16X5.5J-116.5RR 185/80R15X
5J-116.5(CUE)
(B) FRONT
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
02 |
1 |
0710- |
|
|
● |
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA)
(B) FRONT
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
02 |
1 |
0710- |
|
|
|
● |
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT 195/85R16X5.5J-116.5RR 185/80R15X
5J-116.5(CUE)
(B) SPARE
15X5J OFFSET=116.5 PLATINUM SILVER
|
8-98002-072-0 |
01 |
1 |
0710- |
|
|
● |
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT 195/85R16X5.5J-116.5RR 185/80R15X
5J-116.5(CUE)
(B) REAR
15X5J OFFSET=116.5 PLATINUM SILVER
|
8-98002-072-0 |
04 |
1 |
0710- |
|
|
● |
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5
-WHL/NUT(CSK)
(B) FRONT,REAR
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
06 |
1 |
0710-0710 |
|
|
● |
● |
|
|
| |
2 |
05.803 WHEEL; DISC
(B) FRONT,REAR
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
06 |
1 |
0710-0710 |
|
|
|
|
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR TIRE 205/85R16 DISC 16-5.5J-11
6.5(CSB),FRT&RR TIRE 195/85R16
16X5.5J-116.5 5-WHL/NUT(CSK)
(B) FRONT,REAR
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
06 |
1 |
0710-0908 |
|
|
● |
● |
|
|
| |
2 |
05.803 WHEEL; DISC
(B) FRONT,REAR
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
06 |
1 |
0710-0908 |
|
|
|
|
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR TIRE 205/85R16 DISC 16-5.5J-11
6.5(CSB),FRT&RR TIRE 195/85R16
16X5.5J-116.5 5-WHL/NUT(CSK),
F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS)
(B) FRONT,REAR
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
06 |
1 |
0909-0910 |
|
|
● |
● |
|
|
| |
2 |
05.803 WHEEL; DISC
(B) FRONT,REAR
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
06 |
1 |
0909-0910 |
|
|
|
|
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR TIRE 205/85R16 DISC 16-5.5J-11
6.5(CSB),
F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS)
(B) FRONT,REAR
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
06 |
1 |
0911-1005 |
|
|
● |
● |
|
|
| |
2 |
05.803 WHEEL; DISC
(B) FRONT,REAR
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
06 |
1 |
0911-1005 |
|
|
|
|
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR TIRE 205/85R16 DISC 16-5.5J-11
6.5(CSB),
F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),
F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU)
(B) FRONT,REAR
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
06 |
1 |
1006- |
|
|
● |
● |
|
|
| |
2 |
05.803 WHEEL; DISC
(B) FRONT,REAR
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
06 |
1 |
1006- |
|
|
|
|
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 195/85R16
16X5.5J-116.5 5-WHL/NUT(CSK),FRT 195/85R16X
5.5J-116.5RR 185/80R15X5J-116.5(CUE)
(B) SPARE
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
01 |
1 |
0710-0710 |
|
|
● |
● |
● |
|
| |
2 |
05.803 WHEEL; DISC
(B) SPARE
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
01 |
1 |
0710-0710 |
|
|
|
|
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR TIRE 195/85R
16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT
195/85R16X5.5J-116.5RR 185/80R15X5J-11
6.5(CUE)
(B) SPARE
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
01 |
1 |
0710-0908 |
|
|
● |
● |
● |
|
| |
2 |
05.803 WHEEL; DISC
(B) SPARE
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
01 |
1 |
0710-0908 |
|
|
|
|
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR TIRE 195/85R
16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT
195/85R16X5.5J-116.5RR 185/80R15X5J-11
6.5(CUE),
F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS)
(B) SPARE
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
01 |
1 |
0909-0910 |
|
|
● |
● |
● |
|
| |
2 |
05.803 WHEEL; DISC
(B) SPARE
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
01 |
1 |
0909-0910 |
|
|
|
|
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT 195/85R16X5.5J-
116.5RR 185/80R15X5J-116.5(CUE),
F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/
NUT(CVS)
(B) SPARE
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
01 |
1 |
0911-1005 |
|
|
● |
● |
● |
|
| |
2 |
05.803 WHEEL; DISC
(B) SPARE
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
01 |
1 |
0911-1005 |
|
|
|
|
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT 195/85R16X5.5J-
116.5RR 185/80R15X5J-116.5(CUE),
F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/
NUT(CVS),F&R195/85R16(BS
BRAND)16X5.5J-116.5 5-WHL/NUT(CVU)
(B) SPARE
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
01 |
1 |
1006- |
|
|
● |
● |
● |
|
| |
2 |
05.803 WHEEL; DISC
(B) SPARE
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
01 |
1 |
1006- |
|
|
|
|
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R TIRE
205/75R17.5(MICHELIN)17.5X6.00-127(CSM)
(B) FRONT,REAR
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98012-855-0 |
06 |
1 |
0710-1005 |
● |
|
|
● |
● |
|
| |
2 |
05.803 WHEEL; DISC
F&R TIRE 205/75R17.5(MICHELIN)17.5X6.
00-127(CSM),F&R TIRE 205/75R17.5(BS
BRAND)17.5X6.00-127(CVV)
(B) FRONT,REAR
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98012-855-0 |
06 |
1 |
1006-1010 |
|
|
|
● |
● |
|
| |
2 |
05.803 WHEEL; DISC
F&R TIRE 205/75R17.5(MICHELIN)17.5X6.
00-127(CSM),F&R TIRE 205/75R17.5(BS
BRAND)17.5X6.00-127(CVV)
(B) FRONT,REAR
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98168-215-0 |
06 |
1 |
1011- |
|
|
|
● |
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE
205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV)
(B) SPARE
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98012-855-0 |
01 |
1 |
0710-1005 |
● |
|
|
● |
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE
205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),F&R TIRE 205/75R17.5(BS
BRAND)17.5X6.00-127(CVV),F&R 215/75R17.
5(BS BRAND)17.5X6.00-127 SILVER(CVW)
(B) SPARE
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98012-855-0 |
01 |
1 |
1006-1010 |
● |
|
|
● |
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE
205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),F&R TIRE 205/75R17.5(BS
BRAND)17.5X6.00-127(CVV),F&R 215/75R17.
5(BS BRAND)17.5X6.00-127 SILVER(CVW)
(B) SPARE
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98168-215-0 |
01 |
1 |
1011- |
● |
|
|
● |
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127
6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-1
27 6-WHL/NUT(04C),FRT&RR 7.5R-16-12
6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-
16-10 6GSX16-127 6-WHL/NUT(83V),
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP)
,FRT&RR 7.5-16-10L 6GSX16-127
6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX1
6-127 6-WHL/NUT DYNAMIC(97V)
(A) SPARE
6.0GSX16 OFFSET=127 BLACK 6-HOLE
|
8-94438-670-4 |
01 |
1 |
0710-0809 |
● |
|
|
● |
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR
7.5R-16-126GSX16-127 6-WHL/NUT(05C),FRT&RR
7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)
(A) SPARE
6.0GSX16 OFFSET=127 BLACK 6-HOLE
|
8-94438-670-4 |
01 |
1 |
0810- |
● |
|
|
● |
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127
6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-1
27 6-WHL/NUT(04C),FRT&RR 7.5R-16-12
6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-
16-10 6GSX16-127 6-WHL/NUT(83V),
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP)
,FRT&RR 7.5-16-10L 6GSX16-127
6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX1
6-127 6-WHL/NUT DYNAMIC(97V)
(A) FRONT,REAR
6.0GSX16 OFFSET=127 BLACK 6-HOLE
|
8-94438-670-4 |
06 |
1 |
0710-0809 |
● |
|
|
● |
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR
7.5R-16-126GSX16-127 6-WHL/NUT(05C),FRT&RR
7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)
(A) FRONT,REAR
6.0GSX16 OFFSET=127 BLACK 6-HOLE
|
8-94438-670-4 |
06 |
1 |
0810- |
● |
|
|
● |
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA)
(B) REAR
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
04 |
1 |
0710- |
|
|
|
● |
● |
|
| |
2 |
05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-12
7 SILVER(CRV),FRT&RR TIRE
215-75R17.5DISC 17.5-6-127SILVER(CTV)
(B) FRONT
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98012-855-0 |
02 |
1 |
0710-1005 |
|
|
|
● |
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE
215-75R17.5 DISC 17.5-6-127SILVER(CTV),F
&R 215/75R17.5(BS BRAND)17.5X6.00-127
SILVER(CVW)
(B) FRONT
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98012-855-0 |
02 |
1 |
1006-1010 |
● |
|
|
● |
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE
215-75R17.5 DISC 17.5-6-127SILVER(CTV),F
&R 215/75R17.5(BS BRAND)17.5X6.00-127
SILVER(CVW)
(B) FRONT
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98168-215-0 |
02 |
1 |
1011- |
● |
|
|
● |
● |
|
| |
2 |
05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-12
7 SILVER(CRV),FRT&RR TIRE
215-75R17.5DISC 17.5-6-127SILVER(CTV)
(B) REAR
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98012-855-0 |
04 |
1 |
0710-1005 |
|
|
|
● |
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE
215-75R17.5 DISC 17.5-6-127SILVER(CTV),F
&R 215/75R17.5(BS BRAND)17.5X6.00-127
SILVER(CVW)
(B) REAR
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98012-855-0 |
04 |
1 |
1006-1010 |
● |
|
|
● |
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE
215-75R17.5 DISC 17.5-6-127SILVER(CTV),F
&R 215/75R17.5(BS BRAND)17.5X6.00-127
SILVER(CVW)
(B) REAR
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98168-215-0 |
04 |
1 |
1011- |
● |
|
|
● |
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 215/85R16 16X6K-128(CSC)
(B) SPARE
16X6K OFFSET=128 PLATINUM SILVER 6-HO
LE
|
8-97233-665-1 |
01 |
1 |
0710- |
|
|
|
● |
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 215/85R16 16X6K-128(CSC)
(B) FRONT,REAR
16X6K OFFSET=128 PLATINUM SILVER 6-HO
LE
|
8-97233-665-1 |
06 |
1 |
0710- |
|
|
|
● |
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5-16-8 6GSX16-127(10H),
FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR
7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16
-8L 6GSX16-127(14H),FRT&RR
7.5R-16-126GSX16-127(19H)
(A) SPARE
6.0SGX16 OFFSET=127 BLACK 5-HOLE
|
8-94135-596-2 |
01 |
1 |
0710-0809 |
|
|
|
● |
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 DISC
6.00GSX16-127(CUV),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 5-WHL/NUT(CVH),FRT&RR
7.5R-16-126GSX16-127(19H)
(A) SPARE
6.0SGX16 OFFSET=127 BLACK 5-HOLE
|
8-94135-596-2 |
01 |
1 |
0810- |
|
|
|
● |
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5-16-8 6GSX16-127(10H),
FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR
7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16
-8L 6GSX16-127(14H),FRT&RR
7.5R-16-126GSX16-127(19H)
(A) FRONT,REAR
6.0SGX16 OFFSET=127 BLACK 5-HOLE
|
8-94135-596-2 |
06 |
1 |
0710-0809 |
|
|
|
● |
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 DISC
6.00GSX16-127(CUV),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 5-WHL/NUT(CVH),FRT&RR
7.5R-16-126GSX16-127(19H)
(A) FRONT,REAR
6.0SGX16 OFFSET=127 BLACK 5-HOLE
|
8-94135-596-2 |
06 |
1 |
0810- |
|
|
|
● |
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115(07H),
FRT&RR 7-16-10 16X5.5F-115 T/VLV
TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),F
RT&RR 7-16-10L 5.5FX16-115 T/VLV TR17
7A(98H)
(A) SPARE
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-1 |
01 |
1 |
0710-0809 |
|
|
|
● |
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-
115(CUW),FRT&RR 7R-16-10
16X5.5F-115(07H)
(A) SPARE
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-1 |
01 |
1 |
0810- |
|
|
|
● |
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115(07H),
FRT&RR 7-16-10 16X5.5F-115 T/VLV
TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),F
RT&RR 7-16-10L 5.5FX16-115 T/VLV TR17
7A(98H)
(A) FRONT,REAR
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-1 |
06 |
1 |
0710-0809 |
|
|
|
● |
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-
115(CUW),FRT&RR 7R-16-10
16X5.5F-115(07H)
(A) FRONT,REAR
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-1 |
06 |
1 |
0810- |
|
|
|
● |
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 225/70R19.5 19.5X6.00-127(CRR)
(B) SPARE
19.5X6.00 OFFSET=127 WHITE 6-HOLE
|
8-97179-773-3 |
01 |
1 |
0710-1005 |
● |
|
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
(B) SPARE
19.5X6.00 OFFSET=127 WHITE 6-HOLE
|
8-97179-773-3 |
01 |
1 |
0710-1005 |
|
● |
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-1
27 WHITE(AVU),FRT&RR 225/70R19.5
19.5X6.00-127(CRR)
(B) SPARE
19.5X6.00 OFFSET=127 WHITE 6-HOLE
|
8-97179-773-4 |
01 |
1 |
1006-1406 |
● |
● |
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 225/70R19.5 19.5X6.00-127(CRR)
(B) SPARE
19.5X6.00 OFFSET=127 WHITE 6-HOLE
|
8-97179-773-4 |
01 |
1 |
1407- |
● |
● |
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 225/70R19.5 19.5X6.00-127(CRR)
(B) REAR
19.5X6.00 OFFSET=127 WHITE 6-HOLE
|
8-97179-773-3 |
04 |
1 |
0710-1005 |
● |
|
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
(B) REAR
19.5X6.00 OFFSET=127 WHITE 6-HOLE
|
8-97179-773-3 |
04 |
1 |
0710-1005 |
|
● |
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-1
27 WHITE(AVU),FRT&RR 225/70R19.5
19.5X6.00-127(CRR)
(B) REAR
19.5X6.00 OFFSET=127 WHITE 6-HOLE
|
8-97179-773-4 |
04 |
1 |
1006-1406 |
● |
● |
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 225/70R19.5 19.5X6.00-127(CRR)
(B) REAR
19.5X6.00 OFFSET=127 WHITE 6-HOLE
|
8-97179-773-4 |
04 |
1 |
1407- |
● |
● |
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 225/70R19.5 19.5X6.00-127(CRR)
(B) FRONT
19.5X6.00 OFFSET=127 WHITE 6-HOLE
|
8-98080-745-0 |
02 |
1 |
0710-1005 |
● |
|
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
(B) FRONT
19.5X6.00 OFFSET=127 WHITE 6-HOLE
|
8-98080-745-0 |
02 |
1 |
0710-1005 |
|
● |
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-1
27 WHITE(AVU),FRT&RR 225/70R19.5
19.5X6.00-127(CRR)
(B) FRONT
19.5X6.00 OFFSET=127 WHITE 6-HOLE
|
8-98080-745-1 |
02 |
1 |
1006-1406 |
● |
● |
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 225/70R19.5 19.5X6.00-127(CRR)
(B) FRONT
19.5X6.00 OFFSET=127 WHITE 6-HOLE
|
8-98080-745-1 |
02 |
1 |
1407- |
● |
● |
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL
/NUT(9ZM),FRT&RR 8.25-16-14
16X6.00GS-135 6-WHL/NUT(9ZP)
(A) SPARE
6.00GSX16 OFFSET=135 BLACK 6-HOLE
|
1-42350-417-0 |
01 |
1 |
0710-0809 |
● |
|
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 8.25R-16-14 6.00GSX16-135 6-WH
L/NUT(CUZ)
(A) SPARE
6.00GSX16 OFFSET=135 BLACK 6-HOLE
|
1-42350-417-0 |
01 |
1 |
0810- |
● |
|
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL
/NUT(9ZM),FRT&RR 8.25-16-14
16X6.00GS-135 6-WHL/NUT(9ZP)
(A) FRONT,REAR
6.00GSX16 OFFSET=135 BLACK 6-HOLE
|
1-42350-417-0 |
06 |
1 |
0710-0809 |
● |
|
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 8.25R-16-14 6.00GSX16-135 6-WH
L/NUT(CUZ)
(A) FRONT,REAR
6.00GSX16 OFFSET=135 BLACK 6-HOLE
|
1-42350-417-0 |
06 |
1 |
0810- |
● |
|
|
|
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 195/85R16
16X5.5J-116.5 5-WHL/NUT(CSK),FRT 195/85R16X
5.5J-116.5RR 185/80R15X5J-116.5(CUE),
FRT&RR 7R-16-10 16X5.5F-115(07H),
FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.
5-16-10 6GSX16-127(11H),FRT&RR
7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L
6GSX16-127(14H),FRT&RR 7.5R-16-12
6GSX16-127(19H),FRT&RR 7-16-10 16X5.5F-1
15 T/VLV TR177A(95H),FRT&RR 7-16-12
16X5.5F-115(96H),FRT&RR 7-16-10L 5.5FX
16-115 T/VLV TR177A(98H)
M27 LH THREAD
|
8-98007-825-0 |
05 |
1 |
0710-0804 |
|
|
● |
● |
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD
|
8-98007-825-0 |
05 |
1 |
0710-0804 |
|
|
|
|
|
● |
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR TIRE 195/85R
16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT
195/85R16X5.5J-116.5RR 185/80R15X5J-11
6.5(CUE),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7.5-16-8 6GSX16-127(10H),
FRT&RR 7.5-16-10 6GSX16-127(11H),
FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7
.5-16-8L 6GSX16-127(14H),FRT&RR
7.5R-16-12 6GSX16-127(19H),FRT&RR 7-16-10
16X5.5F-115 T/VLV TR177A(95H),FRT&RR
7-16-12 16X5.5F-115(96H),FRT&RR
7-16-10L 5.5FX16-115 T/VLV TR177A(98H)
M27 LH THREAD
|
8-98007-825-0 |
05 |
1 |
0805-0809 |
|
|
● |
● |
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD
|
8-98007-825-0 |
05 |
1 |
0805-0809 |
|
|
|
|
|
● |
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR TIRE 195/85R
16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT
195/85R16X5.5J-116.5RR 185/80R15X5J-11
6.5(CUE),FRT&RR 7.5R-16-10 DISC
6.00GSX16-127(CUV),FRT&RR 7.00R-16-10 R/L
DISC 5.50FX16-115(CUW),
FRT&RR7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH),
FRT&RR 7R-16-10 16X5.5F-115(07H),
FRT&RR 7.5R-16-12 6GSX16-127(19H)
M27 LH THREAD
|
8-98007-825-0 |
05 |
1 |
0810-0908 |
|
|
● |
● |
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD
|
8-98007-825-0 |
05 |
1 |
0810-0908 |
|
|
|
|
|
● |
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR TIRE 195/85R
16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT
195/85R16X5.5J-116.5RR 185/80R15X5J-11
6.5(CUE),FRT&RR 7.5R-16-10 DISC
6.00GSX16-127(CUV),FRT&RR 7.00R-16-10 R/L
DISC 5.50FX16-115(CUW),
FRT&RR7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH),
F&R195/85R16(MICHELIN)16X5.5J-116.5 5
-WHL/NUT(CVS),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7.5R-16-12 6GSX16-12
7(19H)
M27 LH THREAD
|
8-98007-825-0 |
05 |
1 |
0909-0910 |
|
|
● |
● |
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD
|
8-98007-825-0 |
05 |
1 |
0909-0910 |
|
|
|
|
|
● |
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT 195/85R16X5.5J-
116.5RR 185/80R15X5J-116.5(CUE),
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-
115(CUW),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 5-WHL/NUT(CVH),
F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),
FRT&RR 7R-16-10 16X5.5F-115(07H),
FRT&RR 7.5R-16-12 6GSX16-127(19H)
M27 LH THREAD
|
8-98007-825-0 |
05 |
1 |
0911-1005 |
|
|
● |
● |
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD
|
8-98007-825-0 |
05 |
1 |
0911-1005 |
|
|
|
|
|
● |
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT 195/85R16X5.5J-
116.5RR 185/80R15X5J-116.5(CUE),
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-
115(CUW),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 5-WHL/NUT(CVH),
F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),
F&R195/85R16(BS BRAND)16X5.5J-116.5 5
-WHL/NUT(CVU),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7.5R-16-12 6GSX16-12
7(19H)
M27 LH THREAD
|
8-98007-825-0 |
05 |
1 |
1006- |
|
|
● |
● |
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD
|
8-98007-825-0 |
05 |
1 |
1006- |
|
|
|
|
|
● |
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 195/85R16
16X5.5J-116.5 5-WHL/NUT(CSK),FRT 195/85R16X
5.5J-116.5RR 185/80R15X5J-116.5(CUE),
FRT&RR 7R-16-10 16X5.5F-115(07H),
FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.
5-16-10 6GSX16-127(11H),FRT&RR
7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L
6GSX16-127(14H),FRT&RR 7.5R-16-12
6GSX16-127(19H),FRT&RR 7-16-10 16X5.5F-1
15 T/VLV TR177A(95H),FRT&RR 7-16-12
16X5.5F-115(96H),FRT&RR 7-16-10L 5.5FX
16-115 T/VLV TR177A(98H)
M27 RH THREAD
|
8-98007-824-0 |
05 |
1 |
0710-0804 |
|
|
● |
● |
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD
|
8-98007-824-0 |
05 |
1 |
0710-0804 |
|
|
|
|
|
● |
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR TIRE 195/85R
16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT
195/85R16X5.5J-116.5RR 185/80R15X5J-11
6.5(CUE),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7.5-16-8 6GSX16-127(10H),
FRT&RR 7.5-16-10 6GSX16-127(11H),
FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7
.5-16-8L 6GSX16-127(14H),FRT&RR
7.5R-16-12 6GSX16-127(19H),FRT&RR 7-16-10
16X5.5F-115 T/VLV TR177A(95H),FRT&RR
7-16-12 16X5.5F-115(96H),FRT&RR
7-16-10L 5.5FX16-115 T/VLV TR177A(98H)
M27 RH THREAD
|
8-98007-824-0 |
05 |
1 |
0805-0809 |
|
|
● |
● |
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD
|
8-98007-824-0 |
05 |
1 |
0805-0809 |
|
|
|
|
|
● |
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR TIRE 195/85R
16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT
195/85R16X5.5J-116.5RR 185/80R15X5J-11
6.5(CUE),FRT&RR 7.5R-16-10 DISC
6.00GSX16-127(CUV),FRT&RR 7.00R-16-10 R/L
DISC 5.50FX16-115(CUW),
FRT&RR7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH),
FRT&RR 7R-16-10 16X5.5F-115(07H),
FRT&RR 7.5R-16-12 6GSX16-127(19H)
M27 RH THREAD
|
8-98007-824-0 |
05 |
1 |
0810-0908 |
|
|
● |
● |
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD
|
8-98007-824-0 |
05 |
1 |
0810-0908 |
|
|
|
|
|
● |
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR TIRE 195/85R
16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT
195/85R16X5.5J-116.5RR 185/80R15X5J-11
6.5(CUE),FRT&RR 7.5R-16-10 DISC
6.00GSX16-127(CUV),FRT&RR 7.00R-16-10 R/L
DISC 5.50FX16-115(CUW),
FRT&RR7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH),
F&R195/85R16(MICHELIN)16X5.5J-116.5 5
-WHL/NUT(CVS),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7.5R-16-12 6GSX16-12
7(19H)
M27 RH THREAD
|
8-98007-824-0 |
05 |
1 |
0909-0910 |
|
|
● |
● |
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD
|
8-98007-824-0 |
05 |
1 |
0909-0910 |
|
|
|
|
|
● |
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT 195/85R16X5.5J-
116.5RR 185/80R15X5J-116.5(CUE),
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-
115(CUW),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 5-WHL/NUT(CVH),
F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),
FRT&RR 7R-16-10 16X5.5F-115(07H),
FRT&RR 7.5R-16-12 6GSX16-127(19H)
M27 RH THREAD
|
8-98007-824-0 |
05 |
1 |
0911-1005 |
|
|
● |
● |
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD
|
8-98007-824-0 |
05 |
1 |
0911-1005 |
|
|
|
|
|
● |
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT 195/85R16X5.5J-
116.5RR 185/80R15X5J-116.5(CUE),
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-
115(CUW),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 5-WHL/NUT(CVH),
F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),
F&R195/85R16(BS BRAND)16X5.5J-116.5 5
-WHL/NUT(CVU),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7.5R-16-12 6GSX16-12
7(19H)
M27 RH THREAD
|
8-98007-824-0 |
05 |
1 |
1006- |
|
|
● |
● |
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD
|
8-98007-824-0 |
05 |
1 |
1006- |
|
|
|
|
|
● |
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),FRT&RR 225/70R19.5
19.5X6.00-127(CRR),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17.
5(MICHELIN)17.5X6.00-127(CSM),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),
FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127
SILVER(CTV),FRT&RR 7.5-16-12
6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6
GSX16-127 6-WHL/NUT(04C),FRT&RR
7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&R
R 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6.00GS-1
35 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14
16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 7.
5-16-10L 6GSX16-127 6WHL/NUT
DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WH
L/NUT DYNAMIC(97V)
M30 LH THREAD
|
8-97359-810-0 |
06 |
1 |
0710-0710 |
● |
|
|
● |
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M30 LH THREAD
|
8-97359-810-0 |
06 |
1 |
0710-0710 |
|
● |
|
|
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),FRT&RR 225/70R19.5
19.5X6.00-127(CRR),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE
205/85R16 DISC 16-5.5J-116.5(CSB),FRT&R
R 215/85R16 16X6K-128(CSC),F&R TIRE
205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR TIRE 215-75R17.5 DISC
17.5-6-127SILVER(CTV),FRT&RR 7.5-16-12
6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5
-16-12L 6GSX16-127 6-WHL/NUT(04C),
FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-12
7 6-WHL/NUT(9BP),FRT&RR 8.25-16-12
16X6.00GS-135 6-WHL/NUT(9ZM),FRT&RR 8.2
5-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),
FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT
DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16
-127 6-WHL/NUT DYNAMIC(97V)
M30 LH THREAD
|
8-97359-810-0 |
06 |
1 |
0710-0804 |
● |
|
|
● |
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M30 LH THREAD
|
8-97359-810-0 |
06 |
1 |
0710-0804 |
|
● |
|
|
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),FRT&RR 225/70R19.5
19.5X6.00-127(CRR),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17.
5(MICHELIN)17.5X6.00-127(CSM),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),
FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127
SILVER(CTV),FRT&RR 7.5-16-12
6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6
GSX16-127 6-WHL/NUT(04C),FRT&RR
7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&R
R 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6.00GS-1
35 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14
16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 7.
5-16-10L 6GSX16-127 6WHL/NUT
DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WH
L/NUT DYNAMIC(97V)
M30 LH THREAD
|
8-97359-810-0 |
06 |
1 |
0805-0809 |
● |
|
|
● |
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M30 LH THREAD
|
8-97359-810-0 |
06 |
1 |
0805-0809 |
|
● |
|
|
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),FRT&RR 225/70R19.5
19.5X6.00-127(CRR),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17.
5(MICHELIN)17.5X6.00-127(CSM),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),
FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127
SILVER(CTV),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 8.25
R-16-14 6.00GSX16-135 6-WHL/NUT(CUZ),
FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NU
T(05C),FRT&RR 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V)
M30 LH THREAD
|
8-97359-810-0 |
06 |
1 |
0810-1005 |
● |
|
|
● |
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M30 LH THREAD
|
8-97359-810-0 |
06 |
1 |
0810-1005 |
|
● |
|
|
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-1
27 WHITE(AVU),FRT&RR 215/75R17.5
17.5X6.00-127 SILVER(CQU),FRT&RR 225/70R1
9.5 19.5X6.00-127(CRR),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),
FRT&RR 215/85R16 16X6K-128(CSC),F&R
TIRE 205/75R17.5(MICHELIN)17.5X6.00-12
7(CSM),FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR TIRE 215-75R17.5 D
ISC 17.5-6-127SILVER(CTV),
FRT&RR7.50R-16-12 R/L 6.00GSX16-127
6-WHL/NUT(CUX),FRT&RR 8.25R-16-14 6.00GSX16-135
6-WHL/NUT(CUZ),F&R TIRE
205/75R17.5(BSBRAND)17.5X6.00-127(CVV),F&R
215/75R17.5(BS BRAND)17.5X6.00-127
SILVER(CVW),FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-12
7 6-WHL/NUT(83V)
M30 LH THREAD
|
8-97359-810-0 |
06 |
1 |
1006- |
● |
|
|
● |
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M30 LH THREAD
|
8-97359-810-0 |
06 |
1 |
1006- |
|
● |
|
|
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),FRT&RR 225/70R19.5
19.5X6.00-127(CRR),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17.
5(MICHELIN)17.5X6.00-127(CSM),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),
FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127
SILVER(CTV),FRT&RR 7.5-16-12
6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6
GSX16-127 6-WHL/NUT(04C),FRT&RR
7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&R
R 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6.00GS-1
35 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14
16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 7.
5-16-10L 6GSX16-127 6WHL/NUT
DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WH
L/NUT DYNAMIC(97V)
M30 RH THREAD
|
8-97359-809-0 |
06 |
1 |
0710-0710 |
● |
|
|
● |
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M30 RH THREAD
|
8-97359-809-0 |
06 |
1 |
0710-0710 |
|
● |
|
|
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),FRT&RR 225/70R19.5
19.5X6.00-127(CRR),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE
205/85R16 DISC 16-5.5J-116.5(CSB),FRT&R
R 215/85R16 16X6K-128(CSC),F&R TIRE
205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR TIRE 215-75R17.5 DISC
17.5-6-127SILVER(CTV),FRT&RR 7.5-16-12
6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5
-16-12L 6GSX16-127 6-WHL/NUT(04C),
FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-12
7 6-WHL/NUT(9BP),FRT&RR 8.25-16-12
16X6.00GS-135 6-WHL/NUT(9ZM),FRT&RR 8.2
5-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),
FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT
DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16
-127 6-WHL/NUT DYNAMIC(97V)
M30 RH THREAD
|
8-97359-809-0 |
06 |
1 |
0710-0804 |
● |
|
|
● |
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M30 RH THREAD
|
8-97359-809-0 |
06 |
1 |
0710-0804 |
|
● |
|
|
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),FRT&RR 225/70R19.5
19.5X6.00-127(CRR),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17.
5(MICHELIN)17.5X6.00-127(CSM),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),
FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127
SILVER(CTV),FRT&RR 7.5-16-12
6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6
GSX16-127 6-WHL/NUT(04C),FRT&RR
7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&R
R 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6.00GS-1
35 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14
16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 7.
5-16-10L 6GSX16-127 6WHL/NUT
DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WH
L/NUT DYNAMIC(97V)
M30 RH THREAD
|
8-97359-809-0 |
06 |
1 |
0805-0809 |
● |
|
|
● |
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M30 RH THREAD
|
8-97359-809-0 |
06 |
1 |
0805-0809 |
|
● |
|
|
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),FRT&RR 225/70R19.5
19.5X6.00-127(CRR),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17.
5(MICHELIN)17.5X6.00-127(CSM),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),
FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127
SILVER(CTV),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 8.25
R-16-14 6.00GSX16-135 6-WHL/NUT(CUZ),
FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NU
T(05C),FRT&RR 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V)
M30 RH THREAD
|
8-97359-809-0 |
06 |
1 |
0810-1005 |
● |
|
|
● |
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M30 RH THREAD
|
8-97359-809-0 |
06 |
1 |
0810-1005 |
|
● |
|
|
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-1
27 WHITE(AVU),FRT&RR 215/75R17.5
17.5X6.00-127 SILVER(CQU),FRT&RR 225/70R1
9.5 19.5X6.00-127(CRR),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),
FRT&RR 215/85R16 16X6K-128(CSC),F&R
TIRE 205/75R17.5(MICHELIN)17.5X6.00-12
7(CSM),FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR TIRE 215-75R17.5 D
ISC 17.5-6-127SILVER(CTV),
FRT&RR7.50R-16-12 R/L 6.00GSX16-127
6-WHL/NUT(CUX),FRT&RR 8.25R-16-14 6.00GSX16-135
6-WHL/NUT(CUZ),F&R TIRE
205/75R17.5(BSBRAND)17.5X6.00-127(CVV),F&R
215/75R17.5(BS BRAND)17.5X6.00-127
SILVER(CVW),FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-12
7 6-WHL/NUT(83V)
M30 RH THREAD
|
8-97359-809-0 |
06 |
1 |
1006- |
● |
|
|
● |
● |
|
| |
4 |

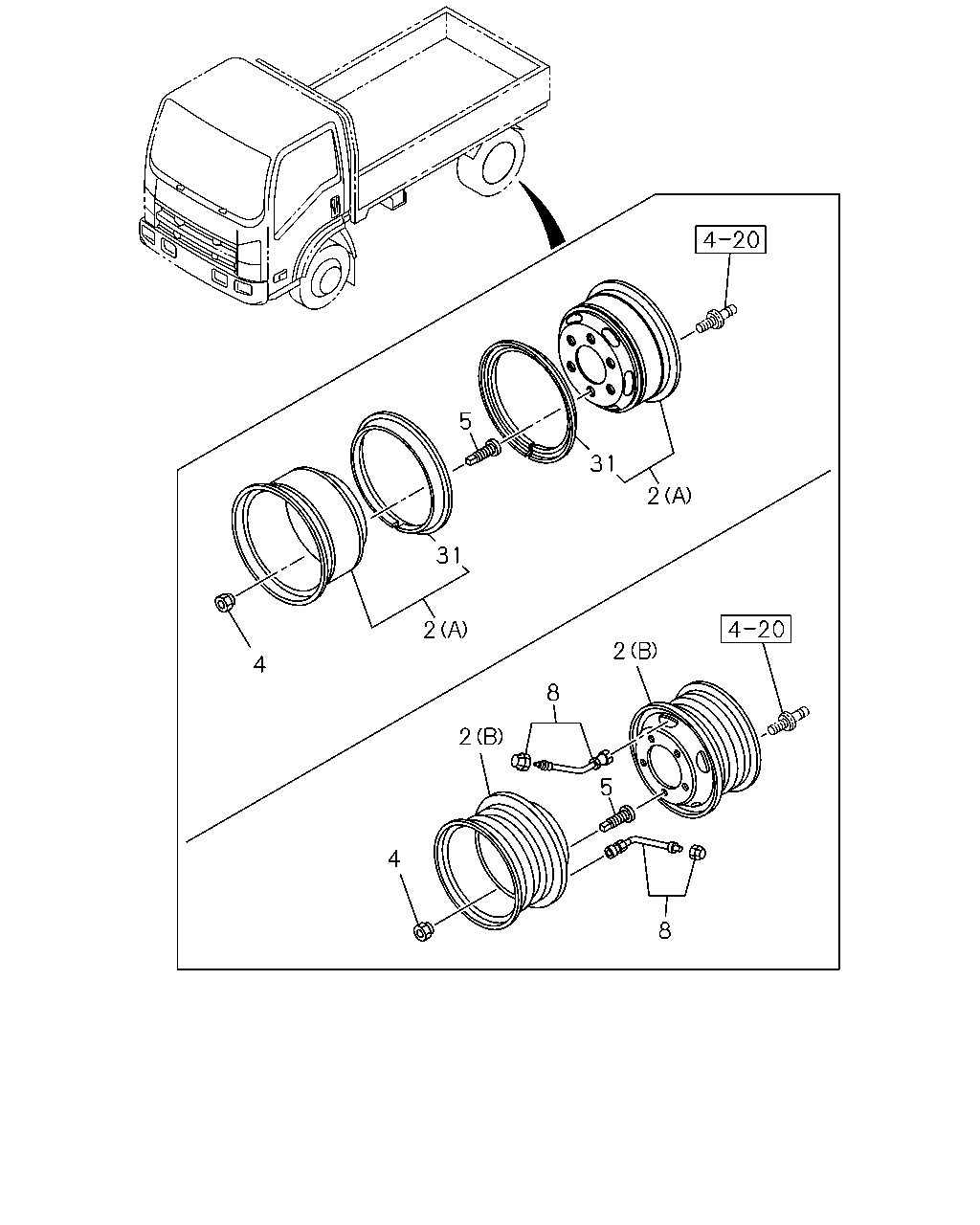

05.813 NUT; WHEEL,RR AXLE
M30 RH THREAD
|
8-97359-809-0 |
06 |
1 |
1006- |
|
● |
|
|
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 195/85R16
16X5.5J-116.5 5-WHL/NUT(CSK),FRT 195/85R16X
5.5J-116.5RR 185/80R15X5J-116.5(CUE),
FRT&RR 7R-16-10 16X5.5F-115(07H),
FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.
5-16-10 6GSX16-127(11H),FRT&RR
7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L
6GSX16-127(14H),FRT&RR 7.5R-16-12
6GSX16-127(19H),FRT&RR 7-16-10 16X5.5F-1
15 T/VLV TR177A(95H),FRT&RR 7-16-12
16X5.5F-115(96H),FRT&RR 7-16-10L 5.5FX
16-115 T/VLV TR177A(98H)
OUTER M27,INNER M18 LH THREAD
|
8-98007-811-0 |
05 |
1 |
0710-0710 |
|
|
● |
● |
● |
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 LH THREAD
|
8-98007-811-0 |
05 |
1 |
0710-0710 |
|
|
|
|
|
● |
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR TIRE 195/85R
16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT
195/85R16X5.5J-116.5RR 185/80R15X5J-11
6.5(CUE),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7.5-16-8 6GSX16-127(10H),
FRT&RR 7.5-16-10 6GSX16-127(11H),
FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7
.5-16-8L 6GSX16-127(14H),FRT&RR
7.5R-16-12 6GSX16-127(19H),FRT&RR 7-16-10
16X5.5F-115 T/VLV TR177A(95H),FRT&RR
7-16-12 16X5.5F-115(96H),FRT&RR
7-16-10L 5.5FX16-115 T/VLV TR177A(98H)
OUTER M27,INNER M18 LH THREAD
|
8-98007-811-0 |
05 |
1 |
0710-0809 |
|
|
● |
● |
● |
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 LH THREAD
|
8-98007-811-0 |
05 |
1 |
0710-0809 |
|
|
|
|
|
● |
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR TIRE 195/85R
16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT
195/85R16X5.5J-116.5RR 185/80R15X5J-11
6.5(CUE),FRT&RR 7.5R-16-10 DISC
6.00GSX16-127(CUV),FRT&RR 7.00R-16-10 R/L
DISC 5.50FX16-115(CUW),
FRT&RR7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH),
FRT&RR 7R-16-10 16X5.5F-115(07H),
FRT&RR 7.5R-16-12 6GSX16-127(19H)
OUTER M27,INNER M18 LH THREAD
|
8-98007-811-0 |
05 |
1 |
0810-0908 |
|
|
● |
● |
● |
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 LH THREAD
|
8-98007-811-0 |
05 |
1 |
0810-0908 |
|
|
|
|
|
● |
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR TIRE 195/85R
16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT
195/85R16X5.5J-116.5RR 185/80R15X5J-11
6.5(CUE),FRT&RR 7.5R-16-10 DISC
6.00GSX16-127(CUV),FRT&RR 7.00R-16-10 R/L
DISC 5.50FX16-115(CUW),
FRT&RR7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH),
F&R195/85R16(MICHELIN)16X5.5J-116.5 5
-WHL/NUT(CVS),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7.5R-16-12 6GSX16-12
7(19H)
OUTER M27,INNER M18 LH THREAD
|
8-98007-811-0 |
05 |
1 |
0909-0910 |
|
|
● |
● |
● |
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 LH THREAD
|
8-98007-811-0 |
05 |
1 |
0909-0910 |
|
|
|
|
|
● |
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT 195/85R16X5.5J-
116.5RR 185/80R15X5J-116.5(CUE),
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-
115(CUW),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 5-WHL/NUT(CVH),
F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),
FRT&RR 7R-16-10 16X5.5F-115(07H),
FRT&RR 7.5R-16-12 6GSX16-127(19H)
OUTER M27,INNER M18 LH THREAD
|
8-98007-811-0 |
05 |
1 |
0911-1005 |
|
|
● |
● |
● |
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 LH THREAD
|
8-98007-811-0 |
05 |
1 |
0911-1005 |
|
|
|
|
|
● |
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT 195/85R16X5.5J-
116.5RR 185/80R15X5J-116.5(CUE),
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-
115(CUW),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 5-WHL/NUT(CVH),
F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),
F&R195/85R16(BS BRAND)16X5.5J-116.5 5
-WHL/NUT(CVU),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7.5R-16-12 6GSX16-12
7(19H)
OUTER M27,INNER M18 LH THREAD
|
8-98007-811-0 |
05 |
1 |
1006- |
|
|
● |
● |
● |
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 LH THREAD
|
8-98007-811-0 |
05 |
1 |
1006- |
|
|
|
|
|
● |
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 195/85R16
16X5.5J-116.5 5-WHL/NUT(CSK),FRT 195/85R16X
5.5J-116.5RR 185/80R15X5J-116.5(CUE),
FRT&RR 7R-16-10 16X5.5F-115(07H),
FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.
5-16-10 6GSX16-127(11H),FRT&RR
7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L
6GSX16-127(14H),FRT&RR 7.5R-16-12
6GSX16-127(19H),FRT&RR 7-16-10 16X5.5F-1
15 T/VLV TR177A(95H),FRT&RR 7-16-12
16X5.5F-115(96H),FRT&RR 7-16-10L 5.5FX
16-115 T/VLV TR177A(98H)
OUTER M27,INNER M18 RH THREAD
|
8-98007-810-0 |
05 |
1 |
0710-0710 |
|
|
● |
● |
● |
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 RH THREAD
|
8-98007-810-0 |
05 |
1 |
0710-0710 |
|
|
|
|
|
● |
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR TIRE 195/85R
16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT
195/85R16X5.5J-116.5RR 185/80R15X5J-11
6.5(CUE),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7.5-16-8 6GSX16-127(10H),
FRT&RR 7.5-16-10 6GSX16-127(11H),
FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7
.5-16-8L 6GSX16-127(14H),FRT&RR
7.5R-16-12 6GSX16-127(19H),FRT&RR 7-16-10
16X5.5F-115 T/VLV TR177A(95H),FRT&RR
7-16-12 16X5.5F-115(96H),FRT&RR
7-16-10L 5.5FX16-115 T/VLV TR177A(98H)
OUTER M27,INNER M18 RH THREAD
|
8-98007-810-0 |
05 |
1 |
0710-0809 |
|
|
● |
● |
● |
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 RH THREAD
|
8-98007-810-0 |
05 |
1 |
0710-0809 |
|
|
|
|
|
● |
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR TIRE 195/85R
16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT
195/85R16X5.5J-116.5RR 185/80R15X5J-11
6.5(CUE),FRT&RR 7.5R-16-10 DISC
6.00GSX16-127(CUV),FRT&RR 7.00R-16-10 R/L
DISC 5.50FX16-115(CUW),
FRT&RR7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH),
FRT&RR 7R-16-10 16X5.5F-115(07H),
FRT&RR 7.5R-16-12 6GSX16-127(19H)
OUTER M27,INNER M18 RH THREAD
|
8-98007-810-0 |
05 |
1 |
0810-0908 |
|
|
● |
● |
● |
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 RH THREAD
|
8-98007-810-0 |
05 |
1 |
0810-0908 |
|
|
|
|
|
● |
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR TIRE 195/85R
16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT
195/85R16X5.5J-116.5RR 185/80R15X5J-11
6.5(CUE),FRT&RR 7.5R-16-10 DISC
6.00GSX16-127(CUV),FRT&RR 7.00R-16-10 R/L
DISC 5.50FX16-115(CUW),
FRT&RR7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH),
F&R195/85R16(MICHELIN)16X5.5J-116.5 5
-WHL/NUT(CVS),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7.5R-16-12 6GSX16-12
7(19H)
OUTER M27,INNER M18 RH THREAD
|
8-98007-810-0 |
05 |
1 |
0909-0910 |
|
|
● |
● |
● |
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 RH THREAD
|
8-98007-810-0 |
05 |
1 |
0909-0910 |
|
|
|
|
|
● |
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT 195/85R16X5.5J-
116.5RR 185/80R15X5J-116.5(CUE),
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-
115(CUW),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 5-WHL/NUT(CVH),
F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),
FRT&RR 7R-16-10 16X5.5F-115(07H),
FRT&RR 7.5R-16-12 6GSX16-127(19H)
OUTER M27,INNER M18 RH THREAD
|
8-98007-810-0 |
05 |
1 |
0911-1005 |
|
|
● |
● |
● |
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 RH THREAD
|
8-98007-810-0 |
05 |
1 |
0911-1005 |
|
|
|
|
|
● |
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT 195/85R16X5.5J-
116.5RR 185/80R15X5J-116.5(CUE),
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-
115(CUW),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 5-WHL/NUT(CVH),
F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),
F&R195/85R16(BS BRAND)16X5.5J-116.5 5
-WHL/NUT(CVU),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7.5R-16-12 6GSX16-12
7(19H)
OUTER M27,INNER M18 RH THREAD
|
8-98007-810-0 |
05 |
1 |
1006- |
|
|
● |
● |
● |
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 RH THREAD
|
8-98007-810-0 |
05 |
1 |
1006- |
|
|
|
|
|
● |
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),FRT&RR 225/70R19.5
19.5X6.00-127(CRR),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17.
5(MICHELIN)17.5X6.00-127(CSM),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),
FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127
SILVER(CTV),FRT&RR 7.5-16-12
6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6
GSX16-127 6-WHL/NUT(04C),FRT&RR
7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&R
R 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6.00GS-1
35 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14
16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 7.
5-16-10L 6GSX16-127 6WHL/NUT
DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WH
L/NUT DYNAMIC(97V)
OUTER M30,INNER M20 LH THREAD
|
8-97359-806-0 |
06 |
1 |
0710-0809 |
● |
|
|
● |
● |
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD
|
8-97359-806-0 |
06 |
1 |
0710-0809 |
|
● |
|
|
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),FRT&RR 225/70R19.5
19.5X6.00-127(CRR),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17.
5(MICHELIN)17.5X6.00-127(CSM),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),
FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127
SILVER(CTV),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 8.25
R-16-14 6.00GSX16-135 6-WHL/NUT(CUZ),
FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NU
T(05C),FRT&RR 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V)
OUTER M30,INNER M20 LH THREAD
|
8-97359-806-0 |
06 |
1 |
0810-1005 |
● |
|
|
● |
● |
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD
|
8-97359-806-0 |
06 |
1 |
0810-1005 |
|
● |
|
|
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-1
27 WHITE(AVU),FRT&RR 215/75R17.5
17.5X6.00-127 SILVER(CQU),FRT&RR 225/70R1
9.5 19.5X6.00-127(CRR),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),
FRT&RR 215/85R16 16X6K-128(CSC),F&R
TIRE 205/75R17.5(MICHELIN)17.5X6.00-12
7(CSM),FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR TIRE 215-75R17.5 D
ISC 17.5-6-127SILVER(CTV),
FRT&RR7.50R-16-12 R/L 6.00GSX16-127
6-WHL/NUT(CUX),FRT&RR 8.25R-16-14 6.00GSX16-135
6-WHL/NUT(CUZ),F&R TIRE
205/75R17.5(BSBRAND)17.5X6.00-127(CVV),F&R
215/75R17.5(BS BRAND)17.5X6.00-127
SILVER(CVW),FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-12
7 6-WHL/NUT(83V)
OUTER M30,INNER M20 LH THREAD
|
8-97359-806-0 |
06 |
1 |
1006- |
● |
|
|
● |
● |
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD
|
8-97359-806-0 |
06 |
1 |
1006- |
|
● |
|
|
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),FRT&RR 225/70R19.5
19.5X6.00-127(CRR),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17.
5(MICHELIN)17.5X6.00-127(CSM),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),
FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127
SILVER(CTV),FRT&RR 7.5-16-12
6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6
GSX16-127 6-WHL/NUT(04C),FRT&RR
7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&R
R 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6.00GS-1
35 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14
16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 7.
5-16-10L 6GSX16-127 6WHL/NUT
DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WH
L/NUT DYNAMIC(97V)
OUTER M30,INNER M20 RH THREAD
|
8-97359-805-0 |
06 |
1 |
0710-0809 |
● |
|
|
● |
● |
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD
|
8-97359-805-0 |
06 |
1 |
0710-0809 |
|
● |
|
|
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),FRT&RR 225/70R19.5
19.5X6.00-127(CRR),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17.
5(MICHELIN)17.5X6.00-127(CSM),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),
FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127
SILVER(CTV),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 8.25
R-16-14 6.00GSX16-135 6-WHL/NUT(CUZ),
FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NU
T(05C),FRT&RR 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V)
OUTER M30,INNER M20 RH THREAD
|
8-97359-805-0 |
06 |
1 |
0810-1005 |
● |
|
|
● |
● |
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD
|
8-97359-805-0 |
06 |
1 |
0810-1005 |
|
● |
|
|
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-1
27 WHITE(AVU),FRT&RR 215/75R17.5
17.5X6.00-127 SILVER(CQU),FRT&RR 225/70R1
9.5 19.5X6.00-127(CRR),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),
FRT&RR 215/85R16 16X6K-128(CSC),F&R
TIRE 205/75R17.5(MICHELIN)17.5X6.00-12
7(CSM),FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR TIRE 215-75R17.5 D
ISC 17.5-6-127SILVER(CTV),
FRT&RR7.50R-16-12 R/L 6.00GSX16-127
6-WHL/NUT(CUX),FRT&RR 8.25R-16-14 6.00GSX16-135
6-WHL/NUT(CUZ),F&R TIRE
205/75R17.5(BSBRAND)17.5X6.00-127(CVV),F&R
215/75R17.5(BS BRAND)17.5X6.00-127
SILVER(CVW),FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-12
7 6-WHL/NUT(83V)
OUTER M30,INNER M20 RH THREAD
|
8-97359-805-0 |
06 |
1 |
1006- |
● |
|
|
● |
● |
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD
|
8-97359-805-0 |
06 |
1 |
1006- |
|
● |
|
|
|
|
| |
8 |
05.875 VALVE; TIRE
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-1
27 WHITE(AVU),FRT&RR 225/70R19.5
19.5X6.00-127(CRR)
SPARE
|
1-42370-010-1 |
01 |
1 |
0710-1406 |
● |
● |
|
|
|
|
| |
8 |
05.875 VALVE; TIRE
FRT&RR 225/70R19.5 19.5X6.00-127(CRR)
|
1-42370-010-1 |
01 |
1 |
1407- |
● |
● |
|
|
|
|
| |
8 |
05.875 VALVE; TIRE
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-1
27 WHITE(AVU),FRT&RR 225/70R19.5
19.5X6.00-127(CRR)
FRONT,REAR
|
1-42370-010-1 |
06 |
1 |
0710-1406 |
● |
● |
|
|
|
|
| |
8 |
05.875 VALVE; TIRE
FRT&RR 225/70R19.5 19.5X6.00-127(CRR)
|
1-42370-010-1 |
06 |
1 |
1407- |
● |
● |
|
|
|
|
| |
8 |
05.875 VALVE; TIRE
FRT 195/85R16X5.5J-116.5RR 185/80R15X
5J-116.5(CUE)
FRONT
|
8-98221-106-0 |
02 |
1 |
0710- |
|
|
● |
|
|
|
| |
8 |
05.875 VALVE; TIRE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA)
FRONT
|
8-98221-106-0 |
02 |
1 |
0710- |
|
|
|
● |
● |
|
| |
8 |
05.875 VALVE; TIRE
FRT 195/85R16X5.5J-116.5RR 185/80R15X
5J-116.5(CUE)
REAR
|
8-98221-106-0 |
04 |
1 |
0710- |
|
|
● |
|
|
|
| |
8 |
05.875 VALVE; TIRE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA)
REAR
|
8-98221-106-0 |
04 |
1 |
0710- |
|
|
|
● |
● |
|
| |
8 |
05.875 VALVE; TIRE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR 215/85R16 16
X6K-128(CSC),FRT
195/85R16X5.5J-116.5RR 185/80R15X5J-116.5(CUE),F&R195/85R
16(MICHELIN)16X5.5J-116.5
5-WHL/NUT(CVS),F&R195/85R16(BS
BRAND)16X5.5J-116.5 5-WHL/NUT(CVU)
SPARE
|
8-98221-106-0 |
01 |
1 |
0710- |
|
|
● |
● |
● |
● |
| |
8 |
05.875 VALVE; TIRE
F&R195/85R16(MICHELIN)16X5.5J-116.5 5
-WHL/NUT(CVS),F&R195/85R16(BS
BRAND)16X5.5J-116.5 5-WHL/NUT(CVU)
FRONT,REAR
|
8-98221-106-0 |
06 |
1 |
0710- |
|
|
● |
|
|
● |
| |
8 |
05.875 VALVE; TIRE
FRT&RR TIRE 205/85R16 DISC 16-5.5J-11
6.5(CSB),FRT&RR 215/85R16
16X6K-128(CSC),
F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),F&R195/85R16(BS
BRAND)16X5.5J-116.5 5-WHL/NUT(CVU)
FRONT,REAR
|
8-98221-106-0 |
06 |
1 |
0710- |
|
|
|
● |
|
|
| |
8 |
05.875 VALVE; TIRE
FRT&RR 215/85R16 16X6K-128(CSC)
FRONT,REAR
|
8-98221-106-0 |
06 |
1 |
0710- |
|
|
|
|
● |
|
| |
8 |
05.875 VALVE; TIRE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE
205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),F&R TIRE 205/75R17.5(BS
BRAND)17.5X6.00-127(CVV),F&R 215/75R17.
5(BS BRAND)17.5X6.00-127 SILVER(CVW)
SPARE
|
8-98221-112-0 |
01 |
1 |
0710-1406 |
● |
|
|
● |
● |
|
| |
8 |
05.875 VALVE; TIRE
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-1
27 WHITE(AVU),FRT&RR 215/75R17.5
17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5
(MICHELIN)17.5X6.00-127 SILVER(CRV),
F&R TIRE 205/75R17.5(MICHELIN)17.5X6.0
0-127(CSM),FRT&RR TIRE 215-75R17.5
DISC 17.5-6-127SILVER(CTV),F&R TIRE 205
/75R17.5(BS BRAND)17.5X6.00-127(CVV),
F&R 215/75R17.5(BS BRAND)17.5X6.00-12
7 SILVER(CVW)
|
8-98221-112-0 |
01 |
1 |
1407- |
● |
● |
|
● |
● |
|
| |
8 |
05.875 VALVE; TIRE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE
215-75R17.5 DISC 17.5-6-127SILVER(CTV),F
&R 215/75R17.5(BS BRAND)17.5X6.00-127
SILVER(CVW)
FRONT
|
8-98221-112-0 |
02 |
1 |
0710- |
● |
|
|
● |
● |
|
| |
8 |
05.875 VALVE; TIRE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE
215-75R17.5 DISC 17.5-6-127SILVER(CTV),F
&R 215/75R17.5(BS BRAND)17.5X6.00-127
SILVER(CVW)
REAR
|
8-98221-112-0 |
04 |
1 |
0710- |
● |
|
|
● |
● |
|
| |
8 |
05.875 VALVE; TIRE
F&R TIRE 205/75R17.5(MICHELIN)17.5X6.
00-127(CSM),F&R TIRE 205/75R17.5(BS
BRAND)17.5X6.00-127(CVV)
FRONT,REAR
|
8-98221-112-0 |
06 |
1 |
0710-1406 |
|
|
|
● |
● |
|
| |
8 |
05.875 VALVE; TIRE
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-1
27 WHITE(AVU),F&R TIRE
205/75R17.5(MICHELIN)17.5X6.00-127(CSM),F&R TIRE
205/75R17.5(BS BRAND)17.5X6.00-127(CVV)
|
8-98221-112-0 |
06 |
1 |
1407- |
● |
● |
|
● |
● |
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127
6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-1
27 6-WHL/NUT(04C),FRT&RR 7.5R-16-12
6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-
16-10 6GSX16-127 6-WHL/NUT(83V),
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP)
,FRT&RR 7.5-16-10L 6GSX16-127
6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX1
6-127 6-WHL/NUT DYNAMIC(97V)
SPARE
16X6.00GS STAMP, BLACK
|
8-94412-585-0 |
01 |
1 |
0710-0809 |
● |
|
|
● |
● |
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR
7.5R-16-126GSX16-127 6-WHL/NUT(05C),FRT&RR
7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)
SPARE
16X6.00GS STAMP, BLACK
|
8-94412-585-0 |
01 |
1 |
0810- |
● |
|
|
● |
● |
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127
6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-1
27 6-WHL/NUT(04C),FRT&RR 7.5R-16-12
6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-
16-10 6GSX16-127 6-WHL/NUT(83V),
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP)
,FRT&RR 7.5-16-10L 6GSX16-127
6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX1
6-127 6-WHL/NUT DYNAMIC(97V)
FRONT,REAR
16X6.00GS STAMP, BLACK
|
8-94412-585-0 |
06 |
1 |
0710-0809 |
● |
|
|
● |
● |
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR
7.5R-16-126GSX16-127 6-WHL/NUT(05C),FRT&RR
7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)
FRONT,REAR
16X6.00GS STAMP, BLACK
|
8-94412-585-0 |
06 |
1 |
0810- |
● |
|
|
● |
● |
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-8 6GSX16-127(10H),
FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR
7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16
-8L 6GSX16-127(14H),FRT&RR
7.5R-16-126GSX16-127(19H)
SPARE
16X6.00GS STAMP, BLACK
|
8-94135-602-0 |
01 |
1 |
0710-0809 |
|
|
|
● |
● |
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 DISC
6.00GSX16-127(CUV),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 5-WHL/NUT(CVH),FRT&RR
7.5R-16-126GSX16-127(19H)
SPARE
16X6.00GS STAMP, BLACK
|
8-94135-602-0 |
01 |
1 |
0810- |
|
|
|
● |
● |
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-8 6GSX16-127(10H),
FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR
7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16
-8L 6GSX16-127(14H),FRT&RR
7.5R-16-126GSX16-127(19H)
FRONT,REAR
16X6.00GS STAMP, BLACK
|
8-94135-602-0 |
06 |
1 |
0710-0809 |
|
|
|
● |
● |
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 DISC
6.00GSX16-127(CUV),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 5-WHL/NUT(CVH),FRT&RR
7.5R-16-126GSX16-127(19H)
FRONT,REAR
16X6.00GS STAMP, BLACK
|
8-94135-602-0 |
06 |
1 |
0810- |
|
|
|
● |
● |
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115(07H),
FRT&RR 7-16-10 16X5.5F-115 T/VLV
TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),F
RT&RR 7-16-10L 5.5FX16-115 T/VLV TR17
7A(98H)
SPARE
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
01 |
1 |
0710-0809 |
|
|
|
● |
● |
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-
115(CUW),FRT&RR 7R-16-10
16X5.5F-115(07H)
SPARE
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
01 |
1 |
0810- |
|
|
|
● |
● |
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115(07H),
FRT&RR 7-16-10 16X5.5F-115 T/VLV
TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),F
RT&RR 7-16-10L 5.5FX16-115 T/VLV TR17
7A(98H)
FRONT,REAR
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
06 |
1 |
0710-0809 |
|
|
|
● |
● |
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-
115(CUW),FRT&RR 7R-16-10
16X5.5F-115(07H)
FRONT,REAR
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
06 |
1 |
0810- |
|
|
|
● |
● |
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL
/NUT(9ZM),FRT&RR 8.25-16-14
16X6.00GS-135 6-WHL/NUT(9ZP)
SPARE
16X6.00GS STAMP, BLACK
|
1-42355-015-2 |
01 |
1 |
0710-0809 |
● |
|
|
|
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 8.25R-16-14 6.00GSX16-135 6-WH
L/NUT(CUZ)
SPARE
16X6.00GS STAMP, BLACK
|
1-42355-015-2 |
01 |
1 |
0810- |
● |
|
|
|
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL
/NUT(9ZM),FRT&RR 8.25-16-14
16X6.00GS-135 6-WHL/NUT(9ZP)
FRONT,REAR
16X6.00GS STAMP, BLACK
|
1-42355-015-2 |
06 |
1 |
0710-0809 |
● |
|
|
|
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 8.25R-16-14 6.00GSX16-135 6-WH
L/NUT(CUZ)
FRONT,REAR
16X6.00GS STAMP, BLACK
|
1-42355-015-2 |
06 |
1 |
0810- |
● |
|
|
|
|
|
