Sayfa 4-60 - Isuzu EPC

4-60 — REAR SUSPENSION (#54822) — 249 parça

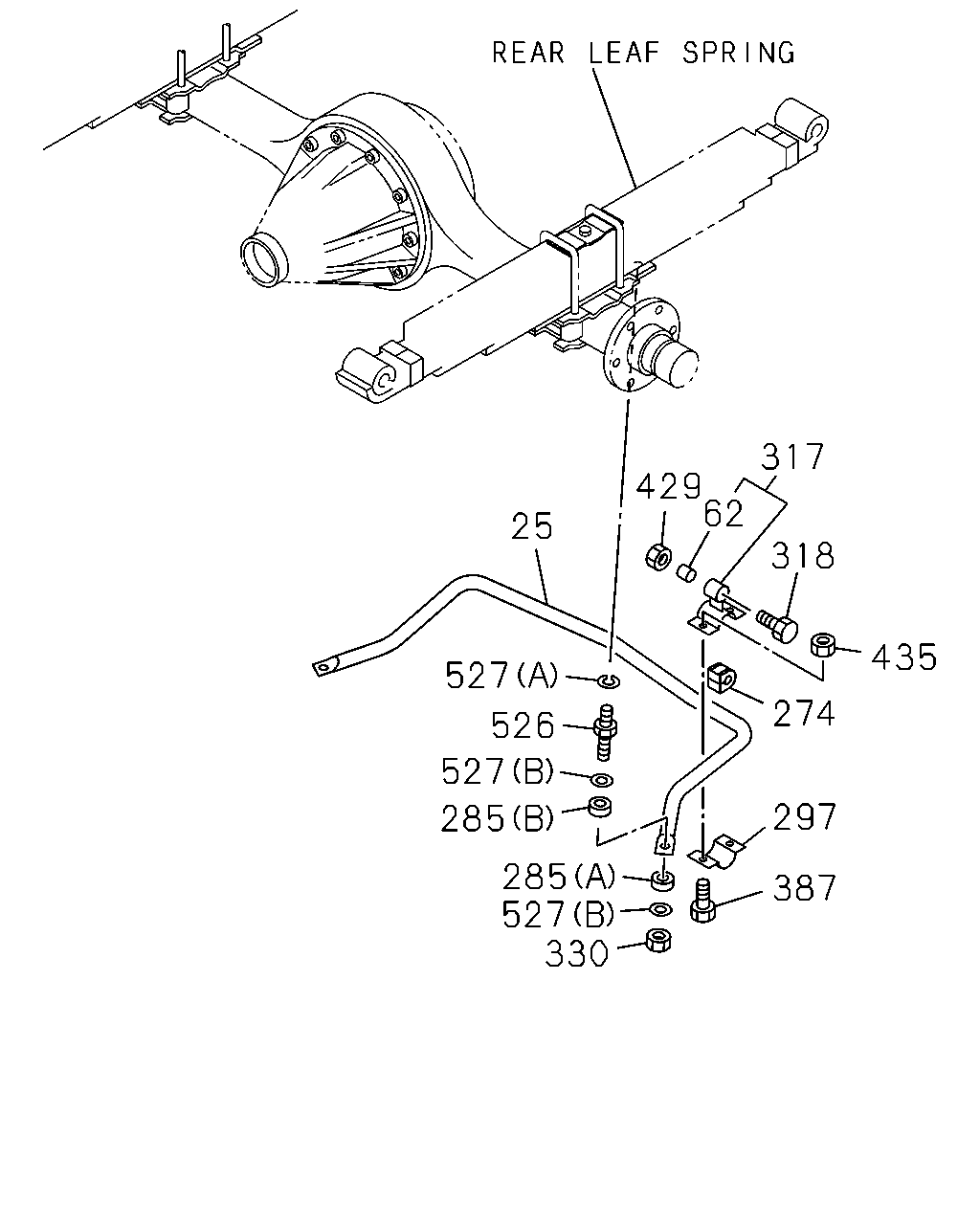

317 429 62 25 318 435 527 274 526 527 297 285 285 527 330 387

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
25	07.241 BAR ASM; STAB,RR SUSP STABILIZER REAR<GN1> EXC. FRAME STRAIGHT TYPE<7KJ>	8-98025-630-0	01	1	0710-0802	●	●	●
25	07.241 BAR ASM; STAB,RR SUSP	8-98025-630-0	01	1	0710-0802				●
25	07.241 BAR ASM; STAB,RR SUSP STABILIZER REAR<GN1> EXC. FRAME STRAIGHT TYPE<7KJ>	8-98025-630-0	01	1	0803-0803	●	●
25	07.241 BAR ASM; STAB,RR SUSP	8-98025-630-0	01	1	0803-0803				●
25	07.241 BAR ASM; STAB,RR SUSP STABILIZER REAR<GN1> EXC. FRAME STRAIGHT TYPE<7KJ>	8-98025-630-0	01	1	0804-	●	●	●		●
25	07.241 BAR ASM; STAB,RR SUSP	8-98025-630-0	01	1	0804-				●
25	07.241 BAR ASM; STAB,RR SUSP STABILIZER REAR<GN1> FRAME STRAIGHT TYPE<7KJ>	8-98067-239-0	01	1	0710-		●	●		●
25	07.241 BAR ASM; STAB,RR SUSP	8-98067-239-0	01	1	0710-						●
62	07.243 BUSHING; LINK ROD STABILIZER REAR<GN1>	8-97239-911-0	02	1	0710-	●	●	●		●
62	07.243 BUSHING; LINK ROD	8-97239-911-0	02	1	0710-				●		●
274	07.243 BUSHING; RR STAB BAR TO LINK STABILIZER REAR<GN1>	8-94440-793-0	02	1	0710-	●	●	●		●
274	07.243 BUSHING; RR STAB BAR TO LINK	8-94440-793-0	02	1	0710-				●		●
285	07.243 BUSHING; STAB BAR TO RR AXLE STABILIZER REAR<GN1> (A) L=18	8-97089-556-0	02	1	0710-	●	●	●		●
285	07.243 BUSHING; STAB BAR TO RR AXLE (A) L=18	8-97089-556-0	02	1	0710-				●		●
285	07.243 BUSHING; STAB BAR TO RR AXLE STABILIZER REAR<GN1> (B) L=29	8-97089-557-0	02	1	0710-	●	●	●		●
285	07.243 BUSHING; STAB BAR TO RR AXLE (B) L=29	8-97089-557-0	02	1	0710-				●		●
297	07.242 CAP; STAB BAR STABILIZER REAR<GN1>	8-94178-430-2	02	1	0710-	●	●	●		●
297	07.242 CAP; STAB BAR	8-94178-430-2	02	1	0710-				●		●
317	07.240 ROD LINK ASM; STABILIZER,RR STABILIZER REAR<GN1>	8-97239-907-0	02	1	0710-	●	●	●		●
317	07.240 ROD LINK ASM; STABILIZER,RR	8-97239-907-0	02	1	0710-				●		●
318	07.242 BOLT; LINK ROD STABILIZER REAR<GN1> M14X70 FLANGE	0-28851-470-0	02	1	0710-	●	●	●		●
318	07.242 BOLT; LINK ROD M14X70 FLANGE	0-28851-470-0	02	1	0710-				●		●
330	07.242 NUT; STAB STABILIZER REAR<GN1> M12 LOCK NUT	0-91370-012-0	02	1	0710-	●	●	●		●
330	07.242 NUT; STAB M12 LOCK NUT	0-91370-012-0	02	1	0710-				●		●
387	07.242 BOLT; CAP FIX,STAB BAR STABILIZER REAR<GN1> 00.029 M10X25 FLANGE	0-28651-025-0	04	1	0710-	●	●	●		●
387	07.242 BOLT; CAP FIX,STAB BAR 00.029 M10X25 FLANGE	0-28651-025-0	04	1	0710-				●		●
429	07.242 NUT; LINK STABILIZER REAR<GN1> 06.174 M14 FLANGE	8-97360-124-0	02	1	0710-	●	●	●		●
429	07.242 NUT; LINK 06.174 M14 FLANGE	8-97360-124-0	02	1	0710-				●		●
435	07.242 NUT; CAP STABILIZER REAR<GN1> 04.085 M10 FLANGE	0-91180-210-0	04	1	0710-1006	●	●	●		●
435	07.242 NUT; CAP 04.085 M10 FLANGE	0-91180-210-0	04	1	0710-1006				●		●
435	07.242 NUT; CAP STABILIZER REAR<GN1> 03.162 M10 FLANGE	0-91180-110-0	04	1	1007-	●	●	●		●
435	07.242 NUT; CAP 03.162 M10 FLANGE	0-91180-110-0	04	1	1007-				●		●
526	07.535 STUD; STABILIZER STABILIZER REAR<GN1> 07.242	8-97360-120-0	02	1	0710-	●	●	●		●
526	07.535 STUD; STABILIZER 07.242	8-97360-120-0	02	1	0710-				●		●
527	07.242 WASHER; STABILIZER STABILIZER REAR<GN1> 05.605 (A) ID=14.2	0-91510-514-0	02	1	0710-	●	●	●		●
527	07.242 WASHER; STABILIZER 05.605 (A) ID=14.2	0-91510-514-0	02	1	0710-				●		●
527	07.242 WASHER; STABILIZER STABILIZER REAR<GN1> (B) ID=12.5	8-97360-055-0	04	1	0710-	●	●	●		●
527	07.242 WASHER; STABILIZER (B) ID=12.5	8-97360-055-0	04	1	0710-				●		●

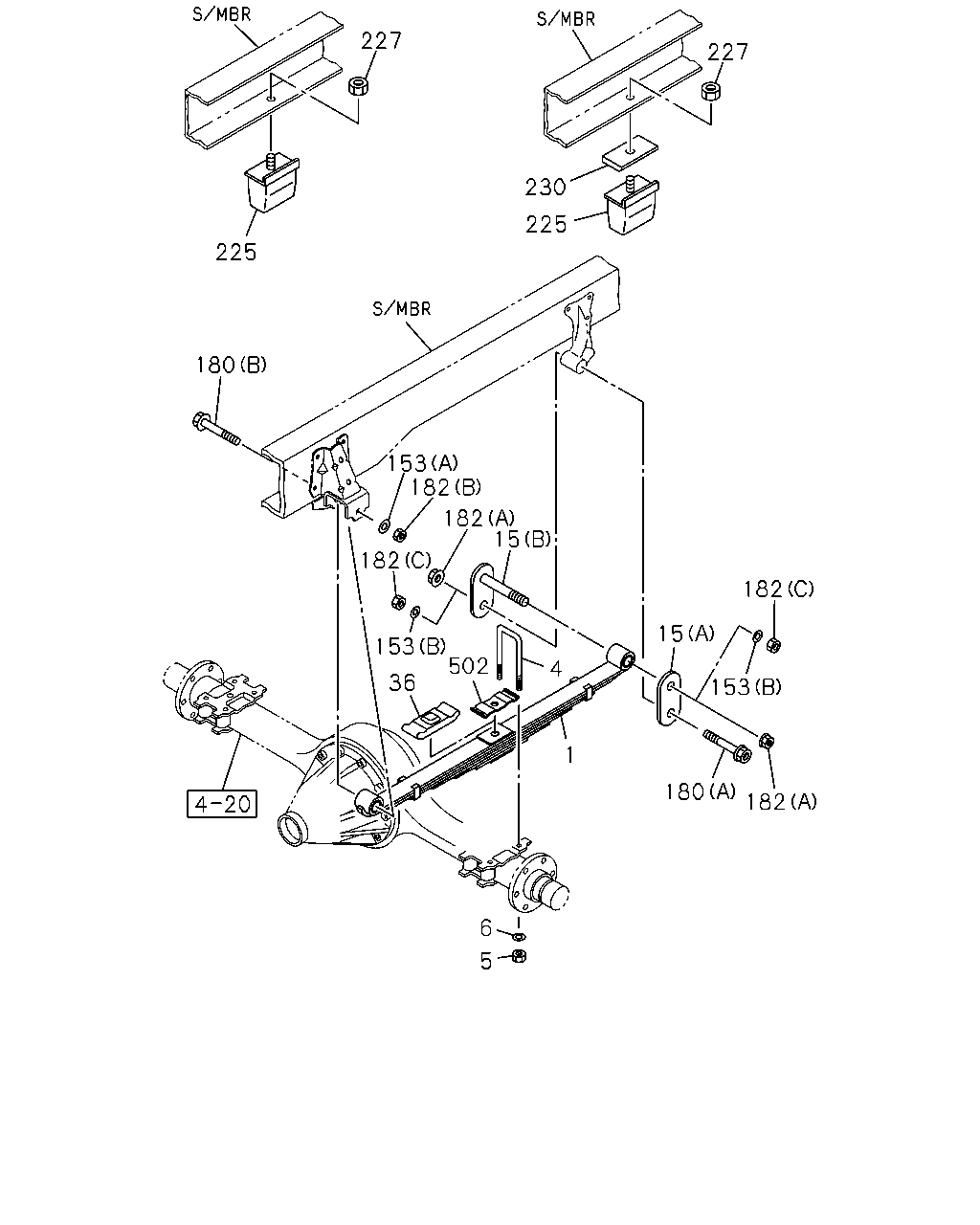

227 227 230 225 225 180 153 182 182 15 182 182 15 153 502 4 36 15 1 180 182 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. AUSTRALIA EQUIPMENT(B13) STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 7-LEAF	8-98028-261-0	02	1	0907-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. AUSTRALIA EQUIPMENT(B13) G.V.W. 4.0-4.5TON(RPR) 5-LEAF	8-98072-424-0	02	1	0710-0802	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. AUSTRALIA EQUIPMENT(B13) G.V.W. 5.5-6.0TON(RPU) FRAME STRAIGHT TYPE<7KJ> 5-LEAF	8-98072-424-0	02	1	0710-0802		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF	8-98072-424-0	02	1	0710-0802				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. AUSTRALIA EQUIPMENT(B13) STABILIZER REAR<GN1> G.V.W. 4.0-4.5TON(RPR) EXC. SMALL DOUBLE RR TIRE(6YE) 5-LEAF	8-98072-424-0	02	1	0803-0803	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. AUSTRALIA EQUIPMENT(B13) STABILIZER REAR<GN1> G.V.W. 5.5-6.0TON(RPU) FRAME STRAIGHT TYPE<7KJ> 5-LEAF	8-98072-424-0	02	1	0803-0803		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF	8-98072-424-0	02	1	0803-0803				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. AUSTRALIA EQUIPMENT(B13) STABILIZER REAR<GN1> G.V.W. 4.0-4.5TON(RPR) EXC. SMALL DOUBLE RR TIRE(6YE) 5-LEAF	8-98072-424-0	02	1	0804-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. AUSTRALIA EQUIPMENT(B13) STABILIZER REAR<GN1> G.V.W. 5.5-6.0TON(RPU) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) 5-LEAF	8-98072-424-0	02	1	0804-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF	8-98072-424-0	02	1	0804-				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.5-5.0TON(RPS) SMALL DOUBLE RR TIRE(6YE) 4-LEAF	8-98025-048-0	02	1	0710-0802	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.5-5.0TON(RPS) SINGAPORE EQUIPMENT(2G0) SMALL DOUBLE RR TIRE(6YE) EXC. STABILIZER REAR<GN1> 4-LEAF	8-98025-048-0	02	1	0803-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> 10-LEAF	8-98025-049-0	02	1	0710-0802		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> 10-LEAF	8-98025-049-0	02	1	0803-0803		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. INDIA EQUIPMENT(B07),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 10-LEAF	8-98025-049-0	02	1	0804-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> 10-LEAF	8-98025-049-0	02	1	0804-					●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. INDIA EQUIPMENT(B07) G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1> 10-LEAF	8-98025-058-0	02	1	0804-0808		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13) ,HONG KONG EQUIPMENT(B14),STABILIZER REAR<GN1>,SINGAPORE EQUIPMENT(2G0) 10-LEAF	8-98025-058-0	02	1	0804-0808		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),STABILIZER REAR<GN1>,TIRE SIZE 8.25-16<7QP> 10-LEAF	8-98025-058-0	02	1	0804-0808			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. INDIA EQUIPMENT(B07) G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1> 10-LEAF	8-98025-058-0	02	1	0809-1105		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13) ,HONG KONG EQUIPMENT(B14),STABILIZER REAR<GN1>,SINGAPORE EQUIPMENT(2G0) 10-LEAF	8-98025-058-0	02	1	0809-1105		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. INDONESIA EQUIPMENT(B00), MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),STABILI ZER REAR<GN1> 10-LEAF	8-98025-058-0	02	1	0809-1105			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),STABILIZER REAR<GN1>,TIRE SIZE 8.25-16<7QP> 10-LEAF	8-98025-058-0	02	1	0809-1105			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. INDIA EQUIPMENT(B07) G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1> 9-LEAF	8-98190-547-0	02	1	1106-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13) ,HONG KONG EQUIPMENT(B14),STABILIZER REAR<GN1>,SINGAPORE EQUIPMENT(2G0) 9-LEAF	8-98190-547-0	02	1	1106-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. INDONESIA EQUIPMENT(B00), MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),STABILI ZER REAR<GN1> 9-LEAF	8-98190-547-0	02	1	1106-			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),STABILIZER REAR<GN1>,TIRE SIZE 8.25-16<7QP> 9-LEAF	8-98190-547-0	02	1	1106-			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. INDIA EQUIPMENT(B07) STABILIZER REAR<GN1> G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> 10-LEAF	8-98025-060-0	02	1	0804-0808		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13) ,HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 10-LEAF	8-98025-060-0	02	1	0804-0808		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. INDONESIA EQUIPMENT(B00), MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) 10-LEAF	8-98025-060-0	02	1	0804-0808			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),TIRE SIZE 8.25-16<7QP> 10-LEAF	8-98025-060-0	02	1	0804-0808			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. INDIA EQUIPMENT(B07) STABILIZER REAR<GN1> G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> 10-LEAF	8-98025-060-0	02	1	0809-1105		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13) ,HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 10-LEAF	8-98025-060-0	02	1	0809-1105		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),TIRE SIZE 8.25-16<7QP> 10-LEAF	8-98025-060-0	02	1	0809-1105			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. INDIA EQUIPMENT(B07) STABILIZER REAR<GN1> G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> 9-LEAF	8-98190-548-0	02	1	1106-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13) ,HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 9-LEAF	8-98190-548-0	02	1	1106-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),TIRE SIZE 8.25-16<7QP> 9-LEAF	8-98190-548-0	02	1	1106-			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1>,TIRE SIZE 8.25-16<7QP> 13-LEAF	8-98079-902-0	02	1	0710-0802		●	●		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. HONG KONG EQUIPMENT(B14) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1> 13-LEAF	8-98079-902-0	02	1	0803-0803		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),STABILIZER REAR<GN1>,SINGAPORE EQUIPMENT(2G0),FRAME STRA IGHT TYPE<7KJ> 13-LEAF	8-98079-902-0	02	1	0803-0803		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),STABILIZER REAR<GN1>,SINGAPORE EQUIPMENT(2G0) 13-LEAF	8-98079-902-0	02	1	0803-0803		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. AUSTRALIA EQUIPMENT(B13), STABILIZER REAR<GN1>,TIRE SIZE 8.25-16<7QP> 13-LEAF	8-98079-902-0	02	1	0803-0803			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.5-8.0TON(RPY) EXC. AUSTRALIA EQUIPMENT(B13), STABILIZER REAR<GN1> 13-LEAF	8-98079-902-0	02	1	0803-0803					●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. HONG KONG EQUIPMENT(B14) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) 13-LEAF	8-98079-902-0	02	1	0804-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX) EXC. INDIA EQUIPMENT(B07),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),SINGAPORE EQUIPMENT(2G0),FRAM E STRAIGHT TYPE<7KJ> 13-LEAF	8-98079-902-0	02	1	0804-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13) ,HONG KONG EQUIPMENT(B14),STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B), SINGAPORE EQUIPMENT(2G0) 13-LEAF	8-98079-902-0	02	1	0804-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. FRAME STRAIGHT TYPE<7KJ> EXC. AUSTRALIA EQUIPMENT(B13), STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),T IRE SIZE 8.25-16<7QP> 13-LEAF	8-98079-902-0	02	1	0804-			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. AUSTRALIA EQUIPMENT(B13), STABILIZER REAR<GN1> 13-LEAF	8-98079-902-0	02	1	0804-					●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. TIRE SIZE 8.25-16<7QP> 13-LEAF	8-98079-903-0	02	1	0710-0802		●	●		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 13-LEAF	8-98079-903-0	02	1	0710-0802						●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. AUSTRALIA EQUIPMENT(B13) STABILIZER REAR<GN1> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 13-LEAF	8-98079-903-0	02	1	0803-0803		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. AUSTRALIA EQUIPMENT(B13) STABILIZER REAR<GN1> EXC. TIRE SIZE 8.25-16<7QP> 13-LEAF	8-98079-903-0	02	1	0803-0803			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. AUSTRALIA EQUIPMENT(B13) STABILIZER REAR<GN1> G.V.W. 7.5-8.0TON(RPY) 13-LEAF	8-98079-903-0	02	1	0803-0803					●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 13-LEAF	8-98079-903-0	02	1	0803-0803						●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. AUSTRALIA EQUIPMENT(B13) STABILIZER REAR<GN1> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) 13-LEAF	8-98079-903-0	02	1	0804-1404		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. AUSTRALIA EQUIPMENT(B13) STABILIZER REAR<GN1> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B),TIRE SIZE 8.25-16<7QP> 13-LEAF	8-98079-903-0	02	1	0804-1404			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. AUSTRALIA EQUIPMENT(B13) STABILIZER REAR<GN1> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 13-LEAF	8-98079-903-0	02	1	0804-1404					●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 13-LEAF	8-98079-903-0	02	1	0804-1404						●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. AUSTRALIA EQUIPMENT(B13) STABILIZER REAR<GN1> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) 13-LEAF	8-98079-903-0	02	1	1405-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX) EXC. INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13) ,HONG KONG EQUIPMENT(B14),MINI BUS CHASSIS(V4B),SINGAPORE EQUIPMENT(2G0),F RAME STRAIGHT TYPE<7KJ> 13-LEAF	8-98079-903-0	02	1	1405-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. AUSTRALIA EQUIPMENT(B13) STABILIZER REAR<GN1> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B),TIRE SIZE 8.25-16<7QP> 13-LEAF	8-98079-903-0	02	1	1405-			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. AUSTRALIA EQUIPMENT(B13) STABILIZER REAR<GN1> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 13-LEAF	8-98079-903-0	02	1	1405-					●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 13-LEAF	8-98079-903-0	02	1	1405-						●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1> 12-LEAF	8-98025-051-0	02	1	0710-0802		●			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. HONG KONG EQUIPMENT(B14) G.V.W. 5.5-6.0TON(RPU) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1> 12-LEAF	8-98025-051-0	02	1	0710-0802		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. HONG KONG EQUIPMENT(B14) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1> 12-LEAF	8-98025-051-0	02	1	0803-0803		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. HONG KONG EQUIPMENT(B14) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1> 12-LEAF	8-98025-051-0	02	1	0803-0803					●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. HONG KONG EQUIPMENT(B14) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) 12-LEAF	8-98025-051-0	02	1	0804-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. HONG KONG EQUIPMENT(B14) G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1> 12-LEAF	8-98025-051-0	02	1	0804-					●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW) FRAME STRAIGHT TYPE<7KJ> 12-LEAF	8-98079-901-0	02	1	0710-0802		●			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. AUSTRALIA EQUIPMENT(B13) STABILIZER REAR<GN1> G.V.W. 6.5-7.0TON(RPW) FRAME STRAIGHT TYPE<7KJ> 12-LEAF	8-98079-901-0	02	1	0803-0803		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. AUSTRALIA EQUIPMENT(B13) STABILIZER REAR<GN1> G.V.W. 6.5-7.0TON(RPW) 12-LEAF	8-98079-901-0	02	1	0803-0803					●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. AUSTRALIA EQUIPMENT(B13) STABILIZER REAR<GN1> G.V.W. 6.5-7.0TON(RPW) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) 12-LEAF	8-98079-901-0	02	1	0804-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. AUSTRALIA EQUIPMENT(B13) STABILIZER REAR<GN1> G.V.W. 6.5-7.0TON(RPW) FRAME STRAIGHT TYPE<7KJ> 12-LEAF	8-98079-901-0	02	1	0804-					●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. STABILIZER REAR<GN1> 13-LEAF	8-98072-396-0	02	1	0710-0802			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. TIRE SIZE 8.25-16<7QP> EXC. STABILIZER REAR<GN1> 13-LEAF	8-98072-396-0	02	1	0803-0803			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. TIRE SIZE 8.25-16<7QP> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),STABILIZER REAR<GN1> 13-LEAF	8-98072-396-0	02	1	0803-0803			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. INDONESIA EQUIPMENT(B00), MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),STABILI ZER REAR<GN1> 13-LEAF	8-98072-396-0	02	1	0804-0808			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) 13-LEAF	8-98072-396-0	02	1	0804-0808			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) 13-LEAF	8-98072-396-0	02	1	0809-			●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 320MM(6CP) AUSTRALIA EQUIPMENT(B13) STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> L=295	8-94132-358-3	04	1	0907-		●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),STABILIZER REAR<GN1>,SINGAPORE EQUIPMENT(2G0),FRAME STRA IGHT TYPE<7KJ> L=325	8-94175-946-0	04	1	0803-0803		●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) EXC. INDIA EQUIPMENT(B07),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),SINGAPORE EQUIPMENT(2G0),FRAM E STRAIGHT TYPE<7KJ> L=325	8-94175-946-1	04	1	0804-1404		●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 320MM(6CP) STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX) EXC. INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13) ,HONG KONG EQUIPMENT(B14),MINI BUS CHASSIS(V4B),SINGAPORE EQUIPMENT(2G0),F RAME STRAIGHT TYPE<7KJ> L=325	8-94175-946-1	04	1	1405-		●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) EXC. INDIA EQUIPMENT(B07),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),SINGAPORE EQUIPMENT(2G0),FRAM E STRAIGHT TYPE<7KJ> L=325	8-94175-946-1	04	1	1405-		●
4	07.516 U-BOLT; RR SPR G.V.W. 4.0-4.5TON(RPR) L=275	8-94127-924-2	04	1	0710-0802	●
4	07.516 U-BOLT; RR SPR L=275	8-94127-924-2	04	1	0710-0802				●
4	07.516 U-BOLT; RR SPR AUSTRALIA EQUIPMENT(B13) STABILIZER REAR<GN1> G.V.W. 4.0-4.5TON(RPR) EXC. SMALL DOUBLE RR TIRE(6YE) L=275	8-94127-924-3	04	1	0803-	●
4	07.516 U-BOLT; RR SPR L=275	8-94127-924-3	04	1	0803-				●
4	07.516 U-BOLT; RR SPR G.V.W. 4.5-5.0TON(RPS) SMALL DOUBLE RR TIRE(6YE) L=285	8-97141-874-0	04	1	0710-0802	●
4	07.516 U-BOLT; RR SPR G.V.W. 4.5-5.0TON(RPS) SINGAPORE EQUIPMENT(2G0) SMALL DOUBLE RR TIRE(6YE) EXC. STABILIZER REAR<GN1> L=285	8-97141-874-0	04	1	0803-	●
4	07.516 U-BOLT; RR SPR G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> L=315	1-51371-194-2	04	1	0710-0802		●
4	07.516 U-BOLT; RR SPR G.V.W. 6.0-6.5TON(RPV) L=315	1-51371-194-2	04	1	0710-0802					●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1> L=315	1-51371-194-2	04	1	0803-0803		●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 320MM(6CP) AUSTRALIA EQUIPMENT(B13) STABILIZER REAR<GN1> G.V.W. 5.5-6.0TON(RPU) FRAME STRAIGHT TYPE<7KJ> L=315	1-51371-194-2	04	1	0803-0803		●
4	07.516 U-BOLT; RR SPR HONG KONG EQUIPMENT(B14) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1> L=315	1-51371-194-2	04	1	0803-0803					●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) L=315	1-51371-194-2	04	1	0804-0808		●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13) ,HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) L=315	1-51371-194-2	04	1	0804-0808		●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 320MM(6CP) AUSTRALIA EQUIPMENT(B13) STABILIZER REAR<GN1> G.V.W. 5.5-6.0TON(RPU) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) L=315	1-51371-194-2	04	1	0804-0808		●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 320MM(6CP) INDIA EQUIPMENT(B07) G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> L=315	1-51371-194-2	04	1	0804-0808		●
4	07.516 U-BOLT; RR SPR STABILIZER REAR<GN1> MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. INDONESIA EQUIPMENT(B00), MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) L=315	1-51371-194-2	04	1	0804-0808			●
4	07.516 U-BOLT; RR SPR MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),TIRE SIZE 8.25-16<7QP> L=315	1-51371-194-2	04	1	0804-0808			●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14) G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1> L=315	1-51371-194-2	04	1	0804-0808					●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 320MM(6CP) AUSTRALIA EQUIPMENT(B13) STABILIZER REAR<GN1> G.V.W. 5.5-6.0TON(RPU) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) L=315	1-51371-194-2	04	1	0809-		●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) L=315	1-51371-194-2	04	1	0809-		●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13) ,HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) L=315	1-51371-194-2	04	1	0809-		●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 320MM(6CP) INDIA EQUIPMENT(B07) G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> L=315	1-51371-194-2	04	1	0809-		●
4	07.516 U-BOLT; RR SPR MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. INDONESIA EQUIPMENT(B00), MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),STABILI ZER REAR<GN1> L=315	1-51371-194-2	04	1	0809-			●
4	07.516 U-BOLT; RR SPR MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),TIRE SIZE 8.25-16<7QP> L=315	1-51371-194-2	04	1	0809-			●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14) G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1> L=315	1-51371-194-2	04	1	0809-					●
4	07.516 U-BOLT; RR SPR G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> L=265	8-94127-923-2	04	1	0710-0802		●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> L=265	8-94127-923-2	04	1	0803-0803		●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. INDIA EQUIPMENT(B07),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> L=265	8-94127-923-3	04	1	0804-		●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> L=265	8-94127-923-3	04	1	0804-					●
4	07.516 U-BOLT; RR SPR G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> L=345	1-51371-195-2	04	1	0710-0802		●
4	07.516 U-BOLT; RR SPR FRAME STRAIGHT TYPE<7KJ> L=345	1-51371-195-2	04	1	0710-0802			●
4	07.516 U-BOLT; RR SPR G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) L=345	1-51371-195-2	04	1	0710-0802					●
4	07.516 U-BOLT; RR SPR L=345	1-51371-195-2	04	1	0710-0802						●
4	07.516 U-BOLT; RR SPR G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> L=345	1-51371-195-2	04	1	0803-0803		●
4	07.516 U-BOLT; RR SPR L=345	1-51371-195-2	04	1	0803-0803			●			●
4	07.516 U-BOLT; RR SPR G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) L=345	1-51371-195-2	04	1	0803-0803					●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1> L=345	1-51371-195-2	04	1	0803-0803		●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 320MM(6CP) AUSTRALIA EQUIPMENT(B13) STABILIZER REAR<GN1> G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> L=345	1-51371-195-2	04	1	0803-0803		●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),STABILIZER REAR<GN1>,SINGAPORE EQUIPMENT(2G0) L=345	1-51371-195-2	04	1	0803-0803		●
4	07.516 U-BOLT; RR SPR AUSTRALIA EQUIPMENT(B13) STABILIZER REAR<GN1> EXC. TIRE SIZE 8.25-16<7QP> L=345	1-51371-195-2	04	1	0803-0803			●
4	07.516 U-BOLT; RR SPR TIRE SIZE 8.25-16<7QP> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),STABILIZER REAR<GN1> L=345	1-51371-195-2	04	1	0803-0803			●
4	07.516 U-BOLT; RR SPR EXC. AUSTRALIA EQUIPMENT(B13), STABILIZER REAR<GN1>,TIRE SIZE 8.25-16<7QP> L=345	1-51371-195-2	04	1	0803-0803			●
4	07.516 U-BOLT; RR SPR AUSTRALIA EQUIPMENT(B13) STABILIZER REAR<GN1> G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) L=345	1-51371-195-2	04	1	0803-0803					●
4	07.516 U-BOLT; RR SPR G.V.W. 7.5-8.0TON(RPY) EXC. AUSTRALIA EQUIPMENT(B13), STABILIZER REAR<GN1> L=345	1-51371-195-2	04	1	0803-0803					●
4	07.516 U-BOLT; RR SPR L=345	1-51371-195-2	04	1	0803-0803						●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) L=345	1-51371-195-2	04	1	0804-0808		●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 320MM(6CP) AUSTRALIA EQUIPMENT(B13) STABILIZER REAR<GN1> G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) L=345	1-51371-195-2	04	1	0804-0808		●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13) ,HONG KONG EQUIPMENT(B14),STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B), SINGAPORE EQUIPMENT(2G0) L=345	1-51371-195-2	04	1	0804-0808		●
4	07.516 U-BOLT; RR SPR AUSTRALIA EQUIPMENT(B13) STABILIZER REAR<GN1> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B),TIRE SIZE 8.25-16<7QP> L=345	1-51371-195-2	04	1	0804-0808			●
4	07.516 U-BOLT; RR SPR MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. INDONESIA EQUIPMENT(B00), MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),STABILI ZER REAR<GN1> L=345	1-51371-195-2	04	1	0804-0808			●
4	07.516 U-BOLT; RR SPR FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) L=345	1-51371-195-2	04	1	0804-0808			●
4	07.516 U-BOLT; RR SPR FRAME STRAIGHT TYPE<7KJ> EXC. AUSTRALIA EQUIPMENT(B13), STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),T IRE SIZE 8.25-16<7QP> L=345	1-51371-195-2	04	1	0804-0808			●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 320MM(6CP) AUSTRALIA EQUIPMENT(B13) STABILIZER REAR<GN1> G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> L=345	1-51371-195-2	04	1	0804-0808					●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. AUSTRALIA EQUIPMENT(B13), STABILIZER REAR<GN1> L=345	1-51371-195-2	04	1	0804-0808					●
4	07.516 U-BOLT; RR SPR L=345	1-51371-195-2	04	1	0804-0808						●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) L=345	1-51371-195-2	04	1	0809-		●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 320MM(6CP) AUSTRALIA EQUIPMENT(B13) STABILIZER REAR<GN1> G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) L=345	1-51371-195-2	04	1	0809-		●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13) ,HONG KONG EQUIPMENT(B14),STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B), SINGAPORE EQUIPMENT(2G0) L=345	1-51371-195-2	04	1	0809-		●
4	07.516 U-BOLT; RR SPR AUSTRALIA EQUIPMENT(B13) STABILIZER REAR<GN1> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B),TIRE SIZE 8.25-16<7QP> L=345	1-51371-195-2	04	1	0809-			●
4	07.516 U-BOLT; RR SPR FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) L=345	1-51371-195-2	04	1	0809-			●
4	07.516 U-BOLT; RR SPR FRAME STRAIGHT TYPE<7KJ> EXC. AUSTRALIA EQUIPMENT(B13), STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),T IRE SIZE 8.25-16<7QP> L=345	1-51371-195-2	04	1	0809-			●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 320MM(6CP) AUSTRALIA EQUIPMENT(B13) STABILIZER REAR<GN1> G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> L=345	1-51371-195-2	04	1	0809-					●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. AUSTRALIA EQUIPMENT(B13), STABILIZER REAR<GN1> L=345	1-51371-195-2	04	1	0809-					●
4	07.516 U-BOLT; RR SPR L=345	1-51371-195-2	04	1	0809-						●
5	07.529 NUT; U-BOLT,RR SPR 07.417 M16	8-97360-121-0	08	1	0710-0802	●			●
5	07.529 NUT; U-BOLT,RR SPR EXC. FRAME STRAIGHT TYPE<7KJ> 07.417 M16	8-97360-121-0	08	1	0710-0802		●	●
5	07.529 NUT; U-BOLT,RR SPR 07.417 M16	8-97360-121-0	08	1	0803-0803	●			●
5	07.529 NUT; U-BOLT,RR SPR EXC. FRAME STRAIGHT TYPE<7KJ> 07.417 M16	8-97360-121-0	08	1	0803-0803		●
5	07.529 NUT; U-BOLT,RR SPR 07.417 M16	8-97360-121-0	08	1	0804-	●			●
5	07.529 NUT; U-BOLT,RR SPR EXC. FRAME STRAIGHT TYPE<7KJ> 07.417 M16	8-97360-121-0	08	1	0804-		●	●		●
5	07.529 NUT; U-BOLT,RR SPR FRAME STRAIGHT TYPE<7KJ> M18 FLANGE	1-09440-039-1	08	1	0710-		●	●		●	●
6	07.516 WASHER; PL,U-BOLT ID=16.4	8-97360-118-0	08	1	0710-0802	●			●
6	07.516 WASHER; PL,U-BOLT EXC. FRAME STRAIGHT TYPE<7KJ> ID=16.4	8-97360-118-0	08	1	0710-0802		●	●
6	07.516 WASHER; PL,U-BOLT ID=16.4	8-97360-118-0	08	1	0803-0803	●			●
6	07.516 WASHER; PL,U-BOLT EXC. FRAME STRAIGHT TYPE<7KJ> ID=16.4	8-97360-118-0	08	1	0803-0803		●
6	07.516 WASHER; PL,U-BOLT ID=16.4	8-97360-118-0	08	1	0804-	●			●
6	07.516 WASHER; PL,U-BOLT EXC. FRAME STRAIGHT TYPE<7KJ> ID=16.4	8-97360-118-0	08	1	0804-		●	●		●
15	07.523 SHACKLE; RR SPR (A)	8-94118-511-3	02	1	0710-	●	●	●	●	●	●
15	07.523 SHACKLE; RR SPR (B)	8-97360-011-0	02	1	0710-	●	●	●	●	●	●
36	07.529 SEAT; HELPER RUBBER,RR SPR FRAME STRAIGHT TYPE<7KJ> 07.518	1-51372-059-0	02	1	0710-		●	●		●	●
153	07.529 WASHER; PL,SPRING PIN (A) ID=19	8-97360-119-0	02	1	0710-	●	●	●	●	●	●
153	07.529 WASHER; PL,SPRING PIN KD PREPARATORY PACK<6HF> 07.427 (B) ID=16.5	8-98011-489-0	04	1	0710-	●	●	●		●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> 07.427 (A) M16X122	8-98011-487-0	02	1	0710-	●	●	●		●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> (B) M18X130	8-98011-488-0	02	1	0710-	●	●	●		●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE	8-97360-110-0	02	1	0710-	●	●	●		●
180	07.529 PIN; RR SPR 07.427 (A) M16X122 FLANGE	8-97360-110-0	02	1	0710-				●		●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE	8-97360-112-0	02	1	0710-	●	●	●		●
180	07.529 PIN; RR SPR (B) M18X130 FLANGE	8-97360-112-0	02	1	0710-				●		●
182	07.529 NUT; PIN,RR SPR (B) M18	0-91110-518-0	02	1	0710-	●	●	●	●	●	●
182	07.529 NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> 06.509 (C) M16	0-91110-516-0	04	1	0710-	●	●	●		●
182	07.529 NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE	8-97360-125-0	04	1	0710-	●	●	●		●
182	07.529 NUT; PIN,RR SPR 07.427 (A) M16 FLANGE	8-97360-125-0	04	1	0710-				●		●
225	07.535 RUBBER; CUSHION,RR SPR SMALL DOUBLE RR TIRE(6YE)	8-98025-096-0	02	1	0710-0801	●
225	07.535 RUBBER; CUSHION,RR SPR SMALL DOUBLE RR TIRE(6YE)	5-53366-013-0	02	1	0802-1103	●
225	07.535 RUBBER; CUSHION,RR SPR SMALL DOUBLE RR TIRE(6YE)	8-98187-337-0	02	1	1104-	●
225	07.535 RUBBER; CUSHION,RR SPR EXC. SMALL DOUBLE RR TIRE(6YE)	8-94379-470-1	02	1	0710-1103	●
225	07.535 RUBBER; CUSHION,RR SPR	8-94379-470-1	02	1	0710-1103		●		●	●	●
225	07.535 RUBBER; CUSHION,RR SPR EXC. TIRE SIZE 8.25-16<7QP>	8-94379-470-1	02	1	0710-1103			●
225	07.535 RUBBER; CUSHION,RR SPR EXC. SMALL DOUBLE RR TIRE(6YE)	8-98187-342-0	02	1	1104-	●
225	07.535 RUBBER; CUSHION,RR SPR	8-98187-342-0	02	1	1104-		●		●	●	●
225	07.535 RUBBER; CUSHION,RR SPR EXC. TIRE SIZE 8.25-16<7QP>	8-98187-342-0	02	1	1104-			●
225	07.535 RUBBER; CUSHION,RR SPR FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP>	8-98021-554-0	02	1	0710-0802			●
225	07.535 RUBBER; CUSHION,RR SPR TIRE SIZE 8.25-16<7QP>	8-98021-554-0	02	1	0803-0803			●
225	07.535 RUBBER; CUSHION,RR SPR FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP>	8-98021-554-0	02	1	0804-			●
227	07.535 NUT; CUSHION RUBBER 02.042 M12 FLANGE	0-91180-112-0	02	1	0710-	●	●	●	●	●	●
230	07.518 SPACER; CUSHION RUBBER SMALL DOUBLE RR TIRE(6YE)	8-97136-852-0	02	1	0710-0802	●
230	07.518 SPACER; CUSHION RUBBER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP>	8-97136-852-0	02	1	0710-0802			●
230	07.518 SPACER; CUSHION RUBBER SMALL DOUBLE RR TIRE(6YE)	8-97136-852-0	02	1	0803-0803	●
230	07.518 SPACER; CUSHION RUBBER TIRE SIZE 8.25-16<7QP>	8-97136-852-0	02	1	0803-0803			●
230	07.518 SPACER; CUSHION RUBBER SMALL DOUBLE RR TIRE(6YE)	8-97136-852-0	02	1	0804-1304	●
230	07.518 SPACER; CUSHION RUBBER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP>	8-97136-852-0	02	1	0804-1304			●
230	07.518 SPACER; CUSHION RUBBER G.V.W. 4.5-5.0TON(RPS) SINGAPORE EQUIPMENT(2G0) SMALL DOUBLE RR TIRE(6YE)	8-97136-852-0	02	1	1305-	●
230	07.518 SPACER; CUSHION RUBBER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14)	8-97136-852-0	02	1	1305-			●
502	07.506 CLAMP; RR LEAF SPR G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 07.518 L=140 T=4.5	8-94118-509-1	02	1	0803-0803		●
502	07.506 CLAMP; RR LEAF SPR G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 07.518 L=140 T=4.5	8-94118-509-1	02	1	0804-1112		●
502	07.506 CLAMP; RR LEAF SPR EXC. FRAME STRAIGHT TYPE<7KJ> 07.518 L=140 T=4.5	8-94118-509-1	02	1	0804-1112			●
502	07.506 CLAMP; RR LEAF SPR G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 07.518 L=140 T=4.5	8-94118-509-1	02	1	0804-1112					●
502	07.506 CLAMP; RR LEAF SPR 4JJ1-TCC ENG(RDU) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> 07.518 L=140 T=4.5	8-94118-509-1	02	1	1201-		●
502	07.506 CLAMP; RR LEAF SPR G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 07.518 L=130 T=4.5	8-94119-069-2	02	1	0710-0802	●	●
502	07.506 CLAMP; RR LEAF SPR 07.518 L=130 T=4.5	8-94119-069-2	02	1	0710-0802				●
502	07.506 CLAMP; RR LEAF SPR G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS) 07.518 L=130 T=4.5	8-94119-069-2	02	1	0803-1112	●
502	07.506 CLAMP; RR LEAF SPR G.V.W. 5.5-6.0TON(RPU) EXC. FRAME STRAIGHT TYPE<7KJ> 07.518 L=130 T=4.5	8-94119-069-2	02	1	0803-1112		●
502	07.506 CLAMP; RR LEAF SPR 07.518 L=130 T=4.5	8-94119-069-2	02	1	0803-1112				●
502	07.506 CLAMP; RR LEAF SPR G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS) 07.518 L=130 T=4.5	8-94119-069-2	02	1	1201-	●
502	07.506 CLAMP; RR LEAF SPR REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 07.518 L=130 T=4.5	8-94119-069-2	02	1	1201-		●			●
502	07.506 CLAMP; RR LEAF SPR 07.518 L=130 T=4.5	8-94119-069-2	02	1	1201-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
