0-20B — TIMING GEAR CASE AND FLYWHEEL HOUSING (#5481) — 110 parça

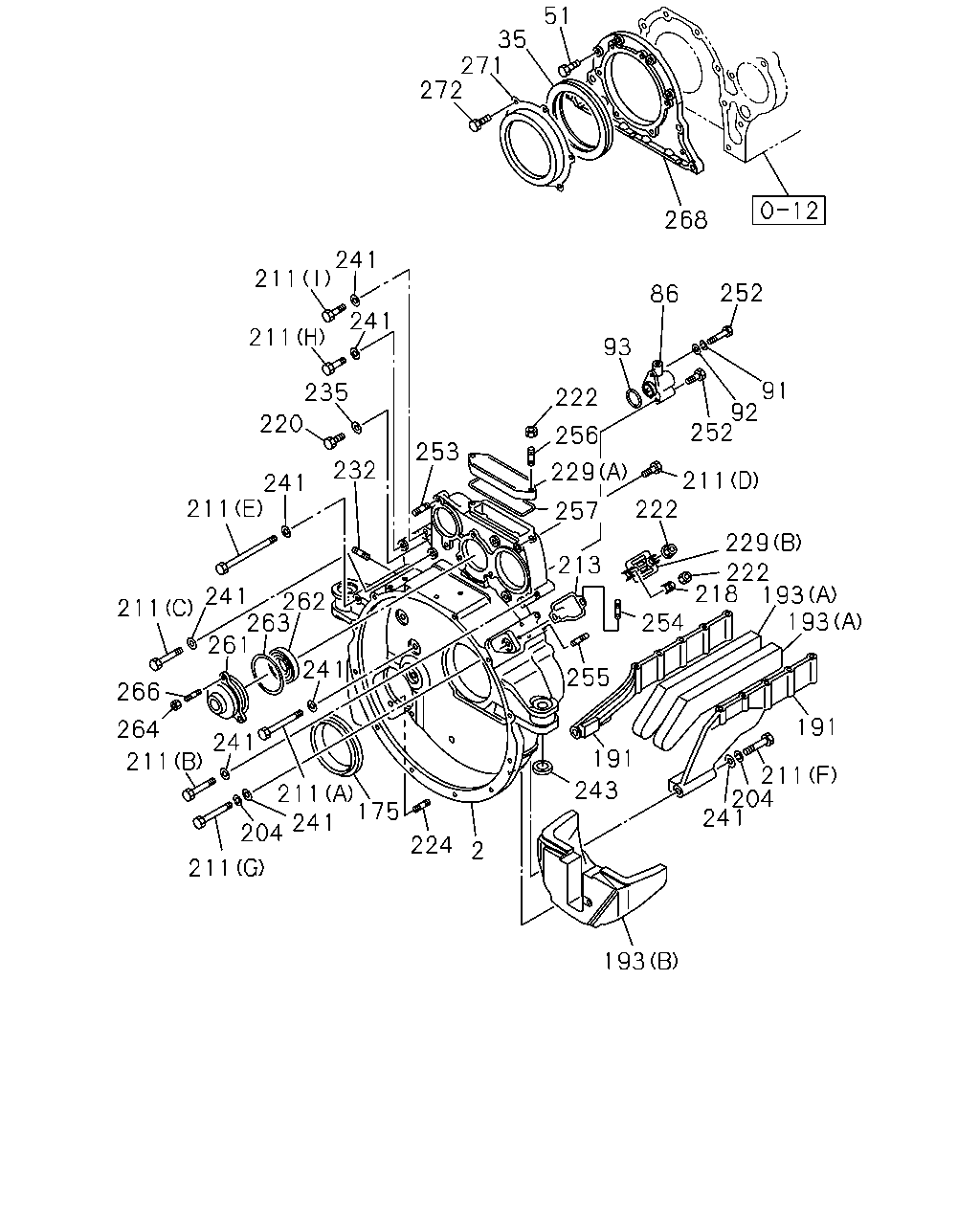

çizim 10526
51 35 271 272 268 241 211 252 86 241 211 93 91 92 252 235 222 220 256 253 232 229 257 211 222 241 211 229 213 222 254 193 241 262 263 261 211 241 255 266 191 264 241 211 191 211 204 241 243 211 241 204 175 224 2 211 193 218
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOUSING; FLYWHEEL 1-11341-450-4 01 1 9603-9904 ●
2 HOUSING; FLYWHEEL 1-11341-502-1 01 1 9905-0005 ● ●
2 HOUSING; FLYWHEEL 1-11341-603-0 01 1 0006- ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-524-2 01 1 9603-9904 ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-524-3 01 1 9905- ● ●
51 BOLT; GEAR CASE COVER
M8X28 FLANGE 		0-28080-828-0 08 1 9603-9904 ●
51 BOLT; GEAR CASE COVER
M8X28 FLANGE 		0-28080-828-0 08 1 9905- ● ●
86 ELBOW; TACHOMETER DRIVE 1-85860-033-2 01 1 9603-9904 ●
86 ELBOW; TACHOMETER DRIVE 1-85860-033-2 01 1 9905- ● ●
91 WASHER; LK,ELBOW
ID=8.2 		9-09150-508-0 01 1 9603-9609 ●
91 WASHER; LK,ELBOW
ID=8.2 		9-09150-508-0 01 1 9610-9810 ●
91 WASHER; LK,ELBOW
ID=8.2 		9-09150-508-0 01 1 9811-9904 ●
91 WASHER; LK,ELBOW
ID=8.2 		9-09150-508-0 01 1 9905- ● ●
92 WASHER; PL,ELBOW
ID=8.4 		9-09160-508-0 01 1 9603-9609 ●
92 WASHER; PL,ELBOW
ID=8.4 		9-09160-508-0 01 1 9610-9810 ●
92 WASHER; PL,ELBOW
ID=8.4 		9-09160-508-0 01 1 9811-9904 ●
92 WASHER; PL,ELBOW
ID=8.4 		9-09160-508-0 01 1 9905- ● ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7 		1-09623-416-0 01 1 9603-9609 ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7 		1-09623-416-0 01 1 9610-9904 ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7 		1-09623-416-0 01 1 9905- ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-525-2 01 1 9603-9904 ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-525-2 01 1 9905- ● ●
191 STAY; FLYWHEEL HSG 1-11349-167-0 01 1 9603-9904 ●
191 STAY; FLYWHEEL HSG 1-11349-168-0 01 1 9603-9904 ●
191 STAY; FLYWHEEL HSG 1-11349-167-0 01 1 9905- ● ●
191 STAY; FLYWHEEL HSG 1-11349-168-0 01 1 9905- ● ●
193 SPACER; STAY TO OIL,PAN
ANTI NOISE EQUIPMENT<SV9> (B) 		1-19389-172-0 01 1 9603-9904 ●
193 SPACER; STAY TO OIL,PAN
(B) 		1-19389-172-0 01 1 9905- ● ●
193 SPACER; STAY TO OIL,PAN
ANTI NOISE EQUIPMENT<SV9> (A) 		1-19389-178-0 02 1 9603-9904 ●
193 SPACER; STAY TO OIL,PAN
(A) 		1-19389-178-0 02 1 9905- ● ●
204 WASHER; LK,HSG
ID=10.2 		9-09150-510-0 01 1 9603-9904 ●
204 WASHER; LK,HSG
ID=10.2 		9-09150-510-0 01 1 9905- ● ●
204 WASHER; LK,HSG
ID=14.2 		9-09150-514-0 02 1 9603-9904 ●
204 WASHER; LK,HSG
ID=14.2 		9-09150-514-0 02 1 9905- ● ●
211 BOLT; HSG
(H) M14X55 		0-16806-455-0 01 1 9603-9904 ●
211 BOLT; HSG
(B) M14X75 		0-16806-475-0 01 1 9603-9904 ●
211 BOLT; HSG
(C) M14X95 		0-16806-495-0 01 1 9603-9904 ●
211 BOLT; HSG
(D) M10X25 FLANGE 		0-28181-025-0 02 1 9603-9904 ●
211 BOLT; HSG
(I) M10X28 FLANGE 		0-28181-028-0 01 1 9603-9904 ●
211 BOLT; HSG
(E) M14X230 		1-09020-003-1 01 1 9603-9904 ●
211 BOLT; HSG
(F) M14X155 		1-09020-008-1 02 1 9603-9904 ●
211 BOLT; HSG
(G) M10X115 		9-09804-203-1 01 1 9603-9904 ●
211 BOLT; HSG
(A) M14X125 		9-09804-234-0 09 1 9603-9904 ●
211 BOLT; HSG
(H) M14X55 		0-16806-455-0 01 1 9905- ● ●
211 BOLT; HSG
(B) M14X75 		0-16806-475-0 01 1 9905- ● ●
211 BOLT; HSG
(C) M14X95 		0-16806-495-0 01 1 9905- ● ●
211 BOLT; HSG
(D) M10X25 FLANGE 		0-28181-025-0 02 1 9905- ● ●
211 BOLT; HSG
(I) M10X28 FLANGE 		0-28181-028-0 01 1 9905- ● ●
211 BOLT; HSG
(E) M14X230 		1-09020-003-1 01 1 9905- ● ●
211 BOLT; HSG
(F) M14X155 		1-09020-008-1 02 1 9905- ● ●
211 BOLT; HSG
(G) M10X115 		9-09804-203-1 01 1 9905- ● ●
211 BOLT; HSG
(A) M14X125 		9-09804-234-0 09 1 9905- ● ●
213 POINTER; FLYWHEEL HSG 1-11342-010-0 01 1 9603-9904 ●
213 POINTER; FLYWHEEL HSG 1-11342-010-0 01 1 9905- ● ●
218 WASHER; PL,COVER 1-11349-127-0 01 1 9603-9904 ●
218 WASHER; PL,COVER 1-11349-127-0 01 1 9905- ● ●
220 PLUG; GEAR CHECK HOLE 1-09604-066-1 01 1 9603-9904 ●
220 PLUG; GEAR CHECK HOLE 1-09604-066-1 01 1 9905- ● ●
222 NUT; COVER,TIMING CHECK HOLE
M8 FLANGE 		0-91150-108-0 04 1 9603-9904 ●
222 NUT; COVER,TIMING CHECK HOLE
M8 FLANGE 		0-91150-108-0 04 1 9905- ● ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 03 1 9603-9810 ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 03 1 9811-9904 ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 03 1 9905- ● ●
229 COVER; TIMING CHECK HOLE
(A) 		1-11349-118-2 01 1 9603-9904 ●
229 COVER; TIMING CHECK HOLE
(A) 		1-11349-118-2 01 1 9905- ● ●
229 COVER; TIMING CHECK HOLE
(B) 		1-11349-126-0 01 1 9603-9904 ●
229 COVER; TIMING CHECK HOLE
(B) 		1-11349-126-0 01 1 9905- ● ●
232 STUD; OIL FILTER
M10X25 L=40 		9-04411-025-0 02 1 9603-9904 ●
232 STUD; OIL FILTER
M10X25 L=40 		9-04411-025-0 02 1 9905- ● ●
235 GASKET; PLUG GEAR CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 01 1 9603-9904 ●
235 GASKET; PLUG GEAR CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 01 1 9905- ● ●
241 WASHER; PL,HSG
ID=14 OD=30 T=6.0 		1-09503-057-0 13 1 9603-9904 ●
241 WASHER; PL,HSG
ID=15 		9-09160-514-0 02 1 9603-9904 ●
241 WASHER; PL,HSG
ID=10.5 OD=18 		9-09160-510-0 02 1 9603-9904 ●
241 WASHER; PL,HSG
ID=14 OD=30 T=6.0 		1-09503-057-0 13 1 9905- ● ●
241 WASHER; PL,HSG
ID=10.5 OD=18 		9-09160-510-0 02 1 9905- ● ●
241 WASHER; PL,HSG
ID=15 		9-09160-514-0 02 1 9905- ● ●
243 SEAT; ENG FOOT 1-11349-016-1 02 1 9603-9904 ●
243 SEAT; ENG FOOT 1-11349-016-1 02 1 9905- ● ●
252 BOLT; GEAR BOX
M8X70 		0-10805-870-0 01 1 9603-9904 ●
252 BOLT; GEAR BOX
M8X22 W/LK&PL WASHER L=102 		1-09009-129-1 01 1 9603-9904 ●
252 BOLT; GEAR BOX
M8X70 		0-10805-870-0 01 1 9905- ● ●
252 BOLT; GEAR BOX
M8X22 W/LK&PL WASHER L=102 		1-09009-129-1 01 1 9905- ● ●
253 STUD; POWER STRG PUMP
M10X25 L=45 		9-04311-025-0 02 1 9603-9904 ●
253 STUD; POWER STRG PUMP
M10X25 L=45 		9-04311-025-0 02 1 9905- ● ●
254 STUD; POINTER & COVER
M8X14,M8X14 L=33 		1-09300-058-1 02 1 9603-9810 ●
254 STUD; POINTER & COVER
M8X14,M8X14 L=33 		1-09300-058-1 02 1 9811-9904 ●
254 STUD; POINTER & COVER
M8X14,M8X14 L=33 		1-09300-058-1 02 1 9905- ● ●
255 STUD; RELAY LEVER BRKT
M8X16 L=28 		9-04110-816-0 04 1 9603-9904 ●
255 STUD; RELAY LEVER BRKT
M8X16 L=28 		9-04110-816-0 04 1 9905- ● ●
256 STUD; COVER
M8X35 L=47 		9-04110-835-0 02 1 9603-9904 ●
256 STUD; COVER
M8X35 L=47 		9-04110-835-0 02 1 9905- ● ●
257 GASKET; TIMING CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11349-142-0 01 1 9603-9904 ●
257 GASKET; TIMING CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11349-142-0 01 1 9905- ● ●
261 COVER; INJ PUMP COUPLING 1-11349-117-0 01 1 9603-9904 ●
261 COVER; INJ PUMP COUPLING 1-11349-117-0 01 1 9905- ● ●
262 BEARING 1-09810-126-0 01 1 9603-9904 ●
262 BEARING 1-09810-126-0 01 1 9905- ● ●
263 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-422-0 01 1 9603-9904 ●
263 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-422-0 01 1 9905- ● ●
264 NUT; COVER
M8 FLANGE 		0-91150-108-0 05 1 9603-9904 ●
264 NUT; COVER
M8 FLANGE 		0-91150-108-0 05 1 9905- ● ●
266 STUD; COVER & TACHO BOX
M8X20 L=32 		1-09305-005-0 03 1 9603-9904 ●
266 STUD; COVER & TACHO BOX
M8X20 L=32 		1-09305-005-0 03 1 9905- ● ●
268 COVER; FRT 1-11320-056-1 01 1 9603-9904 ●
268 COVER; FRT 1-11320-056-1 01 1 9905- ● ●
271 COVER; DUST 1-11329-004-0 01 1 9603-9904 ●
271 COVER; DUST 1-11329-004-0 01 1 9905- ● ●
272 BOLT; DUST COVER
M8X10 FLANGE 		0-28080-810-0 06 1 9603-9904 ●
272 BOLT; DUST COVER
M8X10 FLANGE 		0-28080-810-0 06 1 9905- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
