0-20A — TIMING GEAR CASE AND FLYWHEEL HOUSING (#5480) — 216 parça

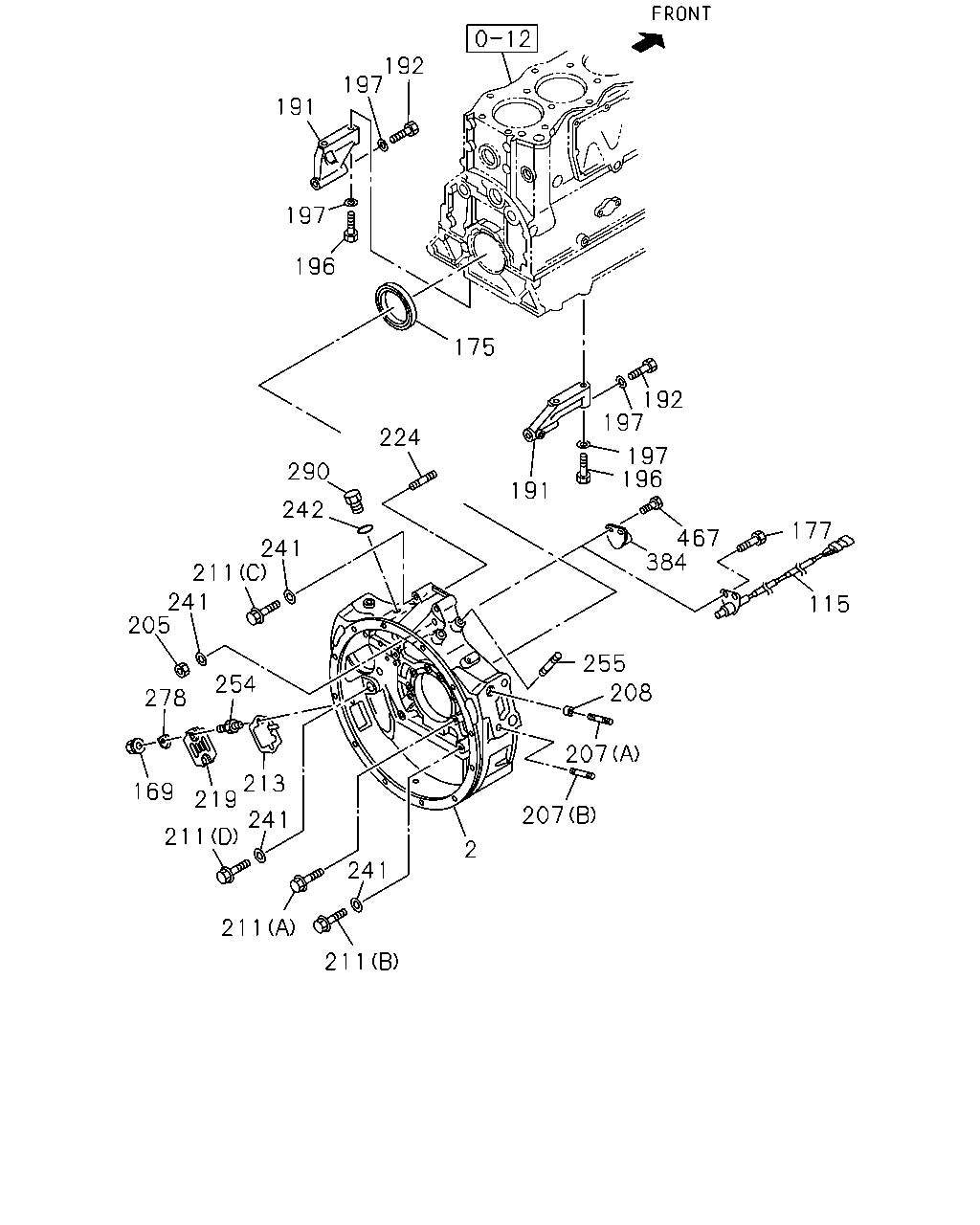

çizim 8577
192 197 191 197 196 175 192 197 224 197 196 290 191 242 177 467 384 241 211 241 205 115 255 254 208 278 207 213 219 169 207 241 211 2 241 211 211
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 HOUSING; FLYWHEEL 1-11340-271-5 01 1 9603-9810 ●
2 HOUSING; FLYWHEEL 1-11340-271-5 01 1 9811-9904 ● ●
2 HOUSING; FLYWHEEL 1-11340-271-8 01 1 9905- ● ● ●
115 SENSOR; REVOLUTION,ENG SPD
EURO2 SPECIFICATION<THN> 		1-81510-426-4 01 1 9610-9904 ●
115 SENSOR; REVOLUTION,ENG SPD 1-81510-426-6 01 1 9905- ●
169 NUT; COVER
M8 FLANGE 		0-91150-108-0 02 1 9603-9810 ●
169 NUT; COVER
M8 FLANGE 		0-91150-108-0 02 1 9811-9904 ● ●
169 NUT; COVER
M8 FLANGE 		0-91150-108-0 02 1 9905- ● ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). GRAY 		1-09625-557-1 01 1 9603-9810 ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). GRAY 		1-09625-557-1 01 1 9811-9904 ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). GRAY 		1-09625-557-1 01 1 9905- ● ● ●
177 BOLT; SENSOR
EURO2 SPECIFICATION<THN> M8X16 FLANGE 		0-28080-816-0 02 1 9610-9904 ●
177 BOLT; SENSOR
M8X16 FLANGE 		0-28080-816-0 02 1 9905- ●
191 STAY; FLYWHEEL HSG 1-11349-163-1 01 1 9603-9608 ●
191 STAY; FLYWHEEL HSG 1-11349-196-1 01 1 9609-9810 ●
191 STAY; FLYWHEEL HSG 1-11349-196-1 01 1 9811-9904 ● ●
191 STAY; FLYWHEEL HSG 1-11349-162-1 01 1 9603-9608 ●
191 STAY; FLYWHEEL HSG 1-11349-195-1 01 1 9609-9810 ●
191 STAY; FLYWHEEL HSG 1-11349-195-1 01 1 9811-9904 ● ●
191 STAY; FLYWHEEL HSG 1-11349-196-1 01 1 9905- ● ● ●
191 STAY; FLYWHEEL HSG 1-11349-195-1 01 1 9905- ● ● ●
192 BOLT; STAY TO HSG
M14X135 		1-09020-055-0 02 1 9603-9810 ●
192 BOLT; STAY TO HSG
M14X135 		1-09020-055-0 02 1 9811-9904 ● ●
192 BOLT; STAY TO HSG
M14X135 		1-09020-055-0 02 1 9905- ● ● ●
196 BOLT; STAY TO C/BL
M14X70 		9-91666-470-0 04 1 9603-9608 ●
196 BOLT; STAY TO C/BL
M14X70 		9-91666-470-0 02 1 9609-9810 ●
196 BOLT; STAY TO C/BL
M14X70 		9-91666-470-0 02 1 9811-9904 ● ●
196 BOLT; STAY TO C/BL
M14X70 		9-91666-470-0 02 1 9905- ● ● ●
196 BOLT; STAY TO C/BL
M14X100 		9-91666-400-0 02 1 9609-9810 ●
196 BOLT; STAY TO C/BL
M14X100 		9-91666-400-0 02 1 9811-9904 ● ●
196 BOLT; STAY TO C/BL
M14X100 		9-91666-400-0 02 1 9905- ● ● ●
197 WASHER; PL,STAY
ID=15 OD=26 		9-09164-514-0 06 1 9603-9810 ●
197 WASHER; PL,STAY
ID=15 OD=26 		9-09164-514-0 06 1 9811-9904 ● ●
197 WASHER; PL,STAY
ID=15 OD=26 		9-09164-514-0 06 1 9905- ● ● ●
205 NUT; HSG
M14 		9-99110-514-0 01 1 9603-9810 ●
205 NUT; HSG
M14 		9-99110-514-0 01 1 9811-9904 ● ●
205 NUT; HSG
M14 		9-99110-514-0 01 1 9905- ● ● ●
207 STUD; ENG FOOT
(B) M18X60 L=96 		9-04321-860-0 04 1 9603-9810 ●
207 STUD; ENG FOOT
(B) M18X60 L=96 		9-04321-860-0 04 1 9811-9904 ● ●
207 STUD; ENG FOOT
(B) M18X60 L=96 		9-04321-860-0 04 1 9905- ● ● ●
207 STUD; ENG FOOT
(A) M18X80 L=116 		9-04321-880-0 04 1 9603-9810 ●
207 STUD; ENG FOOT
(A) M18X80 L=116 		9-04321-880-0 04 1 9811-9904 ● ●
207 STUD; ENG FOOT
(A) M18X80 L=116 		9-04321-880-0 04 1 9905- ● ● ●
208 DOWEL; ENG FOOT 1-43249-001-0 04 1 9603-9810 ●
208 DOWEL; ENG FOOT 1-43249-001-0 04 1 9811-9904 ● ●
208 DOWEL; ENG FOOT 1-43249-001-0 04 1 9905- ● ● ●
211 BOLT; HSG
(A) M8X35 FLANGE 		0-28080-835-0 08 1 9603-9810 ●
211 BOLT; HSG
(A) M8X35 FLANGE 		0-28080-835-0 08 1 9811-9904 ● ●
211 BOLT; HSG
(B) M14X50 		9-91666-450-0 02 1 9603-9810 ●
211 BOLT; HSG
(B) M14X50 		9-91666-450-0 02 1 9811-9904 ● ●
211 BOLT; HSG
(C) M14X70 		9-91666-470-0 02 1 9603-9810 ●
211 BOLT; HSG
(C) M14X70 		9-91666-470-0 02 1 9811-9904 ● ●
211 BOLT; HSG
(D) M14X45 		9-92361-445-0 10 1 9603-9810 ●
211 BOLT; HSG
(D) M14X45 		9-92361-445-0 10 1 9811-9904 ● ●
211 BOLT; HSG
(C) M14X70 		9-91666-470-0 02 1 9905- ● ● ●
211 BOLT; HSG
(A) M8X35 FLANGE 		0-28080-835-0 08 1 9905- ● ● ●
211 BOLT; HSG
(B) M14X50 		9-91666-450-0 02 1 9905- ● ● ●
211 BOLT; HSG
(D) M14X45 		9-92361-445-0 10 1 9905- ● ● ●
213 POINTER; FLYWHEEL HSG 1-11327-042-0 01 1 9603-9611 ●
213 POINTER; FLYWHEEL HSG 1-11327-045-0 01 1 9612-9810 ●
213 POINTER; FLYWHEEL HSG 1-11327-045-0 01 1 9811-9904 ● ●
213 POINTER; FLYWHEEL HSG 1-11327-045-1 01 1 9905- ● ● ●
219 COVER; POINTER 1-11349-131-0 01 1 9603-9810 ●
219 COVER; POINTER 1-11349-131-0 01 1 9811-9904 ● ●
219 COVER; POINTER 1-11349-131-0 01 1 9905- ● ● ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 03 1 9603-9810 ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 03 1 9811-9904 ● ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 03 1 9905- ● ● ●
241 WASHER; PL,HSG
ID=15 OD=26 		9-09164-514-0 15 1 9603-9810 ●
241 WASHER; PL,HSG
ID=15 OD=26 		9-09164-514-0 15 1 9811-9904 ● ●
241 WASHER; PL,HSG
ID=15 OD=26 		9-09164-514-0 15 1 9905- ● ● ●
242 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0 		9-09571-420-0 01 1 9711-9810 ●
242 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0 		9-09571-420-0 01 1 9811-9904 ● ●
242 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0 		9-09571-420-0 01 1 9905- ● ● ●
254 STUD; POINTER & COVER
M8X14,M8X14 L=33 		1-09300-058-1 02 1 9603-9810 ●
254 STUD; POINTER & COVER
M8X14,M8X14 L=33 		1-09300-058-1 02 1 9811-9904 ● ●
254 STUD; POINTER & COVER
M8X14,M8X14 L=33 		1-09300-058-1 02 1 9905- ● ● ●
255 STUD; RELAY LEVER BRKT
M12X30 L=48 		9-94411-230-0 03 1 9603-9810 ●
255 STUD; RELAY LEVER BRKT
M12X30 L=48 		9-94411-230-0 03 1 9811-9904 ● ●
255 STUD; RELAY LEVER BRKT
M12X30 L=48 		9-94411-230-0 03 1 9905- ● ● ●
278 WASHER; COVER FIX 1-11349-127-0 01 1 9603-9810 ●
278 WASHER; COVER FIX 1-11349-127-0 01 1 9811-9904 ● ●
278 WASHER; COVER FIX 1-11349-127-0 01 1 9905- ● ● ●
290 PLUG; SENSOR HOLE
M20X10.5 		9-09662-005-0 01 1 9711-9810 ●
290 PLUG; SENSOR HOLE
M20X10.5 		9-09662-005-0 01 1 9811-9904 ● ●
290 PLUG; SENSOR HOLE
M20X10.5 		9-09662-005-0 01 1 9905- ● ● ●
384 PLATE 1-11343-007-0 01 1 9603-9810 ●
384 PLATE 1-11343-007-0 01 1 9811-9904 ●
384 PLATE
EXC. EURO2 SPECIFICATION<THN> 		1-11343-007-0 01 1 9811-9904 ●
384 PLATE 1-11343-007-0 01 1 9905- ● ●
467 BOLT; PLATE
M8X16 FLANGE 		0-28080-816-0 02 1 9603-9810 ●
467 BOLT; PLATE
M8X16 FLANGE 		0-28080-816-0 02 1 9811-9904 ●
467 BOLT; PLATE
EXC. EURO2 SPECIFICATION<THN> M8X16 FLANGE 		0-28080-816-0 02 1 9811-9904 ●
467 BOLT; PLATE
M8X16 FLANGE 		0-28080-816-0 02 1 9905- ● ●

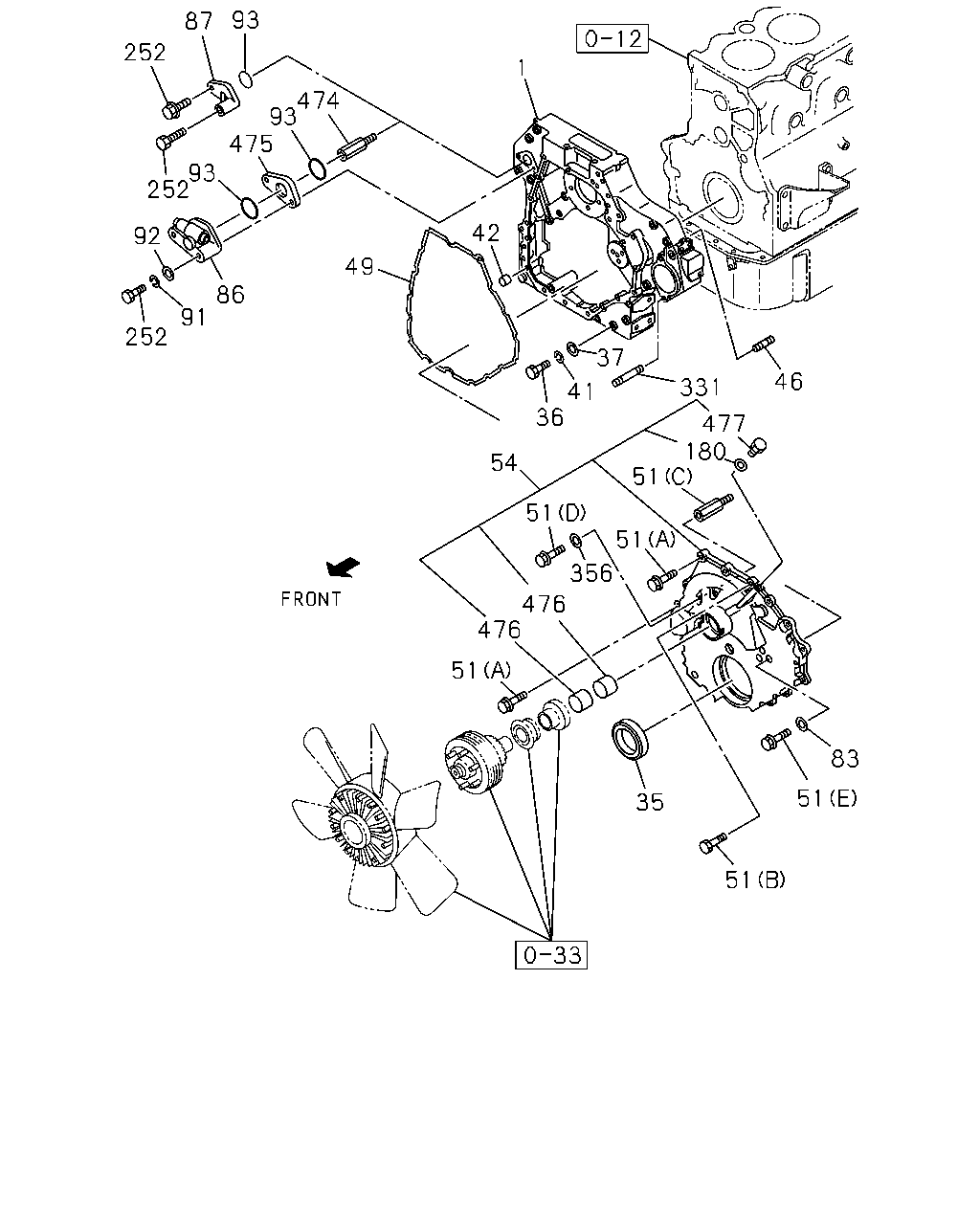

çizim 10522
93 87 252 1 474 93 475 93 252 42 92 49 86 91 252 37 46 331 41 36 477 180 51 54 51 51 356 476 476 51 83 51 35 51
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CASE; TIMING GEAR 1-11310-053-3 01 1 9603-9810 ●
1 CASE; TIMING GEAR 1-11310-053-3 01 1 9811-9904 ● ●
1 CASE; TIMING GEAR 1-11310-053-5 01 1 9905- ● ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). SILVER 		1-09625-556-1 01 1 9603-9810 ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). SILVER 		1-09625-556-1 01 1 9811-9904 ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). SILVER 		1-09625-556-2 01 1 9905- ● ● ●
36 BOLT; GEAR CASE
M10X25 FLANGE 		0-28181-025-0 04 1 9603-9810 ●
36 BOLT; GEAR CASE
M10X25 FLANGE 		0-28181-025-0 04 1 9811-9904 ● ●
36 BOLT; GEAR CASE
M10X35 FLANGE 		0-28181-035-0 01 1 9603-9810 ●
36 BOLT; GEAR CASE
M10X35 FLANGE 		0-28181-035-0 01 1 9811-9904 ● ●
36 BOLT; GEAR CASE
M14X60 		1-09020-146-0 01 1 9603-9810 ●
36 BOLT; GEAR CASE
M14X60 		1-09020-146-0 01 1 9811-9904 ● ●
36 BOLT; GEAR CASE
M10X105 		1-09020-014-1 03 1 9603-9608 ●
36 BOLT; GEAR CASE
M10X100 FLANGE 		0-28181-000-0 03 1 9609-9810 ●
36 BOLT; GEAR CASE
M10X100 FLANGE 		0-28181-000-0 03 1 9811-9904 ● ●
36 BOLT; GEAR CASE
AIR CON MANUAL CONTROL(C60) M14X110 		1-09020-007-0 08 1 9603-9810 ●
36 BOLT; GEAR CASE
AIR CON MANUAL CONTROL(C60) M14X110 		1-09020-007-0 08 1 9811-9904 ● ●
36 BOLT; GEAR CASE
EXC. AIR CON MANUAL CONTROL(C60) M14X110 		1-09020-007-0 10 1 9603-9902 ●
36 BOLT; GEAR CASE
EXC. AIR CON MANUAL CONTROL(C60) M14X110 		1-09020-007-0 10 1 9903-9904 ● ●
36 BOLT; GEAR CASE
M10X25 FLANGE 		0-28181-025-0 04 1 9905- ● ● ●
36 BOLT; GEAR CASE
M10X35 FLANGE 		0-28181-035-0 01 1 9905- ● ● ●
36 BOLT; GEAR CASE
M10X100 FLANGE 		0-28181-000-0 03 1 9905- ● ● ●
36 BOLT; GEAR CASE
M14X60 		1-09020-146-0 01 1 9905- ● ● ●
36 BOLT; GEAR CASE
AIR CON MANUAL CONTROL(C60) M14X110 		1-09020-007-0 08 1 9905- ● ● ●
36 BOLT; GEAR CASE
EXC. AIR CON MANUAL CONTROL(C60) M14X110 		1-09020-007-0 10 1 9905- ● ● ●
37 WASHER; PL,GEAR CASE
ID=10.5 OD=18 		9-09160-510-0 03 1 9603-9608 ●
37 WASHER; PL,GEAR CASE
AIR CON MANUAL CONTROL(C60) ID=15 		9-09160-514-0 09 1 9603-9608 ●
37 WASHER; PL,GEAR CASE
AIR CON MANUAL CONTROL(C60) ID=15 OD=26 		9-09164-514-0 09 1 9609-9810 ●
37 WASHER; PL,GEAR CASE
AIR CON MANUAL CONTROL(C60) ID=15 OD=26 		9-09164-514-0 09 1 9811-9904 ● ●
37 WASHER; PL,GEAR CASE
EXC. AIR CON MANUAL CONTROL(C60) ID=15 		9-09160-514-0 11 1 9603-9608 ●
37 WASHER; PL,GEAR CASE
EXC. AIR CON MANUAL CONTROL(C60) ID=15 OD=26 		9-09164-514-0 11 1 9609-9902 ●
37 WASHER; PL,GEAR CASE
EXC. AIR CON MANUAL CONTROL(C60) ID=15 OD=26 		9-09164-514-0 11 1 9811-9904 ● ●
37 WASHER; PL,GEAR CASE
AIR CON MANUAL CONTROL(C60) ID=15 OD=26 		9-09164-514-0 09 1 9905- ● ● ●
37 WASHER; PL,GEAR CASE
EXC. AIR CON MANUAL CONTROL(C60) ID=15 OD=26 		9-09164-514-0 11 1 9905- ● ● ●
41 WASHER; LK,GEAR CASE
ID=10.2 		9-09150-510-0 03 1 9603-9608 ●
41 WASHER; LK,GEAR CASE
AIR CON MANUAL CONTROL(C60) ID=14.2 		9-09150-514-0 09 1 9603-9608 ●
41 WASHER; LK,GEAR CASE
EXC. AIR CON MANUAL CONTROL(C60) ID=14.2 		9-09150-514-0 11 1 9603-9608 ●
42 DOWEL; GEAR CASE COVER 1-13119-004-0 01 1 9603-9810 ●
42 DOWEL; GEAR CASE COVER 1-13119-004-0 01 1 9811-9904 ● ●
42 DOWEL; GEAR CASE COVER 1-13119-004-0 01 1 9905- ● ● ●
46 STUD; BRG COVER,RR
M14X45 L=66 		9-04411-445-0 01 1 9603-9810 ●
46 STUD; BRG COVER,RR
M14X45 L=66 		9-04411-445-0 01 1 9811-9904 ● ●
46 STUD; BRG COVER,RR
M14X45 L=66 		9-04411-445-0 01 1 9905- ● ● ●
49 GASKET; GEAR CASE TO COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11322-044-1 01 1 9603-9810 ●
49 GASKET; GEAR CASE TO COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11322-044-1 01 1 9811-9904 ● ●
49 GASKET; GEAR CASE TO COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11322-044-1 01 1 9905- ● ● ●
51 BOLT; GEAR CASE COVER
(A) M10X30 FLANGE 		0-28181-030-0 17 1 9603-9810 ●
51 BOLT; GEAR CASE COVER
(A) M10X30 FLANGE 		0-28181-030-0 17 1 9811-9904 ● ●
51 BOLT; GEAR CASE COVER
(B) M10X40 FLANGE 		0-28181-040-0 01 1 9603-9810 ●
51 BOLT; GEAR CASE COVER
(B) M10X40 FLANGE 		0-28181-040-0 01 1 9811-9904 ● ●
51 BOLT; GEAR CASE COVER
(C) M10X90 		1-11329-024-1 03 1 9603-9810 ●
51 BOLT; GEAR CASE COVER
(C) M10X90 		1-11329-024-1 03 1 9811-9904 ● ●
51 BOLT; GEAR CASE COVER
(D) M10X55 FLANGE 		8-94399-863-1 02 1 9603-9810 ●
51 BOLT; GEAR CASE COVER
(D) M10X55 FLANGE 		8-94399-863-1 02 1 9811-9904 ● ●
51 BOLT; GEAR CASE COVER
(E) M8X40 		9-01065-840-0 03 1 9603-9810 ●
51 BOLT; GEAR CASE COVER
(E) M8X40 		9-01065-840-0 03 1 9811-9904 ● ●
51 BOLT; GEAR CASE COVER
(A) M10X30 FLANGE 		0-28181-030-0 17 1 9905- ● ● ●
51 BOLT; GEAR CASE COVER
(B) M10X40 FLANGE 		0-28181-040-0 01 1 9905- ● ● ●
51 BOLT; GEAR CASE COVER
(C) M10X90 		1-11329-024-1 03 1 9905- ● ● ●
51 BOLT; GEAR CASE COVER
(D) M10X55 FLANGE 		8-94399-863-1 02 1 9905- ● ● ●
51 BOLT; GEAR CASE COVER
(E) M8X40 		9-01065-840-0 03 1 9905- ● ● ●
54 COVER; GEAR CASE 1-11320-096-5 01 1 9603-9810 ●
54 COVER; GEAR CASE 1-11320-096-5 01 1 9811-9904 ● ●
54 COVER; GEAR CASE 1-11320-096-8 01 1 9905- ● ● ●
83 WASHER; PL,COVER
ID=8.5 OD=20 		5-09503-111-0 03 1 9603-9810 ●
83 WASHER; PL,COVER
ID=8.5 OD=20 		5-09503-111-0 03 1 9811-9904 ● ●
83 WASHER; PL,COVER
ID=8.5 OD=20 		5-09503-111-0 03 1 9905- ● ● ●
86 ELBOW; TACHOMETER DRIVE 1-85860-048-2 01 1 9603-9810 ●
86 ELBOW; TACHOMETER DRIVE
EXC. EURO2 SPECIFICATION<THN> 		1-85860-048-2 01 1 9811-9904 ●
86 ELBOW; TACHOMETER DRIVE 1-85860-048-2 01 1 9811-9904 ●
86 ELBOW; TACHOMETER DRIVE 1-85860-048-2 01 1 9905- ● ●
87 COVER; TACHOMETER DRIVE
EURO2 SPECIFICATION<THN> 		1-11349-151-2 01 1 9610-9904 ●
87 COVER; TACHOMETER DRIVE 1-11349-151-2 01 1 9905- ●
91 WASHER; LK,ELBOW
ID=8.2 		9-09150-508-0 01 1 9603-9609 ●
91 WASHER; LK,ELBOW
EXC. EURO2 SPECIFICATION<THN> ID=8.2 		9-09150-508-0 01 1 9610-9810 ●
91 WASHER; LK,ELBOW
ID=8.2 		9-09150-508-0 01 1 9811-9904 ●
91 WASHER; LK,ELBOW
EXC. EURO2 SPECIFICATION<THN> ID=8.2 		9-09150-508-0 01 1 9811-9904 ●
91 WASHER; LK,ELBOW
ID=8.2 		9-09150-508-0 01 1 9905- ● ●
92 WASHER; PL,ELBOW
ID=8.4 		9-09160-508-0 01 1 9603-9609 ●
92 WASHER; PL,ELBOW
EXC. EURO2 SPECIFICATION<THN> ID=8.4 		9-09160-508-0 01 1 9610-9810 ●
92 WASHER; PL,ELBOW
ID=8.4 		9-09160-508-0 01 1 9811-9904 ●
92 WASHER; PL,ELBOW
EXC. EURO2 SPECIFICATION<THN> ID=8.4 		9-09160-508-0 01 1 9811-9904 ●
92 WASHER; PL,ELBOW
ID=8.4 		9-09160-508-0 01 1 9905- ● ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7 		1-09623-416-0 02 1 9603-9810 ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-416-0 02 1 9811-9904 ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN> ID=35.7 		1-09623-416-0 02 1 9811-9904 ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN> ID=35.7 		1-09623-416-0 01 1 9610-9904 ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7 		1-09623-416-0 02 1 9905- ● ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN> ID=35.7 		1-09623-416-0 01 1 9905- ●
180 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 9603-9810 ●
180 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 9811-9904 ● ●
180 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 9905- ● ● ●
252 BOLT; GEAR BOX
M8X80 		0-10805-880-0 01 1 9603-9810 ●
252 BOLT; GEAR BOX
M8X80 		0-10805-880-0 01 1 9811-9904 ● ●
252 BOLT; GEAR BOX
M8X30 FLANGE 		0-28080-830-0 01 1 9603-9810 ●
252 BOLT; GEAR BOX
M8X30 FLANGE 		0-28080-830-0 01 1 9811-9904 ● ●
252 BOLT; GEAR BOX
EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28080-820-0 01 1 9610-9904 ●
252 BOLT; GEAR BOX
M8X20 FLANGE 		0-28080-820-0 01 1 9905- ●
252 BOLT; GEAR BOX
EURO2 SPECIFICATION<THN> M8X60 FLANGE 		0-28080-860-0 01 1 9610-9904 ●
252 BOLT; GEAR BOX
M8X60 FLANGE 		0-28080-860-0 01 1 9905- ●
252 BOLT; GEAR BOX
M8X80 		0-10805-880-0 01 1 9905- ● ●
252 BOLT; GEAR BOX
M8X30 FLANGE 		0-28080-830-0 01 1 9905- ● ●
331 STUD; P/S PUMP
M10X25 L=40 		9-04411-025-0 02 1 9603-9810 ●
331 STUD; P/S PUMP
M10X25 L=40 		9-04411-025-0 02 1 9811-9904 ● ●
331 STUD; P/S PUMP
M10X25 L=40 		9-04411-025-0 02 1 9905- ● ● ●
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=16.0 		9-09571-410-0 03 1 9603-9810 ●
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=16.0 		9-09571-410-0 03 1 9811-9904 ● ●
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=16.0 		9-09571-410-0 03 1 9905- ● ● ●
474 ADAPTER; ELBOW DRIVE 1-12539-026-0 01 1 9603-9810 ●
474 ADAPTER; ELBOW DRIVE 1-12539-026-0 01 1 9811-9904 ●
474 ADAPTER; ELBOW DRIVE
EXC. EURO2 SPECIFICATION<THN> 		1-12539-026-0 01 1 9811-9904 ●
474 ADAPTER; ELBOW DRIVE 1-12539-026-0 01 1 9905- ● ●
475 SPACER; ELBOW 1-85869-001-1 01 1 9603-9810 ●
475 SPACER; ELBOW 1-85869-001-1 01 1 9811-9904 ●
475 SPACER; ELBOW
EXC. EURO2 SPECIFICATION<THN> 		1-85869-001-1 01 1 9811-9904 ●
475 SPACER; ELBOW 1-85869-001-1 01 1 9905- ● ●
476 BUSHING; COVER 1-09330-096-0 02 1 9603-9810 ●
476 BUSHING; COVER 1-09330-096-0 02 1 9811-9904 ● ●
476 BUSHING; COVER 1-09330-096-0 02 1 9905- ● ● ●
477 PLUG; OIL HOLE
M10X7 		9-09202-310-0 01 1 9603-9810 ●
477 PLUG; OIL HOLE
M10X7 		9-09202-310-0 01 1 9811-9904 ● ●
477 PLUG; OIL HOLE
M10X7 		9-09202-310-0 01 1 9905- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
