Isuzu WW
▶
TRUCKS
▶
CXH
▶
10585 - CXH RHD
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

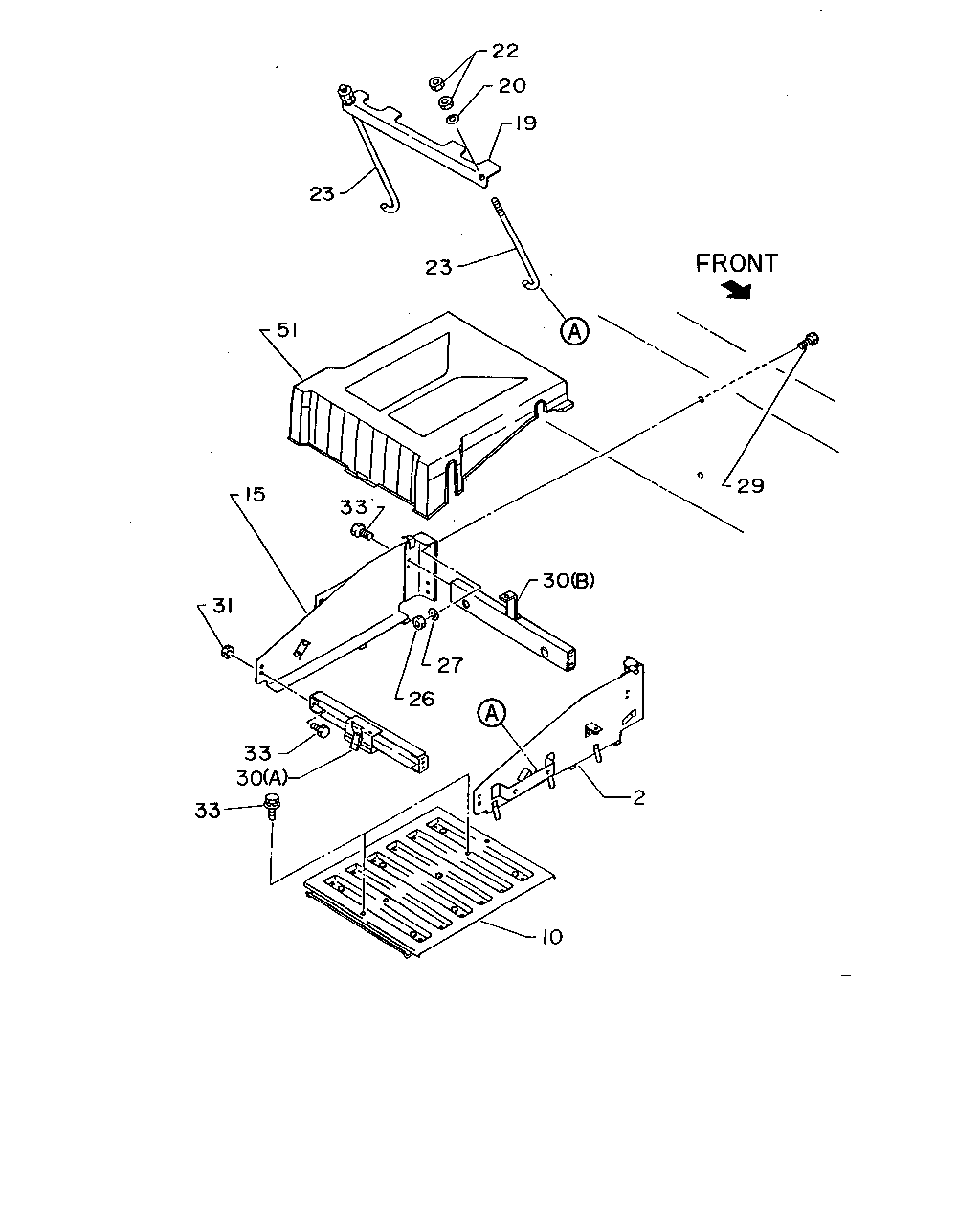

5-20 — BATTERY CARRIER
(#548) — 31 parça
10
2
26
30
33
33
31
15
33
27
30
29
23
51
23
19
20
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BRACKET; BATTERY
1-53613-274-3
01
1
8712-9306
2
BRACKET; BATTERY
1-53613-379-2
01
1
9307-
10
COVER; BATTERY
1-53619-042-1
01
1
8712-9001
10
COVER; BATTERY
1-53619-063-0
01
1
9002-9106
10
COVER; BATTERY
1-53619-062-1
01
1
9107-9306
10
COVER; BATTERY
1-53619-082-0
01
1
9307-
15
BRACKET; BATTERY
1-53613-268-4
01
1
8712-9306
15
BRACKET; BATTERY
1-53613-347-1
01
1
9307-
19
STAY; BATTERY
1-53618-026-1
01
1
8712-8902
19
STAY; BATTERY
1-53618-039-1
01
1
8903-
20
WASHER; PL,STAY
ID=8.4 OD=26
9-09164-808-0
02
1
8712-8902
20
WASHER; PL,STAY
ID=8.4 OD=22
9-09164-708-0
02
1
8903-
22
NUT; STAY
M8
9-09110-408-0
04
1
8712-
23
BOLT; STAY
L=250 L=260
1-53616-109-0
02
1
8712-
26
NUT; BRKT
M14
9-99110-414-0
04
1
8712-
27
WASHER; LK,BRKT
ID=14.2
9-09150-514-0
04
1
8712-
29
BOLT; BRKT TO FRAME
M14X45
9-92051-445-0
04
1
8712-9005
29
BOLT; BRKT TO FRAME
M14X45
0-20801-445-0
04
1
9006-
30
PLATE; BATTERY
(B)
1-53619-058-0
01
1
8712-9306
30
PLATE; BATTERY
(A)
1-53619-060-0
01
1
8712-9106
30
PLATE; BATTERY
(A)
1-53619-085-0
01
1
9107-
31
NUT; PLATE
M8
9-09110-408-0
04
1
8712-
33
BOLT; PLATE TO BRKT
M8X20 W/LK WASHER
9-01900-820-0
04
1
8712-9204
33
BOLT; PLATE TO BRKT
M8X20 W/LK WASHER
0-50040-820-0
04
1
9205-9302
33
BOLT; PLATE TO BRKT
M8X20 FLANGE
0-28080-820-0
04
1
9303-9306
33
BOLT; PLATE TO BRKT
M8X25 W/LK WASHER
9-01900-825-0
04
1
8712-9204
33
BOLT; PLATE TO BRKT
M8X25 W/LK WASHER
0-50040-825-0
04
1
9205-9302
33
BOLT; PLATE TO BRKT
M8X25 FLANGE
0-28080-825-0
04
1
9303-9306
33
BOLT; PLATE TO BRKT
M8X20 FLANGE
0-28080-820-0
04
1
9307-
51
COVER; BATTERY
1-53612-033-0
01
1
8712-9106
51
COVER; BATTERY
1-53612-040-1
01
1
9107-
