Isuzu WW
▶
TRUCKS
▶
NPR
▶
51187 - NPR/NQR(RHD) EURO1
▶
0 - Engine, Emission, Engine Electrical
▶
0-12 - CYLINDER BLOCK
▶
0-12 — CYLINDER BLOCK
(#54795) — 32 parça
◀

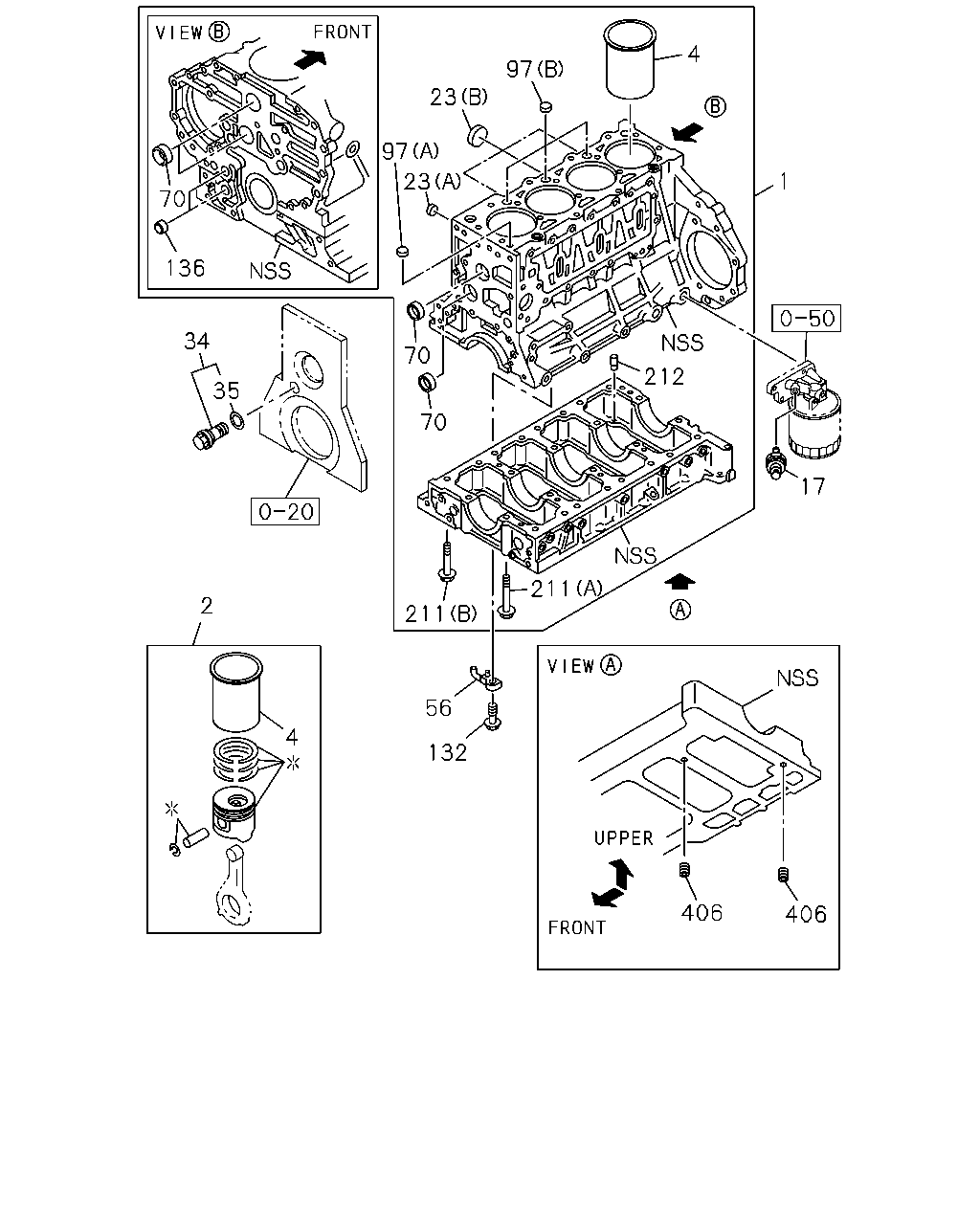

[012A] CYL BLOCK ASM AND LINER SET (24 parça)
[012A] COVER ASM AND OTHER PARTS (8 parça)
▶
70
136
34
35
2
4
132
56
211
211
406
406
17
1
4
97
23
97
70
70
212
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
00.033 BLOCK ASM; CYL
8-98005-433-3
01
1
0810-1209
1
00.033 BLOCK ASM; CYL
8-98204-533-0
01
1
1210-
2
00.030 LINER SET; ENG CYL
GRADE=1X
5-87814-836-5
04
1
0810-1112
2
00.030 LINER SET; ENG CYL
GRADE=1X
5-87816-321-0
04
1
1201-
2
00.030 LINER SET; ENG CYL
GRADE=3X
5-87814-837-5
04
1
0810-1112
2
00.030 LINER SET; ENG CYL
GRADE=3X
5-87816-322-0
04
1
1201-
4
00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON
8-98014-048-1
04
1
0810-
4
00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON
8-98014-049-1
04
1
0810-
17
01.800 SWITCH; OIL PRESSURE
8-97176-230-0
01
1
0810-
23
00.034 CUP; SEALING,C/BL FRT & RR
00.293 (A) OD=25
1-09600-016-0
01
1
0810-
23
00.034 CUP; SEALING,C/BL FRT & RR
(B) OD=45
8-97036-550-1
03
1
0810-
34
01.609 VALVE; OIL RELIEF
00.213
8-97328-859-0
01
1
0810-
35
01.609 GASKET; RELIEF VLV
ID=23.3
8-94173-412-0
01
1
0810-
56
01.519 JET; OIL,PISTON COOLING
8-94370-579-1
04
1
0810-
70
00.034 CUP; SEALING,FRT & RR
OD=40
8-97096-824-0
04
1
0810-
97
00.034 CUP; SEALING
00.253 (A) OD=16
5-11129-006-0
01
1
0810-
97
00.034 CUP; SEALING
00.253 (B) OD=22
8-97209-609-0
03
1
0810-
132
01.519 VALVE; CHECK,OIL
M10X18.5
8-97329-618-0
04
1
0810-
136
01.639 BUSHING; DRIVE SHAFT,OIL PUMP
8-94393-596-1
02
1
0810-0812
136
01.639 BUSHING; DRIVE SHAFT,OIL PUMP
8-98091-566-0
02
1
0901-
211
01.428 BOLT; CRANKCASE
(B) M10X82
8-94399-553-2
17
1
0810-
211
01.428 BOLT; CRANKCASE
00.293 (A) M14X115 W/FLANGE
8-97077-638-0
10
1
0810-
212
01.428 PIN; CRANKCASE
04.510 OD=10 L=20
8-97135-423-0
02
1
0810-
406
01.531 PLUG; CRANK CASE
01.073 PT3/8
5-09605-005-0
02
1
0810-
13
13
61
89
61
335
7
351
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
00.033 BLOCK ASM; CYL
8-98005-433-3
01
1
0810-1209
1
00.033 BLOCK ASM; CYL
8-98204-533-0
01
1
1210-
7
00.034 PLUG; WATER DRAIN
M10X10
8-97352-537-0
01
1
0810-
13
00.293 DOWEL; C/BL TO HD
OD=18.15
8-94399-688-1
02
1
0810-
61
00.206 PIN; STRAIGHT
L=22
8-94483-674-0
04
1
0810-
89
00.034 CUP; SEALING,OIL GALLERY
00.253 OD=20
9-11129-128-0
03
1
0810-
335
01.531 PLUG; C/BL,SIDE
M14X16.5
8-97329-617-0
01
1
0810-
351
01.531 GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2
1-09630-083-0
01
1
0810-
