◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51185 - NPR/NQR(LHD) EURO1 ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#54786) — 81 parça

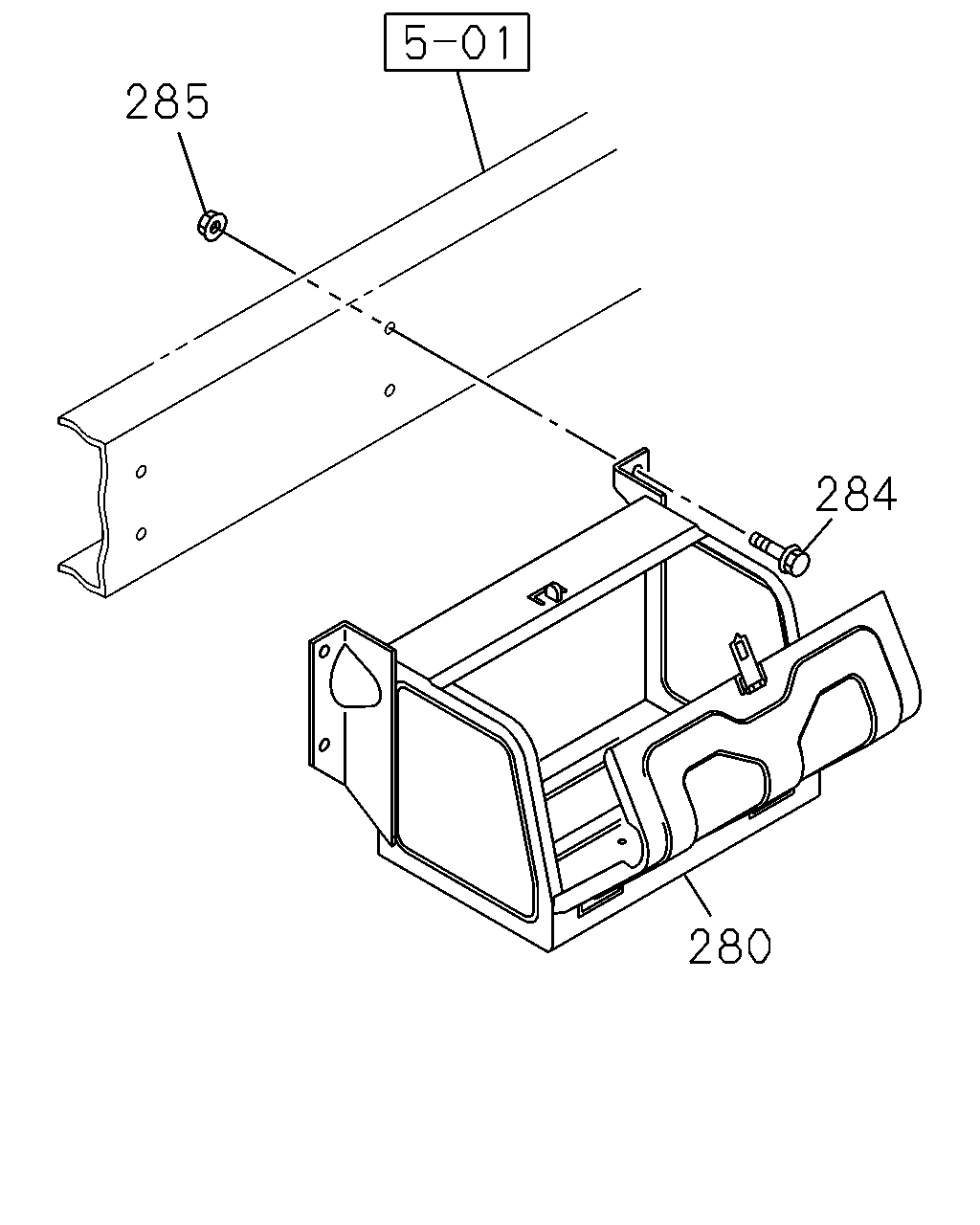

çizim 101026
285 284 280
BalonParca AdiParca NoAdetTipApplied Date A B
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97384-079-0 01 1 0810- ● ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0810- ● ●
285 08.821 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE 		0-91180-110-0 04 1 0810- ● ●

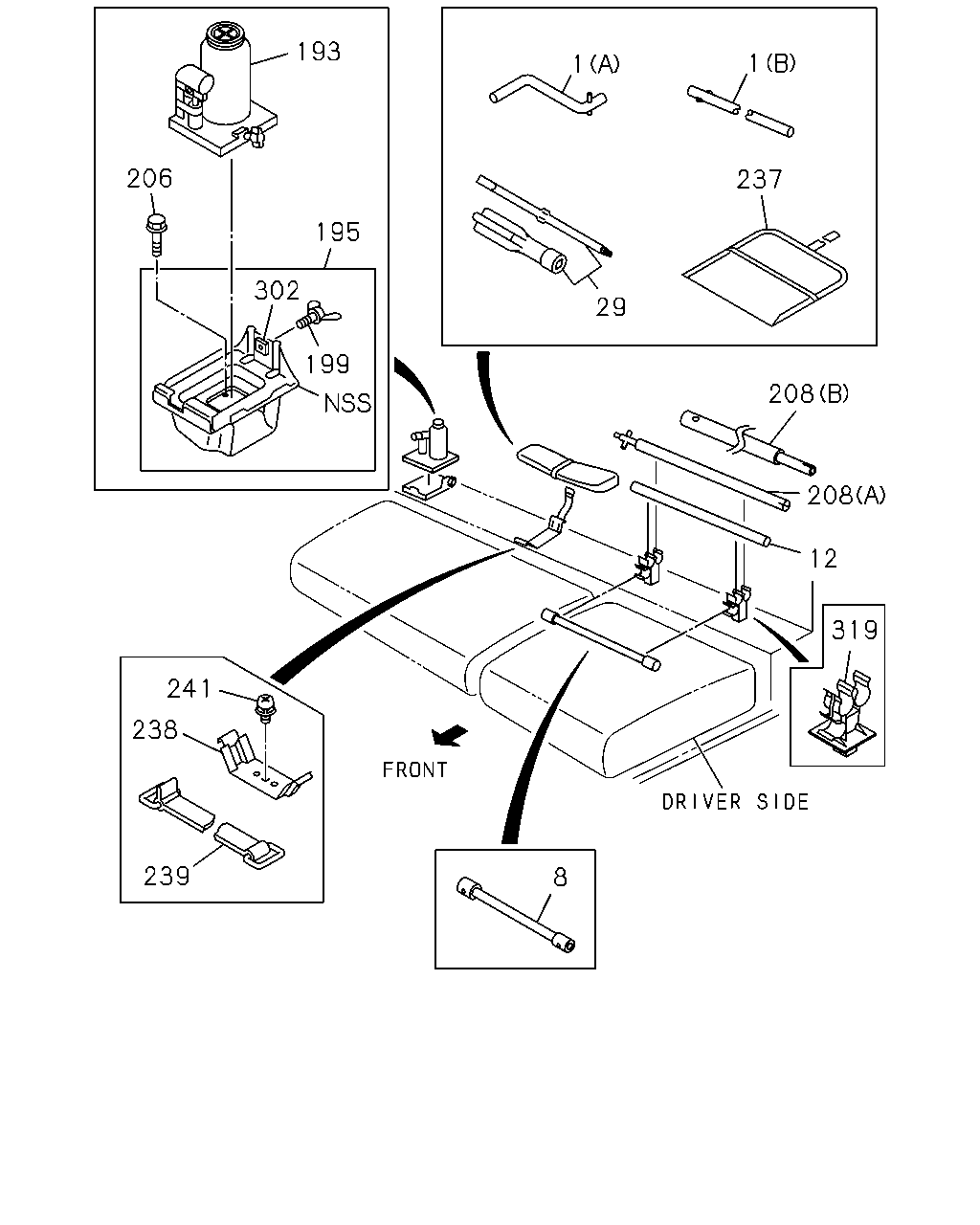

çizim 101074
193 1 1 206 237 195 302 29 199 208 208 12 319 241 238 239 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> 08.821 (B) L=280 		1-85515-007-0 01 1 0810-0810 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> 08.821 (B) L=280 		1-85515-007-0 01 1 0810-0810 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 08.821 (B) L=280 		1-85515-007-0 01 1 0810-0810 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
SPARE TIRE CARRIER INSIDE MOUNTED<P15> 08.821 (B) L=280 		1-85515-007-0 01 1 0811-1108 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> 08.821 (B) L=280 		1-85515-007-0 01 1 0811-1108 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 08.821 (B) L=280 		1-85515-007-0 01 1 0811-1108 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
SPARE TIRE CARRIER INSIDE MOUNTED<P15> (B) L=280 		8-98181-251-0 01 1 1109- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> (B) L=280 		8-98181-251-0 01 1 1109- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=280 		8-98181-251-0 01 1 1109- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 4100MM(41W) (A) 		8-97218-985-0 01 1 0810-0810 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 4100MM(41W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> (A) 		8-97218-985-0 01 1 0811-1506 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 4100MM(41W) (A) 		8-97218-985-0 01 1 0811-1506 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 4100MM(41W) SPARE WHEEL CARRIER<P10> (A) 		8-97218-985-0 01 1 1507- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 4100MM(41W) (A) 		8-97218-985-0 01 1 1507- ●
8 08.821 WRENCH; WHEEL
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-127 (BUM),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NU T(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6- WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-1276-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX1 6-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) B=41X21 L=440 		1-85113-015-1 01 1 0810-0810 ●
8 08.821 WRENCH; WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) B=41X21 L=440 		1-85113-015-1 01 1 0810-0810 ●
8 08.821 WRENCH; WHEEL
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-127 (BUM),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX1 6-127 6-WHL/NUT(83V) B=41X21 L=440 		1-85113-015-1 01 1 0810-0810 ●
8 08.821 WRENCH; WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NUT(CUZ) B=41X21 L=440 		1-85113-015-1 01 1 0810-0810 ●
8 08.821 WRENCH; WHEEL
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-127 (BUM),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 7.5R-16-14 DISC 6.00GSX1 6-127(CTF),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ),FRT&RR7.50R-16-12 R/L 6.00GSX16- 127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6 GSX16-127 6-WHL/NUT(83V) B=41X21 L=440 		1-85113-015-1 01 1 0811- ●
8 08.821 WRENCH; WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NUT(CUZ) B=41X21 L=440 		1-85113-015-1 01 1 0811- ●
8 08.821 WRENCH; WHEEL
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-1 6-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H),FR T&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H), FRT&RR7-16-10L 5.5FX16-115 T/VLV TR177A(98H) B=41X19 L=330 		8-94386-490-1 01 1 0810-0810 ●
8 08.821 WRENCH; WHEEL
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR7.50R-16-12 R/L 6.00GSX1 6-127 5-WHL/NUT(CVH),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7.5R-16-12 6GSX16-127 (19H) B=41X19 L=330 		8-94386-490-1 01 1 0810- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM(41W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> OD=25 L=590 		8-97332-988-0 01 1 0811-1001 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM(41W) OD=25 L=590 		8-97332-988-0 01 1 0811-1001 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM(41W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> 08.820 OD=25 L=480 		1-85116-011-0 01 1 1002-1407 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM(41W) 08.820 OD=25 L=480 		1-85116-011-0 01 1 1002-1407 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM(41W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> OD=25 L=480 		8-98257-407-0 01 1 1408-1506 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM(41W) OD=25 L=480 		8-98257-407-0 01 1 1408-1506 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM(41W) SPARE WHEEL CARRIER<P10> OD=25 L=480 		8-98257-407-0 01 1 1507- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM(41W) OD=25 L=480 		8-98257-407-0 01 1 1507- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM(41W) OD=25 L=590 		8-97332-988-0 01 1 0810-0810 ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 0810- ● ●
193 08.820 JACK ASM
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-127 (BUM),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NU T(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6- WHL/NUT(05C),FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX16-127(11H),FRT& RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6G SX16-127(19H),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX 16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) 5TON 		8-98114-047-0 01 1 0810-0810 ●
193 08.820 JACK ASM
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) 5TON 		8-98114-047-0 01 1 0810-0810 ●
193 08.820 JACK ASM
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-127 (BUM),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ),FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 (CUV),FRT&RR7.50R-16-12 R/L 6.00GSX16-1276-WHL/NUT(CUX),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH),FRT&RR 7.5R-16- 12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7.5R-16-10 6 GSX16-127 6-WHL/NUT(83V) 5TON 		8-98114-047-0 01 1 0810- ●
193 08.820 JACK ASM
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) 5TON 		8-98114-047-0 01 1 0810- ●
193 08.820 JACK ASM
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H) ,FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) 4TON 		8-98012-285-0 01 1 0810-0810 ●
193 08.820 JACK ASM
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) 4TON 		8-98012-285-0 01 1 0810-0810 ●
193 08.820 JACK ASM
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115 (07H) 4TON 		8-98012-285-0 01 1 0811- ●
193 08.820 JACK ASM
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT (9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) 5TON 		8-98114-045-0 01 1 0810-0810 ●
193 08.820 JACK ASM
FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NU T(CUZ) 5TON 		8-98114-045-0 01 1 0810- ●
195 08.820 BRACKET; JACK
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-127 (BUM),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NU T(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6- WHL/NUT(05C),FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX16-127(11H),FRT& RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6G SX16-127(19H),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX 16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) 		8-97589-376-1 01 1 0810-0810 ●
195 08.820 BRACKET; JACK
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) 		8-97589-376-1 01 1 0810-0810 ●
195 08.820 BRACKET; JACK
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-127 (BUM),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ),FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 (CUV),FRT&RR7.50R-16-12 R/L 6.00GSX16-1276-WHL/NUT(CUX),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH),FRT&RR 7.5R-16- 12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7.5R-16-10 6 GSX16-127 6-WHL/NUT(83V) 		8-97589-376-2 01 1 0810- ●
195 08.820 BRACKET; JACK
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NUT(CUZ) 		8-97589-376-2 01 1 0810- ●
195 08.820 BRACKET; JACK
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H) ,FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) 		8-98033-737-1 01 1 0810-0810 ●
195 08.820 BRACKET; JACK
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) 		8-98033-737-2 01 1 0810-0810 ●
195 08.820 BRACKET; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115 (07H) 		8-98033-737-2 01 1 0811- ●
199 08.820 BOLT; JACK
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-127 (BUM),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NU T(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6- WHL/NUT(05C),FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX16-127(11H),FRT& RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6G SX16-127(19H),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX 16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) M8X30 WING 		8-98005-536-0 01 1 0810-0810 ●
199 08.820 BOLT; JACK
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) M8X30 WING 		8-98005-536-0 01 1 0810-0810 ●
199 08.820 BOLT; JACK
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-127 (BUM),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ),FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 (CUV),FRT&RR7.50R-16-12 R/L 6.00GSX16-1276-WHL/NUT(CUX),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH),FRT&RR 7.5R-16- 12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7.5R-16-10 6 GSX16-127 6-WHL/NUT(83V) M8X30 WING 		8-98005-536-0 01 1 0810- ●
199 08.820 BOLT; JACK
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NUT(CUZ) M8X30 WING 		8-98005-536-0 01 1 0810- ●
199 08.820 BOLT; JACK
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H) ,FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) M8X50 WING 		8-98005-537-0 01 1 0810-0810 ●
199 08.820 BOLT; JACK
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) M8X50 WING 		8-98005-537-0 01 1 0810-0810 ●
199 08.820 BOLT; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115 (07H) M8X50 WING 		8-98005-537-0 01 1 0811- ●
206 08.820 SCREW; OIL JACK BRKT
06.216 BOLT M8X25 FLANGE 		0-28650-825-0 01 1 0810- ● ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> (B) L=580 		1-85515-005-1 01 1 0810-0810 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> (B) L=580 		1-85515-005-1 01 1 0810-0810 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=580 		1-85515-005-1 01 1 0810-0810 ●
208 08.820 HANDLE; JACK
SPARE TIRE CARRIER INSIDE MOUNTED<P15> (B) L=580 		1-85515-005-1 01 1 0811-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> (B) L=580 		1-85515-005-1 01 1 0811-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=580 		1-85515-005-1 01 1 0811-1108 ●
208 08.820 HANDLE; JACK
SPARE TIRE CARRIER INSIDE MOUNTED<P15> (B) L=580 		8-98181-249-0 01 1 1109- ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> (B) L=580 		8-98181-249-0 01 1 1109- ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=580 		8-98181-249-0 01 1 1109- ●
208 08.820 HANDLE; JACK
WHEEL BASE 4100MM(41W) (A) L=642 		8-97217-800-0 01 1 0810-0810 ●
208 08.820 HANDLE; JACK
WHEEL BASE 4100MM(41W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> (A) L=642 		8-97217-800-0 01 1 0811-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 4100MM(41W) (A) L=642 		8-97217-800-0 01 1 0811-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 4100MM(41W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> (A) L=642 		8-98181-477-0 01 1 1109-1506 ●
208 08.820 HANDLE; JACK
WHEEL BASE 4100MM(41W) (A) L=642 		8-98181-477-0 01 1 1109-1506 ●
208 08.820 HANDLE; JACK
WHEEL BASE 4100MM(41W) SPARE WHEEL CARRIER<P10> (A) L=642 		8-98181-477-0 01 1 1507- ●
208 08.820 HANDLE; JACK
WHEEL BASE 4100MM(41W) (A) L=642 		8-98181-477-0 01 1 1507- ●
237 08.821 BAG; TOOL 8-97130-903-1 01 1 0810- ● ●
238 08.820 SUPPORT; TOOL BAG 8-97994-977-0 01 1 0810- ● ●
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 0810- ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.570 M6X16 		0-38050-616-0 01 1 0810- ● ●
302 08.820 NUT; JACK BRKT 8-98021-556-0 01 1 0810- ● ●
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 0810- ● ●
