8-50 — AIR CONDITIONING SYSTEM; FRONT (#54777) — 26 parça

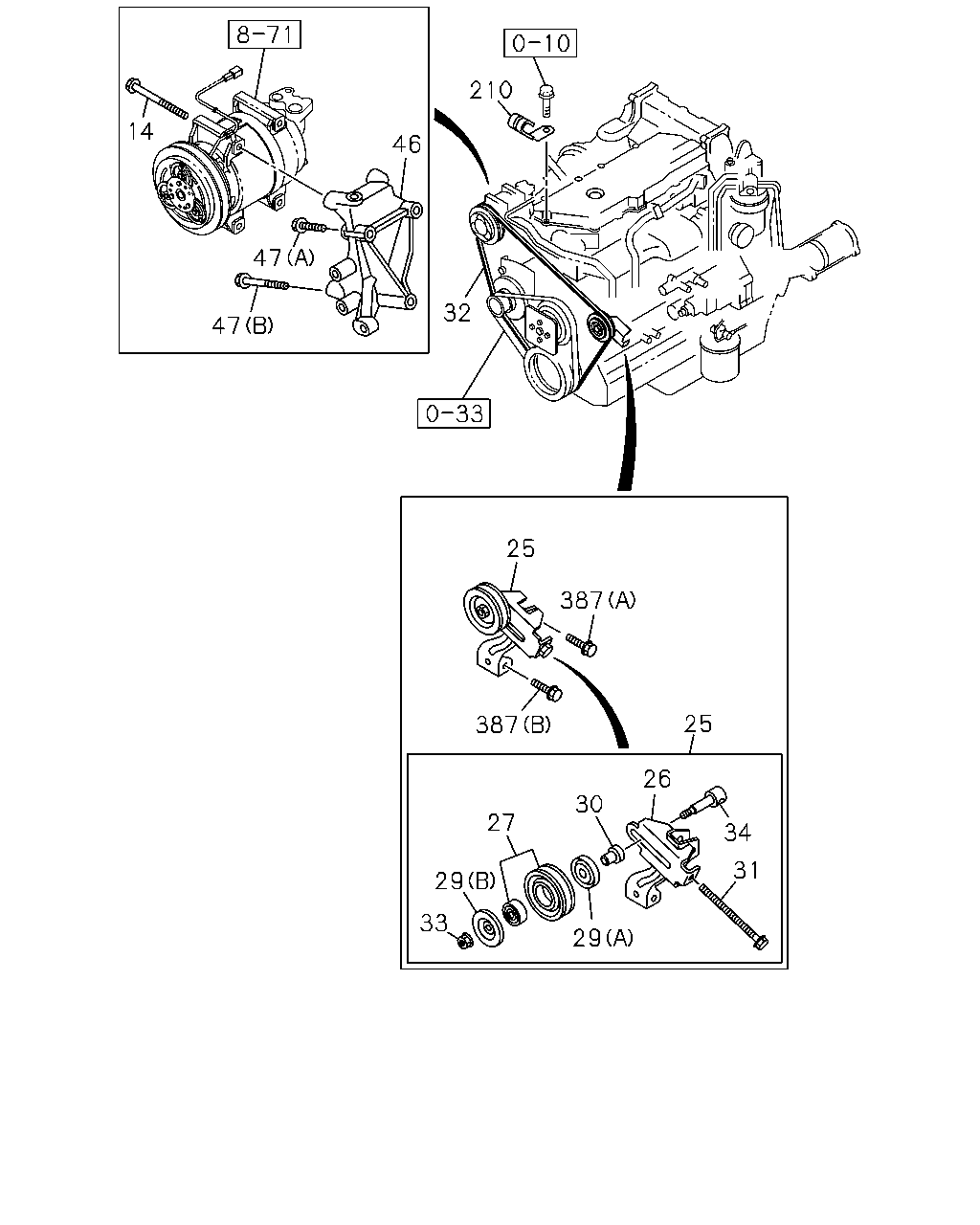

çizim 59377
210 14 46 47 32 47 25 387 25 387 26 30 27 34 31 29 33 29
BalonParca AdiParca NoAdetTipApplied Date A B
14 09.171 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60) 02.100 M8X90 FLANGE 		0-28050-890-0 04 1 0810- ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-97161-198-1 01 1 0810- ● ●
26 09.180 BRACKET; IDLE PULLEY,A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97161-031-1 01 1 0810- ● ●
27 09.180 PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97386-869-0 01 1 0810- ● ●
29 09.181 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-114-0 01 1 0810- ● ●
29 09.181 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97384-115-0 01 1 0810- ● ●
30 09.181 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) 		8-97384-117-0 01 1 0810- ● ●
31 09.181 BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) 		8-97384-113-0 01 1 0810- ● ●
32 01.066 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS 		5-87610-097-0 01 1 0810- ● ●
32 01.066 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97180-183-3 01 1 0810- ● ●
33 09.181 NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONT(C60) 		8-97384-118-0 01 1 0810- ● ●
34 09.181 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) 		8-97384-116-0 01 1 0810- ● ●
46 09.171 BRACKET; CMPR
AIR CONDITIONER MANUAL CONT(C60) 09.242 		8-97305-489-0 01 1 0810- ● ●
47 09.173 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60) 09.171 (B) M10X110 FLANGE 		0-28156-011-0 01 1 0810- ● ●
47 09.173 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60) 00.683 (A) M10X55 FLANGE 		8-97365-449-0 02 1 0810- ● ●
210 09.242 CLIP; HARNESS
03.671 ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0810- ● ●
387 09.190 BOLT; TENSIONER FIX
AIR CONDITIONER MANUAL CONT(C60) 00.386 (A) M8X50 FLANGE 		0-28050-850-0 01 1 0810- ● ●
387 09.190 BOLT; TENSIONER FIX
AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE 		8-94344-540-1 01 1 0810- ● ●

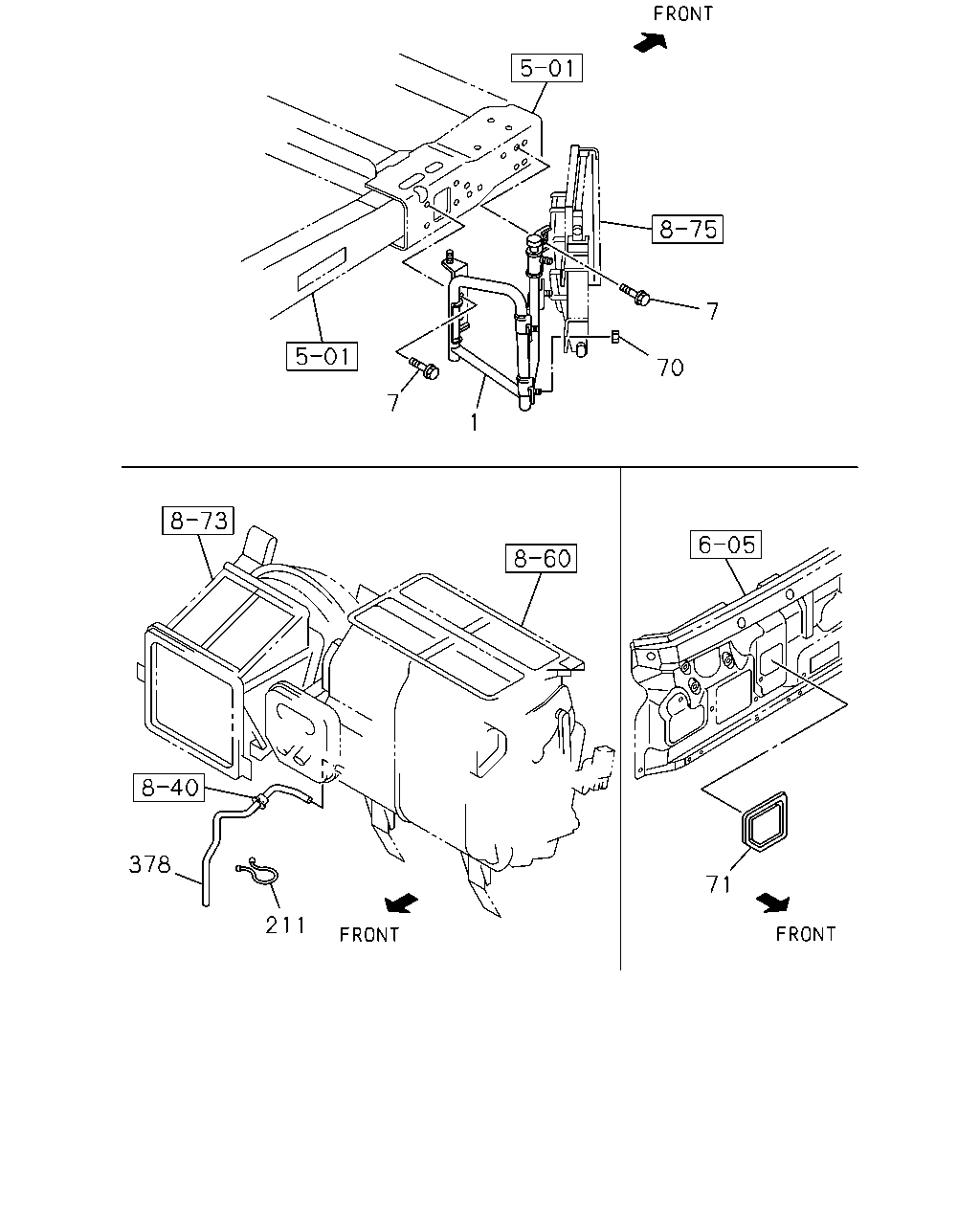

çizim 59379
7 70 7 1 378 71 211
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.242 BRACKET; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98006-339-0 01 1 0810-1303 ● ●
1 09.242 BRACKET; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98214-412-0 01 1 1304- ● ●
7 09.242 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) 07.395 M12X30 FLANGE 		0-28651-230-0 04 1 0810- ● ●
70 09.190 NUT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) 01.062 M8 FLANGE 		0-91180-108-0 04 1 0810- ● ●
71 09.190 COVER; EVAP,A/C
EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 		8-98017-235-1 01 1 0810-1301 ● ●
71 09.190 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98017-235-1 01 1 1302- ● ●
211 09.190 CLIP; HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 ID=44 		8-94463-508-0 01 1 0810- ● ●
378 09.211 HOSE; DRAIN,EVAPORATOR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98006-239-3 01 1 0810- ● ●
