◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51185 - NPR/NQR(LHD) EURO1 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-45 - HEATER PIPING ▶
8-45 — HEATER PIPING (#54776) — 16 parça

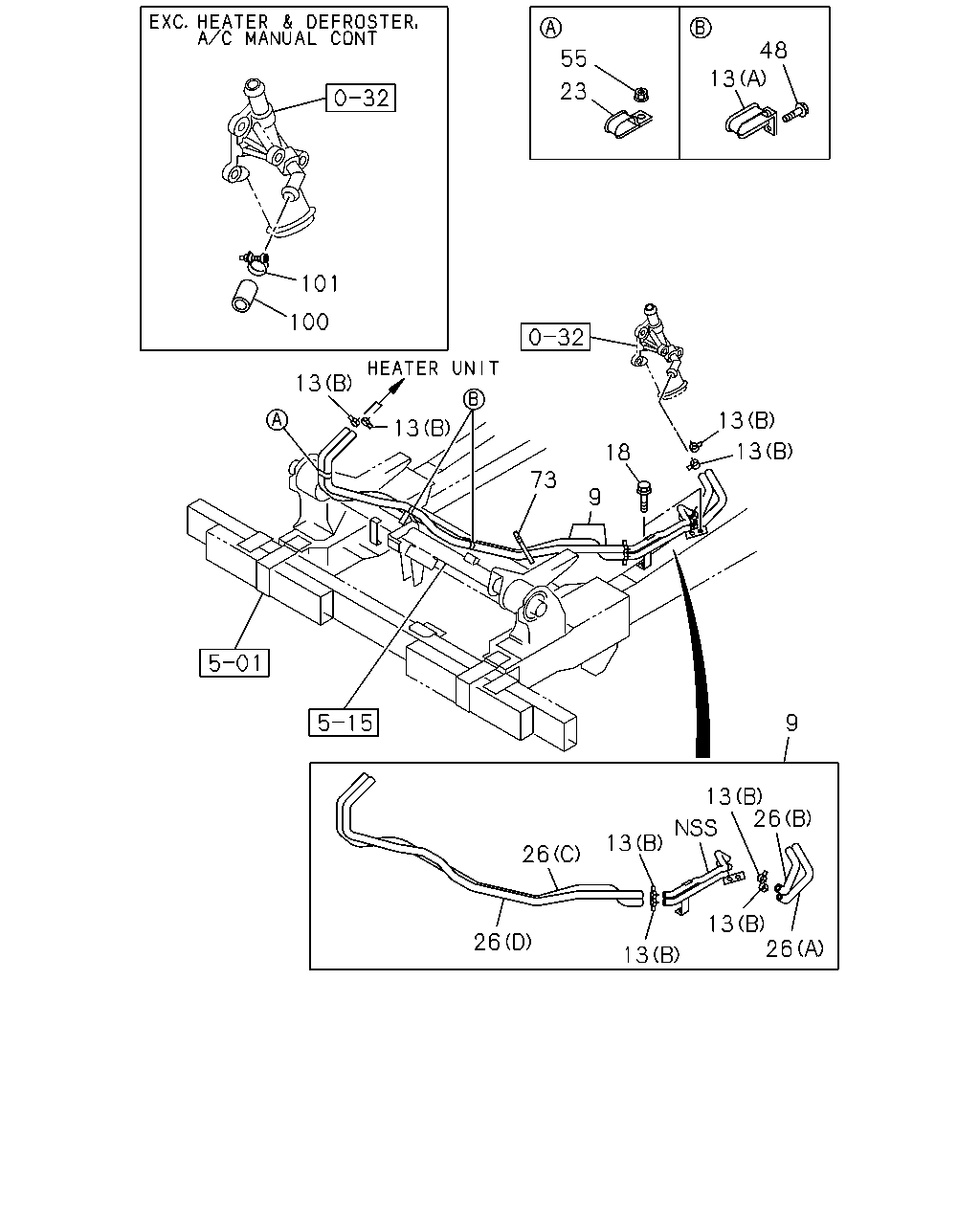

çizim 59309
48 55 13 23 101 100 13 13 13 13 18 73 9 9 13 26 13 26 13 26 26 13
BalonParca AdiParca NoAdetTipApplied Date A B
9 08.846 PIPE; HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98006-433-1 01 1 0810- ● ●
13 08.846 CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (B) ID=22 		8-97359-141-0 04 1 0810- ● ●
13 08.846 CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (B) ID=22 		8-97359-141-0 04 1 0810- ● ●
13 08.846 CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 (A) 		8-98032-129-0 02 1 0810- ● ●
18 08.866 BOLT; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0810- ● ●
23 08.846 CLIP; WATER HOSE,DASH LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) B=18 		8-97359-144-0 01 1 0810-1205 ● ●
23 08.846 CLIP; WATER HOSE,DASH LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) B=18 		8-98166-023-0 01 1 1206- ● ●
26 08.846 HOSE; HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98050-295-0 01 1 0810- ● ●
26 08.846 HOSE; HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98050-296-0 01 1 0810- ● ●
26 08.846 HOSE; HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98059-457-1 01 1 0810- ● ●
26 08.846 HOSE; HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) 		8-98059-458-1 01 1 0810- ● ●
48 09.262 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE 		0-28050-612-0 02 1 0810- ● ●
55 08.845 NUT; CLAMP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE 		0-91180-106-0 01 1 0810- ● ●
73 08.846 CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 L=250 		5-09707-030-1 01 1 0810- ● ●
100 08.846 CAP; RUBBER,WATER PIPE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 		8-94107-793-0 01 1 0810-1202 ● ●
101 08.846 CLIP; CAP,WATER PIPE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 ID=25 		8-94233-115-0 01 1 0810-1202 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
