8-28 — CHASSIS ELECTRICAL (#54774) — 20 parça

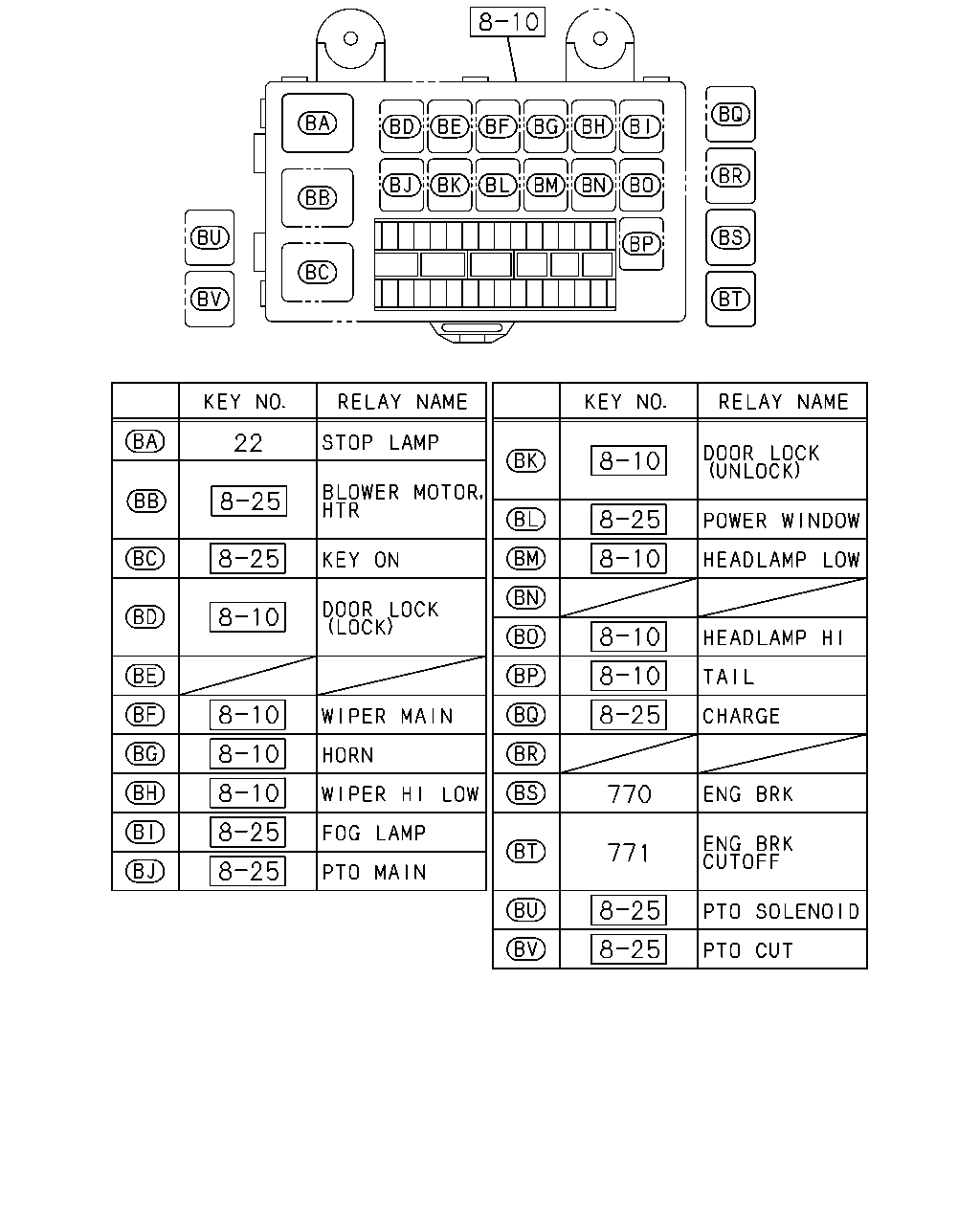

çizim 59341

22 770 771

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	22	02.679 RELAY; STOP LAMP 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0810-	●	●
	770	02.510 RELAY; ENG BRK EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0810-	●
	770	02.510 RELAY; ENG BRK 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0810-		●
	771	02.510 RELAY; ENG BRK CUTOFF EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0810-	●
	771	02.510 RELAY; ENG BRK CUTOFF 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0810-		●

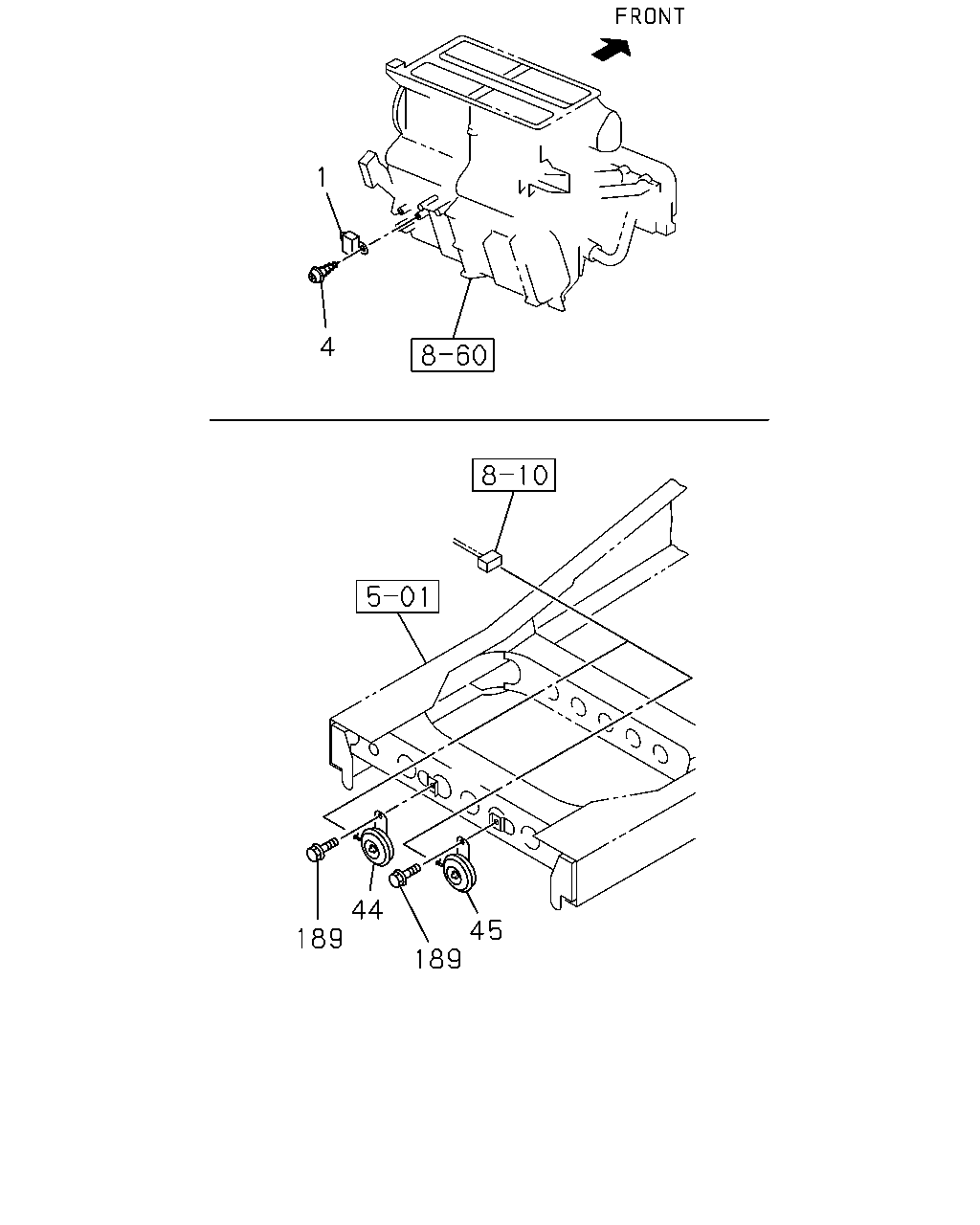

çizim 59373

1 4 44 189 45 189

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	1	02.575 UNIT; FLASHER	8-98025-533-1	01	1	0810-	●	●
	4	02.575 SCREW; FLASHER UNIT 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0810-1101	●	●
	4	02.575 SCREW; FLASHER UNIT 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●
	4	02.575 SCREW; FLASHER UNIT 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●
	44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN(6KK)	8-98070-080-0	01	1	0810-	●	●
	45	02.810 HORN; LOW NOTE	8-98022-023-0	01	1	0810-	●	●
	189	02.812 BOLT; HORN 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0810-1004	●	●
	189	02.812 BOLT; HORN DUAL HEAVY DUTY HORN(6KK) 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0810-1004	●	●
	189	02.812 BOLT; HORN 02.343 M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-	●	●
	189	02.812 BOLT; HORN DUAL HEAVY DUTY HORN(6KK) 02.343 M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-	●	●

çizim 59412

42 376 540

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	42	09.766 BRACKET; RELAY INTERMITTENT WIPER<C13>	8-98094-199-0	01	1	0810-	●	●
	376	03.342 BOLT; RELAY INTERMITTENT WIPER<C13> 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0810-	●	●
	540	16.067 RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98060-388-0	01	1	0810-1308	●	●
	540	16.067 RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98233-976-0	01	1	1309-	●	●

çizim 101600

236

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	236	02.485 RELAY; FUEL PUMP 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0810-	●	●
