◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51185 - NPR/NQR(LHD) EURO1 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#54773) — 15 parça

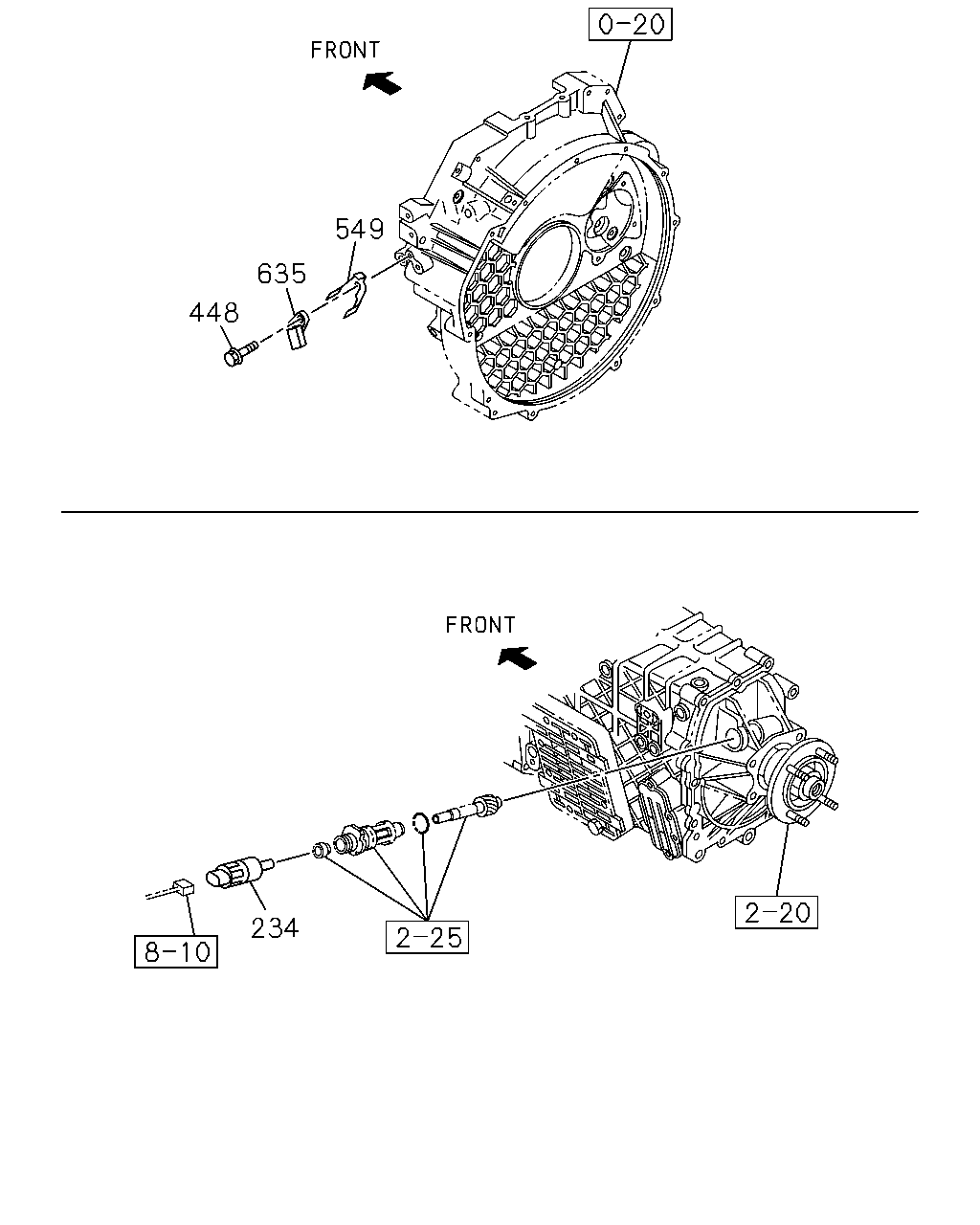

çizim 59337
549 635 448 234
BalonParca AdiParca NoAdetTipApplied Date A B
234 03.682 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 0810- ● ●
448 02.500 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0810- ● ●
549 02.510 SHEET
09.743 		8-97161-633-2 01 1 0810- ● ●
635 09.750 SENSOR; TACHOMETER
CALSONIC KANSEI 		8-97163-104-0 01 1 0810- ● ●
çizim 59448
68 67 67 69
BalonParca AdiParca NoAdetTipApplied Date A B
67 03.887 BRACKET; CONT UNIT
(A) 		8-98015-039-1 01 1 0810- ● ●
67 03.887 BRACKET; CONT UNIT
(B) 		8-98110-224-1 01 1 0810- ● ●
68 02.500 BOLT; BRKT
00.206 M6X12 FLANGE 		0-28450-612-0 01 1 0810- ● ●
69 02.458 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0810- ● ●

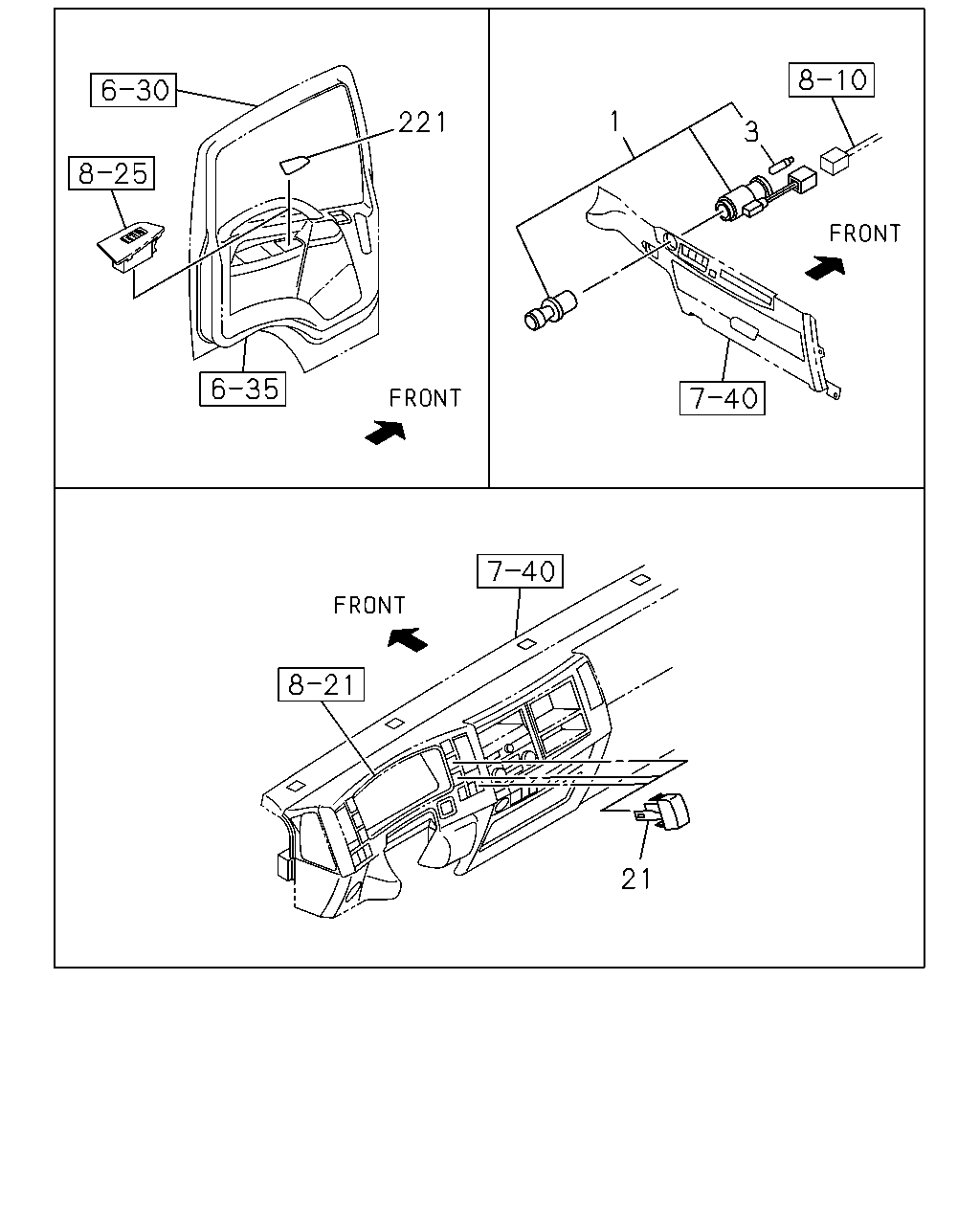

çizim 101025
1 221 3 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.709 LIGHTER; CIGAR 8-97320-325-0 01 1 0810-0906 ● ●
1 09.709 LIGHTER; CIGAR 8-98142-962-0 01 1 0907- ● ●
3 08.991 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0810-0906 ● ●
21 09.744 COVER; HOLE
16.081 		8-98025-954-1 01 1 0810- ● ●
21 09.744 COVER; HOLE
16.081 		8-98025-954-1 02 1 0810- ● ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 0810- ● ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 0810- ● ●
