6-01 — FRONT BUMPER (#54770) — 54 parça

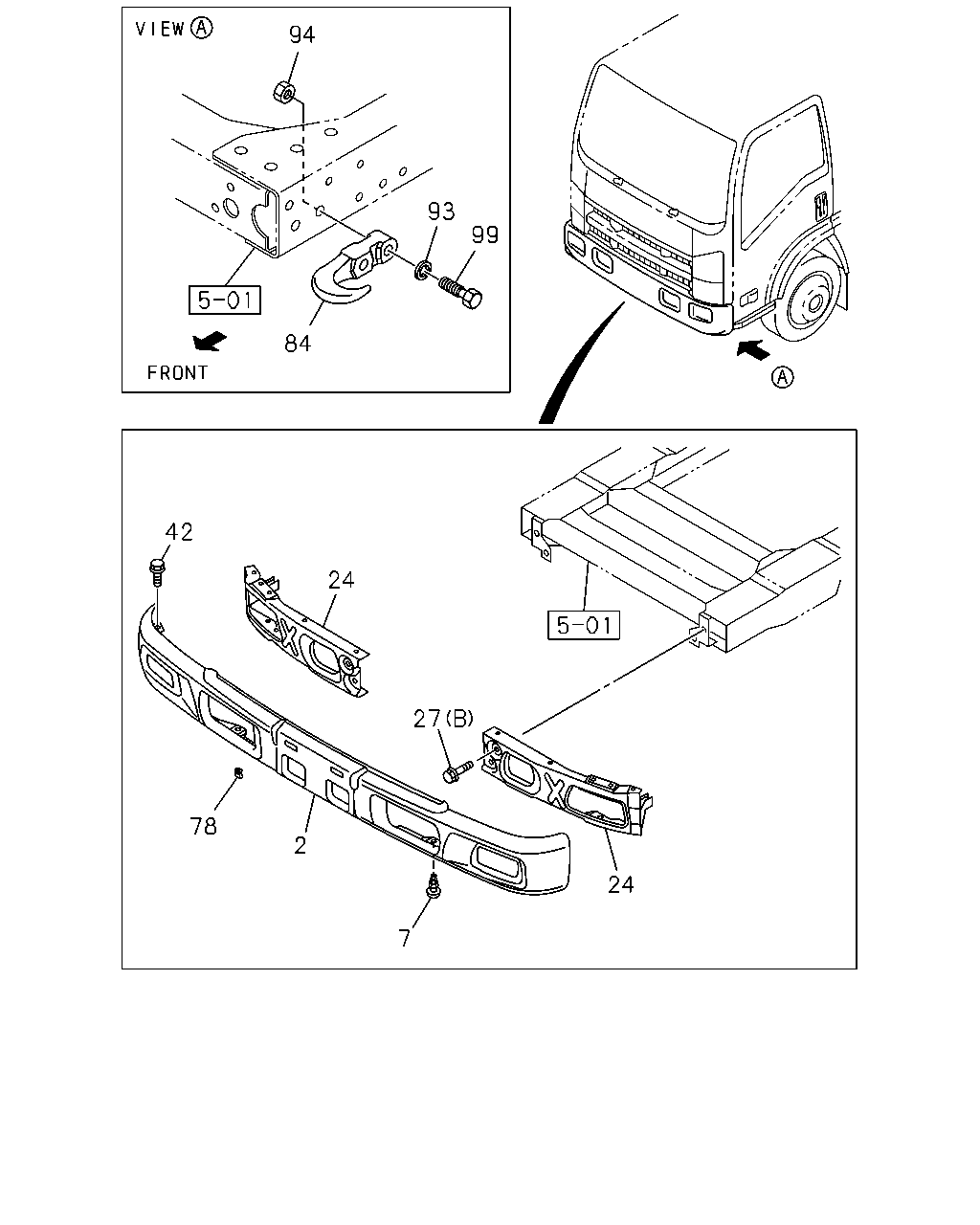

94 93 99 84 24 27 24 7 2 78 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	07.831 BUMPER; FRT,CENTER FOG LAMP<T96> FRONT BUMPER PAINTED<VB5> PRIMER	8-98055-079-2	01	1	1012-	●	●	●
2	07.831 BUMPER; FRT,CENTER FOG LAMP<T96> FRT BUMPER DARK GRAY<EQ9> DARK GRAY	8-97405-627-5	01	1	1012-	●	●	●
2	07.831 BUMPER; FRT,CENTER BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PAINTED<VB5> WHITE	8-97405-628-5	01	1	1012-	●	●	●
2	07.831 BUMPER; FRT,CENTER BODY COLOR TRANS BLUE(999) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PAINTED<VB5> BLUE	8-97405-629-5	01	1	1012-	●	●	●
2	07.831 BUMPER; FRT,CENTER FRONT BUMPER PAINTED<VB5> EXC. FOG LAMP<T96> PRIMER	8-98055-080-2	01	1	1012-	●	●	●
2	07.831 BUMPER; FRT,CENTER FRT BUMPER DARK GRAY<EQ9> EXC. FOG LAMP<T96> DARK GRAY	8-97405-634-5	01	1	1012-	●	●	●
2	07.831 BUMPER; FRT,CENTER BODY COLOR ARC WHITE(729) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96>,FRONT BUMPER PAINTED<VB5> WHITE	8-97405-635-5	01	1	1012-	●	●	●
2	07.831 BUMPER; FRT,CENTER BODY COLOR TRANS BLUE(999) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96>,FRONT BUMPER PAINTED<VB5> BLUE	8-97405-636-5	01	1	1012-	●	●	●
7	07.833 SCREW; FRT BUMPER 4JJ1-TCC ENG(RDU) M6X20 TAPPING	8-98082-975-0	03	1	1012-	●		●
24	07.869 BAR; FRT BUMPER 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU)	8-98025-184-5	01	1	1012-1012	●	●	●
24	07.869 BAR; FRT BUMPER	8-98025-184-5	01	1	1101-	●	●	●
24	07.869 BAR; FRT BUMPER 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU)	8-98025-185-5	01	1	1012-1012	●	●	●
24	07.869 BAR; FRT BUMPER	8-98025-185-5	01	1	1101-	●	●	●
27	07.833 BOLT; BUMPER TO BACK BAR FRONT UNDER RUN PROTECTOR<EBE> 00.029 (C) M10X30 FLANGE	0-28651-030-0	06	1	1303-1408	●	●
27	07.833 BOLT; BUMPER TO BACK BAR FRONT UNDER RUN PROTECTOR<EBE> 00.029 (C) M10X30 FLANGE	0-28651-030-0	06	1	1409-	●	●
27	07.833 BOLT; BUMPER TO BACK BAR 4JJ1-TCC ENG(RDU) 16.679 (A) M8X20 W/PL WASHER	8-98031-841-0	02	1	1012-	●
27	07.833 BOLT; BUMPER TO BACK BAR 16.679 (A) M8X20 W/PL WASHER	8-98031-841-0	02	1	1012-			●
27	07.833 BOLT; BUMPER TO BACK BAR (B) M10X30 W/TORQUES	8-98092-250-0	04	1	1012-1301	●	●	●
27	07.833 BOLT; BUMPER TO BACK BAR (B) M10X30 W/TORQUES	8-98092-250-0	04	1	1302-	●		●
27	07.833 BOLT; BUMPER TO BACK BAR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B) M10X30 W/TORQUES	8-98092-250-0	04	1	1302-		●
42	07.874 BOLT; BUMPER 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 08.143 M6X16 W/LK&PL WASHER	0-52010-616-0	10	1	1012-1012	●	●	●
42	07.874 BOLT; BUMPER 08.143 M6X16 W/LK&PL WASHER	0-52010-616-0	10	1	1101-	●	●	●
78	07.874 NUT; SPIRE 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) M6	8-98029-416-0	02	1	1012-1012	●	●	●
78	07.874 NUT; SPIRE M6	8-98029-416-0	02	1	1101-	●	●	●
84	07.068 HOOK	8-97387-665-0	01	1	1012-	●	●	●
93	07.068 WASHER; LK,HOOK 06.174 ID=14.2	0-91510-814-0	02	1	1012-	●	●	●
94	07.068 NUT; HOOK 07.833 M14	0-91110-514-0	01	1	1012-	●	●	●
99	07.039 BOLT; HOOK M14X55	0-10956-455-0	02	1	1012-1103	●	●	●
99	07.039 BOLT; HOOK M14X55	8-97301-262-0	02	1	1104-	●	●	●

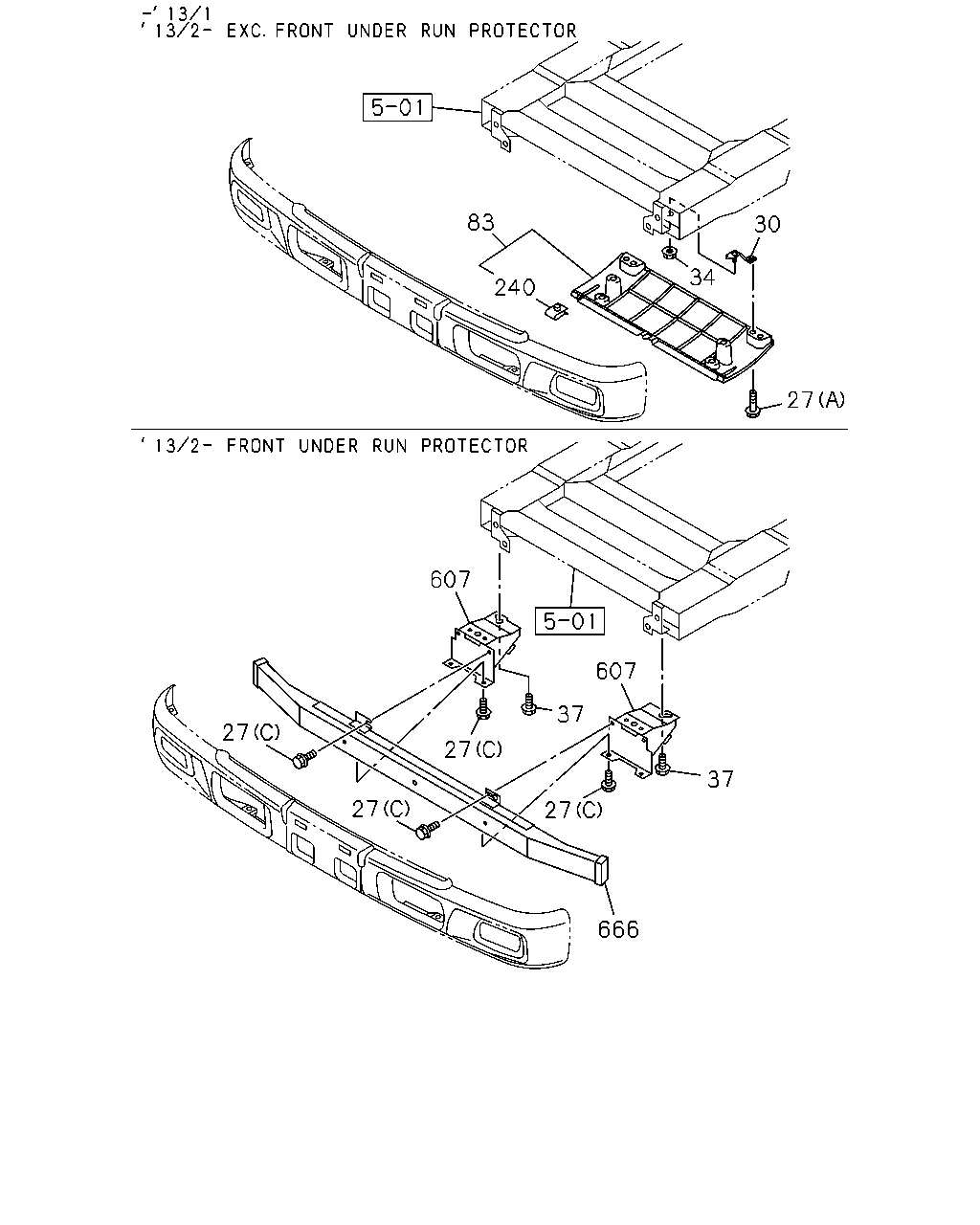

83 240 30 34 27 607 607 37 27 666 27 27 37 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
27	07.833 BOLT; BUMPER TO BACK BAR FRONT UNDER RUN PROTECTOR<EBE> 00.029 (C) M10X30 FLANGE	0-28651-030-0	06	1	1303-1408	●	●
27	07.833 BOLT; BUMPER TO BACK BAR FRONT UNDER RUN PROTECTOR<EBE> 00.029 (C) M10X30 FLANGE	0-28651-030-0	06	1	1409-	●	●
27	07.833 BOLT; BUMPER TO BACK BAR 4JJ1-TCC ENG(RDU) 16.679 (A) M8X20 W/PL WASHER	8-98031-841-0	02	1	1012-	●
27	07.833 BOLT; BUMPER TO BACK BAR 16.679 (A) M8X20 W/PL WASHER	8-98031-841-0	02	1	1012-			●
27	07.833 BOLT; BUMPER TO BACK BAR (B) M10X30 W/TORQUES	8-98092-250-0	04	1	1012-1301	●	●	●
27	07.833 BOLT; BUMPER TO BACK BAR (B) M10X30 W/TORQUES	8-98092-250-0	04	1	1302-	●		●
27	07.833 BOLT; BUMPER TO BACK BAR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B) M10X30 W/TORQUES	8-98092-250-0	04	1	1302-		●
30	07.869 BRACKET; FRT BUMPER 4JJ1-TCC ENG(RDU) EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC)	8-98025-203-0	02	1	1012-1301	●
30	07.869 BRACKET; FRT BUMPER EXC. PTO MANUAL CONTROL(6WC)	8-98025-203-0	02	1	1012-1301			●
30	07.869 BRACKET; FRT BUMPER 4JJ1-TCC ENG(RDU) EXC. FRONT UNDER RUN PROTECTOR<EBE>, DUMPCHASSIS(V4D),PTO MANUAL CONTROL(6WC)	8-98025-203-0	02	1	1302-	●
30	07.869 BRACKET; FRT BUMPER EXC. PTO MANUAL CONTROL(6WC)	8-98025-203-0	02	1	1302-			●
34	07.874 NUT; BRKT,BUMPER 4JJ1-TCC ENG(RDU) EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1301	●
34	07.874 NUT; BRKT,BUMPER EXC. PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1301			●
34	07.874 NUT; BRKT,BUMPER 4JJ1-TCC ENG(RDU) EXC. FRONT UNDER RUN PROTECTOR<EBE>, DUMPCHASSIS(V4D),PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE	0-91180-108-0	02	1	1302-	●
34	07.874 NUT; BRKT,BUMPER EXC. PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE	0-91180-108-0	02	1	1302-			●
37	01.263 BOLT; BRKT TO BUMPER LWR FRONT UNDER RUN PROTECTOR<EBE> 09.003 M12X35 FLANGE	0-28651-235-0	06	1	1303-1408	●	●
37	01.263 BOLT; BRKT TO BUMPER LWR FRONT UNDER RUN PROTECTOR<EBE> 09.003 M12X35 FLANGE	0-28651-235-0	06	1	1409-	●	●
83	07.833 GUIDE; AIR,FRT BUMPER 4JJ1-TCC ENG(RDU)	8-98025-201-1	01	1	1012-	●		●
240	07.833 NUT; AIR GUIDE,FRT BUMPER 4JJ1-TCC ENG(RDU) 16.550	1-71996-035-1	03	1	1012-	●		●
607	07.869 BRACKET FRONT UNDER RUN PROTECTOR<EBE> FRAME STRAIGHT TYPE<7KJ>	8-98199-135-0	01	1	1303-1408	●	●
607	07.869 BRACKET FRONT UNDER RUN PROTECTOR<EBE>	8-98199-135-0	01	1	1409-	●	●
607	07.869 BRACKET FRONT UNDER RUN PROTECTOR<EBE> FRAME STRAIGHT TYPE<7KJ>	8-98232-027-0	01	1	1303-1408	●	●
607	07.869 BRACKET FRONT UNDER RUN PROTECTOR<EBE>	8-98232-027-0	01	1	1409-	●	●
666	07.831 PROTECTOR; UNDER FRONT UNDER RUN PROTECTOR<EBE>	8-98232-025-0	01	1	1303-1408	●	●
666	07.831 PROTECTOR; UNDER FRONT UNDER RUN PROTECTOR<EBE>	8-98232-025-0	01	1	1409-	●	●
