0-14B — CAMSHAFT AND VALVE (#5477) — 106 parça

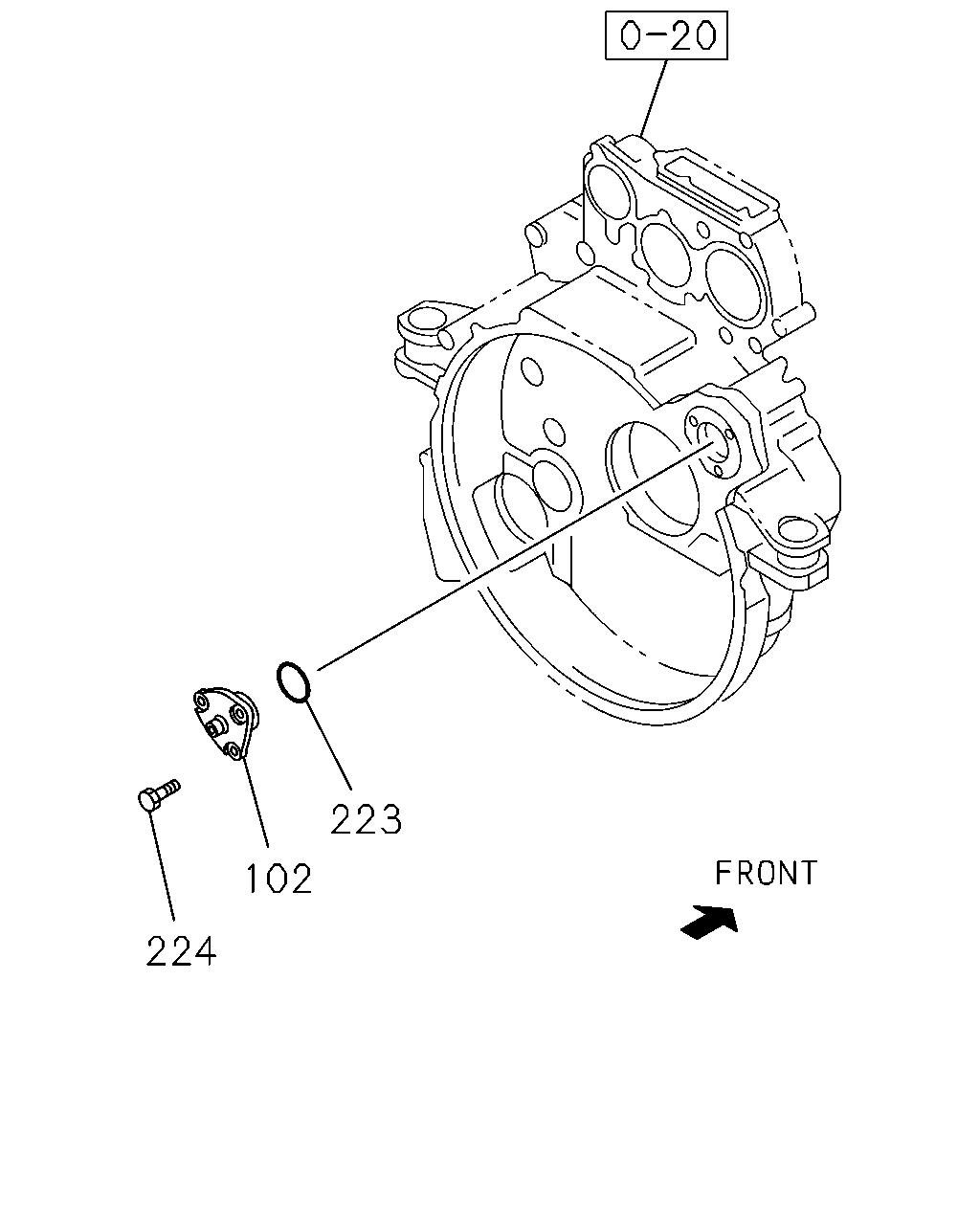

223 102 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
102	COVER; IDLE GEAR	1-11343-005-0	01	1	9603-9904	●
102	COVER; IDLE GEAR	1-11343-005-0	01	1	9905-	●	●
223	GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-567-0	01	1	9603-9904	●
223	GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-567-0	01	1	9905-	●	●
224	BOLT; COVER M10X20 W/LK WASHER	0-50051-020-0	03	1	9603-9904	●
224	BOLT; COVER M10X20 W/LK WASHER	0-50051-020-0	03	1	9905-	●	●

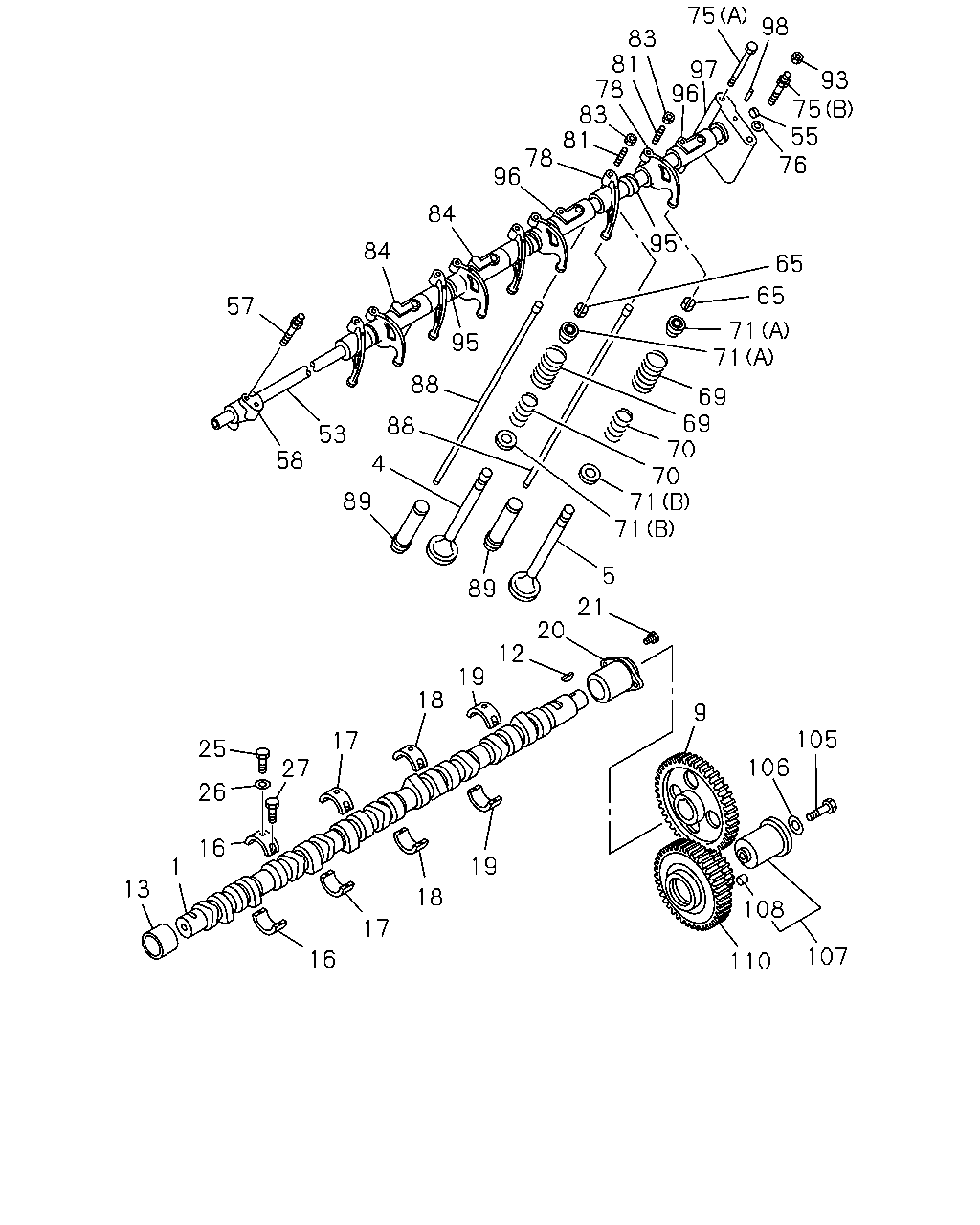

75 98 83 81 78 83 81 78 96 97 96 93 75 55 76 84 95 84 65 65 57 71 71 95 88 69 69 70 70 71 71 88 53 58 4 89 5 89 21 20 12 19 18 9 105 106 17 25 27 26 16 19 1 13 18 108 17 107 16 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAMSHAFT	1-12511-189-3	01	1	9603-9904	●
1	CAMSHAFT	1-12511-189-3	01	1	9905-	●	●
4	VALVE; INL	1-12551-136-1	10	1	9603-9904	●
4	VALVE; INL	1-12551-136-3	10	1	9905-	●	●
5	VALVE; EXH	1-12552-097-0	10	1	9603-9904	●
5	VALVE; EXH	1-12552-097-0	10	1	9905-	●	●
9	GEAR; CM/SHF Z=52	1-12522-033-2	01	1	9603-9904	●
9	GEAR; CM/SHF Z=52	1-12522-033-2	01	1	9905-	●	●
12	KEY; CAM GEAR SET	9-08055-516-0	01	1	9603-9904	●
12	KEY; CAM GEAR SET	9-08055-516-0	01	1	9905-	●	●
13	METAL; CM/SHF,NO 1	1-11611-003-2	01	1	9603-9904	●
13	METAL; CM/SHF,NO 1	1-11611-003-2	01	1	9905-	●	●
16	METAL; CM/SHF,NO 3	1-11617-007-1	01	1	9603-9904	●
16	METAL; CM/SHF,NO 3	1-11617-007-1	01	1	9905-	●	●
17	METAL; CM/SHF,NO 4	1-11618-006-1	01	1	9603-9904	●
17	METAL; CM/SHF,NO 4	1-11618-006-1	01	1	9905-	●	●
18	METAL; CM/SHF,NO 5	1-11619-015-1	01	1	9603-9904	●
18	METAL; CM/SHF,NO 5	1-11619-015-1	01	1	9905-	●	●
19	METAL; CM/SHF,NO 6	1-11619-018-1	01	1	9603-9904	●
19	METAL; CM/SHF,NO 6	1-11619-018-1	01	1	9905-	●	●
20	METAL; CM/SHF,NO 7	1-11619-059-1	01	1	9603-9904	●
20	METAL; CM/SHF,NO 7	1-11619-059-1	01	1	9905-	●	●
21	BOLT; CM/SHF METAL,NO 7 M10X22 FLANGE	0-28181-022-0	02	1	9603-9904	●
21	BOLT; CM/SHF METAL,NO 7 M10X22 FLANGE	0-28181-022-0	02	1	9905-	●	●
25	SCREW; CM/SHF METAL M8X31	1-09129-004-2	05	1	9603-9904	●
25	SCREW; CM/SHF METAL M8X31	1-09129-004-2	05	1	9905-	●	●
26	GASKET; SET SCREW ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	05	1	9603-9904	●
26	GASKET; SET SCREW ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	05	1	9905-	●	●
27	SCREW; CM/SHF METAL M4X14 W/LK WASHER	9-03910-414-0	08	1	9603-9904	●
27	SCREW; CM/SHF METAL M4X14 W/LK WASHER	9-03910-414-0	08	1	9905-	●	●
53	SHAFT; ROCKER ARM	1-12621-011-1	02	1	9603-9904	●
53	SHAFT; ROCKER ARM	1-12621-011-1	02	1	9905-	●	●
55	PLUG; ROCKER SHAFT END OD=16	9-11129-081-0	04	1	9603-9904	●
55	PLUG; ROCKER SHAFT END OD=16	9-11129-081-0	04	1	9905-	●	●
57	BOLT; ROCKER ARM BRKT M8X13,M10X70 L=90	1-09029-024-1	08	1	9603-9904	●
57	BOLT; ROCKER ARM BRKT M8X13,M10X70 L=90	1-09029-024-2	08	1	9905-	●	●
58	BRACKET; ROCKER SHAFT,FRT	1-12628-048-0	02	1	9603-9904	●
58	BRACKET; ROCKER SHAFT,FRT	1-12628-048-0	02	1	9905-	●	●
65	COLLAR; SPLIT	1-12565-007-0	40	1	9603-9603	●
65	COLLAR; SPLIT	1-12565-007-0	40	1	9905-	●	●
65	COLLAR; SPLIT	1-12565-007-0	40	1	9604-9904	●
69	SPRING; VLV,OUTER EXHAUST	1-12561-074-0	10	1	9603-9904	●
69	SPRING; VLV,OUTER INLET	1-12561-075-0	10	1	9603-9904	●
69	SPRING; VLV,OUTER EXHAUST	1-12561-074-0	10	1	9905-	●	●
69	SPRING; VLV,OUTER INLET	1-12561-075-0	10	1	9905-	●	●
70	SPRING; VLV,INNER EXHAUST	1-12562-046-0	10	1	9603-9904	●
70	SPRING; VLV,INNER INLET	1-12562-047-0	10	1	9603-9904	●
70	SPRING; VLV,INNER EXHAUST	1-12562-046-0	10	1	9905-	●	●
70	SPRING; VLV,INNER INLET	1-12562-047-0	10	1	9905-	●	●
71	SEAT; SPR (B) INLET	1-12563-027-0	10	1	9603-9904	●
71	SEAT; SPR (B) EXHAUST	1-12563-034-1	10	1	9603-9904	●
71	SEAT; SPR (A)	1-12563-049-0	20	1	9603-9904	●
71	SEAT; SPR (B) INLET	1-12563-027-0	10	1	9905-	●	●
71	SEAT; SPR (B) EXHAUST	1-12563-034-1	10	1	9905-	●	●
71	SEAT; SPR (A)	1-12563-049-0	20	1	9905-0101	●	●
71	SEAT; SPR (A)	1-12563-059-1	20	1	0102-	●	●
75	BOLT; BRKT (B) M8X13,M10X70 L=90	1-09029-024-1	02	1	9603-9904	●
75	BOLT; BRKT (A) M10X70	9-01661-070-0	02	1	9603-9904	●
75	BOLT; BRKT (B) M8X13,M10X70 L=90	1-09029-024-2	02	1	9905-	●	●
75	BOLT; BRKT (A) M10X70	9-01661-070-0	02	1	9905-	●	●
76	WASHER; PL,BRKT ID=10	1-09503-033-1	12	1	9603-9904	●
76	WASHER; PL,BRKT ID=10	1-09503-033-1	12	1	9905-	●	●
78	ARM; ROCKER INLET	1-12611-266-0	10	1	9603-9807	●
78	ARM; ROCKER INLET	1-12611-282-0	10	1	9808-9904	●
78	ARM; ROCKER EXHAUST	1-12611-267-0	10	1	9603-9807	●
78	ARM; ROCKER EXHAUST	1-12611-283-0	10	1	9808-9904	●
78	ARM; ROCKER INLET	1-12611-282-0	10	1	9905-	●	●
78	ARM; ROCKER EXHAUST	1-12611-283-0	10	1	9905-	●	●
81	SCREW; ADJ,ROCKER ARM	1-12616-001-0	20	1	9603-9904	●
81	SCREW; ADJ,ROCKER ARM	1-12616-001-0	20	1	9905-	●	●
83	NUT; ADJ SCREW,LK M10	9-09840-310-0	20	1	9603-9904	●
83	NUT; ADJ SCREW,LK M10	9-09840-310-0	20	1	9905-	●	●
84	BRACKET; ROCKER SHAFT,INTER	1-12628-012-1	04	1	9603-9904	●
84	BRACKET; ROCKER SHAFT,INTER	1-12628-012-1	04	1	9905-	●	●
88	ROD; PUSH	1-12575-048-1	20	1	9603-9904	●
88	ROD; PUSH	1-12575-048-1	20	1	9905-0012	●	●
88	ROD; PUSH	1-12575-061-0	20	1	0101-	●	●
89	TAPPET; VLV	1-12571-228-4	20	1	9603-9703	●
89	TAPPET; VLV	1-12571-241-0	20	1	9704-9904	●
89	TAPPET; VLV	1-12571-241-0	20	1	9905-	●	●
93	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9603-9904	●
93	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9905-	●	●
95	SPRING; ROCKER SHAFT	9-09941-218-0	10	1	9603-9904	●
95	SPRING; ROCKER SHAFT	9-09941-218-0	10	1	9905-	●	●
96	BRACKET; ROCKER ARM SHAFT	1-12628-011-1	04	1	9603-9904	●
96	BRACKET; ROCKER ARM SHAFT	1-12628-011-1	04	1	9905-	●	●
97	BRACKET; ROCKER SHAFT,RR	1-12628-006-2	02	1	9603-9904	●
97	BRACKET; ROCKER SHAFT,RR	1-12628-006-2	02	1	9905-	●	●
98	PIN; SHAFT SET	9-08160-430-0	02	1	9603-9904	●
98	PIN; SHAFT SET	9-08160-430-0	02	1	9905-	●	●
105	BOLT; IDLE GEAR SHAFT M16X94 FLANGE	1-09070-031-1	01	1	9603-9904	●
105	BOLT; IDLE GEAR SHAFT M16X94 FLANGE	1-09070-031-1	01	1	9905-	●	●
106	WASHER; IDLE GEAR SHAFT ID=16.2	1-09503-022-1	01	1	9603-9904	●
106	WASHER; IDLE GEAR SHAFT ID=16.2	1-09503-022-1	01	1	9905-	●	●
107	SHAFT; IDLE GEAR	1-12531-057-0	01	1	9603-9904	●
107	SHAFT; IDLE GEAR	1-12531-057-0	01	1	9905-	●	●
108	DOWEL; SHAFT	9-12539-079-0	01	1	9603-9904	●
108	DOWEL; SHAFT	9-12539-079-0	01	1	9905-	●	●
110	GEAR ASM; IDLE Z=48-26	1-12523-206-3	01	1	9603-9904	●
110	GEAR ASM; IDLE Z=48-26	1-12523-206-3	01	1	9905-	●	●
