Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#54765) — 395 parça

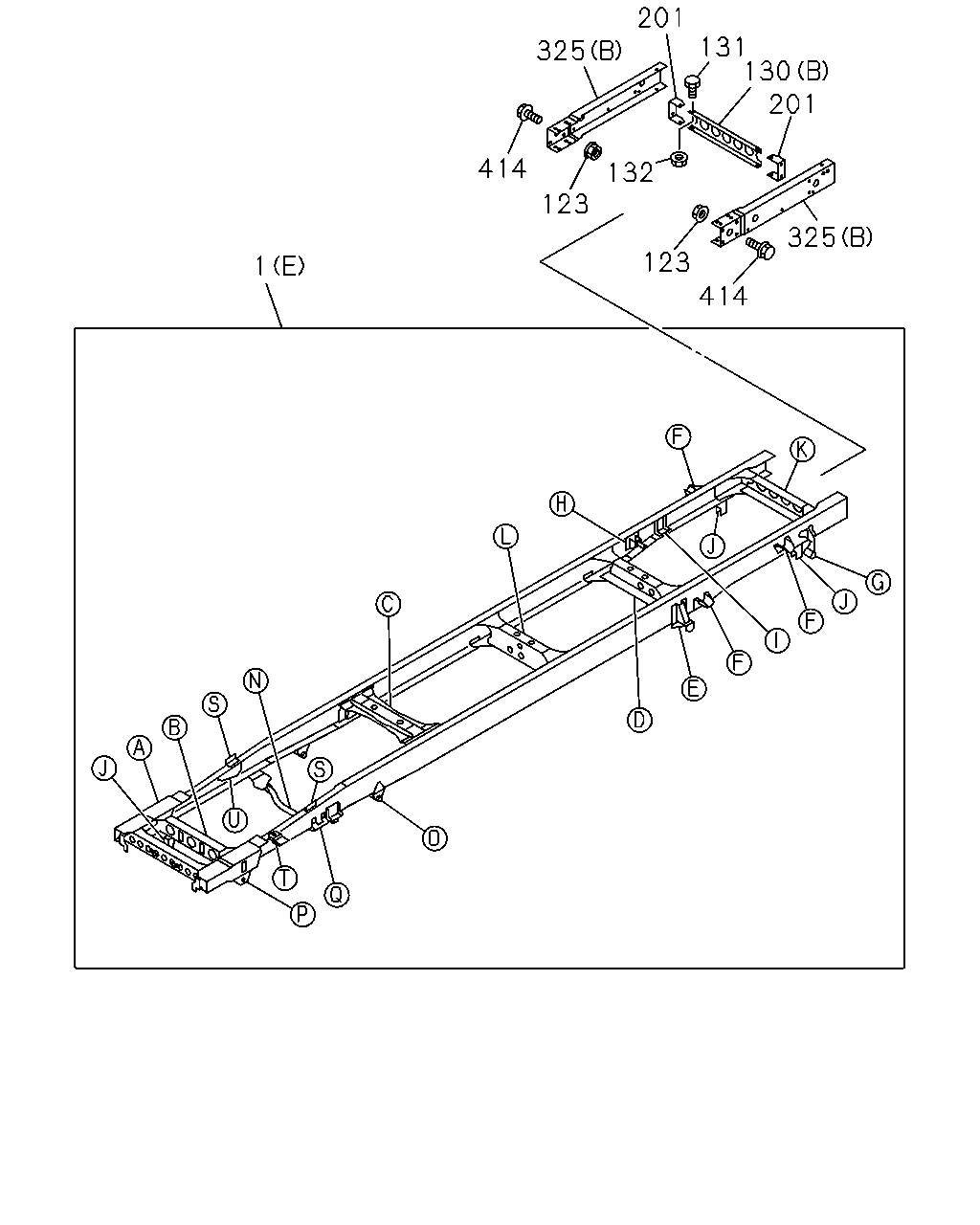

1 414 123 123 132 414 325 201 201 325 130 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) FRONT UNDER RUN PROTECTOR<EBE> MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> (D)	8-98231-988-0	01	1	1303-	●	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) FRONT UNDER RUN PROTECTOR<EBE> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (D)	8-98231-987-0	01	1	1303-	●	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) FRONT UNDER RUN PROTECTOR<EBE> MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> (E)	8-98231-990-0	01	1	1303-	●	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) FRONT UNDER RUN PROTECTOR<EBE> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (E)	8-98231-989-0	01	1	1303-	●	●
1	07.003 FRAME ASM 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> (C)	8-98106-317-2	01	1	1012-	●
1	07.003 FRAME ASM 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (D)	8-98106-320-2	01	1	1012-	●	●
1	07.003 FRAME ASM 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (D)	8-98106-323-2	01	1	1012-	●	●
1	07.003 FRAME ASM 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (E)	8-98106-327-1	01	1	1012-1301	●
1	07.003 FRAME ASM 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (E)	8-98106-327-1	01	1	1012-1301		●
1	07.003 FRAME ASM 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (E)	8-98106-327-1	01	1	1302-	●	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> (C)	8-98088-800-4	01	1	1012-	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> (D)	8-98071-615-4	01	1	1012-1301	●	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) STABILIZER REAR<GN1> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> (D)	8-98071-615-4	01	1	1012-1301		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> (D)	8-98071-615-4	01	1	1302-1409	●	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) STABILIZER REAR<GN1> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> (D)	8-98071-615-4	01	1	1302-1409	●	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> (D)	8-98157-948-1	01	1	1012-1301	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1> (D)	8-98157-948-1	01	1	1012-1301		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1> (D)	8-98157-948-1	01	1	1302-	●	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (D)	8-98071-634-5	01	1	1012-1302	●	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98071-634-5	01	1	1303-	●	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (E)	8-98071-655-6	01	1	1012-1301	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (E)	8-98071-655-6	01	1	1012-1301		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (E)	8-98071-655-6	01	1	1302-1302	●	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT UNDER RUN PROTECTOR<EBE>, MINIBUS CHASSIS(V4B) (E)	8-98071-655-6	01	1	1303-	●	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98173-415-0	01	1	1012-1409	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. FRONT STABILIZER SHAFT<F59>,FRAME STRAIGHT TYPE<7KJ> (A)	8-98071-515-1	01	1	1012-	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98071-522-1	01	1	1012-	●
1	07.003 FRAME ASM 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) WHEEL BASE 4100MM(41W) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> (E)	8-98173-440-0	01	1	1012-1301		●
1	07.003 FRAME ASM 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) WHEEL BASE 4100MM(41W) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> (E)	8-98173-440-0	01	1	1302-	●	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> (E)	8-98110-998-0	01	1	1012-1301		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> (E)	8-98110-998-0	01	1	1302-1302	●	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT UNDER RUN PROTECTOR<EBE> (E)	8-98110-998-0	01	1	1303-1409	●	●
1	07.003 FRAME ASM M/T MYY5T(RSM) (B)	8-98071-528-1	01	1	1012-			●
123	07.039 NUT WHEEL BASE 4100MM(41W) 07.395 M12	8-97360-126-0	16	1	1012-1307	●	●
123	07.039 NUT WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 07.395 M12	8-97360-126-0	16	1	1308-	●	●
130	07.014 MEMBER; CROSS,END 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	8-97080-872-0	01	1	1012-1409	●	●
130	07.014 MEMBER; CROSS,END WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	8-97080-872-0	01	1	1410-	●	●
130	07.014 MEMBER; CROSS,END 4JJ1-TCC ENG(RDU) (A)	8-98000-492-0	01	1	1012-	●
130	07.014 MEMBER; CROSS,END (A)	8-98000-492-0	01	1	1012-			●
130	07.014 MEMBER; CROSS,END WHEEL BASE 4100MM(41W) (B)	8-97205-394-0	01	1	1012-1307	●	●
130	07.014 MEMBER; CROSS,END WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B)	8-97205-394-0	01	1	1308-	●	●
131	07.014 BOLT; END C/MBR WHEEL BASE 4100MM(41W) 07.833 M10X25 FLANGE	0-28661-025-0	08	1	1012-1307	●	●
131	07.014 BOLT; END C/MBR WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 07.833 M10X25 FLANGE	0-28661-025-0	08	1	1308-	●	●
132	07.014 NUT; END C/MBR WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE	0-91180-110-0	08	1	1012-1307	●	●
132	07.014 NUT; END C/MBR WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE	0-91180-110-0	08	1	1308-	●	●
201	07.039 GUSSET; C/MBR	8-97096-871-0	02	1	1012-1409	●	●	●
201	07.039 GUSSET; C/MBR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W)	8-97096-871-0	02	1	1410-	●	●
201	07.039 GUSSET; C/MBR	8-97096-871-0	02	1	1410-			●
325	07.039 EXTENSION; FRAME WHEEL BASE 4400MM(44W) (B)	8-97128-752-3	01	1	1308-		●
325	07.039 EXTENSION; FRAME WHEEL BASE 4400MM(44W) (B)	8-97128-753-3	01	1	1308-		●
325	07.039 EXTENSION; FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98235-257-0	01	1	1303-	●	●
325	07.039 EXTENSION; FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98235-258-0	01	1	1303-	●	●
325	07.039 EXTENSION; FRAME 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A)	8-98073-344-1	01	1	1012-1302	●
325	07.039 EXTENSION; FRAME (A)	8-98073-344-1	01	1	1012-1302		●
325	07.039 EXTENSION; FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-98073-344-1	01	1	1303-	●	●
325	07.039 EXTENSION; FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (A)	8-98073-344-1	01	1	1303-	●	●
325	07.039 EXTENSION; FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98073-344-1	01	1	1303-	●	●
325	07.039 EXTENSION; FRAME 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A)	8-98073-345-0	01	1	1012-1302	●
325	07.039 EXTENSION; FRAME (A)	8-98073-345-0	01	1	1012-1302		●
325	07.039 EXTENSION; FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-98073-345-0	01	1	1303-	●	●
325	07.039 EXTENSION; FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (A)	8-98073-345-0	01	1	1303-	●	●
325	07.039 EXTENSION; FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98073-345-0	01	1	1303-	●	●
325	07.039 EXTENSION; FRAME 4JJ1-TCC ENG(RDU) (A)	8-98045-169-2	01	1	1012-	●
325	07.039 EXTENSION; FRAME (A)	8-98045-169-2	01	1	1012-			●
325	07.039 EXTENSION; FRAME 4JJ1-TCC ENG(RDU) (A)	8-98045-170-2	01	1	1012-	●
325	07.039 EXTENSION; FRAME (A)	8-98045-170-2	01	1	1012-			●
325	07.039 EXTENSION; FRAME WHEEL BASE 4100MM(41W) (B)	8-97222-891-1	01	1	1012-	●	●
325	07.039 EXTENSION; FRAME WHEEL BASE 4100MM(41W) (B)	8-97222-892-1	01	1	1012-	●	●
414	07.011 BOLT WHEEL BASE 4100MM(41W) 06.509 M12X30 FLANGE	0-28661-230-0	12	1	1012-1307	●	●
414	07.011 BOLT WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 06.509 M12X30 FLANGE	0-28661-230-0	12	1	1308-	●	●
414	07.011 BOLT WHEEL BASE 4100MM(41W) M12X40 FLANGE	0-28661-240-0	04	1	1012-1307	●	●
414	07.011 BOLT WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M12X40 FLANGE	0-28661-240-0	04	1	1308-	●	●

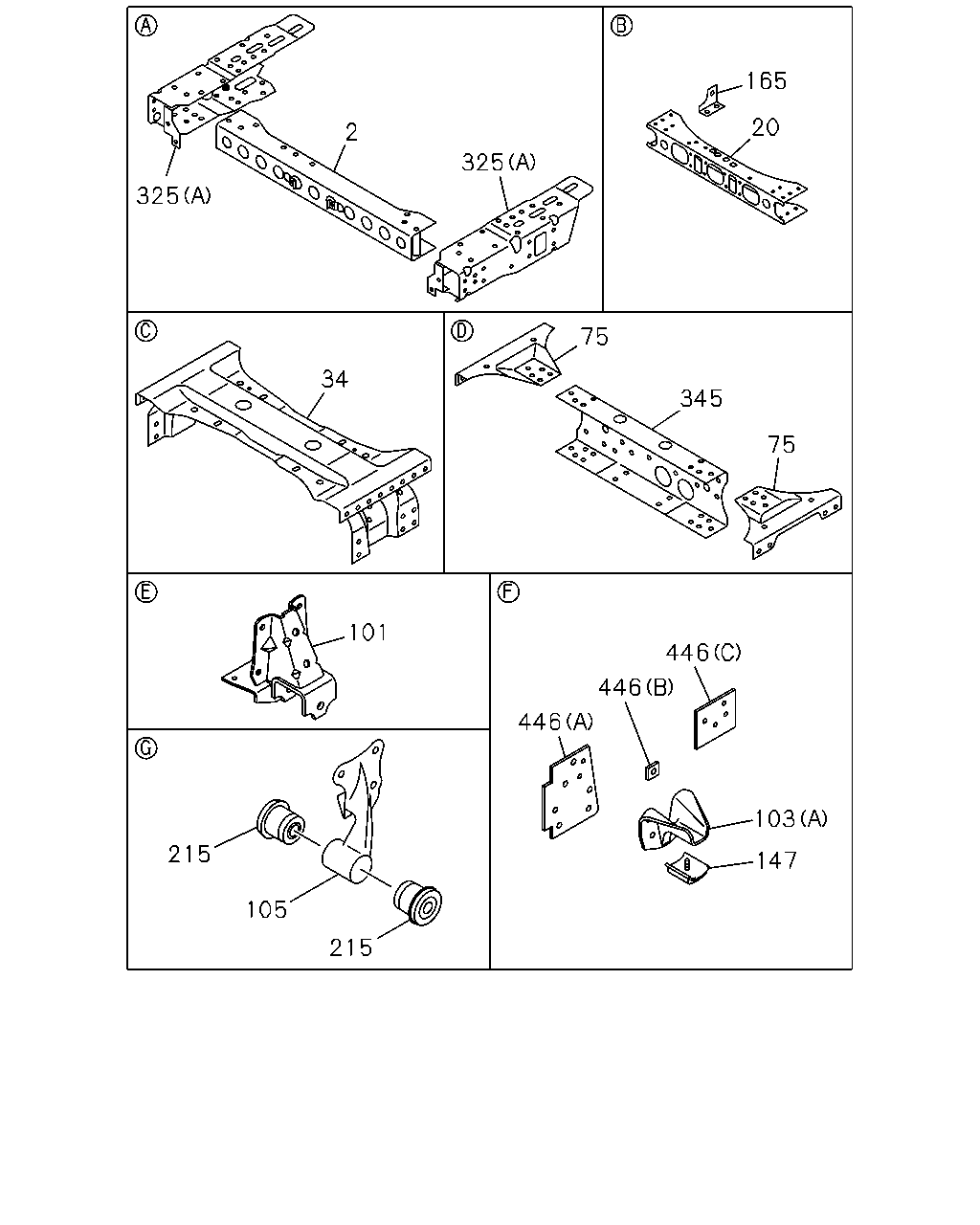

165 20 2 325 325 75 34 345 75 101 446 446 446 103 215 147 105 215

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	07.010 MEMBER; CROSS,1ST 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRONT UNDER RUN PROTECTOR<EBE>	8-98155-433-1	01	1	1303-	●	●
2	07.010 MEMBER; CROSS,1ST	8-97387-866-5	01	1	1012-1302	●	●	●
2	07.010 MEMBER; CROSS,1ST 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH)	8-97387-866-5	01	1	1303-	●	●
2	07.010 MEMBER; CROSS,1ST 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W)	8-97387-866-5	01	1	1303-	●	●
2	07.010 MEMBER; CROSS,1ST 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-97387-866-5	01	1	1303-	●	●
2	07.010 MEMBER; CROSS,1ST	8-97387-866-5	01	1	1303-			●
20	07.012 MEMBER; CROSS,2ND 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-98014-074-7	01	1	1012-	●
20	07.012 MEMBER; CROSS,2ND	8-98014-074-7	01	1	1012-		●
20	07.012 MEMBER; CROSS,2ND 4JJ1-TCC ENG(RDU)	8-98080-335-0	01	1	1012-	●
20	07.012 MEMBER; CROSS,2ND	8-98080-335-0	01	1	1012-			●
34	07.012 MEMBER; CROSS,3RD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-98074-639-4	01	1	1012-	●
34	07.012 MEMBER; CROSS,3RD	8-98074-639-4	01	1	1012-		●
34	07.012 MEMBER; CROSS,3RD 4JJ1-TCC ENG(RDU)	8-98000-489-4	01	1	1012-	●
34	07.012 MEMBER; CROSS,3RD	8-98000-489-4	01	1	1012-			●
75	07.039 GUSSET; 5TH C/MBR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) RH-UPPER,LH-LOWER	8-98000-583-0	02	1	1012-	●
75	07.039 GUSSET; 5TH C/MBR RH-UPPER,LH-LOWER	8-98000-583-0	02	1	1012-		●
75	07.039 GUSSET; 5TH C/MBR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) RH-LOWER,LH-UPPER	8-98000-584-0	02	1	1012-	●
75	07.039 GUSSET; 5TH C/MBR RH-LOWER,LH-UPPER	8-98000-584-0	02	1	1012-		●
75	07.039 GUSSET; 5TH C/MBR 4JJ1-TCC ENG(RDU) RH-UPPER,LH-LOWER	8-98000-585-1	02	1	1012-	●
75	07.039 GUSSET; 5TH C/MBR RH-UPPER,LH-LOWER	8-98000-585-1	02	1	1012-			●
75	07.039 GUSSET; 5TH C/MBR 4JJ1-TCC ENG(RDU) RH-LOWER,LH-UPPER	8-98000-586-1	02	1	1012-	●
75	07.039 GUSSET; 5TH C/MBR RH-LOWER,LH-UPPER	8-98000-586-1	02	1	1012-			●
101	07.112 BRACKET; RR SPR,FRT	8-97042-245-1	02	1	1012-	●	●	●
103	07.420 STOPPER; SUB SPR 07.524 (B)	8-97079-659-1	02	1	1012-	●	●	●
103	07.420 STOPPER; SUB SPR EXC. MINI BUS CHASSIS(V4B) (A)	8-97223-748-0	04	1	1012-1409	●	●	●
103	07.420 STOPPER; SUB SPR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (A)	8-97223-748-0	04	1	1410-	●	●
103	07.420 STOPPER; SUB SPR WHEEL BASE 3800MM(38W) EXC. MINI BUS CHASSIS(V4B) (A)	8-97223-748-0	04	1	1410-	●	●
103	07.420 STOPPER; SUB SPR WHEEL BASE 4100MM(41W) MINI BUS CHASSIS(V4B) (A)	8-97223-748-0	04	1	1410-	●	●
103	07.420 STOPPER; SUB SPR (A)	8-97223-748-0	04	1	1410-			●
105	07.112 BRACKET; RR SPR,RR	8-98032-488-0	01	1	1012-	●	●	●
105	07.112 BRACKET; RR SPR,RR	8-98032-489-0	01	1	1012-	●	●	●
147	07.535 RUBBER; SUB SPRING EXC. MINI BUS CHASSIS(V4B)	8-97254-387-0	04	1	1012-1409	●	●	●
147	07.535 RUBBER; SUB SPRING WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W)	8-97254-387-0	04	1	1410-	●	●
147	07.535 RUBBER; SUB SPRING WHEEL BASE 3800MM(38W) EXC. MINI BUS CHASSIS(V4B)	8-97254-387-0	04	1	1410-	●	●
147	07.535 RUBBER; SUB SPRING WHEEL BASE 4100MM(41W) MINI BUS CHASSIS(V4B)	8-97254-387-0	04	1	1410-	●	●
147	07.535 RUBBER; SUB SPRING	8-97254-387-0	04	1	1410-			●
165	01.270 BRACKET; RAD STAY	8-98000-886-0	01	1	1012-	●	●	●
215	07.524 BUSHING; BRKT,RR SPRING	8-97184-699-1	04	1	1012-	●	●	●
325	07.039 EXTENSION; FRAME WHEEL BASE 4400MM(44W) (B)	8-97128-752-3	01	1	1308-		●
325	07.039 EXTENSION; FRAME WHEEL BASE 4400MM(44W) (B)	8-97128-753-3	01	1	1308-		●
325	07.039 EXTENSION; FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98235-257-0	01	1	1303-	●	●
325	07.039 EXTENSION; FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98235-258-0	01	1	1303-	●	●
325	07.039 EXTENSION; FRAME 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A)	8-98073-344-1	01	1	1012-1302	●
325	07.039 EXTENSION; FRAME (A)	8-98073-344-1	01	1	1012-1302		●
325	07.039 EXTENSION; FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-98073-344-1	01	1	1303-	●	●
325	07.039 EXTENSION; FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (A)	8-98073-344-1	01	1	1303-	●	●
325	07.039 EXTENSION; FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98073-344-1	01	1	1303-	●	●
325	07.039 EXTENSION; FRAME 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A)	8-98073-345-0	01	1	1012-1302	●
325	07.039 EXTENSION; FRAME (A)	8-98073-345-0	01	1	1012-1302		●
325	07.039 EXTENSION; FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-98073-345-0	01	1	1303-	●	●
325	07.039 EXTENSION; FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (A)	8-98073-345-0	01	1	1303-	●	●
325	07.039 EXTENSION; FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98073-345-0	01	1	1303-	●	●
325	07.039 EXTENSION; FRAME 4JJ1-TCC ENG(RDU) (A)	8-98045-169-2	01	1	1012-	●
325	07.039 EXTENSION; FRAME (A)	8-98045-169-2	01	1	1012-			●
325	07.039 EXTENSION; FRAME 4JJ1-TCC ENG(RDU) (A)	8-98045-170-2	01	1	1012-	●
325	07.039 EXTENSION; FRAME (A)	8-98045-170-2	01	1	1012-			●
325	07.039 EXTENSION; FRAME WHEEL BASE 4100MM(41W) (B)	8-97222-891-1	01	1	1012-	●	●
325	07.039 EXTENSION; FRAME WHEEL BASE 4100MM(41W) (B)	8-97222-892-1	01	1	1012-	●	●
345	07.012 MEMBER; CROSS,5TH 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97175-993-3	01	1	1012-	●
345	07.012 MEMBER; CROSS,5TH	8-97175-993-3	01	1	1012-		●
345	07.012 MEMBER; CROSS,5TH 4JJ1-TCC ENG(RDU)	8-98000-490-2	01	1	1012-	●
345	07.012 MEMBER; CROSS,5TH	8-98000-490-2	01	1	1012-			●
446	07.112 STIFFENER; SPRING STOPPER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (B)	8-97122-173-0	02	1	1012-	●	●
446	07.112 STIFFENER; SPRING STOPPER 4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	8-98014-080-1	02	1	1012-1307	●	●
446	07.112 STIFFENER; SPRING STOPPER 4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS(V4B) (A)	8-98014-080-1	02	1	1012-1307	●	●
446	07.112 STIFFENER; SPRING STOPPER 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (A)	8-98014-080-1	02	1	1012-1307	●
446	07.112 STIFFENER; SPRING STOPPER 4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS(V4B) (A)	8-98014-080-1	02	1	1308-	●	●
446	07.112 STIFFENER; SPRING STOPPER 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (A)	8-98014-080-1	02	1	1308-	●
446	07.112 STIFFENER; SPRING STOPPER 4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3800MM(38W) (C)	8-97170-790-0	02	1	1012-1307	●	●
446	07.112 STIFFENER; SPRING STOPPER 4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS(V4B) (C)	8-97170-790-0	02	1	1012-1307	●	●
446	07.112 STIFFENER; SPRING STOPPER 4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS(V4B) (C)	8-97170-790-0	02	1	1308-	●	●

376 376 376 376 376 376 376 376 376 376 376 376 376 376 376 221 221 176 176 296 535 536 118 222 67 537 538

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
67	07.011 NUT; C/MBR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) WHEEL BASE 2700MM(27W) 04.085 M10 FLANGE	0-91180-210-0	17	1	1012-	●
67	07.011 NUT; C/MBR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 04.085 M10 FLANGE	0-91180-210-0	18	1	1012-	●
67	07.011 NUT; C/MBR 04.085 M10 FLANGE	0-91180-210-0	18	1	1012-		●
67	07.011 NUT; C/MBR 4JJ1-TCC ENG(RDU) 04.085 M10 FLANGE	0-91180-210-0	04	1	1012-	●
67	07.011 NUT; C/MBR 04.085 M10 FLANGE	0-91180-210-0	04	1	1012-			●
118	07.529 NUT; STOPPER EXC. MINI BUS CHASSIS(V4B) M8 LOCK NUT	0-91370-008-0	02	1	1012-1409	●	●	●
118	07.529 NUT; STOPPER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) M8 LOCK NUT	0-91370-008-0	02	1	1410-	●	●
118	07.529 NUT; STOPPER WHEEL BASE 3800MM(38W) EXC. MINI BUS CHASSIS(V4B) M8 LOCK NUT	0-91370-008-0	02	1	1410-	●	●
118	07.529 NUT; STOPPER WHEEL BASE 4100MM(41W) MINI BUS CHASSIS(V4B) M8 LOCK NUT	0-91370-008-0	02	1	1410-	●	●
118	07.529 NUT; STOPPER M8 LOCK NUT	0-91370-008-0	02	1	1410-			●
176	04.085 BOLT; C/MBR,ENG MTG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.890 (B) M10X30 FLANGE	0-28051-030-0	04	1	1012-1409	●
176	04.085 BOLT; C/MBR,ENG MTG 03.890 (B) M10X30 FLANGE	0-28051-030-0	04	1	1012-1409		●
176	04.085 BOLT; C/MBR,ENG MTG 4JJ1-TCC ENG(RDU) 03.890 (B) M10X30 FLANGE	0-28051-030-0	08	1	1410-	●
176	04.085 BOLT; C/MBR,ENG MTG 03.890 (B) M10X30 FLANGE	0-28051-030-0	08	1	1410-			●
176	04.085 BOLT; C/MBR,ENG MTG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.029 (A) M10X25 FLANGE	0-28651-025-0	04	1	1012-	●
176	04.085 BOLT; C/MBR,ENG MTG 00.029 (A) M10X25 FLANGE	0-28651-025-0	04	1	1012-		●
176	04.085 BOLT; C/MBR,ENG MTG 4JJ1-TCC ENG(RDU) 03.890 (B) M10X30 FLANGE	0-28051-030-0	08	1	1012-1409	●
176	04.085 BOLT; C/MBR,ENG MTG 03.890 (B) M10X30 FLANGE	0-28051-030-0	08	1	1012-1409			●
176	04.085 BOLT; C/MBR,ENG MTG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.890 (B) M10X30 FLANGE	0-28051-030-0	04	1	1410-	●
176	04.085 BOLT; C/MBR,ENG MTG 03.890 (B) M10X30 FLANGE	0-28051-030-0	04	1	1410-		●
221	01.270 BOLT; RAD MTG BRKT,FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS(V4B) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1012-1302	●	●
221	01.270 BOLT; RAD MTG BRKT,FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1012-1302	●	●
221	01.270 BOLT; RAD MTG BRKT,FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) STABILIZER REAR<GN1> EXC. FRONT STABILIZER SHAFT<F59> 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1012-1302	●	●
221	01.270 BOLT; RAD MTG BRKT,FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1012-1302	●
221	01.270 BOLT; RAD MTG BRKT,FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. FRONT STABILIZER SHAFT<F59> 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1012-1302	●
221	01.270 BOLT; RAD MTG BRKT,FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) MINI BUS CHASSIS(V4B) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1012-1302		●
221	01.270 BOLT; RAD MTG BRKT,FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1303-1409	●	●
221	01.270 BOLT; RAD MTG BRKT,FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) STABILIZER REAR<GN1> EXC. FRONT STABILIZER SHAFT<F59> 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1303-1409	●	●
221	01.270 BOLT; RAD MTG BRKT,FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) MINI BUS CHASSIS(V4B) EXC. FRONT UNDER RUN PROTECTOR<EBE> 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1303-1409	●	●
221	01.270 BOLT; RAD MTG BRKT,FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 4100MM(41W) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1303-1409	●	●
221	01.270 BOLT; RAD MTG BRKT,FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1303-1409	●
221	01.270 BOLT; RAD MTG BRKT,FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS(V4B) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1410-	●	●
221	01.270 BOLT; RAD MTG BRKT,FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1410-	●
221	01.270 BOLT; RAD MTG BRKT,FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1012-	●
221	01.270 BOLT; RAD MTG BRKT,FRAME 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1012-			●
222	07.039 NUT; RAD MTG BRKT,FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS(V4B) 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-1302	●	●
222	07.039 NUT; RAD MTG BRKT,FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-1302	●	●
222	07.039 NUT; RAD MTG BRKT,FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) STABILIZER REAR<GN1> EXC. FRONT STABILIZER SHAFT<F59> 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-1302	●	●
222	07.039 NUT; RAD MTG BRKT,FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-1302	●
222	07.039 NUT; RAD MTG BRKT,FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. FRONT STABILIZER SHAFT<F59> 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-1302	●
222	07.039 NUT; RAD MTG BRKT,FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-1302	●
222	07.039 NUT; RAD MTG BRKT,FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) MINI BUS CHASSIS(V4B) 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-1302		●
222	07.039 NUT; RAD MTG BRKT,FRAME 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-1302			●
222	07.039 NUT; RAD MTG BRKT,FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> 01.540 M8 FLANGE	0-91180-208-0	02	1	1303-1409	●	●
222	07.039 NUT; RAD MTG BRKT,FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) STABILIZER REAR<GN1> EXC. FRONT STABILIZER SHAFT<F59> 01.540 M8 FLANGE	0-91180-208-0	02	1	1303-1409	●	●
222	07.039 NUT; RAD MTG BRKT,FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) MINI BUS CHASSIS(V4B) EXC. FRONT UNDER RUN PROTECTOR<EBE> 01.540 M8 FLANGE	0-91180-208-0	02	1	1303-1409	●	●
222	07.039 NUT; RAD MTG BRKT,FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) 01.540 M8 FLANGE	0-91180-208-0	02	1	1303-1409	●
222	07.039 NUT; RAD MTG BRKT,FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) 01.540 M8 FLANGE	0-91180-208-0	02	1	1303-1409	●
222	07.039 NUT; RAD MTG BRKT,FRAME 01.540 M8 FLANGE	0-91180-208-0	02	1	1303-1409			●
222	07.039 NUT; RAD MTG BRKT,FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS(V4B) 01.540 M8 FLANGE	0-91180-208-0	02	1	1410-	●	●
222	07.039 NUT; RAD MTG BRKT,FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) 01.540 M8 FLANGE	0-91180-208-0	02	1	1410-	●
222	07.039 NUT; RAD MTG BRKT,FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) 01.540 M8 FLANGE	0-91180-208-0	02	1	1410-	●
222	07.039 NUT; RAD MTG BRKT,FRAME 01.540 M8 FLANGE	0-91180-208-0	02	1	1410-			●
296	07.039 BOLT; 3RD C/MBR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) WHEEL BASE 2700MM(27W) 00.029 M10X30 FLANGE	0-28651-030-0	15	1	1012-	●
296	07.039 BOLT; 3RD C/MBR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 00.029 M10X30 FLANGE	0-28651-030-0	16	1	1012-	●
296	07.039 BOLT; 3RD C/MBR 00.029 M10X30 FLANGE	0-28651-030-0	16	1	1012-		●
376	07.039 RIVET; FRAME 07.011 (A) D8X24 TAPER END	9-06750-824-0	AR	1	1012-	●	●	●
376	07.039 RIVET; FRAME 07.395 (B) D8X26 TAPER END	9-06750-826-0	AR	1	1012-	●	●	●
376	07.039 RIVET; FRAME (C) D10X22 TAPER END	9-06751-022-0	AR	1	1012-	●	●	●
376	07.039 RIVET; FRAME (D) D10X24 TAPER END	9-06751-024-0	AR	1	1012-	●	●	●
376	07.039 RIVET; FRAME (E) D10X26 TAPER END	9-06751-026-0	AR	1	1012-	●	●	●
376	07.039 RIVET; FRAME (F) D10X28 TAPER END	9-06751-028-0	AR	1	1012-	●	●	●
376	07.039 RIVET; FRAME (G) D10X30 TAPER END	9-06751-030-0	AR	1	1012-	●	●	●
376	07.039 RIVET; FRAME (H) D10X32 TAPER END	9-06751-032-0	AR	1	1012-	●	●	●
376	07.039 RIVET; FRAME (I) D10X36 TAPER END	9-06751-036-0	AR	1	1012-	●	●	●
376	07.039 RIVET; FRAME (J) D11X26 TAPER END	9-06751-126-0	AR	1	1012-	●	●	●
376	07.039 RIVET; FRAME (K) D11X30 TAPER END	9-06751-130-0	AR	1	1012-	●	●	●
376	07.039 RIVET; FRAME 07.105 (L) D12X30 TAPER END	9-06751-230-0	AR	1	1012-	●	●	●
376	07.039 RIVET; FRAME 07.006 (M) D12X32 TAPER END	9-06751-232-0	AR	1	1012-	●	●	●
376	07.039 RIVET; FRAME 07.428 (N) D12X36 TAPER END	9-06751-236-0	AR	1	1012-	●	●	●
376	07.039 RIVET; FRAME 07.112 (O) D12X40 TAPER END	9-06751-240-0	AR	1	1012-	●	●	●
535	01.270 BOLT; FRAME UPPER 4JJ1-TCC ENG(RDU) 00.029 M10X30 FLANGE	0-28651-030-0	08	1	1012-	●
535	01.270 BOLT; FRAME UPPER 00.029 M10X30 FLANGE	0-28651-030-0	08	1	1012-			●
536	01.270 BOLT; FRAME LOWER 4JJ1-TCC ENG(RDU) 00.029 M10X30 FLANGE	0-28651-030-0	08	1	1012-	●
536	01.270 BOLT; FRAME LOWER 00.029 M10X30 FLANGE	0-28651-030-0	08	1	1012-			●
537	01.270 NUT; FRAME LOWER 4JJ1-TCC ENG(RDU) 04.085 M10 FLANGE	0-91180-210-0	08	1	1012-	●
537	01.270 NUT; FRAME LOWER 04.085 M10 FLANGE	0-91180-210-0	08	1	1012-			●
538	01.270 NUT; FRAME UPPER 4JJ1-TCC ENG(RDU) 04.085 M10 FLANGE	0-91180-210-0	04	1	1012-	●
538	01.270 NUT; FRAME UPPER 04.085 M10 FLANGE	0-91180-210-0	04	1	1012-			●

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

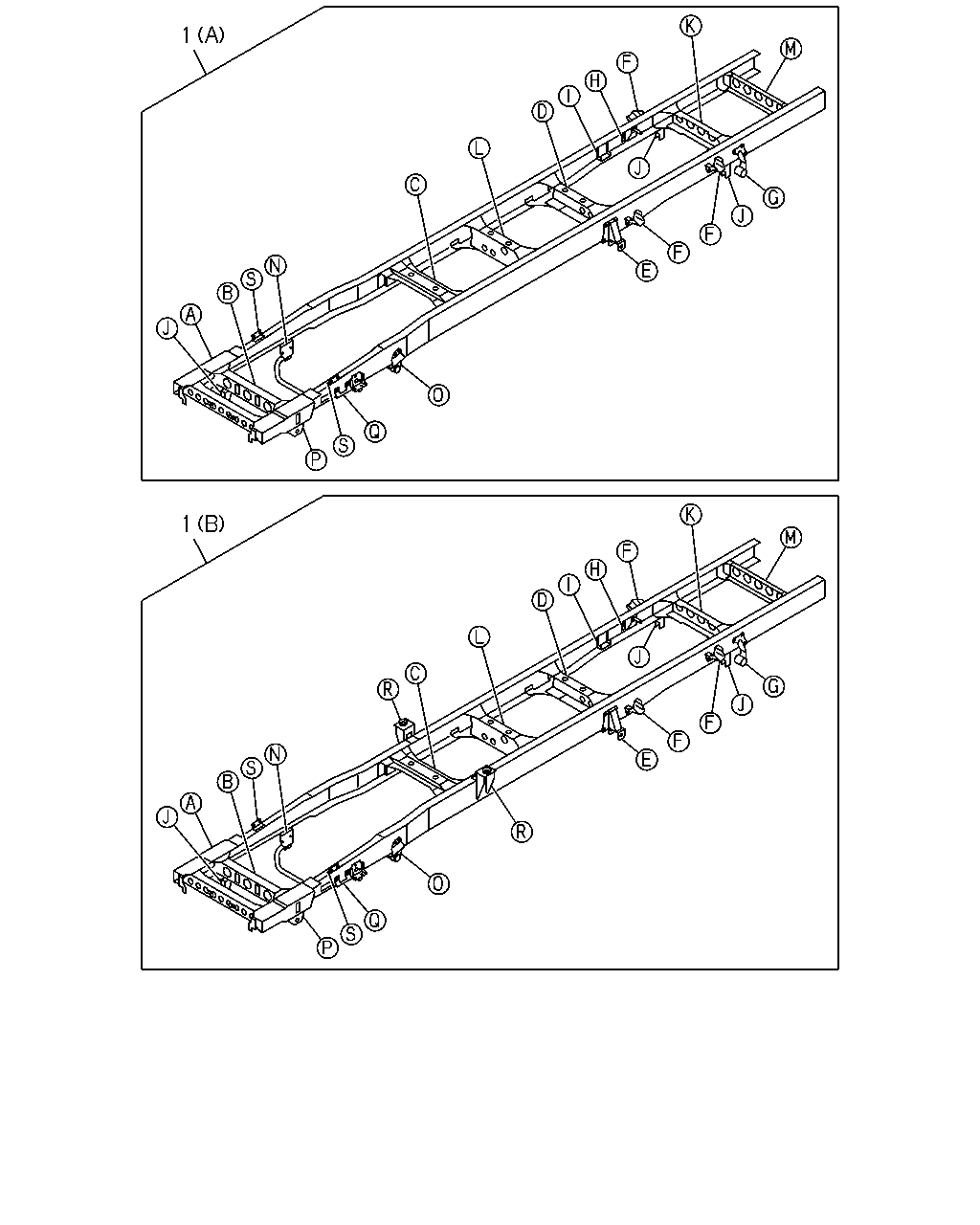

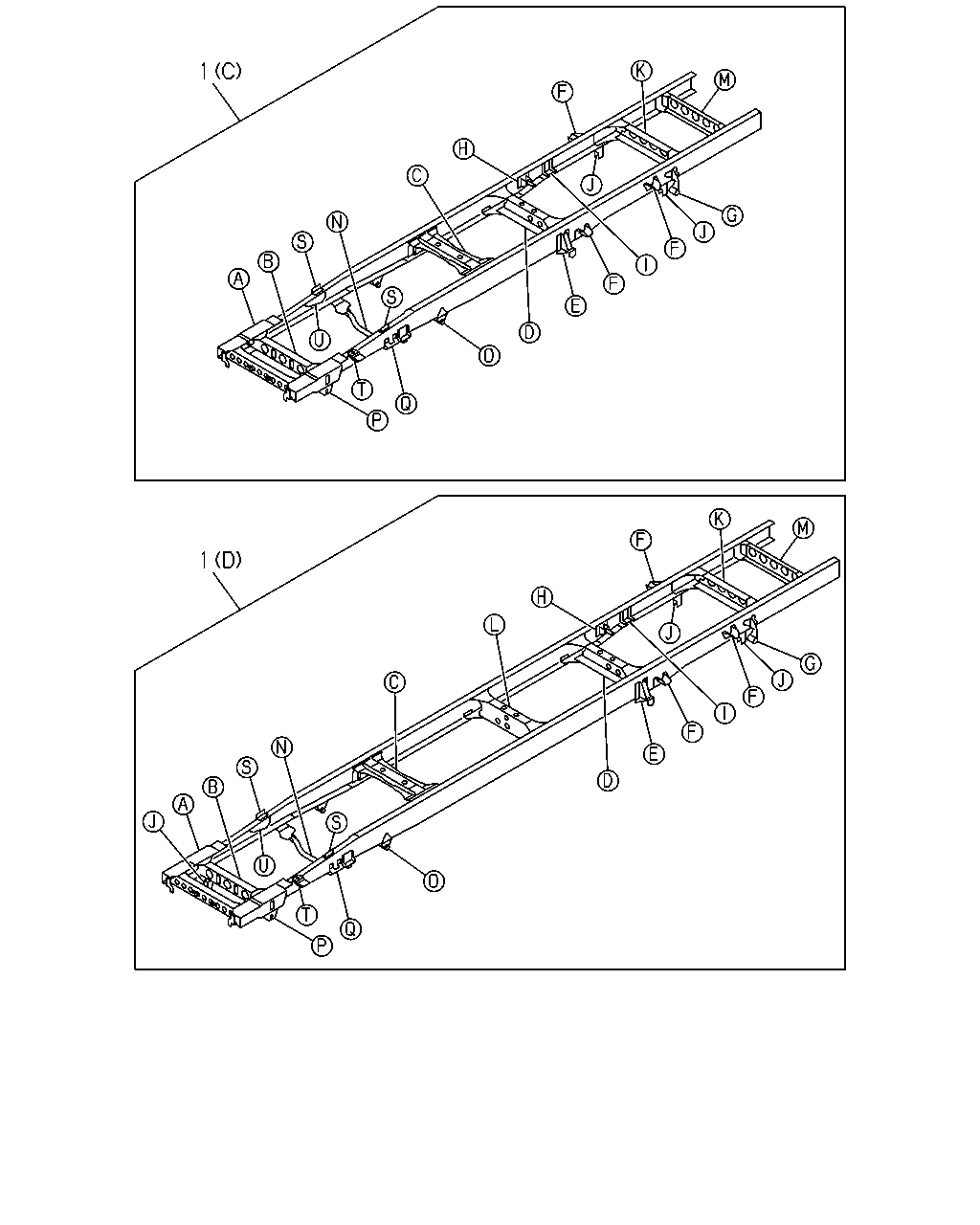

1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) FRONT UNDER RUN PROTECTOR<EBE> MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> (D)	8-98231-988-0	01	1	1303-	●	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) FRONT UNDER RUN PROTECTOR<EBE> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (D)	8-98231-987-0	01	1	1303-	●	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) FRONT UNDER RUN PROTECTOR<EBE> MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> (E)	8-98231-990-0	01	1	1303-	●	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) FRONT UNDER RUN PROTECTOR<EBE> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (E)	8-98231-989-0	01	1	1303-	●	●
1	07.003 FRAME ASM 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> (C)	8-98106-317-2	01	1	1012-	●
1	07.003 FRAME ASM 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (D)	8-98106-320-2	01	1	1012-	●	●
1	07.003 FRAME ASM 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (D)	8-98106-323-2	01	1	1012-	●	●
1	07.003 FRAME ASM 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (E)	8-98106-327-1	01	1	1012-1301	●
1	07.003 FRAME ASM 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (E)	8-98106-327-1	01	1	1012-1301		●
1	07.003 FRAME ASM 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (E)	8-98106-327-1	01	1	1302-	●	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> (C)	8-98088-800-4	01	1	1012-	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> (D)	8-98071-615-4	01	1	1012-1301	●	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) STABILIZER REAR<GN1> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> (D)	8-98071-615-4	01	1	1012-1301		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> (D)	8-98071-615-4	01	1	1302-1409	●	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) STABILIZER REAR<GN1> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> (D)	8-98071-615-4	01	1	1302-1409	●	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> (D)	8-98157-948-1	01	1	1012-1301	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1> (D)	8-98157-948-1	01	1	1012-1301		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1> (D)	8-98157-948-1	01	1	1302-	●	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (D)	8-98071-634-5	01	1	1012-1302	●	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98071-634-5	01	1	1303-	●	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (E)	8-98071-655-6	01	1	1012-1301	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (E)	8-98071-655-6	01	1	1012-1301		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (E)	8-98071-655-6	01	1	1302-1302	●	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT UNDER RUN PROTECTOR<EBE>, MINIBUS CHASSIS(V4B) (E)	8-98071-655-6	01	1	1303-	●	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98173-415-0	01	1	1012-1409	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. FRONT STABILIZER SHAFT<F59>,FRAME STRAIGHT TYPE<7KJ> (A)	8-98071-515-1	01	1	1012-	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98071-522-1	01	1	1012-	●
1	07.003 FRAME ASM 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) WHEEL BASE 4100MM(41W) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> (E)	8-98173-440-0	01	1	1012-1301		●
1	07.003 FRAME ASM 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) WHEEL BASE 4100MM(41W) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> (E)	8-98173-440-0	01	1	1302-	●	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> (E)	8-98110-998-0	01	1	1012-1301		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> (E)	8-98110-998-0	01	1	1302-1302	●	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT UNDER RUN PROTECTOR<EBE> (E)	8-98110-998-0	01	1	1303-1409	●	●
1	07.003 FRAME ASM M/T MYY5T(RSM) (B)	8-98071-528-1	01	1	1012-			●

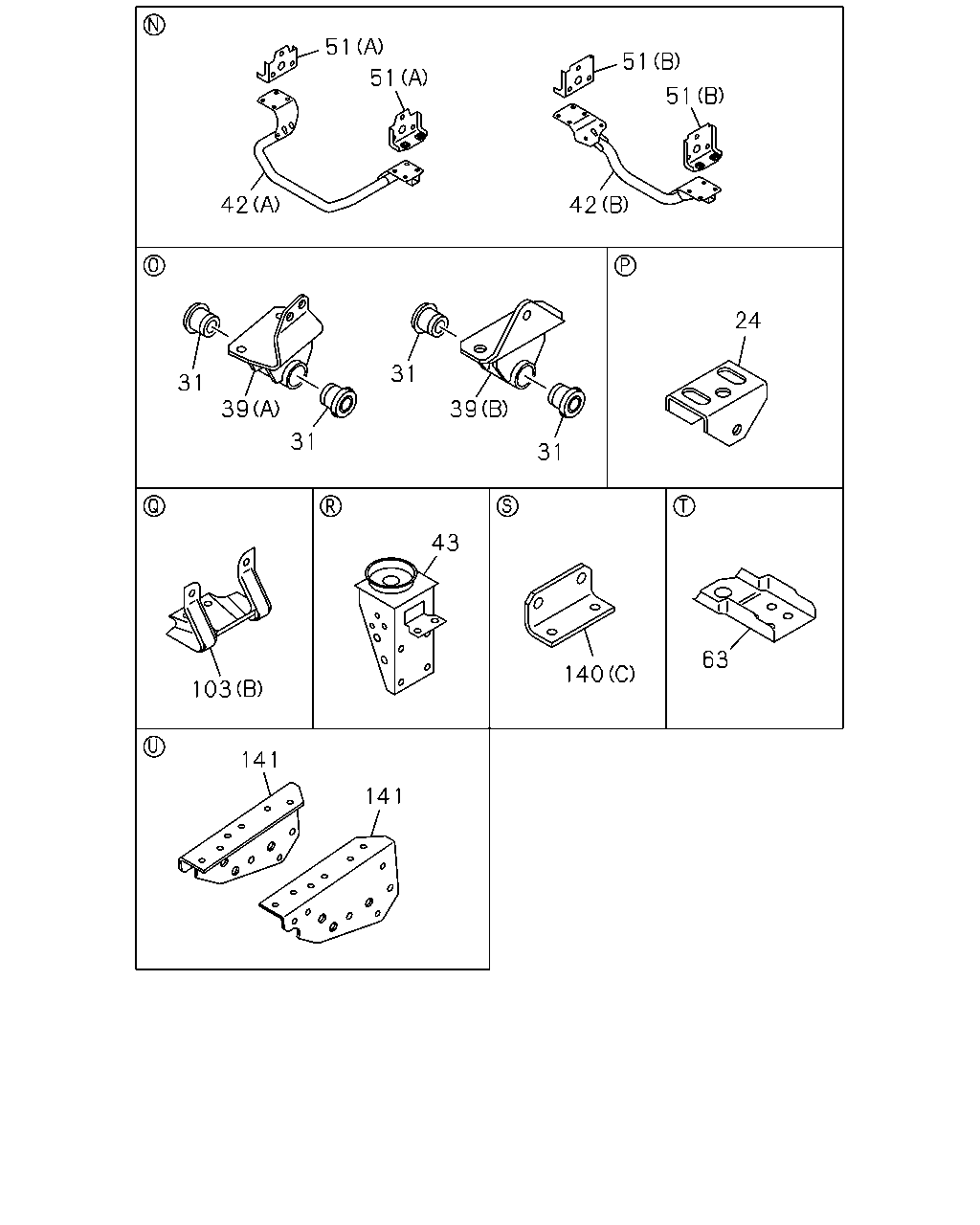

51 51 51 42 42 51 24 31 39 43 31 39 31 103 141 141 140 63 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	07.105 BRACKET; FRT SPR,FRT	8-98015-274-0	02	1	1012-	●	●	●
31	07.428 BUSHING; FRT SPR,RR 07.524	8-97184-699-1	04	1	1012-	●	●	●
39	07.112 BRACKET; FRT SPR,RR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-98014-125-0	02	1	1012-	●
39	07.112 BRACKET; FRT SPR,RR (B)	8-98014-125-0	02	1	1012-		●
39	07.112 BRACKET; FRT SPR,RR 4JJ1-TCC ENG(RDU) (A)	8-98064-729-0	01	1	1012-	●
39	07.112 BRACKET; FRT SPR,RR (A)	8-98064-729-0	01	1	1012-			●
39	07.112 BRACKET; FRT SPR,RR 4JJ1-TCC ENG(RDU) (A)	8-98064-731-0	01	1	1012-	●
39	07.112 BRACKET; FRT SPR,RR (A)	8-98064-731-0	01	1	1012-			●
42	07.011 MEMBER; CROSS,ENG MTG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-98032-389-0	01	1	1012-	●
42	07.011 MEMBER; CROSS,ENG MTG (B)	8-98032-389-0	01	1	1012-		●
42	07.011 MEMBER; CROSS,ENG MTG 4JJ1-TCC ENG(RDU) (A)	8-98049-111-0	01	1	1012-	●
42	07.011 MEMBER; CROSS,ENG MTG (A)	8-98049-111-0	01	1	1012-			●
43	09.003 BRACKET; CAB MTG,RR M/T MYY5T(RSM)	8-98061-560-1	01	1	1012-			●
43	09.003 BRACKET; CAB MTG,RR M/T MYY5T(RSM)	8-98061-561-1	01	1	1012-			●
51	07.011 BRACKET; ENG SUPPORT,OUTER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-98034-961-0	02	1	1012-	●
51	07.011 BRACKET; ENG SUPPORT,OUTER (B)	8-98034-961-0	02	1	1012-		●
51	07.011 BRACKET; ENG SUPPORT,OUTER 4JJ1-TCC ENG(RDU) (A)	8-98032-390-0	02	1	1012-	●
51	07.011 BRACKET; ENG SUPPORT,OUTER (A)	8-98032-390-0	02	1	1012-			●
63	01.270 BRACKET; RAD MTG 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97115-668-0	01	1	1012-	●	●
103	07.420 STOPPER; SUB SPR 07.524 (B)	8-97079-659-1	02	1	1012-	●	●	●
103	07.420 STOPPER; SUB SPR EXC. MINI BUS CHASSIS(V4B) (A)	8-97223-748-0	04	1	1012-1409	●	●	●
103	07.420 STOPPER; SUB SPR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (A)	8-97223-748-0	04	1	1410-	●	●
103	07.420 STOPPER; SUB SPR WHEEL BASE 3800MM(38W) EXC. MINI BUS CHASSIS(V4B) (A)	8-97223-748-0	04	1	1410-	●	●
103	07.420 STOPPER; SUB SPR WHEEL BASE 4100MM(41W) MINI BUS CHASSIS(V4B) (A)	8-97223-748-0	04	1	1410-	●	●
103	07.420 STOPPER; SUB SPR (A)	8-97223-748-0	04	1	1410-			●
140	07.112 BRACKET; S/ABS,RR 07.395 (C)	8-97302-511-0	02	1	1012-	●	●	●
140	07.112 BRACKET; S/ABS,RR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-97080-884-1	02	1	1012-	●
140	07.112 BRACKET; S/ABS,RR (B)	8-97080-884-1	02	1	1012-		●
140	07.112 BRACKET; S/ABS,RR 4JJ1-TCC ENG(RDU) (A)	8-98000-587-1	02	1	1012-	●
140	07.112 BRACKET; S/ABS,RR (A)	8-98000-587-1	02	1	1012-			●
141	07.112 STIFFENER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-98064-354-2	01	1	1012-	●
141	07.112 STIFFENER	8-98064-354-2	01	1	1012-		●
141	07.112 STIFFENER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-98064-355-2	01	1	1012-	●
141	07.112 STIFFENER	8-98064-355-2	01	1	1012-		●

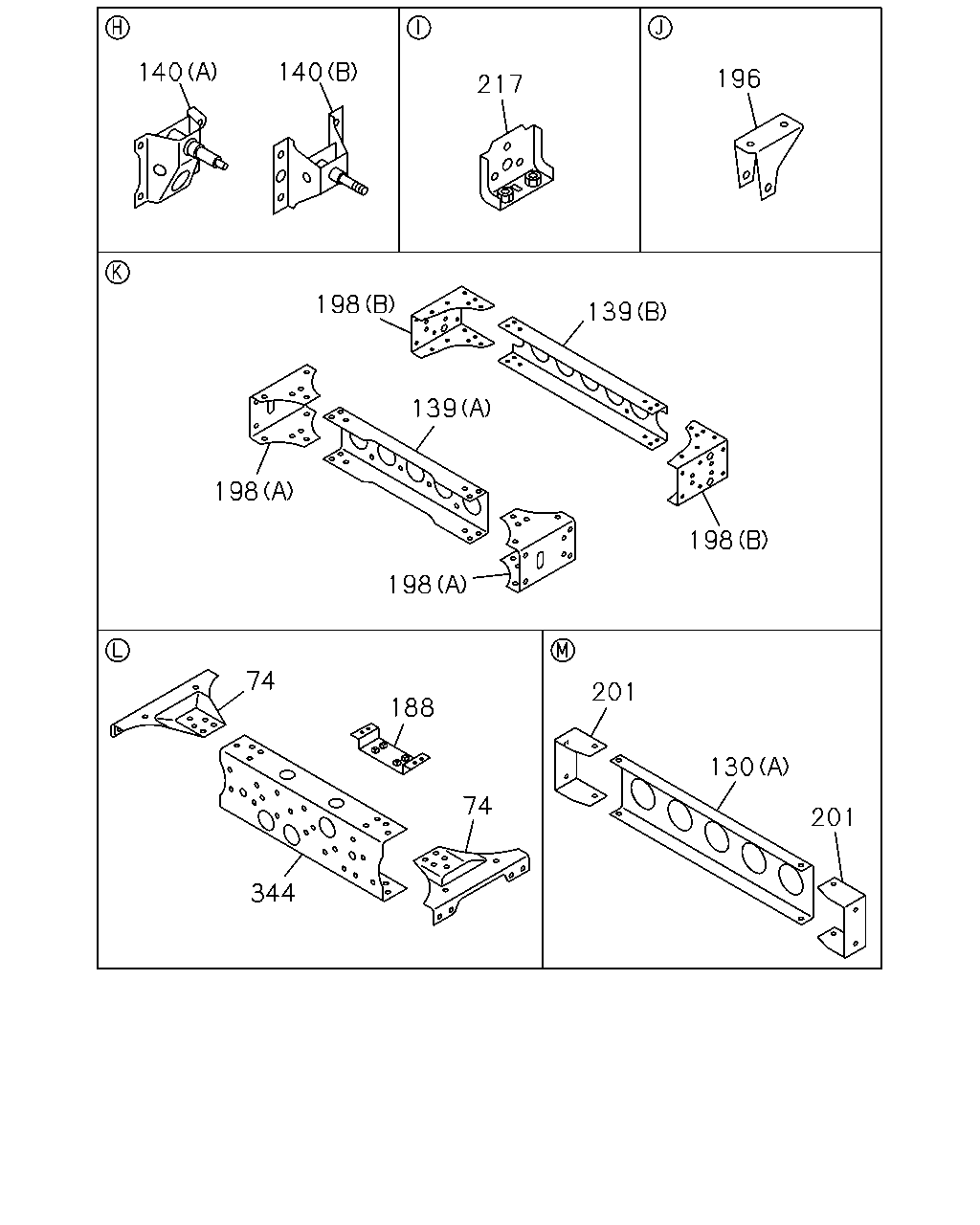

140 140 217 196 198 139 139 198 198 198 201 130 201 74 344 188 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
74	07.039 GUSSET; 4TH C/MBR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) RH-LOWER,LH-UPPER	8-98000-583-0	02	1	1012-	●
74	07.039 GUSSET; 4TH C/MBR RH-LOWER,LH-UPPER	8-98000-583-0	02	1	1012-		●
74	07.039 GUSSET; 4TH C/MBR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) RH-UPPER,LH-LOWER	8-98000-584-0	02	1	1012-	●
74	07.039 GUSSET; 4TH C/MBR RH-UPPER,LH-LOWER	8-98000-584-0	02	1	1012-		●
74	07.039 GUSSET; 4TH C/MBR 4JJ1-TCC ENG(RDU) RH-LOWER,LH-UPPER	8-98000-585-1	02	1	1012-	●
74	07.039 GUSSET; 4TH C/MBR RH-LOWER,LH-UPPER	8-98000-585-1	02	1	1012-			●
74	07.039 GUSSET; 4TH C/MBR 4JJ1-TCC ENG(RDU) RH-UPPER,LH-LOWER	8-98000-586-1	02	1	1012-	●
74	07.039 GUSSET; 4TH C/MBR RH-UPPER,LH-LOWER	8-98000-586-1	02	1	1012-			●
130	07.014 MEMBER; CROSS,END 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	8-97080-872-0	01	1	1012-1409	●	●
130	07.014 MEMBER; CROSS,END WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	8-97080-872-0	01	1	1410-	●	●
130	07.014 MEMBER; CROSS,END 4JJ1-TCC ENG(RDU) (A)	8-98000-492-0	01	1	1012-	●
130	07.014 MEMBER; CROSS,END (A)	8-98000-492-0	01	1	1012-			●
130	07.014 MEMBER; CROSS,END WHEEL BASE 4100MM(41W) (B)	8-97205-394-0	01	1	1012-1307	●	●
130	07.014 MEMBER; CROSS,END WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B)	8-97205-394-0	01	1	1308-	●	●
139	07.012 MEMBER; CROSS,6TH 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B)	8-97107-384-0	01	1	1012-1302	●	●
139	07.012 MEMBER; CROSS,6TH 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> (B)	8-97107-384-0	01	1	1012-1302	●	●
139	07.012 MEMBER; CROSS,6TH 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) STABILIZER REAR<GN1> EXC. FRONT STABILIZER SHAFT<F59> (B)	8-97107-384-0	01	1	1012-1302	●	●
139	07.012 MEMBER; CROSS,6TH 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (B)	8-97107-384-0	01	1	1012-1302	●
139	07.012 MEMBER; CROSS,6TH 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) MINI BUS CHASSIS(V4B) (B)	8-97107-384-0	01	1	1012-1302		●
139	07.012 MEMBER; CROSS,6TH 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B)	8-97107-384-0	01	1	1303-1409	●	●
139	07.012 MEMBER; CROSS,6TH 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> (B)	8-97107-384-0	01	1	1303-1409	●	●
139	07.012 MEMBER; CROSS,6TH 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) STABILIZER REAR<GN1> EXC. FRONT STABILIZER SHAFT<F59> (B)	8-97107-384-0	01	1	1303-1409	●	●
139	07.012 MEMBER; CROSS,6TH 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRONT UNDER RUN PROTECTOR<EBE> (B)	8-97107-384-0	01	1	1303-1409	●	●
139	07.012 MEMBER; CROSS,6TH 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) MINI BUS CHASSIS(V4B) EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-97107-384-0	01	1	1303-1409	●	●
139	07.012 MEMBER; CROSS,6TH 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (B)	8-97107-384-0	01	1	1303-1409	●
139	07.012 MEMBER; CROSS,6TH 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B)	8-97107-384-0	01	1	1410-	●	●
139	07.012 MEMBER; CROSS,6TH 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRONT UNDER RUN PROTECTOR<EBE> (B)	8-97107-384-0	01	1	1410-	●	●
139	07.012 MEMBER; CROSS,6TH 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (B)	8-97107-384-0	01	1	1410-	●
139	07.012 MEMBER; CROSS,6TH 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1> (B)	8-97326-394-0	01	1	1012-1302	●	●
139	07.012 MEMBER; CROSS,6TH 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) (B)	8-97326-394-0	01	1	1012-1302	●	●
139	07.012 MEMBER; CROSS,6TH 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS(V4B) (B)	8-97326-394-0	01	1	1012-1302	●	●
139	07.012 MEMBER; CROSS,6TH 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1> (B)	8-97326-394-0	01	1	1303-	●	●
139	07.012 MEMBER; CROSS,6TH 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-97326-394-0	01	1	1303-	●	●
139	07.012 MEMBER; CROSS,6TH 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) EXC. FRONT UNDER RUN PROTECTOR<EBE>, MINIBUS CHASSIS(V4B) (B)	8-97326-394-0	01	1	1303-	●	●
139	07.012 MEMBER; CROSS,6TH 4JJ1-TCC ENG(RDU) (A)	8-98000-491-0	01	1	1012-	●
139	07.012 MEMBER; CROSS,6TH (A)	8-98000-491-0	01	1	1012-			●
140	07.112 BRACKET; S/ABS,RR 07.395 (C)	8-97302-511-0	02	1	1012-	●	●	●
140	07.112 BRACKET; S/ABS,RR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-97080-884-1	02	1	1012-	●
140	07.112 BRACKET; S/ABS,RR (B)	8-97080-884-1	02	1	1012-		●
140	07.112 BRACKET; S/ABS,RR 4JJ1-TCC ENG(RDU) (A)	8-98000-587-1	02	1	1012-	●
140	07.112 BRACKET; S/ABS,RR (A)	8-98000-587-1	02	1	1012-			●
188	07.039 BRACKET; SUPPORT,CTR BRG 4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3800MM(38W)	8-98227-662-0	01	1	1212-	●	●
196	07.242 BRACKET; STAB TO FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W)	8-98033-523-0	02	1	1012-1302	●	●
196	07.242 BRACKET; STAB TO FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS(V4B)	8-98033-523-0	02	1	1012-1302	●	●
196	07.242 BRACKET; STAB TO FRAME 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) WHEEL BASE 2700MM(27W)	8-98033-523-0	02	1	1012-1302	●
196	07.242 BRACKET; STAB TO FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59>	8-98033-523-0	02	1	1012-1302	●
196	07.242 BRACKET; STAB TO FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) FRONT UNDER RUN PROTECTOR<EBE> EXC. MINI BUS CHASSIS(V4B)	8-98033-523-0	02	1	1303-1409	●	●
196	07.242 BRACKET; STAB TO FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98033-523-0	02	1	1303-1409	●	●
196	07.242 BRACKET; STAB TO FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS(V4B)	8-98033-523-0	02	1	1303-1409	●	●
196	07.242 BRACKET; STAB TO FRAME 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) WHEEL BASE 2700MM(27W)	8-98033-523-0	02	1	1303-1409	●
196	07.242 BRACKET; STAB TO FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59>	8-98033-523-0	02	1	1303-1409	●
196	07.242 BRACKET; STAB TO FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS(V4B)	8-98033-523-0	02	1	1410-	●	●
196	07.242 BRACKET; STAB TO FRAME WHEEL BASE 2700MM(27W)	8-98033-523-0	02	1	1410-	●
196	07.242 BRACKET; STAB TO FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59>	8-98033-523-0	04	1	1012-1302	●	●
196	07.242 BRACKET; STAB TO FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) STABILIZER REAR<GN1> EXC. FRONT STABILIZER SHAFT<F59>	8-98033-523-0	04	1	1012-1302	●
196	07.242 BRACKET; STAB TO FRAME 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) WHEEL BASE 4100MM(41W) MINI BUS CHASSIS(V4B)	8-98033-523-0	04	1	1012-1302		●
196	07.242 BRACKET; STAB TO FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59>	8-98033-523-0	04	1	1303-1409	●	●
196	07.242 BRACKET; STAB TO FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) STABILIZER REAR<GN1> EXC. FRONT STABILIZER SHAFT<F59>	8-98033-523-0	04	1	1303-1409	●	●
196	07.242 BRACKET; STAB TO FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) FRONT UNDER RUN PROTECTOR<EBE> MINI BUS CHASSIS(V4B)	8-98033-523-0	04	1	1303-1409	●	●
196	07.242 BRACKET; STAB TO FRAME 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) WHEEL BASE 4100MM(41W) MINI BUS CHASSIS(V4B)	8-98033-523-0	04	1	1303-1409	●	●
196	07.242 BRACKET; STAB TO FRAME MINI BUS CHASSIS(V4B)	8-98033-523-0	04	1	1410-	●	●
198	07.039 GUSSET; 6TH C/MBR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-98014-079-1	02	1	1012-	●
198	07.039 GUSSET; 6TH C/MBR (B)	8-98014-079-1	02	1	1012-		●
198	07.039 GUSSET; 6TH C/MBR 4JJ1-TCC ENG(RDU) (A)	8-98009-044-1	02	1	1012-	●
198	07.039 GUSSET; 6TH C/MBR (A)	8-98009-044-1	02	1	1012-			●
201	07.039 GUSSET; C/MBR	8-97096-871-0	02	1	1012-1409	●	●	●
201	07.039 GUSSET; C/MBR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W)	8-97096-871-0	02	1	1410-	●	●
201	07.039 GUSSET; C/MBR	8-97096-871-0	02	1	1410-			●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING	8-97202-417-0	02	1	1012-	●	●	●
344	07.012 MEMBER; CROSS,4TH 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W)	8-97175-993-3	01	1	1012-	●
344	07.012 MEMBER; CROSS,4TH	8-97175-993-3	01	1	1012-		●
344	07.012 MEMBER; CROSS,4TH 4JJ1-TCC ENG(RDU)	8-98000-490-2	01	1	1012-	●
344	07.012 MEMBER; CROSS,4TH	8-98000-490-2	01	1	1012-			●

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) FRONT UNDER RUN PROTECTOR<EBE> MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> (D)	8-98231-988-0	01	1	1303-	●	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) FRONT UNDER RUN PROTECTOR<EBE> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (D)	8-98231-987-0	01	1	1303-	●	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) FRONT UNDER RUN PROTECTOR<EBE> MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> (E)	8-98231-990-0	01	1	1303-	●	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) FRONT UNDER RUN PROTECTOR<EBE> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (E)	8-98231-989-0	01	1	1303-	●	●
1	07.003 FRAME ASM 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> (C)	8-98106-317-2	01	1	1012-	●
1	07.003 FRAME ASM 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (D)	8-98106-320-2	01	1	1012-	●	●
1	07.003 FRAME ASM 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (D)	8-98106-323-2	01	1	1012-	●	●
1	07.003 FRAME ASM 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (E)	8-98106-327-1	01	1	1012-1301	●
1	07.003 FRAME ASM 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (E)	8-98106-327-1	01	1	1012-1301		●
1	07.003 FRAME ASM 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (E)	8-98106-327-1	01	1	1302-	●	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> (C)	8-98088-800-4	01	1	1012-	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> (D)	8-98071-615-4	01	1	1012-1301	●	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) STABILIZER REAR<GN1> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> (D)	8-98071-615-4	01	1	1012-1301		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> (D)	8-98071-615-4	01	1	1302-1409	●	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) STABILIZER REAR<GN1> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> (D)	8-98071-615-4	01	1	1302-1409	●	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> (D)	8-98157-948-1	01	1	1012-1301	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1> (D)	8-98157-948-1	01	1	1012-1301		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1> (D)	8-98157-948-1	01	1	1302-	●	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (D)	8-98071-634-5	01	1	1012-1302	●	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98071-634-5	01	1	1303-	●	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (E)	8-98071-655-6	01	1	1012-1301	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (E)	8-98071-655-6	01	1	1012-1301		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (E)	8-98071-655-6	01	1	1302-1302	●	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT UNDER RUN PROTECTOR<EBE>, MINIBUS CHASSIS(V4B) (E)	8-98071-655-6	01	1	1303-	●	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98173-415-0	01	1	1012-1409	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. FRONT STABILIZER SHAFT<F59>,FRAME STRAIGHT TYPE<7KJ> (A)	8-98071-515-1	01	1	1012-	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98071-522-1	01	1	1012-	●
1	07.003 FRAME ASM 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) WHEEL BASE 4100MM(41W) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> (E)	8-98173-440-0	01	1	1012-1301		●
1	07.003 FRAME ASM 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) WHEEL BASE 4100MM(41W) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> (E)	8-98173-440-0	01	1	1302-	●	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> (E)	8-98110-998-0	01	1	1012-1301		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> (E)	8-98110-998-0	01	1	1302-1302	●	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT UNDER RUN PROTECTOR<EBE> (E)	8-98110-998-0	01	1	1303-1409	●	●
1	07.003 FRAME ASM M/T MYY5T(RSM) (B)	8-98071-528-1	01	1	1012-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
