2 |

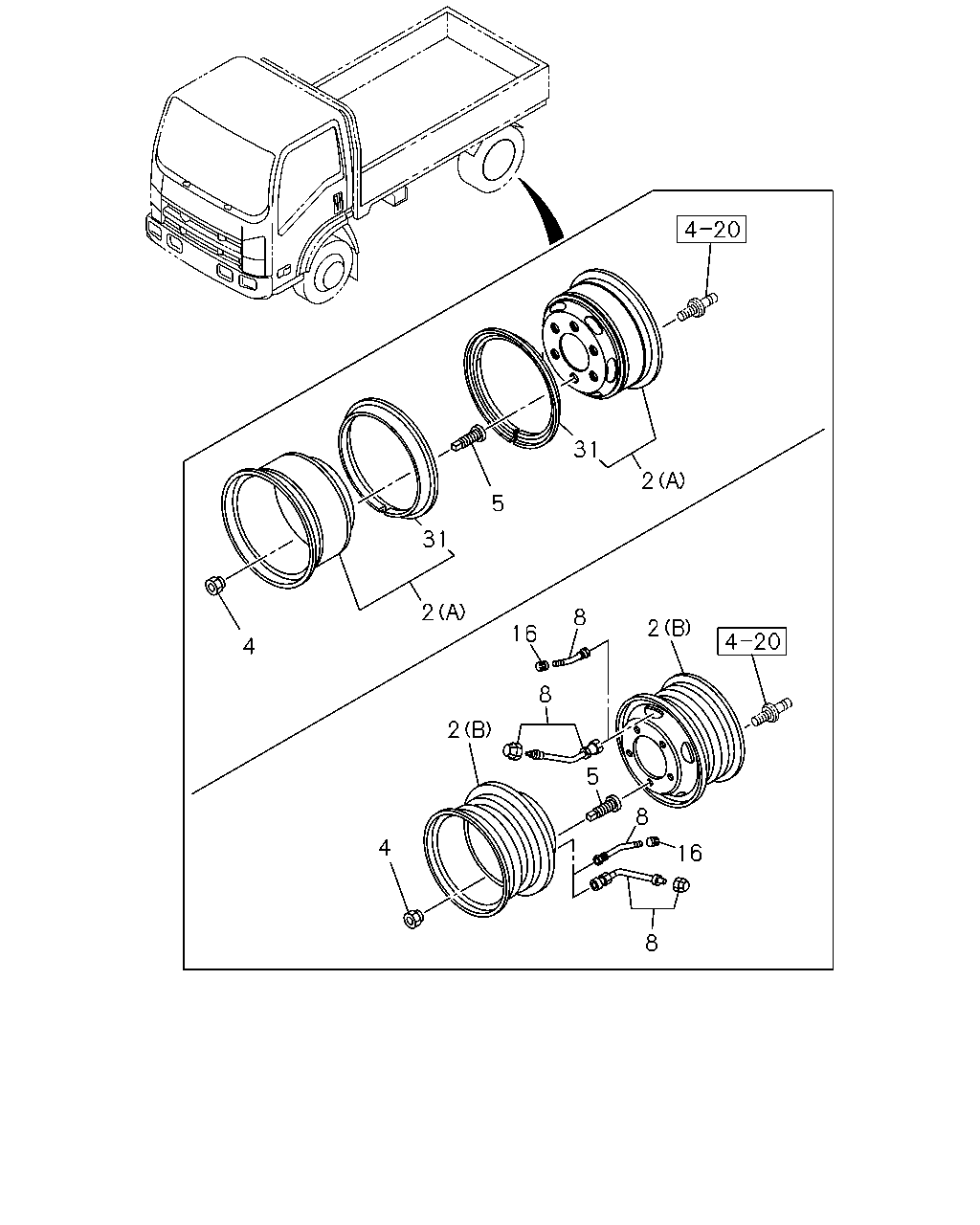

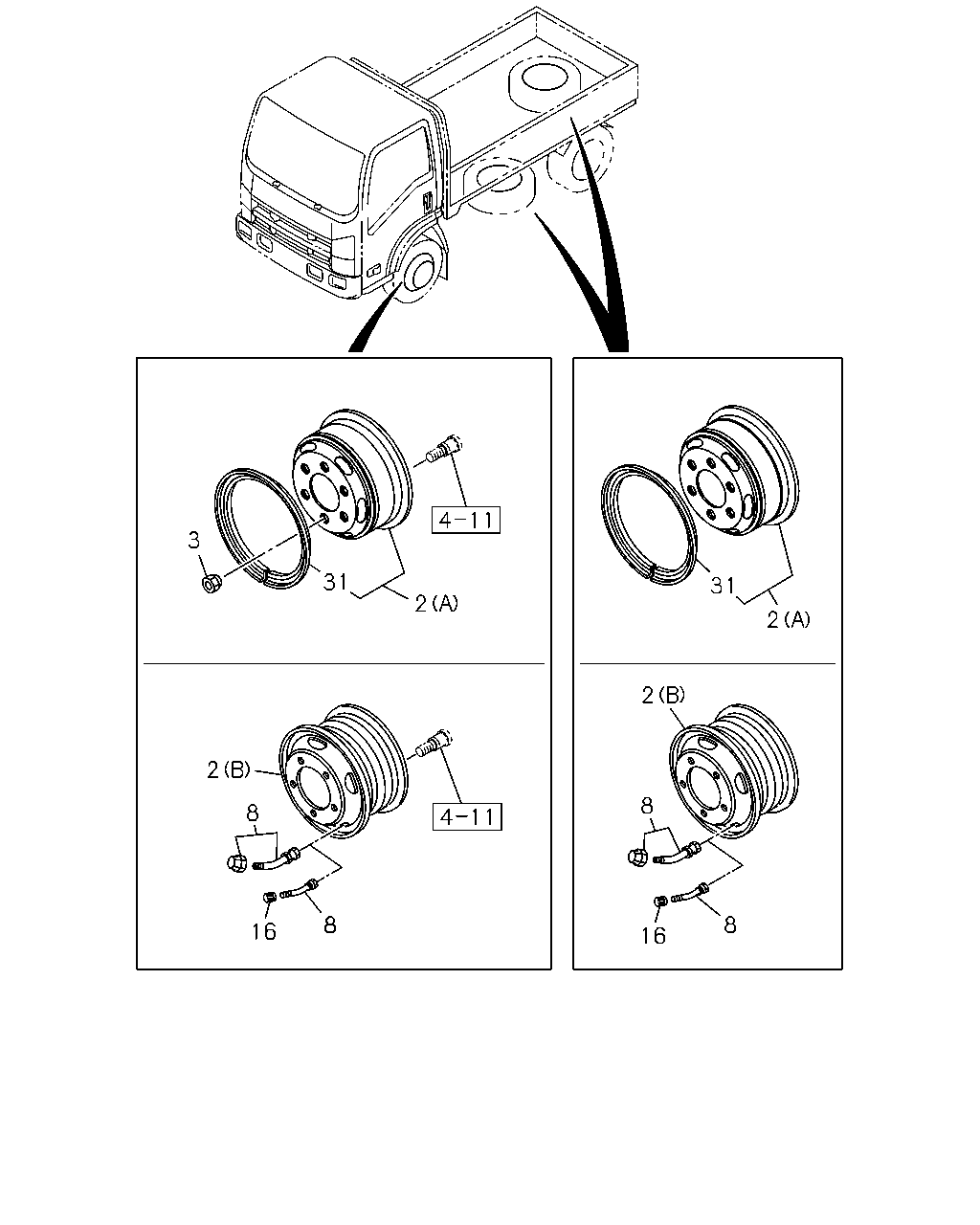

05.803 WHEEL; DISC
FRT&RR 225/90R17.5 17.5X6.00-135 6-WHL/N
UT(CZK)
(B) SPARE
17.5X6.00 OFFSET=135 SILVER 6-HOLE
|
1-42350-770-0 |
01 |
1 |
1507- |
● |
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 225/90R17.5 17.5X6.00-135 6-WHL/N
UT(CZK)
(B) FRONT,REAR
17.5X6.00 OFFSET=135 SILVER 6-HOLE
|
1-42350-770-0 |
06 |
1 |
1507- |
● |
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 225/80R17.5 17.5X6.00-127(BXP),
FRT&RR 215/75R17.5 17.5X6.00-127
SILVER(CQU)
(B) SPARE
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98168-215-0 |
01 |
1 |
1012-1404 |
● |
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 225/80R17.5 17.5X6.00-127(BXP),
FRT&RR 215/75R17.5 17.5X6.00-127
SILVER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV)
(B) SPARE
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98168-215-0 |
01 |
1 |
1405-1506 |
● |
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 225/80R17.5 17.5X6.00-127(BXP),
FRT&RR 215/75R17.5 17.5X6.00-127
SILVER(CQU)
(B) SPARE
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98168-215-0 |
01 |
1 |
1507- |
● |
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 225/80R17.5 17.5X6.00-127(BXP),
FRT&RR 215/75R17.5 17.5X6.00-127
SILVER(CQU)
(B) FRONT,REAR
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98168-215-0 |
06 |
1 |
1012-1404 |
● |
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 225/80R17.5 17.5X6.00-127(BXP),
FRT&RR 215/75R17.5 17.5X6.00-127
SILVER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV)
(B) FRONT,REAR
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98168-215-0 |
06 |
1 |
1405-1506 |
● |
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 225/80R17.5 17.5X6.00-127(BXP),
FRT&RR 215/75R17.5 17.5X6.00-127
SILVER(CQU)
(B) FRONT,REAR
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98168-215-0 |
06 |
1 |
1507- |
● |
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5
(CSA)
(B) SPARE
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
01 |
1 |
1012- |
|
● |
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5
(CSA)
(B) FRONT,REAR
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
06 |
1 |
1012- |
|
● |
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127
6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-12
7 6-WHL/NUT(05C),FRT&RR 7.5R-16-10
6GSX16-127 6-WHL/NUT(83V)
(A) SPARE
6.0GSX16 OFFSET=127 BLACK 6-HOLE
|
8-94438-670-4 |
01 |
1 |
1012- |
|
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF)
(A) SPARE
6.0GSX16 OFFSET=127 BLACK 6-HOLE
|
8-94438-670-4 |
01 |
1 |
1012- |
● |
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127
6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-12
7 6-WHL/NUT(05C),FRT&RR 7.5R-16-10
6GSX16-127 6-WHL/NUT(83V)
(A) FRONT,REAR
6.0GSX16 OFFSET=127 BLACK 6-HOLE
|
8-94438-670-4 |
06 |
1 |
1012- |
|
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF)
(A) FRONT,REAR
6.0GSX16 OFFSET=127 BLACK 6-HOLE
|
8-94438-670-4 |
06 |
1 |
1012- |
● |
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 DISC
6.00GSX16-127(CUV),FRT&RR7.50R-16-12 R/L 6.00GSX16-127
5-WHL/NUT(CVH),FRT&RR 7.5R-16-12 6GSX16-12
7(19H)
(A) SPARE
6.0SGX16 OFFSET=127 BLACK 5-HOLE
|
8-94135-596-2 |
01 |
1 |
1012- |
|
● |
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 DISC
6.00GSX16-127(CUV),FRT&RR7.50R-16-12 R/L 6.00GSX16-127
5-WHL/NUT(CVH),FRT&RR 7.5R-16-12 6GSX16-12
7(19H)
(A) FRONT,REAR
6.0SGX16 OFFSET=127 BLACK 5-HOLE
|
8-94135-596-2 |
06 |
1 |
1012- |
|
● |
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115
(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H)
(A) SPARE
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-1 |
01 |
1 |
1012- |
|
● |
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115
(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H)
(A) FRONT,REAR
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-1 |
06 |
1 |
1012- |
|
● |
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/N
UT(CUZ)
(A) SPARE
6.00GSX16 OFFSET=135 BLACK 6-HOLE
|
1-42350-417-0 |
01 |
1 |
1012- |
● |
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/N
UT(CUZ)
(A) FRONT,REAR
6.00GSX16 OFFSET=135 BLACK 6-HOLE
|
1-42350-417-0 |
06 |
1 |
1012- |
● |
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5
(CSA),FRT&RR 7.5R-16-10 DISC
6.00GSX16-127(CUV),FRT&RR 7.00R-16-10 R/L DISC
5.50FX16-115(CUW),FRT&RR7.50R-16-12 R/L 6.00
GSX16-127 5-WHL/NUT(CVH),FRT&RR
7R-16-1016X5.5F-115(07H),FRT&RR 7.5R-16-12 6GSX
16-127(19H)
M27 RH THREAD
|
8-98007-824-0 |
05 |
1 |
1012- |
|
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD
|
8-98007-824-0 |
05 |
1 |
1012- |
|
|
● |
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5
(CSA),FRT&RR 7.5R-16-10 DISC
6.00GSX16-127(CUV),FRT&RR 7.00R-16-10 R/L DISC
5.50FX16-115(CUW),FRT&RR7.50R-16-12 R/L 6.00
GSX16-127 5-WHL/NUT(CVH),FRT&RR
7R-16-1016X5.5F-115(07H),FRT&RR 7.5R-16-12 6GSX
16-127(19H)
M27 LH THREAD
|
8-98007-825-0 |
05 |
1 |
1012- |
|
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD
|
8-98007-825-0 |
05 |
1 |
1012- |
|
|
● |
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127
6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-12
7 6-WHL/NUT(05C),FRT&RR 7.5R-16-10
6GSX16-127 6-WHL/NUT(83V)
M30 RH THREAD
|
8-97359-809-0 |
06 |
1 |
1012- |
|
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M30 RH THREAD
|
8-97359-809-0 |
06 |
1 |
1012- |
● |
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127
6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-12
7 6-WHL/NUT(05C),FRT&RR 7.5R-16-10
6GSX16-127 6-WHL/NUT(83V)
M30 LH THREAD
|
8-97359-810-0 |
06 |
1 |
1012- |
|
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M30 LH THREAD
|
8-97359-810-0 |
06 |
1 |
1012- |
● |
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5
(CSA),FRT&RR 7.5R-16-10 DISC
6.00GSX16-127(CUV),FRT&RR 7.00R-16-10 R/L DISC
5.50FX16-115(CUW),FRT&RR7.50R-16-12 R/L 6.00
GSX16-127 5-WHL/NUT(CVH),FRT&RR
7R-16-1016X5.5F-115(07H),FRT&RR 7.5R-16-12 6GSX
16-127(19H)
OUTER M27,INNER M18 RH THREAD
|
8-98007-810-0 |
05 |
1 |
1012- |
|
● |
● |
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5
(CSA),FRT&RR 7.5R-16-10 DISC
6.00GSX16-127(CUV),FRT&RR 7.00R-16-10 R/L DISC
5.50FX16-115(CUW),FRT&RR7.50R-16-12 R/L 6.00
GSX16-127 5-WHL/NUT(CVH),FRT&RR
7R-16-1016X5.5F-115(07H),FRT&RR 7.5R-16-12 6GSX
16-127(19H)
OUTER M27,INNER M18 LH THREAD
|
8-98007-811-0 |
05 |
1 |
1012- |
|
● |
● |
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127
6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-12
7 6-WHL/NUT(05C),FRT&RR 7.5R-16-10
6GSX16-127 6-WHL/NUT(83V)
OUTER M30,INNER M20 RH THREAD
|
8-97359-805-0 |
06 |
1 |
1012-1404 |
|
● |
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 225/80R17.5 17.5X6.00-127(BXP),
FRT&RR 215/75R17.5 17.5X6.00-127
SILVER(CQU),FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR 8.25R-16-14 6.00GSX16-135
6-WHL/NUT(CUZ)
OUTER M30,INNER M20 RH THREAD
|
8-97359-805-0 |
06 |
1 |
1012-1404 |
● |
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127
6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-12
7 6-WHL/NUT(05C),FRT&RR 7.5R-16-10
6GSX16-127 6-WHL/NUT(83V)
OUTER M30,INNER M20 RH THREAD
|
8-97359-805-0 |
06 |
1 |
1405-1506 |
|
● |
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 225/80R17.5 17.5X6.00-127(BXP),
FRT&RR 215/75R17.5 17.5X6.00-127
SILVER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR 8.25R-16-14 6.00G
SX16-135 6-WHL/NUT(CUZ)
OUTER M30,INNER M20 RH THREAD
|
8-97359-805-0 |
06 |
1 |
1405-1506 |
● |
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127
6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-12
7 6-WHL/NUT(05C),FRT&RR 7.5R-16-10
6GSX16-127 6-WHL/NUT(83V)
OUTER M30,INNER M20 RH THREAD
|
8-97359-805-0 |
06 |
1 |
1507- |
|
● |
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 225/80R17.5 17.5X6.00-127(BXP),
FRT&RR 215/75R17.5 17.5X6.00-127
SILVER(CQU),FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR 8.25R-16-14 6.00GSX16-135
6-WHL/NUT(CUZ),FRT&RR 225/90R17.5 17.5X6.0
0-135 6-WHL/NUT(CZK)
OUTER M30,INNER M20 RH THREAD
|
8-97359-805-0 |
06 |
1 |
1507- |
● |
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127
6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-12
7 6-WHL/NUT(05C),FRT&RR 7.5R-16-10
6GSX16-127 6-WHL/NUT(83V)
OUTER M30,INNER M20 LH THREAD
|
8-97359-806-0 |
06 |
1 |
1012-1404 |
|
● |
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 225/80R17.5 17.5X6.00-127(BXP),
FRT&RR 215/75R17.5 17.5X6.00-127
SILVER(CQU),FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR 8.25R-16-14 6.00GSX16-135
6-WHL/NUT(CUZ)
OUTER M30,INNER M20 LH THREAD
|
8-97359-806-0 |
06 |
1 |
1012-1404 |
● |
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127
6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-12
7 6-WHL/NUT(05C),FRT&RR 7.5R-16-10
6GSX16-127 6-WHL/NUT(83V)
OUTER M30,INNER M20 LH THREAD
|
8-97359-806-0 |
06 |
1 |
1405-1506 |
|
● |
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 225/80R17.5 17.5X6.00-127(BXP),
FRT&RR 215/75R17.5 17.5X6.00-127
SILVER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR 8.25R-16-14 6.00G
SX16-135 6-WHL/NUT(CUZ)
OUTER M30,INNER M20 LH THREAD
|
8-97359-806-0 |
06 |
1 |
1405-1506 |
● |
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127
6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-12
7 6-WHL/NUT(05C),FRT&RR 7.5R-16-10
6GSX16-127 6-WHL/NUT(83V)
OUTER M30,INNER M20 LH THREAD
|
8-97359-806-0 |
06 |
1 |
1507- |
|
● |
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 225/80R17.5 17.5X6.00-127(BXP),
FRT&RR 215/75R17.5 17.5X6.00-127
SILVER(CQU),FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR 8.25R-16-14 6.00GSX16-135
6-WHL/NUT(CUZ),FRT&RR 225/90R17.5 17.5X6.0
0-135 6-WHL/NUT(CZK)
OUTER M30,INNER M20 LH THREAD
|
8-97359-806-0 |
06 |
1 |
1507- |
● |
|
|
| |
8 |
05.875 VALVE; TIRE
FRT&RR 225/90R17.5 17.5X6.00-135 6-WHL/N
UT(CZK)
SPARE
|
1-42370-019-3 |
01 |
1 |
1507- |
● |
|
|
| |
8 |
05.875 VALVE; TIRE
FRT&RR 225/90R17.5 17.5X6.00-135 6-WHL/N
UT(CZK)
FRONT,REAR
|
1-42370-019-3 |
06 |
1 |
1507- |
● |
|
|
| |
8 |
05.875 VALVE; TIRE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5
(CSA)
SPARE
|
8-98221-106-0 |
01 |
1 |
1012- |
|
● |
● |
| |
8 |
05.875 VALVE; TIRE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5
(CSA)
FRONT,REAR
|
8-98221-106-0 |
06 |
1 |
1012- |
|
● |
● |
| |
8 |
05.875 VALVE; TIRE
FRT&RR 225/80R17.5 17.5X6.00-127(BXP),
FRT&RR 215/75R17.5 17.5X6.00-127
SILVER(CQU)
SPARE
|
8-98221-112-0 |
01 |
1 |
1012-1404 |
● |
|
|
| |
8 |
05.875 VALVE; TIRE
FRT&RR 225/80R17.5 17.5X6.00-127(BXP),
FRT&RR 215/75R17.5 17.5X6.00-127
SILVER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV)
SPARE
|
8-98221-112-0 |
01 |
1 |
1405-1506 |
● |
|
|
| |
8 |
05.875 VALVE; TIRE
FRT&RR 225/80R17.5 17.5X6.00-127(BXP),
FRT&RR 215/75R17.5 17.5X6.00-127
SILVER(CQU)
SPARE
|
8-98221-112-0 |
01 |
1 |
1507- |
● |
|
|
| |
8 |
05.875 VALVE; TIRE
FRT&RR 225/80R17.5 17.5X6.00-127(BXP),
FRT&RR 215/75R17.5 17.5X6.00-127
SILVER(CQU)
FRONT,REAR
|
8-98221-112-0 |
06 |
1 |
1012-1404 |
● |
|
|
| |
8 |
05.875 VALVE; TIRE
FRT&RR 225/80R17.5 17.5X6.00-127(BXP),
FRT&RR 215/75R17.5 17.5X6.00-127
SILVER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV)
FRONT,REAR
|
8-98221-112-0 |
06 |
1 |
1405-1506 |
● |
|
|
| |
8 |
05.875 VALVE; TIRE
FRT&RR 225/80R17.5 17.5X6.00-127(BXP),
FRT&RR 215/75R17.5 17.5X6.00-127
SILVER(CQU)
FRONT,REAR
|
8-98221-112-0 |
06 |
1 |
1507- |
● |
|
|
| |
16 |
05.875 HOLDER; TIRE VALVE,DISC WHEEL
FRT&RR 225/90R17.5 17.5X6.00-135 6-WHL/N
UT(CZK)
SPARE
|
1-42374-001-0 |
01 |
1 |
1507- |
● |
|
|
| |
16 |
05.875 HOLDER; TIRE VALVE,DISC WHEEL
FRT&RR 225/90R17.5 17.5X6.00-135 6-WHL/N
UT(CZK)
FRONT,REAR
|
1-42374-001-0 |
06 |
1 |
1507- |
● |
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127
6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-12
7 6-WHL/NUT(05C),FRT&RR 7.5R-16-10
6GSX16-127 6-WHL/NUT(83V)
SPARE
16X6.00GS STAMP, BLACK
|
8-94412-585-0 |
01 |
1 |
1012- |
|
● |
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF)
SPARE
16X6.00GS STAMP, BLACK
|
8-94412-585-0 |
01 |
1 |
1012- |
● |
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127
6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-12
7 6-WHL/NUT(05C),FRT&RR 7.5R-16-10
6GSX16-127 6-WHL/NUT(83V)
FRONT,REAR
16X6.00GS STAMP, BLACK
|
8-94412-585-0 |
06 |
1 |
1012- |
|
● |
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF)
FRONT,REAR
16X6.00GS STAMP, BLACK
|
8-94412-585-0 |
06 |
1 |
1012- |
● |
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 DISC
6.00GSX16-127(CUV),FRT&RR7.50R-16-12 R/L 6.00GSX16-127
5-WHL/NUT(CVH),FRT&RR 7.5R-16-12 6GSX16-12
7(19H)
SPARE
16X6.00GS STAMP, BLACK
|
8-94135-602-0 |
01 |
1 |
1012- |
|
● |
● |
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 DISC
6.00GSX16-127(CUV),FRT&RR7.50R-16-12 R/L 6.00GSX16-127
5-WHL/NUT(CVH),FRT&RR 7.5R-16-12 6GSX16-12
7(19H)
FRONT,REAR
16X6.00GS STAMP, BLACK
|
8-94135-602-0 |
06 |
1 |
1012- |
|
● |
● |
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115
(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H)
SPARE
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
01 |
1 |
1012- |
|
● |
● |
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115
(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H)
FRONT,REAR
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
06 |
1 |
1012- |
|
● |
● |
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/N
UT(CUZ)
SPARE
16X6.00GS STAMP, BLACK
|
1-42355-015-2 |
01 |
1 |
1012- |
● |
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/N
UT(CUZ)
FRONT,REAR
16X6.00GS STAMP, BLACK
|
1-42355-015-2 |
06 |
1 |
1012- |
● |
|
|
