◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51296 - NPR/NQR-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65C - REAR LEAF SPRING ▶
4-65C — REAR LEAF SPRING (#54762) — 21 parça

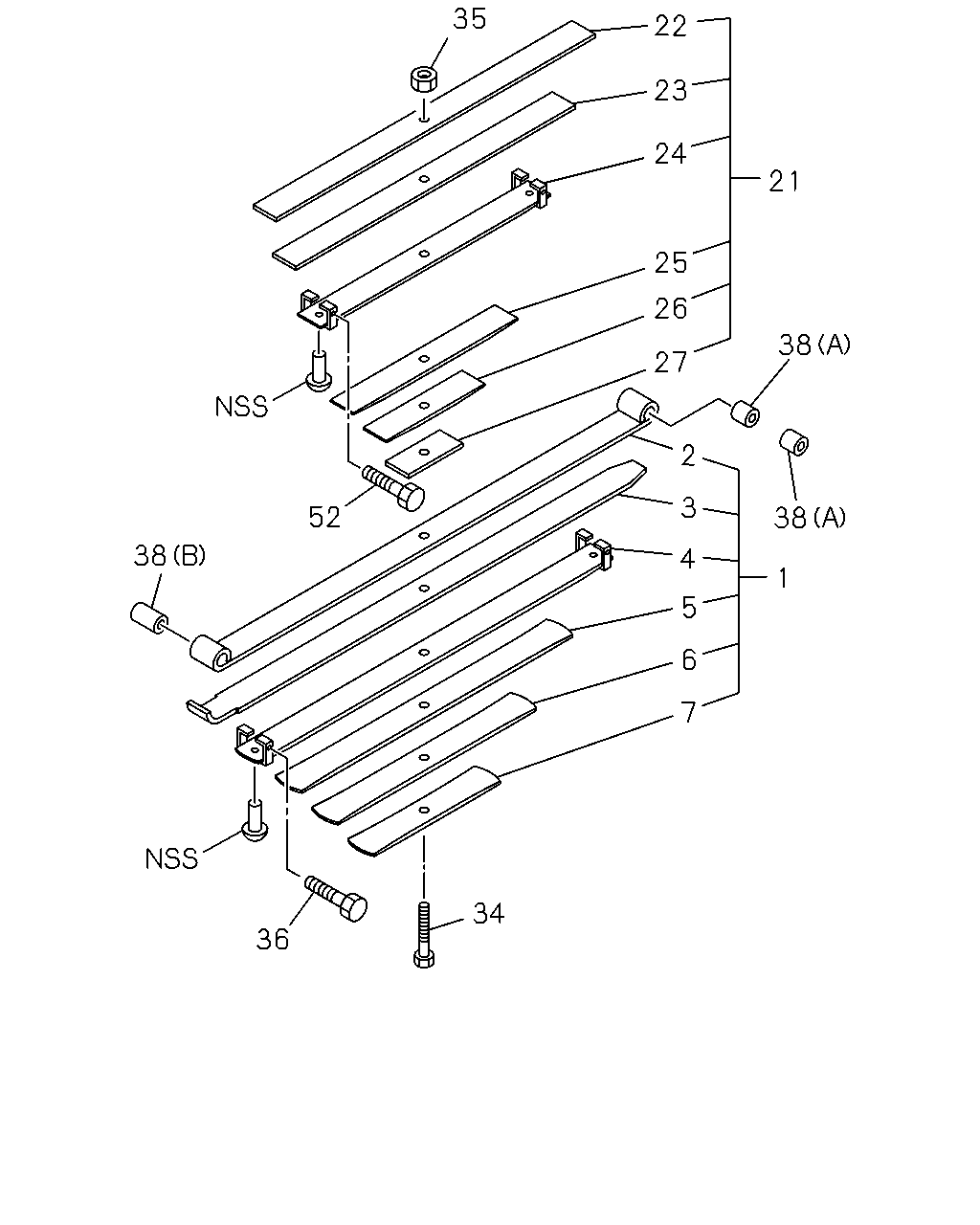

çizim 175707
35 22 23 24 21 25 26 38 27 2 3 52 38 38 4 1 5 6 7 34 36
BalonParca AdiParca NoAdetTipApplied Date
1 07.503 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-98025-051-0, 98025051 		8-98039-307-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-98025-051-0, 98025051 		8-98039-308-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-98025-051-0, 98025051 		8-98039-309-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-98025-051-0, 98025051 		8-98039-310-0 01 1 -
5 07.505 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 8-98025-051-0, 98025051 		8-98039-311-0 01 1 -
6 07.505 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 8-98025-051-0, 98025051 		8-98039-312-0 01 1 -
7 07.505 SPRING; LEAF,NO 6,RR MAIN
ASM PART: A = 8-98025-051-0, 98025051 		8-98039-313-0 01 1 -
21 07.503 SPRING ASM; LEAF,RR SUB
ASM PART: A = 8-98025-051-0, 98025051 		8-98039-314-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-98025-051-0, 98025051 		8-98039-315-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 8-98025-051-0, 98025051 		8-98039-316-0 01 1 -
24 07.505 SPRING; LEAF,NO 3,RR SUB
ASM PART: A = 8-98025-051-0, 98025051 		8-98039-317-0 01 1 -
25 07.505 SPRING; LEAF,NO 4,RR SUB
ASM PART: A = 8-98025-051-0, 98025051 		8-98039-318-0 01 1 -
26 07.505 SPRING; LEAF,NO 5,RR SUB
ASM PART: A = 8-98025-051-0, 98025051 		8-98039-319-0 01 1 -
27 07.505 SPRING; LEAF,NO 6,RR SUB
ASM PART: A = 8-98025-051-0, 98025051 		8-98039-320-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=135 ASM PART: A = 8-98025-051-0, 98025051 		8-98039-337-0 01 1 -
35 07.506 NUT; CENTER BOLT,LEAF SPR,RR
04.634, M12 ASM PART: A = 8-98025-051-0, 98025051 		9-99110-512-0 01 1 -
36 07.506 BOLT; CLIP,LEAF SPR,RR
ASM PART: A = 8-98025-051-0, 98025051 		8-98039-338-0 02 1 -
38 07.505 BUSHING; LEAF SPR,RR
(B), BEST VALUE PARTS ASM PART: A = 8-98025-051-0, 98025051 		5-87610-163-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
07.524, (A) ASM PART: A = 8-98025-051-0, 98025051 		8-94118-588-1 02 1 -
38 07.505 BUSHING; LEAF SPR,RR
(B), OD=42 L=81 ASM PART: A = 8-98025-051-0, 98025051 		8-97074-826-0 01 1 -
52 07.506 BOLT; CLIP,LEAF SPR,RR SUB
ASM PART: A = 8-98025-051-0, 98025051 		8-98039-338-0 01 1 -
