Sayfa 4-61 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51296 - NPR/NQR-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-61 - SHOCK ABSORBER; REAR SUSPENSION ▶

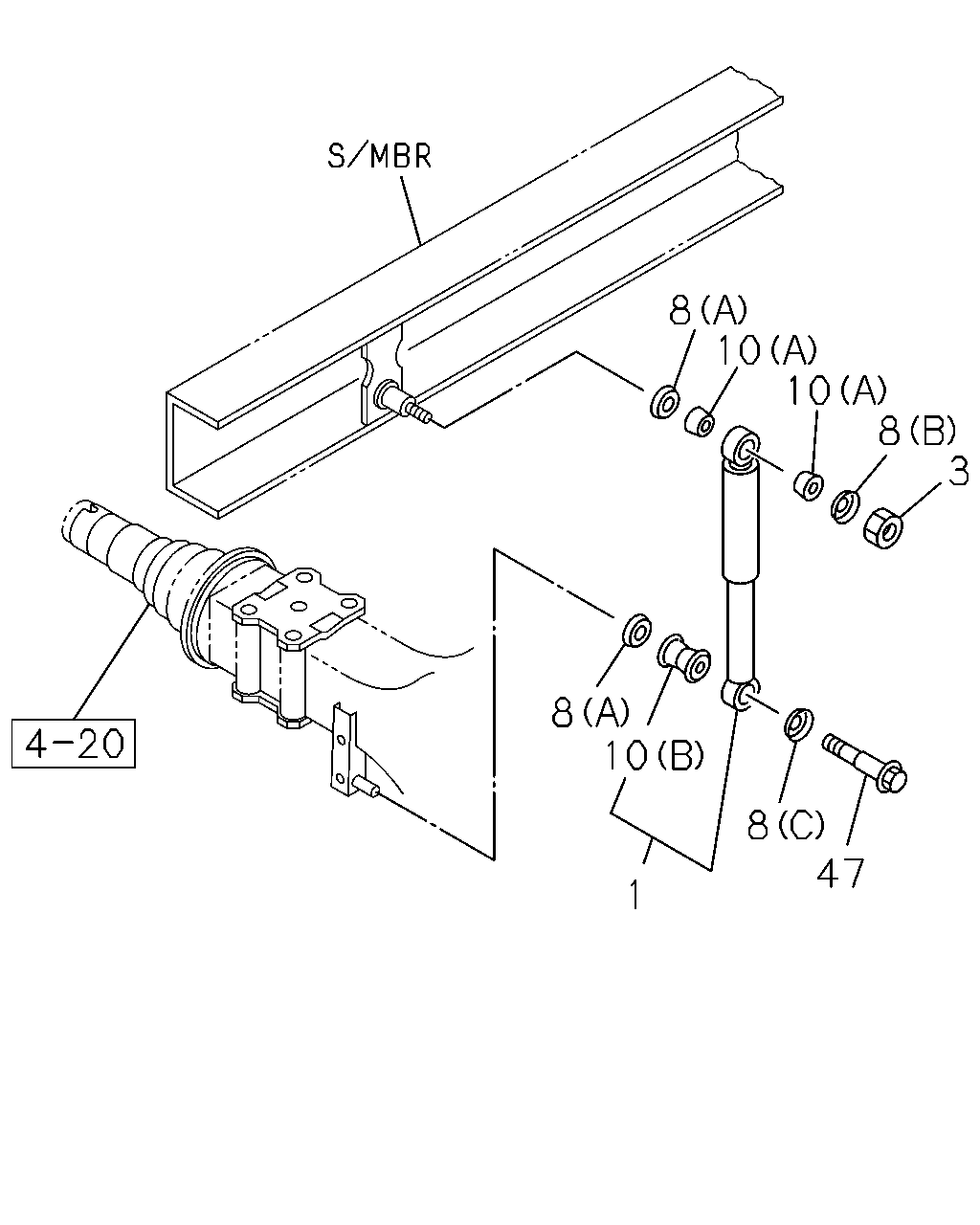

4-61 — SHOCK ABSORBER; REAR SUSPENSION (#54759) — 52 parça

8 10 10 8 3 8 10 8 47 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	07.395 ABSORBER ASM; SHOCK,RR G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97253-651-2	02	1	1012-1301	●
1	07.395 ABSORBER ASM; SHOCK,RR G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ>	8-97253-651-2	02	1	1012-1301	●
1	07.395 ABSORBER ASM; SHOCK,RR EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ>,TIRE SIZE 8.25-16<7QP>	8-97253-651-2	02	1	1012-1301		●
1	07.395 ABSORBER ASM; SHOCK,RR	8-97253-651-2	02	1	1012-1301			●
1	07.395 ABSORBER ASM; SHOCK,RR G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ>	8-97253-651-2	02	1	1302-1506	●
1	07.395 ABSORBER ASM; SHOCK,RR G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B)	8-97253-651-2	02	1	1302-1506	●
1	07.395 ABSORBER ASM; SHOCK,RR EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ>,TIRE SIZE 8.25-16<7QP>	8-97253-651-2	02	1	1302-1506		●
1	07.395 ABSORBER ASM; SHOCK,RR	8-97253-651-2	02	1	1302-1506			●
1	07.395 ABSORBER ASM; SHOCK,RR G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ>	8-98079-868-0	02	1	1012-1301	●
1	07.395 ABSORBER ASM; SHOCK,RR FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B),TIRE SIZE 8.25-16<7QP>	8-98079-868-0	02	1	1012-1301		●
1	07.395 ABSORBER ASM; SHOCK,RR FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP>	8-98079-868-0	02	1	1012-1301		●
1	07.395 ABSORBER ASM; SHOCK,RR G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B)	8-98079-868-1	02	1	1302-	●
1	07.395 ABSORBER ASM; SHOCK,RR FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B),TIRE SIZE 8.25-16<7QP>	8-98079-868-1	02	1	1302-		●
1	07.395 ABSORBER ASM; SHOCK,RR FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP>	8-98079-868-1	02	1	1302-		●
1	07.395 ABSORBER ASM; SHOCK,RR MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. TIRE SIZE 8.25-16<7QP>	8-97253-662-2	02	1	1012-1301		●
1	07.395 ABSORBER ASM; SHOCK,RR G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ>	8-97253-662-2	02	1	1302-	●
1	07.395 ABSORBER ASM; SHOCK,RR MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. TIRE SIZE 8.25-16<7QP>	8-97253-662-2	02	1	1302-		●
1	07.395 ABSORBER ASM; SHOCK,RR G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> BEST VALUE PARTS	5-87610-132-0	02	1	1105-1301	●
1	07.395 ABSORBER ASM; SHOCK,RR G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> BEST VALUE PARTS	5-87610-132-0	02	1	1105-1301	●
1	07.395 ABSORBER ASM; SHOCK,RR EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ>,TIRE SIZE 8.25-16<7QP> BEST VALUE PARTS	5-87610-132-0	02	1	1105-1301		●
1	07.395 ABSORBER ASM; SHOCK,RR BEST VALUE PARTS	5-87610-132-0	02	1	1105-1301			●
1	07.395 ABSORBER ASM; SHOCK,RR G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> BEST VALUE PARTS	5-87610-132-0	02	1	1302-1506	●
1	07.395 ABSORBER ASM; SHOCK,RR G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) BEST VALUE PARTS	5-87610-132-0	02	1	1302-1506	●
1	07.395 ABSORBER ASM; SHOCK,RR EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ>,TIRE SIZE 8.25-16<7QP> BEST VALUE PARTS	5-87610-132-0	02	1	1302-1506		●
1	07.395 ABSORBER ASM; SHOCK,RR BEST VALUE PARTS	5-87610-132-0	02	1	1302-1506			●
1	07.395 ABSORBER ASM; SHOCK,RR G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ>	8-98316-233-0	02	1	1507-	●
1	07.395 ABSORBER ASM; SHOCK,RR G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B)	8-98316-233-0	02	1	1507-	●
1	07.395 ABSORBER ASM; SHOCK,RR EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ>,TIRE SIZE 8.25-16<7QP>	8-98316-233-0	02	1	1507-		●
1	07.395 ABSORBER ASM; SHOCK,RR	8-98316-233-0	02	1	1507-			●
1	07.395 ABSORBER ASM; SHOCK,RR G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) BEST VALUE PARTS	5-87610-133-0	02	1	1304-	●
1	07.395 ABSORBER ASM; SHOCK,RR FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B),TIRE SIZE 8.25-16<7QP> BEST VALUE PARTS	5-87610-133-0	02	1	1304-		●
1	07.395 ABSORBER ASM; SHOCK,RR FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> BEST VALUE PARTS	5-87610-133-0	02	1	1304-		●
1	07.395 ABSORBER ASM; SHOCK,RR MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. TIRE SIZE 8.25-16<7QP> BEST VALUE PARTS	5-87610-156-0	02	1	1105-1301		●
1	07.395 ABSORBER ASM; SHOCK,RR G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> BEST VALUE PARTS	5-87610-156-0	02	1	1302-	●
1	07.395 ABSORBER ASM; SHOCK,RR MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. TIRE SIZE 8.25-16<7QP> BEST VALUE PARTS	5-87610-156-0	02	1	1302-		●
3	07.347 NUT; S/ABS 07.833 M14	0-91110-514-0	02	1	1012-1206	●	●	●
3	07.347 NUT; S/ABS 07.833 M14	0-91110-514-0	02	1	1207-	●	●	●
3	07.347 NUT; S/ABS REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> 07.833 M14	0-91110-514-0	02	1	1207-	●
8	07.347 WASHER; S/ABS (B) ID=15	8-97360-056-0	02	1	1012-1206	●	●	●
8	07.347 WASHER; S/ABS (B) ID=15	8-97360-056-0	02	1	1207-	●	●	●
8	07.347 WASHER; S/ABS REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> (B) ID=15	8-97360-056-0	02	1	1207-	●
8	07.347 WASHER; S/ABS (A) ID=20.0	8-97360-057-0	04	1	1012-	●	●	●
8	07.347 WASHER; S/ABS (C) ID=10.5	8-97360-058-0	02	1	1012-1206	●	●	●
8	07.347 WASHER; S/ABS REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> (C) ID=10.5	8-97360-058-0	02	1	1207-	●
8	07.347 WASHER; S/ABS EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=10.5	8-97360-058-0	02	1	1207-	●
8	07.347 WASHER; S/ABS (C) ID=10.5	8-97360-058-0	02	1	1207-		●	●
10	07.388 BUSHING; RUBBER,S/ABS (B) TOKICO	8-94382-149-0	02	1	1012-	●	●	●
10	07.388 BUSHING; RUBBER,S/ABS (A) TOKICO	9-51631-014-0	04	1	1012-	●	●	●
47	07.347 PIN; S/ABS SETTING 02.483 M10X16 FLANGE	0-28051-016-0	02	1	1012-1206	●	●	●
47	07.347 PIN; S/ABS SETTING REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 02.483 M10X16 FLANGE	0-28051-016-0	02	1	1207-	●
47	07.347 PIN; S/ABS SETTING EXC. FRAME STRAIGHT TYPE<7KJ> 02.483 M10X16 FLANGE	0-28051-016-0	02	1	1207-	●
47	07.347 PIN; S/ABS SETTING 02.483 M10X16 FLANGE	0-28051-016-0	02	1	1207-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
