Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#54751) — 155 parça

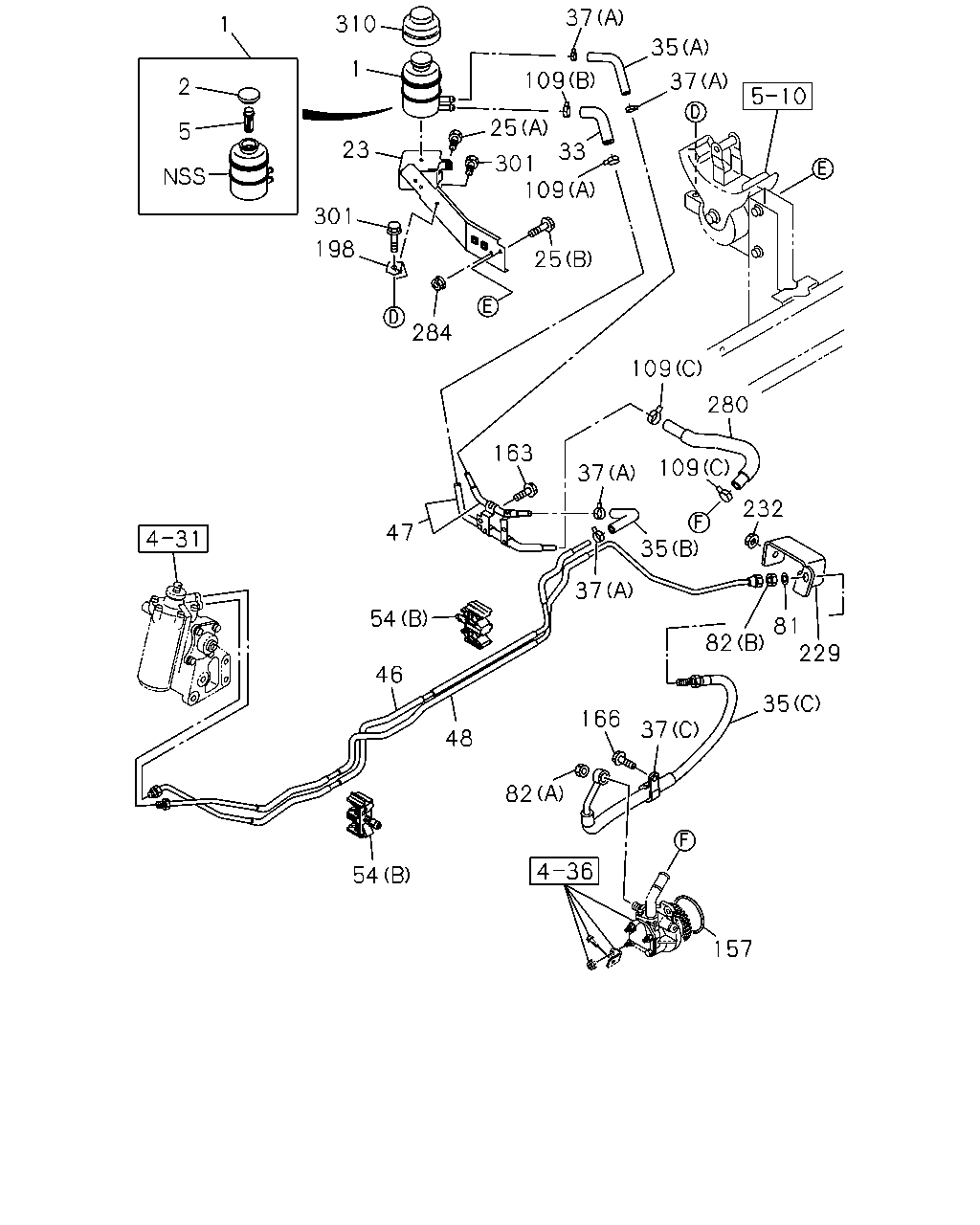

37 310 1 35 1 109 37 2 25 5 23 33 301 109 301 198 25 284 109 280 163 109 37 232 35 47 37 54 81 82 229 46 35 166 37 48 82 54 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1012-	●	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1012-	●	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1012-	●	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	1012-	●	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1012-	●	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1012-	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (C)	8-97389-832-2	01	1	1012-	●	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	1012-	●	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	1012-	●	●	●
37	01.762 CLIP; HOSE,P/S 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (C) ID=26 L=26	1-09701-236-0	01	1	1012-	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 04.681 (B) ID=21	8-98150-355-0	02	1	1012-	●
37	01.762 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	02	1	1012-			●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	1012-	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ>	8-98041-184-3	01	1	1012-1301	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV>	8-98041-184-3	01	1	1012-1301		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV>	8-98041-184-3	01	1	1302-	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> L=1530	8-98138-265-0	01	1	1012-1301		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> L=1530	8-98138-265-0	01	1	1302-	●	●
47	06.671 PIPE; RETURN 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ>	8-98083-166-1	01	1	1012-	●	●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98046-933-2	01	1	1012-	●
47	06.671 PIPE; RETURN	8-98046-933-2	01	1	1012-			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98068-081-2	01	1	1012-1012	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98068-081-2	01	1	1012-1012			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98156-808-0	01	1	1101-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98156-808-0	01	1	1101-			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ>	8-98041-185-4	01	1	1012-1301	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV>	8-98041-185-4	01	1	1012-1301		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV>	8-98041-185-4	01	1	1302-	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> L=1646	8-98138-267-0	01	1	1012-1301		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> L=1646	8-98138-267-0	01	1	1302-	●	●
54	06.672 CLIP; OIL PIPE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10X2 H=37.5	8-97018-546-0	02	1	1012-	●	●
54	06.672 CLIP; OIL PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98057-283-0	02	1	1012-	●
54	06.672 CLIP; OIL PIPE (A)	8-98057-283-0	02	1	1012-			●
81	06.672 WASHER; LK,FLEX HOSE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1012-	●	●
82	06.672 NUT; FLEX HOSE,P/S 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	1012-	●	●
82	06.672 NUT; FLEX HOSE,P/S 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	1012-	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	1012-			●
82	06.672 NUT; FLEX HOSE,P/S 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 06.897 (B) M16	8-94370-339-0	01	1	1012-	●	●
109	06.672 CLIP; RUBBER HOSE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 04.681 (C) ID=21	8-98150-355-0	02	1	1012-	●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1012-	●	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1012-	●	●	●
157	06.673 GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97101-875-2	01	1	1012-	●	●
163	06.671 BOLT; OIL PIPE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●
163	06.671 BOLT; OIL PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	07	1	1012-	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	07	1	1012-			●
166	06.672 BOLT; CLIP 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	1012-	●	●	●
229	06.606 BRACKET; HOSE,POWER STRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ>	8-98079-341-0	01	1	1012-	●	●
232	06.672 NUT; BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-	●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ>	8-98167-143-0	01	1	1012-1301	●
280	06.672 HOSE; P/S OIL PUMP,INL 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98167-143-0	01	1	1012-1301		●
280	06.672 HOSE; P/S OIL PUMP,INL 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98167-143-0	01	1	1302-	●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ>	8-98082-973-0	01	1	1012-1301	●
280	06.672 HOSE; P/S OIL PUMP,INL 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98082-973-0	01	1	1012-1301		●
280	06.672 HOSE; P/S OIL PUMP,INL 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98082-973-0	01	1	1302-	●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> L=260	0-09814-400-0	01	1	1012-	●
280	06.672 HOSE; P/S OIL PUMP,INL L=260	0-09814-400-0	01	1	1012-			●
280	06.672 HOSE; P/S OIL PUMP,INL 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ)	8-98167-142-0	01	1	1012-1301		●
280	06.672 HOSE; P/S OIL PUMP,INL 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ)	8-98167-142-0	01	1	1302-	●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ)	8-98082-972-0	01	1	1012-1301		●
280	06.672 HOSE; P/S OIL PUMP,INL 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ)	8-98082-972-0	01	1	1302-	●	●
284	06.670 NUT; PIPE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1012-	●	●

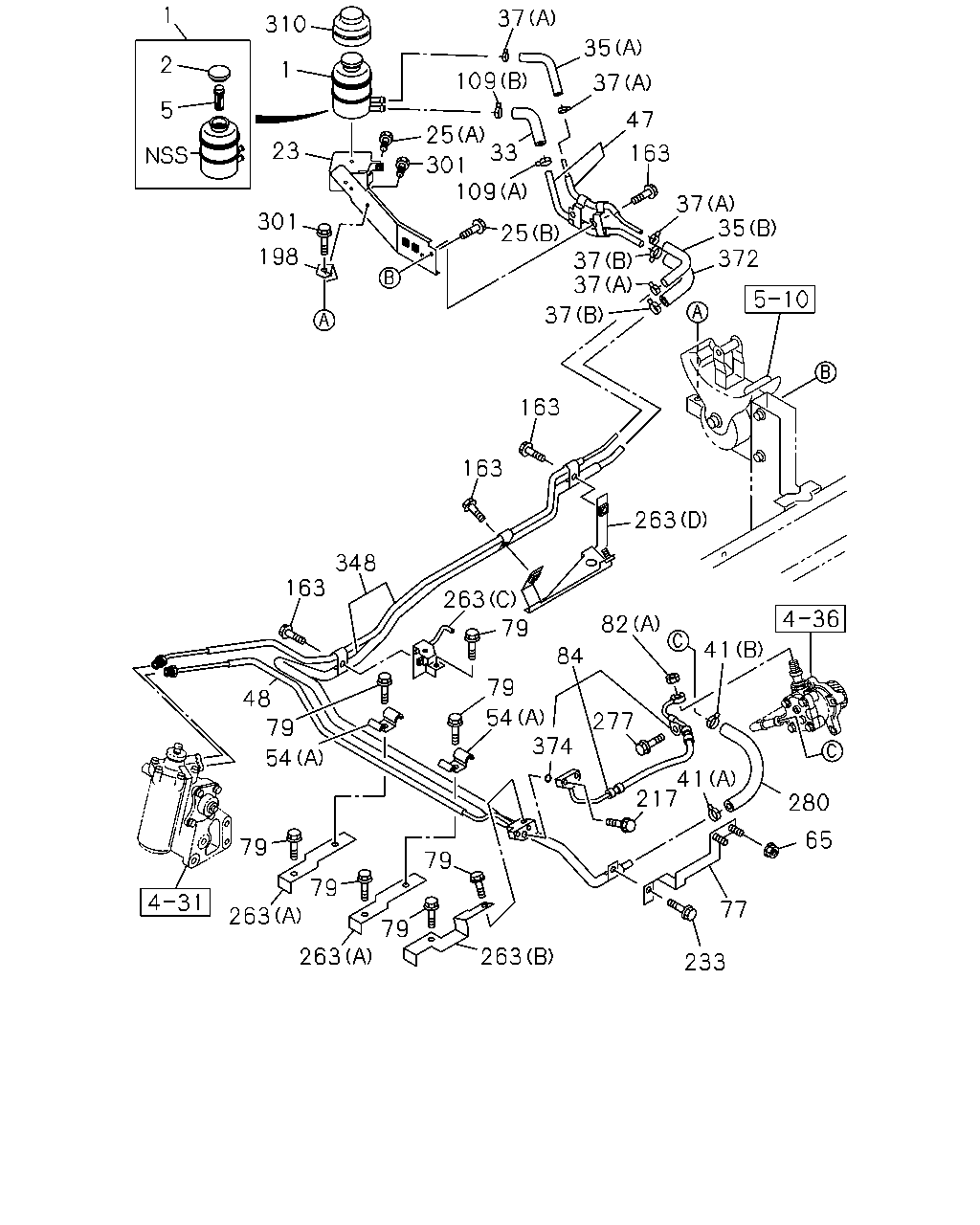

1 37 310 35 2 1 109 37 5 47 25 33 23 163 301 109 37 35 25 301 198 372 37 37 37 163 163 263 348 163 263 82 79 41 84 79 48 54 374 277 79 54 41 217 280 79 65 79 79 77 263 79 263 263 233

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1012-	●	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1012-	●	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1012-	●	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	1012-	●	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1012-	●	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1012-	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (C)	8-97389-832-2	01	1	1012-	●	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	1012-	●	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	1012-	●	●	●
37	01.762 CLIP; HOSE,P/S 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (C) ID=26 L=26	1-09701-236-0	01	1	1012-	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 04.681 (B) ID=21	8-98150-355-0	02	1	1012-	●
37	01.762 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	02	1	1012-			●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	1012-	●	●	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 08.846 (A) ID=21.7	8-97203-074-0	01	1	1012-	●
41	06.672 CLIP; HOSE,P/S 08.846 (A) ID=21.7	8-97203-074-0	01	1	1012-			●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 04.681 (B) ID=21	8-98150-355-0	01	1	1012-	●
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	01	1	1012-			●
47	06.671 PIPE; RETURN 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ>	8-98083-166-1	01	1	1012-	●	●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98046-933-2	01	1	1012-	●
47	06.671 PIPE; RETURN	8-98046-933-2	01	1	1012-			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98068-081-2	01	1	1012-1012	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98068-081-2	01	1	1012-1012			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98156-808-0	01	1	1101-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98156-808-0	01	1	1101-			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ>	8-98041-185-4	01	1	1012-1301	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV>	8-98041-185-4	01	1	1012-1301		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV>	8-98041-185-4	01	1	1302-	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> L=1646	8-98138-267-0	01	1	1012-1301		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> L=1646	8-98138-267-0	01	1	1302-	●	●
54	06.672 CLIP; OIL PIPE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10X2 H=37.5	8-97018-546-0	02	1	1012-	●	●
54	06.672 CLIP; OIL PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98057-283-0	02	1	1012-	●
54	06.672 CLIP; OIL PIPE (A)	8-98057-283-0	02	1	1012-			●
65	06.672 NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. PTO MANUAL CONTROL(6WC),FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-1411	●
65	06.672 NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-1411			●
65	06.672 NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC),FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1412-	●
65	06.672 NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE	0-91180-108-0	01	1	1412-			●
77	06.672 BRACKET; POWER STEERING HOSE 4JJ1-TCC ENG(RDU) EXC. PTO MANUAL CONTROL(6WC),FRAME STRAIGHT TYPE<7KJ>	8-98047-049-2	01	1	1012-1411	●
77	06.672 BRACKET; POWER STEERING HOSE EXC. PTO MANUAL CONTROL(6WC)	8-98047-049-2	01	1	1012-1411			●
77	06.672 BRACKET; POWER STEERING HOSE 4JJ1-TCC ENG(RDU) EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC),FRAME STRAIGHT TYPE<7KJ>	8-98047-049-2	01	1	1412-	●
77	06.672 BRACKET; POWER STEERING HOSE EXC. PTO MANUAL CONTROL(6WC)	8-98047-049-2	01	1	1412-			●
79	06.672 BOLT; BRKT 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1012-	●
79	06.672 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1012-			●
82	06.672 NUT; FLEX HOSE,P/S 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	1012-	●	●
82	06.672 NUT; FLEX HOSE,P/S 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	1012-	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	1012-			●
82	06.672 NUT; FLEX HOSE,P/S 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 06.897 (B) M16	8-94370-339-0	01	1	1012-	●	●
84	06.670 HOSE; FLEX,P/S 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98046-698-3	01	1	1012-	●
84	06.670 HOSE; FLEX,P/S	8-98046-698-3	01	1	1012-			●
109	06.672 CLIP; RUBBER HOSE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 04.681 (C) ID=21	8-98150-355-0	02	1	1012-	●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1012-	●	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1012-	●	●	●
163	06.671 BOLT; OIL PIPE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●
163	06.671 BOLT; OIL PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	07	1	1012-	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	07	1	1012-			●
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	1012-	●	●	●
217	06.672 BOLT; FLEX HOSE,P/S 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1012-	●
217	06.672 BOLT; FLEX HOSE,P/S 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1012-			●
233	06.672 BOLT; PIPE CLIP,P/S 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-	●
233	06.672 BOLT; PIPE CLIP,P/S 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-			●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98006-233-1	01	1	1012-	●
263	06.672 BRACKET; P/S PIPE (D)	8-98006-233-1	01	1	1012-			●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98047-047-1	02	1	1012-	●
263	06.672 BRACKET; P/S PIPE (A)	8-98047-047-1	02	1	1012-			●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98047-048-3	01	1	1012-	●
263	06.672 BRACKET; P/S PIPE (B)	8-98047-048-3	01	1	1012-			●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98047-050-1	01	1	1012-	●
263	06.672 BRACKET; P/S PIPE (C)	8-98047-050-1	01	1	1012-			●
277	06.672 BOLT; HOSE CLIP 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-	●
277	06.672 BOLT; HOSE CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-			●
280	06.672 HOSE; P/S OIL PUMP,INL 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ>	8-98167-143-0	01	1	1012-1301	●
280	06.672 HOSE; P/S OIL PUMP,INL 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98167-143-0	01	1	1012-1301		●
280	06.672 HOSE; P/S OIL PUMP,INL 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98167-143-0	01	1	1302-	●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ>	8-98082-973-0	01	1	1012-1301	●
280	06.672 HOSE; P/S OIL PUMP,INL 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98082-973-0	01	1	1012-1301		●
280	06.672 HOSE; P/S OIL PUMP,INL 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98082-973-0	01	1	1302-	●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> L=260	0-09814-400-0	01	1	1012-	●
280	06.672 HOSE; P/S OIL PUMP,INL L=260	0-09814-400-0	01	1	1012-			●
280	06.672 HOSE; P/S OIL PUMP,INL 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ)	8-98167-142-0	01	1	1012-1301		●
280	06.672 HOSE; P/S OIL PUMP,INL 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ)	8-98167-142-0	01	1	1302-	●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ)	8-98082-972-0	01	1	1012-1301		●
280	06.672 HOSE; P/S OIL PUMP,INL 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ)	8-98082-972-0	01	1	1302-	●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1012-	●	●
348	06.671 PIPE; OIL,P/S PRESS 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98101-610-1	01	1	1012-	●
348	06.671 PIPE; OIL,P/S PRESS	8-98101-610-1	01	1	1012-			●
372	06.673 HOSE; RUBBER 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 06.672	8-98171-278-0	01	1	1012-	●
372	06.673 HOSE; RUBBER 06.672	8-98171-278-0	01	1	1012-			●
374	06.673 GASKET; HOSE,P/S 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98139-036-0	01	1	1012-	●
374	06.673 GASKET; HOSE,P/S	8-98139-036-0	01	1	1012-			●
