1 |
05.809 DRUM; BRK,RR
G.V.W. 7.0-7.5TON(RPX)
|
8-97081-219-2 |
02 |
1 |
1012-1306 |
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 7.0-7.5TON(RPX)
|
8-97081-219-2 |
02 |
1 |
1307- |
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 7.5-8.0TON(RPY)
DUMP CHASSIS(V4D)
|
8-97081-219-2 |
02 |
1 |
1307- |
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 6.0-6.5TON(RPV)
|
8-97034-770-3 |
02 |
1 |
1012-1310 |
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
|
8-97034-770-3 |
02 |
1 |
1012-1310 |
|
● |
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 6.0-6.5TON(RPV)
|
8-98248-900-0 |
02 |
1 |
1311- |
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
|
8-98248-900-0 |
02 |
1 |
1311- |
|
● |
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 7.5-8.0TON(RPY)
|
8-97102-001-3 |
02 |
1 |
1012-1306 |
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
|
8-97102-001-3 |
02 |
1 |
1012-1306 |
|
|
● |
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 7.5-8.0TON(RPY)
EXC. DUMP CHASSIS(V4D)
|
8-97102-001-3 |
02 |
1 |
1307- |
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
|
8-97102-001-3 |
02 |
1 |
1307- |
|
|
● |
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 7.0-7.5TON(RPX)
|
8-97081-323-2 |
02 |
1 |
1012-1306 |
● |
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 7.0-7.5TON(RPX)
|
8-97081-323-2 |
02 |
1 |
1307- |
● |
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 7.5-8.0TON(RPY)
DUMP CHASSIS(V4D)
|
8-97081-323-2 |
02 |
1 |
1307- |
● |
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
|
8-94382-893-4 |
02 |
1 |
1012- |
● |
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97026-139-3 |
02 |
1 |
1012- |
● |
|
|
| |
8 |
05.809 HUB; RR AXLE
|
8-97026-139-3 |
02 |
1 |
1012- |
|
● |
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 7.5-8.0TON(RPY)
|
8-97107-549-2 |
02 |
1 |
1012-1306 |
● |
|
|
| |
8 |
05.809 HUB; RR AXLE
|
8-97107-549-2 |
02 |
1 |
1012-1306 |
|
|
● |
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 7.5-8.0TON(RPY)
EXC. DUMP CHASSIS(V4D)
|
8-97107-549-2 |
02 |
1 |
1307- |
● |
|
|
| |
8 |
05.809 HUB; RR AXLE
|
8-97107-549-2 |
02 |
1 |
1307- |
|
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
M20X28,M22X57 RH THREAD
|
8-97081-584-4 |
06 |
1 |
1012- |
● |
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M20X28,M22X57 RH THREAD
|
8-97081-584-4 |
06 |
1 |
1012- |
|
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-4 |
06 |
1 |
1012- |
● |
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-4 |
06 |
1 |
1012- |
|
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-2 |
05 |
1 |
1012- |
● |
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M18X29,M20X43.5 RH THREAD
|
8-94383-436-2 |
05 |
1 |
1012- |
|
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-2 |
05 |
1 |
1012- |
● |
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-2 |
05 |
1 |
1012- |
|
● |
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
07.172
M22
|
0-91110-522-0 |
12 |
1 |
1012- |
● |
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
07.172
M22
|
0-91110-522-0 |
12 |
1 |
1012- |
|
|
● |
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
05.812
M20
|
0-91110-520-0 |
10 |
1 |
1012- |
● |
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
05.812
M20
|
0-91110-520-0 |
10 |
1 |
1012- |
|
● |
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>
NSK
|
9-00093-082-0 |
02 |
1 |
1012- |
● |
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
NSK
|
9-00093-082-0 |
02 |
1 |
1012- |
|
● |
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
NSK
|
9-00093-607-0 |
02 |
1 |
1012- |
● |
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
NSK
|
9-00093-607-0 |
02 |
1 |
1012- |
● |
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
NSK
|
9-00093-607-0 |
02 |
1 |
1012- |
|
|
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
BEST VALUE PARTS
|
5-87610-139-0 |
02 |
1 |
1012- |
● |
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
BEST VALUE PARTS
|
5-87610-139-0 |
02 |
1 |
1012- |
● |
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS
|
5-87610-139-0 |
02 |
1 |
1012- |
|
|
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>
BEST VALUE PARTS
|
5-87610-140-0 |
02 |
1 |
1012- |
● |
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS
|
5-87610-140-0 |
02 |
1 |
1012- |
|
● |
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>
TKK
|
8-94336-315-2 |
02 |
1 |
1012-1207 |
● |
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
TKK
|
8-94336-315-2 |
02 |
1 |
1012-1207 |
|
● |
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>
NOK
|
8-98202-911-0 |
02 |
1 |
1208- |
● |
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
NOK
|
8-98202-911-0 |
02 |
1 |
1208- |
|
● |
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>
NOK
|
8-94367-961-1 |
02 |
1 |
1012-1106 |
● |
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
NOK
|
8-94367-961-1 |
02 |
1 |
1012-1106 |
|
● |
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
TKK
|
8-94336-317-2 |
02 |
1 |
1012-1207 |
● |
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
TKK
|
8-94336-317-2 |
02 |
1 |
1012-1207 |
● |
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
TKK
|
8-94336-317-2 |
02 |
1 |
1012-1207 |
|
|
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
NOK
|
8-98202-912-0 |
02 |
1 |
1208- |
● |
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
NOK
|
8-98202-912-0 |
02 |
1 |
1208- |
● |
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
NOK
|
8-98202-912-0 |
02 |
1 |
1208- |
|
|
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
NOK
|
8-94367-960-1 |
02 |
1 |
1012-1106 |
● |
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
NOK
|
8-94367-960-1 |
02 |
1 |
1012-1106 |
● |
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
NOK
|
8-94367-960-1 |
02 |
1 |
1012-1106 |
|
|
● |
| |
20 |
05.830 NUT; BRG,RR HUB
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>
M52
|
8-97137-092-0 |
02 |
1 |
1012-1303 |
● |
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
M52
|
8-97137-092-0 |
02 |
1 |
1012-1303 |
|
● |
|
| |
20 |
05.830 NUT; BRG,RR HUB
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>
M52
|
8-98236-850-0 |
02 |
1 |
1304- |
● |
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
M52
|
8-98236-850-0 |
02 |
1 |
1304- |
|
● |
|
| |
20 |
05.830 NUT; BRG,RR HUB
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
M55
|
8-97137-094-0 |
02 |
1 |
1012- |
● |
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
M55
|
8-97137-094-0 |
02 |
1 |
1012- |
● |
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
M55
|
8-97137-094-0 |
02 |
1 |
1012- |
|
|
● |
| |
21 |
05.830 WASHER; LK,BRG NUT
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>
ID=52
|
9-09853-214-1 |
02 |
1 |
1012- |
● |
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
ID=52
|
9-09853-214-1 |
02 |
1 |
1012- |
|
● |
|
| |
21 |
05.830 WASHER; LK,BRG NUT
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
ID=55
|
9-09653-002-1 |
02 |
1 |
1012- |
● |
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
ID=55
|
9-09653-002-1 |
02 |
1 |
1012- |
● |
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
ID=55
|
9-09653-002-1 |
02 |
1 |
1012- |
|
|
● |
| |
24 |
05.830 BOLT; LK WASHER
03.671
M6X10 FLANGE
|
0-28050-610-0 |
04 |
1 |
1012-1508 |
● |
● |
● |
| |
24 |
05.830 BOLT; LK WASHER
03.162
M6X12 FLANGE
|
0-28050-612-0 |
04 |
1 |
1509- |
● |
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
L=893
|
8-97073-871-1 |
02 |
1 |
1012-1301 |
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 7.0-7.5TON(RPX)
L=893
|
8-97073-871-1 |
02 |
1 |
1012-1301 |
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
L=893
|
8-97073-871-1 |
02 |
1 |
1302- |
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 7.0-7.5TON(RPX)
L=893
|
8-97073-871-1 |
02 |
1 |
1302- |
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>
L=804.5
|
8-97032-497-0 |
02 |
1 |
1012- |
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
L=804.5
|
8-97032-497-0 |
02 |
1 |
1012- |
|
● |
|
| |
25 |
05.420 SHAFT; AXLE,RR
G.V.W. 7.5-8.0TON(RPY)
L=885
|
8-97134-439-0 |
02 |
1 |
1012-1308 |
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
L=885
|
8-97134-439-0 |
02 |
1 |
1012-1308 |
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
L=885
|
8-97134-439-0 |
02 |
1 |
1012-1308 |
|
|
● |
| |
25 |
05.420 SHAFT; AXLE,RR
G.V.W. 7.5-8.0TON(RPY)
L=885
|
8-97134-439-0 |
02 |
1 |
1309- |
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
L=885
|
8-97134-439-0 |
02 |
1 |
1309- |
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
L=885
|
8-97134-439-0 |
02 |
1 |
1309- |
|
|
● |
| |
25 |
05.420 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
EXC. FRAME STRAIGHT TYPE<7KJ>
L=822
|
8-98098-426-0 |
02 |
1 |
1012- |
● |
|
|
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49
|
8-97359-803-0 |
16 |
1 |
1012- |
● |
● |
● |
| |
34 |
05.387 NUT; AXLE SHAFT
04.085
M10 FLANGE
|
0-91180-210-0 |
16 |
1 |
1012- |
● |
● |
● |
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5
|
8-97360-004-0 |
16 |
1 |
1012- |
● |
● |
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
NSK
|
9-00093-624-0 |
02 |
1 |
1012-1306 |
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 7.0-7.5TON(RPX)
NSK
|
9-00093-624-0 |
02 |
1 |
1012-1306 |
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
NSK
|
9-00093-624-0 |
02 |
1 |
1307- |
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 7.0-7.5TON(RPX)
NSK
|
9-00093-624-0 |
02 |
1 |
1307- |
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 7.5-8.0TON(RPY)
DUMP CHASSIS(V4D)
NSK
|
9-00093-624-0 |
02 |
1 |
1307- |
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>
NSK
|
9-00093-081-0 |
02 |
1 |
1012- |
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
NSK
|
9-00093-081-0 |
02 |
1 |
1012- |
|
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 7.5-8.0TON(RPY)
NSK
|
8-97122-938-0 |
02 |
1 |
1012-1306 |
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
NSK
|
8-97122-938-0 |
02 |
1 |
1012-1306 |
|
|
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 7.5-8.0TON(RPY)
EXC. DUMP CHASSIS(V4D)
NSK
|
8-97122-938-0 |
02 |
1 |
1307- |
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
NSK
|
8-97122-938-0 |
02 |
1 |
1307- |
|
|
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 7.5-8.0TON(RPY)
JTEKT
|
8-97123-119-0 |
02 |
1 |
1012-1306 |
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
JTEKT
|
8-97123-119-0 |
02 |
1 |
1012-1306 |
|
|
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 7.5-8.0TON(RPY)
EXC. DUMP CHASSIS(V4D)
JTEKT
|
8-97123-119-0 |
02 |
1 |
1307- |
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
JTEKT
|
8-97123-119-0 |
02 |
1 |
1307- |
|
|
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
BEST VALUE PARTS
|
5-87610-141-0 |
02 |
1 |
1012-1306 |
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 7.0-7.5TON(RPX)
BEST VALUE PARTS
|
5-87610-141-0 |
02 |
1 |
1012-1306 |
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
BEST VALUE PARTS
|
5-87610-141-0 |
02 |
1 |
1307- |
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 7.0-7.5TON(RPX)
BEST VALUE PARTS
|
5-87610-141-0 |
02 |
1 |
1307- |
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 7.5-8.0TON(RPY)
DUMP CHASSIS(V4D)
BEST VALUE PARTS
|
5-87610-141-0 |
02 |
1 |
1307- |
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>
BEST VALUE PARTS
|
5-87610-142-0 |
02 |
1 |
1012- |
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS
|
5-87610-142-0 |
02 |
1 |
1012- |
|
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
TKK
|
8-94336-316-1 |
02 |
1 |
1012-1306 |
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 7.0-7.5TON(RPX)
TKK
|
8-94336-316-1 |
02 |
1 |
1012-1306 |
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
TKK
|
8-94336-316-1 |
02 |
1 |
1307- |
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 7.0-7.5TON(RPX)
TKK
|
8-94336-316-1 |
02 |
1 |
1307- |
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 7.5-8.0TON(RPY)
DUMP CHASSIS(V4D)
TKK
|
8-94336-316-1 |
02 |
1 |
1307- |
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
NOK
|
8-94367-958-0 |
02 |
1 |
1012-1306 |
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 7.0-7.5TON(RPX)
NOK
|
8-94367-958-0 |
02 |
1 |
1012-1306 |
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
NOK
|
8-94367-958-0 |
02 |
1 |
1307- |
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 7.0-7.5TON(RPX)
NOK
|
8-94367-958-0 |
02 |
1 |
1307- |
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 7.5-8.0TON(RPY)
DUMP CHASSIS(V4D)
NOK
|
8-94367-958-0 |
02 |
1 |
1307- |
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>
TKK
|
8-94336-314-1 |
02 |
1 |
1012- |
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
TKK
|
8-94336-314-1 |
02 |
1 |
1012- |
|
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>
NOK
|
8-94367-959-0 |
02 |
1 |
1012- |
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
NOK
|
8-94367-959-0 |
02 |
1 |
1012- |
|
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 7.5-8.0TON(RPY)
NOK
|
8-97122-937-0 |
02 |
1 |
1012-1306 |
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
NOK
|
8-97122-937-0 |
02 |
1 |
1012-1306 |
|
|
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 7.5-8.0TON(RPY)
EXC. DUMP CHASSIS(V4D)
NOK
|
8-97122-937-0 |
02 |
1 |
1307- |
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
NOK
|
8-97122-937-0 |
02 |
1 |
1307- |
|
|
● |
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
|
8-97222-081-3 |
01 |
1 |
1012-1301 |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 7.0-7.5TON(RPX)
|
8-97222-081-3 |
01 |
1 |
1012-1301 |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
|
8-97222-081-3 |
01 |
1 |
1302- |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 7.0-7.5TON(RPX)
|
8-97222-081-3 |
01 |
1 |
1302- |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97036-556-6 |
01 |
1 |
1012- |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
|
8-97036-556-6 |
01 |
1 |
1012- |
|
● |
|
| |
49 |
05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
|
8-97222-080-3 |
01 |
1 |
1012-1306 |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
|
8-97222-080-3 |
01 |
1 |
1307-1308 |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 7.5-8.0TON(RPY)
DUMP CHASSIS(V4D)
|
8-97222-080-3 |
01 |
1 |
1307-1308 |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
|
8-97222-080-3 |
01 |
1 |
1309- |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 7.5-8.0TON(RPY)
DUMP CHASSIS(V4D)
|
8-97222-080-3 |
01 |
1 |
1309- |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97048-635-8 |
01 |
1 |
1012- |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 7.5-8.0TON(RPY)
|
8-97222-079-4 |
01 |
1 |
1012-1306 |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
|
8-97222-079-4 |
01 |
1 |
1012-1306 |
|
|
● |
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 7.5-8.0TON(RPY)
EXC. DUMP CHASSIS(V4D)
|
8-97222-079-4 |
01 |
1 |
1307- |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
|
8-97222-079-4 |
01 |
1 |
1307- |
|
|
● |
| |
58 |
05.508 PLUG; DRAIN,AXLE CASE
M16X12.5
|
8-97307-060-0 |
01 |
1 |
1012- |
● |
● |
● |
| |
59 |
05.400 GASKET; DRAIN PLUG
01.252
ID=16.2 OD=24
|
9-09571-416-0 |
01 |
1 |
1012- |
● |
● |
● |
| |
60 |
05.387 BREATHER; RR AXLE CASE
L=29
|
8-98006-960-0 |
01 |
1 |
1012- |
● |
● |
● |
| |
63 |
05.400 PLUG; OIL FILLER,AXLE CASE
M20X10.5
|
8-98009-333-0 |
01 |
1 |
1012- |
● |
● |
● |
| |
64 |
05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30
|
8-94462-734-0 |
01 |
1 |
1012- |
● |
● |
● |
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 7.0-7.5TON(RPX)
06.156
M10X40 W/LK WASHER
|
0-50561-040-0 |
11 |
1 |
1012- |
● |
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
G.V.W. 6.0-6.5TON(RPV)
06.156
M10X40 W/LK WASHER
|
0-50561-040-0 |
11 |
1 |
1012- |
● |
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
06.156
M10X40 W/LK WASHER
|
0-50561-040-0 |
11 |
1 |
1012- |
|
● |
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
06.156
M10X40 W/LK WASHER
|
0-50561-040-0 |
07 |
1 |
1012-1308 |
● |
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
G.V.W. 7.5-8.0TON(RPY)
06.156
M10X40 W/LK WASHER
|
0-50561-040-0 |
07 |
1 |
1012-1308 |
● |
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
06.156
M10X40 W/LK WASHER
|
0-50561-040-0 |
07 |
1 |
1012-1308 |
|
|
● |
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
06.156
M10X40 W/LK WASHER
|
0-50561-040-0 |
07 |
1 |
1309- |
● |
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
G.V.W. 7.5-8.0TON(RPY)
06.156
M10X40 W/LK WASHER
|
0-50561-040-0 |
07 |
1 |
1309- |
● |
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
06.156
M10X40 W/LK WASHER
|
0-50561-040-0 |
07 |
1 |
1309- |
|
|
● |
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
M10X50 W/LK WASHER
|
0-50561-050-0 |
04 |
1 |
1012-1308 |
● |
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
G.V.W. 7.5-8.0TON(RPY)
M10X50 W/LK WASHER
|
0-50561-050-0 |
04 |
1 |
1012-1308 |
● |
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
M10X50 W/LK WASHER
|
0-50561-050-0 |
04 |
1 |
1012-1308 |
|
|
● |
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
M10X50 W/LK WASHER
|
0-50561-050-0 |
04 |
1 |
1309- |
● |
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
G.V.W. 7.5-8.0TON(RPY)
M10X50 W/LK WASHER
|
0-50561-050-0 |
04 |
1 |
1309- |
● |
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
M10X50 W/LK WASHER
|
0-50561-050-0 |
04 |
1 |
1309- |
|
|
● |
| |
69 |
05.387 STUD; AXLE CASE
M10X40.5 L=52.5
|
8-97359-802-0 |
02 |
1 |
1012- |
● |
● |
● |
| |
70 |
05.387 NUT; CARRIER
04.085
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1012- |
● |
● |
● |
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
M12X32
|
8-97359-819-0 |
12 |
1 |
1012-1306 |
● |
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
M12X32
|
8-97359-819-0 |
12 |
1 |
1012-1306 |
|
● |
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
M12X32
|
8-97359-819-0 |
12 |
1 |
1307- |
● |
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
G.V.W. 7.5-8.0TON(RPY)
DUMP CHASSIS(V4D)
M12X32
|
8-97359-819-0 |
12 |
1 |
1307- |
● |
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
M12X32
|
8-97359-819-0 |
12 |
1 |
1307- |
|
● |
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
G.V.W. 7.5-8.0TON(RPY)
M14X40
|
8-98007-879-0 |
12 |
1 |
1012-1306 |
● |
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
M14X40
|
8-98007-879-0 |
12 |
1 |
1012-1306 |
|
|
● |
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
G.V.W. 7.5-8.0TON(RPY)
EXC. DUMP CHASSIS(V4D)
M14X40
|
8-98007-879-0 |
12 |
1 |
1307- |
● |
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
M14X40
|
8-98007-879-0 |
12 |
1 |
1307- |
|
|
● |
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
07.347
ID=12.2
|
0-91510-812-0 |
12 |
1 |
1012-1306 |
● |
|
|
| |
75 |

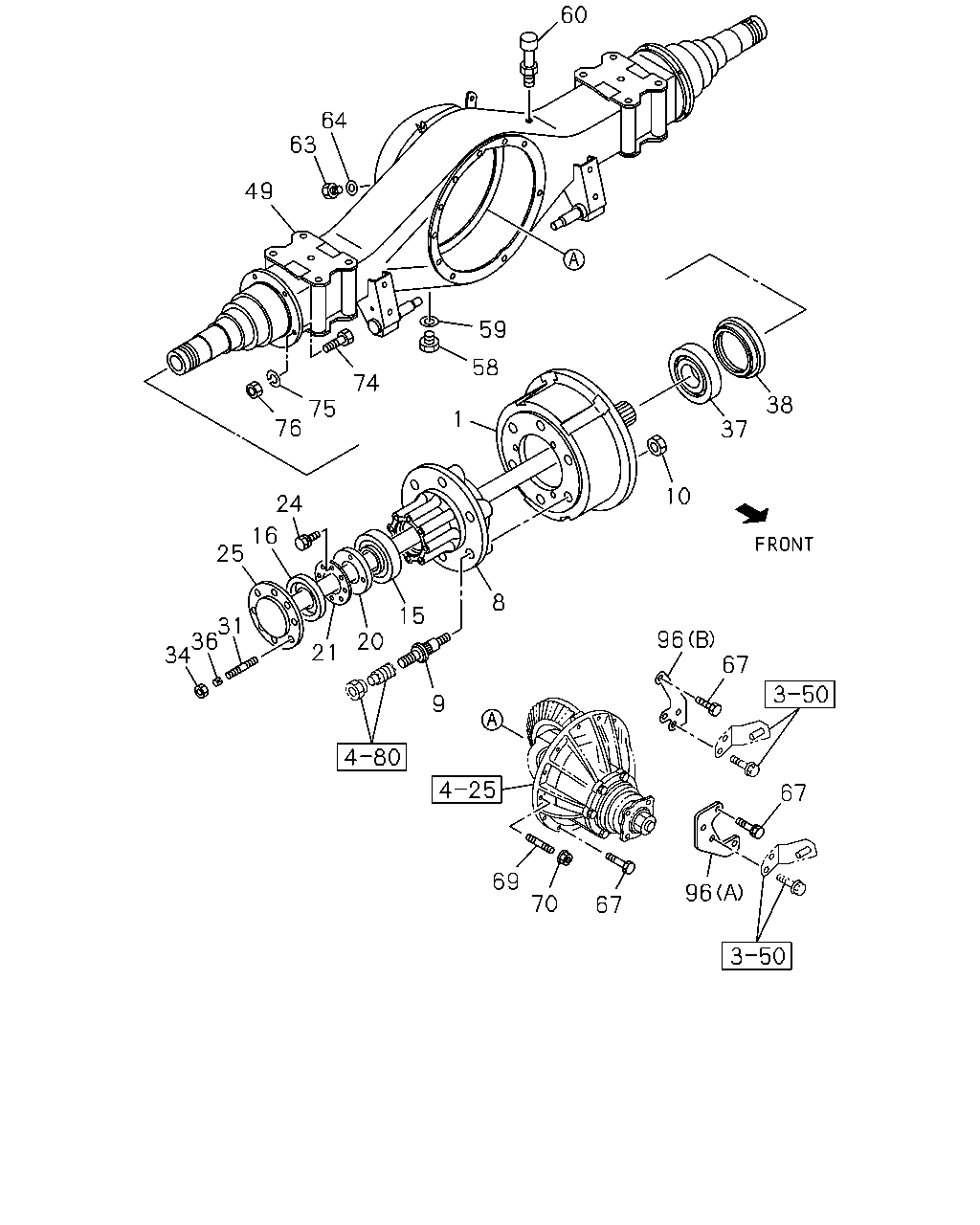

05.002 WASHER; LK,RR BRK ASM SETTING
07.347
ID=12.2
|
0-91510-812-0 |
12 |
1 |
1012-1306 |
|
● |
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
07.347
ID=12.2
|
0-91510-812-0 |
12 |
1 |
1307- |
● |
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
G.V.W. 7.5-8.0TON(RPY)
DUMP CHASSIS(V4D)
07.347
ID=12.2
|
0-91510-812-0 |
12 |
1 |
1307- |
● |
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
07.347
ID=12.2
|
0-91510-812-0 |
12 |
1 |
1307- |
|
● |
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
G.V.W. 7.5-8.0TON(RPY)
06.174
ID=14.2
|
0-91510-814-0 |
12 |
1 |
1012-1306 |
● |
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
06.174
ID=14.2
|
0-91510-814-0 |
12 |
1 |
1012-1306 |
|
|
● |
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
G.V.W. 7.5-8.0TON(RPY)
EXC. DUMP CHASSIS(V4D)
06.174
ID=14.2
|
0-91510-814-0 |
12 |
1 |
1307- |
● |
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
06.174
ID=14.2
|
0-91510-814-0 |
12 |
1 |
1307- |
|
|
● |
| |
76 |
05.002 NUT; RR BRK ASM SETTING
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
M12
|
0-91110-512-0 |
12 |
1 |
1012-1306 |
● |
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
M12
|
0-91110-512-0 |
12 |
1 |
1012-1306 |
|
● |
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
M12
|
0-91110-512-0 |
12 |
1 |
1307- |
● |
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
G.V.W. 7.5-8.0TON(RPY)
DUMP CHASSIS(V4D)
M12
|
0-91110-512-0 |
12 |
1 |
1307- |
● |
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
M12
|
0-91110-512-0 |
12 |
1 |
1307- |
|
● |
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
G.V.W. 7.5-8.0TON(RPY)
07.833
M14
|
0-91110-514-0 |
12 |
1 |
1012-1306 |
● |
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
07.833
M14
|
0-91110-514-0 |
12 |
1 |
1012-1306 |
|
|
● |
| |
76 |
05.002 NUT; RR BRK ASM SETTING
G.V.W. 7.5-8.0TON(RPY)
EXC. DUMP CHASSIS(V4D)
07.833
M14
|
0-91110-514-0 |
12 |
1 |
1307- |
● |
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
07.833
M14
|
0-91110-514-0 |
12 |
1 |
1307- |
|
|
● |
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
G.V.W. 6.0-6.5TON(RPV)
BRK WHL LK CONT LSPV<6PH>
(B)
|
8-98030-956-0 |
01 |
1 |
1302- |
● |
|
|
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
(A)
|
8-98037-102-0 |
01 |
1 |
1302-1308 |
● |
|
|
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
BRK WHL LK CONT LSPV<6PH>
(A)
|
8-98037-102-0 |
01 |
1 |
1302-1308 |
|
|
● |
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
(A)
|
8-98037-102-0 |
01 |
1 |
1309- |
● |
|
|
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
BRK WHL LK CONT LSPV<6PH>
(A)
|
8-98037-102-0 |
01 |
1 |
1309- |
|
|
● |
