◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51296 - NPR/NQR-RHD ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#54740) — 96 parça

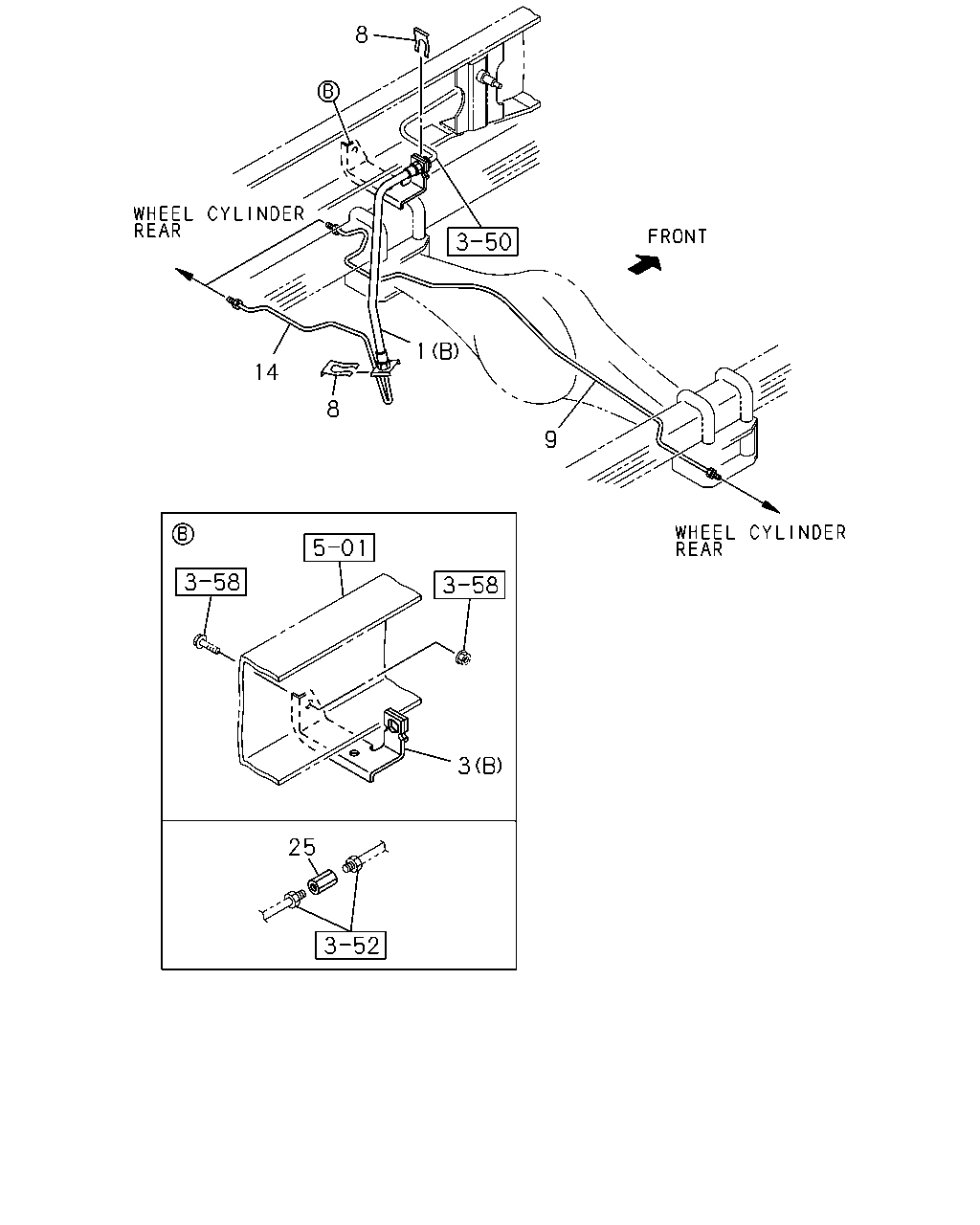

çizim 175668
8 1 14 8 9 3 25
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> (B) L=405 		8-97089-061-0 01 1 1012- ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=310 		8-97035-063-1 01 1 1012- ● ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=310 		8-97035-063-1 01 1 1012- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97205-714-1 01 1 1012- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 04.845 (A) 		8-97205-199-1 01 1 1012- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
04.845 (A) 		8-97205-199-1 01 1 1012- ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 1012- ● ● ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-98251-227-0 01 1 1309- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-98106-714-0 01 1 1012- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98039-603-0 01 1 1012- ●
9 04.685 PIPE; BRK,RR AXLE 8-98039-603-0 01 1 1012- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 		8-98118-216-0 01 1 1012- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98026-052-0 01 1 1012- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-98026-057-0 01 1 1012- ●
9 04.685 PIPE; BRK,RR AXLE 8-98026-057-0 01 1 1012- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98027-461-0 01 1 1012- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98027-461-0 01 1 1012- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 		8-97359-746-0 01 1 1012-1306 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 		8-97359-746-0 01 1 1012-1306 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 		8-97359-746-0 01 1 1307-1308 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> 		8-97359-746-0 01 1 1307-1308 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) 		8-97359-746-0 01 1 1307-1308 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 		8-97359-746-0 01 1 1309-1408 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> 		8-97359-746-0 01 1 1309-1408 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) 		8-97359-746-0 01 1 1309-1408 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. MALAYSIA EQUIPMENT(B10),MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D) 		8-97359-746-0 01 1 1409- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 		8-97359-746-0 01 1 1409- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) MALAYSIA EQUIPMENT(B10) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D) 		8-97359-746-0 01 1 1409- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> 		8-97359-746-0 01 1 1409- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> 		8-97359-746-0 01 1 1409- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98026-051-0 01 1 1012- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97359-748-0 01 1 1012-1306 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 1012-1306 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) 		8-97359-748-0 01 1 1307-1408 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 1307-1408 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> 		8-97359-748-0 01 1 1409- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. MALAYSIA EQUIPMENT(B10),MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D) 		8-97359-748-0 01 1 1409- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 1409- ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1012-1301 ● ● ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1302- ● ● ●
25 04.686 CONNECTOR
BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 01 1 1302- ● ●

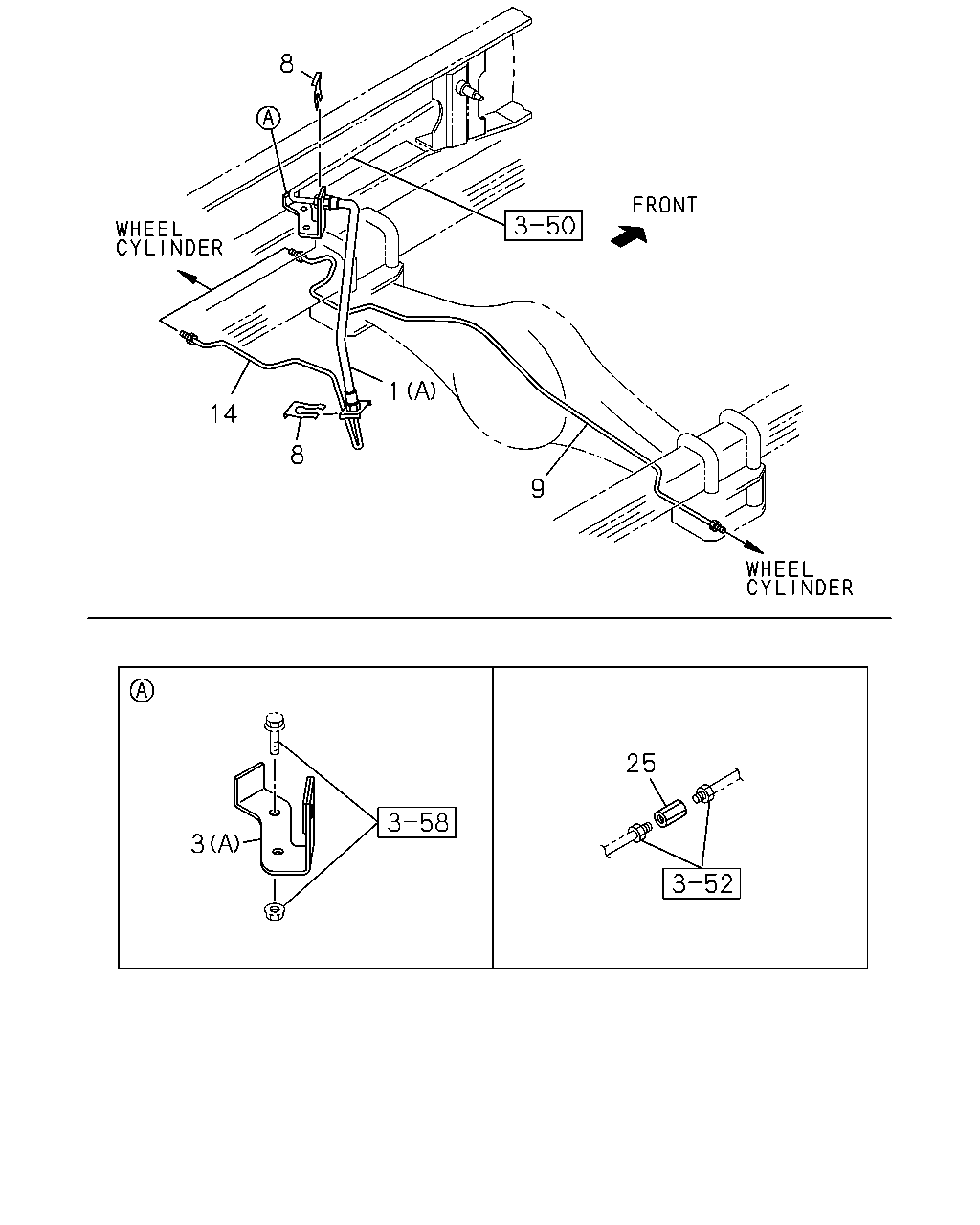

çizim 175671
8 1 14 8 9 25 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> (B) L=405 		8-97089-061-0 01 1 1012- ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=310 		8-97035-063-1 01 1 1012- ● ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=310 		8-97035-063-1 01 1 1012- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97205-714-1 01 1 1012- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 04.845 (A) 		8-97205-199-1 01 1 1012- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
04.845 (A) 		8-97205-199-1 01 1 1012- ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 1012- ● ● ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-98251-227-0 01 1 1309- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-98106-714-0 01 1 1012- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98039-603-0 01 1 1012- ●
9 04.685 PIPE; BRK,RR AXLE 8-98039-603-0 01 1 1012- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 		8-98118-216-0 01 1 1012- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98026-052-0 01 1 1012- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-98026-057-0 01 1 1012- ●
9 04.685 PIPE; BRK,RR AXLE 8-98026-057-0 01 1 1012- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98027-461-0 01 1 1012- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98027-461-0 01 1 1012- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 		8-97359-746-0 01 1 1012-1306 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 		8-97359-746-0 01 1 1012-1306 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 		8-97359-746-0 01 1 1307-1308 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> 		8-97359-746-0 01 1 1307-1308 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) 		8-97359-746-0 01 1 1307-1308 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 		8-97359-746-0 01 1 1309-1408 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> 		8-97359-746-0 01 1 1309-1408 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) 		8-97359-746-0 01 1 1309-1408 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. MALAYSIA EQUIPMENT(B10),MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D) 		8-97359-746-0 01 1 1409- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 		8-97359-746-0 01 1 1409- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) MALAYSIA EQUIPMENT(B10) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D) 		8-97359-746-0 01 1 1409- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> 		8-97359-746-0 01 1 1409- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> 		8-97359-746-0 01 1 1409- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98026-051-0 01 1 1012- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97359-748-0 01 1 1012-1306 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 1012-1306 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) 		8-97359-748-0 01 1 1307-1408 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 1307-1408 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> 		8-97359-748-0 01 1 1409- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. MALAYSIA EQUIPMENT(B10),MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D) 		8-97359-748-0 01 1 1409- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 1409- ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1012-1301 ● ● ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1302- ● ● ●
25 04.686 CONNECTOR
BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 01 1 1302- ● ●

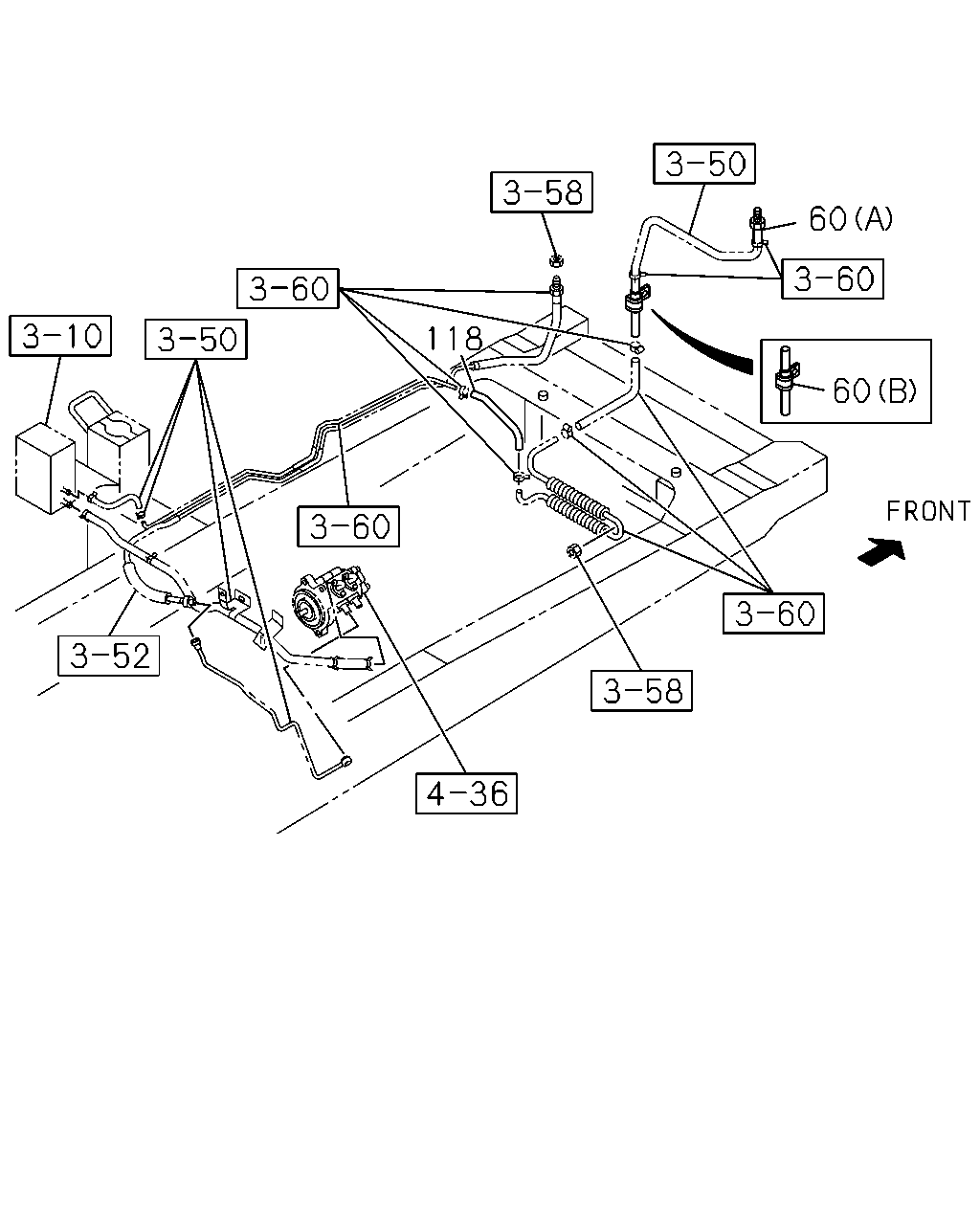

çizim 175672
60 118 60
BalonParca AdiParca NoAdetTipApplied Date A B C
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-326-1 01 1 1012-1301 ●
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-326-1 01 1 1302- ● ●
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-549-0 01 1 1012-1301 ●
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-549-0 01 1 1302- ● ●
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98088-313-1 01 1 1012-1301 ●
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98088-313-1 01 1 1302- ● ●
118 04.680 HOSE; PIPE TO PIPE
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 		8-98158-200-0 01 1 1012-1301 ●
118 04.680 HOSE; PIPE TO PIPE
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 		8-98158-200-0 01 1 1302- ● ●

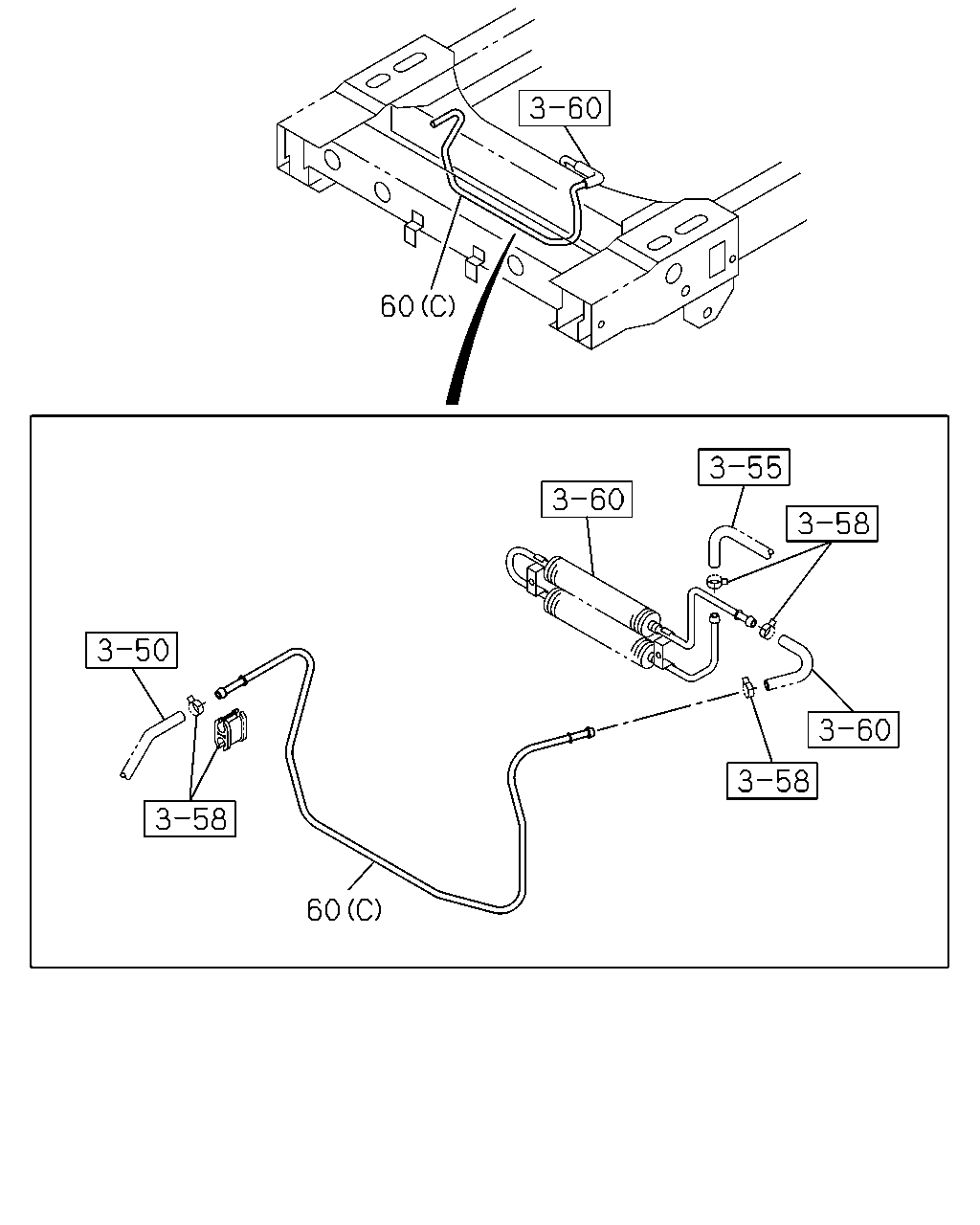

çizim 175675
60 60
BalonParca AdiParca NoAdetTipApplied Date A B C
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-326-1 01 1 1012-1301 ●
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-326-1 01 1 1302- ● ●
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-549-0 01 1 1012-1301 ●
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-549-0 01 1 1302- ● ●
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98088-313-1 01 1 1012-1301 ●
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98088-313-1 01 1 1302- ● ●
