3-52 — BRAKE PIPING; OIL,FRONT (#54739) — 129 parça

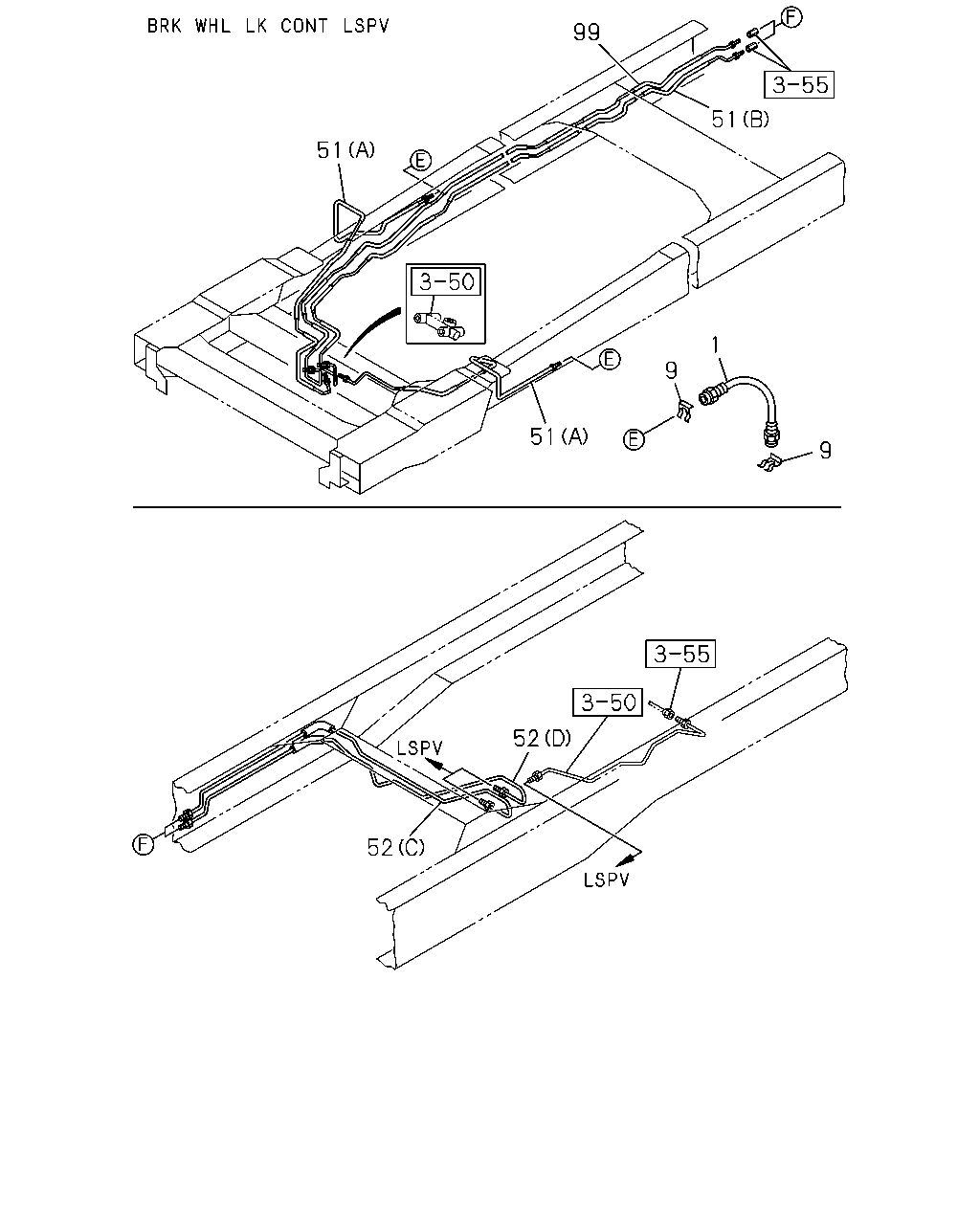

çizim 175650
52 52 51 51 99 51 9 1 9
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.680 HOSE; FLEX,FRT BRK 8-97039-543-1 02 1 1012-1301 ● ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. FRONT WIDE TREAD<7GV> 		8-97039-543-1 02 1 1012-1301 ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. FRONT WIDE TREAD<7GV> 		8-97039-543-1 02 1 1302- ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-97039-543-1 02 1 1302- ●
1 04.680 HOSE; FLEX,FRT BRK
FRONT WIDE TREAD<7GV> 		8-97115-907-0 02 1 1012-1301 ●
1 04.680 HOSE; FLEX,FRT BRK
FRONT WIDE TREAD<7GV> 		8-97115-907-0 02 1 1302- ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1012- ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1012- ● ● ●
51 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (B) 4/6WAY TO 2WAY,FRONT 		8-98057-260-0 01 1 1302- ● ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 4/6WAY TO 2WAY,FRONT 		8-98056-331-1 01 1 1302- ●
51 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (A) 5/6WAY TO FRONT 		8-98065-765-1 01 1 1012-1301 ●
51 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (A) 5/6WAY TO FRONT 		8-98065-765-1 01 1 1012-1301 ●
51 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (A) 5/6WAY TO FRONT 		8-98065-765-1 01 1 1302- ● ●
51 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (A) 5/6WAY TO FRONT 		8-98065-766-1 01 1 1012-1301 ●
51 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (A) 5/6WAY TO FRONT 		8-98065-766-1 01 1 1012-1301 ●
51 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (A) 5/6WAY TO FRONT 		8-98065-766-1 01 1 1302- ● ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 6WAY TO FRONT 		8-98056-312-1 01 1 1012- ●
51 04.685 PIPE; BRK
(A) 6WAY TO FRONT 		8-98056-312-1 01 1 1012- ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 6WAY TO FRONT 		8-98106-599-0 01 1 1012- ●
51 04.685 PIPE; BRK
(A) 6WAY TO FRONT 		8-98106-599-0 01 1 1012- ●
51 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> (A) 5/6WAY TO FRONT 		8-98136-043-0 01 1 1012-1301 ●
51 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> (A) 5/6WAY TO FRONT 		8-98136-043-0 01 1 1302- ● ●
51 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> (A) 5/6WAY TO FRONT 		8-98136-044-0 01 1 1012-1301 ●
51 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> (A) 5/6WAY TO FRONT 		8-98136-044-0 01 1 1302- ● ●
52 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> (A) 2WAY TO REAR 		8-98168-282-0 01 1 1308- ●
52 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (D) 2WAY TO LSPV,REAR 		8-98057-265-0 01 1 1302- ● ●
52 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO LSPV,FRONT 		8-98057-268-0 01 1 1302- ● ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO LSPV,FRONT 		8-98095-609-0 01 1 1302- ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (D) 2WAY TO LSPV,REAR 		8-98095-610-0 01 1 1302- ●
52 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) WHEEL BASE 3800MM(38W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (D) 2WAY TO LSPV,REAR 		8-98057-266-0 01 1 1302- ● ●
52 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) WHEEL BASE 3800MM(38W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO LSPV,FRONT 		8-98057-269-0 01 1 1302- ● ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (D) 2WAY TO LSPV,REAR 		8-98057-267-0 01 1 1302- ● ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO LSPV,FRONT 		8-98057-270-0 01 1 1302- ● ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO LSPV,FRONT 		8-97389-451-1 01 1 1302- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (D) 2WAY TO LSPV,REAR 		8-98056-316-0 01 1 1302- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO LSPV,FRONT 		8-97389-452-1 01 1 1302- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (D) 2WAY TO LSPV,REAR 		8-98051-645-0 01 1 1302- ●
52 04.685 PIPE; BRK
4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97370-410-0 01 1 1012-1106 ●
52 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97370-410-0 01 1 1107-1301 ●
52 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97370-410-0 01 1 1302- ● ●
52 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> (A) 2WAY TO REAR 		8-98057-261-0 01 1 1012-1301 ●
52 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> (A) 2WAY TO REAR 		8-98057-261-0 01 1 1302- ●
52 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (A) 2WAY TO REAR 		8-98057-262-0 01 1 1012-1301 ● ●
52 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> (A) 2WAY TO REAR 		8-98057-262-0 01 1 1302- ● ●
52 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (A) 2WAY TO REAR 		8-98057-263-0 01 1 1012-1301 ● ●
52 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> (A) 2WAY TO REAR 		8-98057-263-0 01 1 1302- ● ●
52 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (A) 2WAY TO REAR 		8-98057-264-0 01 1 1012-1301 ● ●
52 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> (A) 2WAY TO REAR 		8-98057-264-0 01 1 1302- ● ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 2WAY TO REAR 		8-98056-318-0 01 1 1012-1301 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EXC. BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> (A) 2WAY TO REAR 		8-98056-318-0 01 1 1302- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 2WAY TO REAR 		8-98056-319-0 01 1 1012-1301 ●
52 04.685 PIPE; BRK
(A) 2WAY TO REAR 		8-98056-319-0 01 1 1012-1301 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> (A) 2WAY TO REAR 		8-98056-319-0 01 1 1302- ●
52 04.685 PIPE; BRK
(A) 2WAY TO REAR 		8-98056-319-0 01 1 1302- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 2WAY TO REAR 		8-98056-415-0 01 1 1012-1301 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> (A) 2WAY TO REAR 		8-98056-415-0 01 1 1302- ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98036-162-0 01 1 1012-1301 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98036-162-0 01 1 1302- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR 		8-98057-259-0 01 1 1012- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR 		8-97389-415-2 01 1 1012- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4/6WAY TO 2WAY,REAR 		8-97389-415-2 01 1 1012- ●

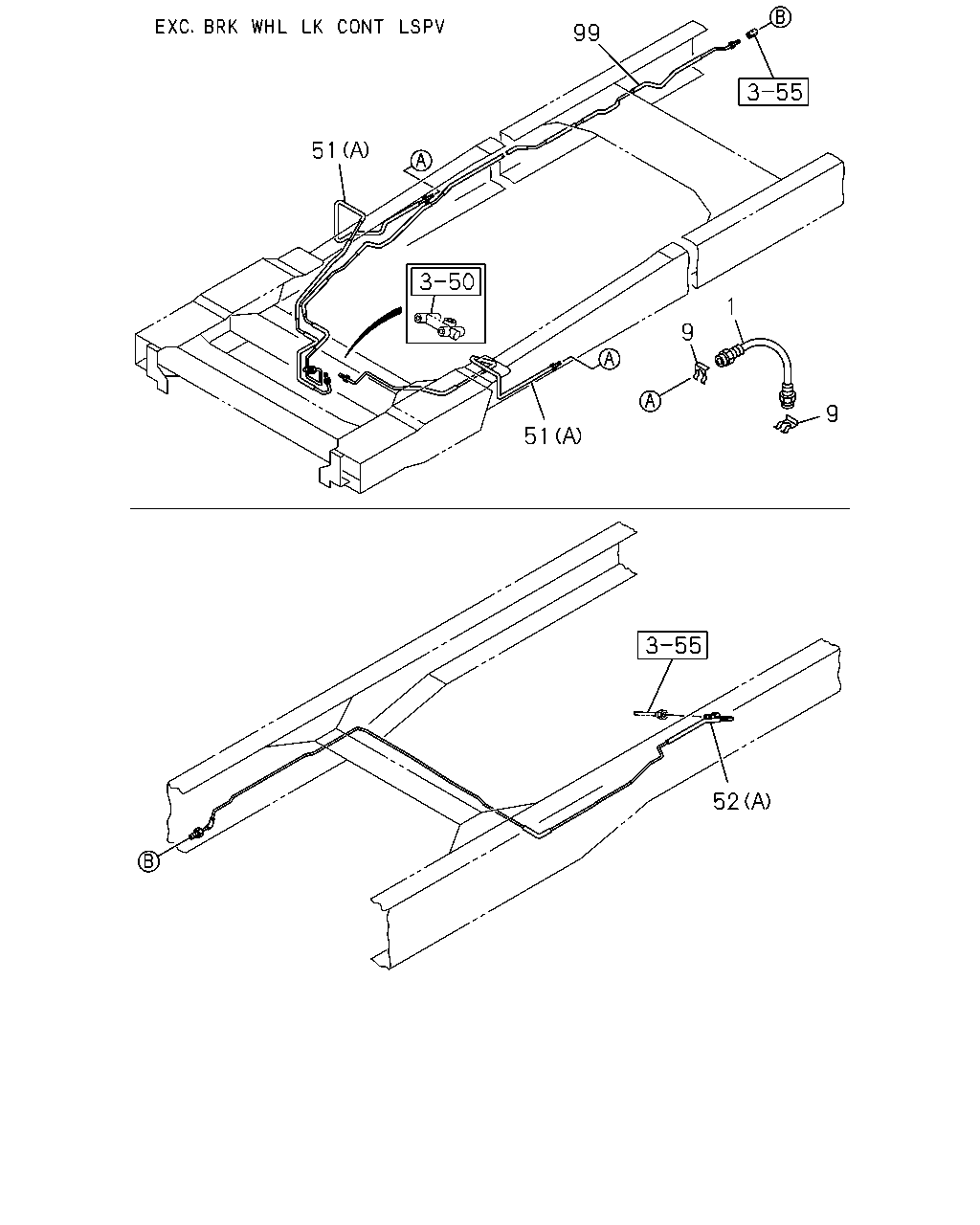

çizim 175651
99 51 51 9 1 9 52
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.680 HOSE; FLEX,FRT BRK 8-97039-543-1 02 1 1012-1301 ● ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. FRONT WIDE TREAD<7GV> 		8-97039-543-1 02 1 1012-1301 ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. FRONT WIDE TREAD<7GV> 		8-97039-543-1 02 1 1302- ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-97039-543-1 02 1 1302- ●
1 04.680 HOSE; FLEX,FRT BRK
FRONT WIDE TREAD<7GV> 		8-97115-907-0 02 1 1012-1301 ●
1 04.680 HOSE; FLEX,FRT BRK
FRONT WIDE TREAD<7GV> 		8-97115-907-0 02 1 1302- ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1012- ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1012- ● ● ●
51 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (B) 4/6WAY TO 2WAY,FRONT 		8-98057-260-0 01 1 1302- ● ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 4/6WAY TO 2WAY,FRONT 		8-98056-331-1 01 1 1302- ●
51 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (A) 5/6WAY TO FRONT 		8-98065-765-1 01 1 1012-1301 ●
51 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (A) 5/6WAY TO FRONT 		8-98065-765-1 01 1 1012-1301 ●
51 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (A) 5/6WAY TO FRONT 		8-98065-765-1 01 1 1302- ● ●
51 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (A) 5/6WAY TO FRONT 		8-98065-766-1 01 1 1012-1301 ●
51 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (A) 5/6WAY TO FRONT 		8-98065-766-1 01 1 1012-1301 ●
51 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (A) 5/6WAY TO FRONT 		8-98065-766-1 01 1 1302- ● ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 6WAY TO FRONT 		8-98056-312-1 01 1 1012- ●
51 04.685 PIPE; BRK
(A) 6WAY TO FRONT 		8-98056-312-1 01 1 1012- ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 6WAY TO FRONT 		8-98106-599-0 01 1 1012- ●
51 04.685 PIPE; BRK
(A) 6WAY TO FRONT 		8-98106-599-0 01 1 1012- ●
51 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> (A) 5/6WAY TO FRONT 		8-98136-043-0 01 1 1012-1301 ●
51 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> (A) 5/6WAY TO FRONT 		8-98136-043-0 01 1 1302- ● ●
51 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> (A) 5/6WAY TO FRONT 		8-98136-044-0 01 1 1012-1301 ●
51 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> (A) 5/6WAY TO FRONT 		8-98136-044-0 01 1 1302- ● ●
52 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> (A) 2WAY TO REAR 		8-98168-282-0 01 1 1308- ●
52 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (D) 2WAY TO LSPV,REAR 		8-98057-265-0 01 1 1302- ● ●
52 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO LSPV,FRONT 		8-98057-268-0 01 1 1302- ● ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO LSPV,FRONT 		8-98095-609-0 01 1 1302- ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (D) 2WAY TO LSPV,REAR 		8-98095-610-0 01 1 1302- ●
52 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) WHEEL BASE 3800MM(38W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (D) 2WAY TO LSPV,REAR 		8-98057-266-0 01 1 1302- ● ●
52 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) WHEEL BASE 3800MM(38W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO LSPV,FRONT 		8-98057-269-0 01 1 1302- ● ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (D) 2WAY TO LSPV,REAR 		8-98057-267-0 01 1 1302- ● ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO LSPV,FRONT 		8-98057-270-0 01 1 1302- ● ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO LSPV,FRONT 		8-97389-451-1 01 1 1302- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (D) 2WAY TO LSPV,REAR 		8-98056-316-0 01 1 1302- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO LSPV,FRONT 		8-97389-452-1 01 1 1302- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (D) 2WAY TO LSPV,REAR 		8-98051-645-0 01 1 1302- ●
52 04.685 PIPE; BRK
4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97370-410-0 01 1 1012-1106 ●
52 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97370-410-0 01 1 1107-1301 ●
52 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97370-410-0 01 1 1302- ● ●
52 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> (A) 2WAY TO REAR 		8-98057-261-0 01 1 1012-1301 ●
52 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> (A) 2WAY TO REAR 		8-98057-261-0 01 1 1302- ●
52 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (A) 2WAY TO REAR 		8-98057-262-0 01 1 1012-1301 ● ●
52 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> (A) 2WAY TO REAR 		8-98057-262-0 01 1 1302- ● ●
52 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (A) 2WAY TO REAR 		8-98057-263-0 01 1 1012-1301 ● ●
52 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> (A) 2WAY TO REAR 		8-98057-263-0 01 1 1302- ● ●
52 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (A) 2WAY TO REAR 		8-98057-264-0 01 1 1012-1301 ● ●
52 04.685 PIPE; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> (A) 2WAY TO REAR 		8-98057-264-0 01 1 1302- ● ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 2WAY TO REAR 		8-98056-318-0 01 1 1012-1301 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EXC. BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> (A) 2WAY TO REAR 		8-98056-318-0 01 1 1302- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 2WAY TO REAR 		8-98056-319-0 01 1 1012-1301 ●
52 04.685 PIPE; BRK
(A) 2WAY TO REAR 		8-98056-319-0 01 1 1012-1301 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> (A) 2WAY TO REAR 		8-98056-319-0 01 1 1302- ●
52 04.685 PIPE; BRK
(A) 2WAY TO REAR 		8-98056-319-0 01 1 1302- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 2WAY TO REAR 		8-98056-415-0 01 1 1012-1301 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> (A) 2WAY TO REAR 		8-98056-415-0 01 1 1302- ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98036-162-0 01 1 1012-1301 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98036-162-0 01 1 1302- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR 		8-98057-259-0 01 1 1012- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR 		8-97389-415-2 01 1 1012- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4/6WAY TO 2WAY,REAR 		8-97389-415-2 01 1 1012- ●

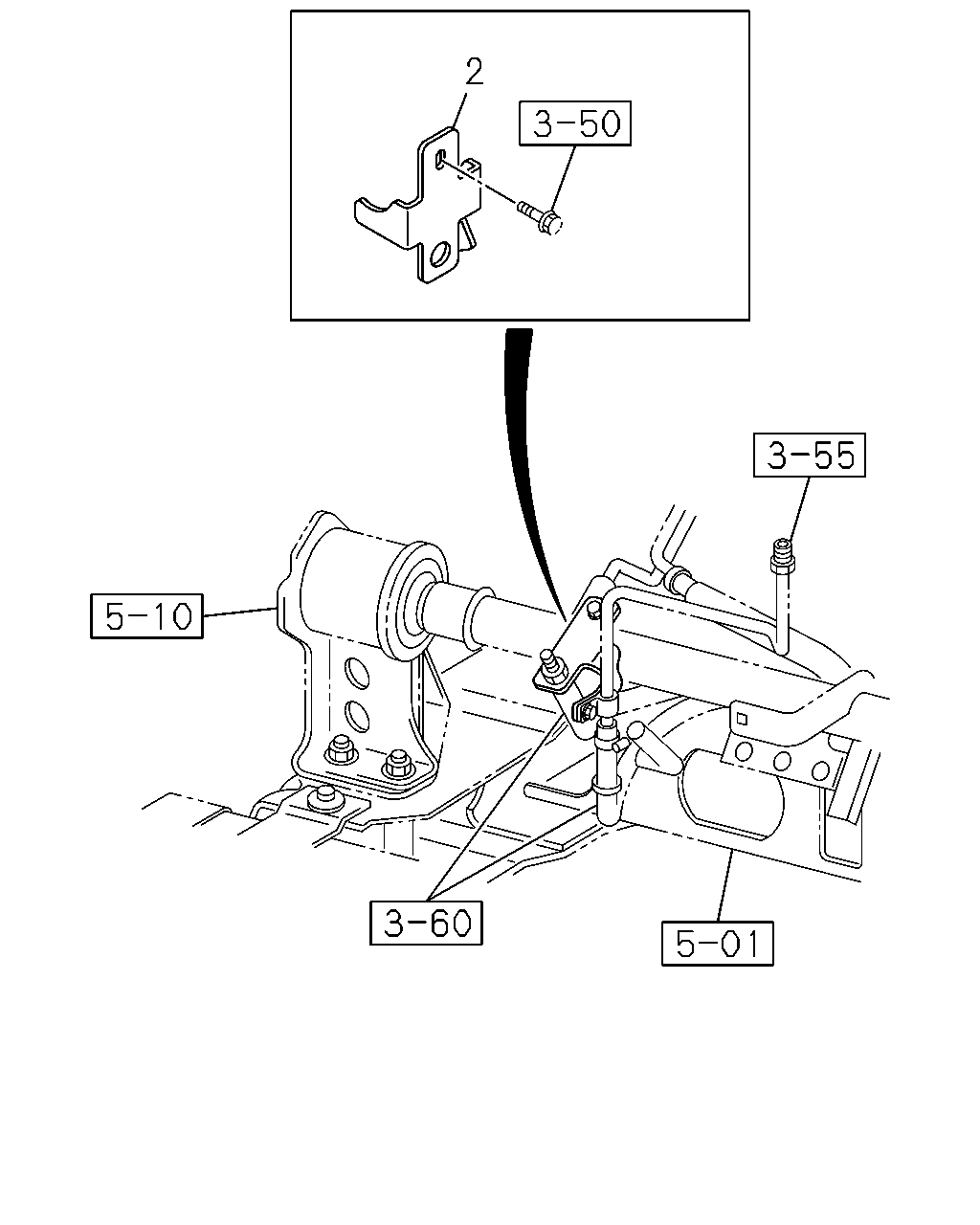

çizim 175670
2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) 		8-98136-577-0 01 1 1012-1301 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) 		8-98136-577-0 01 1 1302- ● ●

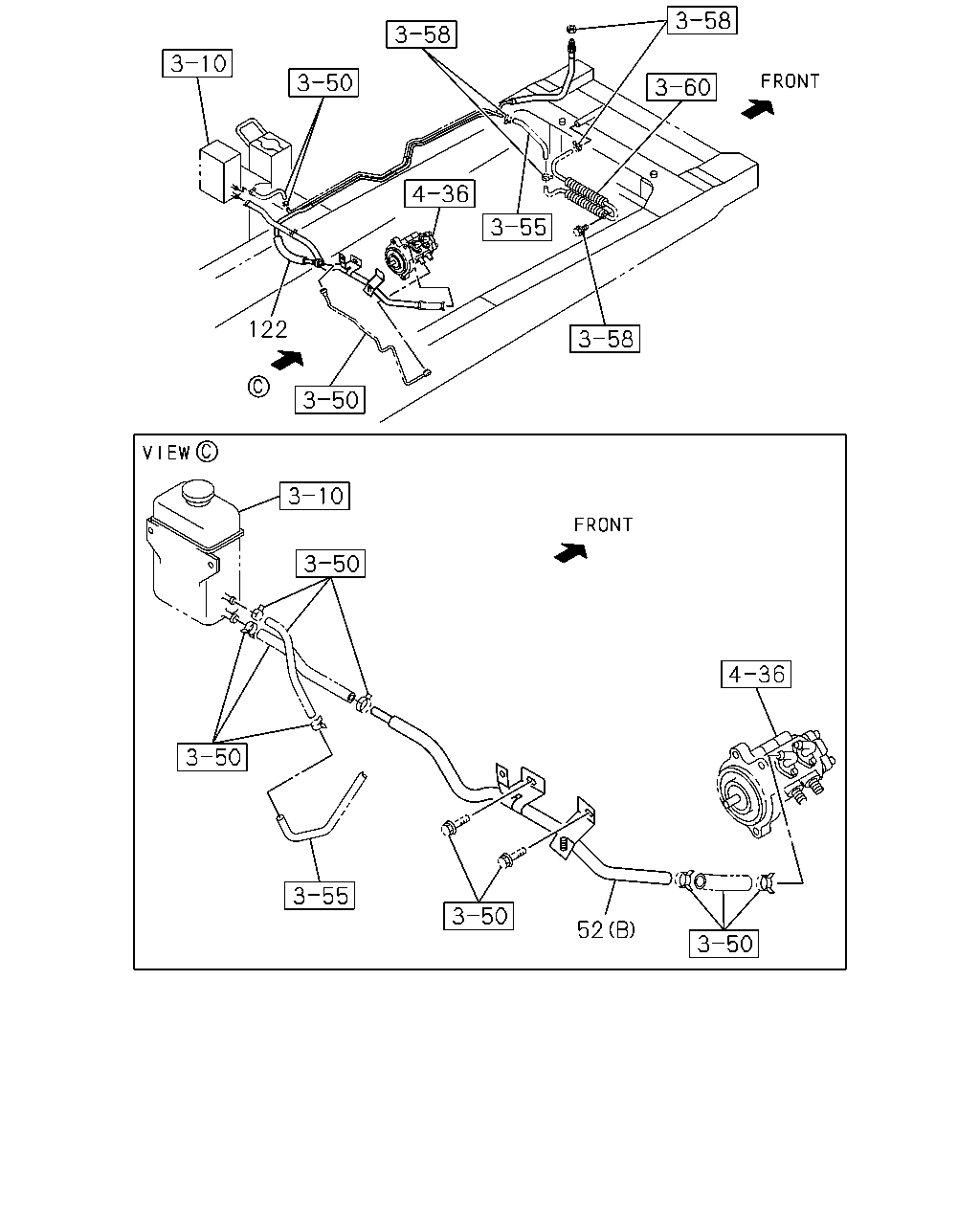

çizim 331702
122
BalonParca AdiParca NoAdetTipApplied Date A B C
122 04.685 PIPE ASM; BRK,2 WAY
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) L=1808 		8-98136-816-0 01 1 1012-1205 ●
122 04.685 PIPE ASM; BRK,2 WAY
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 		8-98214-082-0 01 1 1206-1301 ●
122 04.685 PIPE ASM; BRK,2 WAY
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 		8-98214-082-0 01 1 1302- ● ●
122 04.685 PIPE ASM; BRK,2 WAY
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) L=1839 		8-98136-573-0 01 1 1012-1301 ●
122 04.685 PIPE ASM; BRK,2 WAY
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) L=1839 		8-98136-573-0 01 1 1302- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
