3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#54738) — 213 parça

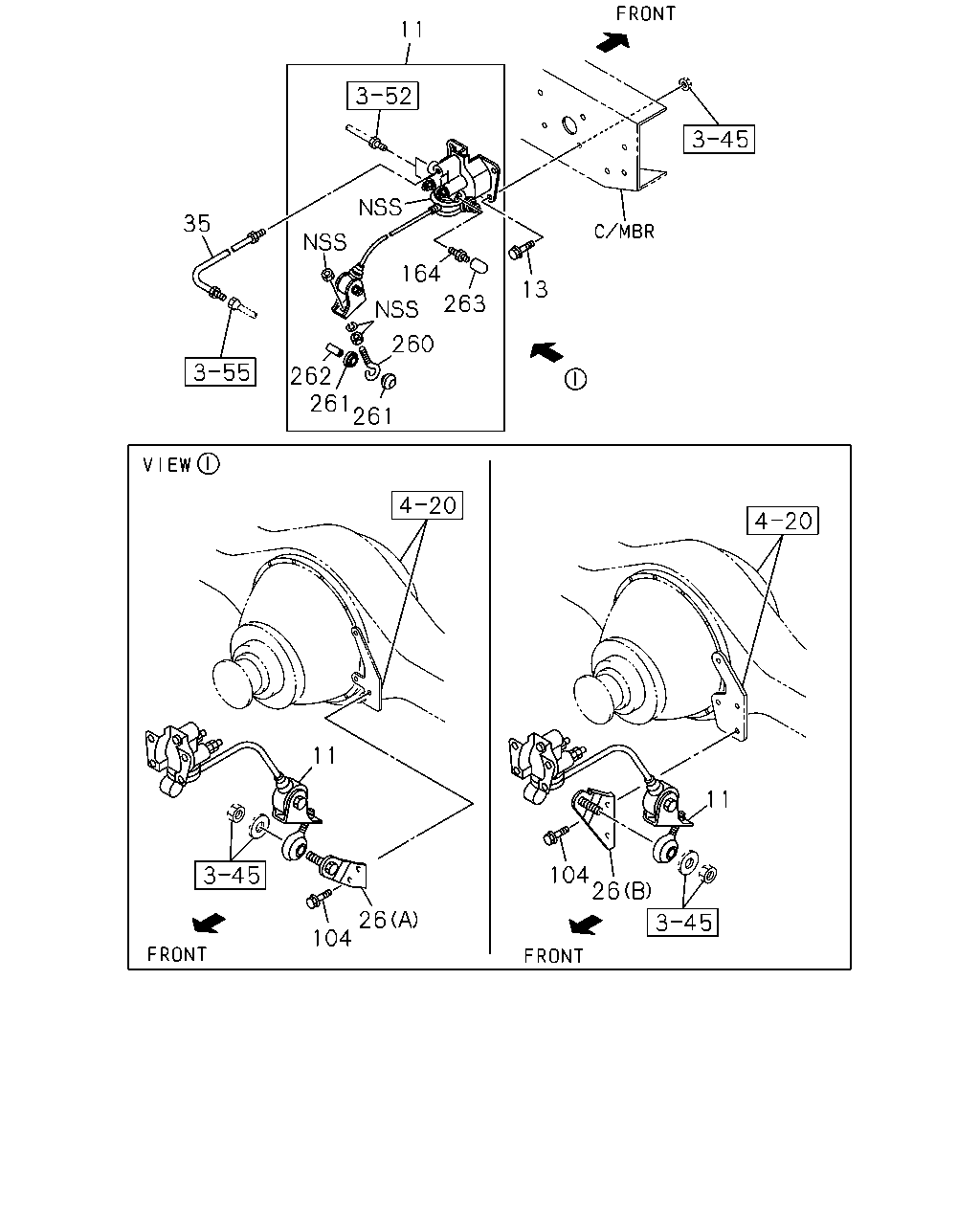

çizim 175648
13 11 164 260 261 261 262 35 11 104 104 26 11 26 263
BalonParca AdiParca NoAdetTipApplied Date A B C
11 04.686 VALVE; BRK CONT
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> 04.730 		8-94427-224-2 01 1 1302- ●
11 04.686 VALVE; BRK CONT
BRK WHL LK CONT LSPV<6PH> 04.730 		8-94427-224-2 01 1 1302- ●
13 04.686 BOLT; VLV TO BRKT
BRK WHL LK CONT LSPV<6PH> 02.343 M8X16 FLANGE 		0-28050-816-0 04 1 1302- ● ●
26 04.730 BRACKET; PROPORTIONING VLV
REAR AXLE HEAVY DUTY 292MM(G73) BRK WHL LK CONT LSPV<6PH> (B) 		8-98029-822-0 01 1 1302- ●
26 04.730 BRACKET; PROPORTIONING VLV
REAR AXLE HEAVY DUTY 320MM(6CP) BRK WHL LK CONT LSPV<6PH> (A) 		8-98029-821-0 01 1 1302- ●
26 04.730 BRACKET; PROPORTIONING VLV
BRK WHL LK CONT LSPV<6PH> (A) 		8-98029-821-0 01 1 1302- ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-98057-271-0 01 1 1302- ● ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
4JJ1-TCC ENG(RDU) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97389-541-2 01 1 1302- ●
104 04.730 BOLT; BRKT TO BODY
BRK WHL LK CONT LSPV<6PH> 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1302- ● ●
164 04.730 SCREW; BLEEDER
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> 04.685 		8-97093-663-0 01 1 1302- ●
164 04.730 SCREW; BLEEDER
BRK WHL LK CONT LSPV<6PH> 04.685 		8-97093-663-0 01 1 1302- ●
260 04.685 SHACKLE; LSPV
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> 04.710 		8-97173-366-0 01 1 1302- ●
260 04.685 SHACKLE; LSPV
BRK WHL LK CONT LSPV<6PH> 04.710 		8-97173-366-0 01 1 1302- ●
261 04.685 BUSHING; LSPV
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> 04.710 		8-97145-631-0 02 1 1302- ●
261 04.685 BUSHING; LSPV
BRK WHL LK CONT LSPV<6PH> 04.710 		8-97145-631-0 02 1 1302- ●
262 04.685 COLLAR; LSPV
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> 04.710 		8-97139-186-0 01 1 1302- ●
262 04.685 COLLAR; LSPV
BRK WHL LK CONT LSPV<6PH> 04.710 		8-97139-186-0 01 1 1302- ●
263 04.685 CAP; BLEEDER
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> 		8-97093-662-0 01 1 1302- ●
263 04.685 CAP; BLEEDER
BRK WHL LK CONT LSPV<6PH> 		8-97093-662-0 01 1 1302- ●

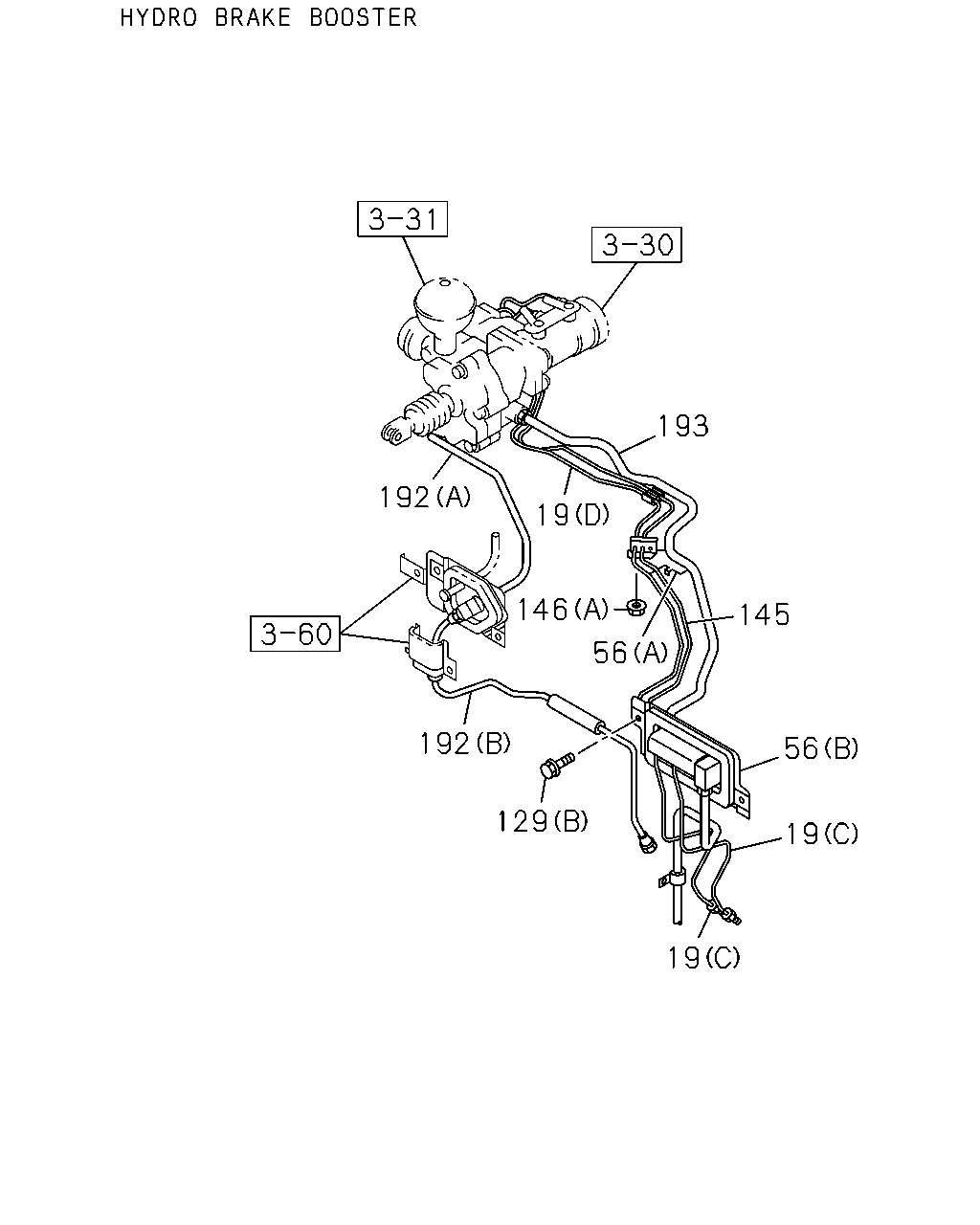

çizim 175653
193 192 19 146 145 56 192 56 129 19 19
BalonParca AdiParca NoAdetTipApplied Date A B C
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-97389-366-1 02 1 1012-1301 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-366-1 02 1 1012-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-366-1 02 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-97389-366-1 02 1 1302- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-97389-337-3 01 1 1012-1301 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-337-3 01 1 1012-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-337-3 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-97389-337-3 01 1 1302- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98043-501-2 02 1 1012-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98043-501-2 02 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98098-682-1 01 1 1012-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98098-682-1 01 1 1302- ● ●
56 04.686 BRACKET; UNION,BRK
(C) 		8-98154-264-1 01 1 1012-1301 ● ●
56 04.686 BRACKET; UNION,BRK
EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98154-264-1 01 1 1012-1301 ●
56 04.686 BRACKET; UNION,BRK
EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98154-264-1 01 1 1302- ● ●
56 04.686 BRACKET; UNION,BRK
(C) 		8-98154-264-1 01 1 1302- ●
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98098-679-0 01 1 1012-1301 ●
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98098-679-0 01 1 1302- ● ●
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98154-266-1 01 1 1012-1301 ●
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98154-266-1 01 1 1302- ● ●
129 04.710 BOLT; BRKT
08.857 (A) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 1012- ● ● ●
129 04.710 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1012-1301 ●
129 04.710 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1302- ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION 8-97389-295-3 01 1 1012-1301 ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97389-295-3 01 1 1012-1301 ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97389-295-3 01 1 1302- ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION 8-97389-295-3 01 1 1302- ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
HYDRO BRAKE BOOSTER(7QQ) 		8-98098-680-1 01 1 1012-1301 ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
HYDRO BRAKE BOOSTER(7QQ) 		8-98098-680-1 01 1 1302- ● ●
146 04.685 NUT; BRKT
4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1012-1106 ●
146 04.685 NUT; BRKT
4HG1-T ENG(RDP),4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1107-1301 ●
146 04.685 NUT; BRKT
4HG1-T ENG(RDP),4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1302- ● ●
146 04.685 NUT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 00.777 (A) M8 W/LK WASHER 		8-94279-050-0 01 1 1012-1301 ●
146 04.685 NUT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 00.777 (A) M8 W/LK WASHER 		8-94279-050-0 01 1 1302- ● ●
192 04.685 PIPE; PRESSURE
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98042-052-1 01 1 1012-1103 ●
192 04.685 PIPE; PRESSURE
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98193-137-0 01 1 1104-1301 ●
192 04.685 PIPE; PRESSURE
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98193-137-0 01 1 1302- ● ●
192 04.685 PIPE; PRESSURE
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98127-262-0 01 1 1012-1301 ●
192 04.685 PIPE; PRESSURE
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98127-262-0 01 1 1302- ● ●
193 04.685 PIPE; RETURN
HYDRO BRAKE BOOSTER(7QQ) 		8-98098-683-0 01 1 1012-1301 ●
193 04.685 PIPE; RETURN
HYDRO BRAKE BOOSTER(7QQ) 		8-98098-683-0 01 1 1302- ● ●

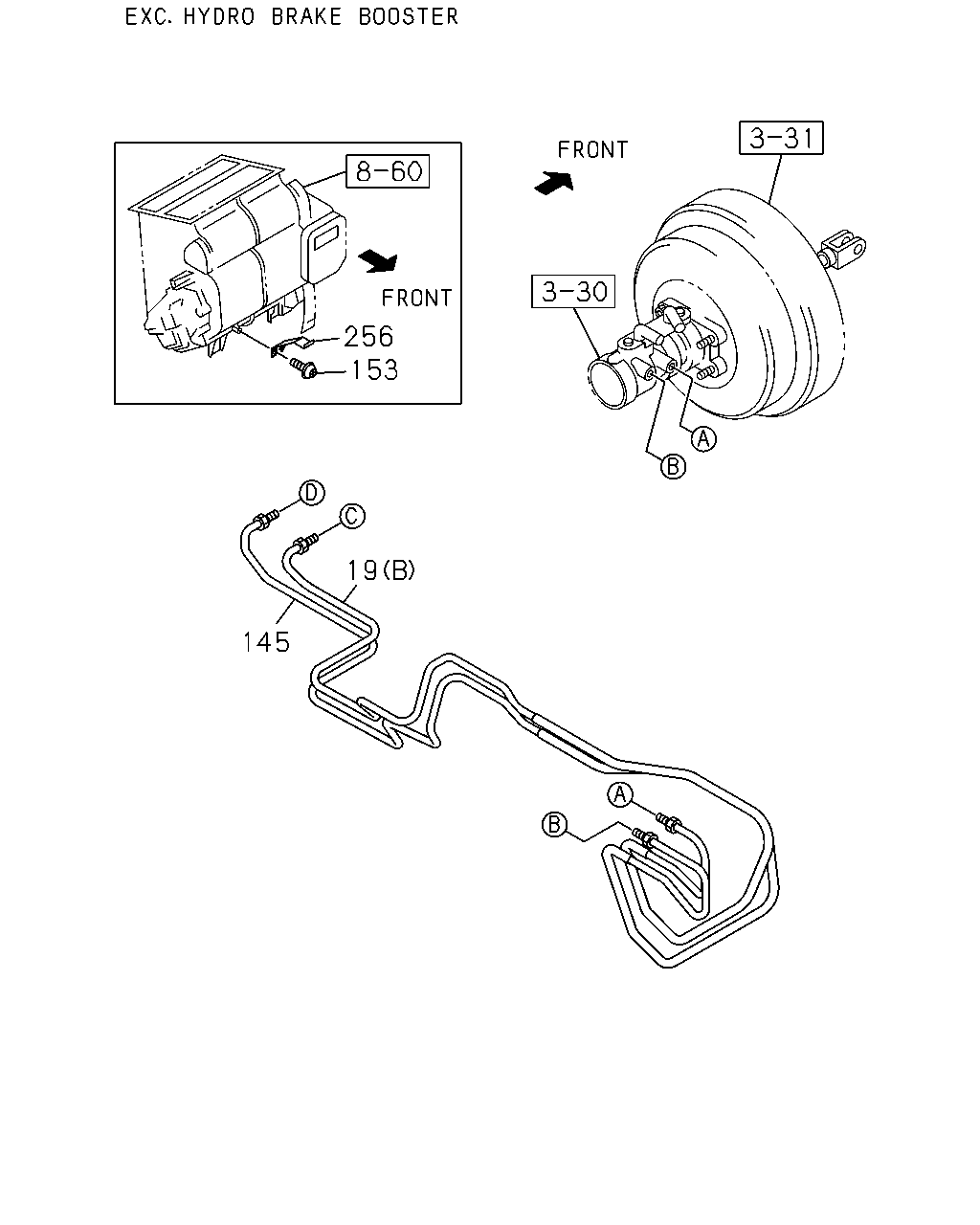

çizim 175659
256 153 19 145
BalonParca AdiParca NoAdetTipApplied Date A B C
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-97389-366-1 02 1 1012-1301 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-366-1 02 1 1012-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-366-1 02 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-97389-366-1 02 1 1302- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-97389-337-3 01 1 1012-1301 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-337-3 01 1 1012-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-337-3 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-97389-337-3 01 1 1302- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98043-501-2 02 1 1012-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98043-501-2 02 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98098-682-1 01 1 1012-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98098-682-1 01 1 1302- ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION 8-97389-295-3 01 1 1012-1301 ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97389-295-3 01 1 1012-1301 ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97389-295-3 01 1 1302- ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION 8-97389-295-3 01 1 1302- ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
HYDRO BRAKE BOOSTER(7QQ) 		8-98098-680-1 01 1 1012-1301 ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
HYDRO BRAKE BOOSTER(7QQ) 		8-98098-680-1 01 1 1302- ● ●
153 04.730 SCREW; BRKT FIX
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 01 1 1012- ● ●
153 04.730 SCREW; BRKT FIX
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 01 1 1012- ●
256 04.840 BRACKET; BRK PIPE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98163-521-0 01 1 1012- ● ●
256 04.840 BRACKET; BRK PIPE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98163-521-0 01 1 1012- ●

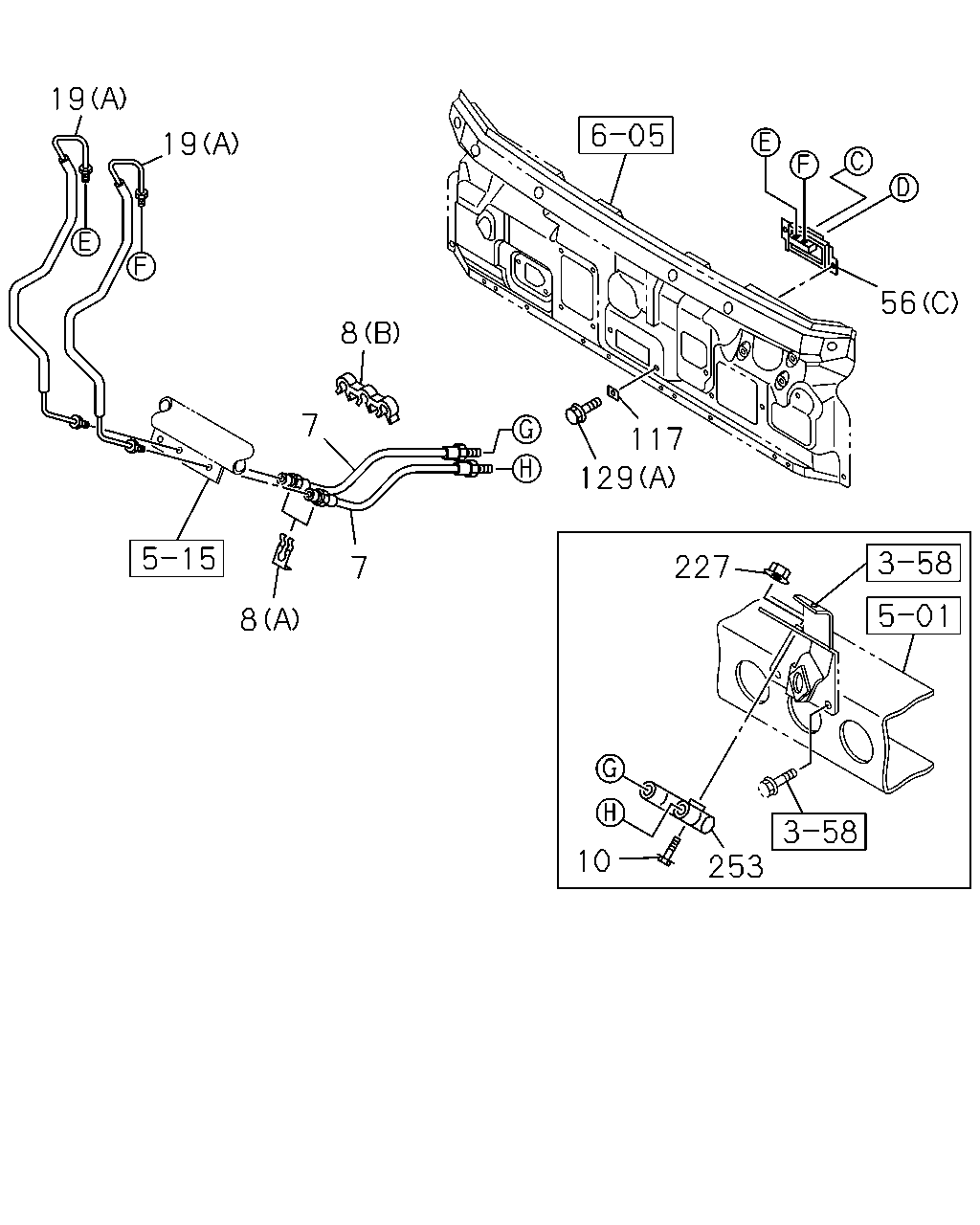

çizim 175667
19 8 7 7 8 19 117 129 227 253 10 56
BalonParca AdiParca NoAdetTipApplied Date A B C
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-98029-865-0 02 1 1012- ● ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
04.686 (B) 		8-97076-471-0 01 1 1012- ● ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
(A) 		8-97365-304-0 02 1 1012- ● ● ●
10 04.686 BOLT; JOINT
00.685 M6X40 FLANGE 		0-28650-640-0 01 1 1012- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-97389-366-1 02 1 1012-1301 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-366-1 02 1 1012-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-366-1 02 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-97389-366-1 02 1 1302- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-97389-337-3 01 1 1012-1301 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-337-3 01 1 1012-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-337-3 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-97389-337-3 01 1 1302- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98043-501-2 02 1 1012-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98043-501-2 02 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98098-682-1 01 1 1012-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98098-682-1 01 1 1302- ● ●
56 04.686 BRACKET; UNION,BRK
(C) 		8-98154-264-1 01 1 1012-1301 ● ●
56 04.686 BRACKET; UNION,BRK
EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98154-264-1 01 1 1012-1301 ●
56 04.686 BRACKET; UNION,BRK
EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98154-264-1 01 1 1302- ● ●
56 04.686 BRACKET; UNION,BRK
(C) 		8-98154-264-1 01 1 1302- ●
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98098-679-0 01 1 1012-1301 ●
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98098-679-0 01 1 1302- ● ●
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98154-266-1 01 1 1012-1301 ●
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98154-266-1 01 1 1302- ● ●
117 04.686 SEAL; UNION,BRK PIPE JOINT
08.845 		8-97856-616-0 02 1 1012- ● ● ●
129 04.710 BOLT; BRKT
08.857 (A) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 1012- ● ● ●
129 04.710 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1012-1301 ●
129 04.710 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1302- ● ●
227 04.685 NUT; JOINT
01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ● ● ●
253 04.840 JOINT
BRK WHL LK CONT LSPV<6PH> 04.686 		8-97120-033-2 01 1 1302- ● ●
253 04.840 JOINT
04.686 		5-47456-009-1 01 1 1012-1301 ● ● ●
253 04.840 JOINT
EXC. BRK WHL LK CONT LSPV<6PH> 04.686 		5-47456-009-1 01 1 1302- ● ●
253 04.840 JOINT
04.686 		5-47456-009-1 01 1 1302- ●
çizim 175676
35
BalonParca AdiParca NoAdetTipApplied Date A B C
35 04.685 PIPE; BRK,VLV TO RR AXLE
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-98057-271-0 01 1 1302- ● ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
4JJ1-TCC ENG(RDU) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97389-541-2 01 1 1302- ●

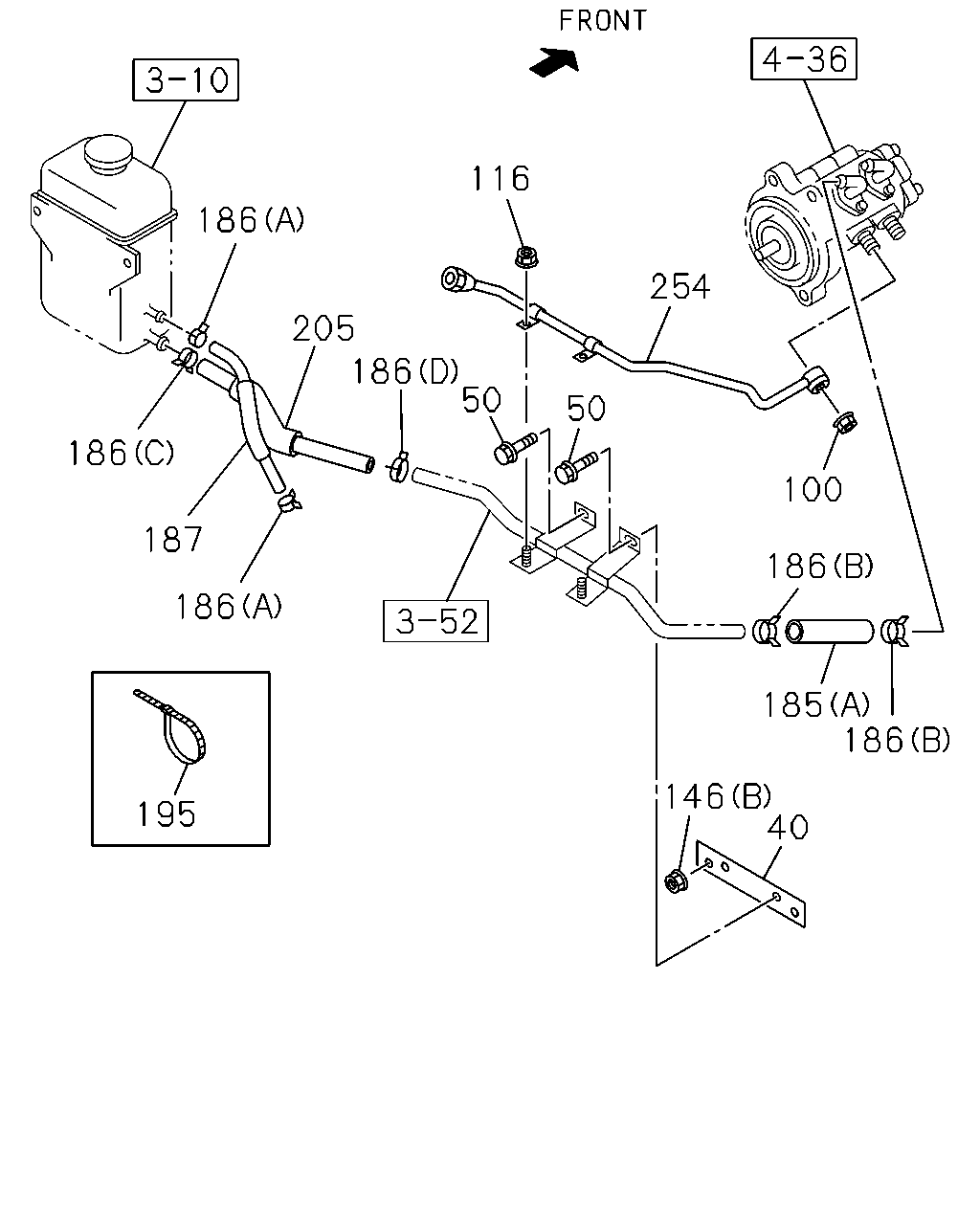

çizim 175750
186 205 116 254 50 50 186 186 187 186 195 100 186 185 186 146 40
BalonParca AdiParca NoAdetTipApplied Date A B C
40 04.690 BRACKET
4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 		8-97370-408-0 01 1 1012-1301 ●
40 04.690 BRACKET
4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 		8-97370-408-0 01 1 1302- ● ●
50 04.710 BOLT; PIPE
4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1012-1106 ●
50 04.710 BOLT; PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1107-1301 ●
50 04.710 BOLT; PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1302- ● ●
50 04.710 BOLT; PIPE
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE 		0-28050-816-0 03 1 1012-1301 ●
50 04.710 BOLT; PIPE
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE 		0-28050-816-0 03 1 1302- ● ●
100 04.730 NUT; HYDRAULIC UNIT
HYDRO BRAKE BOOSTER(7QQ) 		8-97358-958-0 01 1 1012-1301 ●
100 04.730 NUT; HYDRAULIC UNIT
HYDRO BRAKE BOOSTER(7QQ) 		8-97358-958-0 01 1 1302- ● ●
116 04.686 NUT
4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1012-1106 ●
116 04.686 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1107-1301 ●
116 04.686 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1302- ● ●
116 04.686 NUT
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012-1301 ●
116 04.686 NUT
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1302- ● ●
146 04.685 NUT; BRKT
4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1012-1106 ●
146 04.685 NUT; BRKT
4HG1-T ENG(RDP),4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1107-1301 ●
146 04.685 NUT; BRKT
4HG1-T ENG(RDP),4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1302- ● ●
146 04.685 NUT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 00.777 (A) M8 W/LK WASHER 		8-94279-050-0 01 1 1012-1301 ●
146 04.685 NUT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 00.777 (A) M8 W/LK WASHER 		8-94279-050-0 01 1 1302- ● ●
185 04.681 HOSE; RUBBER,SUCTION
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98085-720-0 01 1 1012-1301 ●
185 04.681 HOSE; RUBBER,SUCTION
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98085-720-0 01 1 1302- ● ●
185 04.681 HOSE; RUBBER,SUCTION
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97330-513-0 01 1 1012-1301 ●
185 04.681 HOSE; RUBBER,SUCTION
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97330-513-0 01 1 1302- ● ●
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER(7QQ) 03.278 (C) ID=22 		8-97359-141-0 01 1 1012-1301 ●
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER(7QQ) 03.278 (C) ID=22 		8-97359-141-0 01 1 1302- ● ●
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER(7QQ) 03.162 (A) ID=16 		8-98008-098-0 02 1 1012-1301 ●
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER(7QQ) 03.162 (A) ID=16 		8-98008-098-0 02 1 1302- ● ●
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER(7QQ) (D) ID=21 		8-98150-355-0 01 1 1012-1301 ●
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER(7QQ) (D) ID=21 		8-98150-355-0 01 1 1302- ● ●
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER(7QQ) 06.672 (B) ID=21 		8-94242-034-0 02 1 1012-1301 ●
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER(7QQ) 06.672 (B) ID=21 		8-94242-034-0 02 1 1302- ● ●
187 04.681 HOSE; RUBBER,OIL TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 		8-98100-245-0 01 1 1012-1301 ●
187 04.681 HOSE; RUBBER,OIL TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 		8-98100-245-0 01 1 1302- ● ●
187 04.681 HOSE; RUBBER,OIL TANK
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 06.671 L=220 SERVICED BY L=3000 		0-19809-300-0 01 1 1012-1301 ●
187 04.681 HOSE; RUBBER,OIL TANK
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 06.671 L=220 SERVICED BY L=3000 		0-19809-300-0 01 1 1302- ● ●
195 04.681 CLIP; HOSE
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 02.559 L=250 		5-09707-030-1 02 1 1012-1301 ●
195 04.681 CLIP; HOSE
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 02.559 L=250 		5-09707-030-1 02 1 1302- ● ●
205 04.681 HOSE; TANK TO PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 		8-97334-259-1 01 1 1012-1301 ●
205 04.681 HOSE; TANK TO PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 		8-97334-259-1 01 1 1302- ● ●
205 04.681 HOSE; TANK TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 06.670 SERVICED BY L=300 		0-09814-300-0 01 1 1012-1301 ●
205 04.681 HOSE; TANK TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 06.670 SERVICED BY L=300 		0-09814-300-0 01 1 1302- ● ●
254 04.685 PIPE; BRAKE,2WAY
4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 		8-97334-118-1 01 1 1012-1106 ●
254 04.685 PIPE; BRAKE,2WAY
4HG1-T ENG(RDP),4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 		8-97334-118-1 01 1 1107-1301 ●
254 04.685 PIPE; BRAKE,2WAY
4HG1-T ENG(RDP),4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 		8-97334-118-1 01 1 1302- ● ●
254 04.685 PIPE; BRAKE,2WAY
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 		8-98036-161-0 01 1 1012-1301 ●
254 04.685 PIPE; BRAKE,2WAY
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 		8-98036-161-0 01 1 1302- ● ●

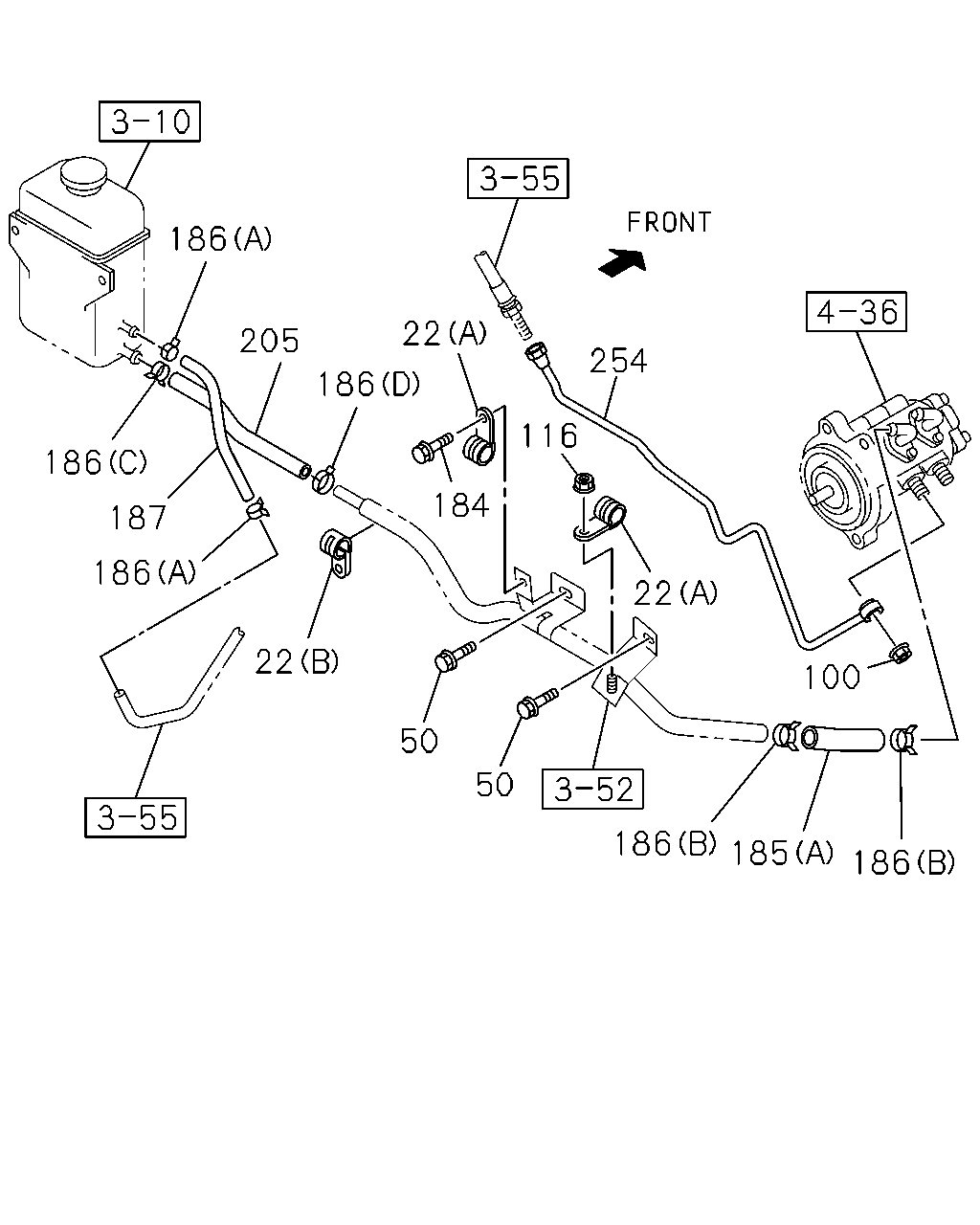

çizim 328277
186 186 205 187 22 186 186 184 50 116 22 254 22 50 186 185 100 186
BalonParca AdiParca NoAdetTipApplied Date A B C
22 04.685 CLIP
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (A) ID=10 L=16.5 		8-98082-034-0 02 1 1012-1301 ●
22 04.685 CLIP
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (A) ID=10 L=16.5 		8-98082-034-0 02 1 1302- ● ●
22 04.685 CLIP
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (B) ID=17 L=21 		8-98082-035-0 01 1 1012-1301 ●
22 04.685 CLIP
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (B) ID=17 L=21 		8-98082-035-0 01 1 1302- ● ●
50 04.710 BOLT; PIPE
4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1012-1106 ●
50 04.710 BOLT; PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1107-1301 ●
50 04.710 BOLT; PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1302- ● ●
50 04.710 BOLT; PIPE
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE 		0-28050-816-0 03 1 1012-1301 ●
50 04.710 BOLT; PIPE
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE 		0-28050-816-0 03 1 1302- ● ●
100 04.730 NUT; HYDRAULIC UNIT
HYDRO BRAKE BOOSTER(7QQ) 		8-97358-958-0 01 1 1012-1301 ●
100 04.730 NUT; HYDRAULIC UNIT
HYDRO BRAKE BOOSTER(7QQ) 		8-97358-958-0 01 1 1302- ● ●
116 04.686 NUT
4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1012-1106 ●
116 04.686 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1107-1301 ●
116 04.686 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1302- ● ●
116 04.686 NUT
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012-1301 ●
116 04.686 NUT
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1302- ● ●
184 04.681 BOLT; CLIP
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1012-1301 ●
184 04.681 BOLT; CLIP
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1302- ● ●
185 04.681 HOSE; RUBBER,SUCTION
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98085-720-0 01 1 1012-1301 ●
185 04.681 HOSE; RUBBER,SUCTION
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98085-720-0 01 1 1302- ● ●
185 04.681 HOSE; RUBBER,SUCTION
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97330-513-0 01 1 1012-1301 ●
185 04.681 HOSE; RUBBER,SUCTION
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97330-513-0 01 1 1302- ● ●
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER(7QQ) 03.278 (C) ID=22 		8-97359-141-0 01 1 1012-1301 ●
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER(7QQ) 03.278 (C) ID=22 		8-97359-141-0 01 1 1302- ● ●
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER(7QQ) 03.162 (A) ID=16 		8-98008-098-0 02 1 1012-1301 ●
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER(7QQ) 03.162 (A) ID=16 		8-98008-098-0 02 1 1302- ● ●
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER(7QQ) (D) ID=21 		8-98150-355-0 01 1 1012-1301 ●
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER(7QQ) (D) ID=21 		8-98150-355-0 01 1 1302- ● ●
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER(7QQ) 06.672 (B) ID=21 		8-94242-034-0 02 1 1012-1301 ●
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER(7QQ) 06.672 (B) ID=21 		8-94242-034-0 02 1 1302- ● ●
187 04.681 HOSE; RUBBER,OIL TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 		8-98100-245-0 01 1 1012-1301 ●
187 04.681 HOSE; RUBBER,OIL TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 		8-98100-245-0 01 1 1302- ● ●
187 04.681 HOSE; RUBBER,OIL TANK
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 06.671 L=220 SERVICED BY L=3000 		0-19809-300-0 01 1 1012-1301 ●
187 04.681 HOSE; RUBBER,OIL TANK
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 06.671 L=220 SERVICED BY L=3000 		0-19809-300-0 01 1 1302- ● ●
205 04.681 HOSE; TANK TO PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 		8-97334-259-1 01 1 1012-1301 ●
205 04.681 HOSE; TANK TO PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 		8-97334-259-1 01 1 1302- ● ●
205 04.681 HOSE; TANK TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 06.670 SERVICED BY L=300 		0-09814-300-0 01 1 1012-1301 ●
205 04.681 HOSE; TANK TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 06.670 SERVICED BY L=300 		0-09814-300-0 01 1 1302- ● ●
254 04.685 PIPE; BRAKE,2WAY
4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 		8-97334-118-1 01 1 1012-1106 ●
254 04.685 PIPE; BRAKE,2WAY
4HG1-T ENG(RDP),4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 		8-97334-118-1 01 1 1107-1301 ●
254 04.685 PIPE; BRAKE,2WAY
4HG1-T ENG(RDP),4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 		8-97334-118-1 01 1 1302- ● ●
254 04.685 PIPE; BRAKE,2WAY
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 		8-98036-161-0 01 1 1012-1301 ●
254 04.685 PIPE; BRAKE,2WAY
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 		8-98036-161-0 01 1 1302- ● ●

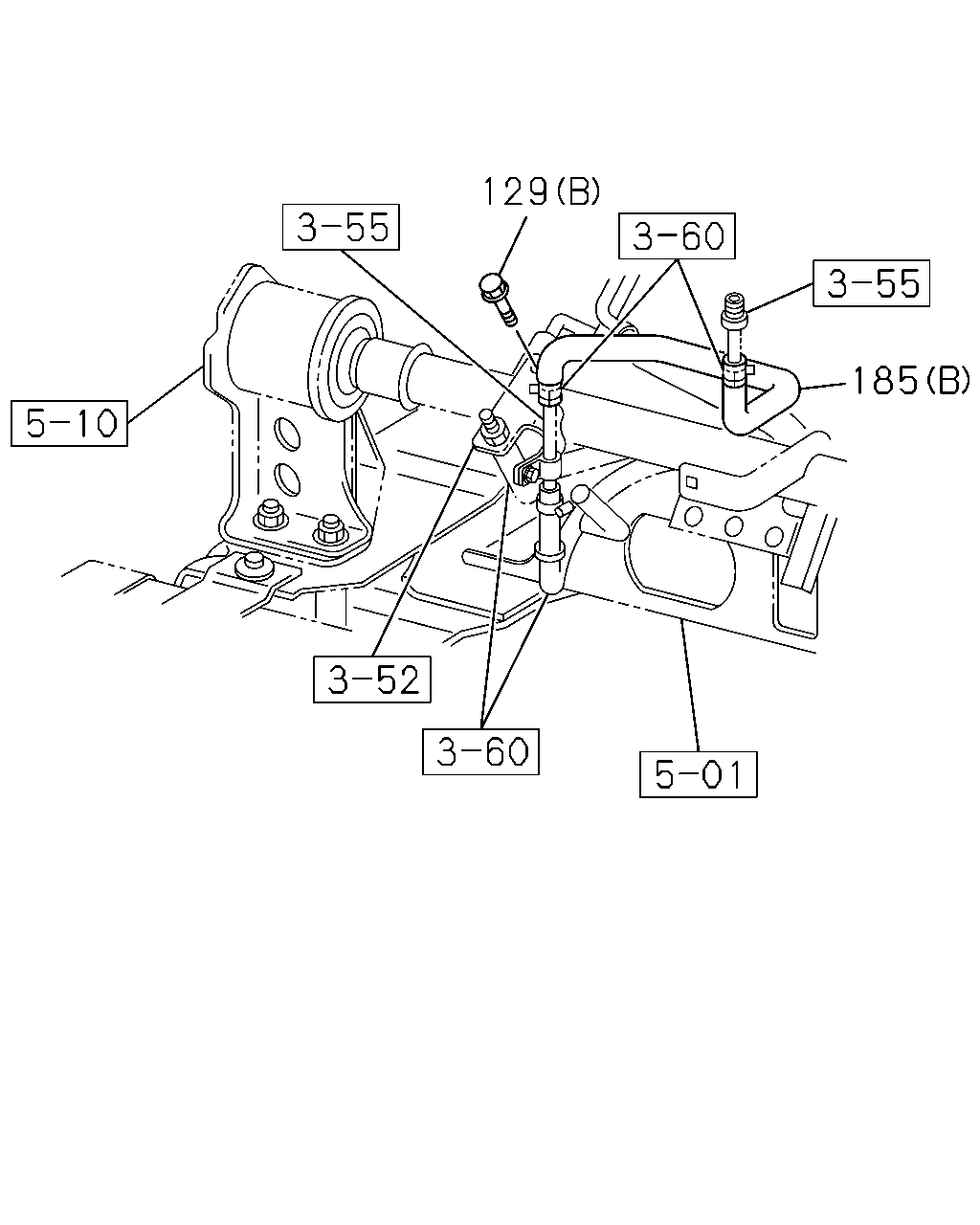

çizim 331545
129 185
BalonParca AdiParca NoAdetTipApplied Date A B C
129 04.710 BOLT; BRKT
08.857 (A) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 1012- ● ● ●
129 04.710 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1012-1301 ●
129 04.710 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1302- ● ●
185 04.681 HOSE; RUBBER,SUCTION
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98085-720-0 01 1 1012-1301 ●
185 04.681 HOSE; RUBBER,SUCTION
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98085-720-0 01 1 1302- ● ●
185 04.681 HOSE; RUBBER,SUCTION
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97330-513-0 01 1 1012-1301 ●
185 04.681 HOSE; RUBBER,SUCTION
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97330-513-0 01 1 1302- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
