◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51296 - NPR/NQR-RHD ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#54734) — 191 parça
çizim 175626
181 238 324 91 237 85 225 235
BalonParca AdiParca NoAdetTipApplied Date A B C
85 04.785 CLIP; BRKT
ID=14.5 L=20 		1-09701-012-0 01 1 1012- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1012- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1012- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 04.047 (A) 		8-97036-333-1 01 1 1012- ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 (B) 		8-97036-332-1 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (B) 		8-97036-332-1 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
(C) 		8-98023-622-0 01 1 1012- ● ● ●
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1012- ● ●
181 04.785 BOLT; BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1012- ● ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ● ●
225 04.785 NUT; CABLE CLIP
EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
225 04.785 NUT; CABLE CLIP
M/T MYY5T(RSM) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98087-322-0 01 1 1012- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98106-986-1 01 1 1012- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98034-410-3 01 1 1012- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
(C) 		8-98034-410-3 01 1 1012- ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ● ● ●
238 04.785 BOLT; CLIP TO BRKT
EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1012-1110 ● ●
238 04.785 BOLT; CLIP TO BRKT
EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1111- ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 1012- ● ●
238 04.785 BOLT; CLIP TO BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
238 04.785 BOLT; CLIP TO BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
324 04.785 BRACKET
EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98111-394-1 01 1 1012- ● ●
324 04.785 BRACKET
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 04.047 (B) 		8-98034-185-1 01 1 1012- ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98099-516-0 01 1 1012-1508 ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98216-763-1 01 1 1509- ● ●
324 04.785 BRACKET
(A) 		8-98034-115-0 01 1 1012- ● ● ●
324 04.785 BRACKET
(E) 		8-98014-921-0 01 1 1012- ●

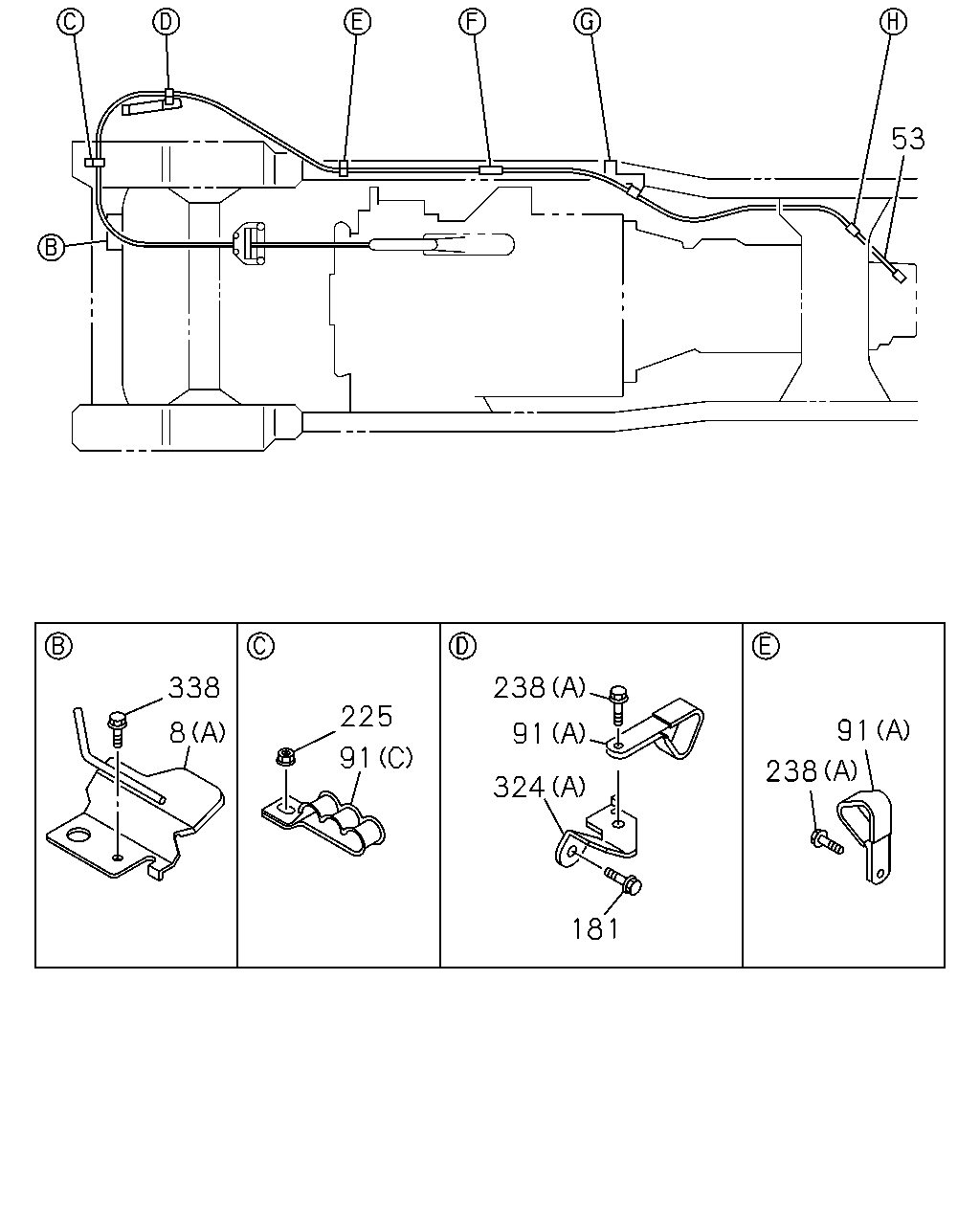

çizim 175629
53 338 238 225 91 8 91 91 238 324 181
BalonParca AdiParca NoAdetTipApplied Date A B C
8 04.592 GUIDE; PARKING BRK
4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.481 (C) 		8-98120-571-0 01 1 1211- ● ●
8 04.592 GUIDE; PARKING BRK
EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98110-964-0 01 1 1012- ● ●
8 04.592 GUIDE; PARKING BRK
(A) 		8-98096-374-0 01 1 1012-1210 ● ● ●
8 04.592 GUIDE; PARKING BRK
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (A) 		8-98096-374-0 01 1 1211- ● ●
8 04.592 GUIDE; PARKING BRK
(A) 		8-98096-374-0 01 1 1211- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 		8-98079-119-2 01 1 1012-1301 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> 		8-98079-119-2 01 1 1012-1301 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> 		8-98079-119-2 01 1 1302- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> 		8-98041-315-3 01 1 1012-1301 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> 		8-98041-315-3 01 1 1012-1301 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> 		8-98041-315-3 01 1 1302- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98052-066-1 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) 		8-98052-066-1 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 		8-98130-270-0 01 1 1012-1301 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 		8-98130-270-0 01 1 1302- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 		8-98130-269-0 01 1 1012-1301 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 		8-98130-269-0 01 1 1302- ● ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1012- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1012- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 04.047 (A) 		8-97036-333-1 01 1 1012- ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 (B) 		8-97036-332-1 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (B) 		8-97036-332-1 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
(C) 		8-98023-622-0 01 1 1012- ● ● ●
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1012- ● ●
181 04.785 BOLT; BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1012- ● ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ● ●
225 04.785 NUT; CABLE CLIP
EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
225 04.785 NUT; CABLE CLIP
M/T MYY5T(RSM) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1012-1110 ● ●
238 04.785 BOLT; CLIP TO BRKT
EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1111- ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 1012- ● ●
238 04.785 BOLT; CLIP TO BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
238 04.785 BOLT; CLIP TO BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
324 04.785 BRACKET
EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98111-394-1 01 1 1012- ● ●
324 04.785 BRACKET
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 04.047 (B) 		8-98034-185-1 01 1 1012- ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98099-516-0 01 1 1012-1508 ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98216-763-1 01 1 1509- ● ●
324 04.785 BRACKET
(A) 		8-98034-115-0 01 1 1012- ● ● ●
324 04.785 BRACKET
(E) 		8-98014-921-0 01 1 1012- ●
338 04.785 SCREW; GUIDE
EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012-1210 ● ●
338 04.785 SCREW; GUIDE
4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1211- ● ●
338 04.785 SCREW; GUIDE
EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1211- ● ●
338 04.785 SCREW; GUIDE
16.069 M8X35 FLANGE 		8-98046-876-0 01 1 1012-1210 ● ● ●
338 04.785 SCREW; GUIDE
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 16.069 M8X35 FLANGE 		8-98046-876-0 01 1 1211- ● ●
338 04.785 SCREW; GUIDE
16.069 M8X35 FLANGE 		8-98046-876-0 01 1 1211- ●
çizim 175642
237 241 338 8 235 238 237 85 225 235
BalonParca AdiParca NoAdetTipApplied Date A B C
8 04.592 GUIDE; PARKING BRK
4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.481 (C) 		8-98120-571-0 01 1 1211- ● ●
8 04.592 GUIDE; PARKING BRK
EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98110-964-0 01 1 1012- ● ●
8 04.592 GUIDE; PARKING BRK
(A) 		8-98096-374-0 01 1 1012-1210 ● ● ●
8 04.592 GUIDE; PARKING BRK
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (A) 		8-98096-374-0 01 1 1211- ● ●
8 04.592 GUIDE; PARKING BRK
(A) 		8-98096-374-0 01 1 1211- ●
85 04.785 CLIP; BRKT
ID=14.5 L=20 		1-09701-012-0 01 1 1012- ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ● ●
225 04.785 NUT; CABLE CLIP
EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
225 04.785 NUT; CABLE CLIP
M/T MYY5T(RSM) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98087-322-0 01 1 1012- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98106-986-1 01 1 1012- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98034-410-3 01 1 1012- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
(C) 		8-98034-410-3 01 1 1012- ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ● ● ●
238 04.785 BOLT; CLIP TO BRKT
EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1012-1110 ● ●
238 04.785 BOLT; CLIP TO BRKT
EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1111- ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 1012- ● ●
238 04.785 BOLT; CLIP TO BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
238 04.785 BOLT; CLIP TO BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ● ●
338 04.785 SCREW; GUIDE
EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012-1210 ● ●
338 04.785 SCREW; GUIDE
4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1211- ● ●
338 04.785 SCREW; GUIDE
EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1211- ● ●
338 04.785 SCREW; GUIDE
16.069 M8X35 FLANGE 		8-98046-876-0 01 1 1012-1210 ● ● ●
338 04.785 SCREW; GUIDE
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 16.069 M8X35 FLANGE 		8-98046-876-0 01 1 1211- ● ●
338 04.785 SCREW; GUIDE
16.069 M8X35 FLANGE 		8-98046-876-0 01 1 1211- ●

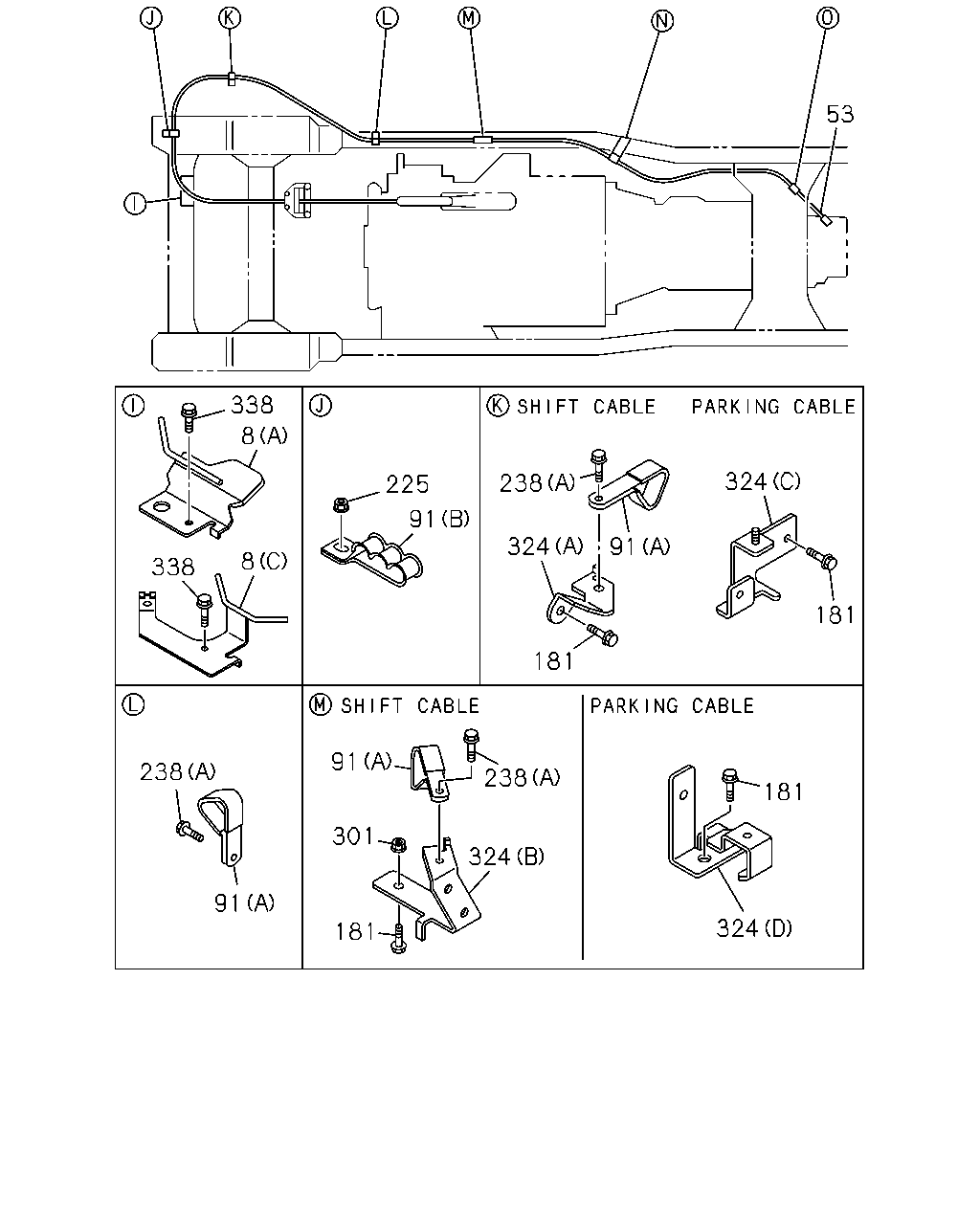

çizim 175652
53 324 181 91 238 324 181 225 91 338 8 8 338 238 91 91 301 181 324 238 181 324
BalonParca AdiParca NoAdetTipApplied Date A B C
8 04.592 GUIDE; PARKING BRK
4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.481 (C) 		8-98120-571-0 01 1 1211- ● ●
8 04.592 GUIDE; PARKING BRK
EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98110-964-0 01 1 1012- ● ●
8 04.592 GUIDE; PARKING BRK
(A) 		8-98096-374-0 01 1 1012-1210 ● ● ●
8 04.592 GUIDE; PARKING BRK
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (A) 		8-98096-374-0 01 1 1211- ● ●
8 04.592 GUIDE; PARKING BRK
(A) 		8-98096-374-0 01 1 1211- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 		8-98079-119-2 01 1 1012-1301 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> 		8-98079-119-2 01 1 1012-1301 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> 		8-98079-119-2 01 1 1302- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> 		8-98041-315-3 01 1 1012-1301 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> 		8-98041-315-3 01 1 1012-1301 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> 		8-98041-315-3 01 1 1302- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98052-066-1 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) 		8-98052-066-1 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 		8-98130-270-0 01 1 1012-1301 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 		8-98130-270-0 01 1 1302- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 		8-98130-269-0 01 1 1012-1301 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 		8-98130-269-0 01 1 1302- ● ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1012- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1012- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 04.047 (A) 		8-97036-333-1 01 1 1012- ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 (B) 		8-97036-332-1 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (B) 		8-97036-332-1 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
(C) 		8-98023-622-0 01 1 1012- ● ● ●
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1012- ● ●
181 04.785 BOLT; BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1012- ● ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ● ●
225 04.785 NUT; CABLE CLIP
EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
225 04.785 NUT; CABLE CLIP
M/T MYY5T(RSM) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1012-1110 ● ●
238 04.785 BOLT; CLIP TO BRKT
EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1111- ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 1012- ● ●
238 04.785 BOLT; CLIP TO BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
238 04.785 BOLT; CLIP TO BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
324 04.785 BRACKET
EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98111-394-1 01 1 1012- ● ●
324 04.785 BRACKET
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 04.047 (B) 		8-98034-185-1 01 1 1012- ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98099-516-0 01 1 1012-1508 ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98216-763-1 01 1 1509- ● ●
324 04.785 BRACKET
(A) 		8-98034-115-0 01 1 1012- ● ● ●
324 04.785 BRACKET
(E) 		8-98014-921-0 01 1 1012- ●
338 04.785 SCREW; GUIDE
EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012-1210 ● ●
338 04.785 SCREW; GUIDE
4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1211- ● ●
338 04.785 SCREW; GUIDE
EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1211- ● ●
338 04.785 SCREW; GUIDE
16.069 M8X35 FLANGE 		8-98046-876-0 01 1 1012-1210 ● ● ●
338 04.785 SCREW; GUIDE
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 16.069 M8X35 FLANGE 		8-98046-876-0 01 1 1211- ● ●
338 04.785 SCREW; GUIDE
16.069 M8X35 FLANGE 		8-98046-876-0 01 1 1211- ●

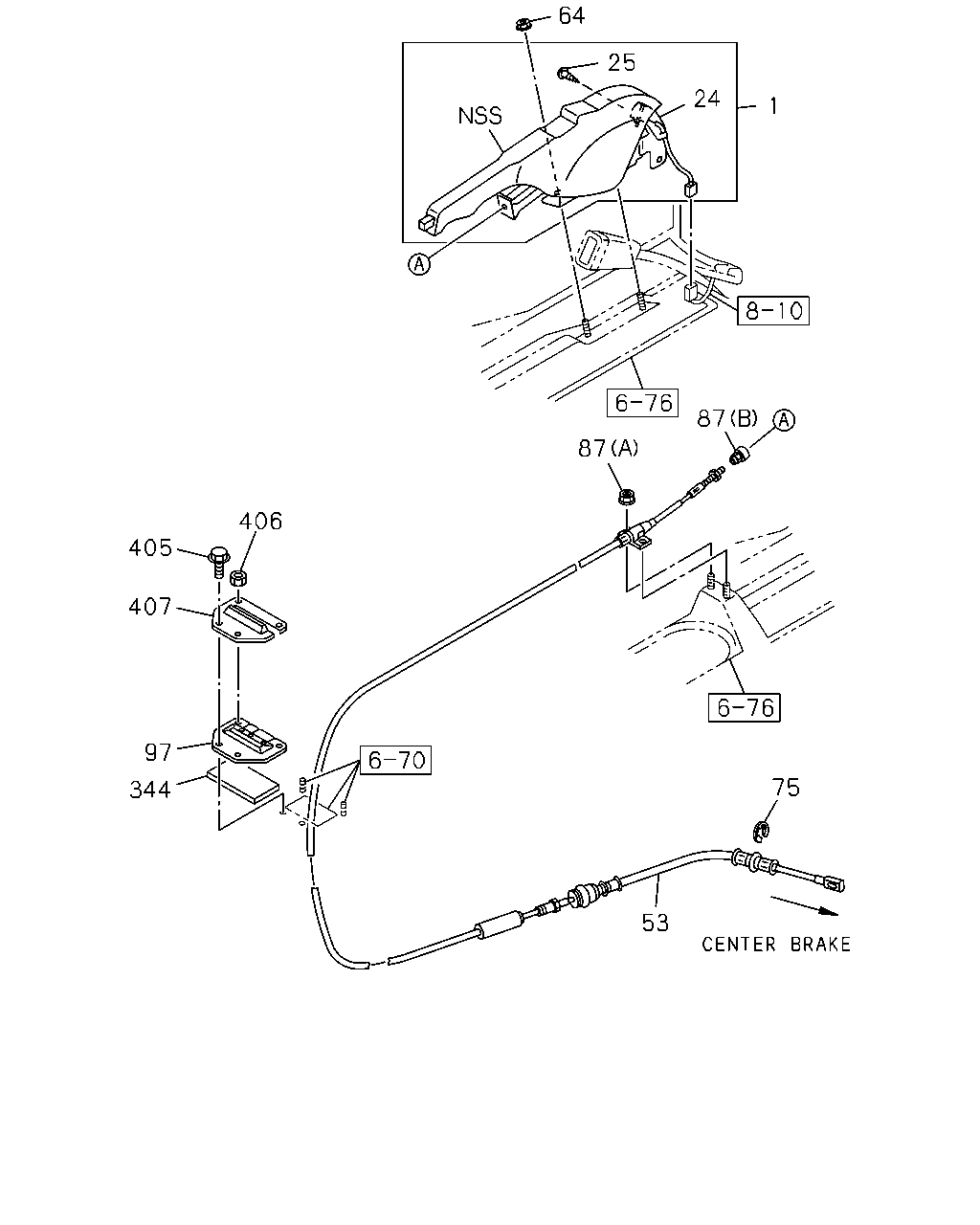

çizim 175665
64 25 24 1 87 87 406 405 407 97 75 344 53
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97405-353-0 01 1 1012-1303 ● ● ●
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97426-513-0 01 1 1304- ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 1012-1303 ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1304- ● ● ●
25 04.589 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 1012- ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 		8-98079-119-2 01 1 1012-1301 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> 		8-98079-119-2 01 1 1012-1301 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> 		8-98079-119-2 01 1 1302- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> 		8-98041-315-3 01 1 1012-1301 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> 		8-98041-315-3 01 1 1012-1301 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> 		8-98041-315-3 01 1 1302- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98052-066-1 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) 		8-98052-066-1 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 		8-98130-270-0 01 1 1012-1301 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 		8-98130-270-0 01 1 1302- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 		8-98130-269-0 01 1 1012-1301 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 		8-98130-269-0 01 1 1302- ● ●
64 04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 1012- ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
ID=12 		0-91805-512-0 01 1 1012- ● ● ●
87 04.785 NUT
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1012- ● ● ●
87 04.785 NUT
(B) M6 		8-98034-313-1 01 1 1012- ● ● ●
97 04.785 GROMMET; PARKING BRK CABLE
04.010 		8-97065-212-1 01 1 1012- ● ● ●
344 04.595 GASKET; DASH LWR
MANUAL TILT CAB<RWZ> 04.047 		8-97096-753-0 01 1 1012- ● ●
405 04.785 BOLT; GROMMET
00.785 M6X20 FLANGE 		0-28450-620-0 02 1 1012- ● ● ●
406 04.785 NUT; GROMMET
01.062 M6 FLANGE 		0-91180-106-0 02 1 1012- ● ● ●
407 04.785 RETAINER; GROMMET
04.047 		1-33657-674-0 01 1 1012- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
