3-10 — BRAKE PEDAL AND CONTROL (#54733) — 116 parça

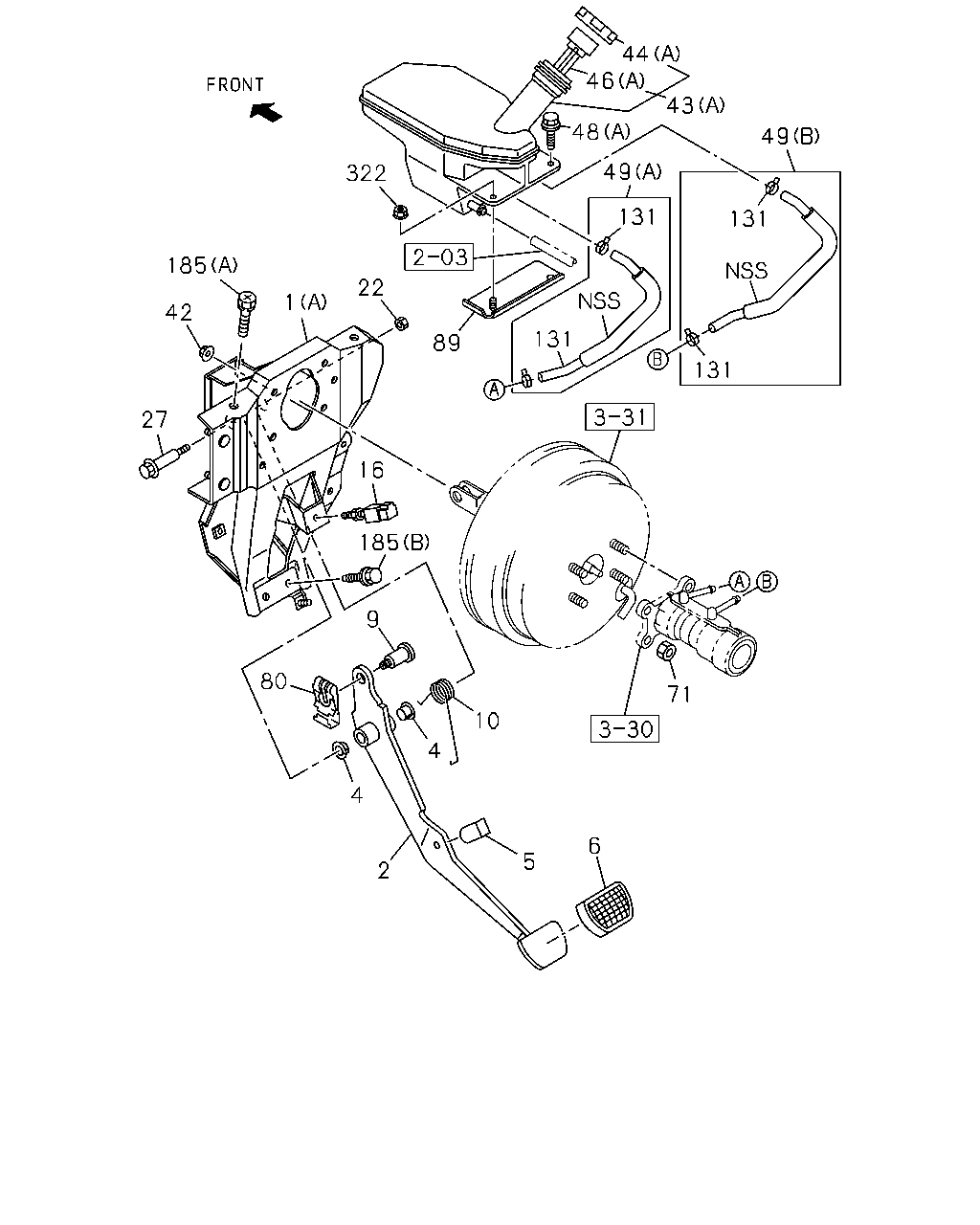

27 42 185 22 322 89 131 131 49 48 46 44 49 43 131 71 10 4 4 9 1 80 185 16 5 2 6 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.634 BRACKET ASM; PEDAL (A)	8-98029-185-1	01	1	1012-1301	●	●
1	04.634 BRACKET ASM; PEDAL EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98029-185-1	01	1	1012-1301			●
1	04.634 BRACKET ASM; PEDAL EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98029-185-1	01	1	1302-	●		●
1	04.634 BRACKET ASM; PEDAL (A)	8-98029-185-1	01	1	1302-		●
1	04.634 BRACKET ASM; PEDAL HYDRO BRAKE BOOSTER(7QQ) (B)	8-98091-563-0	01	1	1012-1301			●
1	04.634 BRACKET ASM; PEDAL HYDRO BRAKE BOOSTER(7QQ) (B)	8-98091-563-0	01	1	1302-	●		●
2	04.625 PEDAL; BRK	8-98003-157-0	01	1	1012-1301	●	●
2	04.625 PEDAL; BRK EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98003-157-0	01	1	1012-1301			●
2	04.625 PEDAL; BRK EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98003-157-0	01	1	1302-	●		●
2	04.625 PEDAL; BRK	8-98003-157-0	01	1	1302-		●
2	04.625 PEDAL; BRK HYDRO BRAKE BOOSTER(7QQ)	8-98011-432-0	01	1	1012-1301			●
2	04.625 PEDAL; BRK HYDRO BRAKE BOOSTER(7QQ)	8-98011-432-0	01	1	1302-	●		●
4	04.634 BUSHING; BRK PEDAL 04.792	8-94238-596-0	02	1	1012-	●	●	●
5	04.634 STOPPER; BRK PEDAL	8-98029-187-0	01	1	1012-	●	●	●
6	04.630 COVER; BRK PEDAL 00.829	8-97853-413-2	01	1	1012-	●	●	●
9	04.634 PIN; JAW JOINT	8-98147-657-0	01	1	1012-	●	●	●
10	04.639 SPRING; RETURN,BRK PEDAL	8-97853-212-1	01	1	1012-	●	●	●
16	02.447 SWITCH; STOP LAMP	8-98000-028-0	01	1	1012-	●	●	●
22	04.634 NUT; SHAFT M10 LOCK NUT FLANGE	0-91380-010-0	01	1	1012-	●	●	●
27	04.634 SHAFT; BRK PEDAL	8-97866-667-0	01	1	1012-	●	●	●
42	04.898 NUT; BRK PEDAL 00.777 M8 W/LK WASHER	8-94279-050-0	04	1	1012-	●	●	●
43	04.651 TANK ASM; OIL (A)	8-97387-217-3	01	1	1012-	●	●	●
43	04.651 TANK ASM; OIL HYDRO BRAKE BOOSTER(7QQ) (B)	8-97306-217-0	01	1	1012-1301			●
43	04.651 TANK ASM; OIL HYDRO BRAKE BOOSTER(7QQ) (B)	8-97306-217-0	01	1	1302-	●		●
44	04.651 CAP; OIL TANK (A)	8-98022-268-0	01	1	1012-	●	●	●
44	04.651 CAP; OIL TANK HYDRO BRAKE BOOSTER(7QQ) 06.635 (B)	8-94146-153-2	01	1	1012-1301			●
44	04.651 CAP; OIL TANK HYDRO BRAKE BOOSTER(7QQ) 06.635 (B)	8-94146-153-2	01	1	1302-	●		●
46	04.651 FILTER; RESERVOIR,BRK (A)	8-98022-269-0	01	1	1012-	●	●	●
46	04.651 FILTER; RESERVOIR,BRK HYDRO BRAKE BOOSTER(7QQ) 06.600 (B)	8-97094-732-0	01	1	1012-1301			●
46	04.651 FILTER; RESERVOIR,BRK HYDRO BRAKE BOOSTER(7QQ) 06.600 (B)	8-97094-732-0	01	1	1302-	●		●
48	04.651 BOLT; OIL TANK TO BRKT 08.077 (A) M6X20 W/PL WASHER	8-97370-668-0	01	1	1012-	●	●	●
48	04.651 BOLT; OIL TANK TO BRKT HYDRO BRAKE BOOSTER(7QQ) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1012-1301			●
48	04.651 BOLT; OIL TANK TO BRKT HYDRO BRAKE BOOSTER(7QQ) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1302-	●		●
49	04.680 HOSE; OIL TANK TO BRK M/CYL (A)	8-97387-666-1	01	1	1012-	●	●	●
49	04.680 HOSE; OIL TANK TO BRK M/CYL (B)	8-97387-667-1	01	1	1012-	●	●	●
71	04.650 NUT; BRK M/CYL 00.777 M8 W/LK WASHER	8-94279-050-0	04	1	1012-	●	●	●
80	04.634 PIN; SNAP,BRK PEDAL 00.833	8-98007-161-0	01	1	1012-	●	●	●
89	04.901 BRACKET; M/CYL	8-98014-337-1	01	1	1012-	●	●	●
131	04.681 CLIP; RUBBER HOSE,OIL TANK TO BR	8-98031-178-0	04	1	1012-	●	●	●
185	04.634 BOLT; BRKT 07.833 (A) M10X25 FLANGE	0-28661-025-0	02	1	1012-	●	●	●
185	04.634 BOLT; BRKT 00.833 (B) M10X22 W/PL WASHER	8-97313-188-0	02	1	1012-	●	●	●
185	04.634 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 06.216 (C) M8X25 FLANGE	0-28650-825-0	04	1	1012-1301			●
185	04.634 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 06.216 (C) M8X25 FLANGE	0-28650-825-0	04	1	1302-	●		●
322	04.651 NUT; OIL TANK 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-	●	●	●

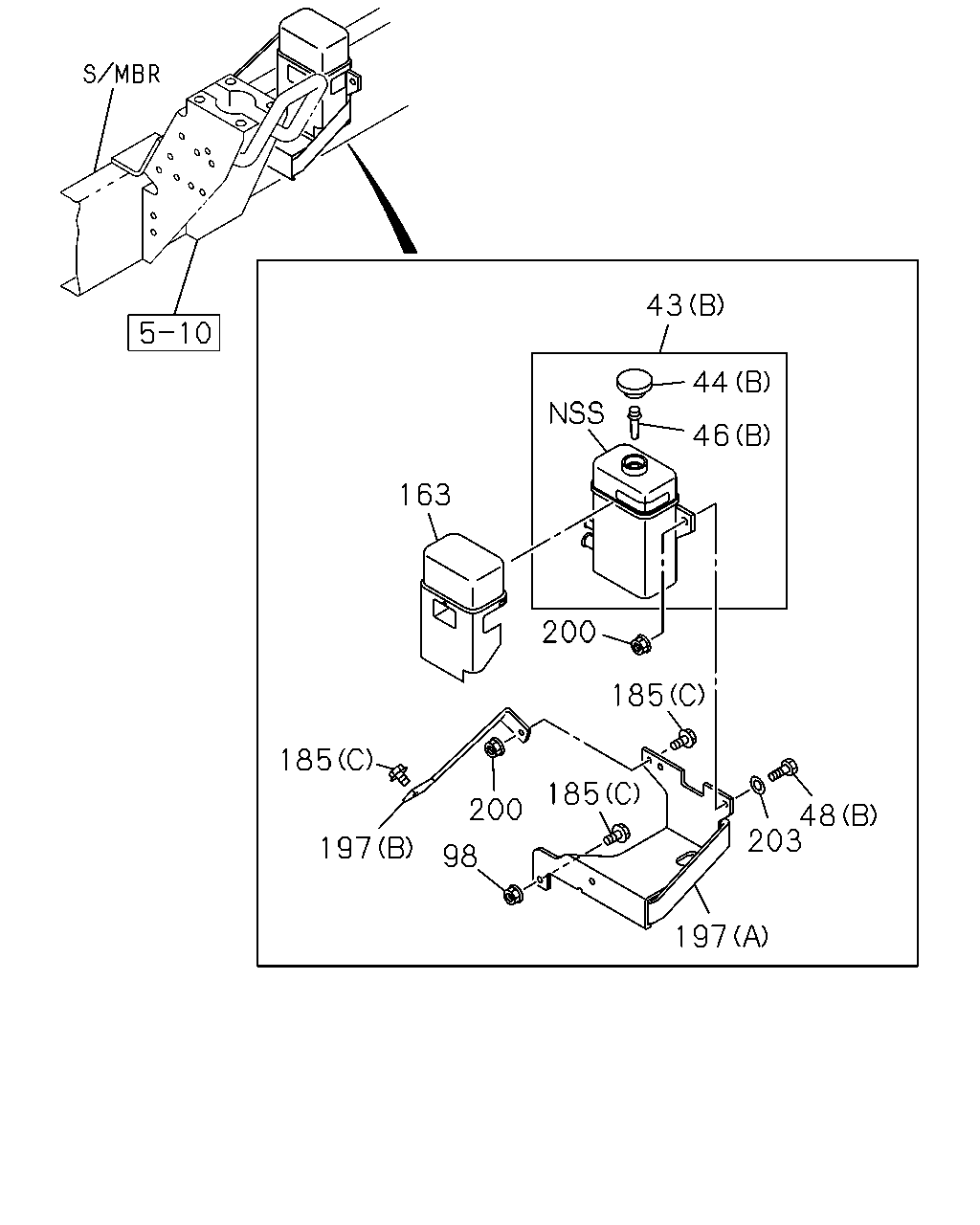

43 44 46 163 200 185 185 185 200 48 203 197 98 197

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
43	04.651 TANK ASM; OIL (A)	8-97387-217-3	01	1	1012-	●	●	●
43	04.651 TANK ASM; OIL HYDRO BRAKE BOOSTER(7QQ) (B)	8-97306-217-0	01	1	1012-1301			●
43	04.651 TANK ASM; OIL HYDRO BRAKE BOOSTER(7QQ) (B)	8-97306-217-0	01	1	1302-	●		●
44	04.651 CAP; OIL TANK (A)	8-98022-268-0	01	1	1012-	●	●	●
44	04.651 CAP; OIL TANK HYDRO BRAKE BOOSTER(7QQ) 06.635 (B)	8-94146-153-2	01	1	1012-1301			●
44	04.651 CAP; OIL TANK HYDRO BRAKE BOOSTER(7QQ) 06.635 (B)	8-94146-153-2	01	1	1302-	●		●
46	04.651 FILTER; RESERVOIR,BRK (A)	8-98022-269-0	01	1	1012-	●	●	●
46	04.651 FILTER; RESERVOIR,BRK HYDRO BRAKE BOOSTER(7QQ) 06.600 (B)	8-97094-732-0	01	1	1012-1301			●
46	04.651 FILTER; RESERVOIR,BRK HYDRO BRAKE BOOSTER(7QQ) 06.600 (B)	8-97094-732-0	01	1	1302-	●		●
48	04.651 BOLT; OIL TANK TO BRKT 08.077 (A) M6X20 W/PL WASHER	8-97370-668-0	01	1	1012-	●	●	●
48	04.651 BOLT; OIL TANK TO BRKT HYDRO BRAKE BOOSTER(7QQ) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1012-1301			●
48	04.651 BOLT; OIL TANK TO BRKT HYDRO BRAKE BOOSTER(7QQ) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1302-	●		●
98	04.634 NUT; BRKT HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE	0-91180-108-0	03	1	1012-1301			●
98	04.634 NUT; BRKT HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE	0-91180-108-0	03	1	1302-	●		●
163	04.651 COVER; OIL TANK HYDRO BRAKE BOOSTER(7QQ)	8-97164-749-1	01	1	1012-1301			●
163	04.651 COVER; OIL TANK HYDRO BRAKE BOOSTER(7QQ)	8-97164-749-1	01	1	1302-	●		●
185	04.634 BOLT; BRKT 07.833 (A) M10X25 FLANGE	0-28661-025-0	02	1	1012-	●	●	●
185	04.634 BOLT; BRKT 00.833 (B) M10X22 W/PL WASHER	8-97313-188-0	02	1	1012-	●	●	●
185	04.634 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 06.216 (C) M8X25 FLANGE	0-28650-825-0	04	1	1012-1301			●
185	04.634 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 06.216 (C) M8X25 FLANGE	0-28650-825-0	04	1	1302-	●		●
197	04.634 BRACKET; OIL TANK HYDRO BRAKE BOOSTER(7QQ) (A)	8-97173-342-2	01	1	1012-1301			●
197	04.634 BRACKET; OIL TANK HYDRO BRAKE BOOSTER(7QQ) (A)	8-97173-342-2	01	1	1302-	●		●
197	04.634 BRACKET; OIL TANK HYDRO BRAKE BOOSTER(7QQ) (B)	8-97333-555-2	01	1	1012-1301			●
197	04.634 BRACKET; OIL TANK HYDRO BRAKE BOOSTER(7QQ) (B)	8-97333-555-2	01	1	1302-	●		●
200	04.634 NUT; BRKT HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1301			●
200	04.634 NUT; BRKT HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1302-	●		●
203	04.634 WASHER; PL,OIL TANK HYDRO BRAKE BOOSTER(7QQ) 04.595 ID=8.4 OD=22	0-91610-708-0	02	1	1012-1301			●
203	04.634 WASHER; PL,OIL TANK HYDRO BRAKE BOOSTER(7QQ) 04.595 ID=8.4 OD=22	0-91610-708-0	02	1	1302-	●		●

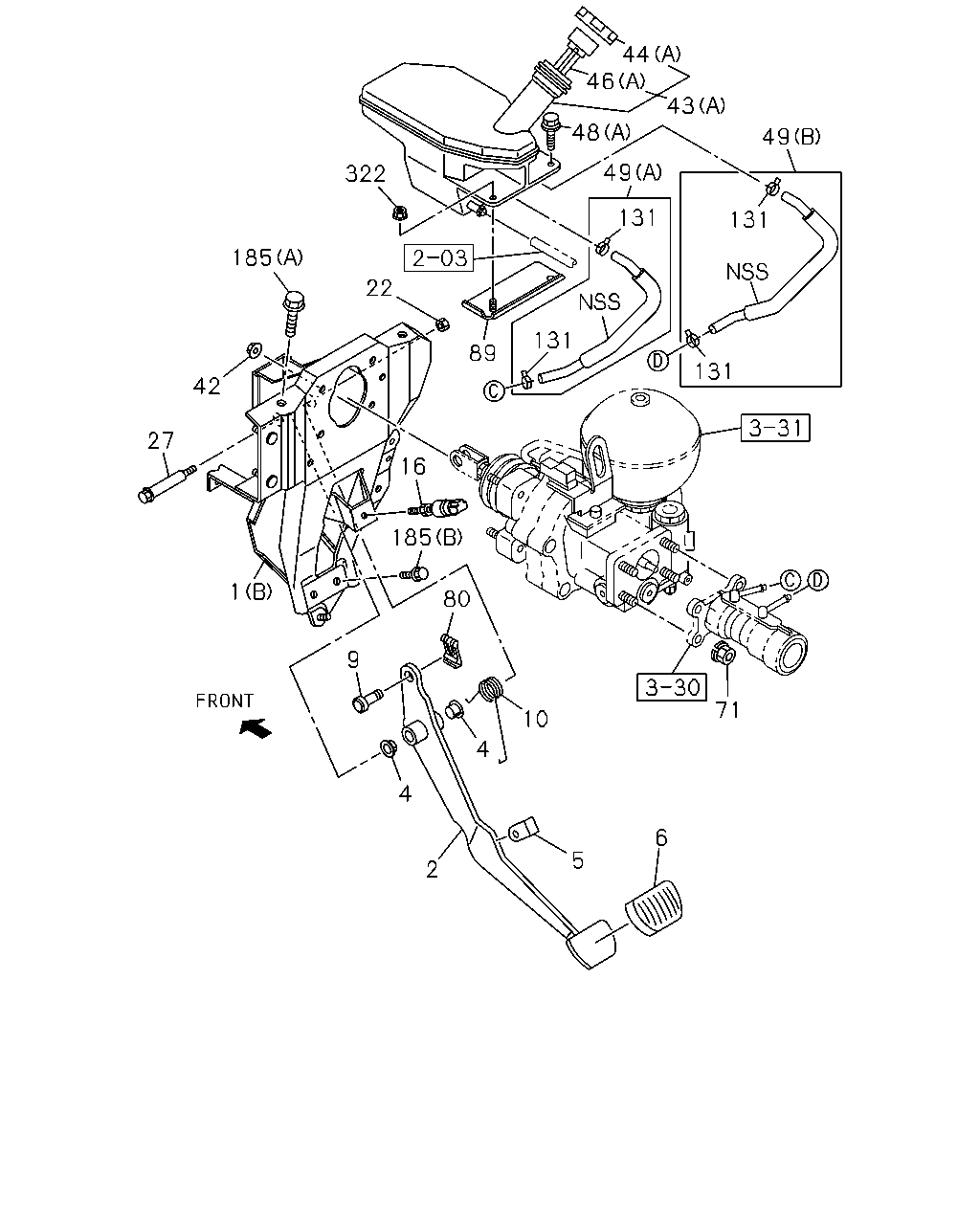

44 46 43 48 49 49 322 131 131 185 22 1 42 131 89 131 27 16 185 9 80 71 10 4 4 6 5 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.634 BRACKET ASM; PEDAL (A)	8-98029-185-1	01	1	1012-1301	●	●
1	04.634 BRACKET ASM; PEDAL EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98029-185-1	01	1	1012-1301			●
1	04.634 BRACKET ASM; PEDAL EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98029-185-1	01	1	1302-	●		●
1	04.634 BRACKET ASM; PEDAL (A)	8-98029-185-1	01	1	1302-		●
1	04.634 BRACKET ASM; PEDAL HYDRO BRAKE BOOSTER(7QQ) (B)	8-98091-563-0	01	1	1012-1301			●
1	04.634 BRACKET ASM; PEDAL HYDRO BRAKE BOOSTER(7QQ) (B)	8-98091-563-0	01	1	1302-	●		●
2	04.625 PEDAL; BRK	8-98003-157-0	01	1	1012-1301	●	●
2	04.625 PEDAL; BRK EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98003-157-0	01	1	1012-1301			●
2	04.625 PEDAL; BRK EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98003-157-0	01	1	1302-	●		●
2	04.625 PEDAL; BRK	8-98003-157-0	01	1	1302-		●
2	04.625 PEDAL; BRK HYDRO BRAKE BOOSTER(7QQ)	8-98011-432-0	01	1	1012-1301			●
2	04.625 PEDAL; BRK HYDRO BRAKE BOOSTER(7QQ)	8-98011-432-0	01	1	1302-	●		●
4	04.634 BUSHING; BRK PEDAL 04.792	8-94238-596-0	02	1	1012-	●	●	●
5	04.634 STOPPER; BRK PEDAL	8-98029-187-0	01	1	1012-	●	●	●
6	04.630 COVER; BRK PEDAL 00.829	8-97853-413-2	01	1	1012-	●	●	●
9	04.634 PIN; JAW JOINT	8-98147-657-0	01	1	1012-	●	●	●
10	04.639 SPRING; RETURN,BRK PEDAL	8-97853-212-1	01	1	1012-	●	●	●
16	02.447 SWITCH; STOP LAMP	8-98000-028-0	01	1	1012-	●	●	●
22	04.634 NUT; SHAFT M10 LOCK NUT FLANGE	0-91380-010-0	01	1	1012-	●	●	●
27	04.634 SHAFT; BRK PEDAL	8-97866-667-0	01	1	1012-	●	●	●
42	04.898 NUT; BRK PEDAL 00.777 M8 W/LK WASHER	8-94279-050-0	04	1	1012-	●	●	●
43	04.651 TANK ASM; OIL (A)	8-97387-217-3	01	1	1012-	●	●	●
43	04.651 TANK ASM; OIL HYDRO BRAKE BOOSTER(7QQ) (B)	8-97306-217-0	01	1	1012-1301			●
43	04.651 TANK ASM; OIL HYDRO BRAKE BOOSTER(7QQ) (B)	8-97306-217-0	01	1	1302-	●		●
44	04.651 CAP; OIL TANK (A)	8-98022-268-0	01	1	1012-	●	●	●
44	04.651 CAP; OIL TANK HYDRO BRAKE BOOSTER(7QQ) 06.635 (B)	8-94146-153-2	01	1	1012-1301			●
44	04.651 CAP; OIL TANK HYDRO BRAKE BOOSTER(7QQ) 06.635 (B)	8-94146-153-2	01	1	1302-	●		●
46	04.651 FILTER; RESERVOIR,BRK (A)	8-98022-269-0	01	1	1012-	●	●	●
46	04.651 FILTER; RESERVOIR,BRK HYDRO BRAKE BOOSTER(7QQ) 06.600 (B)	8-97094-732-0	01	1	1012-1301			●
46	04.651 FILTER; RESERVOIR,BRK HYDRO BRAKE BOOSTER(7QQ) 06.600 (B)	8-97094-732-0	01	1	1302-	●		●
48	04.651 BOLT; OIL TANK TO BRKT 08.077 (A) M6X20 W/PL WASHER	8-97370-668-0	01	1	1012-	●	●	●
48	04.651 BOLT; OIL TANK TO BRKT HYDRO BRAKE BOOSTER(7QQ) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1012-1301			●
48	04.651 BOLT; OIL TANK TO BRKT HYDRO BRAKE BOOSTER(7QQ) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1302-	●		●
49	04.680 HOSE; OIL TANK TO BRK M/CYL (A)	8-97387-666-1	01	1	1012-	●	●	●
49	04.680 HOSE; OIL TANK TO BRK M/CYL (B)	8-97387-667-1	01	1	1012-	●	●	●
71	04.650 NUT; BRK M/CYL 00.777 M8 W/LK WASHER	8-94279-050-0	04	1	1012-	●	●	●
80	04.634 PIN; SNAP,BRK PEDAL 00.833	8-98007-161-0	01	1	1012-	●	●	●
89	04.901 BRACKET; M/CYL	8-98014-337-1	01	1	1012-	●	●	●
131	04.681 CLIP; RUBBER HOSE,OIL TANK TO BR	8-98031-178-0	04	1	1012-	●	●	●
185	04.634 BOLT; BRKT 07.833 (A) M10X25 FLANGE	0-28661-025-0	02	1	1012-	●	●	●
185	04.634 BOLT; BRKT 00.833 (B) M10X22 W/PL WASHER	8-97313-188-0	02	1	1012-	●	●	●
185	04.634 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 06.216 (C) M8X25 FLANGE	0-28650-825-0	04	1	1012-1301			●
185	04.634 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 06.216 (C) M8X25 FLANGE	0-28650-825-0	04	1	1302-	●		●
322	04.651 NUT; OIL TANK 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-	●	●	●
