0-12B — CYLINDER BLOCK (#5473) — 110 parça

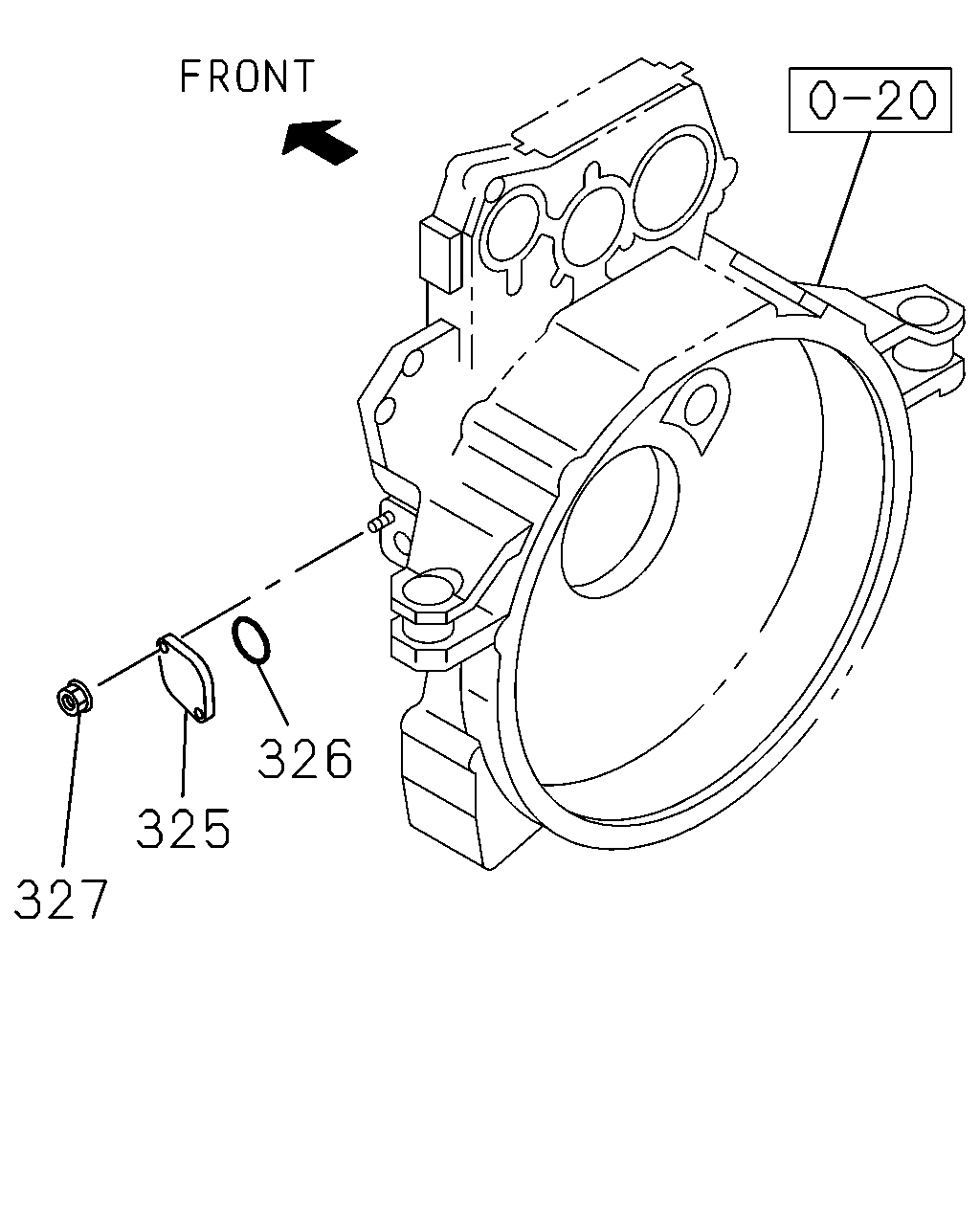

çizim 10519
326 325 327
BalonParca AdiParca NoAdetTipApplied Date A B
325 COVER; OIL FILTER HOLE 1-11749-074-0 01 1 9603-9904 ●
325 COVER; OIL FILTER HOLE 1-11749-074-1 01 1 9905- ● ●
326 GASKET; COVER,OIL FILTER HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7 		1-09623-416-0 01 1 9603-9904 ●
326 GASKET; COVER,OIL FILTER HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7 		1-09623-416-0 01 1 9905- ● ●
327 NUT; COVER,OIL FILTER HOLE
M10 FLANGE 		0-91150-110-0 02 1 9603-9904 ●
327 NUT; COVER,OIL FILTER HOLE
M10 FLANGE 		0-91150-110-0 02 1 9905- ● ●

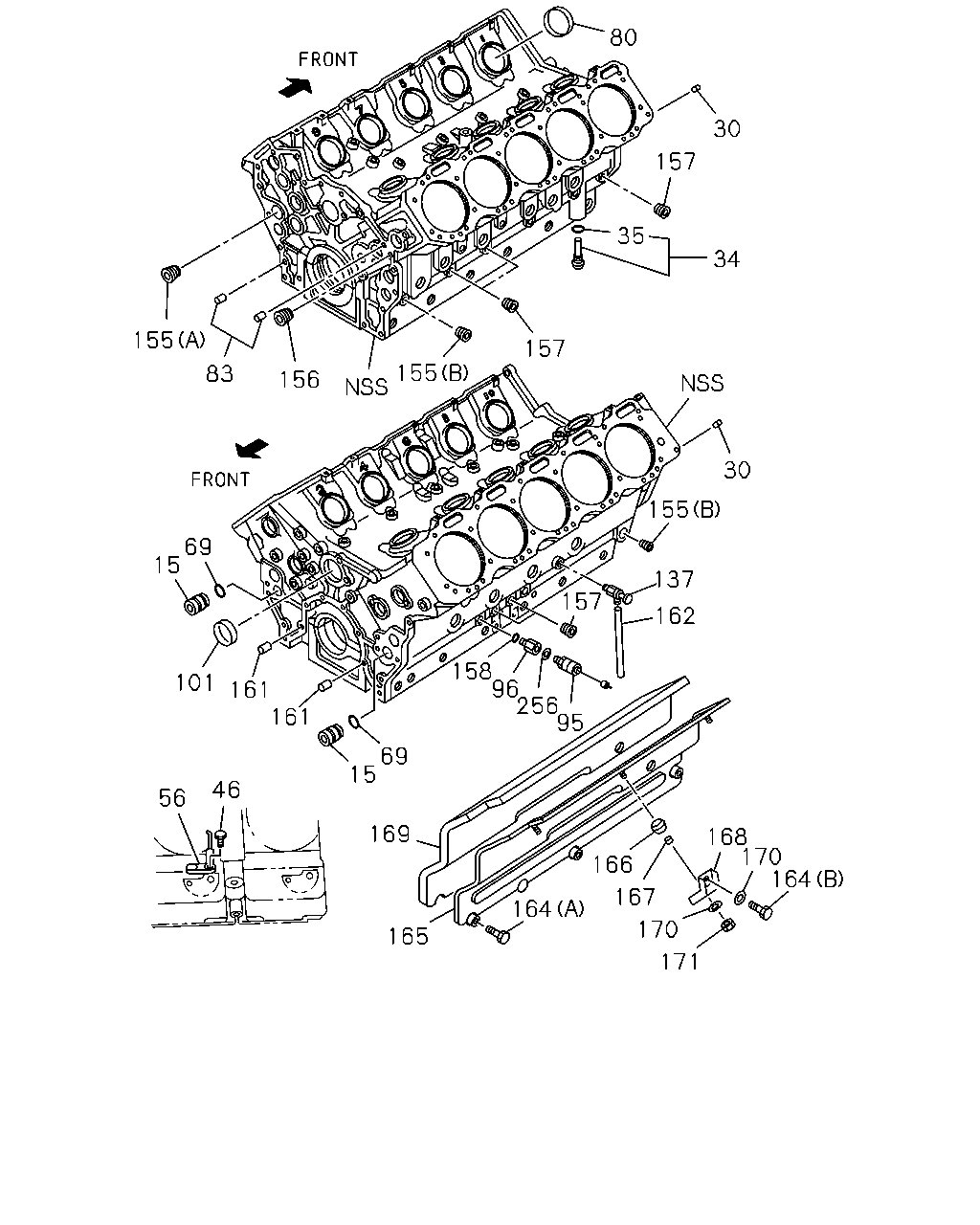

çizim 10523
80 30 157 35 34 155 157 155 83 156 30 155 157 69 15 137 162 158 96 256 95 101 161 161 69 15 46 56 169 168 170 164 166 167 164 170 165 171
BalonParca AdiParca NoAdetTipApplied Date A B
15 PLUG; OIL GALLERY
M30X20 		1-09609-019-0 02 1 9603-9904 ●
15 PLUG; OIL GALLERY
M30X20 		1-09609-019-0 02 1 9905- ● ●
30 PIN; CYL HD GASKET SETTING
OD=8 L=16 		9-08150-816-0 04 1 9603-9904 ●
30 PIN; CYL HD GASKET SETTING
OD=8 L=16 		9-08150-816-0 04 1 9905- ● ●
34 VALVE; OIL RELIEF 1-13160-025-0 01 1 9603-9904 ●
34 VALVE; OIL RELIEF 1-13160-025-0 01 1 9905- ● ●
35 GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-145-0 01 1 9603-9904 ●
35 GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-145-0 01 1 9905- ● ●
46 BOLT; JOINT,OIL JET,PISTON COOLING 1-13349-036-1 10 1 9603-9904 ●
46 BOLT; JOINT,OIL JET,PISTON COOLING 1-13349-036-1 10 1 9905- ● ●
56 JET; OIL,PISTON COOLING 1-13342-135-0 10 1 9603-9904 ●
56 JET; OIL,PISTON COOLING 1-13342-135-1 10 1 9905- ● ●
69 GASKET; PLUG,OIL GALLERY,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8 		1-09623-415-0 02 1 9603-9904 ●
69 GASKET; PLUG,OIL GALLERY,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8 		1-09623-415-0 02 1 9905- ● ●
80 CUP; SEALING,TAPPET CHAMBER
OD=62 		1-09600-021-0 10 1 9603-9904 ●
80 CUP; SEALING,TAPPET CHAMBER
OD=62 		1-09600-021-1 10 1 9905- ● ●
83 PIN; FLYWHEEL HSG 1-09740-036-0 02 1 9603-9904 ●
83 PIN; FLYWHEEL HSG 1-09740-036-0 02 1 9905- ● ●
95 PRESSURE UNIT; OIL 1-83151-042-0 01 1 9603-9810 ●
95 PRESSURE UNIT; OIL 1-83151-042-0 01 1 9811-9904 ●
95 PRESSURE UNIT; OIL 1-83151-042-0 01 1 9905- ● ●
96 ADAPTER; PRESS UNIT & SW 8-94390-391-0 01 1 9603-9904 ●
96 ADAPTER; PRESS UNIT & SW 8-94390-391-0 01 1 9905- ● ●
101 CUP; SEALING CAM END 1-09600-022-0 01 1 9603-9904 ●
101 CUP; SEALING CAM END 1-09600-022-1 01 1 9905- ● ●
137 COCK; DRAIN,WATER 1-09680-055-1 01 1 9603-9904 ●
137 COCK; DRAIN,WATER 1-09680-055-1 01 1 9905- ● ●
155 PLUG; OIL GALLERY END
(B) PT3/4 		1-09605-020-0 02 1 9603-9904 ●
155 PLUG; OIL GALLERY END
(B) PT3/4 		1-09605-020-0 02 1 9905- ● ●
155 PLUG; OIL GALLERY END
(A) PT1 		1-09605-021-0 02 1 9603-9904 ●
155 PLUG; OIL GALLERY END
(A) PT1 		1-09605-021-0 02 1 9905- ● ●
156 PLUG; IDLE GEAR
PT1/4 		1-09605-019-0 02 1 9603-9904 ●
156 PLUG; IDLE GEAR
PT1/4 		1-09605-019-0 02 1 9905- ● ●
157 PLUG; OIL GALLERY SIDE
PT1/4 		1-09605-019-0 08 1 9603-9904 ●
157 PLUG; OIL GALLERY SIDE
PT1/4 		1-09605-019-0 08 1 9905- ● ●
158 GASKET; OIL PRESS UNIT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25 		1-09630-141-0 01 1 9603-9904 ●
158 GASKET; OIL PRESS UNIT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25 		1-09630-141-0 01 1 9905- ● ●
161 DOWEL; FRT COVER 1-11229-012-1 02 1 9603-9904 ●
161 DOWEL; FRT COVER 1-11229-012-1 02 1 9905- ● ●
162 HOSE; WATER DRAIN,C/BL
L=510 SERVICED BY L=10000 		9-09914-701-0 01 1 9603-9904 ●
162 HOSE; WATER DRAIN,C/BL
L=510 SERVICED BY L=10000 		9-09914-701-0 01 1 9905- ● ●
164 BOLT; COVER BLOCK SKIRT
ANTI NOISE EQUIPMENT<SV9> (A) M10X28 FLANGE 		0-28181-028-0 03 1 9603-9904 ●
164 BOLT; COVER BLOCK SKIRT
(A) M10X28 FLANGE 		0-28181-028-0 03 1 9905- ● ●
164 BOLT; COVER BLOCK SKIRT
ANTI NOISE EQUIPMENT<SV9> (B) M10X16 W/LK WASHER 		1-09033-012-0 03 1 9603-9904 ●
164 BOLT; COVER BLOCK SKIRT
(B) M10X16 W/LK WASHER 		1-09033-012-0 03 1 9905- ● ●
165 COVER; C/BL SKIRT
ANTI NOISE EQUIPMENT<SV9> 		1-19381-320-1 01 1 9603-9904 ●
165 COVER; C/BL SKIRT 1-19381-320-1 01 1 9905- ● ●
166 MOUNT; COVER BLOCK SKIRT
ANTI NOISE EQUIPMENT<SV9> 		1-09337-020-0 06 1 9603-9904 ●
166 MOUNT; COVER BLOCK SKIRT 1-09337-020-0 06 1 9905- ● ●
167 TUBE; DIST,SIDE COVER
ANTI NOISE EQUIPMENT<SV9> 		5-23332-003-0 06 1 9603-9904 ●
167 TUBE; DIST,SIDE COVER 5-23332-003-0 06 1 9905- ● ●
168 BRACKET; SIDE COVER
ANTI NOISE EQUIPMENT<SV9> 		1-19386-012-3 03 1 9603-9904 ●
168 BRACKET; SIDE COVER 1-19386-012-3 03 1 9905- ● ●
169 INSULATOR; SIDE COVER
ANTI NOISE EQUIPMENT<SV9> 		1-19389-148-0 01 1 9603-9705 ●
169 INSULATOR; SIDE COVER
ANTI NOISE EQUIPMENT<SV9> 		1-19389-197-0 01 1 9706-9904 ●
169 INSULATOR; SIDE COVER 1-19389-197-0 01 1 9905- ● ●
170 WASHER; COVER
ANTI NOISE EQUIPMENT<SV9> ID=10.5 OD=26 		9-09160-710-0 06 1 9603-9904 ●
170 WASHER; COVER
ID=10.5 OD=26 		9-09160-710-0 06 1 9905- ● ●
171 NUT; COVER & BRKT
ANTI NOISE EQUIPMENT<SV9> M10 		9-09110-410-0 03 1 9603-9904 ●
171 NUT; COVER & BRKT
M10 		9-09110-410-0 03 1 9905- ● ●
256 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 9603-9904 ●
256 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 9905- ● ●

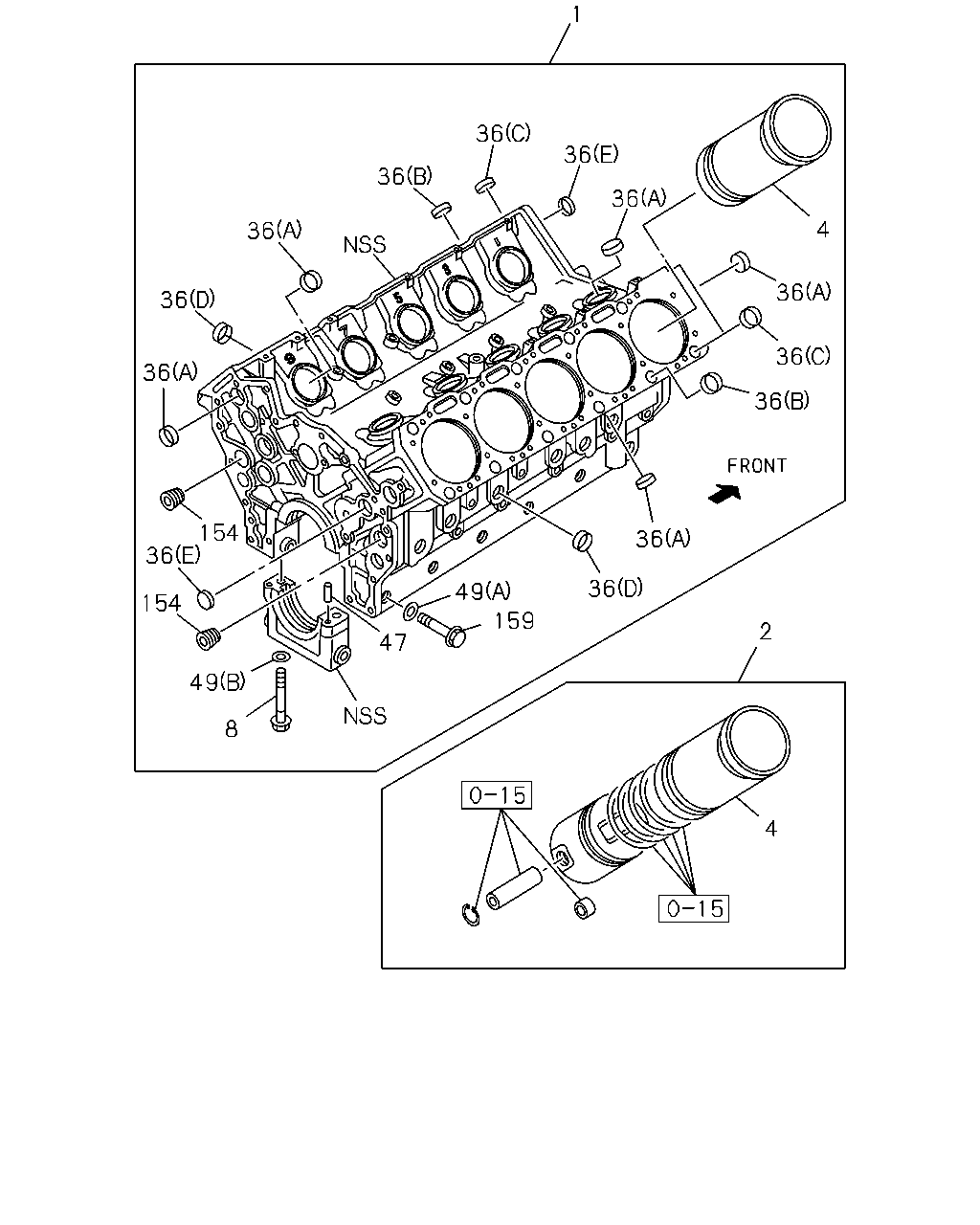

çizim 40452
1 36 36 36 36 4 36 36 36 36 36 36 154 36 36 36 49 154 159 2 47 49 8 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOCK ASM; CYL 1-11210-584-7 01 1 9603-9904 ●
1 BLOCK ASM; CYL 1-11210-584-7 01 1 9905- ● ●
2 LINER SET; ENG CYL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> GRADE=3X 		1-87811-790-0 10 1 9603-9710 ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87811-790-1 10 1 9711-9904 ●
2 LINER SET; ENG CYL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> GRADE=1X 		1-87811-789-0 10 1 9603-9710 ●
2 LINER SET; ENG CYL
GRADE=1X 		1-87811-789-1 10 1 9711-9904 ●
2 LINER SET; ENG CYL
EMISSION SYSTEM ECE REQUIREMENTS<SFV> GRADE=1X 		1-87811-807-0 10 1 9603-9710 ●
2 LINER SET; ENG CYL
GRADE=1X 		1-87811-807-3 10 1 9905- ●
2 LINER SET; ENG CYL
EMISSION SYSTEM ECE REQUIREMENTS<SFV> GRADE=3X 		1-87811-808-0 10 1 9603-9710 ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87811-808-3 10 1 9905- ●
2 LINER SET; ENG CYL
GRADE=1X 		1-87811-789-3 10 1 9905- ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87811-790-3 10 1 9905- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		1-11261-286-0 10 1 9603-9809 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		1-11261-372-0 10 1 9810-9904 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		1-11261-287-0 10 1 9603-9809 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		1-11261-373-0 10 1 9810-9904 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		1-11261-372-1 10 1 9905- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		1-11261-373-1 10 1 9905- ● ●
8 BOLT; BRG CAP
M16X138 		1-09070-040-1 12 1 9603-9902 ●
8 BOLT; BRG CAP
M16X138 		1-09070-140-0 12 1 9903-9904 ●
8 BOLT; BRG CAP
M16X138 		1-09070-140-0 12 1 9905- ● ●
36 CUP; SEALING,WATER JACKET
(A) OD=45 		1-09600-005-1 27 1 9603-9904 ●
36 CUP; SEALING,WATER JACKET
(B) OD=32 		1-09600-012-1 08 1 9603-9904 ●
36 CUP; SEALING,WATER JACKET
(C) OD=25 		1-09600-016-0 14 1 9603-9904 ●
36 CUP; SEALING,WATER JACKET
(D) OD=40 		1-09600-020-0 09 1 9603-9904 ●
36 CUP; SEALING,WATER JACKET
(E) OD=45 		1-09600-058-0 04 1 9603-9904 ●
36 CUP; SEALING,WATER JACKET
(A) OD=45 		1-09600-005-2 27 1 9905- ● ●
36 CUP; SEALING,WATER JACKET
(B) OD=32 		1-09600-012-2 08 1 9905- ● ●
36 CUP; SEALING,WATER JACKET
(C) OD=25 		1-09600-016-0 14 1 9905- ● ●
36 CUP; SEALING,WATER JACKET
(D) OD=40 		1-09600-020-1 09 1 9905- ● ●
36 CUP; SEALING,WATER JACKET
(E) OD=45 		1-09600-058-1 04 1 9905- ● ●
47 PIN; BRG CAP
OD=8 L=16 		9-08150-816-0 02 1 9603-9904 ●
47 PIN; BRG CAP
OD=8 L=16 		9-08150-816-0 02 1 9905- ● ●
49 WASHER; BRG CAP
(A) ID=14.2 		1-09503-050-0 12 1 9603-9904 ●
49 WASHER; BRG CAP
(A) ID=14.2 		1-09503-050-0 12 1 9905- ● ●
49 WASHER; BRG CAP
(B) ID=16.2 		9-09851-672-2 12 1 9603-9904 ●
49 WASHER; BRG CAP
(B) ID=16.2 		9-09851-672-2 12 1 9905- ● ●
154 PLUG; WATER DUCT 1-09605-022-0 02 1 9603-9904 ●
154 PLUG; WATER DUCT 1-09605-022-0 02 1 9905- ● ●
159 BOLT; BRG CAP SIDE FIX
M14X80 FLANGE 		1-09070-034-1 12 1 9603-9810 ●
159 BOLT; BRG CAP SIDE FIX
M14X80 FLANGE 		1-09070-138-0 12 1 9811-9904 ●
159 BOLT; BRG CAP SIDE FIX
M14X80 FLANGE 		1-09070-138-0 12 1 9905- ● ●
