Sayfa 2-85 - Isuzu EPC

2-85 — POWER TAKE OFF CONTROL (#54729) — 201 parça

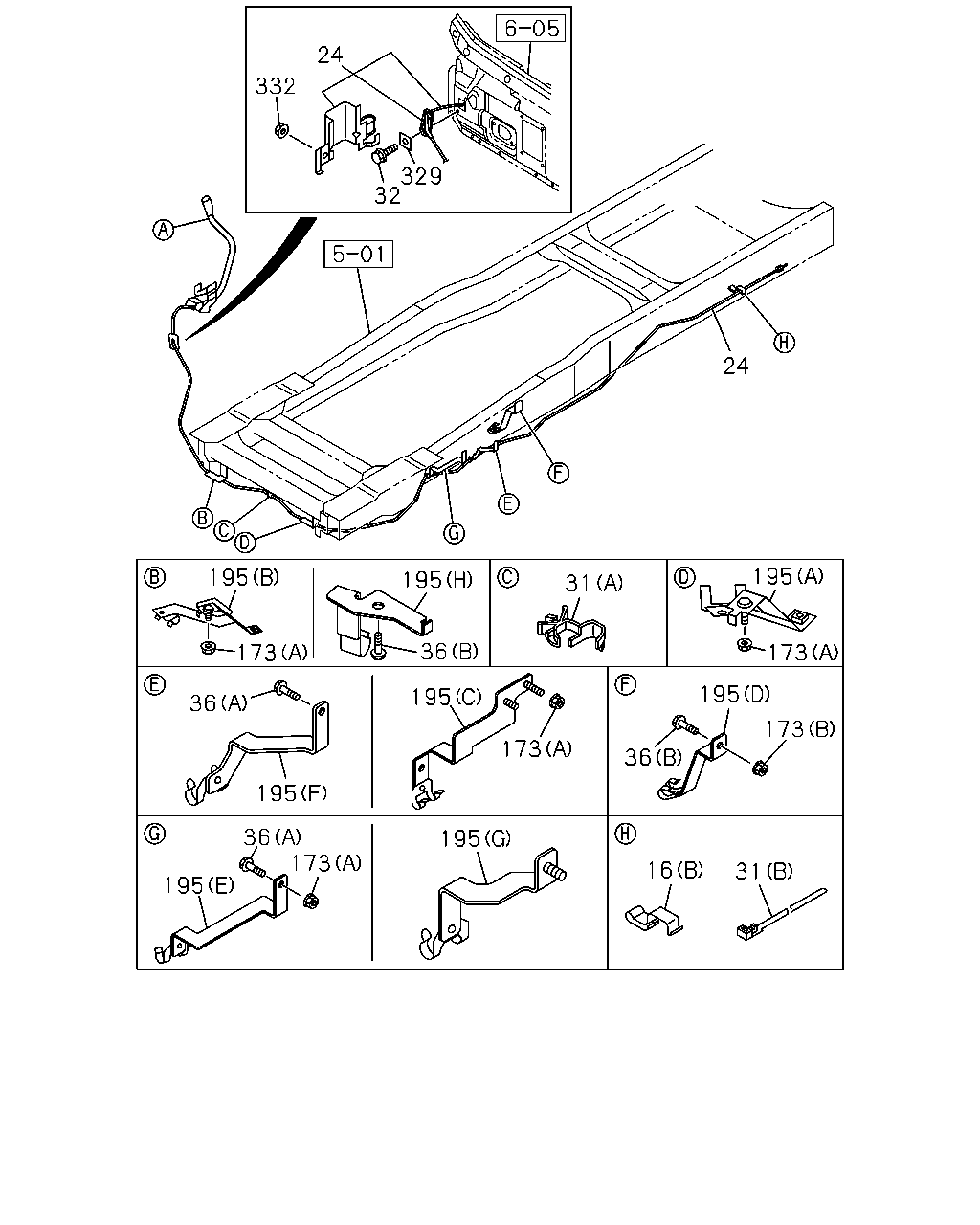

24 332 32 329 24 195 195 31 195 173 36 173 36 195 195 195 173 36 173 36 195 173 195 16 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	04.439 CLIP; CABLE,PTO DUMP CHASSIS(V4D) EXC. FRAME STRAIGHT TYPE<7KJ> 02.525 (B) T=9.2 & 9	5-09709-025-0	02	1	1412-	●	●
16	04.439 CLIP; CABLE,PTO DUMP CHASSIS(V4D) 02.559 (B) T=4.5 & 9	8-97371-947-0	02	1	1012-1411	●	●
16	04.439 CLIP; CABLE,PTO DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> 02.559 (B) T=4.5 & 9	8-97371-947-0	02	1	1412-	●	●
16	04.439 CLIP; CABLE,PTO DUMP CHASSIS(V4D) (A)	8-98050-126-0	01	1	1012-	●	●
16	04.439 CLIP; CABLE,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A)	8-98050-126-0	01	1	1012-	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) FRONT UNDER RUN PROTECTOR<EBE> PTO MANUAL CONTROL(6WC) L=3597	8-98231-936-0	01	1	1302-		●
24	04.439 CABLE; PTO CONT . 4HG1-T ENG(RDP),4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) L=3540	8-98125-320-0	01	1	1012-1207	●
24	04.439 CABLE; PTO CONT . 4HG1-T ENG(RDP),4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) L=3540	8-98223-360-0	01	1	1208-	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) DUMP CHASSIS(V4D) L=4362	8-98115-256-0	01	1	1012-1207		●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) DUMP CHASSIS(V4D) L=4362	8-98223-299-0	01	1	1208-1507		●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) DUMP CHASSIS(V4D) L=4362	8-98328-267-1	01	1	1508-		●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) L=3602	8-98085-642-1	01	1	1012-1207		●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) L=3602	8-98223-352-0	01	1	1208-1301		●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) EXC. FRONT UNDER RUN PROTECTOR<EBE> L=3602	8-98223-352-0	01	1	1302-		●
24	04.439 CABLE; PTO CONT . 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) L=3532	8-98085-640-1	01	1	1012-1207	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) L=3532	8-98223-344-0	01	1	1208-	●	●
24	04.439 CABLE; PTO CONT . 4HG1 ENG(RJH) DUMP CHASSIS(V4D) L=4348	8-98128-391-0	01	1	1012-1207	●
24	04.439 CABLE; PTO CONT . 4HG1 ENG(RJH) DUMP CHASSIS(V4D) L=4348	8-98223-302-0	01	1	1208-1507	●
24	04.439 CABLE; PTO CONT . 4HG1 ENG(RJH) DUMP CHASSIS(V4D) L=4348	8-98328-270-1	01	1	1508-	●
31	04.439 CLIP; BAND,CABLE DUMP CHASSIS(V4D) 02.559 (B) L=250	5-09707-030-1	01	1	1012-	●	●
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 02.559 (B) L=250	5-09707-030-1	01	1	1012-	●	●
31	04.439 CLIP; BAND,CABLE DUMP CHASSIS(V4D) 02.559 (A) ID=16	8-97040-812-0	01	1	1012-	●	●
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 02.559 (A) ID=16	8-97040-812-0	01	1	1012-	●	●
32	04.439 BOLT; CLIP,CABLE DUMP CHASSIS(V4D) M6X16 FLANGE	0-28060-616-0	02	1	1012-	●	●
32	04.439 BOLT; CLIP,CABLE PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) M6X16 FLANGE	0-28060-616-0	02	1	1012-	●	●
36	04.439 BOLT; PTO BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1012-	●	●
36	04.439 BOLT; PTO BRKT DUMP CHASSIS(V4D) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1012-	●	●
36	04.439 BOLT; PTO BRKT 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1012-1301	●	●
36	04.439 BOLT; PTO BRKT 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1302-	●	●
36	04.439 BOLT; PTO BRKT 4HK1-TCN ENG(RDQ) FRONT UNDER RUN PROTECTOR<EBE> DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1302-		●
36	04.439 BOLT; PTO BRKT 4HK1-TCN ENG(RDQ) FRONT UNDER RUN PROTECTOR<EBE> PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1302-		●
173	04.439 NUT; BRKT 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-1411	●	●
173	04.439 NUT; BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) DUMP CHASSIS(V4D) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-1411	●	●
173	04.439 NUT; BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-1411	●	●
173	04.439 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) DUMP CHASSIS(V4D) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-1411	●
173	04.439 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-1411	●
173	04.439 NUT; BRKT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) DUMP CHASSIS(V4D) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1412-	●	●
173	04.439 NUT; BRKT 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) DUMP CHASSIS(V4D) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1412-	●	●
173	04.439 NUT; BRKT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1412-	●	●
173	04.439 NUT; BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1412-	●	●
173	04.439 NUT; BRKT 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-1301	●	●
173	04.439 NUT; BRKT 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1302-	●	●
173	04.439 NUT; BRKT FRONT UNDER RUN PROTECTOR<EBE> DUMP CHASSIS(V4D) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1302-	●	●
173	04.439 NUT; BRKT FRONT UNDER RUN PROTECTOR<EBE> PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1302-	●	●
173	04.439 NUT; BRKT DUMP CHASSIS(V4D) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
195	04.439 BRACKET; CONT CABLE FRONT UNDER RUN PROTECTOR<EBE> DUMP CHASSIS(V4D) (H)	8-98184-311-0	01	1	1302-	●	●
195	04.439 BRACKET; CONT CABLE FRONT UNDER RUN PROTECTOR<EBE> PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (H)	8-98184-311-0	01	1	1302-	●	●
195	04.439 BRACKET; CONT CABLE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) DUMP CHASSIS(V4D) (A)	8-98102-495-1	01	1	1012-1301	●	●
195	04.439 BRACKET; CONT CABLE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A)	8-98102-495-1	01	1	1012-1301	●	●
195	04.439 BRACKET; CONT CABLE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) DUMP CHASSIS(V4D) EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98102-495-1	01	1	1302-	●	●
195	04.439 BRACKET; CONT CABLE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) EXC. FRONT UNDER RUN PROTECTOR<EBE>,DUMP CHASSIS(V4D) (A)	8-98102-495-1	01	1	1302-	●	●
195	04.439 BRACKET; CONT CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) DUMP CHASSIS(V4D) (F)	8-98122-800-0	01	1	1012-1301	●
195	04.439 BRACKET; CONT CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (F)	8-98122-800-0	01	1	1012-1301	●
195	04.439 BRACKET; CONT CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) DUMP CHASSIS(V4D) (F)	8-98122-800-0	01	1	1302-	●	●
195	04.439 BRACKET; CONT CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (F)	8-98122-800-0	01	1	1302-	●	●
195	04.439 BRACKET; CONT CABLE 4HK1-TCN ENG(RDQ) FRONT UNDER RUN PROTECTOR<EBE> DUMP CHASSIS(V4D) (F)	8-98122-800-0	01	1	1302-	●	●
195	04.439 BRACKET; CONT CABLE 4HK1-TCN ENG(RDQ) FRONT UNDER RUN PROTECTOR<EBE> PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (F)	8-98122-800-0	01	1	1302-	●	●
195	04.439 BRACKET; CONT CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) DUMP CHASSIS(V4D) (G)	8-98124-679-1	01	1	1012-1301	●
195	04.439 BRACKET; CONT CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (G)	8-98124-679-1	01	1	1012-1301	●
195	04.439 BRACKET; CONT CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) DUMP CHASSIS(V4D) (G)	8-98124-679-1	01	1	1302-	●	●
195	04.439 BRACKET; CONT CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (G)	8-98124-679-1	01	1	1302-	●	●
195	04.439 BRACKET; CONT CABLE 4HK1-TCN ENG(RDQ) FRONT UNDER RUN PROTECTOR<EBE> DUMP CHASSIS(V4D) (G)	8-98124-679-1	01	1	1302-	●	●
195	04.439 BRACKET; CONT CABLE 4HK1-TCN ENG(RDQ) FRONT UNDER RUN PROTECTOR<EBE> PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (G)	8-98124-679-1	01	1	1302-	●	●
195	04.439 BRACKET; CONT CABLE 4HK1-TCN ENG(RDQ) DUMP CHASSIS(V4D) (E)	8-98102-494-0	01	1	1012-1301		●
195	04.439 BRACKET; CONT CABLE 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (E)	8-98102-494-0	01	1	1012-1301		●
195	04.439 BRACKET; CONT CABLE 4HK1-TCN ENG(RDQ) DUMP CHASSIS(V4D) EXC. FRONT UNDER RUN PROTECTOR<EBE> (E)	8-98102-494-0	01	1	1302-		●
195	04.439 BRACKET; CONT CABLE 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) EXC. FRONT UNDER RUN PROTECTOR<EBE>,DUMP CHASSIS(V4D) (E)	8-98102-494-0	01	1	1302-		●
195	04.439 BRACKET; CONT CABLE 4JJ1-TCC ENG(RDU) DUMP CHASSIS(V4D) (D)	8-98101-144-0	01	1	1012-	●	●
195	04.439 BRACKET; CONT CABLE 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (D)	8-98101-144-0	01	1	1012-	●	●
195	04.439 BRACKET; CONT CABLE 4JJ1-TCC ENG(RDU) DUMP CHASSIS(V4D) (C)	8-98101-145-0	01	1	1012-	●	●
195	04.439 BRACKET; CONT CABLE 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (C)	8-98101-145-0	01	1	1012-	●	●
195	04.439 BRACKET; CONT CABLE 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) (A)	8-98049-570-1	01	1	1012-1301	●	●
195	04.439 BRACKET; CONT CABLE 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) (A)	8-98049-570-1	01	1	1302-	●	●
195	04.439 BRACKET; CONT CABLE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRONT UNDER RUN PROTECTOR<EBE> DUMP CHASSIS(V4D) (A)	8-98049-570-1	01	1	1302-	●	●
195	04.439 BRACKET; CONT CABLE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRONT UNDER RUN PROTECTOR<EBE> PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A)	8-98049-570-1	01	1	1302-	●	●
195	04.439 BRACKET; CONT CABLE DUMP CHASSIS(V4D) (B)	8-98098-618-0	01	1	1012-1301	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B)	8-98098-618-0	01	1	1012-1301	●	●
195	04.439 BRACKET; CONT CABLE DUMP CHASSIS(V4D) EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98098-618-0	01	1	1302-	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. FRONT UNDER RUN PROTECTOR<EBE>,DUMP CHASSIS(V4D) (B)	8-98098-618-0	01	1	1302-	●	●
329	16.520 SEAL DUMP CHASSIS(V4D) 08.845	8-97856-616-0	02	1	1012-	●	●
329	16.520 SEAL PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 08.845	8-97856-616-0	02	1	1012-	●	●
332	04.439 NUT; PTO CONT CABLE DUMP CHASSIS(V4D) 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-	●	●
332	04.439 NUT; PTO CONT CABLE PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-	●	●

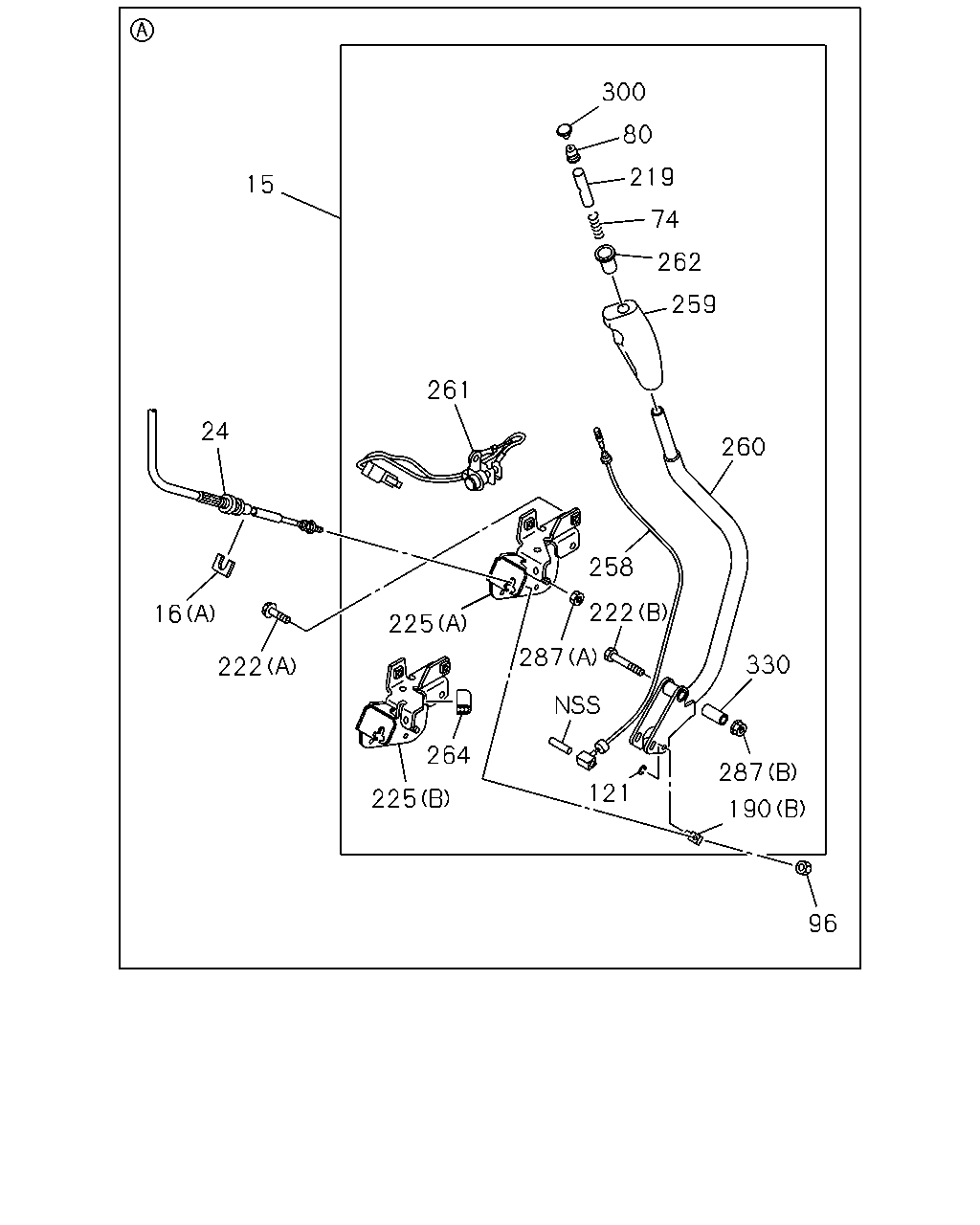

15 24 261 16 222 225 225 264 287 121 287 190 96 330 222 258 260 259 262 74 219 80 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	04.439 LEVER ASM; PTO CONT DUMP CHASSIS(V4D)	8-98029-208-7	01	1	1012-1204	●	●
15	04.439 LEVER ASM; PTO CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98029-208-7	01	1	1012-1204	●	●
15	04.439 LEVER ASM; PTO CONT DUMP CHASSIS(V4D)	8-98199-362-0	01	1	1205-	●	●
15	04.439 LEVER ASM; PTO CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98199-362-0	01	1	1205-	●	●
16	04.439 CLIP; CABLE,PTO DUMP CHASSIS(V4D) EXC. FRAME STRAIGHT TYPE<7KJ> 02.525 (B) T=9.2 & 9	5-09709-025-0	02	1	1412-	●	●
16	04.439 CLIP; CABLE,PTO DUMP CHASSIS(V4D) 02.559 (B) T=4.5 & 9	8-97371-947-0	02	1	1012-1411	●	●
16	04.439 CLIP; CABLE,PTO DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> 02.559 (B) T=4.5 & 9	8-97371-947-0	02	1	1412-	●	●
16	04.439 CLIP; CABLE,PTO DUMP CHASSIS(V4D) (A)	8-98050-126-0	01	1	1012-	●	●
16	04.439 CLIP; CABLE,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A)	8-98050-126-0	01	1	1012-	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) FRONT UNDER RUN PROTECTOR<EBE> PTO MANUAL CONTROL(6WC) L=3597	8-98231-936-0	01	1	1302-		●
24	04.439 CABLE; PTO CONT . 4HG1-T ENG(RDP),4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) L=3540	8-98125-320-0	01	1	1012-1207	●
24	04.439 CABLE; PTO CONT . 4HG1-T ENG(RDP),4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) L=3540	8-98223-360-0	01	1	1208-	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) DUMP CHASSIS(V4D) L=4362	8-98115-256-0	01	1	1012-1207		●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) DUMP CHASSIS(V4D) L=4362	8-98223-299-0	01	1	1208-1507		●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) DUMP CHASSIS(V4D) L=4362	8-98328-267-1	01	1	1508-		●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) L=3602	8-98085-642-1	01	1	1012-1207		●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) L=3602	8-98223-352-0	01	1	1208-1301		●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) EXC. FRONT UNDER RUN PROTECTOR<EBE> L=3602	8-98223-352-0	01	1	1302-		●
24	04.439 CABLE; PTO CONT . 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) L=3532	8-98085-640-1	01	1	1012-1207	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) L=3532	8-98223-344-0	01	1	1208-	●	●
24	04.439 CABLE; PTO CONT . 4HG1 ENG(RJH) DUMP CHASSIS(V4D) L=4348	8-98128-391-0	01	1	1012-1207	●
24	04.439 CABLE; PTO CONT . 4HG1 ENG(RJH) DUMP CHASSIS(V4D) L=4348	8-98223-302-0	01	1	1208-1507	●
24	04.439 CABLE; PTO CONT . 4HG1 ENG(RJH) DUMP CHASSIS(V4D) L=4348	8-98328-270-1	01	1	1508-	●
74	04.439 SPRING; RETURN,CONT LEVER DUMP CHASSIS(V4D)	8-98029-874-0	01	1	1012-	●	●
74	04.439 SPRING; RETURN,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98029-874-0	01	1	1012-	●	●
80	04.439 COVER; CONT LEVER DUMP CHASSIS(V4D)	8-97122-741-0	01	1	1012-	●	●
80	04.439 COVER; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-97122-741-0	01	1	1012-	●	●
96	04.439 NUT DUMP CHASSIS(V4D) 03.330 M6	0-91110-506-0	01	1	1012-	●	●
96	04.439 NUT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 03.330 M6	0-91110-506-0	01	1	1012-	●	●
121	04.439 RING; SNAP DUMP CHASSIS(V4D) 03.485 ID=4	0-91805-504-0	01	1	1012-	●	●
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 03.485 ID=4	0-91805-504-0	01	1	1012-	●	●
190	04.439 BOSS; LEVER,PTO DUMP CHASSIS(V4D) (B)	8-98029-878-0	01	1	1012-	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B)	8-98029-878-0	01	1	1012-	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.307 (A)	8-94366-842-2	01	1	1012-	●	●
219	04.439 KNOB; LEVER DUMP CHASSIS(V4D)	8-97122-736-0	01	1	1012-	●	●
219	04.439 KNOB; LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-97122-736-0	01	1	1012-	●	●
222	04.439 BOLT; LEVER DUMP CHASSIS(V4D) (B) M8X60	0-10855-860-0	01	1	1012-	●	●
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B) M8X60	0-10855-860-0	01	1	1012-	●	●
222	04.439 BOLT; LEVER DUMP CHASSIS(V4D) 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	1012-1511	●	●
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	1012-1511	●	●
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC),POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	1512-	●	●
225	04.439 BRACKET; CONT LEVER DUMP CHASSIS(V4D) (A)	8-98029-873-3	01	1	1012-1204	●	●
225	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A)	8-98029-873-3	01	1	1012-1204	●	●
225	04.439 BRACKET; CONT LEVER DUMP CHASSIS(V4D) (B)	8-98152-960-1	01	1	1205-	●	●
225	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B)	8-98152-960-1	01	1	1205-	●	●
258	04.439 CABLE; DUMP CONT . DUMP CHASSIS(V4D)	8-98029-877-1	01	1	1012-	●	●
258	04.439 CABLE; DUMP CONT . PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98029-877-1	01	1	1012-	●	●
259	04.439 GRIP; CONT LEVER DUMP CHASSIS(V4D)	8-97141-653-0	01	1	1012-	●	●
259	04.439 GRIP; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-97141-653-0	01	1	1012-	●	●
260	04.439 LEVER; DUMP CONT DUMP CHASSIS(V4D)	8-98030-057-2	01	1	1012-	●	●
260	04.439 LEVER; DUMP CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98030-057-2	01	1	1012-	●	●
261	04.439 SWITCH; DUMP CONT DUMP CHASSIS(V4D)	8-98081-918-0	01	1	1012-	●	●
261	04.439 SWITCH; DUMP CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98081-918-0	01	1	1012-	●	●
262	04.439 RETAINER; SPRING DUMP CHASSIS(V4D)	8-97129-397-0	01	1	1012-	●	●
262	04.439 RETAINER; SPRING PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-97129-397-0	01	1	1012-	●	●
264	04.439 PROTECTOR; EDGE DUMP CHASSIS(V4D)	8-98211-652-0	01	1	1205-	●	●
264	04.439 PROTECTOR; EDGE PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98211-652-0	01	1	1205-	●	●
287	04.439 NUT; SWITCH,CONT LEVER DUMP CHASSIS(V4D) 03.330 (A) M6	0-91110-506-0	01	1	1012-	●	●
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 03.330 (A) M6	0-91110-506-0	01	1	1012-	●	●
287	04.439 NUT; SWITCH,CONT LEVER DUMP CHASSIS(V4D) 01.540 (B) M8 FLANGE	0-91180-208-0	01	1	1012-	●	●
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 01.540 (B) M8 FLANGE	0-91180-208-0	01	1	1012-	●	●
300	04.439 CAP; KNOB DUMP CHASSIS(V4D)	8-97122-740-0	01	1	1012-	●	●
300	04.439 CAP; KNOB PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-97122-740-0	01	1	1012-	●	●
330	04.439 COLOR; DUMP CONT DUMP CHASSIS(V4D)	8-98049-802-0	01	1	1012-	●	●
330	04.439 COLOR; DUMP CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98049-802-0	01	1	1012-	●	●

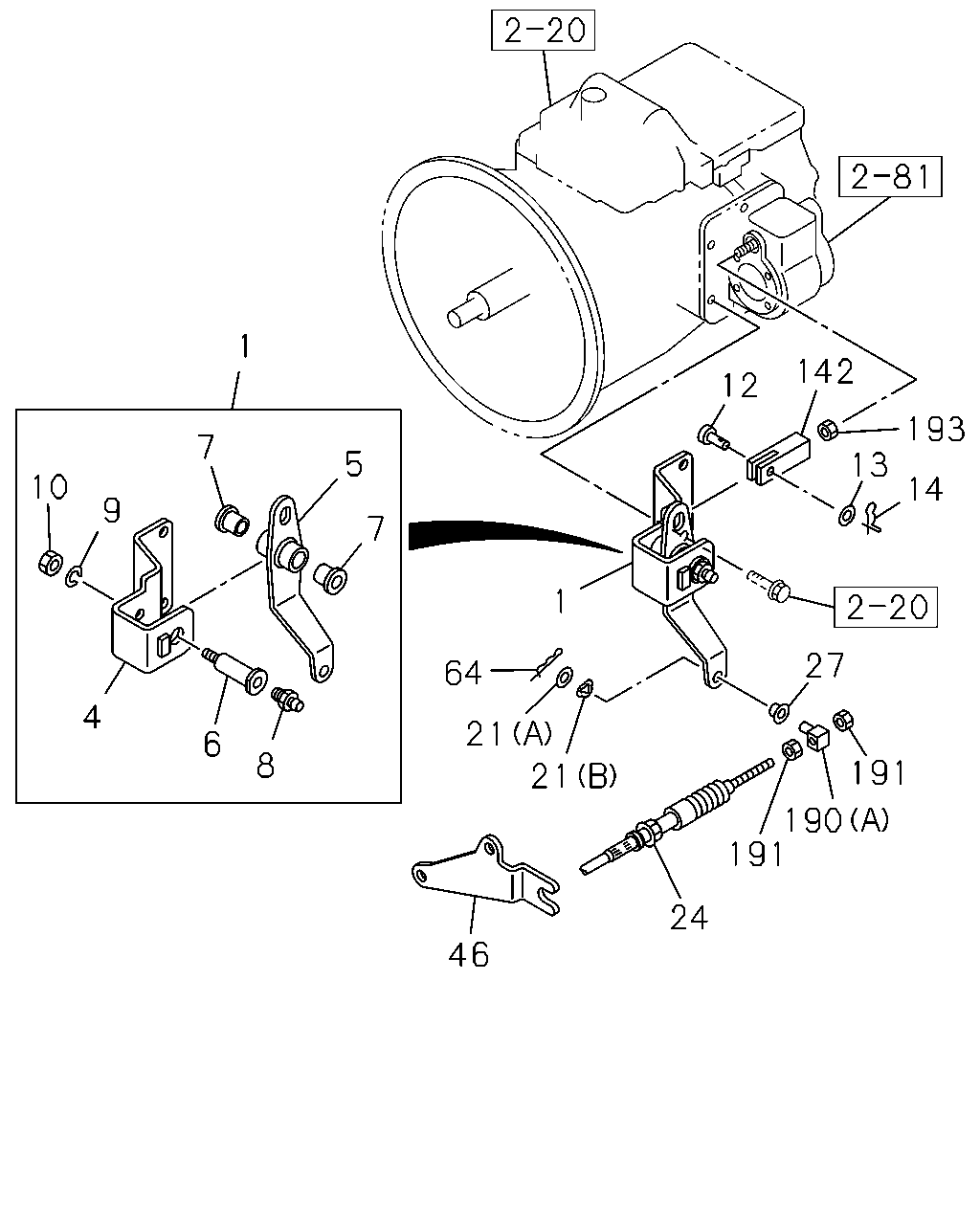

1 142 12 193 7 5 13 10 14 9 7 1 27 64 4 21 6 8 191 21 190 191 24 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98032-714-0	01	1	1012-1107	●	●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98150-089-1	01	1	1108-1301	●	●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-089-1	01	1	1302-	●	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98032-717-0	01	1	1012-1107	●	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98150-099-1	01	1	1108-1301	●	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-099-1	01	1	1302-	●	●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98032-718-0	01	1	1012-1301	●	●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98032-718-0	01	1	1302-	●	●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98032-720-0	01	1	1012-1107	●	●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98150-101-0	01	1	1108-1301	●	●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-101-0	01	1	1302-	●	●
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	5-33659-053-0	02	1	1012-1301	●	●
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	5-33659-053-0	02	1	1302-	●	●
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1012-1301	●	●
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1302-	●	●
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) ID=8.2	0-91510-508-0	01	1	1012-1301	●	●
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=8.2	0-91510-508-0	01	1	1302-	●	●
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.334 M8	0-91110-508-0	01	1	1012-1301	●	●
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 02.334 M8	0-91110-508-0	01	1	1302-	●	●
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98031-692-0	01	1	1012-1301	●	●
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98031-692-0	01	1	1302-	●	●
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) ID=12.5 OD=22	0-91610-512-0	01	1	1012-1301	●	●
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=12.5 OD=22	0-91610-512-0	01	1	1302-	●	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97581-216-0	01	1	1012-1301	●	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97581-216-0	01	1	1302-	●	●
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) 02.277 (A) ID=8.4 OD=22	0-91614-708-0	01	1	1012-	●	●
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) 04.037 (B) ID=8.5 T=0.3	5-09509-001-0	01	1	1012-	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) FRONT UNDER RUN PROTECTOR<EBE> PTO MANUAL CONTROL(6WC) L=3597	8-98231-936-0	01	1	1302-		●
24	04.439 CABLE; PTO CONT . 4HG1-T ENG(RDP),4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) L=3540	8-98125-320-0	01	1	1012-1207	●
24	04.439 CABLE; PTO CONT . 4HG1-T ENG(RDP),4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) L=3540	8-98223-360-0	01	1	1208-	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) DUMP CHASSIS(V4D) L=4362	8-98115-256-0	01	1	1012-1207		●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) DUMP CHASSIS(V4D) L=4362	8-98223-299-0	01	1	1208-1507		●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) DUMP CHASSIS(V4D) L=4362	8-98328-267-1	01	1	1508-		●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) L=3602	8-98085-642-1	01	1	1012-1207		●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) L=3602	8-98223-352-0	01	1	1208-1301		●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) EXC. FRONT UNDER RUN PROTECTOR<EBE> L=3602	8-98223-352-0	01	1	1302-		●
24	04.439 CABLE; PTO CONT . 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) L=3532	8-98085-640-1	01	1	1012-1207	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) L=3532	8-98223-344-0	01	1	1208-	●	●
24	04.439 CABLE; PTO CONT . 4HG1 ENG(RJH) DUMP CHASSIS(V4D) L=4348	8-98128-391-0	01	1	1012-1207	●
24	04.439 CABLE; PTO CONT . 4HG1 ENG(RJH) DUMP CHASSIS(V4D) L=4348	8-98223-302-0	01	1	1208-1507	●
24	04.439 CABLE; PTO CONT . 4HG1 ENG(RJH) DUMP CHASSIS(V4D) L=4348	8-98328-270-1	01	1	1508-	●
27	04.439 BUSHING; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.042	8-94367-367-0	01	1	1012-	●	●
46	04.439 BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC)	8-98032-829-2	01	1	1012-	●	●
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO MANUAL CONTROL(6WC) 00.833 L=27.7	8-94111-137-0	01	1	1012-	●	●
142	04.439 CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98031-691-0	01	1	1012-1301	●	●
142	04.439 CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98031-691-0	01	1	1302-	●	●
190	04.439 BOSS; LEVER,PTO DUMP CHASSIS(V4D) (B)	8-98029-878-0	01	1	1012-	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B)	8-98029-878-0	01	1	1012-	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.307 (A)	8-94366-842-2	01	1	1012-	●	●
191	04.439 NUT; BOSS PTO MANUAL CONTROL(6WC) 03.330 M6	0-91110-506-0	02	1	1012-	●	●
193	04.439 NUT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) M12	0-91111-512-0	01	1	1012-1301	●	●
193	04.439 NUT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M12	0-91111-512-0	01	1	1302-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
