Sayfa 2-81 - Isuzu EPC

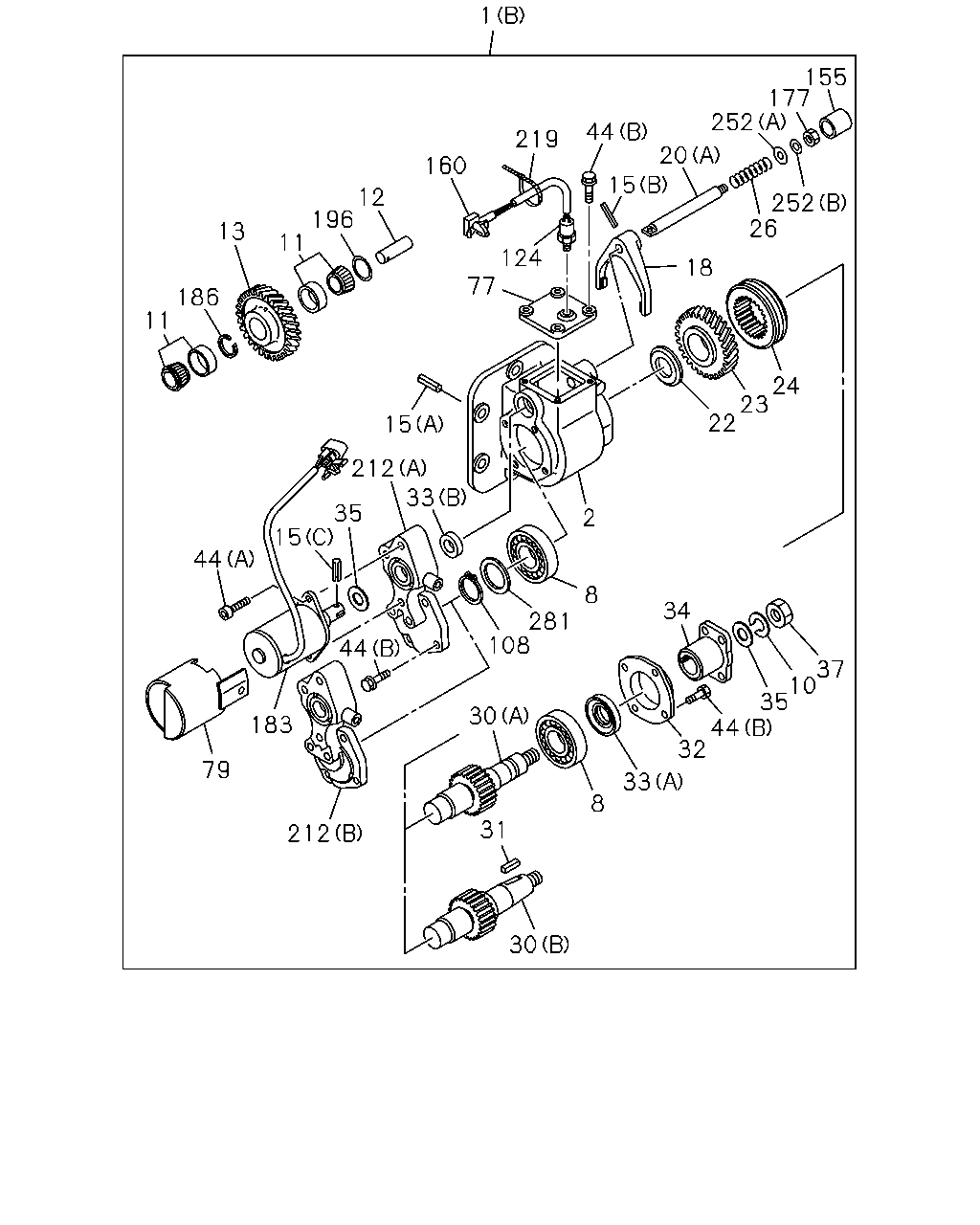

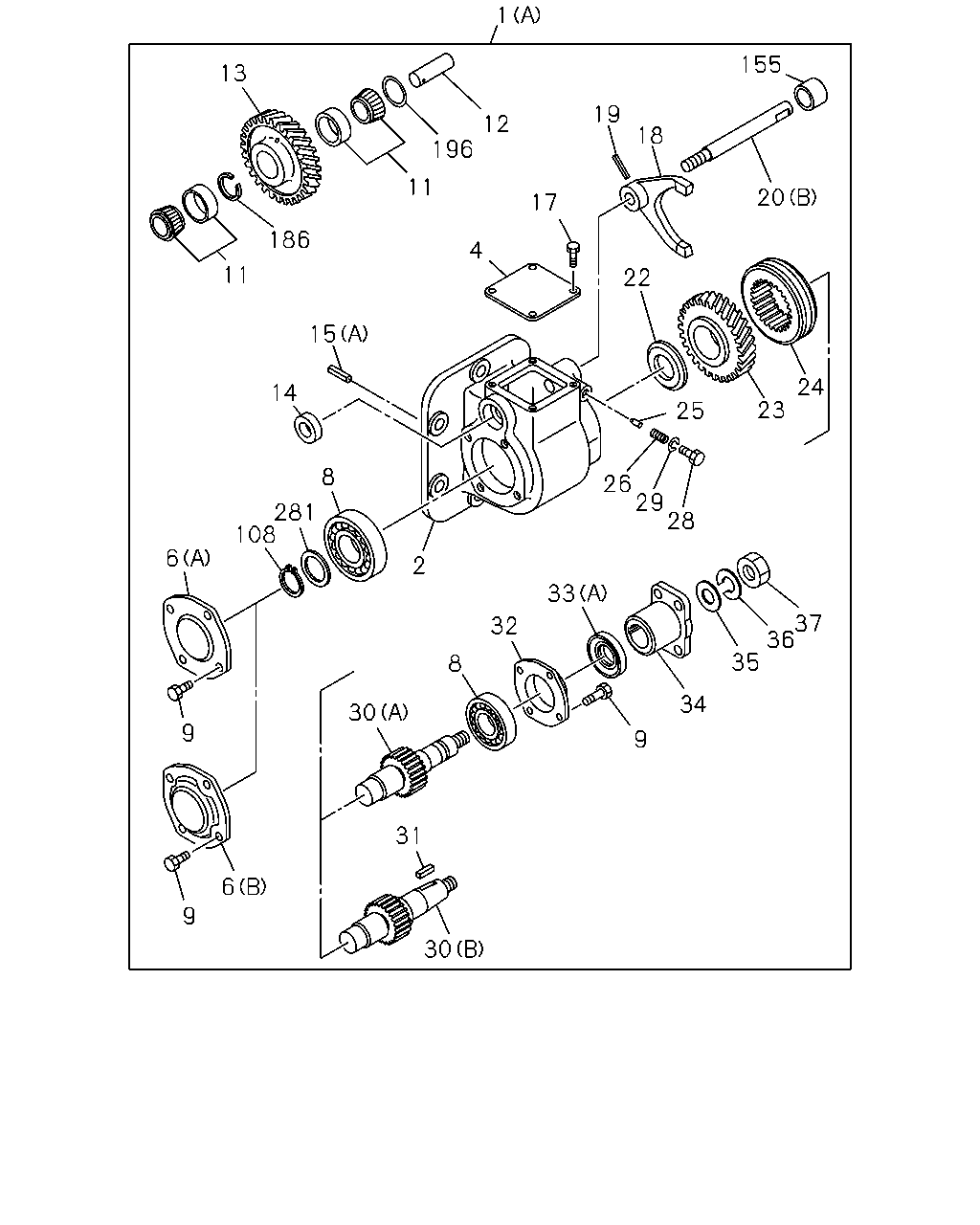

2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#54728) — 153 parça

13 1 12 196 11 186 11 15 14 8 281 108 6 9 6 9 31 30 30 32 8 9 33 34 26 35 29 28 36 25 37 23 24 22 4 17 19 20 18 155 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) IDENTIFICATION=YG	8-97286-908-7	01	1	1012-1210	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) IDENTIFICATION=YG	8-98223-523-0	01	1	1211-1301	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A) IDENTIFICATION=YG	8-98223-523-0	01	1	1302-1305	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A) IDENTIFICATION=YG	8-98233-783-1	01	1	1306-	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) IDENTIFICATION=YT	8-98136-477-1	01	1	1012-1210	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) IDENTIFICATION=YT	8-98223-522-1	01	1	1211-1305	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) IDENTIFICATION=YT	8-98233-785-1	01	1	1306-	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97308-689-2	01	1	1012-1301	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97308-689-2	01	1	1302-1409	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98282-381-0	01	1	1410-	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97308-692-2	01	1	1012-1409	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98282-383-0	01	1	1410-	●	●
4	04.439 COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98046-613-0	01	1	1012-1301	●	●
4	04.439 COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98046-613-0	01	1	1302-	●	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98046-612-0	01	1	1012-1301	●	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A)	8-98046-612-0	01	1	1302-1305	●	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (B)	8-98233-778-0	01	1	1306-	●	●
8	04.439 BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66) ID=25 OD=62	8-94343-031-1	02	1	1012-	●	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.338 M8X20 FLANGE	0-28050-820-0	08	1	1012-1301	●	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 04.338 M8X20 FLANGE	0-28050-820-0	08	1	1302-	●	●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) NSK	8-97106-734-0	02	1	1012-	●	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38211-606-0	01	1	1012-	●	●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=31	8-97308-700-0	01	1	1012-	●	●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98028-789-0	01	1	1012-1301	●	●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98028-789-0	01	1	1302-	●	●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A) L=16	9-09878-613-0	01	1	1012-	●	●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.303 (B) L=25 OD=5	8-94135-771-0	01	1	1012-	●	●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) L=14	8-97175-890-0	01	1	1012-	●	●
17	04.439 BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.338 M8X20 FLANGE	0-28050-820-0	04	1	1012-1301	●	●
17	04.439 BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 04.338 M8X20 FLANGE	0-28050-820-0	04	1	1302-	●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97224-702-0	01	1	1012-1301	●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97224-702-0	01	1	1302-	●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98088-695-0	01	1	1012-	●	●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.303 L=25 OD=5	8-94135-771-0	01	1	1012-1301	●	●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 04.303 L=25 OD=5	8-94135-771-0	01	1	1302-	●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B)	8-98046-623-0	01	1	1012-1301	●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (B)	8-98046-623-0	01	1	1302-	●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-97308-709-1	01	1	1012-	●	●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS PTO TRANSMISSION SIDE(V66)	9-38245-603-1	01	1	1012-	●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=27	8-98120-609-0	01	1	1012-	●	●
24	04.439 SLEEVE; DOG CLU,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97231-316-1	01	1	1012-	●	●
25	04.439 PIN; LK,SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-94169-071-0	01	1	1012-1301	●	●
25	04.439 PIN; LK,SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-94169-071-0	01	1	1302-	●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	9-09940-380-0	01	1	1012-1301	●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	9-09940-380-0	01	1	1302-	●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97175-987-0	01	1	1012-	●	●
28	04.439 BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) M8	8-98038-424-0	01	1	1012-1301	●	●
28	04.439 BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M8	8-98038-424-0	01	1	1302-	●	●
29	04.439 WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.559 ID=8.2	0-91510-808-0	01	1	1012-1301	●	●
29	04.439 WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 02.559 ID=8.2	0-91510-808-0	01	1	1302-	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A)	8-97118-183-1	01	1	1012-1210	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (B)	8-98223-518-0	01	1	1211-1305	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (B)	8-98233-777-0	01	1	1306-	●	●
31	04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=25	8-98068-088-0	01	1	1211-	●	●
32	04.439 COVER; RR,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66)	8-97305-794-0	01	1	1012-	●	●
33	04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66) (A)	1-38159-007-0	01	1	1012-	●	●
33	04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B)	8-98028-789-0	01	1	1012-	●	●
34	04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-98046-624-0	01	1	1012-1210	●	●
34	04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-98223-519-0	01	1	1211-	●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.634 ID=15	0-91610-514-0	01	1	1012-1301	●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 04.634 ID=15	0-91610-514-0	01	1	1302-	●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.634 ID=15	0-91610-514-0	02	1	1012-	●	●
36	04.439 WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 06.174 ID=14.2	0-91510-814-0	01	1	1012-1301	●	●
36	04.439 WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 06.174 ID=14.2	0-91510-814-0	01	1	1302-	●	●
37	04.439 NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 06.515 M14	0-91111-514-0	01	1	1012-	●	●
108	04.439 RING; SNAP,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66) 08.934 ID=23.2	9-09180-025-0	01	1	1306-	●	●
155	04.439 PLUG; SHIFTER ROD PTO TRANSMISSION SIDE(V66)	8-98037-770-0	01	1	1012-	●	●
186	04.439 RING; SNAP,IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-97106-730-0	01	1	1012-	●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.50	8-97106-724-0	02	1	1012-	●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.60	8-97106-725-0	02	1	1012-	●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.65	8-97106-726-0	02	1	1012-	●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.70	8-97106-727-0	02	1	1012-	●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.80	8-97106-728-0	02	1	1012-	●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.85	8-97106-729-0	02	1	1012-	●	●
281	04.439 SHIM; OUTPUT SHAFT PTO TRANSMISSION SIDE(V66) T=1.85	8-97106-729-0	01	1	1306-	●	●

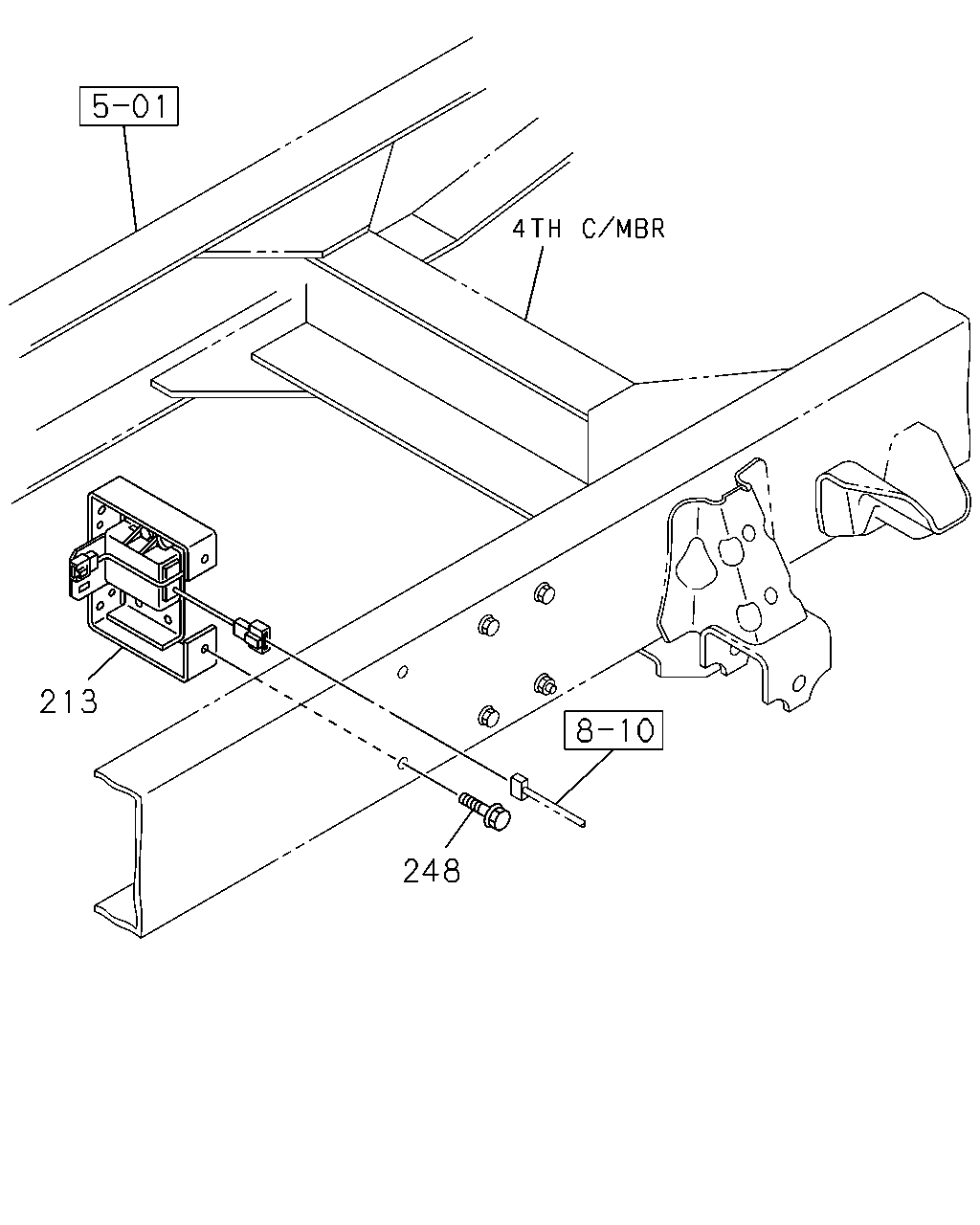

213 248

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
213	04.439 CONTROL UNIT; PTO POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98039-755-2	01	1	1012-1301	●	●
213	04.439 CONTROL UNIT; PTO 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98039-755-2	01	1	1302-1408	●	●
213	04.439 CONTROL UNIT; PTO 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98039-755-2	01	1	1409-1504	●	●
213	04.439 CONTROL UNIT; PTO 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D)	8-98039-755-2	01	1	1409-1504		●
213	04.439 CONTROL UNIT; PTO POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98039-755-2	01	1	1505-	●	●
248	04.439 BOLT; PTO CONT POWER TAKE OFF CONTROL ELECTRIC(7GR) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-1301	●	●
248	04.439 BOLT; PTO CONT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1302-1408	●	●
248	04.439 BOLT; PTO CONT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1409-1504	●	●
248	04.439 BOLT; PTO CONT 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1409-1504		●
248	04.439 BOLT; PTO CONT POWER TAKE OFF CONTROL ELECTRIC(7GR) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1505-	●	●

1 11 186 13 11 196 12 160 219 77 124 44 15 20 252 177 155 252 26 18 15 212 33 35 15 44 44 2 8 281 108 183 79 212 30 22 23 24 31 30 8 33 34 32 44 35 10 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) IDENTIFICATION=YG	8-97286-908-7	01	1	1012-1210	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) IDENTIFICATION=YG	8-98223-523-0	01	1	1211-1301	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A) IDENTIFICATION=YG	8-98223-523-0	01	1	1302-1305	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A) IDENTIFICATION=YG	8-98233-783-1	01	1	1306-	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) IDENTIFICATION=YT	8-98136-477-1	01	1	1012-1210	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) IDENTIFICATION=YT	8-98223-522-1	01	1	1211-1305	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) IDENTIFICATION=YT	8-98233-785-1	01	1	1306-	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97308-689-2	01	1	1012-1301	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97308-689-2	01	1	1302-1409	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98282-381-0	01	1	1410-	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97308-692-2	01	1	1012-1409	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98282-383-0	01	1	1410-	●	●
8	04.439 BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66) ID=25 OD=62	8-94343-031-1	02	1	1012-	●	●
10	04.439 WASHER; OUTPUT SHAFT COVER,SIDE PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 06.174 ID=14.2	0-91510-814-0	01	1	1012-	●	●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) NSK	8-97106-734-0	02	1	1012-	●	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38211-606-0	01	1	1012-	●	●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=31	8-97308-700-0	01	1	1012-	●	●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A) L=16	9-09878-613-0	01	1	1012-	●	●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.303 (B) L=25 OD=5	8-94135-771-0	01	1	1012-	●	●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) L=14	8-97175-890-0	01	1	1012-	●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97224-702-0	01	1	1012-1301	●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97224-702-0	01	1	1302-	●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98088-695-0	01	1	1012-	●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B)	8-98046-623-0	01	1	1012-1301	●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (B)	8-98046-623-0	01	1	1302-	●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-97308-709-1	01	1	1012-	●	●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS PTO TRANSMISSION SIDE(V66)	9-38245-603-1	01	1	1012-	●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=27	8-98120-609-0	01	1	1012-	●	●
24	04.439 SLEEVE; DOG CLU,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97231-316-1	01	1	1012-	●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	9-09940-380-0	01	1	1012-1301	●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	9-09940-380-0	01	1	1302-	●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97175-987-0	01	1	1012-	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A)	8-97118-183-1	01	1	1012-1210	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (B)	8-98223-518-0	01	1	1211-1305	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (B)	8-98233-777-0	01	1	1306-	●	●
31	04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=25	8-98068-088-0	01	1	1211-	●	●
32	04.439 COVER; RR,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66)	8-97305-794-0	01	1	1012-	●	●
33	04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66) (A)	1-38159-007-0	01	1	1012-	●	●
33	04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B)	8-98028-789-0	01	1	1012-	●	●
34	04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-98046-624-0	01	1	1012-1210	●	●
34	04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-98223-519-0	01	1	1211-	●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.634 ID=15	0-91610-514-0	01	1	1012-1301	●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 04.634 ID=15	0-91610-514-0	01	1	1302-	●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.634 ID=15	0-91610-514-0	02	1	1012-	●	●
37	04.439 NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 06.515 M14	0-91111-514-0	01	1	1012-	●	●
44	04.439 BOLT; COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.338 (B) M8X20 FLANGE	0-28050-820-0	15	1	1012-	●	●
44	04.439 BOLT; COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 00.004 (A) M8X16 HEX SOCKET	0-58330-816-0	03	1	1012-	●	●
77	04.439 COVER; OUTPUT,RR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97308-719-0	01	1	1012-	●	●
79	04.439 COVER; DUST,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97308-728-0	01	1	1012-	●	●
108	04.439 RING; SNAP,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66) 08.934 ID=23.2	9-09180-025-0	01	1	1306-	●	●
124	04.439 SWITCH; PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98031-760-1	01	1	1012-	●	●
155	04.439 PLUG; SHIFTER ROD PTO TRANSMISSION SIDE(V66)	8-98037-770-0	01	1	1012-	●	●
160	04.439 CLIP; PTO A/T SIDE PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.559 L=15	8-94315-436-1	01	1	1012-	●	●
177	04.439 NUT; SHIFT ROD PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.334 M8	0-91110-508-0	01	1	1012-	●	●
183	04.439 SOLENOID ASM; PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98136-076-1	01	1	1012-	●	●
186	04.439 RING; SNAP,IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-97106-730-0	01	1	1012-	●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.50	8-97106-724-0	02	1	1012-	●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.60	8-97106-725-0	02	1	1012-	●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.65	8-97106-726-0	02	1	1012-	●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.70	8-97106-727-0	02	1	1012-	●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.80	8-97106-728-0	02	1	1012-	●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.85	8-97106-729-0	02	1	1012-	●	●
212	04.439 ADAPTER; SOLENOID PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-97308-739-0	01	1	1012-1305	●	●
212	04.439 ADAPTER; SOLENOID PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B)	8-98233-779-0	01	1	1306-	●	●
219	04.439 CLIP; CABLE PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97221-218-0	02	1	1012-	●	●
252	04.439 WASHER; PL,SHIFTER ROD PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.417 (B) ID=8.4 OD=16	0-91610-508-0	01	1	1012-	●	●
252	04.439 WASHER; PL,SHIFTER ROD PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-97308-737-1	01	1	1012-	●	●
281	04.439 SHIM; OUTPUT SHAFT PTO TRANSMISSION SIDE(V66) T=1.85	8-97106-729-0	01	1	1306-	●	●
