◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51296 - NPR/NQR-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#54725) — 100 parça

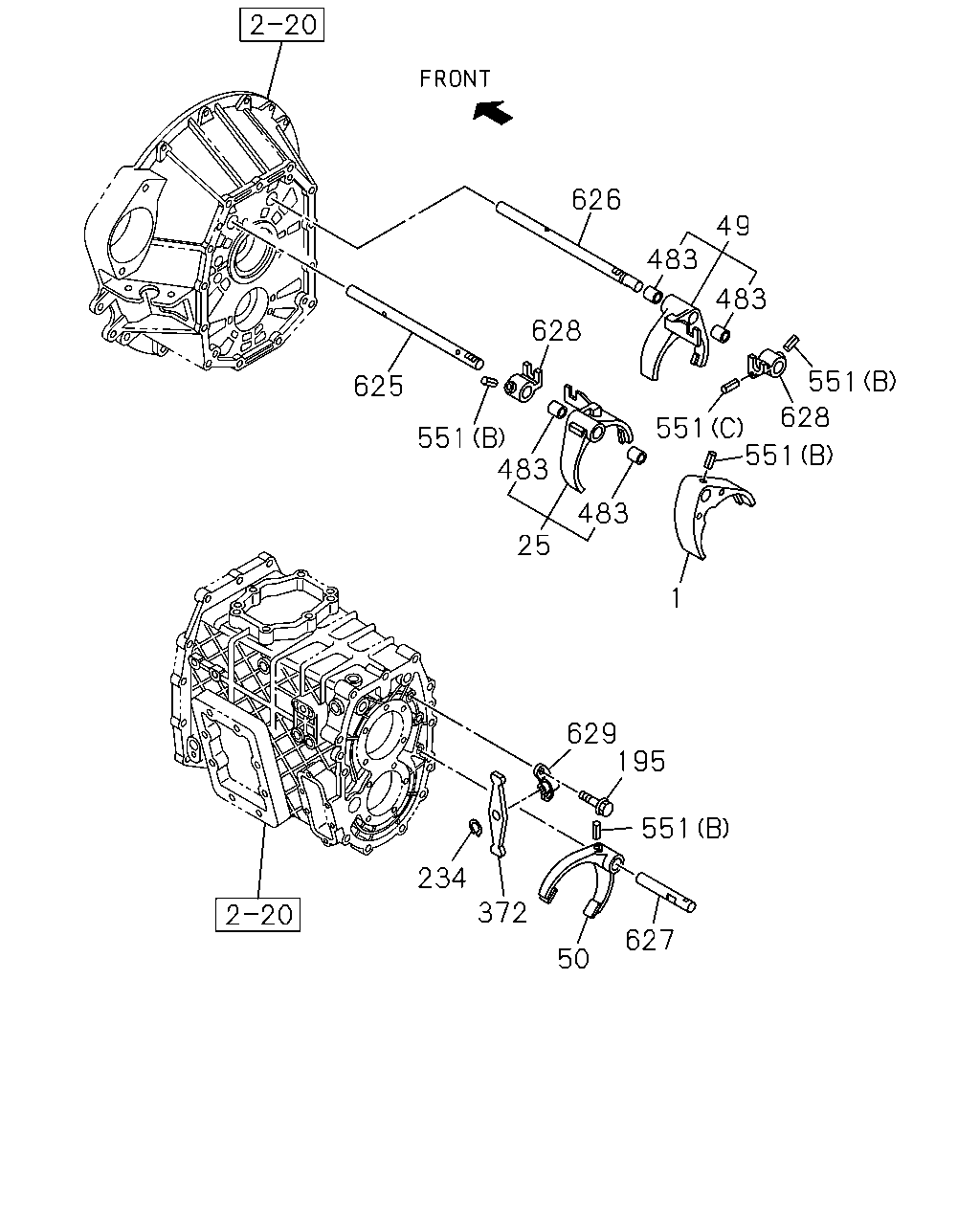

çizim 175625
626 49 483 483 628 551 625 628 551 551 551 483 483 25 1 629 195 551 234 372 627 50
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.302 ARM; SHIFT,1ST & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-320-2 01 1 1012- ● ●
25 04.302 ARM; SHIFT,2ND & 3RD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97362-731-2 01 1 1012-1407 ● ●
25 04.302 ARM; SHIFT,2ND & 3RD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98255-926-1 01 1 1408- ● ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97258-716-0 01 1 1012- ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97362-732-1 01 1 1012- ●
50 04.302 ARM; SHIFT,6TH 8-97241-325-1 01 1 1012- ●
195 04.105 BOLT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1012- ● ●
234 04.311 RING; SNAP
04.307 ID=12 		8-94460-357-0 01 1 1012- ●
234 04.311 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 1012- ●
372 04.302 LEVER; RELAY,6TH 8-97241-343-0 01 1 1012- ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 02 1 1012- ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 02 1 1012- ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.302 (B) L=32 		8-97011-596-2 04 1 1012- ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=20 		8-97241-340-0 01 1 1012- ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1012- ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 01 1 1012- ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97362-741-0 01 1 1012- ● ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH 8-97366-024-1 01 1 1012- ●
627 04.309 ROD; GEAR SHIFT,6TH SUB 8-98119-293-0 01 1 1012- ●
628 04.303 BLOCK; SHIFT,LOW,REV & 6TH 8-97241-327-1 02 1 1012- ●
629 04.555 BRIDGE; LEVER 8-97237-107-1 01 1 1012- ●
629 04.555 BRIDGE; LEVER 8-97241-345-1 01 1 1012- ●

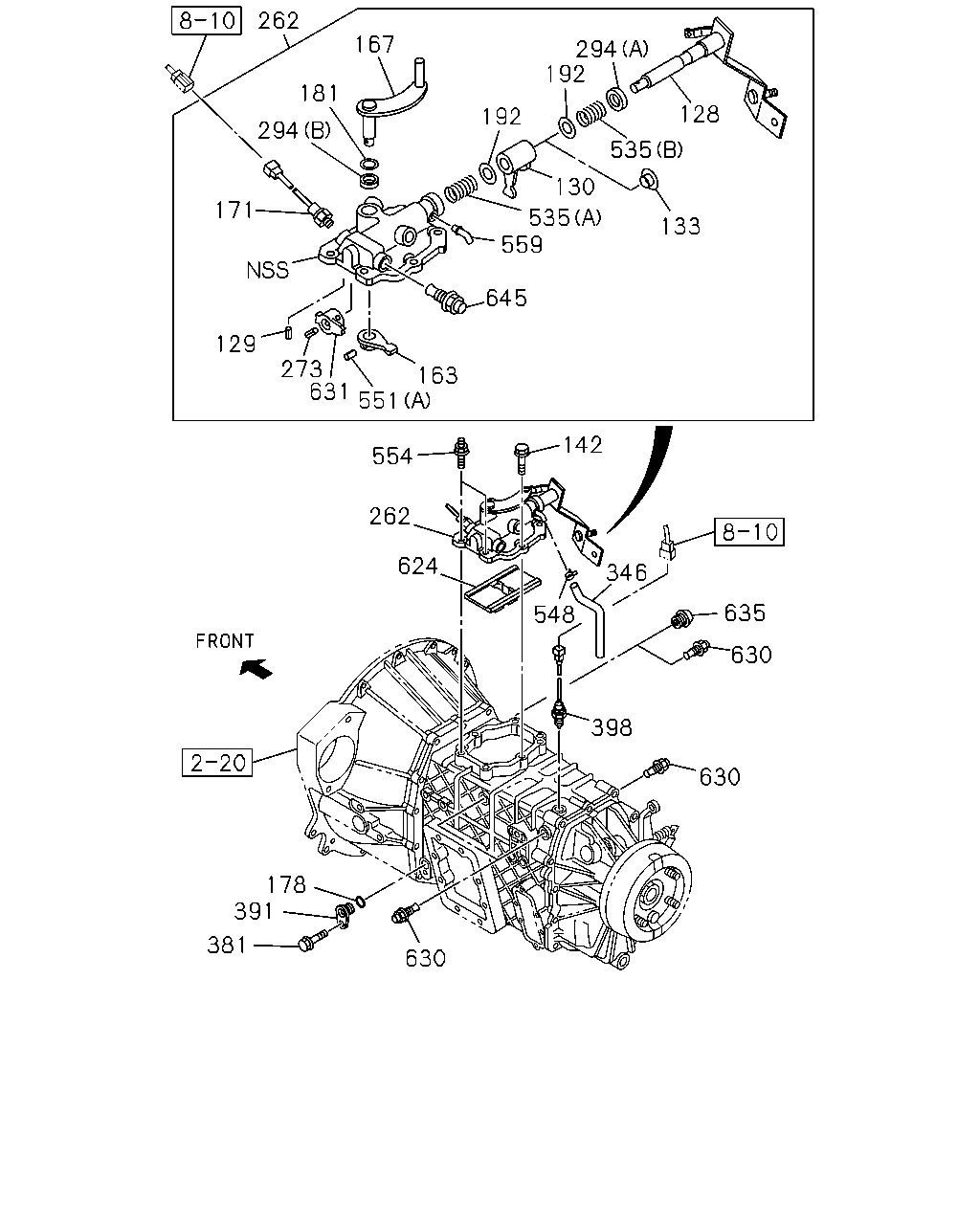

çizim 175636
262 167 294 192 181 128 192 294 535 130 171 535 559 133 645 129 273 631 163 551 142 554 262 346 624 635 548 630 398 630 178 391 381 630
BalonParca AdiParca NoAdetTipApplied Date A B
128 04.030 LEVER; SHIFT,EXTERNAL
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-98079-799-0 01 1 1012- ●
128 04.030 LEVER; SHIFT,EXTERNAL
4HK1-TCN ENG(RDQ) 		8-98021-595-0 01 1 1012- ●
128 04.030 LEVER; SHIFT,EXTERNAL
4JJ1-TCC ENG(RDU) 		8-97305-725-0 01 1 1012- ●
128 04.030 LEVER; SHIFT,EXTERNAL
4JJ1-TCC ENG(RDU) 		8-97363-226-0 01 1 1012- ●
129 04.027 PIN; SPR,SHIFT
L=30 OD=4 		1-09748-031-0 01 1 1012- ● ●
130 04.302 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 1012- ● ●
133 04.027 SEAT; SPR 8-97305-667-0 01 1 1012- ●
142 04.012 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.356 M8X22 FLANGE 		8-97365-376-0 04 1 1012- ● ●
163 04.302 LEVER; SELECT,INTERNAL 8-97305-663-0 01 1 1012- ● ●
167 04.302 LEVER; SELECT,EXTERNAL
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 		8-98039-444-0 01 1 1012- ● ●
167 04.302 LEVER; SELECT,EXTERNAL
4JJ1-TCC ENG(RDU) 		8-98039-436-0 01 1 1012- ● ●
171 04.054 SWITCH; NEUTRAL
02.698 		8-98023-050-0 01 1 1012-1312 ● ●
171 04.054 SWITCH; NEUTRAL 8-98242-172-1 01 1 1401-1509 ● ●
171 04.054 SWITCH; NEUTRAL 8-98324-878-0 01 1 1510- ● ●
178 04.307 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		9-09567-113-0 01 1 1012- ● ●
181 04.302 WASHER; PL,SELECT LEVER 8-97367-327-0 01 1 1012- ● ●
192 04.309 WASHER; PL 8-97305-661-0 01 1 1012- ●
192 04.309 WASHER; PL 8-97305-661-0 02 1 1012- ●
262 04.105 BOX ASM; SHIFT CONT
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-98079-798-0 01 1 1012-1312 ●
262 04.105 BOX ASM; SHIFT CONT
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-98241-003-2 01 1 1401- ●
262 04.105 BOX ASM; SHIFT CONT
4HK1-TCN ENG(RDQ) 		8-98021-592-1 01 1 1012-1312 ●
262 04.105 BOX ASM; SHIFT CONT
4HK1-TCN ENG(RDQ) 		8-98240-994-2 01 1 1401- ●
262 04.105 BOX ASM; SHIFT CONT
4JJ1-TCC ENG(RDU) 		8-97362-753-2 01 1 1012-1312 ●
262 04.105 BOX ASM; SHIFT CONT
4JJ1-TCC ENG(RDU) 		8-98241-002-2 01 1 1401- ●
262 04.105 BOX ASM; SHIFT CONT
4JJ1-TCC ENG(RDU) 		8-98021-591-1 01 1 1012-1312 ●
262 04.105 BOX ASM; SHIFT CONT
4JJ1-TCC ENG(RDU) 		8-98240-993-2 01 1 1401- ●
273 04.309 PIN; SPR,STOPPER
04.307 D=4.2 L=25 		8-97103-142-0 01 1 1012- ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97305-662-0 01 1 1012- ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97363-225-0 01 1 1012- ● ●
346 04.545 HOSE; AIR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97309-855-0 01 1 1012- ● ●
381 04.105 BOLT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1012- ● ●
391 04.104 PLUG; SW HOLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97300-273-1 01 1 1012- ● ●
398 02.698 SWITCH; REV LAMP
4JJ1-TCC ENG(RDU) 		8-98186-003-0 01 1 1107-1311 ●
398 02.698 SWITCH; REV LAMP 8-98186-003-0 01 1 1107-1311 ●
398 02.698 SWITCH; REV LAMP
4JJ1-TCC ENG(RDU) 		8-98256-418-0 01 1 1312- ●
398 02.698 SWITCH; REV LAMP 8-98256-418-0 01 1 1312- ●
398 02.698 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98023-050-0 01 1 1012-1106 ● ●
398 02.698 SWITCH; REV LAMP
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-98023-050-0 01 1 1107-1312 ●
398 02.698 SWITCH; REV LAMP
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-98242-173-1 01 1 1401- ●
535 04.302 SPRING; LEVER
(A) 		8-97323-771-0 01 1 1012- ●
535 04.302 SPRING; LEVER
(B) 		8-97323-772-0 01 1 1012- ●
535 04.302 SPRING; LEVER
(A) 		8-97305-659-0 01 1 1012- ●
535 04.302 SPRING; LEVER
(B) 		8-97305-660-0 01 1 1012- ●
548 04.457 CLIP; HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.278 		8-97031-674-0 01 1 1012- ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.302 (B) L=32 		8-97011-596-2 04 1 1012- ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=20 		8-97241-340-0 01 1 1012- ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1012- ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 01 1 1012- ●
554 04.302 STUD; CONT BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X15,M8X25 L=49 		8-97365-378-0 02 1 1012- ● ●
559 04.302 PIPE; BREATHER
04.510 		8-97358-318-0 01 1 1012- ● ●
624 04.105 PLATE; INTER LOCK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-317-3 01 1 1012- ● ●
630 04.307 DETENT ASM 8-98019-536-0 03 1 1012- ●
630 04.307 DETENT ASM 8-98019-536-0 04 1 1012- ●
631 04.105 STOPPER; SPRING 8-97305-666-0 01 1 1012- ● ●
635 04.309 PLUG; DETENT
00.206 		8-97380-892-0 01 1 1012- ●
645 04.311 DETENT ASM
04.307 		8-98019-536-0 01 1 1012- ● ●

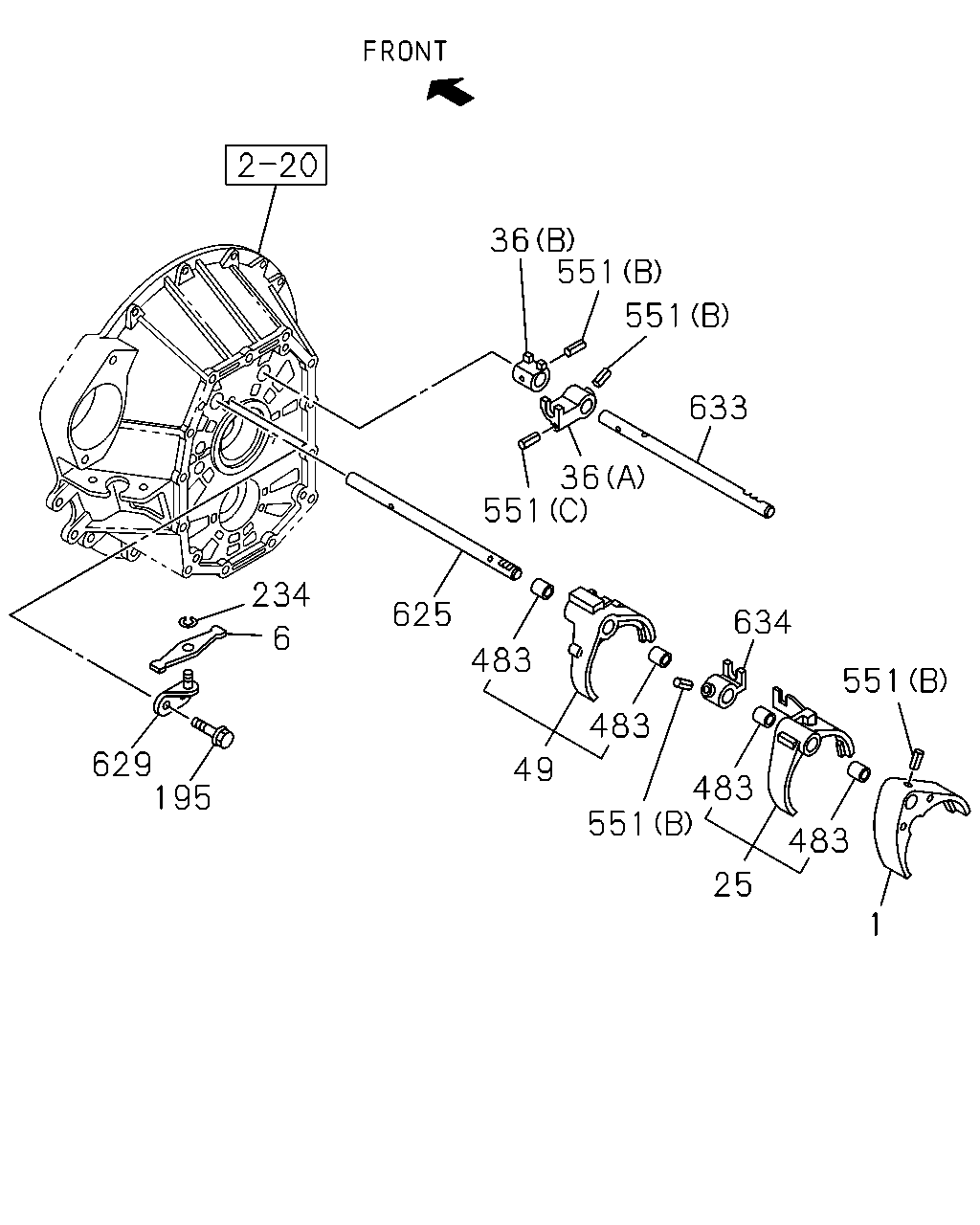

çizim 175640
36 551 551 633 36 551 234 625 634 6 483 551 483 629 195 49 483 551 483 25 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.302 ARM; SHIFT,1ST & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-320-2 01 1 1012- ● ●
6 04.302 LEVER; RELAY 8-97241-344-0 01 1 1012- ●
25 04.302 ARM; SHIFT,2ND & 3RD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97362-731-2 01 1 1012-1407 ● ●
25 04.302 ARM; SHIFT,2ND & 3RD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98255-926-1 01 1 1408- ● ●
36 04.303 BLOCK; SHIFT,4TH & 5TH
(A) 		8-97241-329-1 01 1 1012- ●
36 04.303 BLOCK; SHIFT,4TH & 5TH
(B) 		8-97241-330-0 01 1 1012- ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97258-716-0 01 1 1012- ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97362-732-1 01 1 1012- ●
195 04.105 BOLT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1012- ● ●
234 04.311 RING; SNAP
04.307 ID=12 		8-94460-357-0 01 1 1012- ●
234 04.311 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 1012- ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 02 1 1012- ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 02 1 1012- ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.302 (B) L=32 		8-97011-596-2 04 1 1012- ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=20 		8-97241-340-0 01 1 1012- ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1012- ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 01 1 1012- ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97362-741-0 01 1 1012- ● ●
629 04.555 BRIDGE; LEVER 8-97237-107-1 01 1 1012- ●
629 04.555 BRIDGE; LEVER 8-97241-345-1 01 1 1012- ●
633 04.309 ROD; GEAR SHIFT,4TH,5TH 8-97362-743-0 01 1 1012- ●
634 04.303 BLOCK; SHIFT,LOW,REV 8-97241-327-1 01 1 1012- ●
