Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#54724) — 169 parça

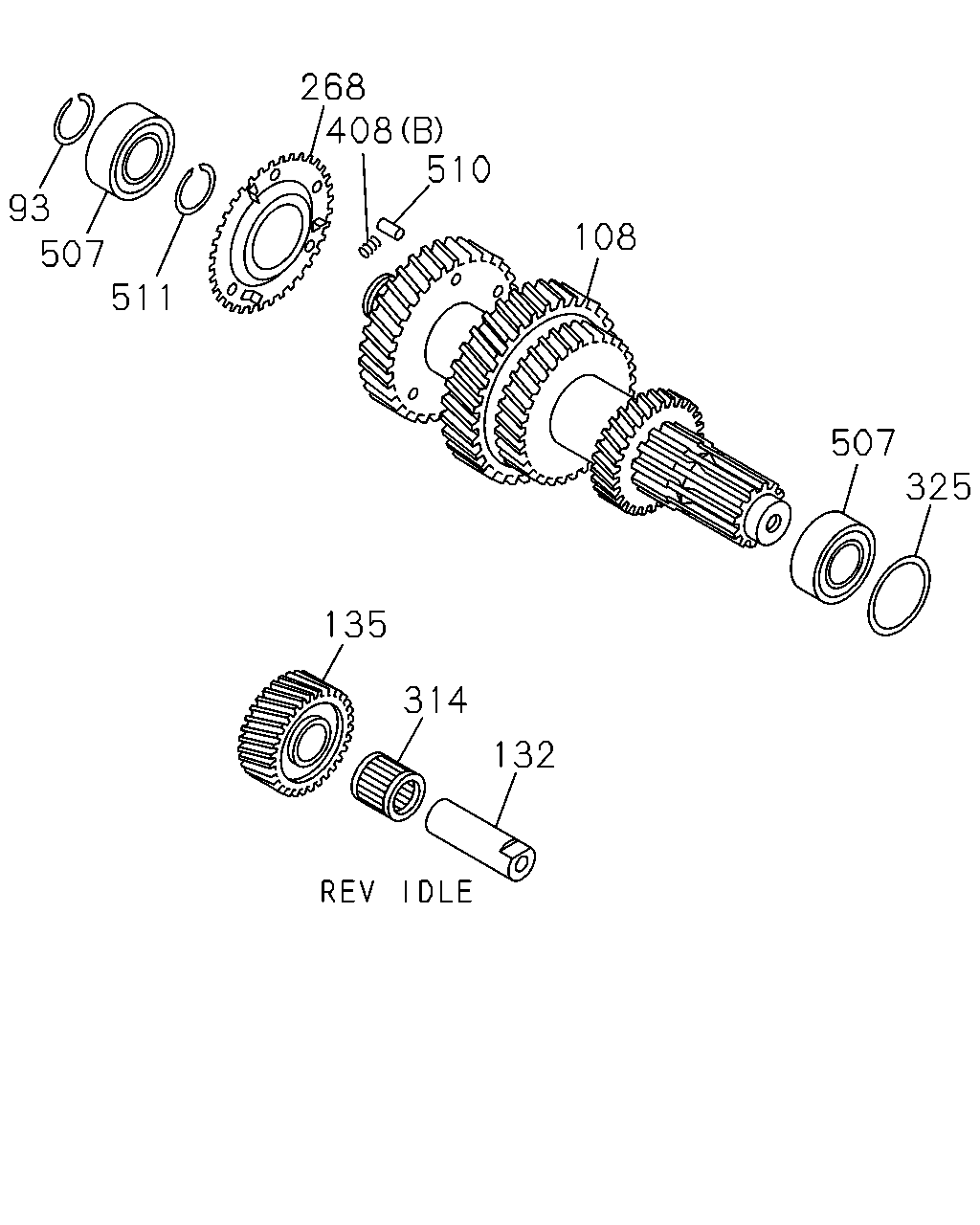

268 408 510 93 108 507 511 507 325 135 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
93	04.422 RING; SNAP,COUNTER FRT BRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=30.7 T=1.9	8-97254-734-0	01	1	1012-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=30.7 T=2.1	8-97254-740-0	01	1	1012-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=30.7 T=2.3	8-97254-742-0	01	1	1012-	●	●
108	04.428 SHAFT; COUNTER Z=45-49-33-20	8-97380-630-1	01	1	1012-	●
108	04.428 SHAFT; COUNTER Z=47-39-33-20	8-97380-627-1	01	1	1012-		●
132	04.433 SHAFT; REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-655-0	01	1	1012-	●	●
135	04.430 GEAR; REV IDLER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=25	8-98031-869-1	01	1	1012-	●	●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97257-300-1	01	1	1012-	●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97252-684-1	01	1	1012-		●
314	04.419 BEARING; NEEDLE,REV GEAR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) NSK	8-97253-114-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=62.7 T=2.29	8-97252-666-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=62.7 T=2.35	8-97252-667-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=62.7 T=2.41	8-97252-668-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=62.7 T=2.47	8-97252-669-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=62.7 T=2.53	8-97252-670-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=62.7 T=2.59	8-97252-671-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=62.7 T=2.65	8-97252-672-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=62.7 T=2.71	8-97252-673-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=62.7 T=2.77	8-97252-674-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=62.7 T=2.83	8-97252-675-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=62.7 T=2.89	8-97257-622-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=62.7 T=2.11	8-97306-188-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=62.7 T=2.17	8-97306-189-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=62.7 T=2.23	8-97306-190-0	01	1	1012-	●	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	1012-	●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	1012-	●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	1012-		●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97253-107-0	02	1	1012-	●	●
510	04.540 PIN; STRAIGHT,ANTI LASH 00.862	9-08160-825-0	03	1	1012-	●	●
511	04.416 RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	1012-	●	●

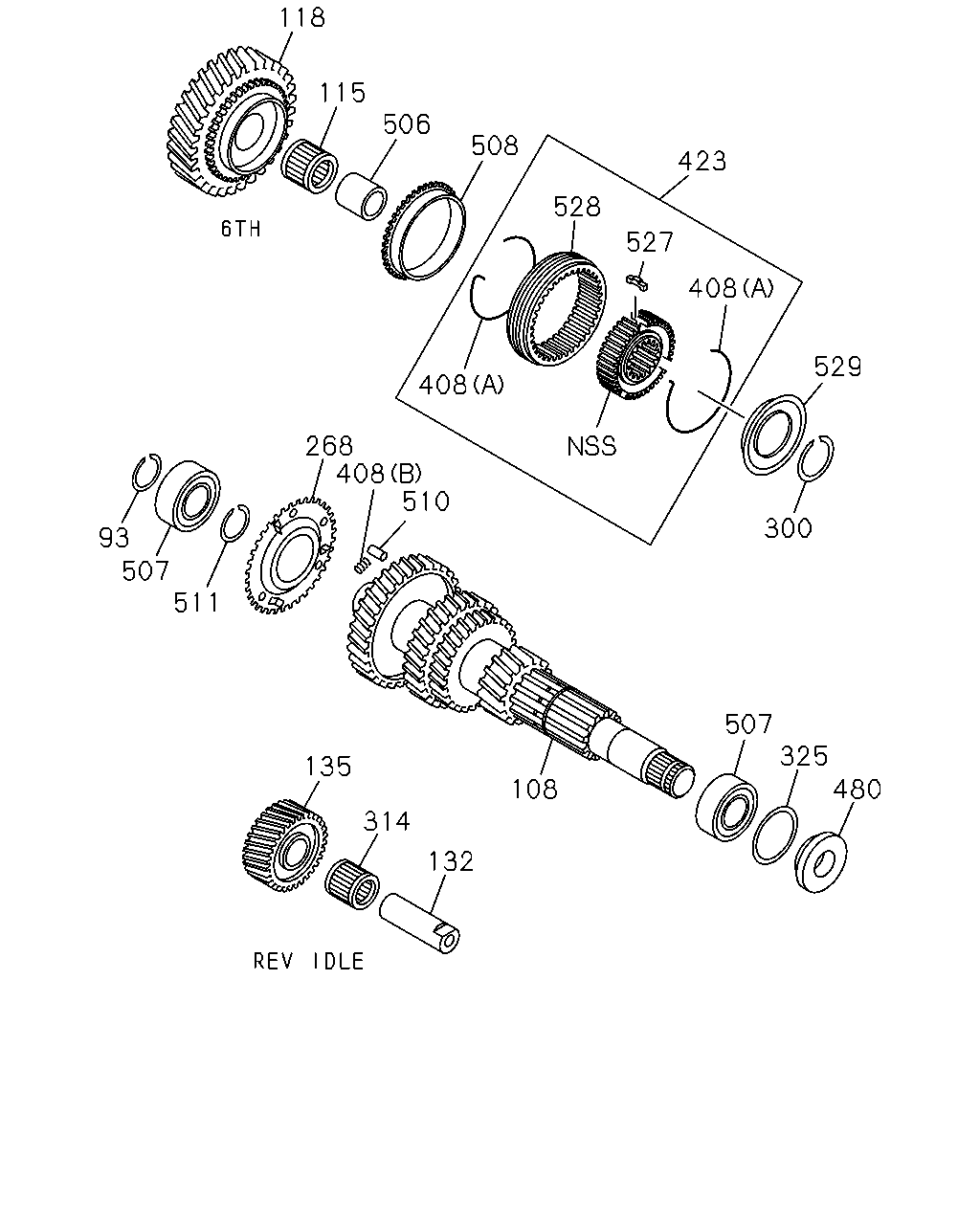

118 115 506 508 423 528 527 408 529 408 268 408 510 300 93 507 511 507 325 135 480 108 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
93	04.422 RING; SNAP,COUNTER FRT BRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=30.7 T=1.9	8-97254-734-0	01	1	1012-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=30.7 T=2.1	8-97254-740-0	01	1	1012-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=30.7 T=2.3	8-97254-742-0	01	1	1012-	●	●
108	04.428 SHAFT; COUNTER Z=45-49-33-20	8-97380-630-1	01	1	1012-	●
108	04.428 SHAFT; COUNTER Z=47-39-33-20	8-97380-627-1	01	1	1012-		●
115	04.352 BEARING; NEEDLE,6TH,COUNTER OD=49.8	8-98286-084-0	01	1	1411-		●
115	04.352 BEARING; NEEDLE,6TH,COUNTER OD=49.75	8-97253-113-0	01	1	1012-		●
118	04.421 GEAR; 6TH,COUNTER Z=50	8-97386-580-0	01	1	1012-		●
132	04.433 SHAFT; REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-655-0	01	1	1012-	●	●
135	04.430 GEAR; REV IDLER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=25	8-98031-869-1	01	1	1012-	●	●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97257-300-1	01	1	1012-	●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97252-684-1	01	1	1012-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.7	8-97254-727-0	01	1	1012-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 04.384 ID=30.7 T=1.8	8-97254-728-0	01	1	1012-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.9	8-97254-734-0	01	1	1012-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.6	8-97365-617-0	01	1	1012-		●
314	04.419 BEARING; NEEDLE,REV GEAR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) NSK	8-97253-114-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=62.7 T=2.29	8-97252-666-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=62.7 T=2.35	8-97252-667-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=62.7 T=2.41	8-97252-668-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=62.7 T=2.47	8-97252-669-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=62.7 T=2.53	8-97252-670-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=62.7 T=2.59	8-97252-671-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=62.7 T=2.65	8-97252-672-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=62.7 T=2.71	8-97252-673-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=62.7 T=2.77	8-97252-674-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=62.7 T=2.83	8-97252-675-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=62.7 T=2.89	8-97257-622-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=62.7 T=2.11	8-97306-188-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=62.7 T=2.17	8-97306-189-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=62.7 T=2.23	8-97306-190-0	01	1	1012-	●	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	1012-	●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	1012-	●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	1012-		●
423	04.384 SLEEVE & HUB ASM; 6TH	8-97367-022-0	01	1	1012-		●
480	04.419 WASHER; THRUST,6TH	8-97253-123-1	01	1	1012-		●
506	04.419 COLLAR; 6TH,COUNTER	8-97253-121-1	01	1	1012-		●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97253-107-0	02	1	1012-	●	●
508	04.383 RING; BLOCK,6TH 04.395 Z=45	8-97309-532-0	01	1	1012-		●
510	04.540 PIN; STRAIGHT,ANTI LASH 00.862	9-08160-825-0	03	1	1012-	●	●
511	04.416 RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	1012-	●	●
527	04.384 INSERT; 6TH	8-94448-202-2	03	1	1012-		●
528	04.384 SLEEVE; 6TH 04.535 Z=45	8-94421-871-1	01	1	1012-		●
529	04.384 PLATE; STOPPER,6TH	8-97248-952-0	01	1	1012-		●

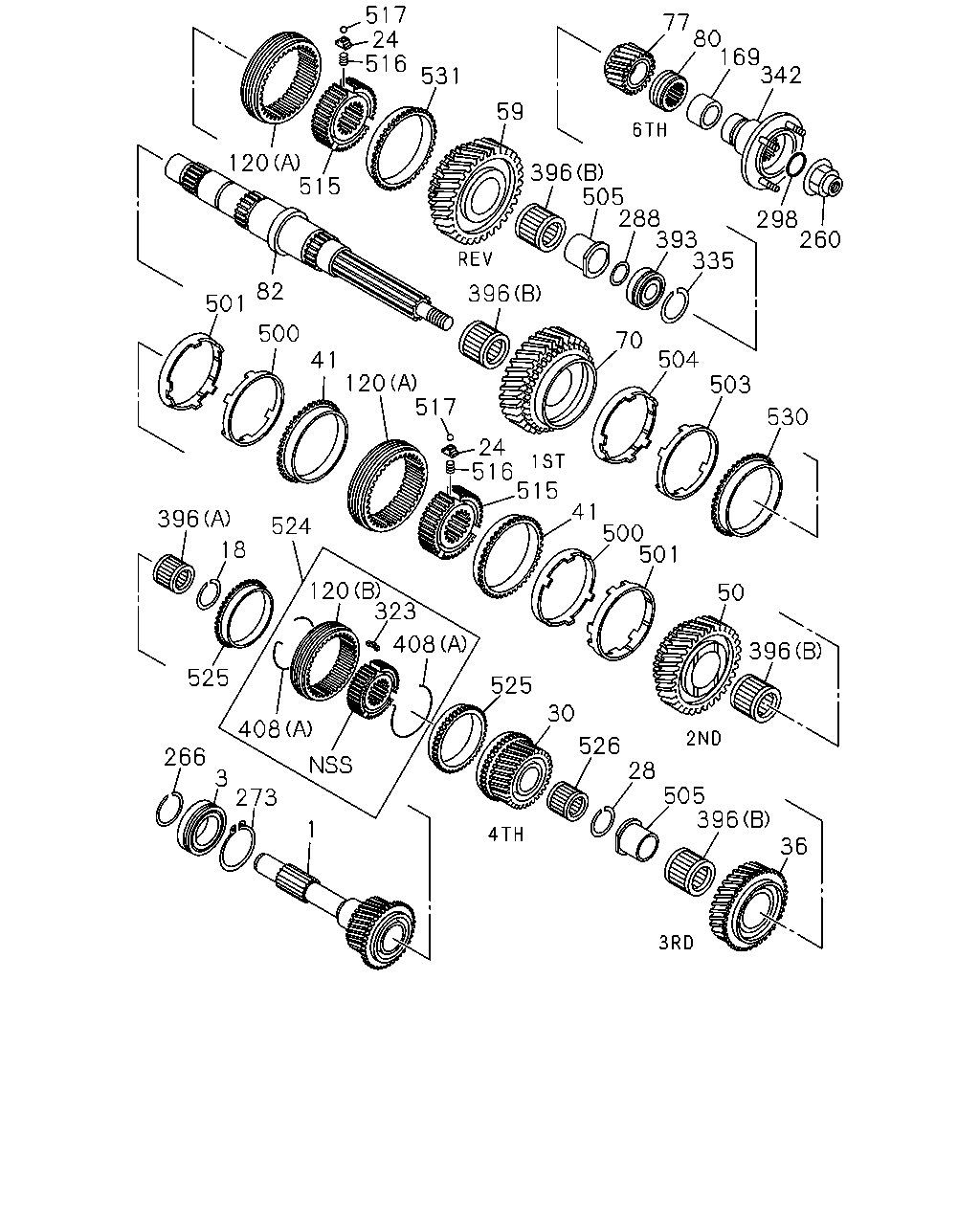

517 24 516 77 80 169 342 531 59 120 515 396 505 288 393 335 298 260 82 396 501 500 70 504 41 120 517 503 530 24 516 515 41 500 501 396 524 18 120 323 50 396 408 525 525 30 408 526 28 505 396 36 266 3 273 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.351 SHAFT; TOP GEAR,TRANS Z=28	8-98031-848-0	01	1	1012-	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=26	8-98021-266-0	01	1	1012-		●
3	04.403 BEARING; TOP GEAR SHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) NSK	8-97253-098-1	01	1	1012-	●	●
18	04.384 RING; SNAP,CLU HUB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=30.7 T=1.8	8-97254-728-0	01	1	1012-	●	●
24	04.383 BLOCK; INDEX,SYN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-313-1	06	1	1012-	●	●
28	04.416 RING; SNAP,3RD GEAR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=46.5 T=1.8	8-97254-743-0	01	1	1012-	●	●
30	04.415 GEAR; 4TH,MAINSHAFT Z=28	8-97241-230-0	01	1	1012-		●
36	04.415 GEAR; 3RD,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=34	8-97241-234-0	01	1	1012-	●	●
41	04.383 RING; BLOCK,2ND & 3RD TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97241-306-1	02	1	1012-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=38	8-97241-237-1	01	1	1012-	●	●
59	04.417 GEAR; REV MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=41	8-97241-244-0	01	1	1012-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43	8-97350-010-0	01	1	1012-	●	●
77	04.421 GEAR; 6TH,MAINSHAFT Z=21	8-97386-582-0	01	1	1012-		●
80	04.343 GEAR; SPD DRIVE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=4	8-97253-556-0	01	1	1012-	●	●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-117-3	01	1	1012-	●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-116-3	01	1	1012-		●
120	04.383 SLEEVE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.535 (B) Z=45	8-94421-871-1	01	1	1012-	●	●
120	04.383 SLEEVE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=45	8-97241-296-1	02	1	1012-1311	●	●
120	04.383 SLEEVE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=45	8-98258-279-0	02	1	1312-	●	●
169	04.419 COLLAR; MAINSHAFT	8-97252-937-1	01	1	1012-		●
260	04.412 NUT; MAINSHAFT END TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.525 M27 H=25	8-97360-410-0	01	1	1012-	●	●
266	04.525 RING; SNAP,BRG INNER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97286-916-0	01	1	1012-	●	●
273	04.525 RING; SNAP,BRG OUTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-610-0	01	1	1012-	●	●
288	04.399 SPACER; BRG,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-942-0	01	1	1012-	●	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=30.6 T=5.7	8-98028-226-0	01	1	1012-	●	●
323	04.384 INSERT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-94448-202-2	03	1	1012-	●	●
335	04.383 RING; SNAP,BEARING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-722-0	01	1	1012-	●	●
342	05.545 FLANGE; OUTPUT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH)	8-98031-640-0	01	1	1012-	●	●
342	05.545 FLANGE; OUTPUT 4HK1-TCN ENG(RDQ)	8-98031-862-0	01	1	1012-		●
393	04.352 BEARING; MAINSHAFT END TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97253-105-1	01	1	1012-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97253-102-1	01	1	1012-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97253-110-0	04	1	1012-	●	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	1012-	●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	1012-	●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	1012-		●
500	04.383 RING; OUTSIDE,3RD & 2ND TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-309-1	02	1	1012-	●	●
501	04.383 RING; INSIDE,3RD & 2ND TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-312-1	02	1	1012-	●	●
503	04.383 RING; OUTSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-309-1	01	1	1012-	●	●
504	04.383 RING; INSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-312-1	01	1	1012-	●	●
505	04.419 COLLAR; 3RD & REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97253-119-2	02	1	1012-	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-298-3	02	1	1012-	●	●
516	04.384 SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-835-0	06	1	1012-	●	●
517	04.384 BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-935-0	06	1	1012-	●	●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97366-526-0	01	1	1012-	●	●
525	04.395 RING; BLOCK,TOP & 4TH,OD TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97309-532-0	02	1	1012-	●	●
526	04.352 BEARING; NEEDLE,4TH & 5TH TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97253-112-0	01	1	1012-	●	●
530	04.383 RING; BLOCK,LOW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97241-306-1	01	1	1012-	●	●
531	04.383 RING; BLOCK,REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97368-343-0	01	1	1012-	●	●

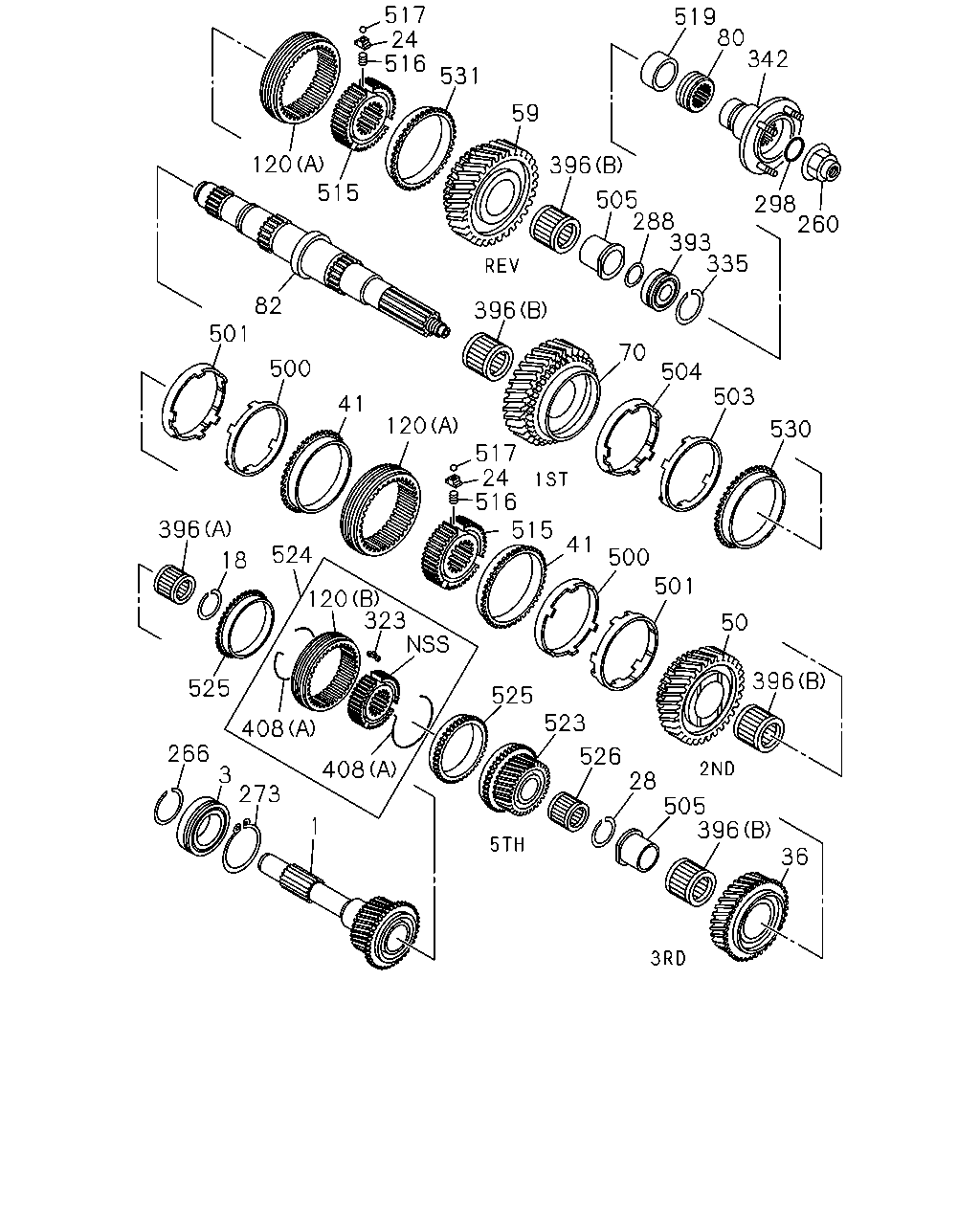

517 24 516 519 80 342 531 59 120 515 396 505 288 393 335 298 260 82 501 396 70 500 504 503 41 120 530 517 24 516 515 396 41 524 500 18 501 120 323 50 396 525 525 523 408 266 3 273 526 28 505 396 36 408 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.351 SHAFT; TOP GEAR,TRANS Z=28	8-98031-848-0	01	1	1012-	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=26	8-98021-266-0	01	1	1012-		●
3	04.403 BEARING; TOP GEAR SHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) NSK	8-97253-098-1	01	1	1012-	●	●
18	04.384 RING; SNAP,CLU HUB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=30.7 T=1.8	8-97254-728-0	01	1	1012-	●	●
24	04.383 BLOCK; INDEX,SYN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-313-1	06	1	1012-	●	●
28	04.416 RING; SNAP,3RD GEAR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=46.5 T=1.8	8-97254-743-0	01	1	1012-	●	●
36	04.415 GEAR; 3RD,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=34	8-97241-234-0	01	1	1012-	●	●
41	04.383 RING; BLOCK,2ND & 3RD TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97241-306-1	02	1	1012-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=38	8-97241-237-1	01	1	1012-	●	●
59	04.417 GEAR; REV MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=41	8-97241-244-0	01	1	1012-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43	8-97350-010-0	01	1	1012-	●	●
80	04.343 GEAR; SPD DRIVE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=4	8-97253-556-0	01	1	1012-	●	●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-117-3	01	1	1012-	●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-116-3	01	1	1012-		●
120	04.383 SLEEVE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.535 (B) Z=45	8-94421-871-1	01	1	1012-	●	●
120	04.383 SLEEVE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=45	8-97241-296-1	02	1	1012-1311	●	●
120	04.383 SLEEVE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=45	8-98258-279-0	02	1	1312-	●	●
260	04.412 NUT; MAINSHAFT END TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.525 M27 H=25	8-97360-410-0	01	1	1012-	●	●
266	04.525 RING; SNAP,BRG INNER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97286-916-0	01	1	1012-	●	●
273	04.525 RING; SNAP,BRG OUTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-610-0	01	1	1012-	●	●
288	04.399 SPACER; BRG,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-942-0	01	1	1012-	●	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=30.6 T=5.7	8-98028-226-0	01	1	1012-	●	●
323	04.384 INSERT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-94448-202-2	03	1	1012-	●	●
335	04.383 RING; SNAP,BEARING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-722-0	01	1	1012-	●	●
342	05.545 FLANGE; OUTPUT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH)	8-98031-640-0	01	1	1012-	●	●
342	05.545 FLANGE; OUTPUT 4HK1-TCN ENG(RDQ)	8-98031-862-0	01	1	1012-		●
393	04.352 BEARING; MAINSHAFT END TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97253-105-1	01	1	1012-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97253-102-1	01	1	1012-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97253-110-0	04	1	1012-	●	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	1012-	●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	1012-	●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	1012-		●
500	04.383 RING; OUTSIDE,3RD & 2ND TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-309-1	02	1	1012-	●	●
501	04.383 RING; INSIDE,3RD & 2ND TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-312-1	02	1	1012-	●	●
503	04.383 RING; OUTSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-309-1	01	1	1012-	●	●
504	04.383 RING; INSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-312-1	01	1	1012-	●	●
505	04.419 COLLAR; 3RD & REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97253-119-2	02	1	1012-	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-298-3	02	1	1012-	●	●
516	04.384 SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-835-0	06	1	1012-	●	●
517	04.384 BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-935-0	06	1	1012-	●	●
519	04.419 COLLAR; MAINSHAFT END,5TH 04.415	8-97252-940-0	01	1	1012-	●
523	04.395 GEAR; OD,MAINSHAFT Z=22	8-97241-231-0	01	1	1012-	●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97366-526-0	01	1	1012-	●	●
525	04.395 RING; BLOCK,TOP & 4TH,OD TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97309-532-0	02	1	1012-	●	●
526	04.352 BEARING; NEEDLE,4TH & 5TH TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97253-112-0	01	1	1012-	●	●
530	04.383 RING; BLOCK,LOW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97241-306-1	01	1	1012-	●	●
531	04.383 RING; BLOCK,REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97368-343-0	01	1	1012-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
