1 |

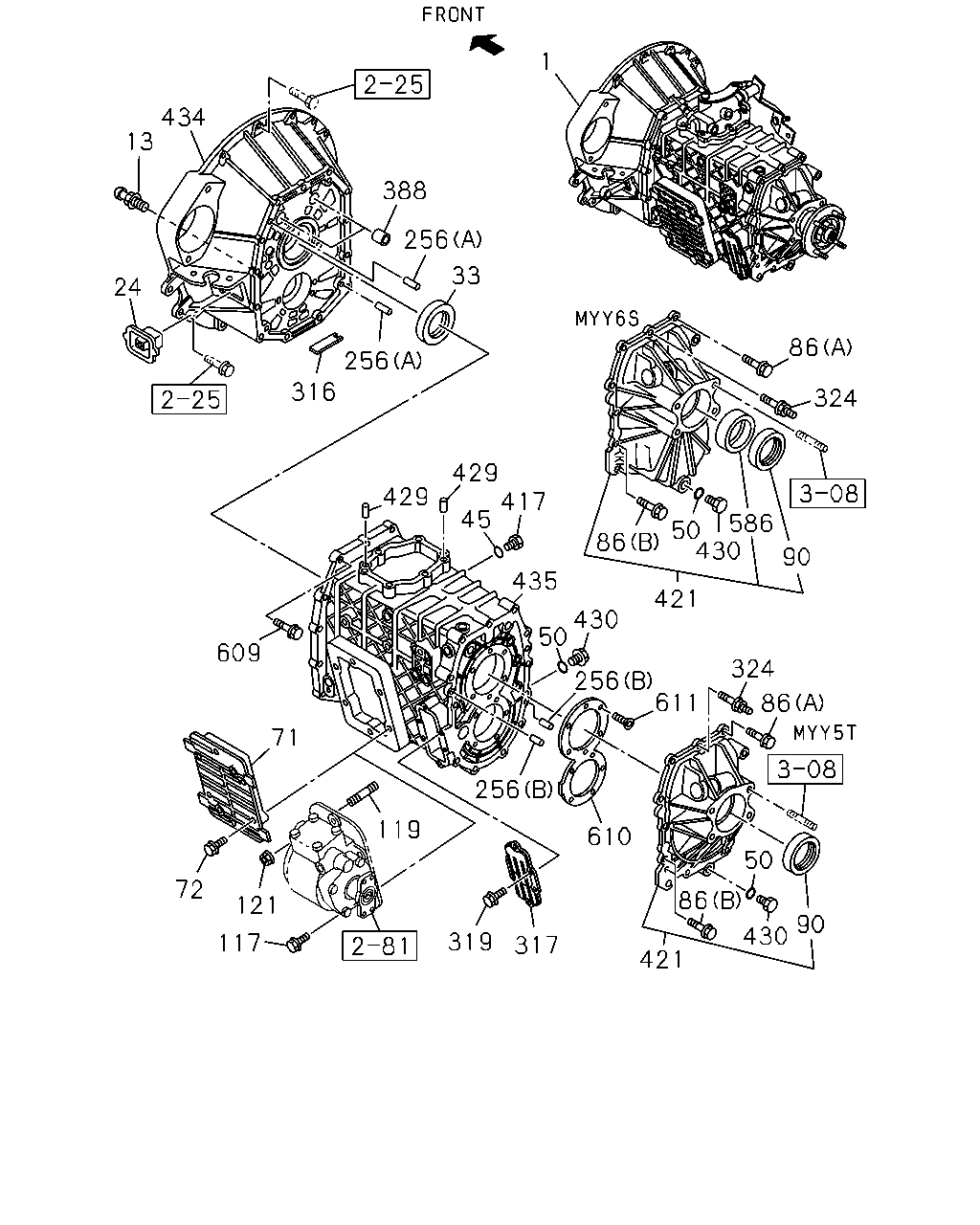

04.003 TRANSMISSION ASM; MANUAL
4HG1-T ENG(RDP),4HG1 ENG(RJH)
PTO TRANSMISSION SIDE(V66)
POWER TAKE OFF CONTROL ELECTRIC(7GR)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
|
8-98105-787-0 |
01 |
1 |
1012-1106 |
● |
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4HG1-T ENG(RDP),4HG1 ENG(RJH)
PTO TRANSMISSION SIDE(V66)
POWER TAKE OFF CONTROL ELECTRIC(7GR)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
|
8-98187-418-0 |
01 |
1 |
1107-1301 |
● |
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4HG1 ENG(RJH)
PTO TRANSMISSION SIDE(V66)
POWER TAKE OFF CONTROL ELECTRIC(7GR)
|
8-98187-418-0 |
01 |
1 |
1302- |
● |
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4HG1-T ENG(RDP),4HG1 ENG(RJH)
PTO TRANSMISSION SIDE(V66)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)
|
8-98105-787-0 |
01 |
1 |
1012-1106 |
● |
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4HG1-T ENG(RDP),4HG1 ENG(RJH)
PTO TRANSMISSION SIDE(V66)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)
|
8-98187-418-0 |
01 |
1 |
1107-1301 |
● |
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4HG1-T ENG(RDP),4HG1 ENG(RJH)
PTO TRANSMISSION SIDE(V66)
PTO MANUAL CONTROL(6WC)
|
8-98187-418-0 |
01 |
1 |
1302- |
● |
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4HG1-T ENG(RDP),4HG1 ENG(RJH)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. PTO TRANSMISSION SIDE(V66)
|
8-98105-787-0 |
01 |
1 |
1012-1106 |
● |
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4HG1-T ENG(RDP),4HG1 ENG(RJH)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. PTO TRANSMISSION SIDE(V66)
|
8-98187-418-0 |
01 |
1 |
1107-1301 |
● |
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4HG1-T ENG(RDP),4HG1 ENG(RJH)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. PTO TRANSMISSION SIDE(V66),PTO
MANUAL CONTROL(6WC),POWER TAKE OFF CONTROL ELE
CTRIC(7GR)
|
8-98187-418-0 |
01 |
1 |
1302- |
● |
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4HK1-TCN ENG(RDQ)
PTO TRANSMISSION SIDE(V66)
POWER TAKE OFF CONTROL ELECTRIC(7GR)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
|
8-98067-680-0 |
01 |
1 |
1012- |
|
● |
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4HK1-TCN ENG(RDQ)
PTO TRANSMISSION SIDE(V66)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)
|
8-98067-680-0 |
01 |
1 |
1012-1301 |
|
● |
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4HK1-TCN ENG(RDQ)
PTO TRANSMISSION SIDE(V66)
PTO MANUAL CONTROL(6WC)
|
8-98067-680-0 |
01 |
1 |
1302- |
|
● |
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4HK1-TCN ENG(RDQ)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. PTO TRANSMISSION SIDE(V66)
|
8-98067-680-0 |
01 |
1 |
1012-1301 |
|
● |
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4HK1-TCN ENG(RDQ)
EXC. PTO TRANSMISSION SIDE(V66),PTO
MANUAL CONTROL(6WC),POWER TAKE OFF CONTROL ELE
CTRIC(7GR)
|
8-98067-680-0 |
01 |
1 |
1302- |
|
● |
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4JJ1-TCC ENG(RDU)
PTO TRANSMISSION SIDE(V66)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)
|
8-98067-623-0 |
01 |
1 |
1012-1301 |
● |
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4JJ1-TCC ENG(RDU)
PTO TRANSMISSION SIDE(V66)
PTO MANUAL CONTROL(6WC)
|
8-98067-623-0 |
01 |
1 |
1302- |
● |
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4JJ1-TCC ENG(RDU)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. PTO TRANSMISSION SIDE(V66)
|
8-98067-623-0 |
01 |
1 |
1012-1301 |
● |
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4JJ1-TCC ENG(RDU)
EXC. PTO TRANSMISSION SIDE(V66),PTO
MANUAL CONTROL(6WC),POWER TAKE OFF CONTROL ELE
CTRIC(7GR)
|
8-98067-623-0 |
01 |
1 |
1302- |
● |
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4JJ1-TCC ENG(RDU)
PTO TRANSMISSION SIDE(V66)
POWER TAKE OFF CONTROL ELECTRIC(7GR)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
|
8-98067-656-0 |
01 |
1 |
1012-1301 |
|
● |
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4JJ1-TCC ENG(RDU)
PTO TRANSMISSION SIDE(V66)
POWER TAKE OFF CONTROL ELECTRIC(7GR)
EXC. KD PREPARATORY PACK<6HF>
|
8-98067-656-0 |
01 |
1 |
1302- |
|
● |
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4JJ1-TCC ENG(RDU)
PTO TRANSMISSION SIDE(V66)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)
|
8-98067-656-0 |
01 |
1 |
1012-1301 |
|
● |
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4JJ1-TCC ENG(RDU)
PTO TRANSMISSION SIDE(V66)
PTO MANUAL CONTROL(6WC)
|
8-98067-656-0 |
01 |
1 |
1302- |
|
● |
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4JJ1-TCC ENG(RDU)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. PTO TRANSMISSION SIDE(V66)
|
8-98067-656-0 |
01 |
1 |
1012-1301 |
|
● |
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4JJ1-TCC ENG(RDU)
EXC. PTO TRANSMISSION SIDE(V66),PTO
MANUAL CONTROL(6WC),POWER TAKE OFF CONTROL ELE
CTRIC(7GR)
|
8-98067-656-0 |
01 |
1 |
1302- |
|
● |
| |
13 |
04.302 SUPPORT; SHIFT FORK
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1
ENG(RJH)
|
8-97255-384-1 |
01 |
1 |
1012- |
● |
● |
| |
13 |
04.302 SUPPORT; SHIFT FORK
4HK1-TCN ENG(RDQ)
|
8-97255-385-1 |
01 |
1 |
1012- |
|
● |
| |
24 |
00.797 COVER; CHECK HOLE,DUST
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
|
8-97255-201-0 |
01 |
1 |
1012- |
● |
● |
| |
33 |
04.318 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T).
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
|
8-97253-550-0 |
01 |
1 |
1012- |
● |
● |
| |
45 |
04.105 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T).
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
ID=17
|
8-97115-712-0 |
01 |
1 |
1012- |
● |
● |
| |
50 |
04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T).
ID=17
|
8-97115-712-0 |
01 |
1 |
1012- |
● |
|
| |
50 |
04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T).
ID=17
|
8-97115-712-0 |
02 |
1 |
1012- |
|
● |
| |
71 |
04.439 COVER; SIDE,TRANS CASE
EXC. PTO TRANSMISSION SIDE(V66)
|
8-97252-625-0 |
01 |
1 |
1012- |
● |
● |
| |
72 |
04.439 BOLT; SIDE COVER
EXC. PTO TRANSMISSION SIDE(V66)
00.206
M10X20 FLANGE
|
8-98014-142-0 |
06 |
1 |
1012- |
● |
● |
| |
86 |
04.317 BOLT; RR COVER
09.171
(A)
M10X40 FLANGE
|
0-28151-040-0 |
09 |
1 |
1406- |
|
● |
| |
86 |
04.317 BOLT; RR COVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
09.171
(A)
M10X40 FLANGE
|
0-28151-040-0 |
10 |
1 |
1012-1405 |
● |
● |
| |
86 |
04.317 BOLT; RR COVER
09.171
(A)
M10X40 FLANGE
|
0-28151-040-0 |
10 |
1 |
1406- |
● |
|
| |
86 |
04.317 BOLT; RR COVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
04.510
(B)
M10X40 FLANGE
|
8-97365-377-0 |
02 |
1 |
1012- |
● |
● |
| |
90 |
04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T).
NOK
|
8-97253-552-1 |
01 |
1 |
1012- |
● |
● |
| |
117 |
04.439 BOLT; PTO FIX
PTO TRANSMISSION SIDE(V66)
POWER TAKE OFF CONTROL ELECTRIC(7GR)
00.780
M10X30 FLANGE
|
0-28751-030-0 |
03 |
1 |
1108- |
● |
● |
| |
117 |
04.439 BOLT; PTO FIX
PTO TRANSMISSION SIDE(V66)
00.780
M10X30 FLANGE
|
0-28751-030-0 |
03 |
1 |
1012-1107 |
● |
● |
| |
117 |
04.439 BOLT; PTO FIX
PTO TRANSMISSION SIDE(V66)
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)
00.780
M10X30 FLANGE
|
0-28751-030-0 |
02 |
1 |
1108-1301 |
● |
● |
| |
117 |
04.439 BOLT; PTO FIX
PTO TRANSMISSION SIDE(V66)
PTO MANUAL CONTROL(6WC)
00.780
M10X30 FLANGE
|
0-28751-030-0 |
02 |
1 |
1302- |
● |
● |
| |
119 |
04.439 STUD; PTO FIX
PTO TRANSMISSION SIDE(V66)
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)
03.403
M10X30 L=45
|
0-44011-030-0 |
02 |
1 |
1108-1301 |
● |
● |
| |
119 |
04.439 STUD; PTO FIX
PTO TRANSMISSION SIDE(V66)
PTO MANUAL CONTROL(6WC)
03.403
M10X30 L=45
|
0-44011-030-0 |
02 |
1 |
1302- |
● |
● |
| |
119 |
04.439 STUD; PTO FIX
PTO TRANSMISSION SIDE(V66)
POWER TAKE OFF CONTROL ELECTRIC(7GR)
03.342
M10X25 L=40
|
0-44011-025-0 |
03 |
1 |
1108- |
● |
● |
| |
119 |
04.439 STUD; PTO FIX
PTO TRANSMISSION SIDE(V66)
03.342
M10X25 L=40
|
0-44011-025-0 |
03 |
1 |
1012-1107 |
● |
● |
| |
119 |
04.439 STUD; PTO FIX
PTO TRANSMISSION SIDE(V66)
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)
03.342
M10X25 L=40
|
0-44011-025-0 |
02 |
1 |
1108-1301 |
● |
● |
| |
119 |
04.439 STUD; PTO FIX
PTO TRANSMISSION SIDE(V66)
PTO MANUAL CONTROL(6WC)
03.342
M10X25 L=40
|
0-44011-025-0 |
02 |
1 |
1302- |
● |
● |
| |
121 |
04.439 NUT; PTO FIX
PTO TRANSMISSION SIDE(V66)
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)
04.085
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
1012-1301 |
● |
● |
| |
121 |
04.439 NUT; PTO FIX
PTO TRANSMISSION SIDE(V66)
PTO MANUAL CONTROL(6WC)
04.085
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
1302- |
● |
● |
| |
121 |
04.439 NUT; PTO FIX
PTO TRANSMISSION SIDE(V66)
POWER TAKE OFF CONTROL ELECTRIC(7GR)
04.085
M10 FLANGE
|
0-91180-210-0 |
03 |
1 |
1012- |
● |
● |
| |
256 |
04.317 PIN; KNOCK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
04.510
(A)
OD=10 L=20
|
8-97135-423-0 |
02 |
1 |
1012- |
● |
● |
| |
256 |
04.317 PIN; KNOCK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
00.862
(B)
ID=6 L=12
|
9-08160-612-0 |
02 |
1 |
1012- |
● |
● |
| |
316 |
04.105 MAGNET; TRANS CASE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
|
8-94249-524-2 |
01 |
1 |
1012- |
● |
● |
| |
317 |
04.109 COVER; CASE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
|
8-97252-626-0 |
01 |
1 |
1012- |
● |
● |
| |
319 |
04.109 BOLT; COVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
04.338
M8X20 FLANGE
|
0-28050-820-0 |
06 |
1 |
1012- |
● |
● |
| |
324 |
04.319 STUD; RR COVER
04.510
M10X15,M10X40 L=65
|
8-97365-379-0 |
02 |
1 |
1406- |
|
● |
| |
324 |
04.319 STUD; RR COVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
04.510
M10X15,M10X40 L=65
|
8-97365-379-0 |
01 |
1 |
1012-1405 |
● |
● |
| |
324 |
04.319 STUD; RR COVER
04.510
M10X15,M10X40 L=65
|
8-97365-379-0 |
01 |
1 |
1406- |
● |
|
| |
388 |
00.683 BUSHING; CLU HSG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
|
8-97241-326-2 |
02 |
1 |
1012- |
● |
● |
| |
417 |
04.105 PLUG; OIL FILLER,TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
|
8-97365-373-0 |
01 |
1 |
1012- |
● |
● |
| |
421 |
04.317 COVER; RR,TRANS
|
8-98020-029-0 |
01 |
1 |
1012- |
● |
|
| |
421 |
04.317 COVER; RR,TRANS
|
8-98020-028-0 |
01 |
1 |
1012- |
|
● |
| |
429 |
04.105 PIN; STRAIGHT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
04.510
OD=10 L=20
|
8-97135-423-0 |
02 |
1 |
1012- |
● |
● |
| |
430 |
04.105 PLUG; OIL DRAIN
|
8-97365-374-0 |
01 |
1 |
1012- |
● |
|
| |
430 |
04.105 PLUG; OIL DRAIN
|
8-97365-374-0 |
02 |
1 |
1012- |
|
● |
| |
434 |
00.683 HOUSING; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
|
8-97237-099-5 |
01 |
1 |
1012- |
● |
● |
| |
435 |
04.103 CASE; TRANS
|
8-97379-375-0 |
01 |
1 |
1012- |
● |
|
| |
435 |
04.103 CASE; TRANS
|
8-97379-374-0 |
01 |
1 |
1012- |
|
● |
| |
586 |
00.683 BEARING; NEEDLE
|
8-97253-109-0 |
01 |
1 |
1012- |
|
● |
| |
609 |
04.104 BOLT; HSG TO CASE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
09.171
M10X40 FLANGE
|
0-28151-040-0 |
13 |
1 |
1012- |
● |
● |
| |
610 |
04.412 RETAINER; BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
|
8-97241-315-1 |
01 |
1 |
1012- |
● |
● |
| |
611 |
04.104 SCREW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
M10X27 TORQUES
|
8-97365-354-0 |
11 |
1 |
1012- |
● |
● |
