◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10725 - EXR LHD FUEL TANK 200L+200L/400L ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-12A - CYLINDER BLOCK ▶
0-12A — CYLINDER BLOCK (#5472) — 152 parça

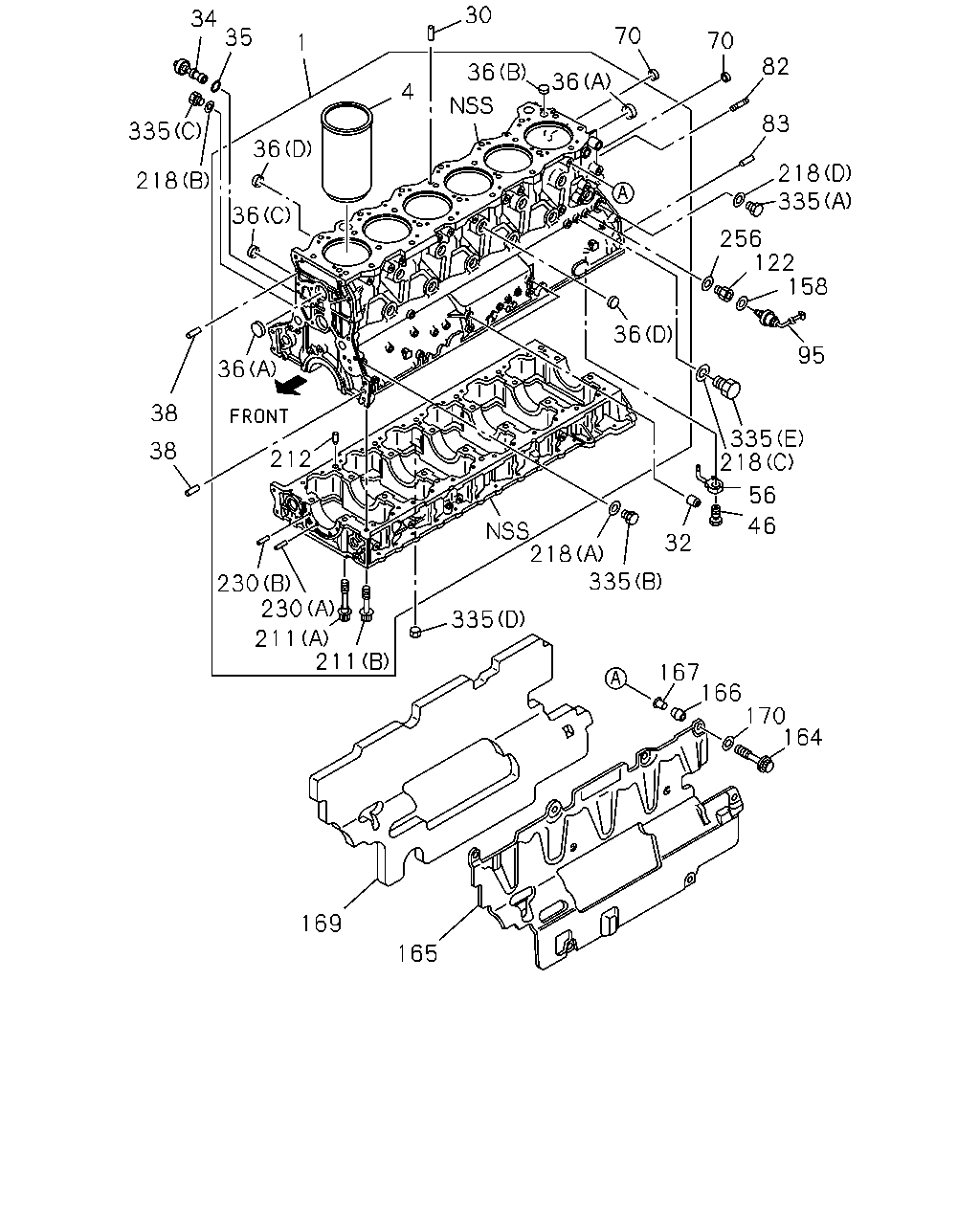

çizim 8574
30 34 35 70 70 1 82 36 36 4 83 335 36 218 335 218 36 256 122 158 36 212 95 36 38 335 218 38 56 46 218 335 32 230 230 335 211 211 167 166 170 164 169 165
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 BLOCK ASM; CYL 1-11210-637-4 01 1 9603-9802 ●
1 BLOCK ASM; CYL 1-11210-664-0 01 1 9803-9810 ●
1 BLOCK ASM; CYL 1-11210-664-0 01 1 9811-9904 ● ●
1 BLOCK ASM; CYL 1-11210-664-4 01 1 9905- ● ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		1-11261-296-0 06 1 9603-9802 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		1-11261-362-0 06 1 9803-9810 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		1-11261-362-0 06 1 9811-9904 ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		1-11261-297-0 06 1 9603-9802 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		1-11261-363-0 06 1 9803-9810 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		1-11261-363-0 06 1 9811-9904 ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		1-11261-362-1 06 1 9905- ● ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		1-11261-363-1 06 1 9905- ● ● ●
30 PIN; CYL HD GASKET SETTING
OD=10 L=18 		9-08151-018-0 03 1 9603-9810 ●
30 PIN; CYL HD GASKET SETTING
OD=10 L=18 		9-08151-018-0 03 1 9811-9904 ● ●
30 PIN; CYL HD GASKET SETTING
OD=10 L=18 		9-08151-018-0 03 1 9905- ● ● ●
32 PIN; INJ PUMP BRKT 8-94325-506-1 02 1 9603-9810 ●
32 PIN; INJ PUMP BRKT 8-94325-506-1 02 1 9811-9904 ● ●
32 PIN; INJ PUMP BRKT 8-94325-506-1 02 1 9905- ● ● ●
34 VALVE; OIL RELIEF 1-13160-030-2 01 1 9603-9810 ●
34 VALVE; OIL RELIEF 1-13160-030-2 01 1 9811-9904 ● ●
34 VALVE; OIL RELIEF 1-13160-030-3 01 1 9905- ● ● ●
35 GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-297-0 01 1 9603-9810 ●
35 GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-297-0 01 1 9811-9904 ● ●
35 GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-297-0 01 1 9905- ● ● ●
36 CUP; SEALING,WATER JACKET
(A) OD=45 		1-09600-005-1 04 1 9603-9810 ●
36 CUP; SEALING,WATER JACKET
(A) OD=45 		1-09600-005-1 04 1 9811-9904 ● ●
36 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 01 1 9603-9810 ●
36 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 01 1 9811-9904 ● ●
36 CUP; SEALING,WATER JACKET
(C) OD=40 		1-09600-065-0 02 1 9603-9810 ●
36 CUP; SEALING,WATER JACKET
(C) OD=40 		1-09600-065-0 02 1 9811-9904 ● ●
36 CUP; SEALING,WATER JACKET
(D) OD=40 		8-94241-637-0 13 1 9603-9810 ●
36 CUP; SEALING,WATER JACKET
(D) OD=40 		8-94241-637-0 13 1 9811-9904 ● ●
36 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 01 1 9905- ● ● ●
36 CUP; SEALING,WATER JACKET
(A) OD=45 		1-09600-005-2 04 1 9905- ● ● ●
36 CUP; SEALING,WATER JACKET
(C) OD=40 		1-09600-065-1 02 1 9905- ● ● ●
36 CUP; SEALING,WATER JACKET
(D) OD=40 		8-94241-637-0 13 1 9905- ● ● ●
38 PIN; TIMING GEAR CASE
OD=10 L=18 		9-08151-018-0 02 1 9603-9810 ●
38 PIN; TIMING GEAR CASE
OD=10 L=18 		9-08151-018-0 02 1 9811-9904 ● ●
38 PIN; TIMING GEAR CASE
OD=10 L=18 		9-08151-018-0 02 1 9905- ● ● ●
46 BOLT; JOINT,OIL JET,PISTON COOLING 1-13349-014-0 06 1 9603-9810 ●
46 BOLT; JOINT,OIL JET,PISTON COOLING 1-13349-014-0 06 1 9811-9904 ● ●
46 BOLT; JOINT,OIL JET,PISTON COOLING 1-13349-014-0 06 1 9905- ● ● ●
56 JET; OIL,PISTON COOLING 1-13342-125-3 06 1 9603-9810 ●
56 JET; OIL,PISTON COOLING 1-13342-125-3 06 1 9811-9904 ● ●
56 JET; OIL,PISTON COOLING 1-13342-125-3 06 1 9905- ● ● ●
70 CUP; SEALING,FRT & RR
OD=32 		1-09600-012-1 01 1 9603-9810 ●
70 CUP; SEALING,FRT & RR
OD=32 		1-09600-012-1 01 1 9811-9904 ● ●
70 CUP; SEALING,FRT & RR
OD=32 		1-09600-012-2 01 1 9905- ● ● ●
70 CUP; SEALING,FRT & RR
OD=25 		1-09600-016-0 04 1 9603-9810 ●
70 CUP; SEALING,FRT & RR
OD=25 		1-09600-016-0 04 1 9811-9904 ● ●
70 CUP; SEALING,FRT & RR
OD=25 		1-09600-016-0 04 1 9905- ● ● ●
82 STUD; FLYWHEEL HSG
M14X35 L=56 		9-04411-435-0 01 1 9603-9810 ●
82 STUD; FLYWHEEL HSG
M14X35 L=56 		9-04411-435-0 01 1 9811-9904 ● ●
82 STUD; FLYWHEEL HSG
M14X35 L=56 		9-04411-435-0 01 1 9905- ● ● ●
83 PIN; FLYWHEEL HSG 9-08151-428-0 02 1 9603-9810 ●
83 PIN; FLYWHEEL HSG 9-08151-428-0 02 1 9811-9904 ● ●
83 PIN; FLYWHEEL HSG 9-08151-428-0 02 1 9905- ● ● ●
95 PRESSURE UNIT; OIL 1-83151-042-0 01 1 9603-9810 ●
95 PRESSURE UNIT; OIL 1-83151-042-0 01 1 9811-9904 ● ●
95 PRESSURE UNIT; OIL 1-83151-042-0 01 1 9905- ● ● ●
122 ADAPTER; OIL PRESSURE SWITCH 8-94390-391-0 01 1 9603-9810 ●
122 ADAPTER; OIL PRESSURE SWITCH 8-94390-391-0 01 1 9811-9904 ● ●
122 ADAPTER; OIL PRESSURE SWITCH 8-94390-391-0 01 1 9905- ● ● ●
158 GASKET; OIL PRESS UNIT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 9603-9810 ●
158 GASKET; OIL PRESS UNIT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 9811-9904 ● ●
158 GASKET; OIL PRESS UNIT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 9905- ● ● ●
164 BOLT; COVER BLOCK SKIRT
M10X35 FLANGE 		0-28181-035-0 08 1 9603-9904 ●
165 COVER; C/BL SKIRT 1-19381-376-0 01 1 9603-9904 ●
166 MOUNT; COVER BLOCK SKIRT 1-09337-020-0 08 1 9603-9904 ●
167 TUBE; DIST,SIDE COVER 1-19389-134-1 08 1 9603-9904 ●
169 INSULATOR; SIDE COVER 1-19389-191-0 01 1 9603-9904 ●
170 WASHER; COVER
ID=10.5 OD=26 		9-09160-710-0 08 1 9603-9904 ●
211 BOLT; CRANKCASE
(A) M18X150 		1-09070-086-3 14 1 9603-9810 ●
211 BOLT; CRANKCASE
(A) M18X150 		1-09070-086-3 14 1 9811-9904 ● ●
211 BOLT; CRANKCASE
(A) M18X150 		1-09070-086-3 14 1 9905-9905 ● ● ●
211 BOLT; CRANKCASE
(A) M18X150 		1-09070-151-0 14 1 9906- ● ● ●
211 BOLT; CRANKCASE
(B) M12X114 		1-09070-087-2 28 1 9603-9810 ●
211 BOLT; CRANKCASE
(B) M12X114 		1-09070-087-2 28 1 9811-9904 ● ●
211 BOLT; CRANKCASE
(B) M12X114 		1-09070-087-2 28 1 9905- ● ● ●
212 PIN; CRANKCASE 1-09740-068-1 02 1 9603-9810 ●
212 PIN; CRANKCASE 1-09740-068-1 02 1 9811-9904 ● ●
212 PIN; CRANKCASE 1-09740-068-1 02 1 9905- ● ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 9603-9810 ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 9811-9904 ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2 		1-09630-084-0 01 1 9603-9810 ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2 		1-09630-084-0 01 1 9811-9904 ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 01 1 9603-9810 ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 01 1 9811-9904 ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=22 		1-09630-089-0 01 1 9603-9810 ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=22 		1-09630-089-0 01 1 9811-9904 ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 9905- ● ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2 		1-09630-084-0 01 1 9905- ● ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 01 1 9905- ● ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=22 		1-09630-089-0 01 1 9905- ● ● ●
230 PIN; THRUST METAL,CR/SHF
(A) L=25 		1-09749-025-1 02 1 9603-9810 ●
230 PIN; THRUST METAL,CR/SHF
(A) L=25 		1-09749-025-1 02 1 9811-9904 ● ●
230 PIN; THRUST METAL,CR/SHF
(A) L=25 		1-09749-025-1 02 1 9905- ● ● ●
230 PIN; THRUST METAL,CR/SHF
(B) OD=5 L=10 		9-08160-510-0 02 1 9603-9810 ●
230 PIN; THRUST METAL,CR/SHF
(B) OD=5 L=10 		9-08160-510-0 02 1 9811-9904 ● ●
230 PIN; THRUST METAL,CR/SHF
(B) OD=5 L=10 		9-08160-510-0 02 1 9905- ● ● ●
256 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25 		1-09630-141-0 01 1 9603-9810 ●
256 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25 		1-09630-141-0 01 1 9811-9904 ● ●
256 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25 		1-09630-141-0 01 1 9905- ● ● ●
335 PLUG; C/BL,SIDE
(A) M22X12 		1-09604-035-0 01 1 9603-9810 ●
335 PLUG; C/BL,SIDE
(A) M22X12 		1-09604-035-0 01 1 9811-9904 ● ●
335 PLUG; C/BL,SIDE
(B) M10X7 		1-09604-094-0 01 1 9603-9810 ●
335 PLUG; C/BL,SIDE
(B) M10X7 		1-09604-094-0 01 1 9811-9904 ● ●
335 PLUG; C/BL,SIDE
(C) M12X9 		1-09604-095-0 01 1 9603-9810 ●
335 PLUG; C/BL,SIDE
(C) M12X9 		1-09604-095-0 01 1 9811-9904 ● ●
335 PLUG; C/BL,SIDE
(D) PT3/4 		1-09605-025-0 01 1 9603-9609 ●
335 PLUG; C/BL,SIDE
(E) M14X9 		9-99202-314-0 01 1 9603-9810 ●
335 PLUG; C/BL,SIDE
(E) M14X9 		9-99202-314-0 01 1 9811-9904 ● ●
335 PLUG; C/BL,SIDE
(A) M22X12 		1-09604-035-0 01 1 9905- ● ● ●
335 PLUG; C/BL,SIDE
(B) M10X7 		1-09604-094-0 01 1 9905- ● ● ●
335 PLUG; C/BL,SIDE
(C) M12X9 		1-09604-095-0 01 1 9905- ● ● ●
335 PLUG; C/BL,SIDE
(E) M14X9 		9-99202-314-0 01 1 9905- ● ● ●

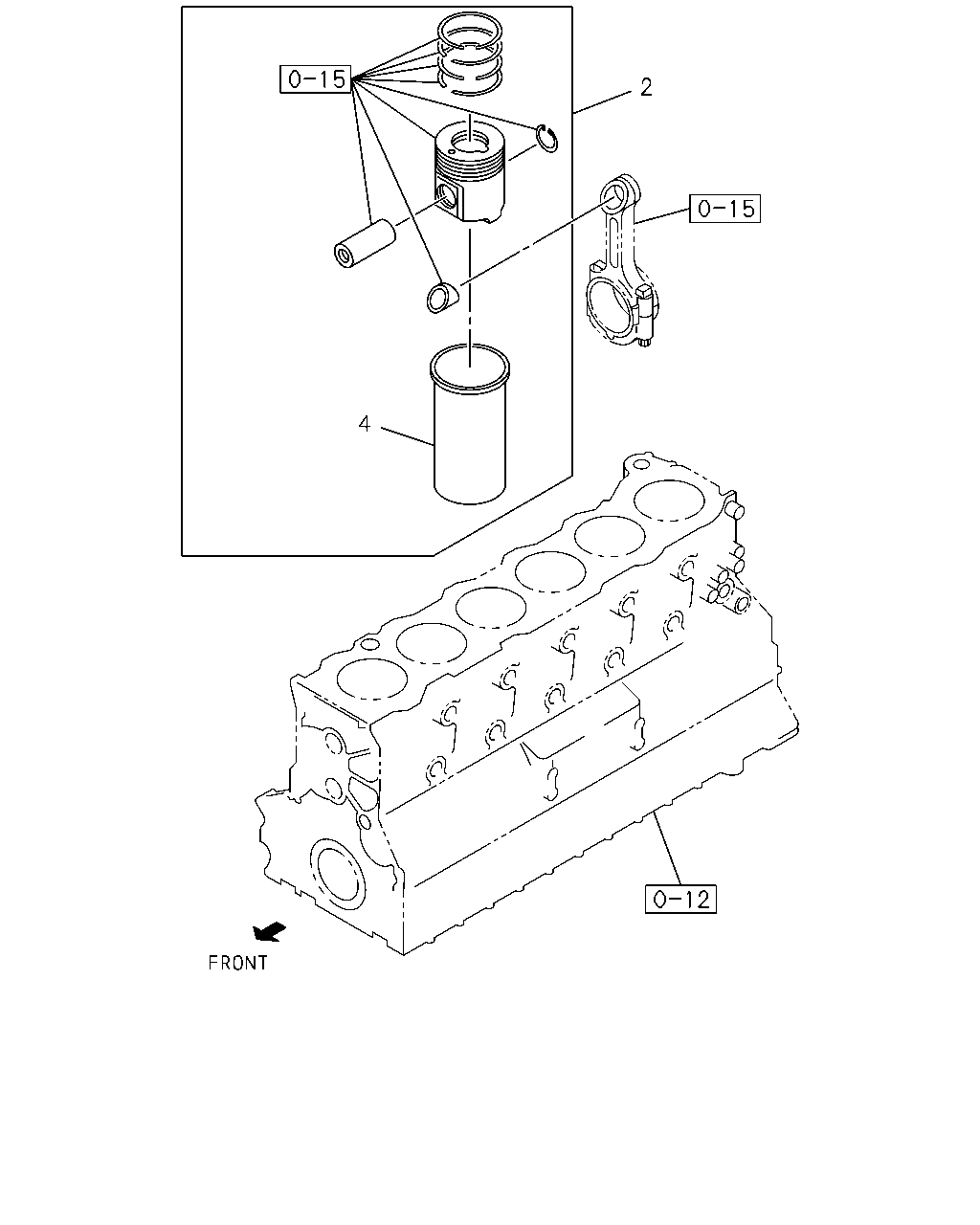

çizim 39386
2 4
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 LINER SET; ENG CYL
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> GRADE=1X 		1-87811-719-0 06 1 9603-9609 ●
2 LINER SET; ENG CYL
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> GLOW SYSTEM-FAST DIESEL ENGINE<KM6> GRADE=1X 		1-87811-719-0 06 1 9610-9710 ●
2 LINER SET; ENG CYL
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> GLOW SYSTEM-FAST DIESEL ENGINE<KM6> GRADE=1X 		1-87811-805-0 06 1 9711-9802 ●
2 LINER SET; ENG CYL
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> GLOW SYSTEM-FAST DIESEL ENGINE<KM6> GRADE=1X 		1-87811-839-0 06 1 9803-9904 ●
2 LINER SET; ENG CYL
INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> GRADE=1X 		1-87811-839-3 06 1 9905- ● ●
2 LINER SET; ENG CYL
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> GRADE=3X 		1-87811-720-0 06 1 9603-9609 ●
2 LINER SET; ENG CYL
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> GLOW SYSTEM-FAST DIESEL ENGINE<KM6> GRADE=3X 		1-87811-720-0 06 1 9610-9710 ●
2 LINER SET; ENG CYL
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> GLOW SYSTEM-FAST DIESEL ENGINE<KM6> GRADE=3X 		1-87811-806-0 06 1 9711-9802 ●
2 LINER SET; ENG CYL
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> GLOW SYSTEM-FAST DIESEL ENGINE<KM6> GRADE=3X 		1-87811-840-0 06 1 9803-9904 ●
2 LINER SET; ENG CYL
INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> GRADE=3X 		1-87811-840-3 06 1 9905- ● ●
2 LINER SET; ENG CYL
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> GRADE=1X 		1-87811-707-0 06 1 9610-9710 ●
2 LINER SET; ENG CYL
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> GRADE=1X 		1-87811-803-0 06 1 9711-9802 ●
2 LINER SET; ENG CYL
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> GRADE=1X 		1-87811-837-0 06 1 9803-9904 ●
2 LINER SET; ENG CYL
GRADE=1X 		1-87811-837-3 06 1 9905- ●
2 LINER SET; ENG CYL
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> GRADE=3X 		1-87811-708-0 06 1 9610-9710 ●
2 LINER SET; ENG CYL
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> GRADE=3X 		1-87811-804-0 06 1 9711-9802 ●
2 LINER SET; ENG CYL
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> GRADE=3X 		1-87811-838-0 06 1 9803-9904 ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87811-838-3 06 1 9905- ●
2 LINER SET; ENG CYL
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> GRADE=1X 		1-87811-704-0 06 1 9603-9710 ●
2 LINER SET; ENG CYL
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> GRADE=1X 		1-87811-801-0 06 1 9711-9802 ●
2 LINER SET; ENG CYL
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> GRADE=1X 		1-87811-835-0 06 1 9803-9810 ●
2 LINER SET; ENG CYL
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> GRADE=1X 		1-87811-835-0 06 1 9811-9904 ● ●
2 LINER SET; ENG CYL
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> GRADE=3X 		1-87811-705-0 06 1 9603-9710 ●
2 LINER SET; ENG CYL
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> GRADE=3X 		1-87811-802-0 06 1 9711-9802 ●
2 LINER SET; ENG CYL
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> GRADE=3X 		1-87811-836-0 06 1 9803-9810 ●
2 LINER SET; ENG CYL
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> GRADE=3X 		1-87811-836-0 06 1 9811-9904 ● ●
2 LINER SET; ENG CYL
EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> GRADE=1X 		1-87811-835-3 06 1 9905- ●
2 LINER SET; ENG CYL
EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> GRADE=3X 		1-87811-836-3 06 1 9905- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		1-11261-296-0 06 1 9603-9802 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		1-11261-362-0 06 1 9803-9810 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		1-11261-362-0 06 1 9811-9904 ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		1-11261-297-0 06 1 9603-9802 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		1-11261-363-0 06 1 9803-9810 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		1-11261-363-0 06 1 9811-9904 ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		1-11261-362-1 06 1 9905- ● ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		1-11261-363-1 06 1 9905- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
