◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51296 - NPR/NQR-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#54717) — 73 parça
çizim 175604
183
BalonParca AdiParca NoAdetTipApplied Date A B
183 00.785 HOSE; VAC,VAC TANK SIDE
4HG1-T ENG(RDP),4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98121-942-0 01 1 1012-1012 ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98121-942-0 01 1 1101- ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98017-169-1 01 1 1012-1012 ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98088-023-0 01 1 1012- ● ●

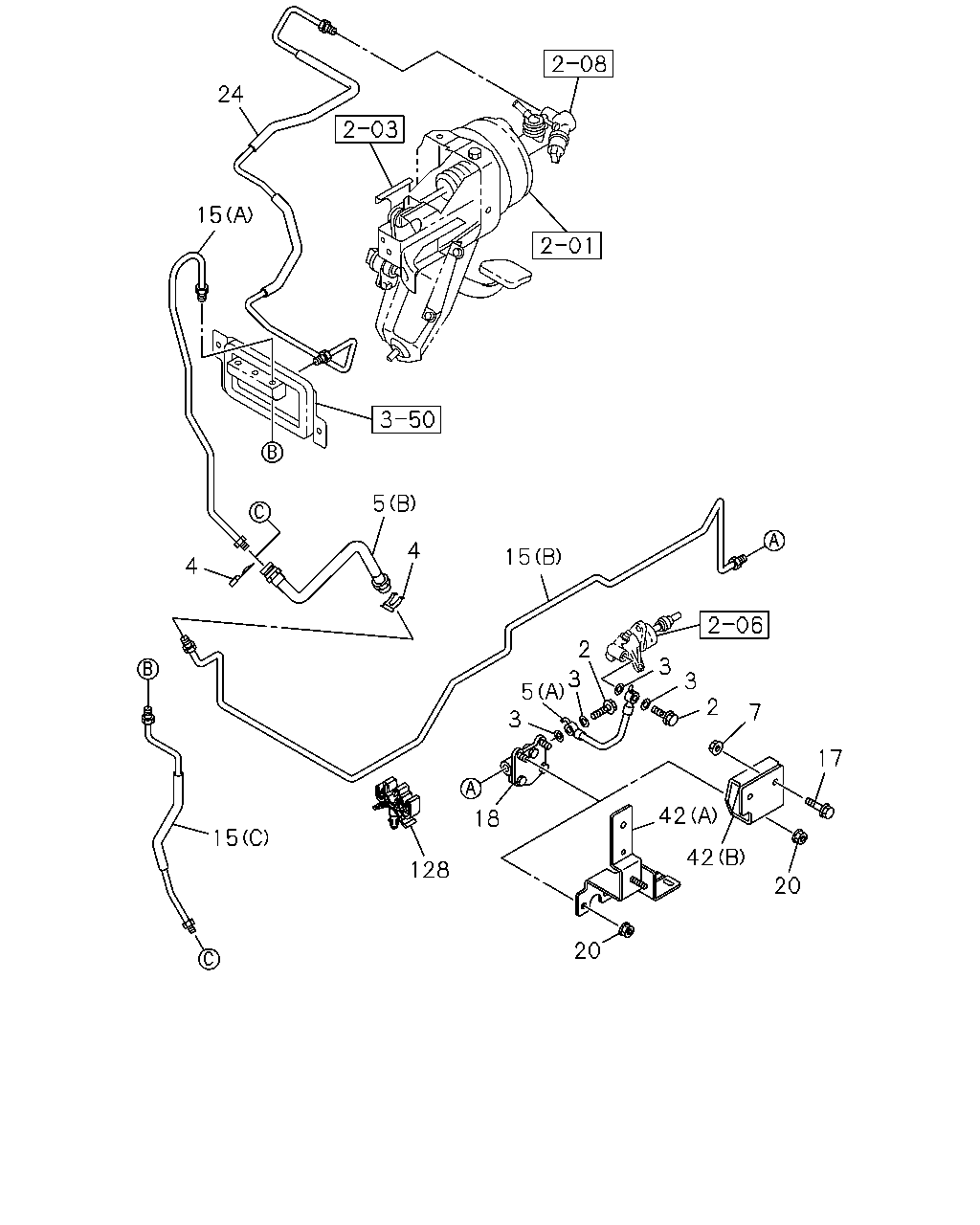

çizim 175606
24 15 5 4 15 4 2 3 3 3 2 5 3 7 17 42 18 15 42 128 20 20
BalonParca AdiParca NoAdetTipApplied Date A B
2 00.782 BOLT; EYE,SLAVE CYL
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681 M10X22 		8-98014-005-0 02 1 1012- ● ●
3 00.785 GASKET; FLEX HOSE,CLU
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		9-09920-873-1 01 1 1012- ●
3 00.785 GASKET; FLEX HOSE,CLU
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1012- ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4HG1-T ENG(RDP),4HG1 ENG(RJH) 04.681 		8-97365-304-0 01 1 1012- ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 02 1 1012- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH) (C) 		8-97064-108-1 01 1 1012- ●
5 00.785 HOSE; FLEX,CLU PIPE
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98077-611-2 01 1 1012- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98083-907-0 01 1 1012- ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012-1406 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1407- ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.837 M10 		8-98034-487-1 01 1 1012- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98100-236-0 01 1 1012- ●
15 00.785 PIPE; CLU,FLEX HOSE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98041-742-3 01 1 1012- ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-643-0 01 1 1012-1301 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
SGL CAB(NP**S*) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-643-0 01 1 1302-1401 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
DBL CAB(NP**W*) (A) 		8-97389-643-0 01 1 1302-1401 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
SGL CAB(NP**S*) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98250-269-0 01 1 1402- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
DBL CAB(NP**W*) (A) 		8-98250-269-0 01 1 1402- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98046-883-0 01 1 1012- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98043-499-3 01 1 1012-1301 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
SGL CAB(NP**S*) HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98043-499-3 01 1 1302- ● ●
17 00.785 BOLT; BRKT
4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
17 00.785 BOLT; BRKT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1012-1406 ●
17 00.785 BOLT; BRKT
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1407- ●
18 00.830 DAMPER ASM; CLU OIL
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98077-610-1 01 1 1012- ● ●
20 00.837 NUT; CLU OIL DAMPER
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97389-356-1 01 1 1012- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 		8-98077-617-0 01 1 1012- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98098-684-1 01 1 1012- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98098-686-1 01 1 1012- ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4HG1-T ENG(RDP),4HG1 ENG(RJH) (C) 		8-98102-893-0 01 1 1012- ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98100-943-1 01 1 1012- ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. EURO2 SPECIFICATION(NT2) (B) 		8-98082-472-2 01 1 1012- ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98041-450-0 01 1 1012- ● ●
128 00.785 CLIP; AIR PIPE
FRAME STRAIGHT TYPE<7KJ> 04.686 ID=12 & 6.35 & 4.76 		8-97202-954-1 01 1 1012- ● ●

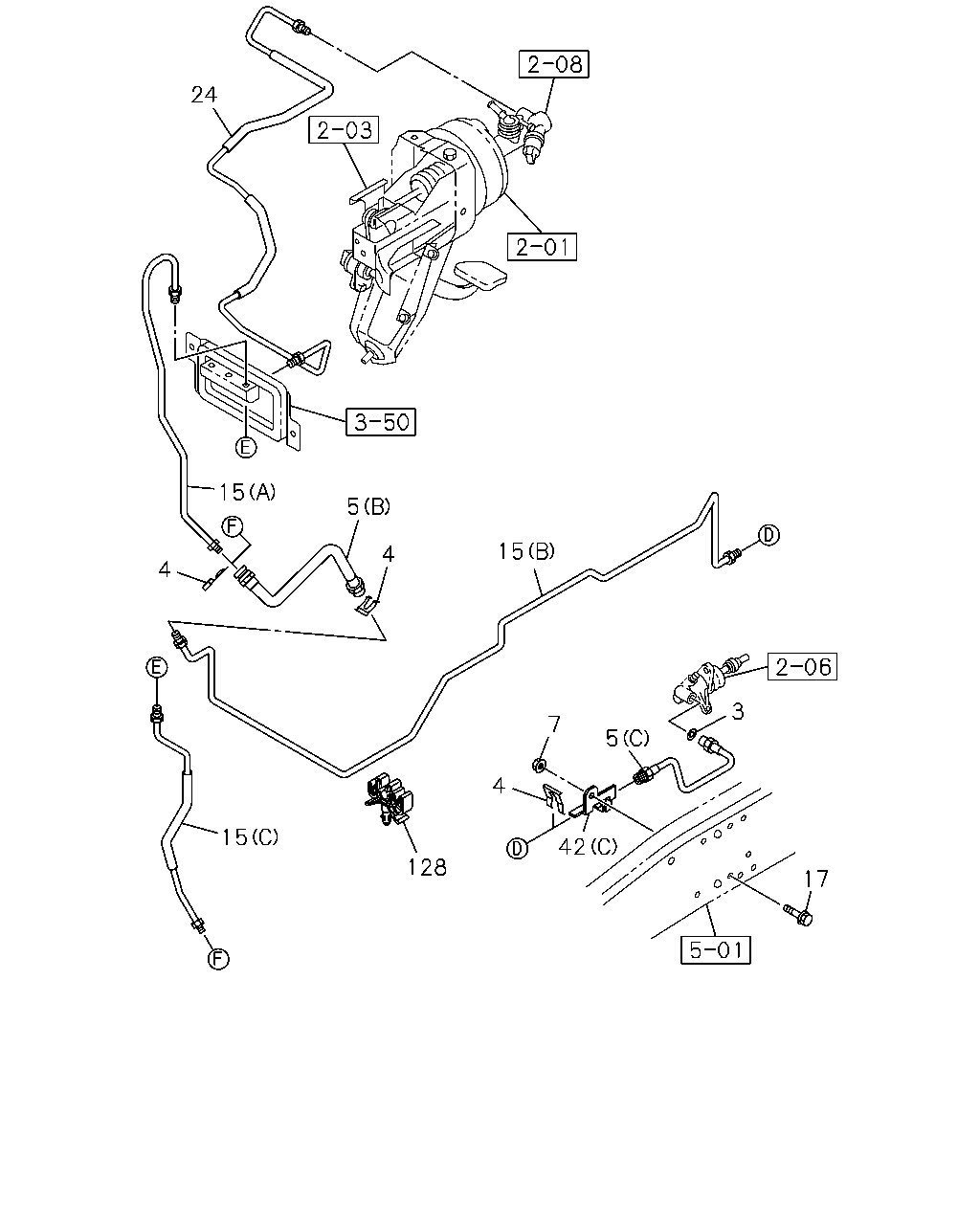

çizim 175613
24 15 5 15 4 4 3 7 5 4 15 42 128 17
BalonParca AdiParca NoAdetTipApplied Date A B
3 00.785 GASKET; FLEX HOSE,CLU
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		9-09920-873-1 01 1 1012- ●
3 00.785 GASKET; FLEX HOSE,CLU
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1012- ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4HG1-T ENG(RDP),4HG1 ENG(RJH) 04.681 		8-97365-304-0 01 1 1012- ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 02 1 1012- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH) (C) 		8-97064-108-1 01 1 1012- ●
5 00.785 HOSE; FLEX,CLU PIPE
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98077-611-2 01 1 1012- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98083-907-0 01 1 1012- ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012-1406 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1407- ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.837 M10 		8-98034-487-1 01 1 1012- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98100-236-0 01 1 1012- ●
15 00.785 PIPE; CLU,FLEX HOSE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98041-742-3 01 1 1012- ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-643-0 01 1 1012-1301 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
SGL CAB(NP**S*) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-643-0 01 1 1302-1401 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
DBL CAB(NP**W*) (A) 		8-97389-643-0 01 1 1302-1401 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
SGL CAB(NP**S*) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98250-269-0 01 1 1402- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
DBL CAB(NP**W*) (A) 		8-98250-269-0 01 1 1402- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98046-883-0 01 1 1012- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98043-499-3 01 1 1012-1301 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
SGL CAB(NP**S*) HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98043-499-3 01 1 1302- ● ●
17 00.785 BOLT; BRKT
4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
17 00.785 BOLT; BRKT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1012-1406 ●
17 00.785 BOLT; BRKT
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1407- ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97389-356-1 01 1 1012- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 		8-98077-617-0 01 1 1012- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98098-684-1 01 1 1012- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98098-686-1 01 1 1012- ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4HG1-T ENG(RDP),4HG1 ENG(RJH) (C) 		8-98102-893-0 01 1 1012- ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98100-943-1 01 1 1012- ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. EURO2 SPECIFICATION(NT2) (B) 		8-98082-472-2 01 1 1012- ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98041-450-0 01 1 1012- ● ●
128 00.785 CLIP; AIR PIPE
FRAME STRAIGHT TYPE<7KJ> 04.686 ID=12 & 6.35 & 4.76 		8-97202-954-1 01 1 1012- ● ●
