1-56 — EXHAUST BRAKE SYSTEM (#54714) — 90 parça

1 8 5 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXHAUST BRAKE VAR3<8QZ> (A)	8-98274-409-0	01	1	1510-	●	●
1	03.632 BRAKE UNIT; EXH 4HG1-T ENG(RDP) (C)	8-98056-674-0	01	1	1012-	●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) (A)	8-98056-673-0	01	1	1012-1407	●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) (A)	8-98288-176-0	01	1	1408-1509	●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) (A)	8-98332-039-0	01	1	1510-1510	●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) (A)	8-98333-421-0	01	1	1511-	●	●
1	03.632 BRAKE UNIT; EXH 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (B)	8-98033-200-1	01	1	1012-	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCC ENG(RDU) (B)	8-98033-200-1	01	1	1012-	●
1	03.632 BRAKE UNIT; EXH (B)	8-98033-200-1	01	1	1012-			●
5	03.634 GASKET; EXH BRAKE UNIT 4HG1-T ENG(RDP) 03.611 (A) ID=64	8-97373-108-0	02	1	1012-	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.611 (A) ID=64	8-97373-108-0	02	1	1012-	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (B) ID=54	8-94328-354-0	02	1	1012-	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1-TCC ENG(RDU) (B) ID=54	8-94328-354-0	02	1	1012-	●
5	03.634 GASKET; EXH BRAKE UNIT (B) ID=54	8-94328-354-0	02	1	1012-			●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1012-	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1012-	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1012-		●
8	03.632 NUT; EXH BRAKE UNIT FIX 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1012-			●

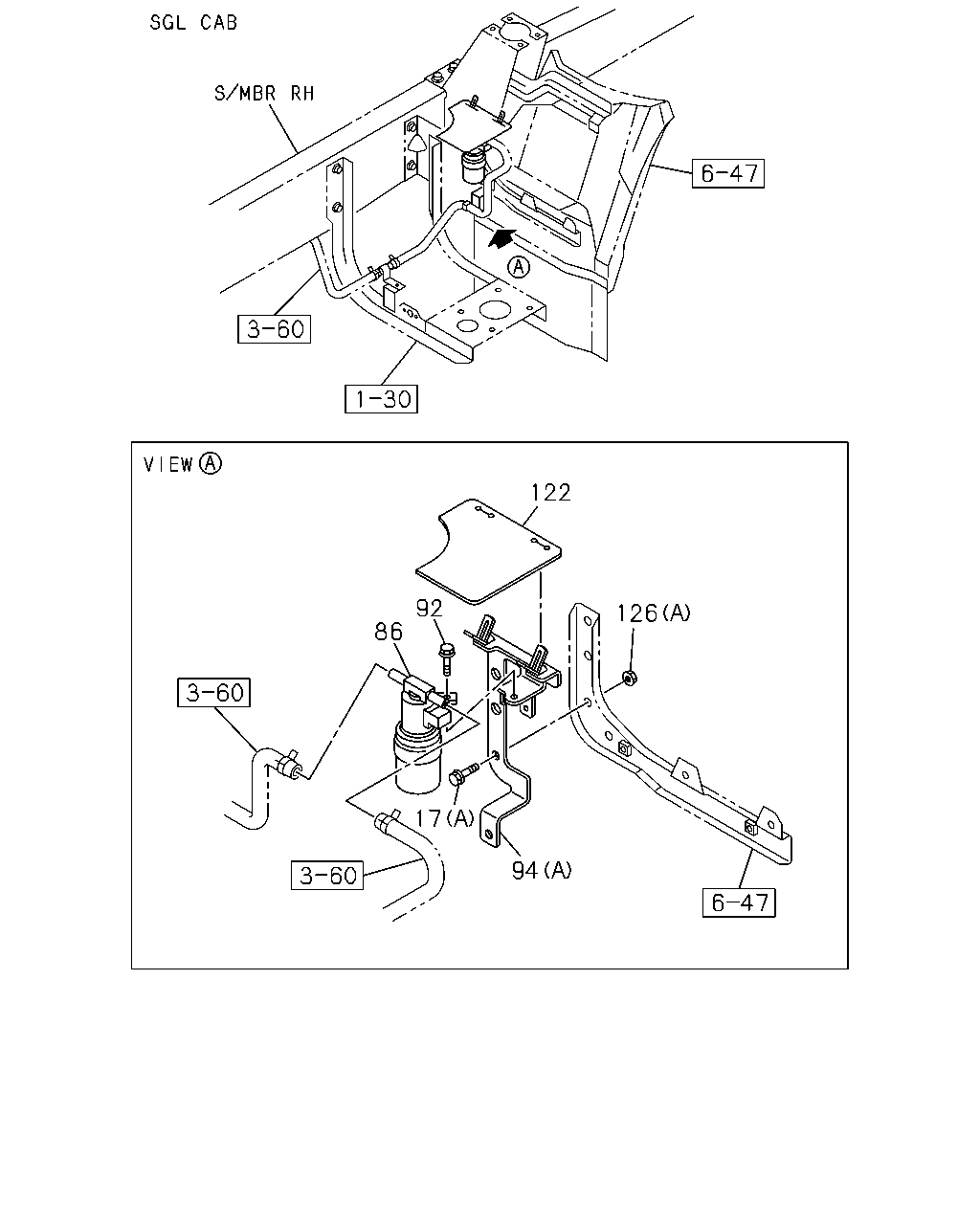

122 92 126 86 17 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
17	03.634 BOLT; BRKT EXHAUST BRAKE<NF8> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1012-1509	●
17	03.634 BOLT; BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1012-1509		●
17	03.634 BOLT; BRKT EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1510-	●
17	03.634 BOLT; BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1510-		●
17	03.634 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1012-			●
86	03.636 VALVE; MAG,EXH BRK EXHAUST BRAKE<NF8>	8-98043-344-0	01	1	1012-1509	●	●
86	03.636 VALVE; MAG,EXH BRK	8-98043-344-0	01	1	1012-1509			●
86	03.636 VALVE; MAG,EXH BRK EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ>	8-98043-344-0	01	1	1510-	●	●
86	03.636 VALVE; MAG,EXH BRK	8-98043-344-0	01	1	1510-			●
92	08.900 BOLT; MAG VLV EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-1509	●	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-1509			●
92	08.900 BOLT; MAG VLV EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1510-	●	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1510-			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (A)	8-98034-053-3	01	1	1012-1509	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ> (A)	8-98034-053-3	01	1	1510-	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98092-656-0	01	1	1012-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (B)	8-97387-681-1	01	1	1012-			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (C)	8-98089-211-0	01	1	1012-			●
122	03.640 PROTECTOR; MAG VLV EXHAUST BRAKE<NF8>	8-98087-988-0	01	1	1012-1509	●
122	03.640 PROTECTOR; MAG VLV 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-98087-988-0	01	1	1012-1509		●
122	03.640 PROTECTOR; MAG VLV EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ>	8-98087-988-0	01	1	1510-	●
122	03.640 PROTECTOR; MAG VLV 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ>	8-98087-988-0	01	1	1510-		●
126	03.634 NUT; BRKT EXHAUST BRAKE<NF8> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-1509	●
126	03.634 NUT; BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-1509		●
126	03.634 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-1509			●
126	03.634 NUT; BRKT EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1510-	●
126	03.634 NUT; BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1510-		●
126	03.634 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1510-			●
126	03.634 NUT; BRKT 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-			●

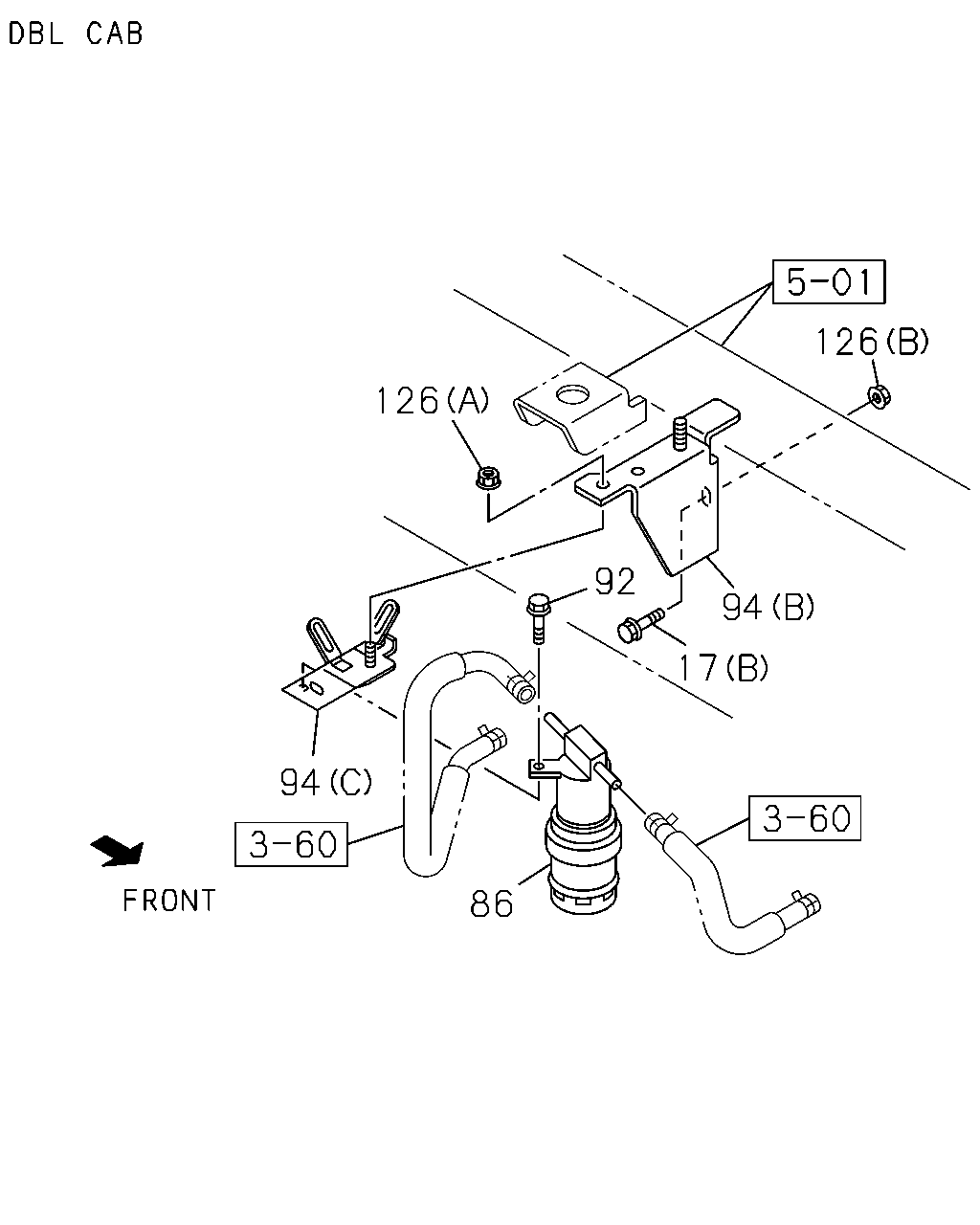

126 126 92 94 17 94 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
17	03.634 BOLT; BRKT EXHAUST BRAKE<NF8> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1012-1509	●
17	03.634 BOLT; BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1012-1509		●
17	03.634 BOLT; BRKT EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1510-	●
17	03.634 BOLT; BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1510-		●
17	03.634 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1012-			●
86	03.636 VALVE; MAG,EXH BRK EXHAUST BRAKE<NF8>	8-98043-344-0	01	1	1012-1509	●	●
86	03.636 VALVE; MAG,EXH BRK	8-98043-344-0	01	1	1012-1509			●
86	03.636 VALVE; MAG,EXH BRK EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ>	8-98043-344-0	01	1	1510-	●	●
86	03.636 VALVE; MAG,EXH BRK	8-98043-344-0	01	1	1510-			●
92	08.900 BOLT; MAG VLV EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-1509	●	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-1509			●
92	08.900 BOLT; MAG VLV EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1510-	●	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1510-			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (A)	8-98034-053-3	01	1	1012-1509	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ> (A)	8-98034-053-3	01	1	1510-	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98092-656-0	01	1	1012-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (B)	8-97387-681-1	01	1	1012-			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (C)	8-98089-211-0	01	1	1012-			●
126	03.634 NUT; BRKT EXHAUST BRAKE<NF8> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-1509	●
126	03.634 NUT; BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-1509		●
126	03.634 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-1509			●
126	03.634 NUT; BRKT EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1510-	●
126	03.634 NUT; BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1510-		●
126	03.634 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1510-			●
126	03.634 NUT; BRKT 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-			●

5 1 5 8 1 8 5 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXHAUST BRAKE VAR3<8QZ> (A)	8-98274-409-0	01	1	1510-	●	●
1	03.632 BRAKE UNIT; EXH 4HG1-T ENG(RDP) (C)	8-98056-674-0	01	1	1012-	●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) (A)	8-98056-673-0	01	1	1012-1407	●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) (A)	8-98288-176-0	01	1	1408-1509	●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) (A)	8-98332-039-0	01	1	1510-1510	●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) (A)	8-98333-421-0	01	1	1511-	●	●
1	03.632 BRAKE UNIT; EXH 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (B)	8-98033-200-1	01	1	1012-	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCC ENG(RDU) (B)	8-98033-200-1	01	1	1012-	●
1	03.632 BRAKE UNIT; EXH (B)	8-98033-200-1	01	1	1012-			●
5	03.634 GASKET; EXH BRAKE UNIT 4HG1-T ENG(RDP) 03.611 (A) ID=64	8-97373-108-0	02	1	1012-	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.611 (A) ID=64	8-97373-108-0	02	1	1012-	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (B) ID=54	8-94328-354-0	02	1	1012-	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1-TCC ENG(RDU) (B) ID=54	8-94328-354-0	02	1	1012-	●
5	03.634 GASKET; EXH BRAKE UNIT (B) ID=54	8-94328-354-0	02	1	1012-			●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1012-	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1012-	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1012-		●
8	03.632 NUT; EXH BRAKE UNIT FIX 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1012-			●
