Sayfa 1-55 - Isuzu EPC

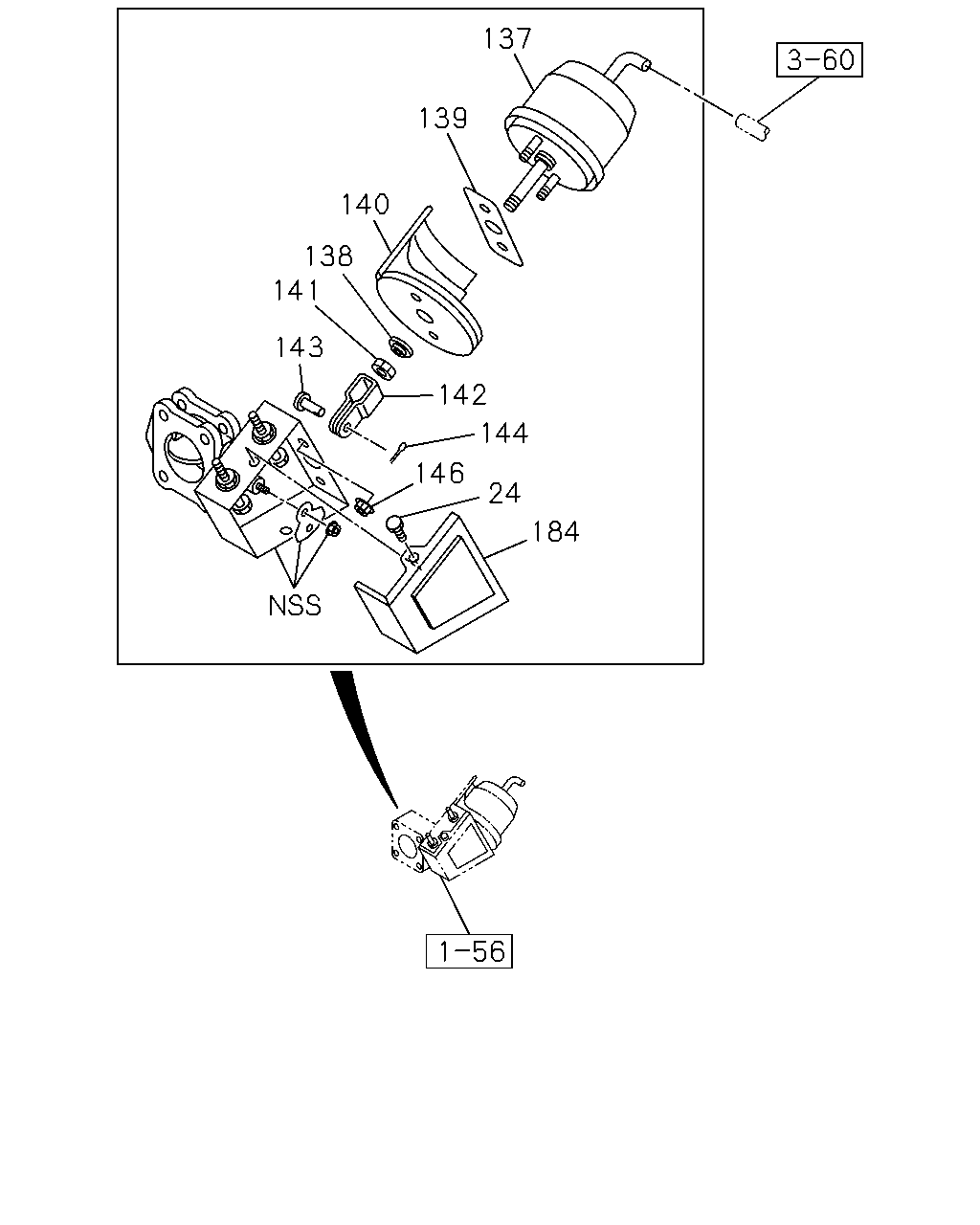

1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#54713) — 177 parça

137 142 139 184 144 138 141 24 143 6 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	03.632 VALVE; EXH BRAKE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-97360-025-1	01	1	1012-	●	●
6	03.632 VALVE; EXH BRAKE 4JJ1-TCC ENG(RDU)	8-97360-025-1	01	1	1012-	●
6	03.632 VALVE; EXH BRAKE	8-97360-025-1	01	1	1012-			●
24	03.634 BOLT; COVER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.444	8-97065-029-0	02	1	1012-1509	●	●
24	03.634 BOLT; COVER 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.444	8-97065-029-0	02	1	1012-1509	●	●
24	03.634 BOLT; COVER 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) 03.444	8-97065-029-0	02	1	1012-1509	●
24	03.634 BOLT; COVER 4HG1-T ENG(RDP) 03.444	8-97065-029-0	02	1	1012-1509		●
24	03.634 BOLT; COVER 03.444	8-97065-029-0	02	1	1012-1509			●
24	03.634 BOLT; COVER 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.444	8-97065-029-0	02	1	1510-	●	●
24	03.634 BOLT; COVER 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2) 03.444	8-97065-029-0	02	1	1510-	●	●
24	03.634 BOLT; COVER 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) 03.444	8-97065-029-0	02	1	1510-	●
24	03.634 BOLT; COVER 4HG1-T ENG(RDP) 03.444	8-97065-029-0	02	1	1510-		●
24	03.634 BOLT; COVER 03.444	8-97065-029-0	02	1	1510-			●
137	03.634 CHAMBER; POWER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-98070-470-0	01	1	1012-1509	●	●
137	03.634 CHAMBER; POWER 4HG1-T ENG(RDP)	8-98070-470-0	01	1	1012-1509	●	●
137	03.634 CHAMBER; POWER 4HG1-T ENG(RDP)	8-98070-470-0	01	1	1510-	●	●
137	03.634 CHAMBER; POWER 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2)	8-98070-470-0	01	1	1510-	●	●
137	03.634 CHAMBER; POWER 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-98043-596-0	01	1	1012-	●	●
137	03.634 CHAMBER; POWER 4JJ1-TCC ENG(RDU)	8-98043-596-0	01	1	1012-	●
137	03.634 CHAMBER; POWER	8-98043-596-0	01	1	1012-			●
138	03.634 BEARING; EXH BRK VLV 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	5-22189-004-0	01	1	1012-1509	●	●
138	03.634 BEARING; EXH BRK VLV 4HG1-T ENG(RDP)	5-22189-004-0	01	1	1012-1509	●	●
138	03.634 BEARING; EXH BRK VLV 4HG1-T ENG(RDP)	5-22189-004-0	01	1	1510-	●	●
138	03.634 BEARING; EXH BRK VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2)	5-22189-004-0	01	1	1510-	●	●
138	03.634 BEARING; EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.440	8-94311-446-0	01	1	1012-	●	●
138	03.634 BEARING; EXH BRK VLV 4JJ1-TCC ENG(RDU) 03.440	8-94311-446-0	01	1	1012-	●
138	03.634 BEARING; EXH BRK VLV 03.440	8-94311-446-0	01	1	1012-			●
139	03.634 GASKET; EXH BRK VLV 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-94328-234-0	01	1	1012-1509	●	●
139	03.634 GASKET; EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-94328-234-0	01	1	1012-1509	●	●
139	03.634 GASKET; EXH BRK VLV 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU)	8-94328-234-0	01	1	1012-1509	●
139	03.634 GASKET; EXH BRK VLV 4HG1-T ENG(RDP)	8-94328-234-0	01	1	1012-1509		●
139	03.634 GASKET; EXH BRK VLV	8-94328-234-0	01	1	1012-1509			●
139	03.634 GASKET; EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-94328-234-0	01	1	1510-	●	●
139	03.634 GASKET; EXH BRK VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2)	8-94328-234-0	01	1	1510-	●	●
139	03.634 GASKET; EXH BRK VLV 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU)	8-94328-234-0	01	1	1510-	●
139	03.634 GASKET; EXH BRK VLV 4HG1-T ENG(RDP)	8-94328-234-0	01	1	1510-		●
139	03.634 GASKET; EXH BRK VLV	8-94328-234-0	01	1	1510-			●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 05.122	8-94311-428-0	01	1	1012-1509	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4HG1-T ENG(RDP) 05.122	8-94311-428-0	01	1	1012-1509	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4HG1-T ENG(RDP) 05.122	8-94311-428-0	01	1	1510-	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2) 05.122	8-94311-428-0	01	1	1510-	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	9-88510-009-0	01	1	1012-	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JJ1-TCC ENG(RDU)	9-88510-009-0	01	1	1012-	●
141	03.636 NUT; CLEVIS,EXH BRK VLV	9-88510-009-0	01	1	1012-			●
142	03.636 CLEVIS; EXH BRK VLV 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-97177-311-0	01	1	1012-1509	●	●
142	03.636 CLEVIS; EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-97177-311-0	01	1	1012-1509	●	●
142	03.636 CLEVIS; EXH BRK VLV 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU)	8-97177-311-0	01	1	1012-1509	●
142	03.636 CLEVIS; EXH BRK VLV 4HG1-T ENG(RDP)	8-97177-311-0	01	1	1012-1509		●
142	03.636 CLEVIS; EXH BRK VLV	8-97177-311-0	01	1	1012-1509			●
142	03.636 CLEVIS; EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-97177-311-0	01	1	1510-	●	●
142	03.636 CLEVIS; EXH BRK VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2)	8-97177-311-0	01	1	1510-	●	●
142	03.636 CLEVIS; EXH BRK VLV 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU)	8-97177-311-0	01	1	1510-	●
142	03.636 CLEVIS; EXH BRK VLV 4HG1-T ENG(RDP)	8-97177-311-0	01	1	1510-		●
142	03.636 CLEVIS; EXH BRK VLV	8-97177-311-0	01	1	1510-			●
143	03.636 PIN; EXH BRK VLV 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-94311-452-0	01	1	1012-1509	●	●
143	03.636 PIN; EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-94311-452-0	01	1	1012-1509	●	●
143	03.636 PIN; EXH BRK VLV 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU)	8-94311-452-0	01	1	1012-1509	●
143	03.636 PIN; EXH BRK VLV 4HG1-T ENG(RDP)	8-94311-452-0	01	1	1012-1509		●
143	03.636 PIN; EXH BRK VLV	8-94311-452-0	01	1	1012-1509			●
143	03.636 PIN; EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-94311-452-0	01	1	1510-	●	●
143	03.636 PIN; EXH BRK VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2)	8-94311-452-0	01	1	1510-	●	●
143	03.636 PIN; EXH BRK VLV 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU)	8-94311-452-0	01	1	1510-	●
143	03.636 PIN; EXH BRK VLV 4HG1-T ENG(RDP)	8-94311-452-0	01	1	1510-		●
143	03.636 PIN; EXH BRK VLV	8-94311-452-0	01	1	1510-			●
144	03.636 PIN; SPLIT,EXH BRK VLV 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-97029-428-0	01	1	1012-1509	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-97029-428-0	01	1	1012-1509	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU)	8-97029-428-0	01	1	1012-1509	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4HG1-T ENG(RDP)	8-97029-428-0	01	1	1012-1509		●
144	03.636 PIN; SPLIT,EXH BRK VLV	8-97029-428-0	01	1	1012-1509			●
144	03.636 PIN; SPLIT,EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-97029-428-0	01	1	1510-	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2)	8-97029-428-0	01	1	1510-	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU)	8-97029-428-0	01	1	1510-	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4HG1-T ENG(RDP)	8-97029-428-0	01	1	1510-		●
144	03.636 PIN; SPLIT,EXH BRK VLV	8-97029-428-0	01	1	1510-			●
146	03.634 NUT; EXH BRK VLV 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1509	●	●
146	03.634 NUT; EXH BRK VLV 4HG1-T ENG(RDP) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1509	●	●
146	03.634 NUT; EXH BRK VLV 4HG1-T ENG(RDP) 01.062 M8 FLANGE	0-91180-108-0	02	1	1510-	●	●
146	03.634 NUT; EXH BRK VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2) 01.062 M8 FLANGE	0-91180-108-0	02	1	1510-	●	●
146	03.634 NUT; EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	1012-	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1-TCC ENG(RDU) 07.633 M8 FLANGE	0-91150-108-0	02	1	1012-	●
146	03.634 NUT; EXH BRK VLV 07.633 M8 FLANGE	0-91150-108-0	02	1	1012-			●
184	03.634 COVER; BRKT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-98070-514-0	01	1	1012-1509	●	●
184	03.634 COVER; BRKT 4HG1-T ENG(RDP)	8-98070-514-0	01	1	1012-1509	●	●
184	03.634 COVER; BRKT 4HG1-T ENG(RDP)	8-98070-514-0	01	1	1510-	●	●
184	03.634 COVER; BRKT 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2)	8-98070-514-0	01	1	1510-	●	●
184	03.634 COVER; BRKT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-97311-447-1	01	1	1012-	●	●
184	03.634 COVER; BRKT 4JJ1-TCC ENG(RDU)	8-97311-447-1	01	1	1012-	●
184	03.634 COVER; BRKT	8-97311-447-1	01	1	1012-			●

137 139 140 138 141 143 142 144 146 24 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	03.634 BOLT; COVER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.444	8-97065-029-0	02	1	1012-1509	●	●
24	03.634 BOLT; COVER 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.444	8-97065-029-0	02	1	1012-1509	●	●
24	03.634 BOLT; COVER 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) 03.444	8-97065-029-0	02	1	1012-1509	●
24	03.634 BOLT; COVER 4HG1-T ENG(RDP) 03.444	8-97065-029-0	02	1	1012-1509		●
24	03.634 BOLT; COVER 03.444	8-97065-029-0	02	1	1012-1509			●
24	03.634 BOLT; COVER 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.444	8-97065-029-0	02	1	1510-	●	●
24	03.634 BOLT; COVER 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2) 03.444	8-97065-029-0	02	1	1510-	●	●
24	03.634 BOLT; COVER 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) 03.444	8-97065-029-0	02	1	1510-	●
24	03.634 BOLT; COVER 4HG1-T ENG(RDP) 03.444	8-97065-029-0	02	1	1510-		●
24	03.634 BOLT; COVER 03.444	8-97065-029-0	02	1	1510-			●
137	03.634 CHAMBER; POWER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-98070-470-0	01	1	1012-1509	●	●
137	03.634 CHAMBER; POWER 4HG1-T ENG(RDP)	8-98070-470-0	01	1	1012-1509	●	●
137	03.634 CHAMBER; POWER 4HG1-T ENG(RDP)	8-98070-470-0	01	1	1510-	●	●
137	03.634 CHAMBER; POWER 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2)	8-98070-470-0	01	1	1510-	●	●
137	03.634 CHAMBER; POWER 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-98043-596-0	01	1	1012-	●	●
137	03.634 CHAMBER; POWER 4JJ1-TCC ENG(RDU)	8-98043-596-0	01	1	1012-	●
137	03.634 CHAMBER; POWER	8-98043-596-0	01	1	1012-			●
138	03.634 BEARING; EXH BRK VLV 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	5-22189-004-0	01	1	1012-1509	●	●
138	03.634 BEARING; EXH BRK VLV 4HG1-T ENG(RDP)	5-22189-004-0	01	1	1012-1509	●	●
138	03.634 BEARING; EXH BRK VLV 4HG1-T ENG(RDP)	5-22189-004-0	01	1	1510-	●	●
138	03.634 BEARING; EXH BRK VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2)	5-22189-004-0	01	1	1510-	●	●
138	03.634 BEARING; EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.440	8-94311-446-0	01	1	1012-	●	●
138	03.634 BEARING; EXH BRK VLV 4JJ1-TCC ENG(RDU) 03.440	8-94311-446-0	01	1	1012-	●
138	03.634 BEARING; EXH BRK VLV 03.440	8-94311-446-0	01	1	1012-			●
139	03.634 GASKET; EXH BRK VLV 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-94328-234-0	01	1	1012-1509	●	●
139	03.634 GASKET; EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-94328-234-0	01	1	1012-1509	●	●
139	03.634 GASKET; EXH BRK VLV 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU)	8-94328-234-0	01	1	1012-1509	●
139	03.634 GASKET; EXH BRK VLV 4HG1-T ENG(RDP)	8-94328-234-0	01	1	1012-1509		●
139	03.634 GASKET; EXH BRK VLV	8-94328-234-0	01	1	1012-1509			●
139	03.634 GASKET; EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-94328-234-0	01	1	1510-	●	●
139	03.634 GASKET; EXH BRK VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2)	8-94328-234-0	01	1	1510-	●	●
139	03.634 GASKET; EXH BRK VLV 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU)	8-94328-234-0	01	1	1510-	●
139	03.634 GASKET; EXH BRK VLV 4HG1-T ENG(RDP)	8-94328-234-0	01	1	1510-		●
139	03.634 GASKET; EXH BRK VLV	8-94328-234-0	01	1	1510-			●
140	03.634 INSULATOR; EXH BRK VLV 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-97173-333-0	01	1	1012-1509	●	●
140	03.634 INSULATOR; EXH BRK VLV 4HG1-T ENG(RDP)	8-97173-333-0	01	1	1012-1509	●	●
140	03.634 INSULATOR; EXH BRK VLV 4HG1-T ENG(RDP)	8-97173-333-0	01	1	1510-	●	●
140	03.634 INSULATOR; EXH BRK VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2)	8-97173-333-0	01	1	1510-	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 05.122	8-94311-428-0	01	1	1012-1509	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4HG1-T ENG(RDP) 05.122	8-94311-428-0	01	1	1012-1509	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4HG1-T ENG(RDP) 05.122	8-94311-428-0	01	1	1510-	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2) 05.122	8-94311-428-0	01	1	1510-	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	9-88510-009-0	01	1	1012-	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JJ1-TCC ENG(RDU)	9-88510-009-0	01	1	1012-	●
141	03.636 NUT; CLEVIS,EXH BRK VLV	9-88510-009-0	01	1	1012-			●
142	03.636 CLEVIS; EXH BRK VLV 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-97177-311-0	01	1	1012-1509	●	●
142	03.636 CLEVIS; EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-97177-311-0	01	1	1012-1509	●	●
142	03.636 CLEVIS; EXH BRK VLV 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU)	8-97177-311-0	01	1	1012-1509	●
142	03.636 CLEVIS; EXH BRK VLV 4HG1-T ENG(RDP)	8-97177-311-0	01	1	1012-1509		●
142	03.636 CLEVIS; EXH BRK VLV	8-97177-311-0	01	1	1012-1509			●
142	03.636 CLEVIS; EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-97177-311-0	01	1	1510-	●	●
142	03.636 CLEVIS; EXH BRK VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2)	8-97177-311-0	01	1	1510-	●	●
142	03.636 CLEVIS; EXH BRK VLV 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU)	8-97177-311-0	01	1	1510-	●
142	03.636 CLEVIS; EXH BRK VLV 4HG1-T ENG(RDP)	8-97177-311-0	01	1	1510-		●
142	03.636 CLEVIS; EXH BRK VLV	8-97177-311-0	01	1	1510-			●
143	03.636 PIN; EXH BRK VLV 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-94311-452-0	01	1	1012-1509	●	●
143	03.636 PIN; EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-94311-452-0	01	1	1012-1509	●	●
143	03.636 PIN; EXH BRK VLV 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU)	8-94311-452-0	01	1	1012-1509	●
143	03.636 PIN; EXH BRK VLV 4HG1-T ENG(RDP)	8-94311-452-0	01	1	1012-1509		●
143	03.636 PIN; EXH BRK VLV	8-94311-452-0	01	1	1012-1509			●
143	03.636 PIN; EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-94311-452-0	01	1	1510-	●	●
143	03.636 PIN; EXH BRK VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2)	8-94311-452-0	01	1	1510-	●	●
143	03.636 PIN; EXH BRK VLV 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU)	8-94311-452-0	01	1	1510-	●
143	03.636 PIN; EXH BRK VLV 4HG1-T ENG(RDP)	8-94311-452-0	01	1	1510-		●
143	03.636 PIN; EXH BRK VLV	8-94311-452-0	01	1	1510-			●
144	03.636 PIN; SPLIT,EXH BRK VLV 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-97029-428-0	01	1	1012-1509	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-97029-428-0	01	1	1012-1509	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU)	8-97029-428-0	01	1	1012-1509	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4HG1-T ENG(RDP)	8-97029-428-0	01	1	1012-1509		●
144	03.636 PIN; SPLIT,EXH BRK VLV	8-97029-428-0	01	1	1012-1509			●
144	03.636 PIN; SPLIT,EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-97029-428-0	01	1	1510-	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2)	8-97029-428-0	01	1	1510-	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU)	8-97029-428-0	01	1	1510-	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4HG1-T ENG(RDP)	8-97029-428-0	01	1	1510-		●
144	03.636 PIN; SPLIT,EXH BRK VLV	8-97029-428-0	01	1	1510-			●
146	03.634 NUT; EXH BRK VLV 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1509	●	●
146	03.634 NUT; EXH BRK VLV 4HG1-T ENG(RDP) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1509	●	●
146	03.634 NUT; EXH BRK VLV 4HG1-T ENG(RDP) 01.062 M8 FLANGE	0-91180-108-0	02	1	1510-	●	●
146	03.634 NUT; EXH BRK VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2) 01.062 M8 FLANGE	0-91180-108-0	02	1	1510-	●	●
146	03.634 NUT; EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	1012-	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1-TCC ENG(RDU) 07.633 M8 FLANGE	0-91150-108-0	02	1	1012-	●
146	03.634 NUT; EXH BRK VLV 07.633 M8 FLANGE	0-91150-108-0	02	1	1012-			●
184	03.634 COVER; BRKT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-98070-514-0	01	1	1012-1509	●	●
184	03.634 COVER; BRKT 4HG1-T ENG(RDP)	8-98070-514-0	01	1	1012-1509	●	●
184	03.634 COVER; BRKT 4HG1-T ENG(RDP)	8-98070-514-0	01	1	1510-	●	●
184	03.634 COVER; BRKT 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2)	8-98070-514-0	01	1	1510-	●	●
184	03.634 COVER; BRKT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-97311-447-1	01	1	1012-	●	●
184	03.634 COVER; BRKT 4JJ1-TCC ENG(RDU)	8-97311-447-1	01	1	1012-	●
184	03.634 COVER; BRKT	8-97311-447-1	01	1	1012-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
