Sayfa 1-45 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51296 - NPR/NQR-RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-45 - WATER SEDIMENTER; FUEL ▶

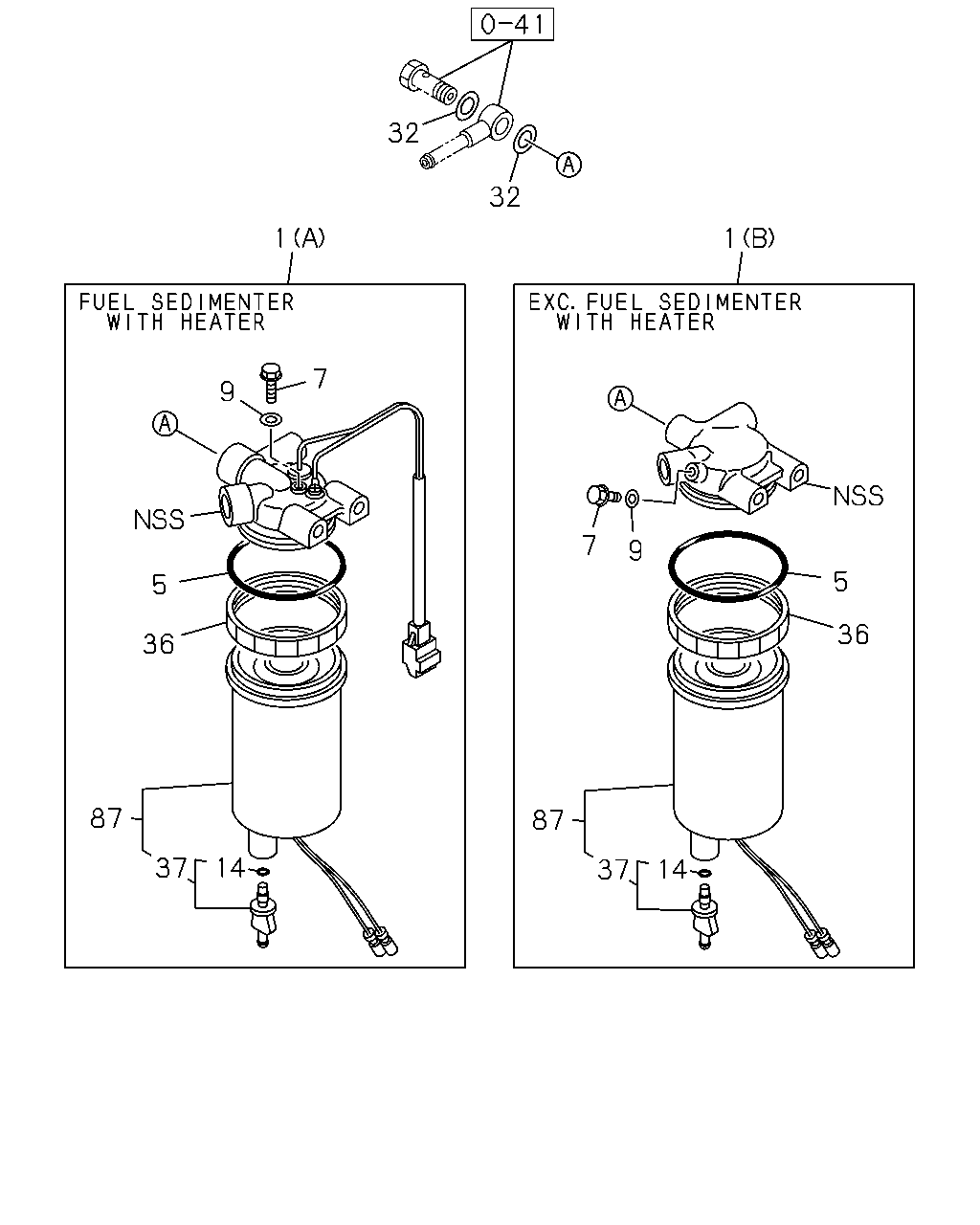

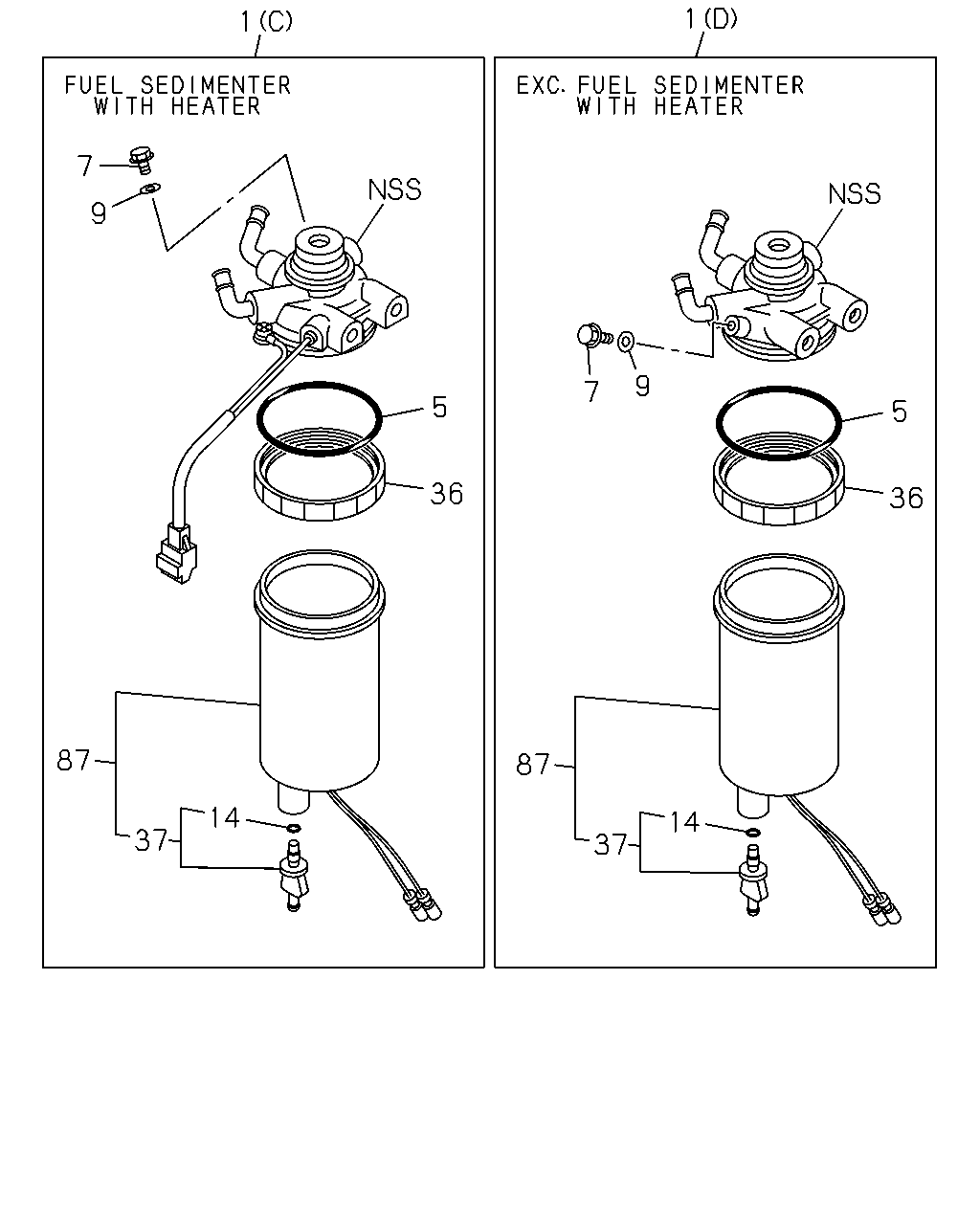

1-45 — WATER SEDIMENTER; FUEL (#54711) — 89 parça

32 32 1 1 7 9 7 9 5 5 36 36 87 87 14 37 37 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP) VIN MODEL YEAR 2014<VZE> (E)	8-98269-584-0	01	1	1407-	●
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP) FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-98181-253-0	01	1	1012-1406	●	●
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP) FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-98181-253-0	01	1	1407-		●
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP) FUEL SEDIMENTER WITH HEATER<6HU> EXC. VIN MODEL YEAR 2014<VZE> (C)	8-98181-253-0	01	1	1407-	●
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D)	8-97081-814-3	01	1	1012-1406	●	●
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D)	8-97081-814-3	01	1	1407-		●
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014<VZE>,FUEL SEDIMENTER WITH HEATER<6HU> (D)	8-97081-814-3	01	1	1407-	●
1	03.890 SEDIMENTER; FUEL 4HG1 ENG(RJH) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94311-522-3	01	1	1012-	●	●
1	03.890 SEDIMENTER; FUEL 4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-94144-933-4	01	1	1012-	●	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	5-09623-075-0	01	1	1012-1406	●	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	5-09623-075-0	01	1	1407-		●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014<VZE>	5-09623-075-0	01	1	1407-	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HG1 ENG(RJH)	5-09623-075-0	01	1	1407-	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-94132-674-0	01	1	1012-1406	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-94132-674-0	01	1	1407-		●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014<VZE>	8-94132-674-0	01	1	1407-	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HG1 ENG(RJH)	8-94132-674-0	01	1	1407-	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1 ENG(RJH) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	1012-1406	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1-T ENG(RDP)	8-94132-675-0	01	1	1012-1406	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1 ENG(RJH) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	1407-	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1-T ENG(RDP)	8-94132-675-0	01	1	1407-		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014<VZE>	8-94132-675-0	01	1	1407-	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895	9-09571-406-0	01	1	1012-	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-94447-156-0	01	1	1012-1406	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-94447-156-0	01	1	1407-		●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014<VZE>	8-94447-156-0	01	1	1407-	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HG1 ENG(RJH)	8-94447-156-0	01	1	1407-	●
32	03.890 GASKET; FUEL FILTER 4HG1 ENG(RJH) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	1012-	●	●
36	03.890 RING; BODY TO CASE 4HG1-T ENG(RDP),4HG1 ENG(RJH)	5-13234-001-0	01	1	1012-1406	●	●
36	03.890 RING; BODY TO CASE 4HG1-T ENG(RDP),4HG1 ENG(RJH)	5-13234-001-0	01	1	1407-		●
36	03.890 RING; BODY TO CASE 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014<VZE>	5-13234-001-0	01	1	1407-	●
36	03.890 RING; BODY TO CASE 4HG1 ENG(RJH)	5-13234-001-0	01	1	1407-	●
37	03.890 PLUG; SENSOR 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-94453-746-0	01	1	1012-1406	●	●
37	03.890 PLUG; SENSOR 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-94453-746-0	01	1	1407-		●
37	03.890 PLUG; SENSOR 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014<VZE>	8-94453-746-0	01	1	1407-	●
37	03.890 PLUG; SENSOR 4HG1 ENG(RJH)	8-94453-746-0	01	1	1407-	●
87	03.890 CASE ASM; SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97219-363-1	01	1	1012-1406	●	●
87	03.890 CASE ASM; SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97219-363-1	01	1	1407-		●
87	03.890 CASE ASM; SEDIMENTER 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014<VZE>	8-97219-363-1	01	1	1407-	●
87	03.890 CASE ASM; SEDIMENTER 4HG1 ENG(RJH)	8-97219-363-1	01	1	1407-	●

1 1 7 9 9 7 5 5 36 36 87 87 14 14 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP) VIN MODEL YEAR 2014<VZE> (E)	8-98269-584-0	01	1	1407-	●
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP) FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-98181-253-0	01	1	1012-1406	●	●
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP) FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-98181-253-0	01	1	1407-		●
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP) FUEL SEDIMENTER WITH HEATER<6HU> EXC. VIN MODEL YEAR 2014<VZE> (C)	8-98181-253-0	01	1	1407-	●
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D)	8-97081-814-3	01	1	1012-1406	●	●
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D)	8-97081-814-3	01	1	1407-		●
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014<VZE>,FUEL SEDIMENTER WITH HEATER<6HU> (D)	8-97081-814-3	01	1	1407-	●
1	03.890 SEDIMENTER; FUEL 4HG1 ENG(RJH) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94311-522-3	01	1	1012-	●	●
1	03.890 SEDIMENTER; FUEL 4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-94144-933-4	01	1	1012-	●	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	5-09623-075-0	01	1	1012-1406	●	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	5-09623-075-0	01	1	1407-		●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014<VZE>	5-09623-075-0	01	1	1407-	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HG1 ENG(RJH)	5-09623-075-0	01	1	1407-	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-94132-674-0	01	1	1012-1406	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-94132-674-0	01	1	1407-		●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014<VZE>	8-94132-674-0	01	1	1407-	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HG1 ENG(RJH)	8-94132-674-0	01	1	1407-	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1 ENG(RJH) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	1012-1406	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1-T ENG(RDP)	8-94132-675-0	01	1	1012-1406	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1 ENG(RJH) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	1407-	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1-T ENG(RDP)	8-94132-675-0	01	1	1407-		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014<VZE>	8-94132-675-0	01	1	1407-	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895	9-09571-406-0	01	1	1012-	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-94447-156-0	01	1	1012-1406	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-94447-156-0	01	1	1407-		●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014<VZE>	8-94447-156-0	01	1	1407-	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HG1 ENG(RJH)	8-94447-156-0	01	1	1407-	●
36	03.890 RING; BODY TO CASE 4HG1-T ENG(RDP),4HG1 ENG(RJH)	5-13234-001-0	01	1	1012-1406	●	●
36	03.890 RING; BODY TO CASE 4HG1-T ENG(RDP),4HG1 ENG(RJH)	5-13234-001-0	01	1	1407-		●
36	03.890 RING; BODY TO CASE 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014<VZE>	5-13234-001-0	01	1	1407-	●
36	03.890 RING; BODY TO CASE 4HG1 ENG(RJH)	5-13234-001-0	01	1	1407-	●
37	03.890 PLUG; SENSOR 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-94453-746-0	01	1	1012-1406	●	●
37	03.890 PLUG; SENSOR 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-94453-746-0	01	1	1407-		●
37	03.890 PLUG; SENSOR 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014<VZE>	8-94453-746-0	01	1	1407-	●
37	03.890 PLUG; SENSOR 4HG1 ENG(RJH)	8-94453-746-0	01	1	1407-	●
87	03.890 CASE ASM; SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97219-363-1	01	1	1012-1406	●	●
87	03.890 CASE ASM; SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97219-363-1	01	1	1407-		●
87	03.890 CASE ASM; SEDIMENTER 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014<VZE>	8-97219-363-1	01	1	1407-	●
87	03.890 CASE ASM; SEDIMENTER 4HG1 ENG(RJH)	8-97219-363-1	01	1	1407-	●

1 1 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP) VIN MODEL YEAR 2014<VZE> (E)	8-98269-584-0	01	1	1407-	●
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP) FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-98181-253-0	01	1	1012-1406	●	●
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP) FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-98181-253-0	01	1	1407-		●
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP) FUEL SEDIMENTER WITH HEATER<6HU> EXC. VIN MODEL YEAR 2014<VZE> (C)	8-98181-253-0	01	1	1407-	●
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D)	8-97081-814-3	01	1	1012-1406	●	●
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D)	8-97081-814-3	01	1	1407-		●
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014<VZE>,FUEL SEDIMENTER WITH HEATER<6HU> (D)	8-97081-814-3	01	1	1407-	●
1	03.890 SEDIMENTER; FUEL 4HG1 ENG(RJH) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94311-522-3	01	1	1012-	●	●
1	03.890 SEDIMENTER; FUEL 4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-94144-933-4	01	1	1012-	●	●
57	03.890 CARTRIDGE KIT; FUEL FILTER 4HG1-T ENG(RDP) VIN MODEL YEAR 2014<VZE>	8-98270-184-0	01	1	1407-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
