◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51296 - NPR/NQR-RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-40 - FUEL TANK ▶
1-40 — FUEL TANK (#54709) — 245 parça

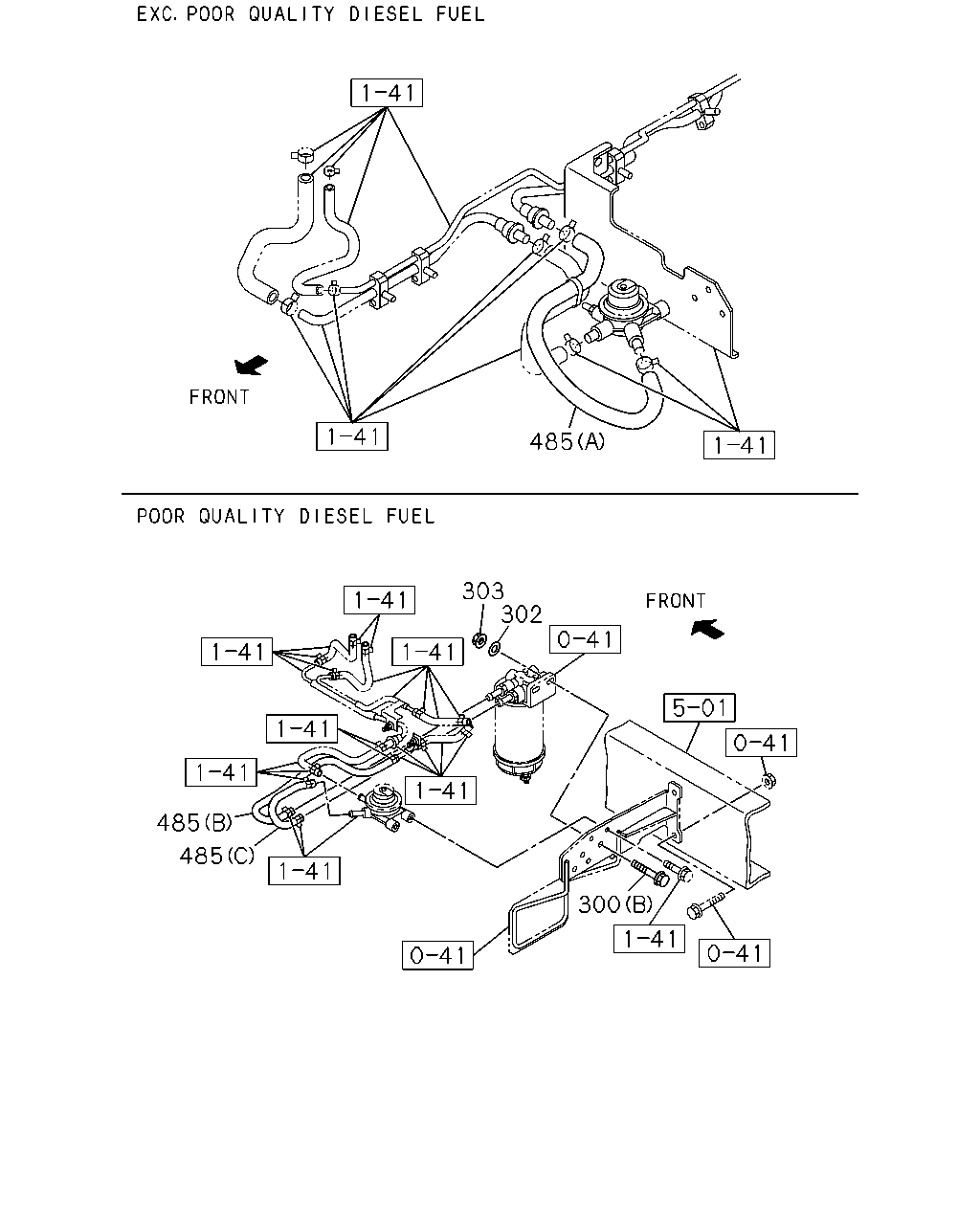

çizim 175571
485 485 485 303 302 300
BalonParca AdiParca NoAdetTipApplied Date A B C
300 03.162 BOLT; BRKT TO BODY
4HG1-T ENG(RDP),4HG1 ENG(RJH) INDONESIA EQUIPMENT(B00) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 01.060 (D) M8X35 FLANGE 		0-28650-835-0 02 1 1406- ●
300 03.162 BOLT; BRKT TO BODY
4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.531 (C) M8X20 FLANGE 		0-28650-820-0 02 1 1012-1405 ● ●
300 03.162 BOLT; BRKT TO BODY
4HG1-T ENG(RDP),4HG1 ENG(RJH) MALAYSIA EQUIPMENT(B10) VIN MODEL YEAR 2015<VZF> 01.531 (C) M8X20 FLANGE 		0-28650-820-0 02 1 1406- ●
300 03.162 BOLT; BRKT TO BODY
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. VIN MODEL YEAR 2015<VZF> 01.531 (C) M8X20 FLANGE 		0-28650-820-0 02 1 1406- ●
300 03.162 BOLT; BRKT TO BODY
4HG1-T ENG(RDP),4HG1 ENG(RJH) MALAYSIA EQUIPMENT(B10) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 01.531 (C) M8X20 FLANGE 		0-28650-820-0 02 1 1406- ●
300 03.162 BOLT; BRKT TO BODY
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 01.531 (C) M8X20 FLANGE 		0-28650-820-0 02 1 1406- ●
300 03.162 BOLT; BRKT TO BODY
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) 03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 1012- ●
300 03.162 BOLT; BRKT TO BODY
4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) 03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 1012- ●
300 03.162 BOLT; BRKT TO BODY
03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 1012- ●
300 03.162 BOLT; BRKT TO BODY
4JJ1-TCC ENG(RDU) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1012- ●
300 03.162 BOLT; BRKT TO BODY
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1012- ●
302 03.162 WASHER; PL,SEDIMENTER
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) 04.085 ID=10.5 OD=26 		0-91614-710-0 02 1 1012- ●
302 03.162 WASHER; PL,SEDIMENTER
4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) 04.085 ID=10.5 OD=26 		0-91614-710-0 02 1 1012- ●
302 03.162 WASHER; PL,SEDIMENTER
04.085 ID=10.5 OD=26 		0-91614-710-0 02 1 1012- ●
303 03.162 NUT; SEDIMENTER BRKT
4HG1-T ENG(RDP),4HG1 ENG(RJH) INDONESIA EQUIPMENT(B00) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1406- ●
303 03.162 NUT; SEDIMENTER BRKT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE 		0-91180-110-0 02 1 1012- ●
303 03.162 NUT; SEDIMENTER BRKT
4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE 		0-91180-110-0 02 1 1012- ●
303 03.162 NUT; SEDIMENTER BRKT
M10 FLANGE 		0-91180-110-0 02 1 1012- ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> BIO DIESEL FUEL B10<8NV> (F) SERVICED BY L=3000 		0-01859-300-0 01 1 1512- ● ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> BIO DIESEL FUEL B10<8NV> (E) L=360 SERVICED BY L=3000 		0-01859-300-0 01 1 1411-1502 ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> FRAME STRAIGHT TYPE<7KJ> BIO DIESEL FUEL B10<8NV> EXC. DUMP CHASSIS(V4D) (E) L=360 SERVICED BY L=3000 		0-01859-300-0 01 1 1503- ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> FRAME STRAIGHT TYPE<7KJ> BIO DIESEL FUEL B10<8NV> (E) L=360 SERVICED BY L=3000 		0-01859-300-0 01 1 1503- ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> BIO DIESEL FUEL B10<8NV> EXC. DUMP CHASSIS(V4D),IDENTIFICATION LABEL FOR KD<6UT> (E) L=360 		8-98133-805-0 01 1 1503- ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> BIO DIESEL FUEL B10<8NV> EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) L=360 		8-98133-805-0 01 1 1503- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> BIO DIESEL FUEL B10<8NV> EXC. DUMP CHASSIS(V4D) (C) 		8-98138-300-0 01 1 1503- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> BIO DIESEL FUEL B10<8NV> (C) 		8-98138-300-0 01 1 1503- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> BIO DIESEL FUEL B10<8NV> EXC. DUMP CHASSIS(V4D) (B) 		8-98139-112-1 01 1 1503- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> BIO DIESEL FUEL B10<8NV> (B) 		8-98139-112-1 01 1 1503- ●
485 03.163 HOSE; FUEL
4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> BIO DIESEL FUEL B10<8NV> (F) L=280 		8-98133-804-0 01 1 1503- ● ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> 03.003 (F) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 1012-1511 ● ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> EXC. BIO DIESEL FUEL B10<8NV> 03.003 (F) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 1512- ● ●
485 03.163 HOSE; FUEL
4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> 03.003 (F) L=280 SERVICED BY L=3000 		0-01259-300-0 01 1 1012-1502 ● ●
485 03.163 HOSE; FUEL
4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> EXC. BIO DIESEL FUEL B10<8NV> 03.003 (F) L=280 SERVICED BY L=3000 		0-01259-300-0 01 1 1503- ● ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) 03.003 (E) L=360 SERVICED BY L=3000 		0-01259-300-0 01 1 1012-1410 ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 03.003 (E) L=360 SERVICED BY L=3000 		0-01259-300-0 01 1 1012-1410 ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) 03.003 (E) L=360 SERVICED BY L=3000 		0-01259-300-0 01 1 1411-1502 ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. BIO DIESEL FUEL B10<8NV> 03.003 (E) L=360 SERVICED BY L=3000 		0-01259-300-0 01 1 1411-1502 ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D),BIO DIESEL FUEL B10<8NV> 03.003 (E) L=360 SERVICED BY L=3000 		0-01259-300-0 01 1 1503- ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. BIO DIESEL FUEL B10<8NV> 03.003 (E) L=360 SERVICED BY L=3000 		0-01259-300-0 01 1 1503- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (B) 		8-98099-503-0 01 1 1012-1502 ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98099-503-0 01 1 1012-1502 ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D),BIO DIESEL FUEL B10<8NV> (B) 		8-98099-503-0 01 1 1503- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. BIO DIESEL FUEL B10<8NV> (B) 		8-98099-503-0 01 1 1503- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (C) 		8-98105-710-0 01 1 1012-1502 ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98105-710-0 01 1 1012-1502 ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D),BIO DIESEL FUEL B10<8NV> (C) 		8-98105-710-0 01 1 1503- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. BIO DIESEL FUEL B10<8NV> (C) 		8-98105-710-0 01 1 1503- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98098-276-0 01 1 1012- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98041-728-0 01 1 1012- ● ●

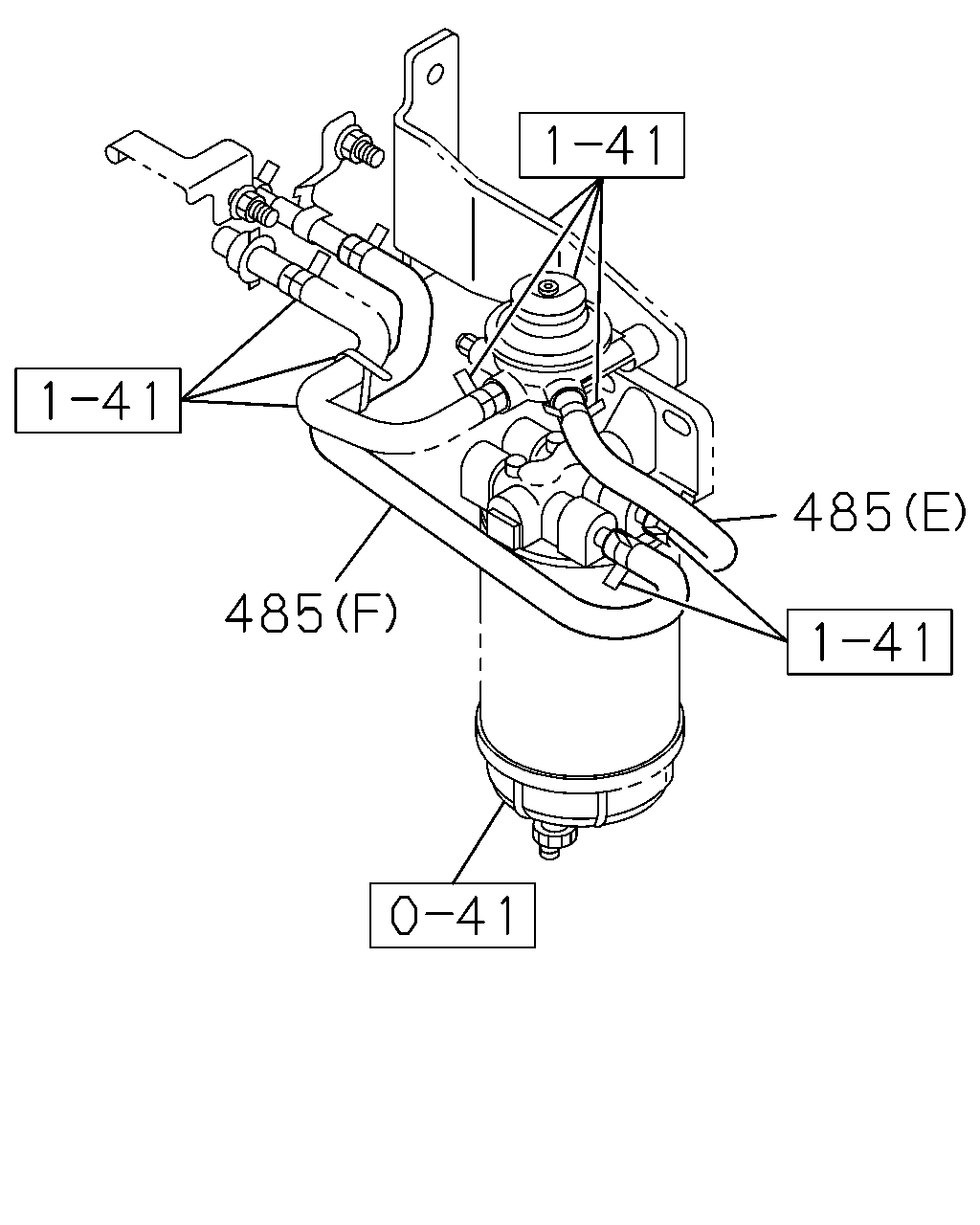

çizim 175572
485 485
BalonParca AdiParca NoAdetTipApplied Date A B C
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> BIO DIESEL FUEL B10<8NV> (F) SERVICED BY L=3000 		0-01859-300-0 01 1 1512- ● ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> BIO DIESEL FUEL B10<8NV> (E) L=360 SERVICED BY L=3000 		0-01859-300-0 01 1 1411-1502 ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> FRAME STRAIGHT TYPE<7KJ> BIO DIESEL FUEL B10<8NV> EXC. DUMP CHASSIS(V4D) (E) L=360 SERVICED BY L=3000 		0-01859-300-0 01 1 1503- ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> FRAME STRAIGHT TYPE<7KJ> BIO DIESEL FUEL B10<8NV> (E) L=360 SERVICED BY L=3000 		0-01859-300-0 01 1 1503- ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> BIO DIESEL FUEL B10<8NV> EXC. DUMP CHASSIS(V4D),IDENTIFICATION LABEL FOR KD<6UT> (E) L=360 		8-98133-805-0 01 1 1503- ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> BIO DIESEL FUEL B10<8NV> EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) L=360 		8-98133-805-0 01 1 1503- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> BIO DIESEL FUEL B10<8NV> EXC. DUMP CHASSIS(V4D) (C) 		8-98138-300-0 01 1 1503- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> BIO DIESEL FUEL B10<8NV> (C) 		8-98138-300-0 01 1 1503- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> BIO DIESEL FUEL B10<8NV> EXC. DUMP CHASSIS(V4D) (B) 		8-98139-112-1 01 1 1503- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> BIO DIESEL FUEL B10<8NV> (B) 		8-98139-112-1 01 1 1503- ●
485 03.163 HOSE; FUEL
4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> BIO DIESEL FUEL B10<8NV> (F) L=280 		8-98133-804-0 01 1 1503- ● ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> 03.003 (F) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 1012-1511 ● ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> EXC. BIO DIESEL FUEL B10<8NV> 03.003 (F) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 1512- ● ●
485 03.163 HOSE; FUEL
4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> 03.003 (F) L=280 SERVICED BY L=3000 		0-01259-300-0 01 1 1012-1502 ● ●
485 03.163 HOSE; FUEL
4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> EXC. BIO DIESEL FUEL B10<8NV> 03.003 (F) L=280 SERVICED BY L=3000 		0-01259-300-0 01 1 1503- ● ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) 03.003 (E) L=360 SERVICED BY L=3000 		0-01259-300-0 01 1 1012-1410 ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 03.003 (E) L=360 SERVICED BY L=3000 		0-01259-300-0 01 1 1012-1410 ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) 03.003 (E) L=360 SERVICED BY L=3000 		0-01259-300-0 01 1 1411-1502 ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. BIO DIESEL FUEL B10<8NV> 03.003 (E) L=360 SERVICED BY L=3000 		0-01259-300-0 01 1 1411-1502 ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D),BIO DIESEL FUEL B10<8NV> 03.003 (E) L=360 SERVICED BY L=3000 		0-01259-300-0 01 1 1503- ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. BIO DIESEL FUEL B10<8NV> 03.003 (E) L=360 SERVICED BY L=3000 		0-01259-300-0 01 1 1503- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (B) 		8-98099-503-0 01 1 1012-1502 ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98099-503-0 01 1 1012-1502 ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D),BIO DIESEL FUEL B10<8NV> (B) 		8-98099-503-0 01 1 1503- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. BIO DIESEL FUEL B10<8NV> (B) 		8-98099-503-0 01 1 1503- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (C) 		8-98105-710-0 01 1 1012-1502 ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98105-710-0 01 1 1012-1502 ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D),BIO DIESEL FUEL B10<8NV> (C) 		8-98105-710-0 01 1 1503- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. BIO DIESEL FUEL B10<8NV> (C) 		8-98105-710-0 01 1 1503- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98098-276-0 01 1 1012- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98041-728-0 01 1 1012- ● ●

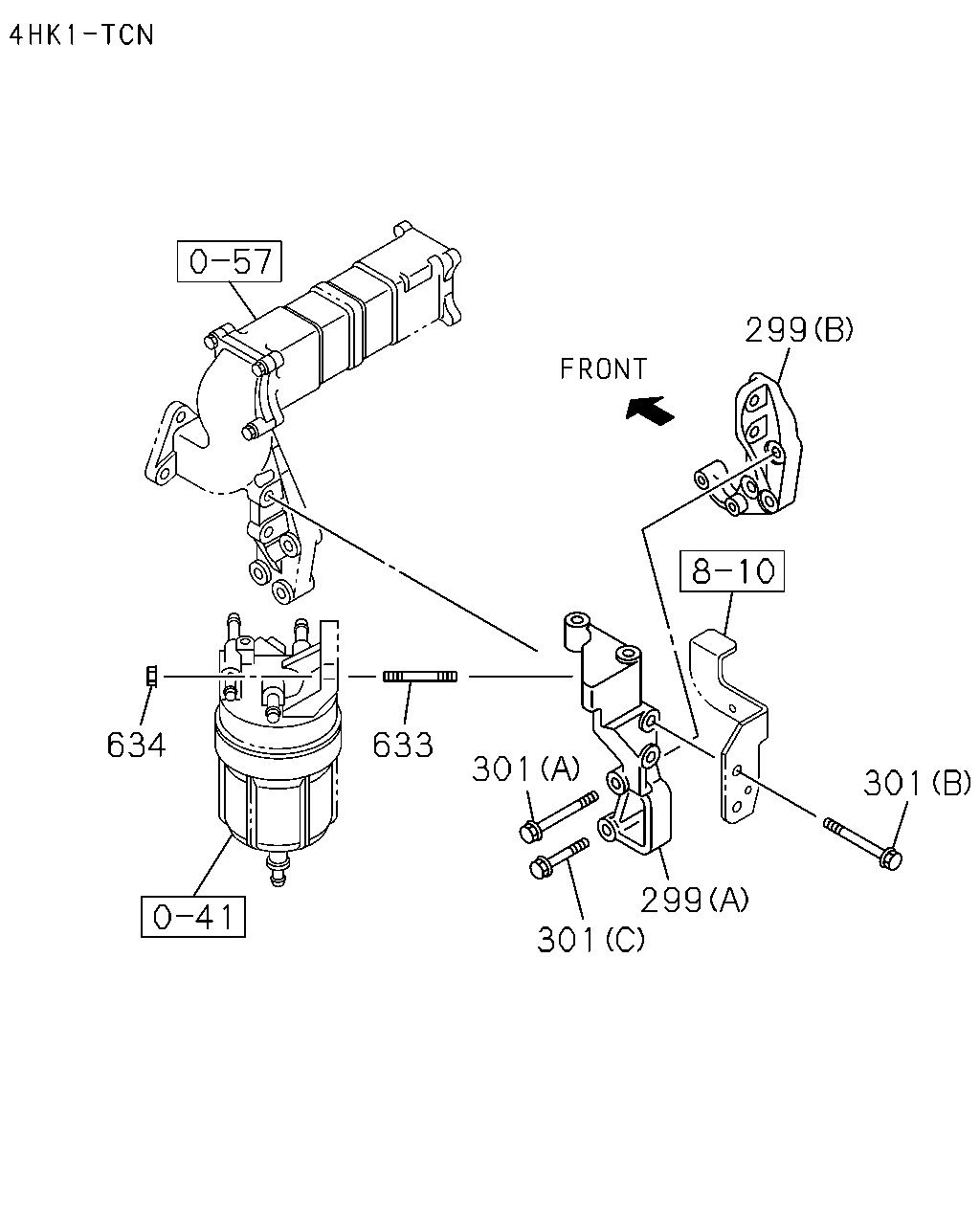

çizim 175576
299 634 633 301 301 299 301
BalonParca AdiParca NoAdetTipApplied Date A B C
299 03.162 BRACKET; FUEL FILTER
4HK1-TCN ENG(RDQ) (A) 		8-98023-175-3 01 1 1012- ● ●
299 03.162 BRACKET; FUEL FILTER
4HK1-TCN ENG(RDQ) (B) 		8-98074-132-1 01 1 1012- ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ) 02.510 (A) M12X100 FLANGE 		0-28151-200-0 01 1 1012- ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ) 00.685 (B) M12X50 FLANGE 		0-28151-250-0 01 1 1012- ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ) 09.181 (C) M12X80 		0-28151-280-0 01 1 1012- ● ●
633 03.162 STUD; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ) 03.275 M8X25 L=37 		0-41010-825-0 02 1 1012- ● ●
634 03.162 NUT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ● ●

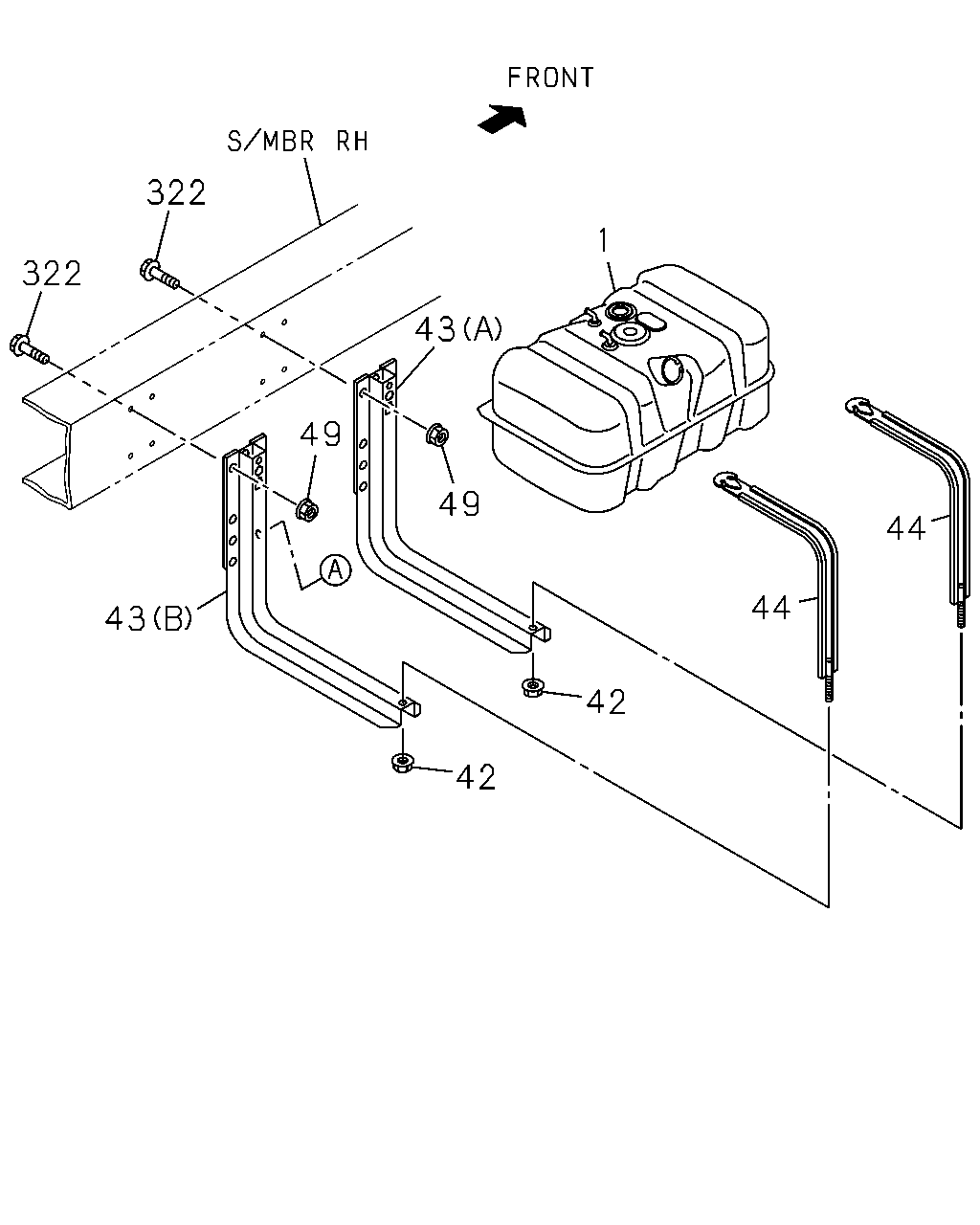

çizim 175950
322 1 322 43 49 49 44 44 43 42 42
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.001 TANK; FUEL
756X482X376 100L 		8-98062-738-4 01 1 1012- ● ● ●
42 03.023 NUT; SUPPORT BELT
M8 FLANGE 		9-09130-408-0 02 1 1012- ● ● ●
43 03.015 BRACKET; FUEL TANK
(A) 		8-97384-060-5 01 1 1012- ● ● ●
43 03.015 BRACKET; FUEL TANK
(B) 		8-97384-062-6 01 1 1012- ● ● ●
44 03.023 BAND; FUEL TANK
L=795 		8-97384-080-2 02 1 1012- ● ● ●
49 03.023 NUT; BRKT
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 08 1 1012-1307 ●
49 03.023 NUT; BRKT
WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W) EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 08 1 1012-1307 ●
49 03.023 NUT; BRKT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 08 1 1012-1307 ●
49 03.023 NUT; BRKT
WHEEL BASE 4100MM(41W) EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 08 1 1012-1307 ●
49 03.023 NUT; BRKT
04.085 M10 FLANGE 		0-91180-210-0 08 1 1012-1307 ●
49 03.023 NUT; BRKT
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 08 1 1308- ●
49 03.023 NUT; BRKT
WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W) EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 08 1 1308- ●
49 03.023 NUT; BRKT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 08 1 1308- ●
49 03.023 NUT; BRKT
WHEEL BASE 4100MM(41W) EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 08 1 1308- ●
49 03.023 NUT; BRKT
04.085 M10 FLANGE 		0-91180-210-0 08 1 1308- ●
49 03.023 NUT; BRKT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 09 1 1012- ● ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.613 M10X40 FLANGE 		0-28661-040-0 08 1 1012-1307 ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.613 M10X40 FLANGE 		0-28661-040-0 08 1 1012-1307 ●
322 03.895 BOLT; BRKT FIX
03.613 M10X40 FLANGE 		0-28661-040-0 08 1 1012-1307 ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.613 M10X40 FLANGE 		0-28661-040-0 08 1 1308- ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.613 M10X40 FLANGE 		0-28661-040-0 08 1 1308- ●
322 03.895 BOLT; BRKT FIX
03.613 M10X40 FLANGE 		0-28661-040-0 08 1 1308- ●

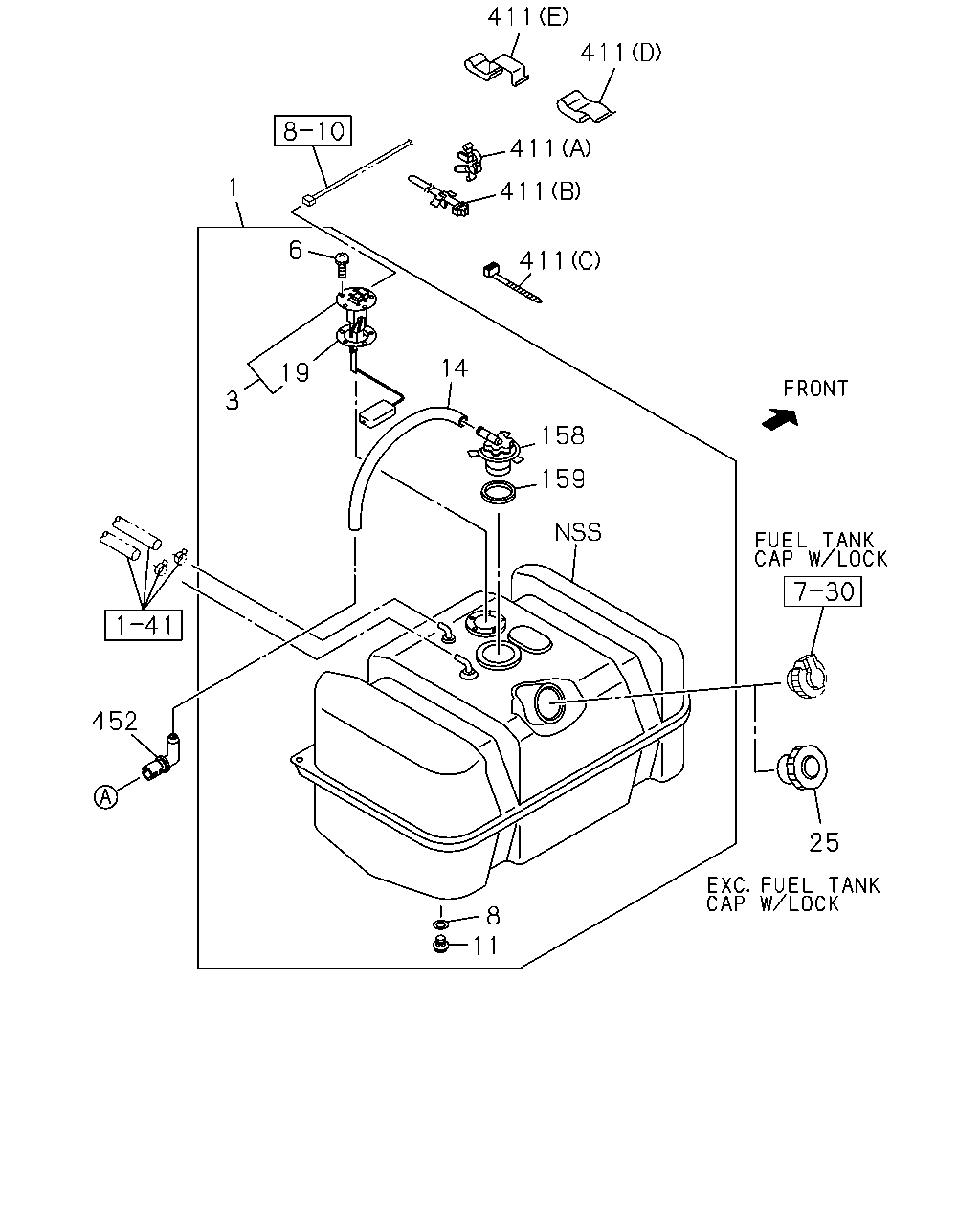

çizim 175951
411 411 411 1 411 6 411 14 19 3 158 159 452 25 8 11
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.001 TANK; FUEL
756X482X376 100L 		8-98062-738-4 01 1 1012- ● ● ●
3 03.107 UNIT; FUEL TANK,SUB 8-98056-705-0 01 1 1012- ● ● ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
M5X12 W/LK WASHER 		0-36220-512-0 05 1 1012- ● ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
03.107 ID=14.2 OD=23.0 		9-09572-014-0 01 1 1012- ● ● ●
11 03.890 PLUG; DRAIN,FUEL TANK
01.453 M14X14 		9-09862-156-0 01 1 1012- ● ● ●
14 03.163 HOSE; BREATHER,OUTLET
L=420 		8-98157-809-0 01 1 1012- ● ● ●
19 03.112 GASKET; FUEL TANK UNIT 8-98051-797-0 01 1 1012- ● ● ●
25 03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-97387-179-0 01 1 1012- ● ● ●
158 03.164 VALVE; ROLL OVER & FLOAT 8-97179-645-0 01 1 1012- ● ● ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE 8-97326-488-0 01 1 1012- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1203-1402 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1203-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1203-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1403- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6> (E) T=4.5 & 9 		8-97371-947-0 02 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 01 1 1203-1407 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 01 1 1408- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
FRAME STRAIGHT TYPE<7KJ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) T=4.5 & 9 		8-97371-947-0 01 1 1408- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1012-1202 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1012-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 02 1 1012-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1203-1307 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1203-1307 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 06 1 1203-1307 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1308- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1308- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1308- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 06 1 1308- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 03 1 1012-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 03 1 1012-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 03 1 1203-1402 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 03 1 1203-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 03 1 1203-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 03 1 1403- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6>,MINI BUS CHASSIS(V4B) (E) T=4.5 & 9 		8-97371-947-0 03 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 03 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (E) T=4.5 & 9 		8-97371-947-0 03 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 03 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 03 1 1012- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1012-1202 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 05 1 1203- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 05 1 1012-1012 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1012-1202 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1012-1202 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1012-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1012-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 06 1 1012-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1203-1412 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1203-1412 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1203-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 02 1 1203-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1501- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 02 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 02 1 1012-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 02 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 01 1 1012-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 01 1 1012-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6>,MINI BUS CHASSIS(V4B) (D) T=5.5 		8-97371-951-0 01 1 1403-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 01 1 1403-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (D) T=5.5 		8-97371-951-0 01 1 1403-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 01 1 1403-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6>,MINI BUS CHASSIS(V4B) (D) T=5.5 		8-97371-951-0 01 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 01 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (D) T=5.5 		8-97371-951-0 01 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 1012-1412 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 1012-1412 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 1012-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 1501- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (C) L=140 		5-09707-031-1 01 1 1012- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 06 1 1012-1012 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 05 1 1012-1202 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 05 1 1012-1202 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 04 1 1203-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 04 1 1203-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 04 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 04 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6> (D) T=5.5 		8-97371-951-0 04 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 04 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=170.3 		1-09987-182-0 01 1 1012-1412 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(B) L=170.3 		1-09987-182-0 01 1 1012-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=170.3 		1-09987-182-0 01 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(B) L=170.3 		1-09987-182-0 01 1 1501- ●
452 03.028 BREATHER; FUEL TANK 8-97357-261-0 01 1 1012- ● ● ●
çizim 175957
485
BalonParca AdiParca NoAdetTipApplied Date A B C
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> BIO DIESEL FUEL B10<8NV> (F) SERVICED BY L=3000 		0-01859-300-0 01 1 1512- ● ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> BIO DIESEL FUEL B10<8NV> (E) L=360 SERVICED BY L=3000 		0-01859-300-0 01 1 1411-1502 ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> FRAME STRAIGHT TYPE<7KJ> BIO DIESEL FUEL B10<8NV> EXC. DUMP CHASSIS(V4D) (E) L=360 SERVICED BY L=3000 		0-01859-300-0 01 1 1503- ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> FRAME STRAIGHT TYPE<7KJ> BIO DIESEL FUEL B10<8NV> (E) L=360 SERVICED BY L=3000 		0-01859-300-0 01 1 1503- ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> BIO DIESEL FUEL B10<8NV> EXC. DUMP CHASSIS(V4D),IDENTIFICATION LABEL FOR KD<6UT> (E) L=360 		8-98133-805-0 01 1 1503- ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> BIO DIESEL FUEL B10<8NV> EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) L=360 		8-98133-805-0 01 1 1503- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> BIO DIESEL FUEL B10<8NV> EXC. DUMP CHASSIS(V4D) (C) 		8-98138-300-0 01 1 1503- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> BIO DIESEL FUEL B10<8NV> (C) 		8-98138-300-0 01 1 1503- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> BIO DIESEL FUEL B10<8NV> EXC. DUMP CHASSIS(V4D) (B) 		8-98139-112-1 01 1 1503- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> BIO DIESEL FUEL B10<8NV> (B) 		8-98139-112-1 01 1 1503- ●
485 03.163 HOSE; FUEL
4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> BIO DIESEL FUEL B10<8NV> (F) L=280 		8-98133-804-0 01 1 1503- ● ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> 03.003 (F) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 1012-1511 ● ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> EXC. BIO DIESEL FUEL B10<8NV> 03.003 (F) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 1512- ● ●
485 03.163 HOSE; FUEL
4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> 03.003 (F) L=280 SERVICED BY L=3000 		0-01259-300-0 01 1 1012-1502 ● ●
485 03.163 HOSE; FUEL
4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> EXC. BIO DIESEL FUEL B10<8NV> 03.003 (F) L=280 SERVICED BY L=3000 		0-01259-300-0 01 1 1503- ● ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) 03.003 (E) L=360 SERVICED BY L=3000 		0-01259-300-0 01 1 1012-1410 ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 03.003 (E) L=360 SERVICED BY L=3000 		0-01259-300-0 01 1 1012-1410 ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) 03.003 (E) L=360 SERVICED BY L=3000 		0-01259-300-0 01 1 1411-1502 ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. BIO DIESEL FUEL B10<8NV> 03.003 (E) L=360 SERVICED BY L=3000 		0-01259-300-0 01 1 1411-1502 ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D),BIO DIESEL FUEL B10<8NV> 03.003 (E) L=360 SERVICED BY L=3000 		0-01259-300-0 01 1 1503- ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. BIO DIESEL FUEL B10<8NV> 03.003 (E) L=360 SERVICED BY L=3000 		0-01259-300-0 01 1 1503- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (B) 		8-98099-503-0 01 1 1012-1502 ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98099-503-0 01 1 1012-1502 ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D),BIO DIESEL FUEL B10<8NV> (B) 		8-98099-503-0 01 1 1503- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. BIO DIESEL FUEL B10<8NV> (B) 		8-98099-503-0 01 1 1503- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (C) 		8-98105-710-0 01 1 1012-1502 ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98105-710-0 01 1 1012-1502 ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D),BIO DIESEL FUEL B10<8NV> (C) 		8-98105-710-0 01 1 1503- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. BIO DIESEL FUEL B10<8NV> (C) 		8-98105-710-0 01 1 1503- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98098-276-0 01 1 1012- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98041-728-0 01 1 1012- ● ●
çizim 175958
300 300 300 303
BalonParca AdiParca NoAdetTipApplied Date A B C
300 03.162 BOLT; BRKT TO BODY
4HG1-T ENG(RDP),4HG1 ENG(RJH) INDONESIA EQUIPMENT(B00) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 01.060 (D) M8X35 FLANGE 		0-28650-835-0 02 1 1406- ●
300 03.162 BOLT; BRKT TO BODY
4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.531 (C) M8X20 FLANGE 		0-28650-820-0 02 1 1012-1405 ● ●
300 03.162 BOLT; BRKT TO BODY
4HG1-T ENG(RDP),4HG1 ENG(RJH) MALAYSIA EQUIPMENT(B10) VIN MODEL YEAR 2015<VZF> 01.531 (C) M8X20 FLANGE 		0-28650-820-0 02 1 1406- ●
300 03.162 BOLT; BRKT TO BODY
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. VIN MODEL YEAR 2015<VZF> 01.531 (C) M8X20 FLANGE 		0-28650-820-0 02 1 1406- ●
300 03.162 BOLT; BRKT TO BODY
4HG1-T ENG(RDP),4HG1 ENG(RJH) MALAYSIA EQUIPMENT(B10) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 01.531 (C) M8X20 FLANGE 		0-28650-820-0 02 1 1406- ●
300 03.162 BOLT; BRKT TO BODY
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 01.531 (C) M8X20 FLANGE 		0-28650-820-0 02 1 1406- ●
300 03.162 BOLT; BRKT TO BODY
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) 03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 1012- ●
300 03.162 BOLT; BRKT TO BODY
4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) 03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 1012- ●
300 03.162 BOLT; BRKT TO BODY
03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 1012- ●
300 03.162 BOLT; BRKT TO BODY
4JJ1-TCC ENG(RDU) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1012- ●
300 03.162 BOLT; BRKT TO BODY
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1012- ●
303 03.162 NUT; SEDIMENTER BRKT
4HG1-T ENG(RDP),4HG1 ENG(RJH) INDONESIA EQUIPMENT(B00) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1406- ●
303 03.162 NUT; SEDIMENTER BRKT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE 		0-91180-110-0 02 1 1012- ●
303 03.162 NUT; SEDIMENTER BRKT
4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE 		0-91180-110-0 02 1 1012- ●
303 03.162 NUT; SEDIMENTER BRKT
M10 FLANGE 		0-91180-110-0 02 1 1012- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
