Sayfa 1-31 - Isuzu EPC

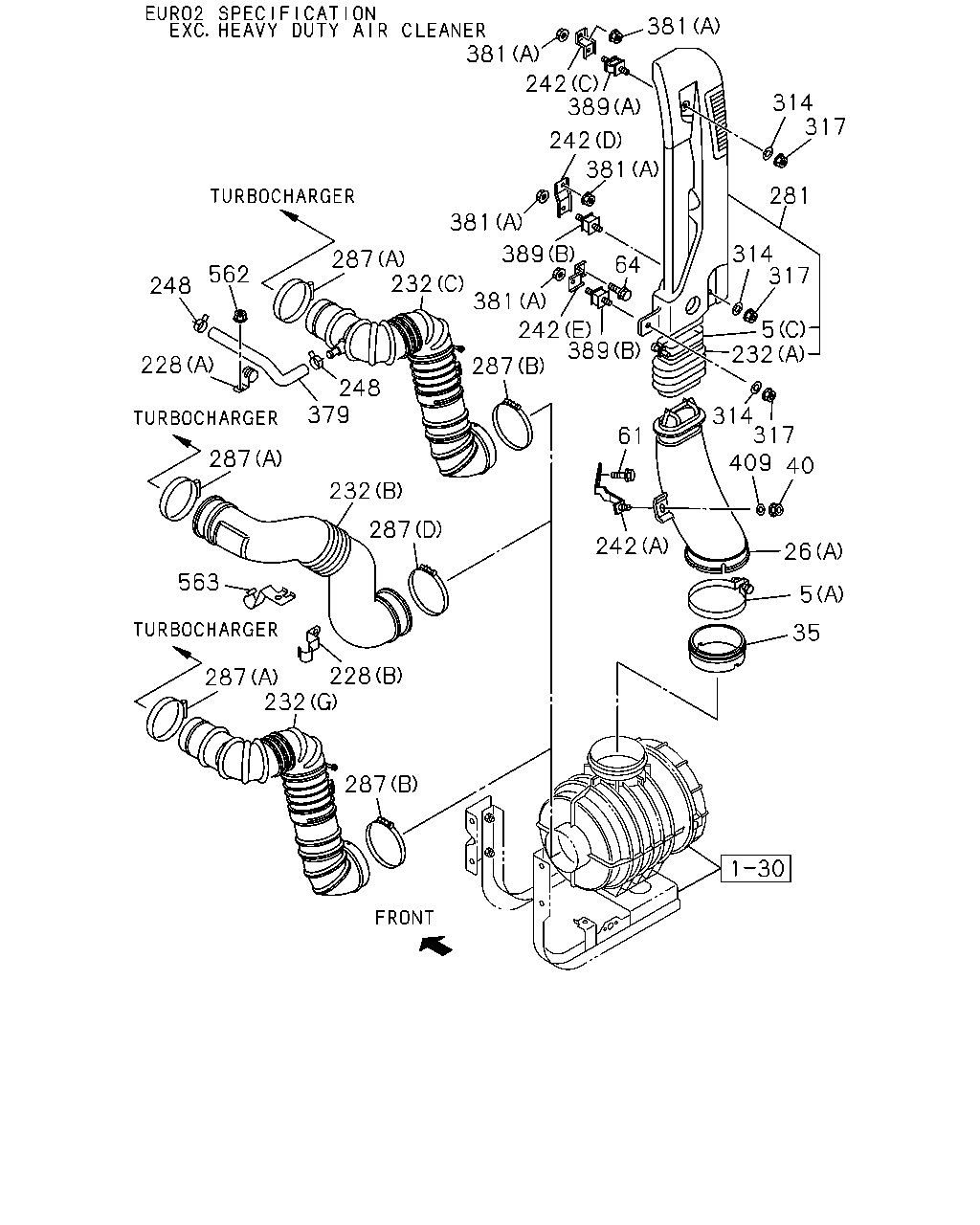

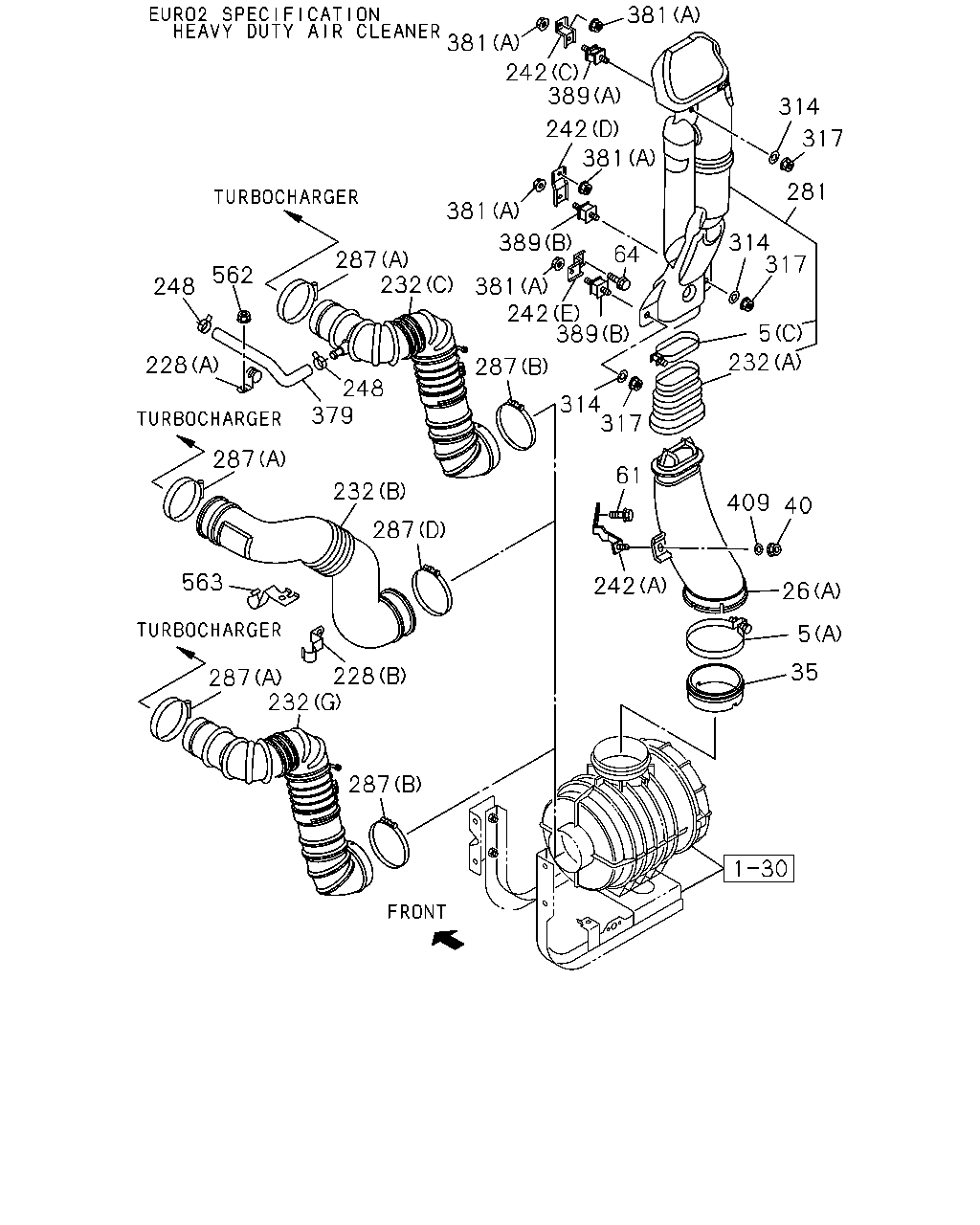

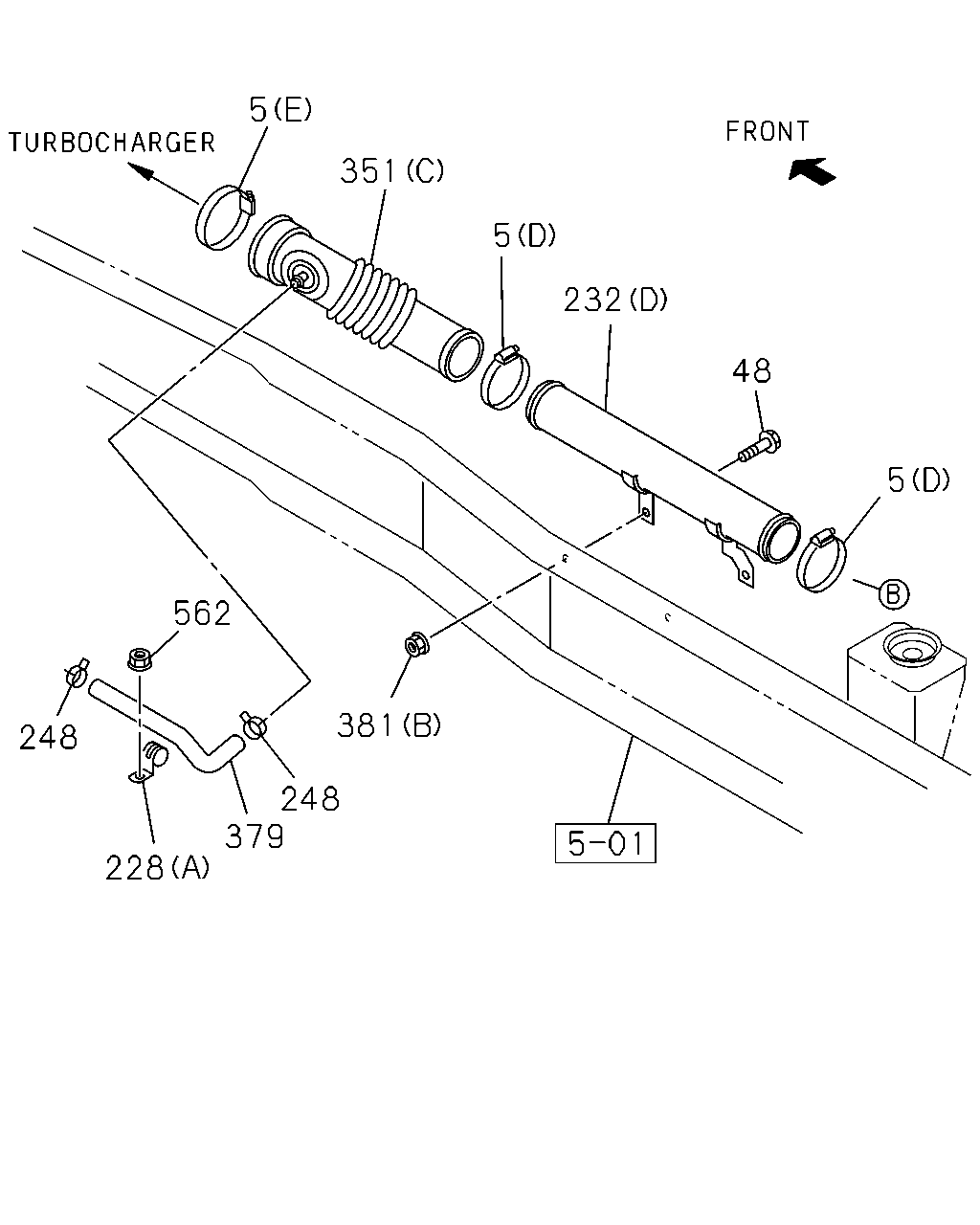

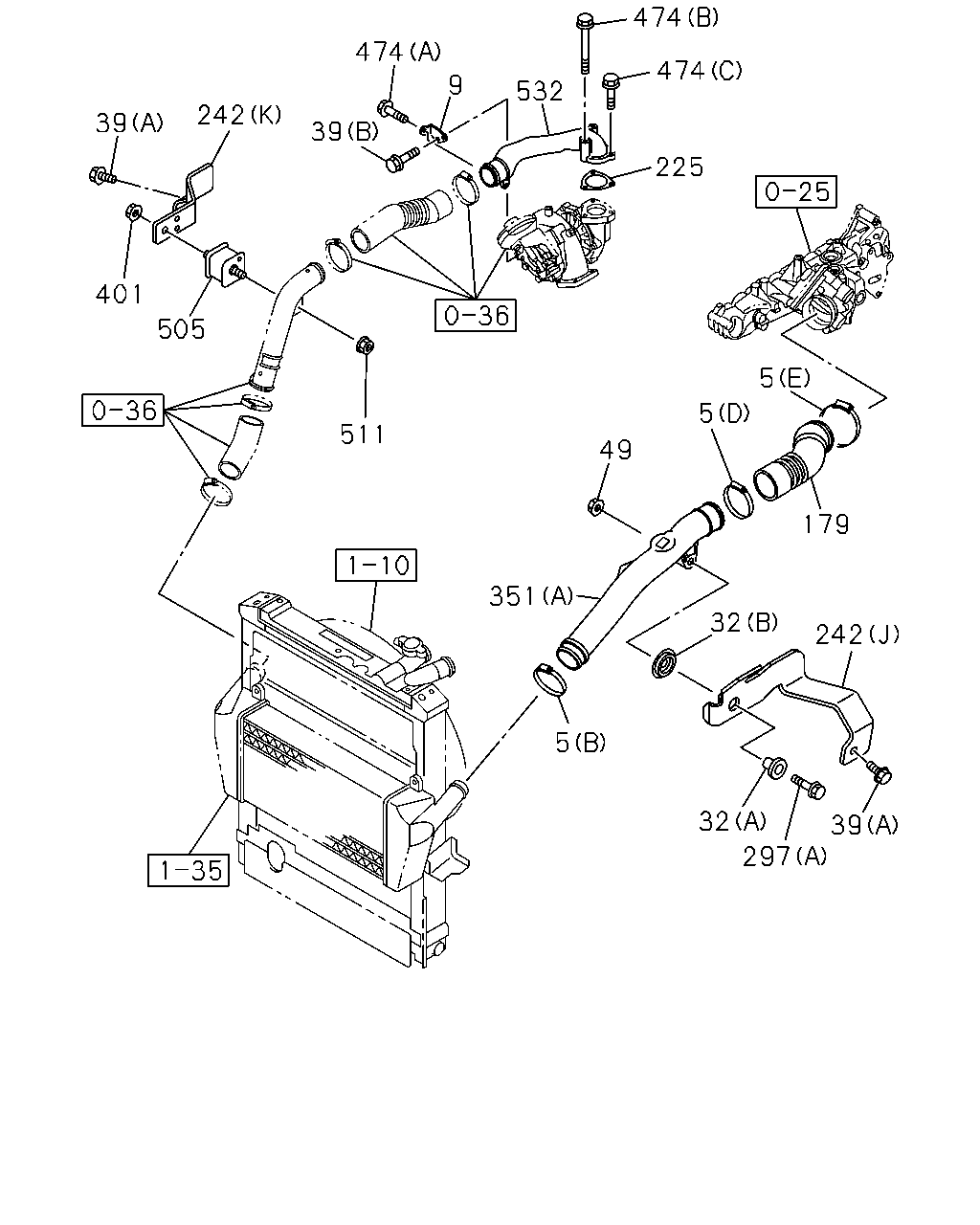

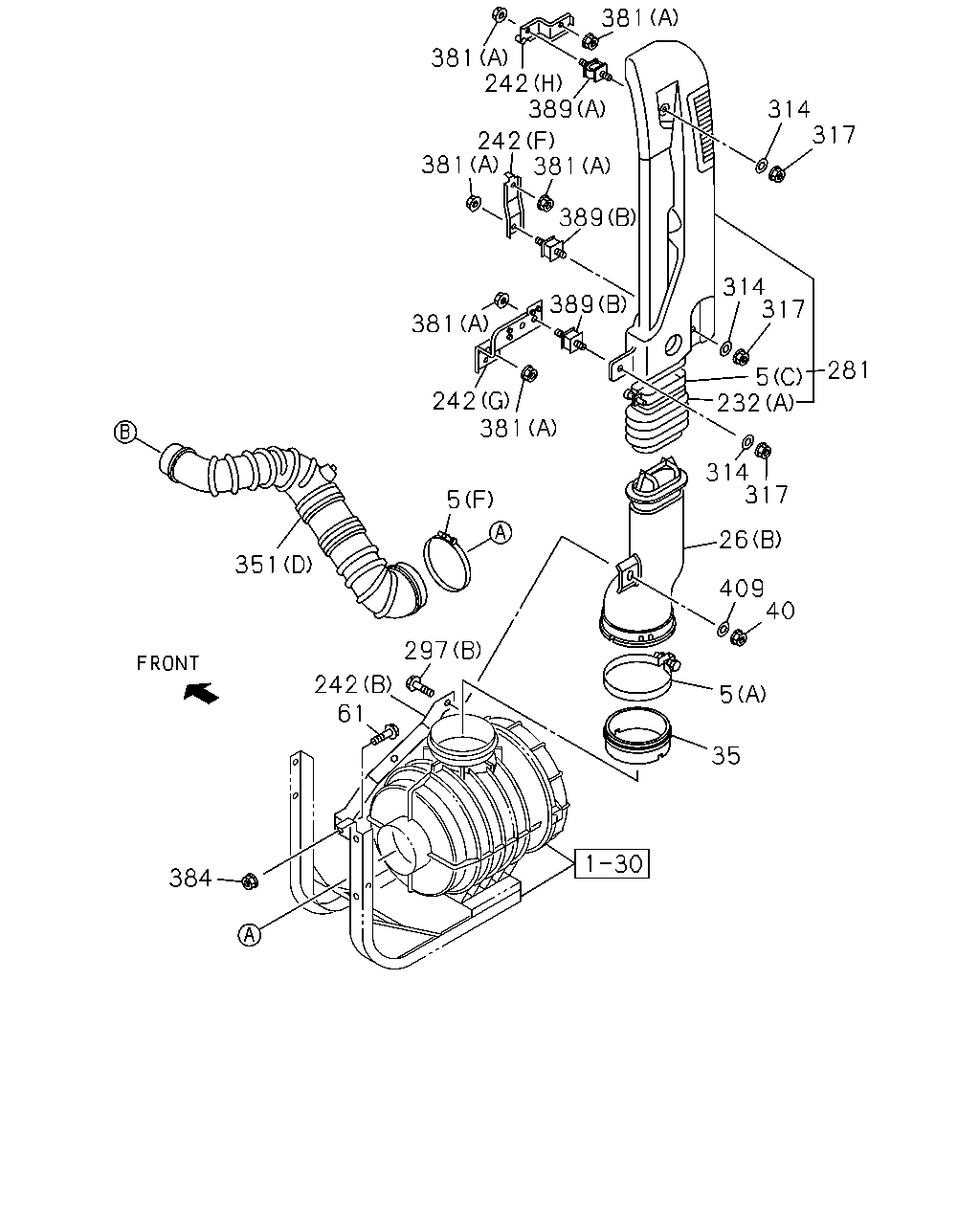

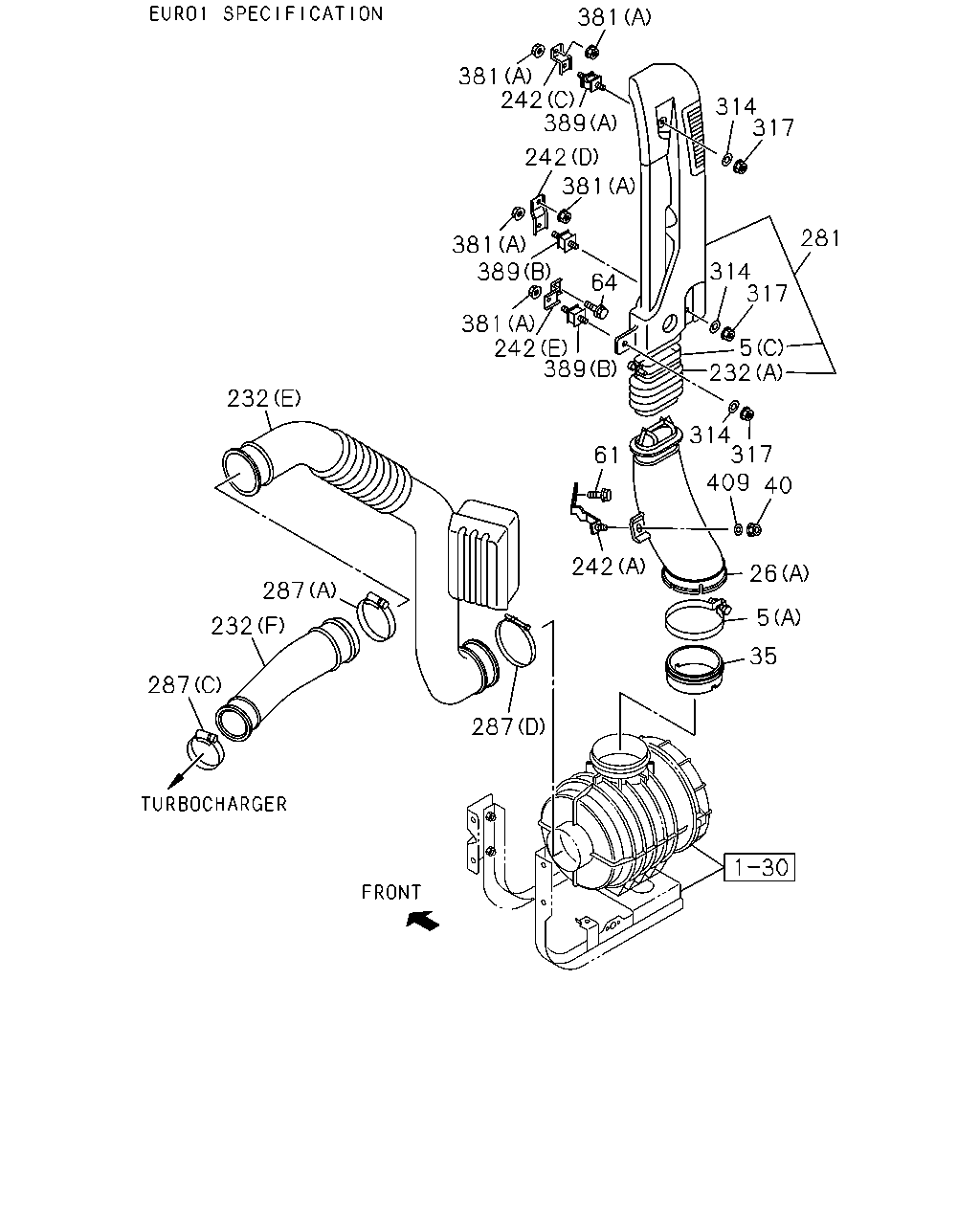

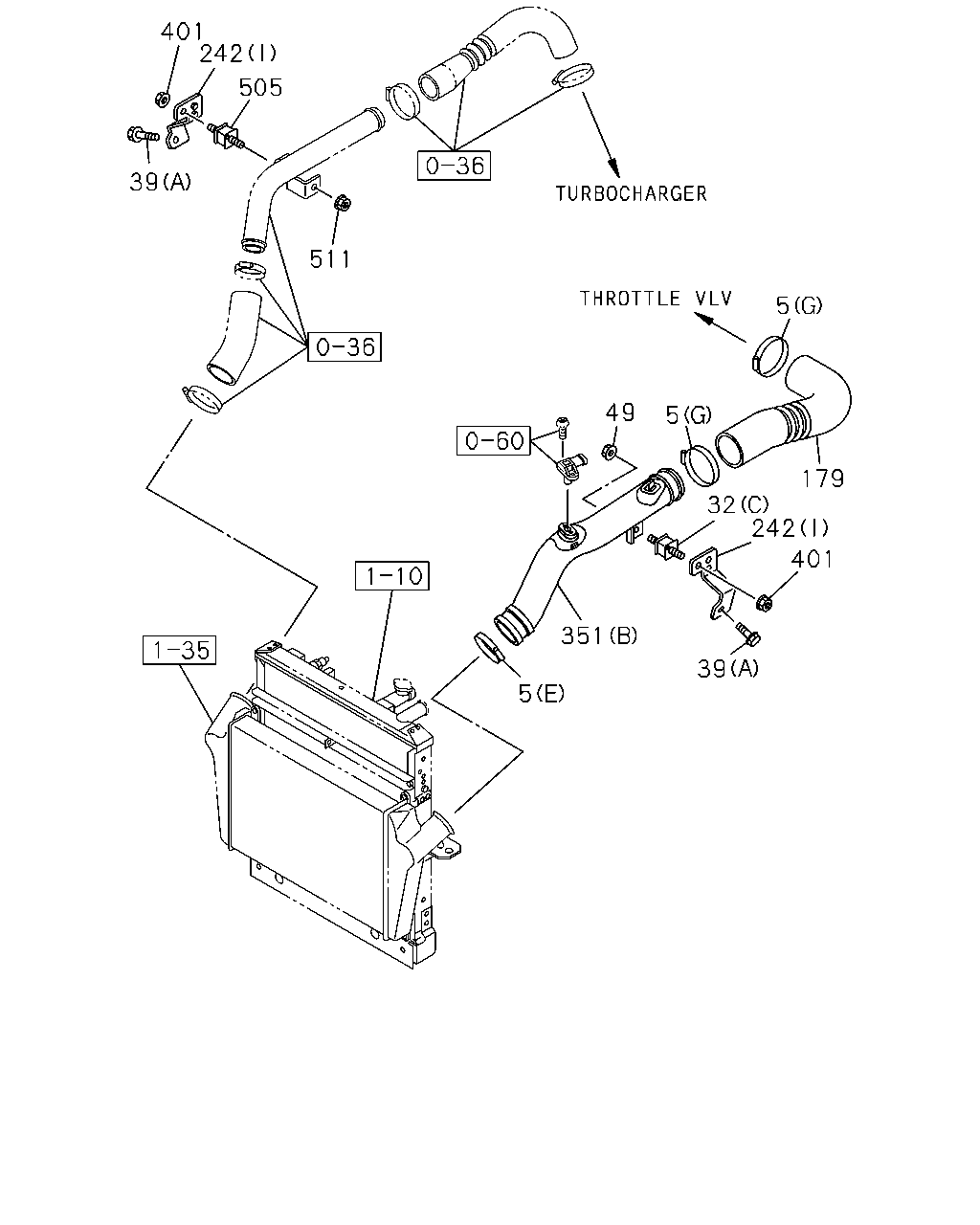

1-31 — AIR DUCT (#54707) — 715 parça

381 381 242 389 314 317 242 381 281 381 314 317 389 64 287 232 381 242 389 562 248 5 232 228 287 248 379 314 317 409 61 287 40 232 287 242 26 563 5 35 228 287 232 287

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1012-	●	●
5	03.407 CLIP; AIR DUCT HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1012-		●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1012-		●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1012-			●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=75-95	8-98133-357-0	02	1	1012-	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=77-99	1-09707-141-0	02	1	1012-	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85	8-98133-350-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85	8-98133-350-0	01	1	1012-		●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85	8-98133-350-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85	8-98133-350-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90	8-98122-372-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90	8-98122-372-0	01	1	1012-		●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90	8-98122-372-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90	8-98122-372-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=45-65	8-98133-348-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (B) ID=45-65	8-98133-348-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=60-65	8-98096-418-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=60-65	8-98096-418-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1012-	●		●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A) ID=127	1-14239-263-0	01	1	1012-		●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	02	1	1012-			●
5	03.407 CLIP; AIR DUCT (F) ID=117	9-09915-075-1	01	1	1012-			●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	02	1	1012-			●
26	03.417 DUCT; AIR INT (A)	8-98025-626-0	01	1	1012-	●
26	03.417 DUCT; AIR INT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A)	8-98025-626-0	01	1	1012-		●
26	03.417 DUCT; AIR INT (B)	8-98025-627-0	01	1	1012-			●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1012-	●		●
35	03.406 SEAL; DUCT,INT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-98029-332-0	01	1	1012-		●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-	●		●
40	03.417 NUT; AIR INT DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-		●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-	●
61	03.417 BOLT; BRKT,AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-		●
61	03.417 BOLT; BRKT,AIR DUCT 02.277 M10X35 FLANGE	0-28651-035-0	01	1	1012-			●
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	1012-	●
64	03.417 BOLT; BRKT,AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M8X16	0-52000-816-0	01	1	1012-		●
228	03.278 CLIP; PCV HOSE 4HG1-T ENG(RDP) 03.417 (B)	8-97369-959-0	01	1	1107-	●	●
228	03.278 CLIP; PCV HOSE 4JJ1-TCC ENG(RDU) (A) ID=25 H=40 L=50	8-98073-275-0	01	1	1012-	●
228	03.278 CLIP; PCV HOSE (A) ID=25 H=40 L=50	8-98073-275-0	01	1	1012-			●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98082-535-0	01	1	1012-1309	●	●
232	03.417 HOSE; CONN HEAVY DUTY AIR CLEANER<K46> (A)	8-98082-535-0	01	1	1012-1309	●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98082-535-0	01	1	1012-1309	●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98082-535-0	01	1	1012-1309		●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> (A)	8-98082-535-0	01	1	1012-1309		●
232	03.417 HOSE; CONN (A)	8-98082-535-0	01	1	1012-1309			●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98231-785-0	01	1	1310-	●	●
232	03.417 HOSE; CONN HEAVY DUTY AIR CLEANER<K46> (A)	8-98231-785-0	01	1	1310-	●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98231-785-0	01	1	1310-	●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> (A)	8-98231-785-0	01	1	1310-		●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98231-785-0	01	1	1310-		●
232	03.417 HOSE; CONN (A)	8-98231-785-0	01	1	1310-			●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP) (G)	8-98166-943-0	01	1	1012-	●	●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) HEAVY DUTY AIR CLEANER<K46> EURO2 SPECIFICATION(NT2) (B)	8-98070-857-1	01	1	1012-	●	●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-98095-507-1	01	1	1012-	●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (C)	8-98070-065-1	01	1	1012-1409	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (C)	8-98269-835-0	01	1	1410-	●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (E)	8-98105-926-1	01	1	1012-	●	●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (F)	8-98131-538-1	01	1	1012-	●	●
232	03.417 HOSE; CONN (D)	8-98021-072-2	01	1	1012-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (I)	8-98032-142-1	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (I)	8-98032-143-1	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (J)	8-98070-942-2	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT (J)	8-98070-942-2	01	1	1012-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (K)	8-98070-943-0	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT (K)	8-98070-943-0	01	1	1012-			●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (C)	8-98036-646-2	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (D)	8-98036-647-2	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (E)	8-98036-649-2	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A)	8-98145-112-1	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (B)	8-98029-819-1	01	1	1012-			●
242	03.417 BRACKET; AIR DUCT (F)	8-98055-243-1	01	1	1012-			●
242	03.417 BRACKET; AIR DUCT (G)	8-98055-246-2	01	1	1012-			●
242	03.417 BRACKET; AIR DUCT (H)	8-98055-247-1	01	1	1012-			●
248	03.417 CLIP; RUBBER HOSE 4JJ1-TCC ENG(RDU) 08.846 ID=21.7	8-97203-074-0	02	1	1012-	●
248	03.417 CLIP; RUBBER HOSE 08.846 ID=21.7	8-97203-074-0	02	1	1012-			●
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46>	8-98101-995-5	01	1	1012-	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46>	8-98101-995-5	01	1	1012-		●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46>	8-98080-929-2	01	1	1012-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46>	8-98000-230-5	01	1	1012-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JJ1-TCC ENG(RDU) EXC. HEAVY DUTY AIR CLEANER<K46>	8-98000-230-5	01	1	1012-	●
281	03.417 DUCT; AIR,VERTICAL INT EXC. HEAVY DUTY AIR CLEANER<K46>	8-98061-757-2	01	1	1012-			●
287	03.417 CLIP; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=55-75	8-98133-349-0	01	1	1012-	●	●
287	03.417 CLIP; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=58-79	1-09707-136-0	01	1	1012-	●	●
287	03.417 CLIP; AIR DUCT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) 03.407 (B) ID=117	9-09915-075-1	01	1	1012-	●
287	03.417 CLIP; AIR DUCT 4HG1-T ENG(RDP) 03.407 (B) ID=117	9-09915-075-1	01	1	1012-		●
287	03.417 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.407 (D) ID=112	9-09915-074-1	01	1	1012-	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=65-85	8-98133-350-0	01	1	1012-	●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=65-85	8-98133-350-0	01	1	1012-		●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=70-90	8-98122-372-0	01	1	1012-	●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=70-90	8-98122-372-0	01	1	1012-		●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=40-50	8-98133-347-0	01	1	1012-	●	●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (C) ID=44-60	8-94175-940-0	01	1	1012-	●	●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1012-	●		●
314	03.417 WASHER; PL,AIR INT DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1012-		●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1012-	●		●
317	03.417 NUT; CUSHION RUBBER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M8 W/LK WASHER	8-97581-234-0	03	1	1012-		●
379	03.675 HOSE; RUBBER 4JJ1-TCC ENG(RDU)	8-98135-511-0	01	1	1012-	●
379	03.675 HOSE; RUBBER	8-98135-511-0	01	1	1012-			●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	02	1	1012-	●
381	03.417 NUT; BRKT,AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A) M8 W/LK WASHER	8-97581-234-0	02	1	1012-		●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1012-	●		●
381	03.417 NUT; BRKT,AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A) M8 W/LK WASHER	8-97581-234-0	03	1	1012-		●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1012-			●
381	03.417 NUT; BRKT,AIR DUCT 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-			●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1012-	●		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A)	8-98036-825-0	01	1	1012-		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1012-	●		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.417 (B)	8-98036-826-0	02	1	1012-		●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1012-	●		●
409	03.417 WASHER; PL,BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1012-		●
562	03.403 NUT; HOSE CLIP 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●
562	03.403 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-			●
563	03.417 BRACKET; CLIP 4HK1-TCN ENG(RDQ)	8-98090-587-0	01	1	1012-	●	●

381 381 242 389 314 242 317 381 281 381 314 317 389 381 242 389 64 287 232 562 248 5 232 228 287 248 379 314 317 287 61 232 409 40 287 563 242 26 5 35 228 287 232 287

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1012-	●	●
5	03.407 CLIP; AIR DUCT HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1012-		●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1012-		●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1012-			●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=75-95	8-98133-357-0	02	1	1012-	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=77-99	1-09707-141-0	02	1	1012-	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85	8-98133-350-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85	8-98133-350-0	01	1	1012-		●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85	8-98133-350-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85	8-98133-350-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90	8-98122-372-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90	8-98122-372-0	01	1	1012-		●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90	8-98122-372-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90	8-98122-372-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=45-65	8-98133-348-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (B) ID=45-65	8-98133-348-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=60-65	8-98096-418-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=60-65	8-98096-418-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1012-	●		●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A) ID=127	1-14239-263-0	01	1	1012-		●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	02	1	1012-			●
5	03.407 CLIP; AIR DUCT (F) ID=117	9-09915-075-1	01	1	1012-			●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	02	1	1012-			●
26	03.417 DUCT; AIR INT (A)	8-98025-626-0	01	1	1012-	●
26	03.417 DUCT; AIR INT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A)	8-98025-626-0	01	1	1012-		●
26	03.417 DUCT; AIR INT (B)	8-98025-627-0	01	1	1012-			●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1012-	●		●
35	03.406 SEAL; DUCT,INT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-98029-332-0	01	1	1012-		●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-	●		●
40	03.417 NUT; AIR INT DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-		●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-	●
61	03.417 BOLT; BRKT,AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-		●
61	03.417 BOLT; BRKT,AIR DUCT 02.277 M10X35 FLANGE	0-28651-035-0	01	1	1012-			●
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	1012-	●
64	03.417 BOLT; BRKT,AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M8X16	0-52000-816-0	01	1	1012-		●
228	03.278 CLIP; PCV HOSE 4HG1-T ENG(RDP) 03.417 (B)	8-97369-959-0	01	1	1107-	●	●
228	03.278 CLIP; PCV HOSE 4JJ1-TCC ENG(RDU) (A) ID=25 H=40 L=50	8-98073-275-0	01	1	1012-	●
228	03.278 CLIP; PCV HOSE (A) ID=25 H=40 L=50	8-98073-275-0	01	1	1012-			●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98082-535-0	01	1	1012-1309	●	●
232	03.417 HOSE; CONN HEAVY DUTY AIR CLEANER<K46> (A)	8-98082-535-0	01	1	1012-1309	●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98082-535-0	01	1	1012-1309	●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98082-535-0	01	1	1012-1309		●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> (A)	8-98082-535-0	01	1	1012-1309		●
232	03.417 HOSE; CONN (A)	8-98082-535-0	01	1	1012-1309			●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98231-785-0	01	1	1310-	●	●
232	03.417 HOSE; CONN HEAVY DUTY AIR CLEANER<K46> (A)	8-98231-785-0	01	1	1310-	●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98231-785-0	01	1	1310-	●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> (A)	8-98231-785-0	01	1	1310-		●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98231-785-0	01	1	1310-		●
232	03.417 HOSE; CONN (A)	8-98231-785-0	01	1	1310-			●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP) (G)	8-98166-943-0	01	1	1012-	●	●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) HEAVY DUTY AIR CLEANER<K46> EURO2 SPECIFICATION(NT2) (B)	8-98070-857-1	01	1	1012-	●	●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-98095-507-1	01	1	1012-	●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (C)	8-98070-065-1	01	1	1012-1409	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (C)	8-98269-835-0	01	1	1410-	●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (E)	8-98105-926-1	01	1	1012-	●	●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (F)	8-98131-538-1	01	1	1012-	●	●
232	03.417 HOSE; CONN (D)	8-98021-072-2	01	1	1012-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (I)	8-98032-142-1	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (I)	8-98032-143-1	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (J)	8-98070-942-2	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT (J)	8-98070-942-2	01	1	1012-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (K)	8-98070-943-0	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT (K)	8-98070-943-0	01	1	1012-			●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (C)	8-98036-646-2	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (D)	8-98036-647-2	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (E)	8-98036-649-2	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A)	8-98145-112-1	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (B)	8-98029-819-1	01	1	1012-			●
242	03.417 BRACKET; AIR DUCT (F)	8-98055-243-1	01	1	1012-			●
242	03.417 BRACKET; AIR DUCT (G)	8-98055-246-2	01	1	1012-			●
242	03.417 BRACKET; AIR DUCT (H)	8-98055-247-1	01	1	1012-			●
248	03.417 CLIP; RUBBER HOSE 4JJ1-TCC ENG(RDU) 08.846 ID=21.7	8-97203-074-0	02	1	1012-	●
248	03.417 CLIP; RUBBER HOSE 08.846 ID=21.7	8-97203-074-0	02	1	1012-			●
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46>	8-98101-995-5	01	1	1012-	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46>	8-98101-995-5	01	1	1012-		●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46>	8-98080-929-2	01	1	1012-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46>	8-98000-230-5	01	1	1012-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JJ1-TCC ENG(RDU) EXC. HEAVY DUTY AIR CLEANER<K46>	8-98000-230-5	01	1	1012-	●
281	03.417 DUCT; AIR,VERTICAL INT EXC. HEAVY DUTY AIR CLEANER<K46>	8-98061-757-2	01	1	1012-			●
287	03.417 CLIP; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=55-75	8-98133-349-0	01	1	1012-	●	●
287	03.417 CLIP; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=58-79	1-09707-136-0	01	1	1012-	●	●
287	03.417 CLIP; AIR DUCT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) 03.407 (B) ID=117	9-09915-075-1	01	1	1012-	●
287	03.417 CLIP; AIR DUCT 4HG1-T ENG(RDP) 03.407 (B) ID=117	9-09915-075-1	01	1	1012-		●
287	03.417 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.407 (D) ID=112	9-09915-074-1	01	1	1012-	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=65-85	8-98133-350-0	01	1	1012-	●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=65-85	8-98133-350-0	01	1	1012-		●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=70-90	8-98122-372-0	01	1	1012-	●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=70-90	8-98122-372-0	01	1	1012-		●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=40-50	8-98133-347-0	01	1	1012-	●	●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (C) ID=44-60	8-94175-940-0	01	1	1012-	●	●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1012-	●		●
314	03.417 WASHER; PL,AIR INT DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1012-		●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1012-	●		●
317	03.417 NUT; CUSHION RUBBER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M8 W/LK WASHER	8-97581-234-0	03	1	1012-		●
379	03.675 HOSE; RUBBER 4JJ1-TCC ENG(RDU)	8-98135-511-0	01	1	1012-	●
379	03.675 HOSE; RUBBER	8-98135-511-0	01	1	1012-			●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	02	1	1012-	●
381	03.417 NUT; BRKT,AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A) M8 W/LK WASHER	8-97581-234-0	02	1	1012-		●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1012-	●		●
381	03.417 NUT; BRKT,AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A) M8 W/LK WASHER	8-97581-234-0	03	1	1012-		●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1012-			●
381	03.417 NUT; BRKT,AIR DUCT 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-			●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1012-	●		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A)	8-98036-825-0	01	1	1012-		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1012-	●		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.417 (B)	8-98036-826-0	02	1	1012-		●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1012-	●		●
409	03.417 WASHER; PL,BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1012-		●
562	03.403 NUT; HOSE CLIP 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●
562	03.403 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-			●
563	03.417 BRACKET; CLIP 4HK1-TCN ENG(RDQ)	8-98090-587-0	01	1	1012-	●	●

381 381 242 389 314 317 242 381 381 389 314 317 389 381 5 232 281 242 381 314 317 5 26 351 409 40 297 242 61 5 35 384

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1012-	●	●
5	03.407 CLIP; AIR DUCT HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1012-		●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1012-		●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1012-			●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=75-95	8-98133-357-0	02	1	1012-	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=77-99	1-09707-141-0	02	1	1012-	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85	8-98133-350-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85	8-98133-350-0	01	1	1012-		●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85	8-98133-350-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85	8-98133-350-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90	8-98122-372-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90	8-98122-372-0	01	1	1012-		●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90	8-98122-372-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90	8-98122-372-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=45-65	8-98133-348-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (B) ID=45-65	8-98133-348-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=60-65	8-98096-418-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=60-65	8-98096-418-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1012-	●		●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A) ID=127	1-14239-263-0	01	1	1012-		●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	02	1	1012-			●
5	03.407 CLIP; AIR DUCT (F) ID=117	9-09915-075-1	01	1	1012-			●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	02	1	1012-			●
26	03.417 DUCT; AIR INT (A)	8-98025-626-0	01	1	1012-	●
26	03.417 DUCT; AIR INT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A)	8-98025-626-0	01	1	1012-		●
26	03.417 DUCT; AIR INT (B)	8-98025-627-0	01	1	1012-			●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1012-	●		●
35	03.406 SEAL; DUCT,INT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-98029-332-0	01	1	1012-		●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-	●		●
40	03.417 NUT; AIR INT DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-		●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-	●
61	03.417 BOLT; BRKT,AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-		●
61	03.417 BOLT; BRKT,AIR DUCT 02.277 M10X35 FLANGE	0-28651-035-0	01	1	1012-			●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98082-535-0	01	1	1012-1309	●	●
232	03.417 HOSE; CONN HEAVY DUTY AIR CLEANER<K46> (A)	8-98082-535-0	01	1	1012-1309	●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98082-535-0	01	1	1012-1309	●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98082-535-0	01	1	1012-1309		●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> (A)	8-98082-535-0	01	1	1012-1309		●
232	03.417 HOSE; CONN (A)	8-98082-535-0	01	1	1012-1309			●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98231-785-0	01	1	1310-	●	●
232	03.417 HOSE; CONN HEAVY DUTY AIR CLEANER<K46> (A)	8-98231-785-0	01	1	1310-	●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98231-785-0	01	1	1310-	●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> (A)	8-98231-785-0	01	1	1310-		●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98231-785-0	01	1	1310-		●
232	03.417 HOSE; CONN (A)	8-98231-785-0	01	1	1310-			●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP) (G)	8-98166-943-0	01	1	1012-	●	●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) HEAVY DUTY AIR CLEANER<K46> EURO2 SPECIFICATION(NT2) (B)	8-98070-857-1	01	1	1012-	●	●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-98095-507-1	01	1	1012-	●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (C)	8-98070-065-1	01	1	1012-1409	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (C)	8-98269-835-0	01	1	1410-	●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (E)	8-98105-926-1	01	1	1012-	●	●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (F)	8-98131-538-1	01	1	1012-	●	●
232	03.417 HOSE; CONN (D)	8-98021-072-2	01	1	1012-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (I)	8-98032-142-1	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (I)	8-98032-143-1	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (J)	8-98070-942-2	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT (J)	8-98070-942-2	01	1	1012-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (K)	8-98070-943-0	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT (K)	8-98070-943-0	01	1	1012-			●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (C)	8-98036-646-2	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (D)	8-98036-647-2	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (E)	8-98036-649-2	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A)	8-98145-112-1	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (B)	8-98029-819-1	01	1	1012-			●
242	03.417 BRACKET; AIR DUCT (F)	8-98055-243-1	01	1	1012-			●
242	03.417 BRACKET; AIR DUCT (G)	8-98055-246-2	01	1	1012-			●
242	03.417 BRACKET; AIR DUCT (H)	8-98055-247-1	01	1	1012-			●
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46>	8-98101-995-5	01	1	1012-	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46>	8-98101-995-5	01	1	1012-		●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46>	8-98080-929-2	01	1	1012-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46>	8-98000-230-5	01	1	1012-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JJ1-TCC ENG(RDU) EXC. HEAVY DUTY AIR CLEANER<K46>	8-98000-230-5	01	1	1012-	●
281	03.417 DUCT; AIR,VERTICAL INT EXC. HEAVY DUTY AIR CLEANER<K46>	8-98061-757-2	01	1	1012-			●
297	03.417 BOLT; DUCT 4JJ1-TCC ENG(RDU) 00.685 (A) M8X40 FLANGE	0-28650-840-0	01	1	1012-	●
297	03.417 BOLT; DUCT 00.685 (A) M8X40 FLANGE	0-28650-840-0	01	1	1012-			●
297	03.417 BOLT; DUCT 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1012-			●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1012-	●		●
314	03.417 WASHER; PL,AIR INT DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1012-		●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1012-	●		●
317	03.417 NUT; CUSHION RUBBER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M8 W/LK WASHER	8-97581-234-0	03	1	1012-		●
351	03.407 DUCT; AIR 4HK1-TCN ENG(RDQ) (B)	8-98105-722-1	01	1	1012-	●	●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) 03.417 (A)	8-98051-032-1	01	1	1012-	●
351	03.407 DUCT; AIR 03.417 (A)	8-98051-032-1	01	1	1012-			●
351	03.407 DUCT; AIR (C)	8-98021-486-1	01	1	1012-			●
351	03.407 DUCT; AIR (D)	8-98070-865-0	01	1	1012-			●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	02	1	1012-	●
381	03.417 NUT; BRKT,AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A) M8 W/LK WASHER	8-97581-234-0	02	1	1012-		●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1012-	●		●
381	03.417 NUT; BRKT,AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A) M8 W/LK WASHER	8-97581-234-0	03	1	1012-		●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1012-			●
381	03.417 NUT; BRKT,AIR DUCT 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-			●
384	03.417 NUT; AIR INT DUCT BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-			●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1012-	●		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A)	8-98036-825-0	01	1	1012-		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1012-	●		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.417 (B)	8-98036-826-0	02	1	1012-		●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1012-	●		●
409	03.417 WASHER; PL,BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1012-		●

401 242 505 39 511 5 49 5 179 32 242 401 351 39 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1012-	●	●
5	03.407 CLIP; AIR DUCT HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1012-		●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1012-		●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1012-			●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=75-95	8-98133-357-0	02	1	1012-	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=77-99	1-09707-141-0	02	1	1012-	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85	8-98133-350-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85	8-98133-350-0	01	1	1012-		●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85	8-98133-350-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85	8-98133-350-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90	8-98122-372-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90	8-98122-372-0	01	1	1012-		●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90	8-98122-372-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90	8-98122-372-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=45-65	8-98133-348-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (B) ID=45-65	8-98133-348-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=60-65	8-98096-418-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=60-65	8-98096-418-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1012-	●		●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A) ID=127	1-14239-263-0	01	1	1012-		●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	02	1	1012-			●
5	03.407 CLIP; AIR DUCT (F) ID=117	9-09915-075-1	01	1	1012-			●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	02	1	1012-			●
32	03.417 RUBBER; AIR DUCT MTG 4HK1-TCN ENG(RDQ) (C)	8-98036-826-0	01	1	1012-1106	●	●
32	03.417 RUBBER; AIR DUCT MTG 4HK1-TCN ENG(RDQ) (C)	8-97081-886-0	01	1	1107-	●	●
32	03.417 RUBBER; AIR DUCT MTG 4JJ1-TCC ENG(RDU) 01.277 (B) OD=32	8-94395-766-0	01	1	1012-	●
32	03.417 RUBBER; AIR DUCT MTG 01.277 (B) OD=32	8-94395-766-0	01	1	1012-			●
32	03.417 RUBBER; AIR DUCT MTG 4JJ1-TCC ENG(RDU) 03.265 (A) OD=23	8-97105-689-6	01	1	1012-	●
32	03.417 RUBBER; AIR DUCT MTG 03.265 (A) OD=23	8-97105-689-6	01	1	1012-			●
39	03.417 BOLT; BRKT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●
39	03.417 BOLT; BRKT 4HK1-TCN ENG(RDQ) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1012-		●
39	03.417 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1012-			●
39	03.417 BOLT; BRKT 4JJ1-TCC ENG(RDU) 03.613 (B) M8X14 FLANGE	8-97378-075-0	01	1	1012-	●
39	03.417 BOLT; BRKT 03.613 (B) M8X14 FLANGE	8-97378-075-0	01	1	1012-			●
49	03.417 NUT; AIR DUCT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●
49	03.417 NUT; AIR DUCT 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-		●
49	03.417 NUT; AIR DUCT 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-			●
179	03.417 HOSE; AIR INT 4HK1-TCN ENG(RDQ)	8-98114-719-0	01	1	1012-	●	●
179	03.417 HOSE; AIR INT 4JJ1-TCC ENG(RDU)	8-98050-920-2	01	1	1012-	●
179	03.417 HOSE; AIR INT	8-98050-920-2	01	1	1012-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (I)	8-98032-142-1	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (I)	8-98032-143-1	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (J)	8-98070-942-2	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT (J)	8-98070-942-2	01	1	1012-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (K)	8-98070-943-0	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT (K)	8-98070-943-0	01	1	1012-			●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (C)	8-98036-646-2	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (D)	8-98036-647-2	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (E)	8-98036-649-2	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A)	8-98145-112-1	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (B)	8-98029-819-1	01	1	1012-			●
242	03.417 BRACKET; AIR DUCT (F)	8-98055-243-1	01	1	1012-			●
242	03.417 BRACKET; AIR DUCT (G)	8-98055-246-2	01	1	1012-			●
242	03.417 BRACKET; AIR DUCT (H)	8-98055-247-1	01	1	1012-			●
351	03.407 DUCT; AIR 4HK1-TCN ENG(RDQ) (B)	8-98105-722-1	01	1	1012-	●	●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) 03.417 (A)	8-98051-032-1	01	1	1012-	●
351	03.407 DUCT; AIR 03.417 (A)	8-98051-032-1	01	1	1012-			●
351	03.407 DUCT; AIR (C)	8-98021-486-1	01	1	1012-			●
351	03.407 DUCT; AIR (D)	8-98070-865-0	01	1	1012-			●
401	03.403 NUT; BRKT,AIR INT 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
401	03.403 NUT; BRKT,AIR INT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●
401	03.403 NUT; BRKT,AIR INT 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-		●
401	03.403 NUT; BRKT,AIR INT 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-			●
505	03.406 RUBBER; MTG 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 03.417	8-98036-826-0	01	1	1012-1106	●
505	03.406 RUBBER; MTG 4HK1-TCN ENG(RDQ) 03.417	8-98036-826-0	01	1	1012-1106		●
505	03.406 RUBBER; MTG 03.417	8-98036-826-0	01	1	1012-1106			●
505	03.406 RUBBER; MTG 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 03.417	8-97081-886-0	01	1	1107-	●
505	03.406 RUBBER; MTG 4HK1-TCN ENG(RDQ) 03.417	8-97081-886-0	01	1	1107-		●
505	03.406 RUBBER; MTG 03.417	8-97081-886-0	01	1	1107-			●
511	03.417 NUT; PIPE 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●
511	03.417 NUT; PIPE 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-		●
511	03.417 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-			●

5 351 5 232 48 5 562 381 248 248 379 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1012-	●	●
5	03.407 CLIP; AIR DUCT HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1012-		●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1012-		●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1012-			●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=75-95	8-98133-357-0	02	1	1012-	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=77-99	1-09707-141-0	02	1	1012-	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85	8-98133-350-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85	8-98133-350-0	01	1	1012-		●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85	8-98133-350-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85	8-98133-350-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90	8-98122-372-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90	8-98122-372-0	01	1	1012-		●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90	8-98122-372-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90	8-98122-372-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=45-65	8-98133-348-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (B) ID=45-65	8-98133-348-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=60-65	8-98096-418-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=60-65	8-98096-418-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1012-	●		●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A) ID=127	1-14239-263-0	01	1	1012-		●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	02	1	1012-			●
5	03.407 CLIP; AIR DUCT (F) ID=117	9-09915-075-1	01	1	1012-			●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	02	1	1012-			●
48	03.417 BOLT; AIR DUCT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-			●
228	03.278 CLIP; PCV HOSE 4HG1-T ENG(RDP) 03.417 (B)	8-97369-959-0	01	1	1107-	●	●
228	03.278 CLIP; PCV HOSE 4JJ1-TCC ENG(RDU) (A) ID=25 H=40 L=50	8-98073-275-0	01	1	1012-	●
228	03.278 CLIP; PCV HOSE (A) ID=25 H=40 L=50	8-98073-275-0	01	1	1012-			●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98082-535-0	01	1	1012-1309	●	●
232	03.417 HOSE; CONN HEAVY DUTY AIR CLEANER<K46> (A)	8-98082-535-0	01	1	1012-1309	●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98082-535-0	01	1	1012-1309	●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98082-535-0	01	1	1012-1309		●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> (A)	8-98082-535-0	01	1	1012-1309		●
232	03.417 HOSE; CONN (A)	8-98082-535-0	01	1	1012-1309			●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98231-785-0	01	1	1310-	●	●
232	03.417 HOSE; CONN HEAVY DUTY AIR CLEANER<K46> (A)	8-98231-785-0	01	1	1310-	●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98231-785-0	01	1	1310-	●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> (A)	8-98231-785-0	01	1	1310-		●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98231-785-0	01	1	1310-		●
232	03.417 HOSE; CONN (A)	8-98231-785-0	01	1	1310-			●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP) (G)	8-98166-943-0	01	1	1012-	●	●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) HEAVY DUTY AIR CLEANER<K46> EURO2 SPECIFICATION(NT2) (B)	8-98070-857-1	01	1	1012-	●	●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-98095-507-1	01	1	1012-	●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (C)	8-98070-065-1	01	1	1012-1409	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (C)	8-98269-835-0	01	1	1410-	●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (E)	8-98105-926-1	01	1	1012-	●	●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (F)	8-98131-538-1	01	1	1012-	●	●
232	03.417 HOSE; CONN (D)	8-98021-072-2	01	1	1012-			●
248	03.417 CLIP; RUBBER HOSE 4JJ1-TCC ENG(RDU) 08.846 ID=21.7	8-97203-074-0	02	1	1012-	●
248	03.417 CLIP; RUBBER HOSE 08.846 ID=21.7	8-97203-074-0	02	1	1012-			●
351	03.407 DUCT; AIR 4HK1-TCN ENG(RDQ) (B)	8-98105-722-1	01	1	1012-	●	●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) 03.417 (A)	8-98051-032-1	01	1	1012-	●
351	03.407 DUCT; AIR 03.417 (A)	8-98051-032-1	01	1	1012-			●
351	03.407 DUCT; AIR (C)	8-98021-486-1	01	1	1012-			●
351	03.407 DUCT; AIR (D)	8-98070-865-0	01	1	1012-			●
379	03.675 HOSE; RUBBER 4JJ1-TCC ENG(RDU)	8-98135-511-0	01	1	1012-	●
379	03.675 HOSE; RUBBER	8-98135-511-0	01	1	1012-			●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	02	1	1012-	●
381	03.417 NUT; BRKT,AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A) M8 W/LK WASHER	8-97581-234-0	02	1	1012-		●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1012-	●		●
381	03.417 NUT; BRKT,AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A) M8 W/LK WASHER	8-97581-234-0	03	1	1012-		●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1012-			●
381	03.417 NUT; BRKT,AIR DUCT 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-			●
562	03.403 NUT; HOSE CLIP 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●
562	03.403 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-			●

474 474 9 474 532 242 39 39 225 401 505 5 5 511 49 179 351 32 242 5 32 39 297

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1012-	●	●
5	03.407 CLIP; AIR DUCT HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1012-		●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1012-		●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1012-			●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=75-95	8-98133-357-0	02	1	1012-	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=77-99	1-09707-141-0	02	1	1012-	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85	8-98133-350-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85	8-98133-350-0	01	1	1012-		●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85	8-98133-350-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85	8-98133-350-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90	8-98122-372-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90	8-98122-372-0	01	1	1012-		●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90	8-98122-372-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90	8-98122-372-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=45-65	8-98133-348-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (B) ID=45-65	8-98133-348-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=60-65	8-98096-418-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=60-65	8-98096-418-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1012-	●		●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A) ID=127	1-14239-263-0	01	1	1012-		●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	02	1	1012-			●
5	03.407 CLIP; AIR DUCT (F) ID=117	9-09915-075-1	01	1	1012-			●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	02	1	1012-			●
9	03.417 BRACKET; INT PIPE 4JJ1-TCC ENG(RDU)	8-98009-086-0	01	1	1012-	●
9	03.417 BRACKET; INT PIPE	8-98009-086-0	01	1	1012-			●
32	03.417 RUBBER; AIR DUCT MTG 4HK1-TCN ENG(RDQ) (C)	8-98036-826-0	01	1	1012-1106	●	●
32	03.417 RUBBER; AIR DUCT MTG 4HK1-TCN ENG(RDQ) (C)	8-97081-886-0	01	1	1107-	●	●
32	03.417 RUBBER; AIR DUCT MTG 4JJ1-TCC ENG(RDU) 01.277 (B) OD=32	8-94395-766-0	01	1	1012-	●
32	03.417 RUBBER; AIR DUCT MTG 01.277 (B) OD=32	8-94395-766-0	01	1	1012-			●
32	03.417 RUBBER; AIR DUCT MTG 4JJ1-TCC ENG(RDU) 03.265 (A) OD=23	8-97105-689-6	01	1	1012-	●
32	03.417 RUBBER; AIR DUCT MTG 03.265 (A) OD=23	8-97105-689-6	01	1	1012-			●
39	03.417 BOLT; BRKT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●
39	03.417 BOLT; BRKT 4HK1-TCN ENG(RDQ) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1012-		●
39	03.417 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1012-			●
39	03.417 BOLT; BRKT 4JJ1-TCC ENG(RDU) 03.613 (B) M8X14 FLANGE	8-97378-075-0	01	1	1012-	●
39	03.417 BOLT; BRKT 03.613 (B) M8X14 FLANGE	8-97378-075-0	01	1	1012-			●
49	03.417 NUT; AIR DUCT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●
49	03.417 NUT; AIR DUCT 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-		●
49	03.417 NUT; AIR DUCT 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-			●
179	03.417 HOSE; AIR INT 4HK1-TCN ENG(RDQ)	8-98114-719-0	01	1	1012-	●	●
179	03.417 HOSE; AIR INT 4JJ1-TCC ENG(RDU)	8-98050-920-2	01	1	1012-	●
179	03.417 HOSE; AIR INT	8-98050-920-2	01	1	1012-			●
225	03.417 GASKET; AIR PIPE 4JJ1-TCC ENG(RDU) 03.270 ID=47	8-97202-328-1	01	1	1012-	●
225	03.417 GASKET; AIR PIPE 03.270 ID=47	8-97202-328-1	01	1	1012-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (I)	8-98032-142-1	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (I)	8-98032-143-1	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (J)	8-98070-942-2	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT (J)	8-98070-942-2	01	1	1012-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (K)	8-98070-943-0	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT (K)	8-98070-943-0	01	1	1012-			●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (C)	8-98036-646-2	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (D)	8-98036-647-2	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (E)	8-98036-649-2	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A)	8-98145-112-1	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (B)	8-98029-819-1	01	1	1012-			●
242	03.417 BRACKET; AIR DUCT (F)	8-98055-243-1	01	1	1012-			●
242	03.417 BRACKET; AIR DUCT (G)	8-98055-246-2	01	1	1012-			●
242	03.417 BRACKET; AIR DUCT (H)	8-98055-247-1	01	1	1012-			●
297	03.417 BOLT; DUCT 4JJ1-TCC ENG(RDU) 00.685 (A) M8X40 FLANGE	0-28650-840-0	01	1	1012-	●
297	03.417 BOLT; DUCT 00.685 (A) M8X40 FLANGE	0-28650-840-0	01	1	1012-			●
297	03.417 BOLT; DUCT 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1012-			●
351	03.407 DUCT; AIR 4HK1-TCN ENG(RDQ) (B)	8-98105-722-1	01	1	1012-	●	●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) 03.417 (A)	8-98051-032-1	01	1	1012-	●
351	03.407 DUCT; AIR 03.417 (A)	8-98051-032-1	01	1	1012-			●
351	03.407 DUCT; AIR (C)	8-98021-486-1	01	1	1012-			●
351	03.407 DUCT; AIR (D)	8-98070-865-0	01	1	1012-			●
401	03.403 NUT; BRKT,AIR INT 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
401	03.403 NUT; BRKT,AIR INT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●
401	03.403 NUT; BRKT,AIR INT 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-		●
401	03.403 NUT; BRKT,AIR INT 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-			●
474	03.417 BOLT; PIPE 4JJ1-TCC ENG(RDU) (B) M6X70 FLANGE	0-28050-670-0	02	1	1012-	●
474	03.417 BOLT; PIPE (B) M6X70 FLANGE	0-28050-670-0	02	1	1012-			●
474	03.417 BOLT; PIPE 4JJ1-TCC ENG(RDU) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1012-	●
474	03.417 BOLT; PIPE 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1012-			●
474	03.417 BOLT; PIPE 4JJ1-TCC ENG(RDU) 03.680 (C) M6X30 FLANGE	0-28650-630-0	01	1	1012-	●
474	03.417 BOLT; PIPE 03.680 (C) M6X30 FLANGE	0-28650-630-0	01	1	1012-			●
505	03.406 RUBBER; MTG 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 03.417	8-98036-826-0	01	1	1012-1106	●
505	03.406 RUBBER; MTG 4HK1-TCN ENG(RDQ) 03.417	8-98036-826-0	01	1	1012-1106		●
505	03.406 RUBBER; MTG 03.417	8-98036-826-0	01	1	1012-1106			●
505	03.406 RUBBER; MTG 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 03.417	8-97081-886-0	01	1	1107-	●
505	03.406 RUBBER; MTG 4HK1-TCN ENG(RDQ) 03.417	8-97081-886-0	01	1	1107-		●
505	03.406 RUBBER; MTG 03.417	8-97081-886-0	01	1	1107-			●
511	03.417 NUT; PIPE 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●
511	03.417 NUT; PIPE 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-		●
511	03.417 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-			●
532	03.417 PIPE; INTAKE 4JJ1-TCC ENG(RDU)	8-97385-203-1	01	1	1012-1303	●
532	03.417 PIPE; INTAKE	8-97385-203-1	01	1	1012-1303			●
532	03.417 PIPE; INTAKE 4JJ1-TCC ENG(RDU)	8-98237-771-1	01	1	1304-	●
532	03.417 PIPE; INTAKE	8-98237-771-1	01	1	1304-			●

381 381 242 389 314 317 242 381 281 381 389 314 317 64 381 242 389 5 232 232 314 317 409 61 40 242 26 287 5 232 35 287 287

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1012-	●	●
5	03.407 CLIP; AIR DUCT HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1012-		●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1012-		●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1012-			●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=75-95	8-98133-357-0	02	1	1012-	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=77-99	1-09707-141-0	02	1	1012-	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85	8-98133-350-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85	8-98133-350-0	01	1	1012-		●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85	8-98133-350-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85	8-98133-350-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90	8-98122-372-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90	8-98122-372-0	01	1	1012-		●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90	8-98122-372-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90	8-98122-372-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=45-65	8-98133-348-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (B) ID=45-65	8-98133-348-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=60-65	8-98096-418-0	01	1	1012-	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=60-65	8-98096-418-0	01	1	1012-			●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1012-	●		●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A) ID=127	1-14239-263-0	01	1	1012-		●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	02	1	1012-			●
5	03.407 CLIP; AIR DUCT (F) ID=117	9-09915-075-1	01	1	1012-			●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	02	1	1012-			●
26	03.417 DUCT; AIR INT (A)	8-98025-626-0	01	1	1012-	●
26	03.417 DUCT; AIR INT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A)	8-98025-626-0	01	1	1012-		●
26	03.417 DUCT; AIR INT (B)	8-98025-627-0	01	1	1012-			●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1012-	●		●
35	03.406 SEAL; DUCT,INT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-98029-332-0	01	1	1012-		●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-	●		●
40	03.417 NUT; AIR INT DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-		●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-	●
61	03.417 BOLT; BRKT,AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-		●
61	03.417 BOLT; BRKT,AIR DUCT 02.277 M10X35 FLANGE	0-28651-035-0	01	1	1012-			●
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	1012-	●
64	03.417 BOLT; BRKT,AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M8X16	0-52000-816-0	01	1	1012-		●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98082-535-0	01	1	1012-1309	●	●
232	03.417 HOSE; CONN HEAVY DUTY AIR CLEANER<K46> (A)	8-98082-535-0	01	1	1012-1309	●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98082-535-0	01	1	1012-1309	●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98082-535-0	01	1	1012-1309		●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> (A)	8-98082-535-0	01	1	1012-1309		●
232	03.417 HOSE; CONN (A)	8-98082-535-0	01	1	1012-1309			●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98231-785-0	01	1	1310-	●	●
232	03.417 HOSE; CONN HEAVY DUTY AIR CLEANER<K46> (A)	8-98231-785-0	01	1	1310-	●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98231-785-0	01	1	1310-	●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> (A)	8-98231-785-0	01	1	1310-		●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98231-785-0	01	1	1310-		●
232	03.417 HOSE; CONN (A)	8-98231-785-0	01	1	1310-			●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP) (G)	8-98166-943-0	01	1	1012-	●	●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) HEAVY DUTY AIR CLEANER<K46> EURO2 SPECIFICATION(NT2) (B)	8-98070-857-1	01	1	1012-	●	●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-98095-507-1	01	1	1012-	●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (C)	8-98070-065-1	01	1	1012-1409	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (C)	8-98269-835-0	01	1	1410-	●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (E)	8-98105-926-1	01	1	1012-	●	●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (F)	8-98131-538-1	01	1	1012-	●	●
232	03.417 HOSE; CONN (D)	8-98021-072-2	01	1	1012-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (I)	8-98032-142-1	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (I)	8-98032-143-1	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (J)	8-98070-942-2	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT (J)	8-98070-942-2	01	1	1012-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (K)	8-98070-943-0	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT (K)	8-98070-943-0	01	1	1012-			●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (C)	8-98036-646-2	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (D)	8-98036-647-2	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (E)	8-98036-649-2	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A)	8-98145-112-1	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (B)	8-98029-819-1	01	1	1012-			●
242	03.417 BRACKET; AIR DUCT (F)	8-98055-243-1	01	1	1012-			●
242	03.417 BRACKET; AIR DUCT (G)	8-98055-246-2	01	1	1012-			●
242	03.417 BRACKET; AIR DUCT (H)	8-98055-247-1	01	1	1012-			●
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46>	8-98101-995-5	01	1	1012-	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46>	8-98101-995-5	01	1	1012-		●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46>	8-98080-929-2	01	1	1012-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46>	8-98000-230-5	01	1	1012-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JJ1-TCC ENG(RDU) EXC. HEAVY DUTY AIR CLEANER<K46>	8-98000-230-5	01	1	1012-	●
281	03.417 DUCT; AIR,VERTICAL INT EXC. HEAVY DUTY AIR CLEANER<K46>	8-98061-757-2	01	1	1012-			●
287	03.417 CLIP; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=55-75	8-98133-349-0	01	1	1012-	●	●
287	03.417 CLIP; AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=58-79	1-09707-136-0	01	1	1012-	●	●
287	03.417 CLIP; AIR DUCT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) 03.407 (B) ID=117	9-09915-075-1	01	1	1012-	●
287	03.417 CLIP; AIR DUCT 4HG1-T ENG(RDP) 03.407 (B) ID=117	9-09915-075-1	01	1	1012-		●
287	03.417 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.407 (D) ID=112	9-09915-074-1	01	1	1012-	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=65-85	8-98133-350-0	01	1	1012-	●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=65-85	8-98133-350-0	01	1	1012-		●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=70-90	8-98122-372-0	01	1	1012-	●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=70-90	8-98122-372-0	01	1	1012-		●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=40-50	8-98133-347-0	01	1	1012-	●	●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (C) ID=44-60	8-94175-940-0	01	1	1012-	●	●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1012-	●		●
314	03.417 WASHER; PL,AIR INT DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1012-		●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1012-	●		●
317	03.417 NUT; CUSHION RUBBER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M8 W/LK WASHER	8-97581-234-0	03	1	1012-		●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	02	1	1012-	●
381	03.417 NUT; BRKT,AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A) M8 W/LK WASHER	8-97581-234-0	02	1	1012-		●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1012-	●		●
381	03.417 NUT; BRKT,AIR DUCT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A) M8 W/LK WASHER	8-97581-234-0	03	1	1012-		●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1012-			●
381	03.417 NUT; BRKT,AIR DUCT 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-			●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1012-	●		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A)	8-98036-825-0	01	1	1012-		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1012-	●		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.417 (B)	8-98036-826-0	02	1	1012-		●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1012-	●		●
409	03.417 WASHER; PL,BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1012-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
