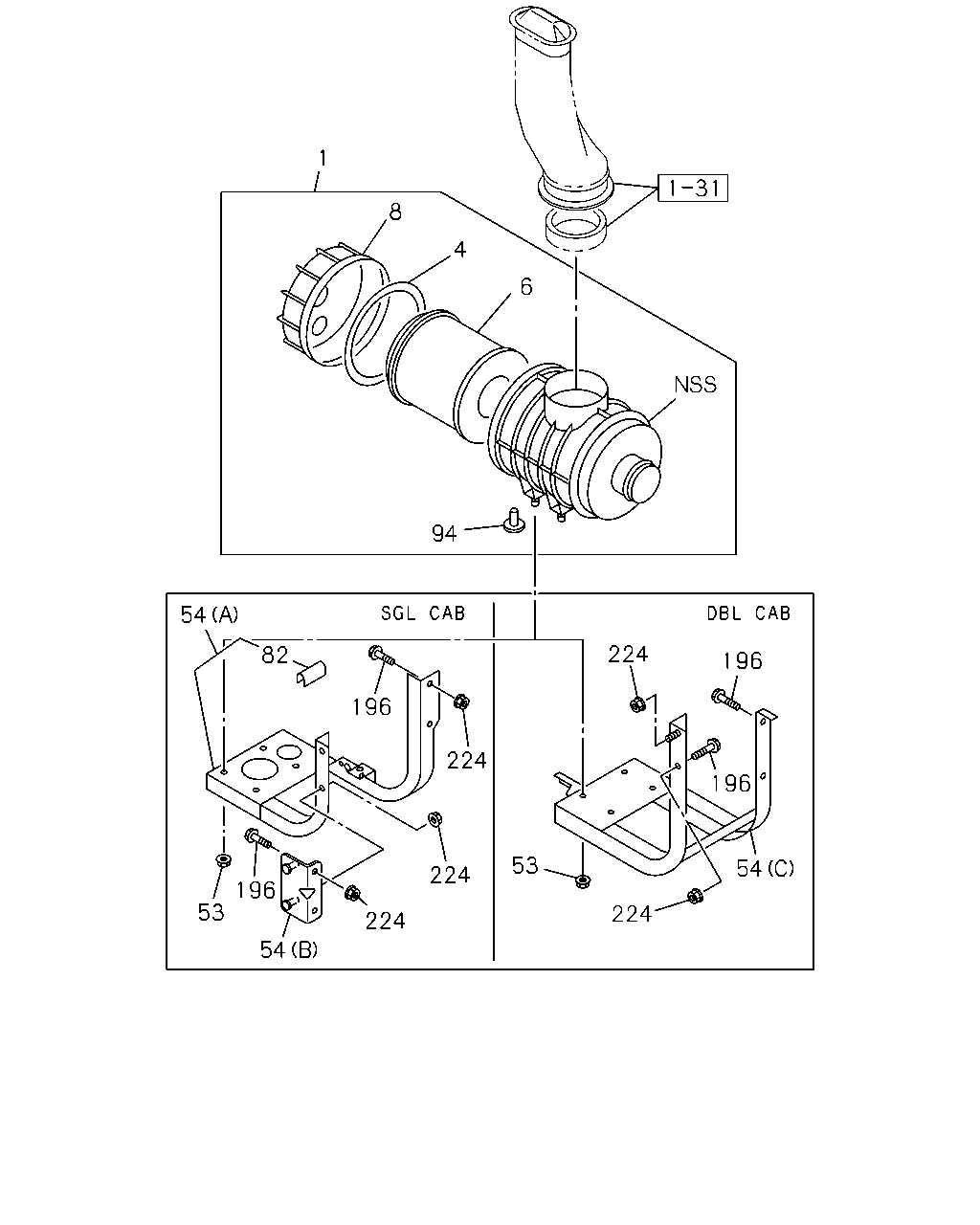

1-30 — AIR CLEANER (#54706) — 29 parça

1 8 4 6 94 54 224 82 196 196 224 196 53 54 224 196 53 224 224 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.402 CLEANER ASM; AIR 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-98122-915-0	01	1	1012-1210	●	●
1	03.402 CLEANER ASM; AIR 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU)	8-98050-415-2	01	1	1012-1210	●
1	03.402 CLEANER ASM; AIR 4HK1-TCN ENG(RDQ)	8-98050-415-2	01	1	1012-1210		●
1	03.402 CLEANER ASM; AIR	8-98050-415-2	01	1	1012-1210			●
1	03.402 CLEANER ASM; AIR	8-98050-415-2	01	1	1211-	●	●	●
4	03.403 GASKET; COVER TO BODY	8-97352-113-0	01	1	1012-	●	●	●
6	03.410 FILTER; ACL	8-97062-294-0	01	1	1012-	●	●	●
6	03.410 FILTER; ACL BEST VALUE PARTS	5-87610-020-0	01	1	1012-	●	●	●
8	03.410 COVER ASM; ACL	8-98050-434-1	01	1	1012-	●	●	●
53	03.403 NUT; ACL 01.062 M8 FLANGE	0-91180-108-0	04	1	1012-	●		●
53	03.403 NUT; ACL 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	04	1	1012-		●
54	03.405 BRACKET; ACL 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> FRAME STRAIGHT TYPE<7KJ> (A)	8-98251-988-0	01	1	1401-	●	●
54	03.405 BRACKET; ACL 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-98047-140-3	01	1	1012-1312	●	●
54	03.405 BRACKET; ACL 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98047-140-3	01	1	1401-	●	●
54	03.405 BRACKET; ACL 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (B)	8-98032-125-1	01	1	1012-	●	●
54	03.405 BRACKET; ACL 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98026-092-3	01	1	1012-	●
54	03.405 BRACKET; ACL 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98070-835-3	01	1	1012-	●
54	03.405 BRACKET; ACL 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (A)	8-98128-324-2	01	1	1012-	●	●
54	03.405 BRACKET; ACL (C)	8-98061-669-1	01	1	1012-			●
82	03.403 PROTECTOR 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 03.671	8-97327-172-0	01	1	1012-	●
94	03.415 VALVE; VACUATOR	8-97093-694-0	01	1	1012-	●	●	●
196	03.417 BOLT; BRKT,ACL 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-	●
196	03.417 BOLT; BRKT,ACL 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-		●
196	03.417 BOLT; BRKT,ACL 02.277 M10X35 FLANGE	0-28651-035-0	02	1	1012-	●
196	03.417 BOLT; BRKT,ACL 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.277 M10X35 FLANGE	0-28651-035-0	02	1	1012-		●
196	03.417 BOLT; BRKT,ACL 02.277 M10X35 FLANGE	0-28651-035-0	03	1	1012-			●
224	03.407 NUT; BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	05	1	1012-	●	●
224	03.407 NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	06	1	1012-	●
224	03.407 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
