◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10585 - CXH RHD ▶ 5 - Frame, Cab Mounting ▶ 5-17 - CYLINDER; CAB TILT ▶
5-17 — CYLINDER; CAB TILT (#547) — 34 parça

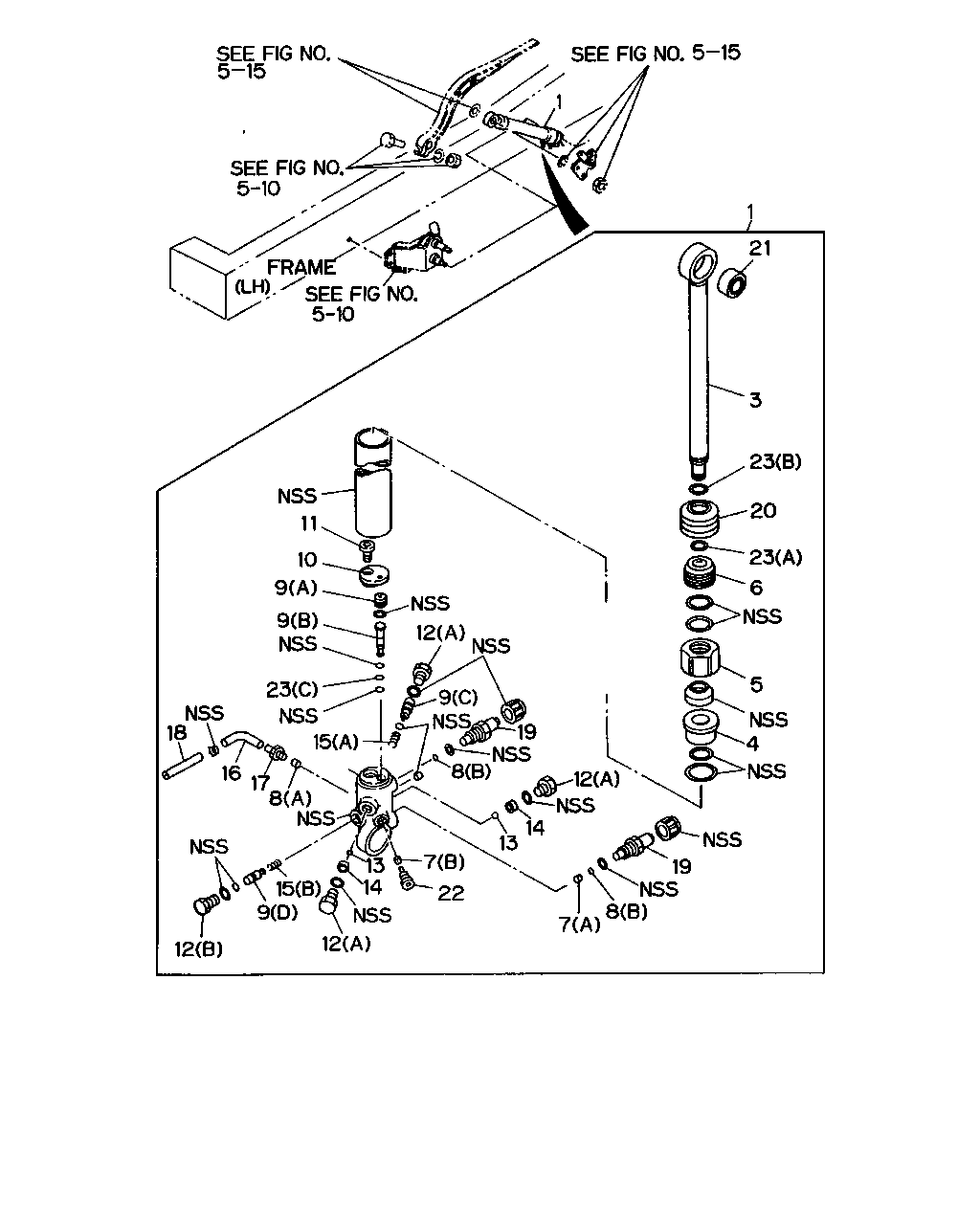

çizim 27557
1 1 21 3 23 20 23 6 5 4 19 8 7 12 14 13 7 22 13 14 12 15 9 12 18 16 17 8 8 19 9 15 23 12 9 9 10 11
BalonParca AdiParca NoAdetTipApplied Date
1 CYLINDER; OIL,CAB TILT
AUTO CAB TILT<WV2> 		1-53459-412-4 01 1 8712-8803
1 CYLINDER; OIL,CAB TILT
AUTO CAB TILT<WV2> 		1-53459-806-1 01 1 8804-
3 ROD; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-115-0 01 1 8712-
4 BUSHING; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-114-0 01 1 8712-
5 COVER; ROD
AUTO CAB TILT<WV2> 		1-53458-111-0 01 1 8712-
6 PISTON; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-108-0 01 1 8712-
7 ORIFICE; OIL CYL
AUTO CAB TILT<WV2> (A) 		1-53458-103-0 02 1 8712-
7 ORIFICE; OIL CYL
AUTO CAB TILT<WV2> (B) 		1-53458-104-0 01 1 8712-
8 FILTER; OIL CYL
AUTO CAB TILT<WV2> (A) 		1-53458-079-0 01 1 8712-
8 FILTER; OIL CYL
AUTO CAB TILT<WV2> (B) 		1-53458-102-0 02 1 8712-
9 PISTON; PILOT
AUTO CAB TILT<WV2> (D) 		1-53458-084-0 01 1 8712-
9 PISTON; PILOT
AUTO CAB TILT<WV2> (C) 		1-53458-089-0 01 1 8712-
9 PISTON; PILOT
AUTO CAB TILT<WV2> (B) 		1-53458-099-0 01 1 8712-
9 PISTON; PILOT
AUTO CAB TILT<WV2> (A) 		1-53458-101-0 01 1 8712-
10 WASHER; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-095-0 01 1 8712-
11 BOLT; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-094-0 01 1 8712-
12 PLUG; OIL CYL
AUTO CAB TILT<WV2> (B) 		1-53458-086-0 01 1 8712-
12 PLUG; OIL CYL
AUTO CAB TILT<WV2> (A) 		1-53458-093-0 03 1 8712-
13 BALL; STEEL
AUTO CAB TILT<WV2> 		1-53458-091-0 02 1 8712-
14 SPRING; STEEL BALL
AUTO CAB TILT<WV2> 		1-53458-090-0 02 1 8712-
15 SPRING; PILOT PISTON
AUTO CAB TILT<WV2> (B) 		1-53458-082-0 01 1 8712-
15 SPRING; PILOT PISTON
AUTO CAB TILT<WV2> (A) 		1-53458-087-0 01 1 8712-
16 PIPE; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-078-0 01 1 8712-
17 NUT; PIPE
AUTO CAB TILT<WV2> 		1-53458-077-0 01 1 8712-
18 HOSE; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-076-0 01 1 8712-
19 NIPPLE; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-074-0 02 1 8712-
20 BOOT; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-071-0 01 1 8712-
21 BEARING; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-070-0 02 1 8712-
22 PLUG; FLOATING LINK ARM
AUTO CAB TILT<WV2> 		1-53458-081-0 01 1 8712-
23 RING; SNAP
AUTO CAB TILT<WV2> (C) 		1-53458-097-0 01 1 8712-
23 RING; SNAP
AUTO CAB TILT<WV2> (A) 		1-53458-105-0 01 1 8712-
23 RING; SNAP
AUTO CAB TILT<WV2> (B) 		1-53458-109-0 01 1 8712-
çizim 94876
2 20
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; OIL CYL
AUTO CAB TILT<WV2> 		1-85579-016-1 01 1 8712-
20 BOOT; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-071-0 01 1 8712-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
