Sayfa 0-61 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51296 - NPR/NQR-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶

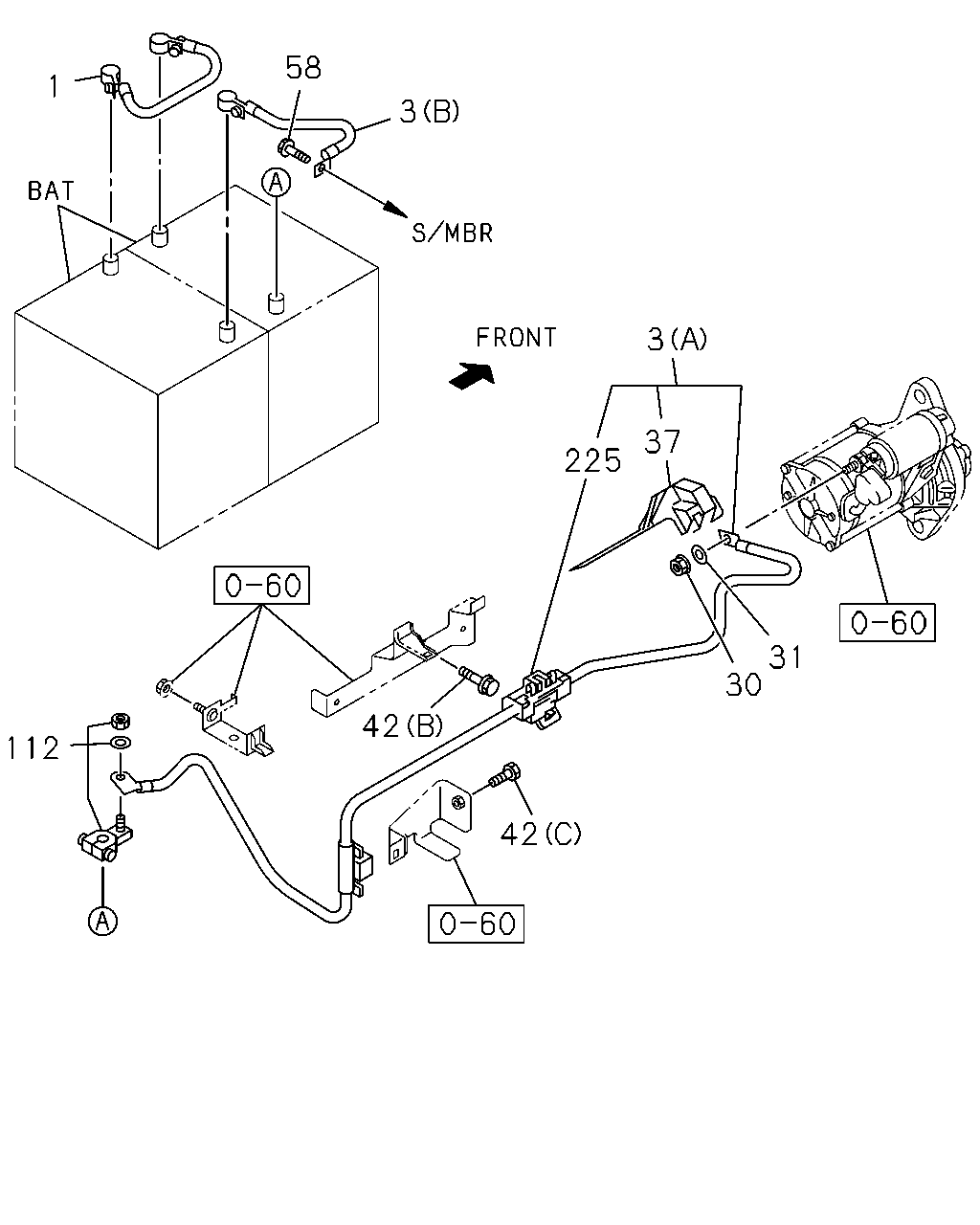

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#54692) — 68 parça

1 112 3 31 30 42 37 58 225 3 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	02.341 CABLE; BATTERY L=280	8-98025-412-3	01	1	1012-	●	●	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE DUMP CHASSIS(V4D) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A)	8-98137-177-1	01	1	1012-1409	●	●		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE DUMP CHASSIS(V4D) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A)	8-98294-694-0	01	1	1410-	●	●		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. DUMP CHASSIS(V4D) (C)	8-98137-187-1	01	1	1012-1409	●	●		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. DUMP CHASSIS(V4D) (C)	8-98294-738-0	01	1	1410-	●	●		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. DUMP CHASSIS(V4D),BATTERY 115E41L<8MA> (C)	8-98137-179-1	01	1	1012-1409	●	●		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 115E41L<8MA> (C)	8-98137-179-1	01	1	1012-1409	●	●		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. DUMP CHASSIS(V4D),BATTERY 115E41L<8MA> (C)	8-98294-737-0	01	1	1410-	●	●		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 115E41L<8MA> (C)	8-98294-737-0	01	1	1410-	●	●		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C)	8-98070-230-2	01	1	1012-1409	●	●		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C)	8-98294-721-0	01	1	1410-	●	●		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE MINI BUS CHASSIS(V4B) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A)	8-98067-966-4	01	1	1012-1409	●	●		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D),POWER TAKE OFF CONTROL ELECTRIC(7GR),BATTERY 115E41L<8MA> (A)	8-98067-966-4	01	1	1012-1409	●	●		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE MINI BUS CHASSIS(V4B) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A)	8-98294-718-0	01	1	1410-	●	●		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D),POWER TAKE OFF CONTROL ELECTRIC(7GR),BATTERY 115E41L<8MA> (A)	8-98294-718-0	01	1	1410-	●	●		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. BATTERY 115E41L<8MA> (B) L=200	8-98056-337-1	01	1	1012-	●	●		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE (B) L=200	8-98056-337-1	01	1	1012-			●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A)	8-98046-378-4	01	1	1012-1409			●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A)	8-98293-917-0	01	1	1410-			●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A)	8-98070-228-2	01	1	1012-1409			●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A)	8-98294-719-0	01	1	1410-			●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 115E41L<8MA> (D) L=400	8-98056-339-1	01	1	1012-1203		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 115E41L<8MA> (D) L=400	8-98201-105-0	01	1	1204-		●
30	02.334 NUT; CABLE,STARTER TO BATTERY M8	0-91110-508-0	01	1	1012-	●	●	●	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 02.559 ID=8.2	0-91510-808-0	01	1	1012-	●	●	●	●
37	02.343 CAP; TERMINAL,BATTERY CABLE	8-98042-507-0	01	1	1012-	●	●	●	●
42	02.343 BOLT; BRKT,BATTERY CABLE DUMP CHASSIS(V4D) 00.685 (C) M6X25 FLANGE	0-28650-625-0	01	1	1012-	●	●		●
42	02.343 BOLT; BRKT,BATTERY CABLE WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> 00.685 (C) M6X25 FLANGE	0-28650-625-0	01	1	1012-			●
42	02.343 BOLT; BRKT,BATTERY CABLE BATTERY 115E41L<8MA> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1012-	●	●		●
42	02.343 BOLT; BRKT,BATTERY CABLE 02.500 (B) M6X16 FLANGE	8-97329-599-0	01	1	1012-	●	●	●	●
58	02.343 BOLT; CABLE,BATTERY M8X24 W/PL WASHER	8-98141-256-1	01	1	1012-	●	●	●	●
112	02.343 TERMINAL; BATTERY <+>	8-97365-771-0	01	1	1012-	●	●	●	●
225	02.343 BLOCK; TERMINAL	8-98029-689-0	01	1	1012-1409	●	●	●	●
225	02.343 BLOCK; TERMINAL	8-98294-524-0	01	1	1410-	●	●	●	●

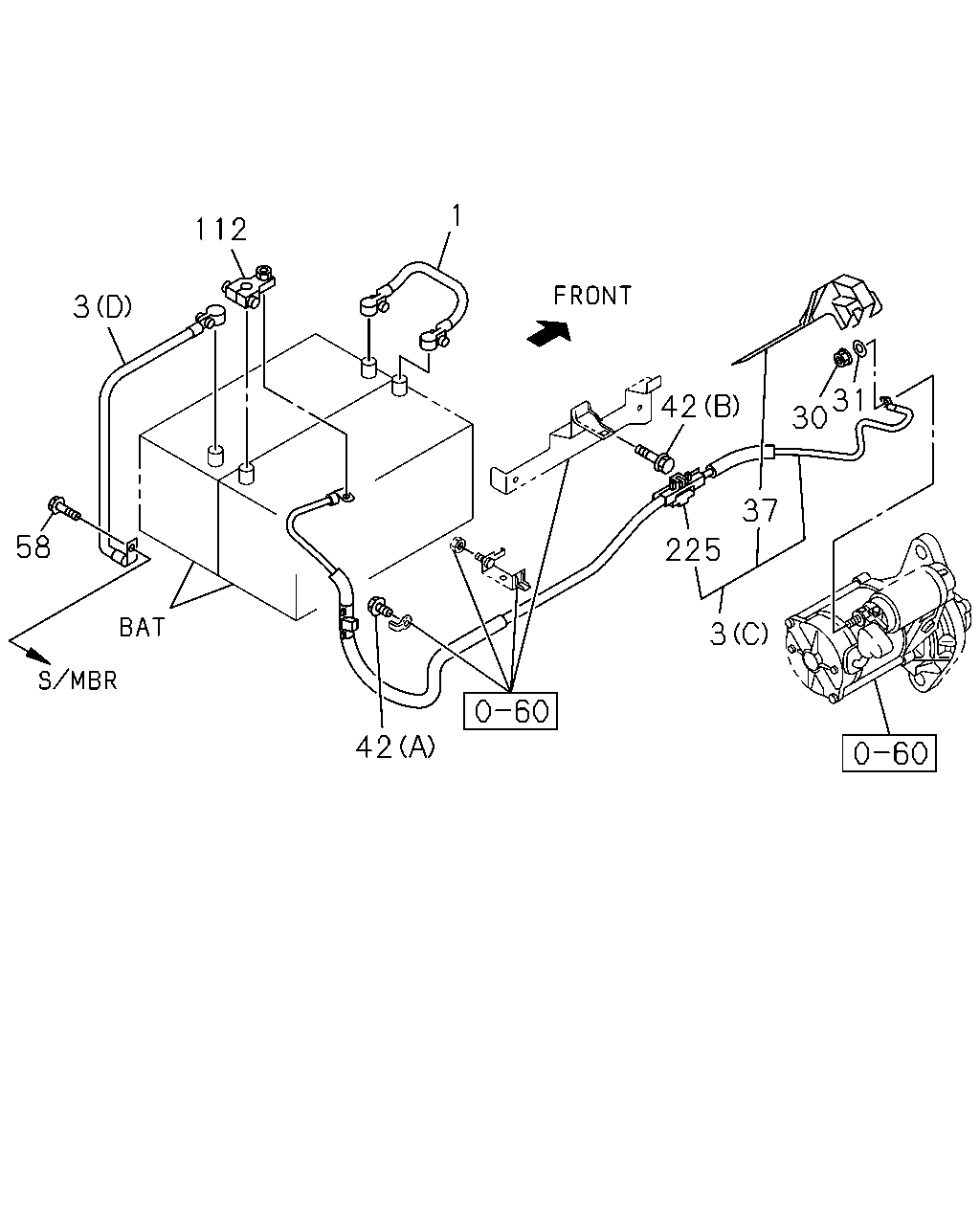

58 1 3 3 37 225 31 30 42 112 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	02.341 CABLE; BATTERY L=280	8-98025-412-3	01	1	1012-	●	●	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE DUMP CHASSIS(V4D) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A)	8-98137-177-1	01	1	1012-1409	●	●		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE DUMP CHASSIS(V4D) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A)	8-98294-694-0	01	1	1410-	●	●		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. DUMP CHASSIS(V4D) (C)	8-98137-187-1	01	1	1012-1409	●	●		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. DUMP CHASSIS(V4D) (C)	8-98294-738-0	01	1	1410-	●	●		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. DUMP CHASSIS(V4D),BATTERY 115E41L<8MA> (C)	8-98137-179-1	01	1	1012-1409	●	●		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 115E41L<8MA> (C)	8-98137-179-1	01	1	1012-1409	●	●		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. DUMP CHASSIS(V4D),BATTERY 115E41L<8MA> (C)	8-98294-737-0	01	1	1410-	●	●		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 115E41L<8MA> (C)	8-98294-737-0	01	1	1410-	●	●		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C)	8-98070-230-2	01	1	1012-1409	●	●		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C)	8-98294-721-0	01	1	1410-	●	●		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE MINI BUS CHASSIS(V4B) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A)	8-98067-966-4	01	1	1012-1409	●	●		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D),POWER TAKE OFF CONTROL ELECTRIC(7GR),BATTERY 115E41L<8MA> (A)	8-98067-966-4	01	1	1012-1409	●	●		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE MINI BUS CHASSIS(V4B) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A)	8-98294-718-0	01	1	1410-	●	●		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D),POWER TAKE OFF CONTROL ELECTRIC(7GR),BATTERY 115E41L<8MA> (A)	8-98294-718-0	01	1	1410-	●	●		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. BATTERY 115E41L<8MA> (B) L=200	8-98056-337-1	01	1	1012-	●	●		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE (B) L=200	8-98056-337-1	01	1	1012-			●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A)	8-98046-378-4	01	1	1012-1409			●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A)	8-98293-917-0	01	1	1410-			●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A)	8-98070-228-2	01	1	1012-1409			●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A)	8-98294-719-0	01	1	1410-			●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 115E41L<8MA> (D) L=400	8-98056-339-1	01	1	1012-1203		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 115E41L<8MA> (D) L=400	8-98201-105-0	01	1	1204-		●
30	02.334 NUT; CABLE,STARTER TO BATTERY M8	0-91110-508-0	01	1	1012-	●	●	●	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 02.559 ID=8.2	0-91510-808-0	01	1	1012-	●	●	●	●
37	02.343 CAP; TERMINAL,BATTERY CABLE	8-98042-507-0	01	1	1012-	●	●	●	●
42	02.343 BOLT; BRKT,BATTERY CABLE DUMP CHASSIS(V4D) 00.685 (C) M6X25 FLANGE	0-28650-625-0	01	1	1012-	●	●		●
42	02.343 BOLT; BRKT,BATTERY CABLE WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> 00.685 (C) M6X25 FLANGE	0-28650-625-0	01	1	1012-			●
42	02.343 BOLT; BRKT,BATTERY CABLE BATTERY 115E41L<8MA> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1012-	●	●		●
42	02.343 BOLT; BRKT,BATTERY CABLE 02.500 (B) M6X16 FLANGE	8-97329-599-0	01	1	1012-	●	●	●	●
58	02.343 BOLT; CABLE,BATTERY M8X24 W/PL WASHER	8-98141-256-1	01	1	1012-	●	●	●	●
112	02.343 TERMINAL; BATTERY <+>	8-97365-771-0	01	1	1012-	●	●	●	●
225	02.343 BLOCK; TERMINAL	8-98029-689-0	01	1	1012-1409	●	●	●	●
225	02.343 BLOCK; TERMINAL	8-98294-524-0	01	1	1410-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
