Sayfa 0-57 - Isuzu EPC

0-57 — EMISSION PIPING (#54690) — 192 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
92	03.675 HOSE; VAC,THROTTLE BODY AIR CONDITIONER MANUAL CONT(C60) VIN MODEL YEAR 2015<VZF> (C)	8-98269-803-0	01	1	1407-	●
92	03.675 HOSE; VAC,THROTTLE BODY VIN MODEL YEAR 2015<VZF> EXC. AIR CONDITIONER MANUAL CONT(C60) (C)	8-98269-804-0	01	1	1407-	●
92	03.675 HOSE; VAC,THROTTLE BODY (B)	8-98169-777-1	01	1	1012-1406	●
92	03.675 HOSE; VAC,THROTTLE BODY EXC. VIN MODEL YEAR 2015<VZF> (B)	8-98169-777-1	01	1	1407-	●
92	03.675 HOSE; VAC,THROTTLE BODY AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (A)	8-98118-239-2	01	1	1012-		●

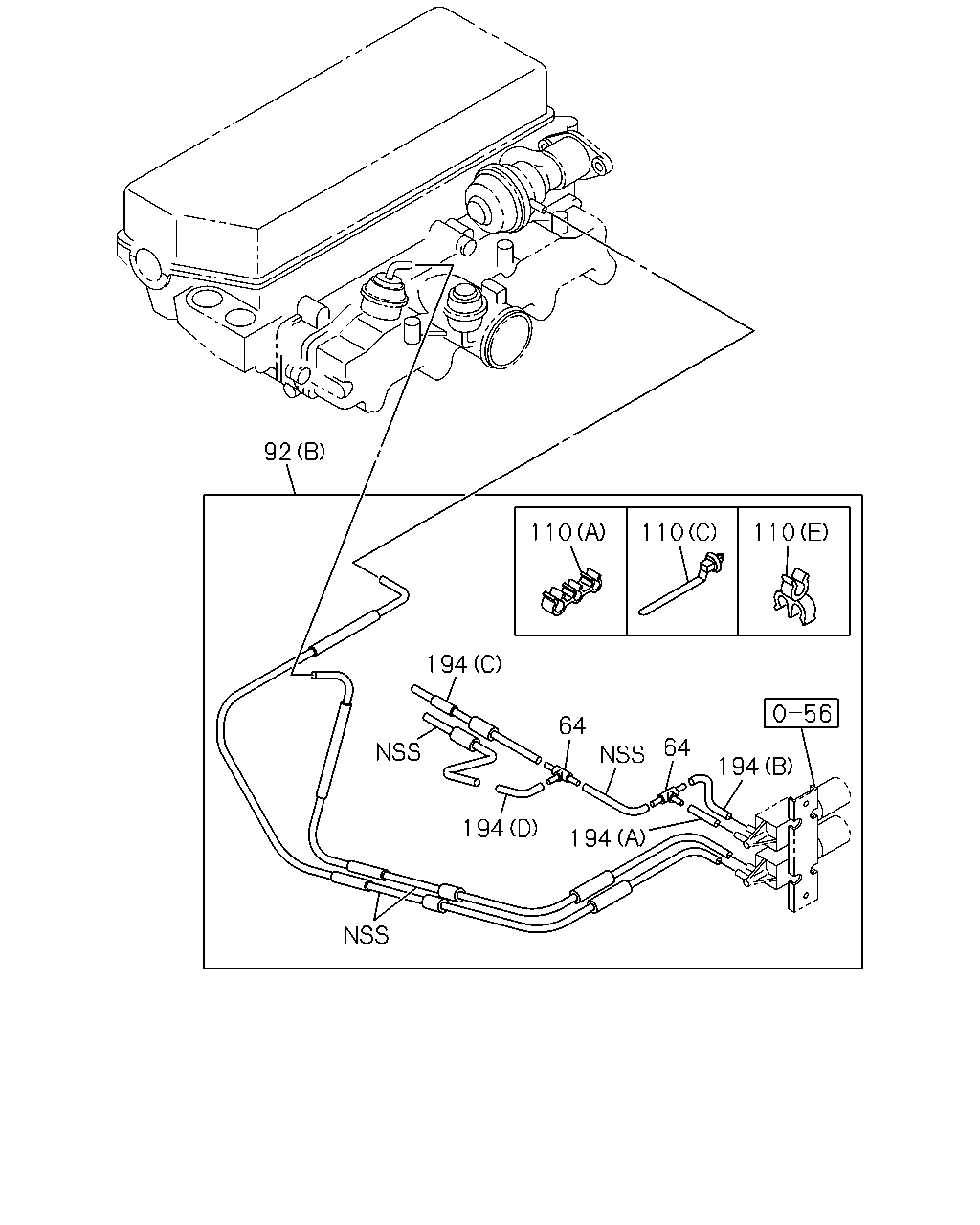

92 110 110 110 194 64 64 194 194 194

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
64	03.680 JOINT; 3 WAY,VAC 3WAY	8-94208-695-0	02	1	1012-1406	●
64	03.680 JOINT; 3 WAY,VAC EXC. VIN MODEL YEAR 2015<VZF> 3WAY	8-94208-695-0	02	1	1407-	●
64	03.680 JOINT; 3 WAY,VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 3WAY	8-94208-695-0	01	1	1012-1505		●
64	03.680 JOINT; 3 WAY,VAC AIR CONDITIONER MANUAL CONT(C60) 3WAY	8-94208-695-0	01	1	1506-		●
64	03.680 JOINT; 3 WAY,VAC AIR CONDITIONER MANUAL CONT(C60) VIN MODEL YEAR 2015<VZF> 3WAY	8-94208-695-0	01	1	1506-	●
92	03.675 HOSE; VAC,THROTTLE BODY AIR CONDITIONER MANUAL CONT(C60) VIN MODEL YEAR 2015<VZF> (C)	8-98269-803-0	01	1	1407-	●
92	03.675 HOSE; VAC,THROTTLE BODY VIN MODEL YEAR 2015<VZF> EXC. AIR CONDITIONER MANUAL CONT(C60) (C)	8-98269-804-0	01	1	1407-	●
92	03.675 HOSE; VAC,THROTTLE BODY (B)	8-98169-777-1	01	1	1012-1406	●
92	03.675 HOSE; VAC,THROTTLE BODY EXC. VIN MODEL YEAR 2015<VZF> (B)	8-98169-777-1	01	1	1407-	●
92	03.675 HOSE; VAC,THROTTLE BODY AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (A)	8-98118-239-2	01	1	1012-		●
110	03.671 CLIP; VAC HOSE 03.680 (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	03	1	1012-1406	●
110	03.671 CLIP; VAC HOSE EXC. VIN MODEL YEAR 2015<VZF> 03.680 (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	03	1	1407-	●
110	03.671 CLIP; VAC HOSE AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 03.680 (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	1012-1505		●
110	03.671 CLIP; VAC HOSE 03.680 (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	1506-		●
110	03.671 CLIP; VAC HOSE VIN MODEL YEAR 2015<VZF> 03.680 (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	1506-	●
110	03.671 CLIP; VAC HOSE (E) ID=6.8 & 6.8	8-94208-733-0	01	1	1012-1406	●
110	03.671 CLIP; VAC HOSE EXC. VIN MODEL YEAR 2015<VZF> (E) ID=6.8 & 6.8	8-94208-733-0	01	1	1407-1505	●
110	03.671 CLIP; VAC HOSE (E) ID=6.8 & 6.8	8-94208-733-0	01	1	1506-	●
110	03.671 CLIP; VAC HOSE 02.559 (C) L=109.5	8-97807-385-0	03	1	1012-1406	●
110	03.671 CLIP; VAC HOSE EXC. VIN MODEL YEAR 2015<VZF> 02.559 (C) L=109.5	8-97807-385-0	03	1	1407-1505	●
110	03.671 CLIP; VAC HOSE 02.559 (C) L=109.5	8-97807-385-0	03	1	1506-	●
110	03.671 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 03.680 (B) ID=7.5 & 7.5	8-97019-084-0	01	1	1012-		●
110	03.671 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 02.559 (C) L=109.5	8-97807-385-0	01	1	1012-		●
110	03.671 CLIP; VAC HOSE EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (D) ID=6.8X2	8-94126-636-0	01	1	1012-		●
110	03.671 CLIP; VAC HOSE 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1012-			●
194	03.675 HOSE; VAC 08.962 (D) L=90 SERVICED BY L=3000	0-04730-300-0	01	1	1012-1406	●
194	03.675 HOSE; VAC EXC. VIN MODEL YEAR 2015<VZF> 08.962 (D) L=90 SERVICED BY L=3000	0-04730-300-0	01	1	1407-1505	●
194	03.675 HOSE; VAC VIN MODEL YEAR 2015<VZF> AIR CONDITIONER MANUAL CONT(C60) 08.962 (D) L=90 SERVICED BY L=3000	0-04730-300-0	01	1	1506-	●
194	03.675 HOSE; VAC EXC. VIN MODEL YEAR 2015<VZF> 08.962 (D) L=90 SERVICED BY L=3000	0-04730-300-0	01	1	1506-	●
194	03.675 HOSE; VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	1012-1406		●
194	03.675 HOSE; VAC 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	1012-1406	●
194	03.675 HOSE; VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	1407-		●
194	03.675 HOSE; VAC EXC. VIN MODEL YEAR 2015<VZF> 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	1407-	●
194	03.675 HOSE; VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (B) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	1012-1406		●
194	03.675 HOSE; VAC 08.962 (B) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	1012-1406	●
194	03.675 HOSE; VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (B) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	1407-		●
194	03.675 HOSE; VAC EXC. VIN MODEL YEAR 2015<VZF> 08.962 (B) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	1407-	●
194	03.675 HOSE; VAC 08.962 (C) L=290 SERVICED BY L=3000	0-04730-300-0	01	1	1012-1406	●
194	03.675 HOSE; VAC EXC. VIN MODEL YEAR 2015<VZF> 08.962 (C) L=290 SERVICED BY L=3000	0-04730-300-0	01	1	1407-1505	●
194	03.675 HOSE; VAC VIN MODEL YEAR 2015<VZF> AIR CONDITIONER MANUAL CONT(C60) 08.962 (C) L=290 SERVICED BY L=3000	0-04730-300-0	01	1	1506-	●
194	03.675 HOSE; VAC EXC. VIN MODEL YEAR 2015<VZF> 08.962 (C) L=290 SERVICED BY L=3000	0-04730-300-0	01	1	1506-	●

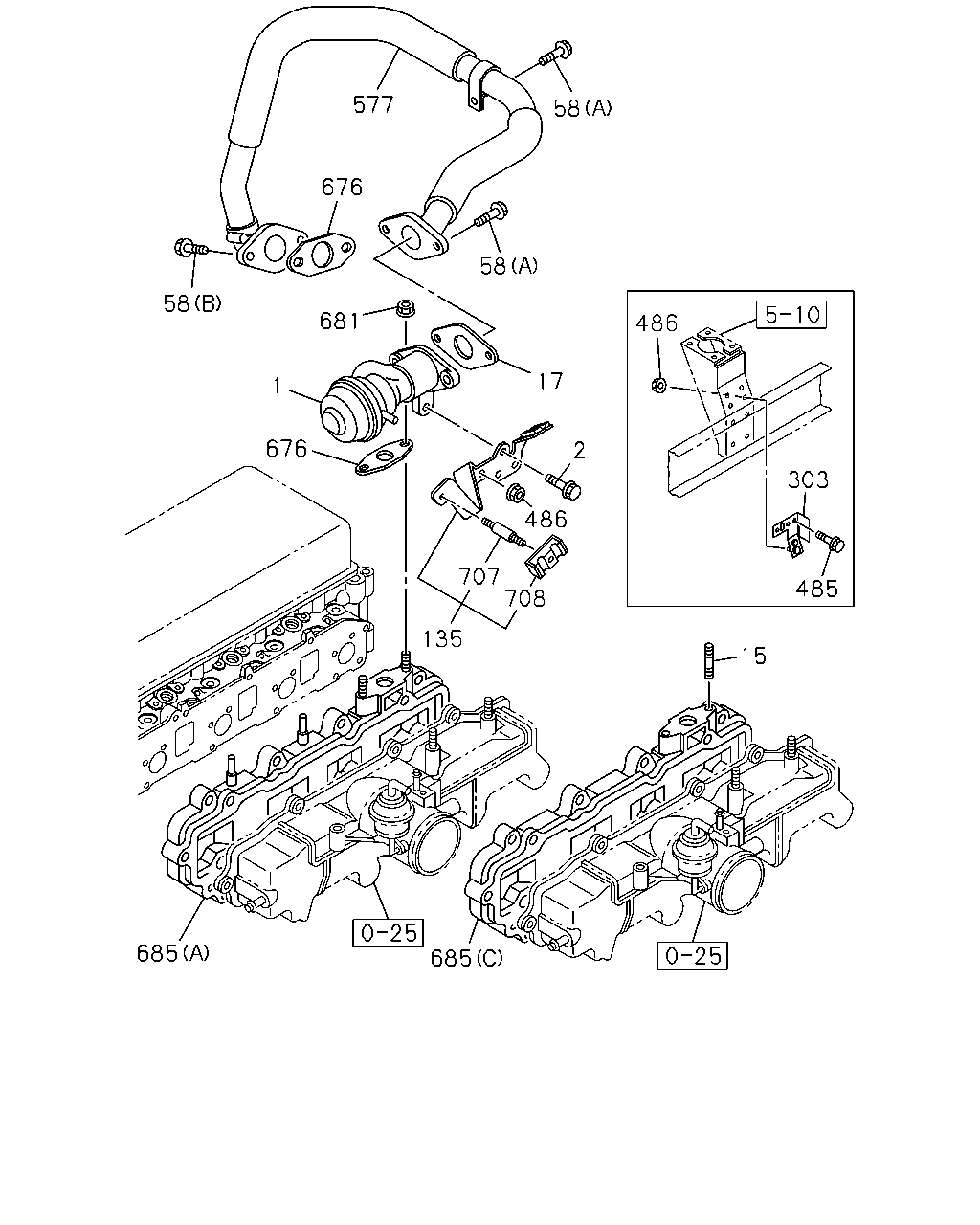

58 676 577 58 58 681 1 676 17 2 486 707 135 708 486 303 485 15 685 685

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.670 VALVE; EGR	8-97115-533-3	01	1	1012-1406	●
1	03.670 VALVE; EGR EXC. VIN MODEL YEAR 2015<VZF>	8-97115-533-3	01	1	1407-	●
2	03.670 BOLT; EGR VLV 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1012-1406	●
2	03.670 BOLT; EGR VLV EXC. VIN MODEL YEAR 2015<VZF> 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1407-	●
15	03.670 STUD; EGR PIPE MINI BUS CHASSIS(V4B) 01.073 M8X22 L=34	0-41010-822-0	02	1	1303-1406	●
15	03.670 STUD; EGR PIPE MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF> 01.073 M8X22 L=34	0-41010-822-0	02	1	1407-	●
15	03.670 STUD; EGR PIPE INDONESIA EQUIPMENT(B00) VIN MODEL YEAR 2015<VZF> 01.073 M8X22 L=34	0-41010-822-0	02	1	1407-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). MINI BUS CHASSIS(V4B)	8-98210-153-0	01	1	1303-1406	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF>	8-98210-153-0	01	1	1407-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97113-023-0	01	1	1012-1302	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. MINI BUS CHASSIS(V4B)	8-97113-023-0	01	1	1303-1406	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B)	8-97113-023-0	01	1	1407-	●
58	03.417 BOLT; PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	1012-1406	●
58	03.417 BOLT; PIPE EXC. VIN MODEL YEAR 2015<VZF> 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	1407-	●
58	03.417 BOLT; PIPE (B) M8X23 FLANGE	8-97378-077-0	02	1	1012-1406	●
58	03.417 BOLT; PIPE EXC. VIN MODEL YEAR 2015<VZF> (B) M8X23 FLANGE	8-97378-077-0	02	1	1407-	●
135	03.680 BRACKET; EGR	8-97221-358-1	01	1	1012-	●
303	03.671 BRACKET; VAC SW EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2)	8-98122-539-0	01	1	1012-	●	●
303	03.671 BRACKET; VAC SW	8-98097-124-0	01	1	1012-			●
485	03.671 BOLT; VSV EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	1012-1202	●	●
485	03.671 BOLT; VSV 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	1012-			●
486	03.671 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●
486	03.671 NUT; BRKT EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-1202	●	●	●
486	03.671 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1203-	●	●	●
577	03.675 PIPE; AIR,EGR	8-97200-643-2	01	1	1012-1406	●
577	03.675 PIPE; AIR,EGR EXC. VIN MODEL YEAR 2015<VZF>	8-97200-643-2	01	1	1407-	●
676	03.417 GASKET; PIPE MINI BUS CHASSIS(V4B) ALSO INCLUDED IN GASKET SET(ENGINE).	8-98210-154-0	02	1	1303-1406	●
676	03.417 GASKET; PIPE MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF> ALSO INCLUDED IN GASKET SET(ENGINE).	8-98210-154-0	02	1	1407-	●
676	03.417 GASKET; PIPE	8-97146-683-0	02	1	1012-1302	●
676	03.417 GASKET; PIPE EXC. MINI BUS CHASSIS(V4B) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97146-683-0	02	1	1303-1406	●
676	03.417 GASKET; PIPE EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97146-683-0	02	1	1407-	●
681	03.671 NUT; EGR PIPE 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1406	●
681	03.671 NUT; EGR PIPE EXC. VIN MODEL YEAR 2015<VZF> 01.062 M8 FLANGE	0-91180-108-0	02	1	1407-	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-			●
685	03.680 CASE; INLET,EGR MINI BUS CHASSIS(V4B) (C)	8-98210-151-0	01	1	1303-1406	●
685	03.680 CASE; INLET,EGR MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF> (C)	8-98210-151-0	01	1	1407-	●
685	03.680 CASE; INLET,EGR (A)	8-97146-872-1	01	1	1012-1302	●
685	03.680 CASE; INLET,EGR EXC. MINI BUS CHASSIS(V4B) (A)	8-97146-872-1	01	1	1303-1406	●
685	03.680 CASE; INLET,EGR EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) (A)	8-97146-872-1	01	1	1407-	●
685	03.680 CASE; INLET,EGR (B)	8-97146-873-1	01	1	1012-1406		●
685	03.680 CASE; INLET,EGR (B)	8-97146-873-1	01	1	1407-1410		●
685	03.680 CASE; INLET,EGR EXC. VIN MODEL YEAR 2015<VZF> (B)	8-97146-873-1	01	1	1407-1410	●
685	03.680 CASE; INLET,EGR (B)	8-97146-873-1	01	1	1411-		●
685	03.680 CASE; INLET,EGR VIN MODEL YEAR 2015<VZF> (B)	8-97146-873-1	01	1	1411-	●
707	03.162 STUD; CLIP,INJ PIPE M6X25 L=36	8-97214-234-1	01	1	1012-	●
708	03.162 CLIP; PIPE,INJ	8-97213-481-0	01	1	1012-	●

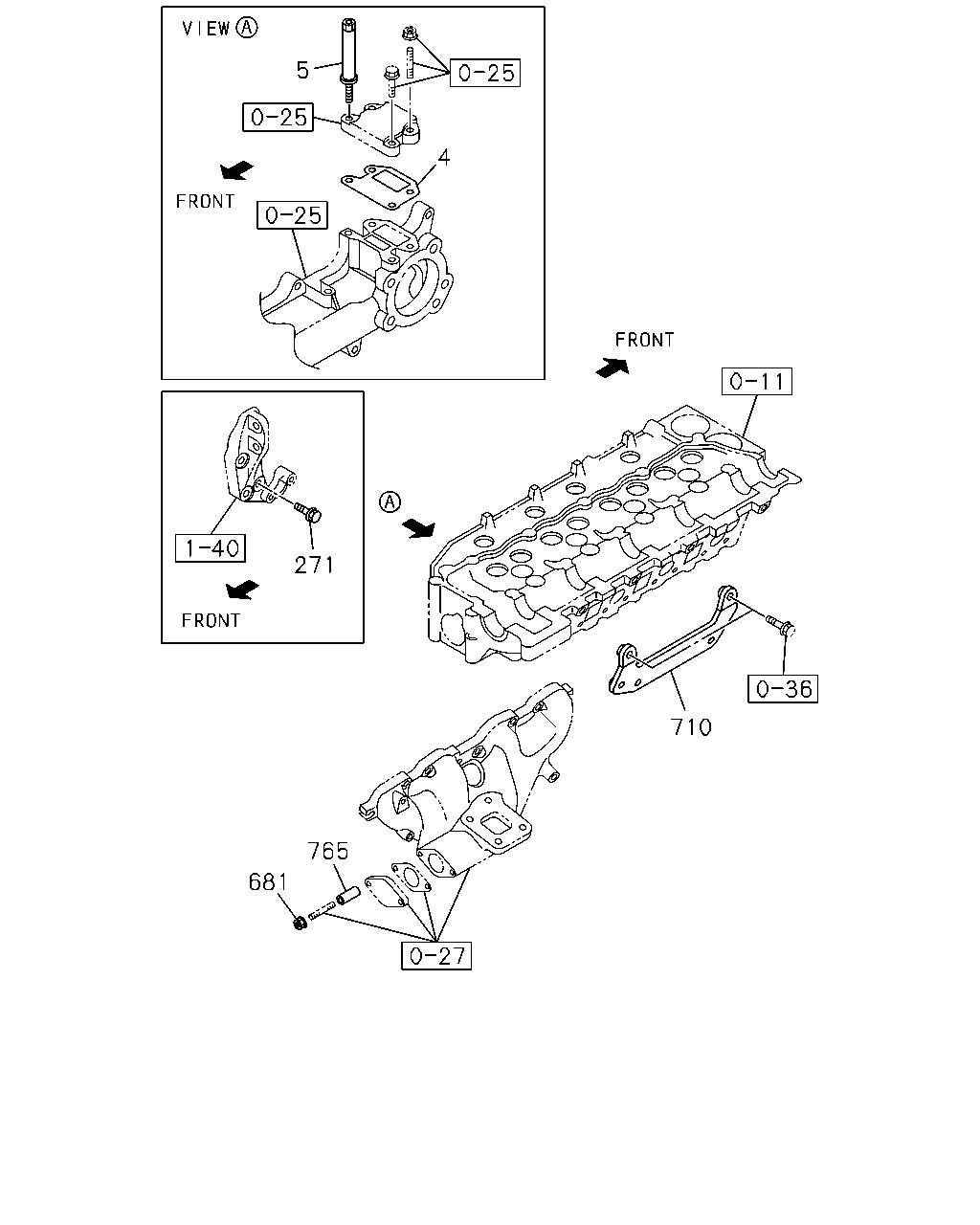

5 4 271 710 765 681

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97306-040-0	01	1	1012-		●
5	03.670 ADAPTER ASM 00.269	8-97377-804-0	01	1	1012-		●
271	03.675 BOLT; BRKT 00.685 M12X50 FLANGE	0-28151-250-0	02	1	1012-		●
681	03.671 NUT; EGR PIPE 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1406	●
681	03.671 NUT; EGR PIPE EXC. VIN MODEL YEAR 2015<VZF> 01.062 M8 FLANGE	0-91180-108-0	02	1	1407-	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-		●
710	03.337 BRACKET; EGR COOLER	8-98079-255-1	01	1	1012-		●
765	03.670 SPACER; EGR PIPE 03.613	8-94225-562-0	02	1	1012-		●

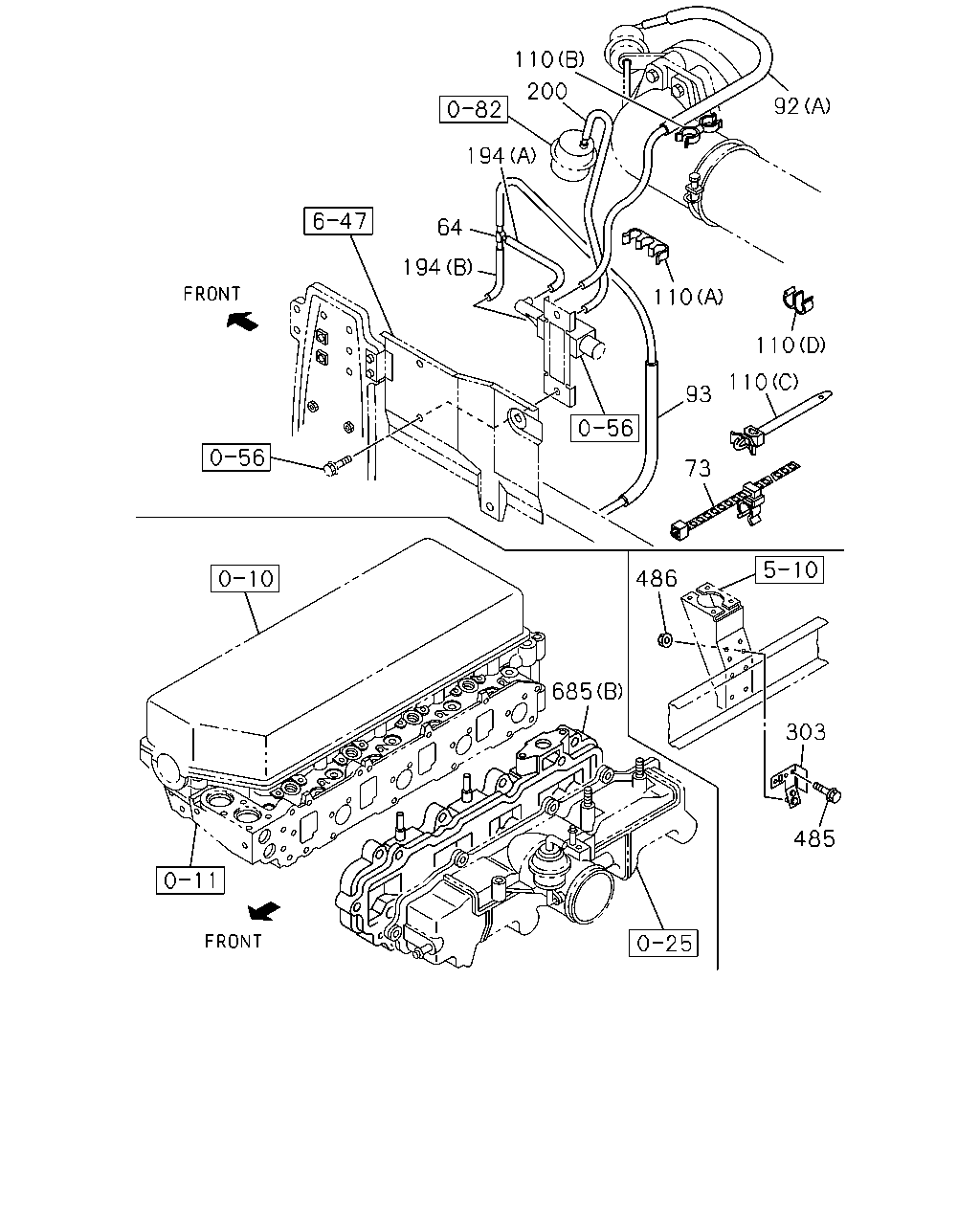

110 194 64 194 92 110 110 110 93 73 685 486 303 485 200

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
64	03.680 JOINT; 3 WAY,VAC 3WAY	8-94208-695-0	02	1	1012-1406	●
64	03.680 JOINT; 3 WAY,VAC EXC. VIN MODEL YEAR 2015<VZF> 3WAY	8-94208-695-0	02	1	1407-	●
64	03.680 JOINT; 3 WAY,VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 3WAY	8-94208-695-0	01	1	1012-1505		●
64	03.680 JOINT; 3 WAY,VAC AIR CONDITIONER MANUAL CONT(C60) 3WAY	8-94208-695-0	01	1	1506-		●
64	03.680 JOINT; 3 WAY,VAC AIR CONDITIONER MANUAL CONT(C60) VIN MODEL YEAR 2015<VZF> 3WAY	8-94208-695-0	01	1	1506-	●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> L=350	8-97373-487-0	01	1	1012-		●
73	03.680 CLIP; VAC HOSE L=350	8-97373-487-0	02	1	1012-			●
92	03.675 HOSE; VAC,THROTTLE BODY AIR CONDITIONER MANUAL CONT(C60) VIN MODEL YEAR 2015<VZF> (C)	8-98269-803-0	01	1	1407-	●
92	03.675 HOSE; VAC,THROTTLE BODY VIN MODEL YEAR 2015<VZF> EXC. AIR CONDITIONER MANUAL CONT(C60) (C)	8-98269-804-0	01	1	1407-	●
92	03.675 HOSE; VAC,THROTTLE BODY (B)	8-98169-777-1	01	1	1012-1406	●
92	03.675 HOSE; VAC,THROTTLE BODY EXC. VIN MODEL YEAR 2015<VZF> (B)	8-98169-777-1	01	1	1407-	●
92	03.675 HOSE; VAC,THROTTLE BODY AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (A)	8-98118-239-2	01	1	1012-		●
93	03.675 HOSE ASM EXHAUST BRAKE<NF8>	8-98118-171-2	01	1	1012-		●
93	03.675 HOSE ASM	8-98105-295-1	01	1	1012-			●
110	03.671 CLIP; VAC HOSE 03.680 (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	03	1	1012-1406	●
110	03.671 CLIP; VAC HOSE EXC. VIN MODEL YEAR 2015<VZF> 03.680 (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	03	1	1407-	●
110	03.671 CLIP; VAC HOSE AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 03.680 (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	1012-1505		●
110	03.671 CLIP; VAC HOSE 03.680 (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	1506-		●
110	03.671 CLIP; VAC HOSE VIN MODEL YEAR 2015<VZF> 03.680 (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	1506-	●
110	03.671 CLIP; VAC HOSE (E) ID=6.8 & 6.8	8-94208-733-0	01	1	1012-1406	●
110	03.671 CLIP; VAC HOSE EXC. VIN MODEL YEAR 2015<VZF> (E) ID=6.8 & 6.8	8-94208-733-0	01	1	1407-1505	●
110	03.671 CLIP; VAC HOSE (E) ID=6.8 & 6.8	8-94208-733-0	01	1	1506-	●
110	03.671 CLIP; VAC HOSE 02.559 (C) L=109.5	8-97807-385-0	03	1	1012-1406	●
110	03.671 CLIP; VAC HOSE EXC. VIN MODEL YEAR 2015<VZF> 02.559 (C) L=109.5	8-97807-385-0	03	1	1407-1505	●
110	03.671 CLIP; VAC HOSE 02.559 (C) L=109.5	8-97807-385-0	03	1	1506-	●
110	03.671 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 03.680 (B) ID=7.5 & 7.5	8-97019-084-0	01	1	1012-		●
110	03.671 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 02.559 (C) L=109.5	8-97807-385-0	01	1	1012-		●
110	03.671 CLIP; VAC HOSE EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (D) ID=6.8X2	8-94126-636-0	01	1	1012-		●
110	03.671 CLIP; VAC HOSE 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1012-			●
194	03.675 HOSE; VAC 08.962 (D) L=90 SERVICED BY L=3000	0-04730-300-0	01	1	1012-1406	●
194	03.675 HOSE; VAC EXC. VIN MODEL YEAR 2015<VZF> 08.962 (D) L=90 SERVICED BY L=3000	0-04730-300-0	01	1	1407-1505	●
194	03.675 HOSE; VAC VIN MODEL YEAR 2015<VZF> AIR CONDITIONER MANUAL CONT(C60) 08.962 (D) L=90 SERVICED BY L=3000	0-04730-300-0	01	1	1506-	●
194	03.675 HOSE; VAC EXC. VIN MODEL YEAR 2015<VZF> 08.962 (D) L=90 SERVICED BY L=3000	0-04730-300-0	01	1	1506-	●
194	03.675 HOSE; VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	1012-1406		●
194	03.675 HOSE; VAC 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	1012-1406	●
194	03.675 HOSE; VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	1407-		●
194	03.675 HOSE; VAC EXC. VIN MODEL YEAR 2015<VZF> 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	1407-	●
194	03.675 HOSE; VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (B) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	1012-1406		●
194	03.675 HOSE; VAC 08.962 (B) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	1012-1406	●
194	03.675 HOSE; VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (B) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	1407-		●
194	03.675 HOSE; VAC EXC. VIN MODEL YEAR 2015<VZF> 08.962 (B) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	1407-	●
194	03.675 HOSE; VAC 08.962 (C) L=290 SERVICED BY L=3000	0-04730-300-0	01	1	1012-1406	●
194	03.675 HOSE; VAC EXC. VIN MODEL YEAR 2015<VZF> 08.962 (C) L=290 SERVICED BY L=3000	0-04730-300-0	01	1	1407-1505	●
194	03.675 HOSE; VAC VIN MODEL YEAR 2015<VZF> AIR CONDITIONER MANUAL CONT(C60) 08.962 (C) L=290 SERVICED BY L=3000	0-04730-300-0	01	1	1506-	●
194	03.675 HOSE; VAC EXC. VIN MODEL YEAR 2015<VZF> 08.962 (C) L=290 SERVICED BY L=3000	0-04730-300-0	01	1	1506-	●
200	03.675 HOSE; VAC EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-98118-238-2	01	1	1012-		●
303	03.671 BRACKET; VAC SW EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2)	8-98122-539-0	01	1	1012-	●	●
303	03.671 BRACKET; VAC SW	8-98097-124-0	01	1	1012-			●
485	03.671 BOLT; VSV EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	1012-1202	●	●
485	03.671 BOLT; VSV 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	1012-			●
486	03.671 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●
486	03.671 NUT; BRKT EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-1202	●	●	●
486	03.671 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1203-	●	●	●
685	03.680 CASE; INLET,EGR MINI BUS CHASSIS(V4B) (C)	8-98210-151-0	01	1	1303-1406	●
685	03.680 CASE; INLET,EGR MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF> (C)	8-98210-151-0	01	1	1407-	●
685	03.680 CASE; INLET,EGR (A)	8-97146-872-1	01	1	1012-1302	●
685	03.680 CASE; INLET,EGR EXC. MINI BUS CHASSIS(V4B) (A)	8-97146-872-1	01	1	1303-1406	●
685	03.680 CASE; INLET,EGR EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) (A)	8-97146-872-1	01	1	1407-	●
685	03.680 CASE; INLET,EGR (B)	8-97146-873-1	01	1	1012-1406		●
685	03.680 CASE; INLET,EGR (B)	8-97146-873-1	01	1	1407-1410		●
685	03.680 CASE; INLET,EGR EXC. VIN MODEL YEAR 2015<VZF> (B)	8-97146-873-1	01	1	1407-1410	●
685	03.680 CASE; INLET,EGR (B)	8-97146-873-1	01	1	1411-		●
685	03.680 CASE; INLET,EGR VIN MODEL YEAR 2015<VZF> (B)	8-97146-873-1	01	1	1411-	●

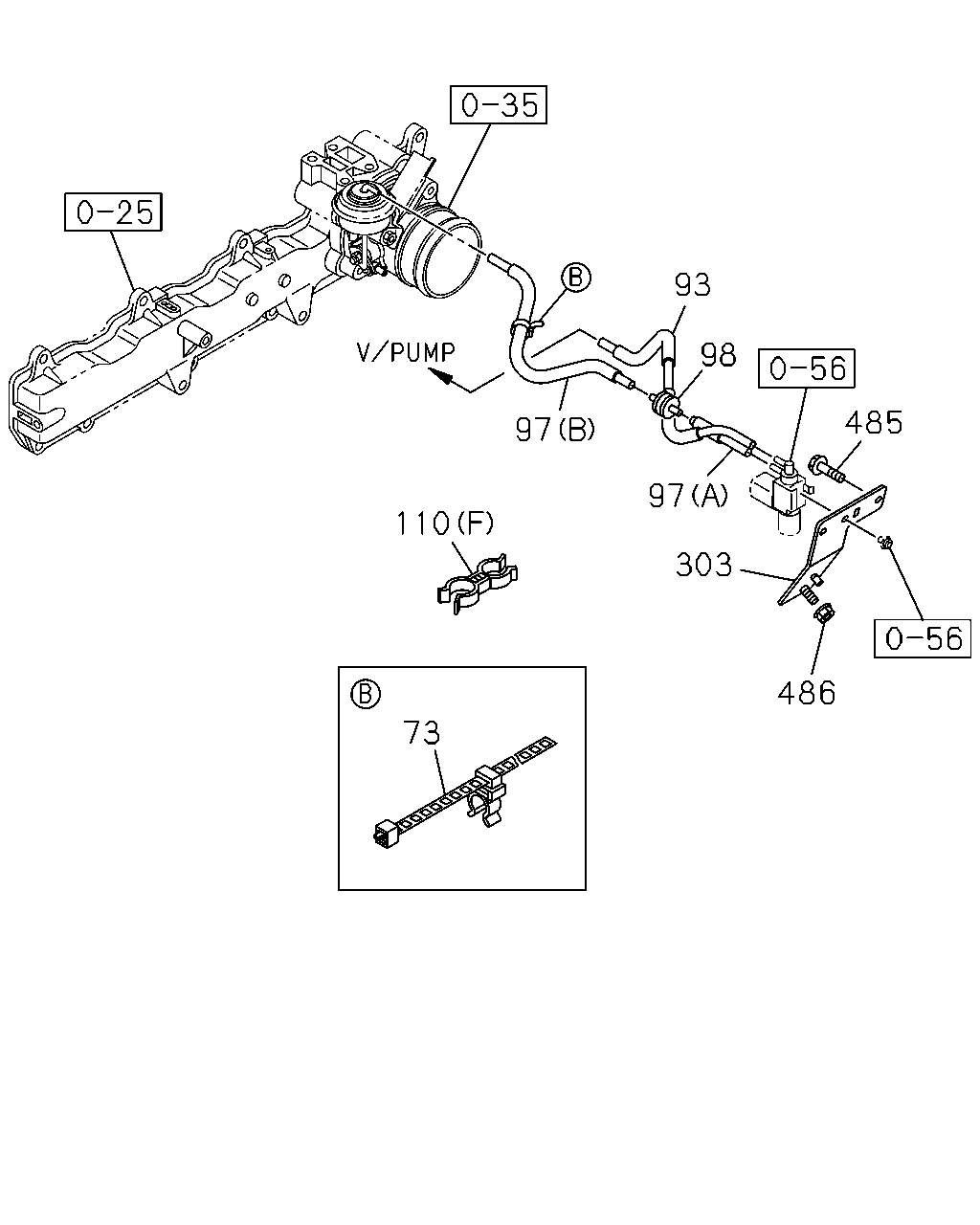

93 98 97 110 97 303 486 485 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> L=350	8-97373-487-0	01	1	1012-		●
73	03.680 CLIP; VAC HOSE L=350	8-97373-487-0	02	1	1012-			●
93	03.675 HOSE ASM EXHAUST BRAKE<NF8>	8-98118-171-2	01	1	1012-		●
93	03.675 HOSE ASM	8-98105-295-1	01	1	1012-			●
97	03.675 HOSE; RUBBER (B)	8-98113-964-0	01	1	1012-			●
97	03.675 HOSE; RUBBER (A)	8-98113-965-0	01	1	1012-			●
98	03.670 VALVE; DELAY	8-94110-978-0	01	1	1012-			●
110	03.671 CLIP; VAC HOSE 03.680 (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	03	1	1012-1406	●
110	03.671 CLIP; VAC HOSE EXC. VIN MODEL YEAR 2015<VZF> 03.680 (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	03	1	1407-	●
110	03.671 CLIP; VAC HOSE AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 03.680 (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	1012-1505		●
110	03.671 CLIP; VAC HOSE 03.680 (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	1506-		●
110	03.671 CLIP; VAC HOSE VIN MODEL YEAR 2015<VZF> 03.680 (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	1506-	●
110	03.671 CLIP; VAC HOSE (E) ID=6.8 & 6.8	8-94208-733-0	01	1	1012-1406	●
110	03.671 CLIP; VAC HOSE EXC. VIN MODEL YEAR 2015<VZF> (E) ID=6.8 & 6.8	8-94208-733-0	01	1	1407-1505	●
110	03.671 CLIP; VAC HOSE (E) ID=6.8 & 6.8	8-94208-733-0	01	1	1506-	●
110	03.671 CLIP; VAC HOSE 02.559 (C) L=109.5	8-97807-385-0	03	1	1012-1406	●
110	03.671 CLIP; VAC HOSE EXC. VIN MODEL YEAR 2015<VZF> 02.559 (C) L=109.5	8-97807-385-0	03	1	1407-1505	●
110	03.671 CLIP; VAC HOSE 02.559 (C) L=109.5	8-97807-385-0	03	1	1506-	●
110	03.671 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 03.680 (B) ID=7.5 & 7.5	8-97019-084-0	01	1	1012-		●
110	03.671 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 02.559 (C) L=109.5	8-97807-385-0	01	1	1012-		●
110	03.671 CLIP; VAC HOSE EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (D) ID=6.8X2	8-94126-636-0	01	1	1012-		●
110	03.671 CLIP; VAC HOSE 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1012-			●
303	03.671 BRACKET; VAC SW EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2)	8-98122-539-0	01	1	1012-	●	●
303	03.671 BRACKET; VAC SW	8-98097-124-0	01	1	1012-			●
485	03.671 BOLT; VSV EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	1012-1202	●	●
485	03.671 BOLT; VSV 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	1012-			●
486	03.671 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●
486	03.671 NUT; BRKT EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-1202	●	●	●
486	03.671 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1203-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
