◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51296 - NPR/NQR-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-56 - EMISSION SYSTEM ▶
0-56 — EMISSION SYSTEM (#54689) — 21 parça

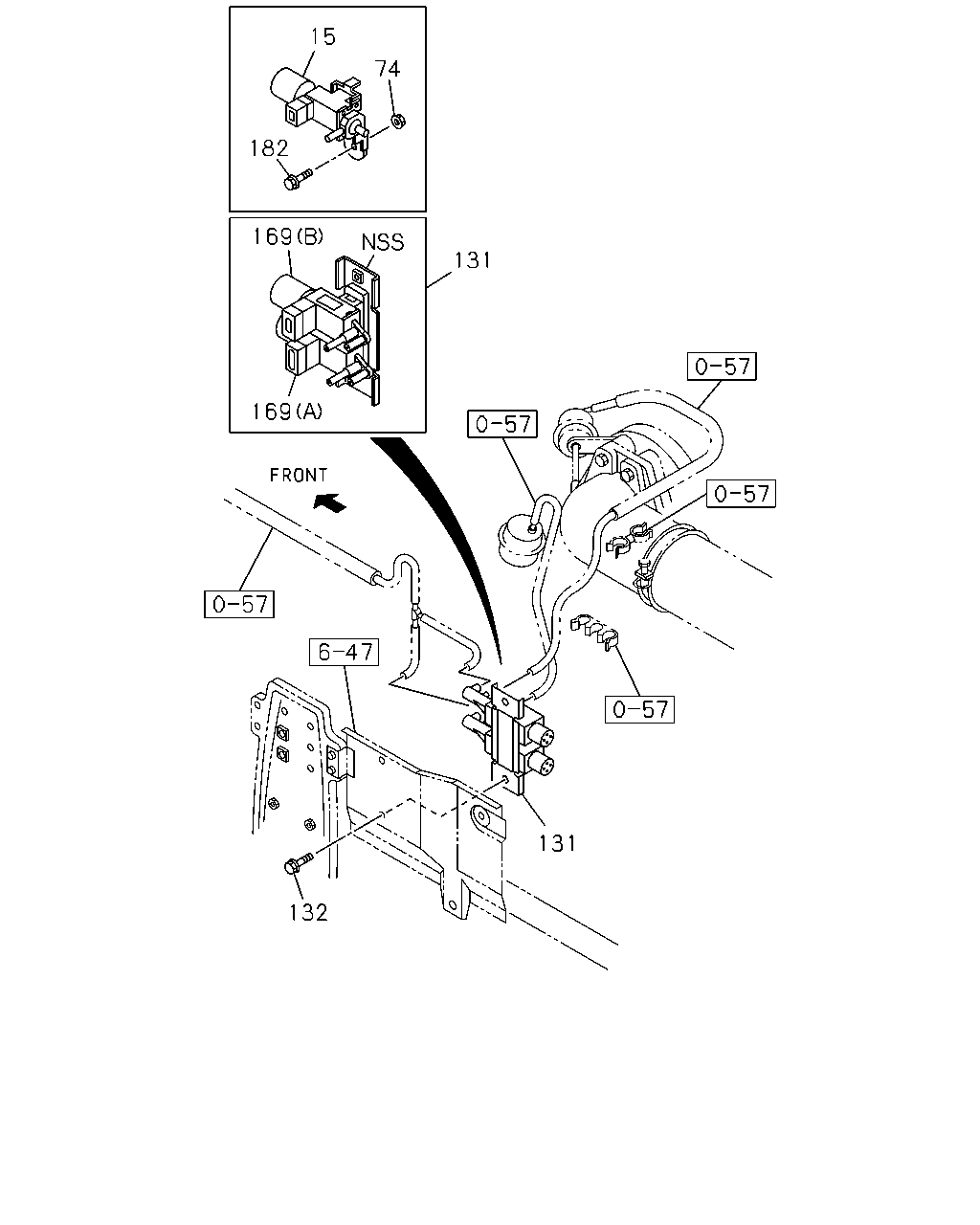

çizim 175891
15 74 182 169 131 169 131 132
BalonParca AdiParca NoAdetTipApplied Date A B C
15 03.670 VALVE; VAC SW 8-97352-151-0 01 1 1012- ●
15 03.670 VALVE; VAC SW 8-97037-165-2 01 1 1012- ●
74 03.670 NUT; VSV
01.840 M8 W/DISHED WASHER 		8-97329-625-0 01 1 1012- ●
131 03.670 VALVE; VAC SWITCHING
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 		8-97030-324-1 01 1 1012-1406 ●
131 03.670 VALVE; VAC SWITCHING 8-97030-324-1 01 1 1012-1406 ●
131 03.670 VALVE; VAC SWITCHING
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 		8-97030-324-1 01 1 1407- ●
131 03.670 VALVE; VAC SWITCHING
EXC. VIN MODEL YEAR 2015<VZF> 		8-97030-324-1 01 1 1407- ●
131 03.670 VALVE; VAC SWITCHING
EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97116-759-0 01 1 1012-1406 ●
131 03.670 VALVE; VAC SWITCHING
EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97116-759-0 01 1 1407- ●
131 03.670 VALVE; VAC SWITCHING
VIN MODEL YEAR 2015<VZF> 		8-97116-759-0 01 1 1407- ●
132 03.680 BOLT; VSV BRKT
EXHAUST BRAKE<NF8> 00.685 M6X25 FLANGE 		0-28650-625-0 02 1 1012- ●
132 03.680 BOLT; VSV BRKT
00.685 M6X25 FLANGE 		0-28650-625-0 02 1 1012- ●
169 03.670 VALVE; VAC SWITCHING
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (A) 		8-97012-878-0 01 1 1012-1406 ●
169 03.670 VALVE; VAC SWITCHING
(A) 		8-97012-878-0 01 1 1012-1406 ●
169 03.670 VALVE; VAC SWITCHING
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (A) 		8-97012-878-0 01 1 1407- ●
169 03.670 VALVE; VAC SWITCHING
EXC. VIN MODEL YEAR 2015<VZF> (A) 		8-97012-878-0 01 1 1407- ●
169 03.670 VALVE; VAC SWITCHING
EXHAUST BRAKE<NF8> (B) 		8-97021-705-1 01 1 1012- ●
169 03.670 VALVE; VAC SWITCHING
(B) 		8-97021-705-1 01 1 1012- ●
182 03.670 BOLT; VLV
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1012- ●

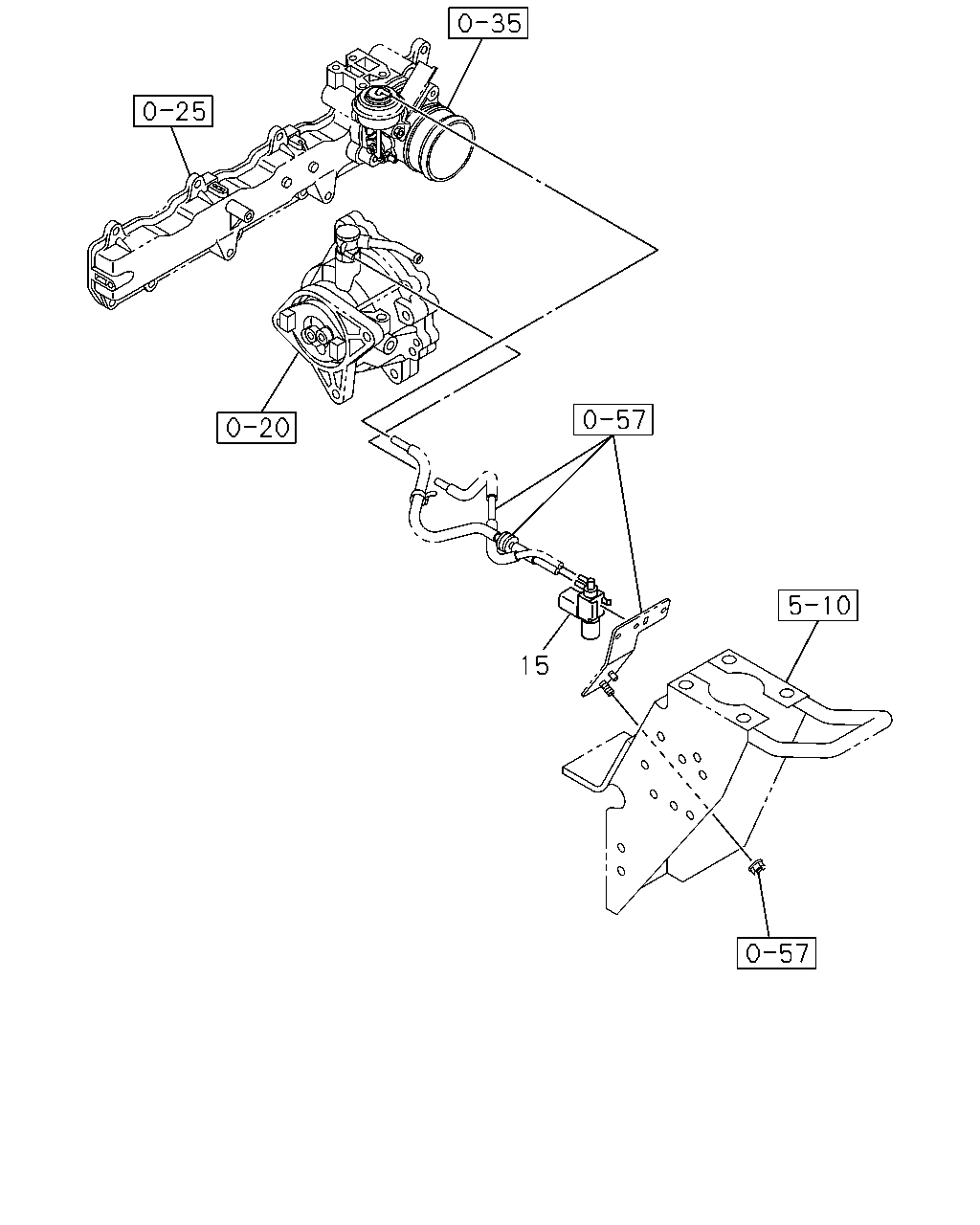

çizim 175895
15
BalonParca AdiParca NoAdetTipApplied Date A B C
15 03.670 VALVE; VAC SW 8-97352-151-0 01 1 1012- ●
15 03.670 VALVE; VAC SW 8-97037-165-2 01 1 1012- ●
