Isuzu WW
▶
TRUCKS
▶
EXR
▶
10725 - EXR LHD FUEL TANK 200L+200L/400L
▶
0 - Engine, Emission, Engine Electrical
▶
0-10A - CYLINDER HEAD COVER
▶

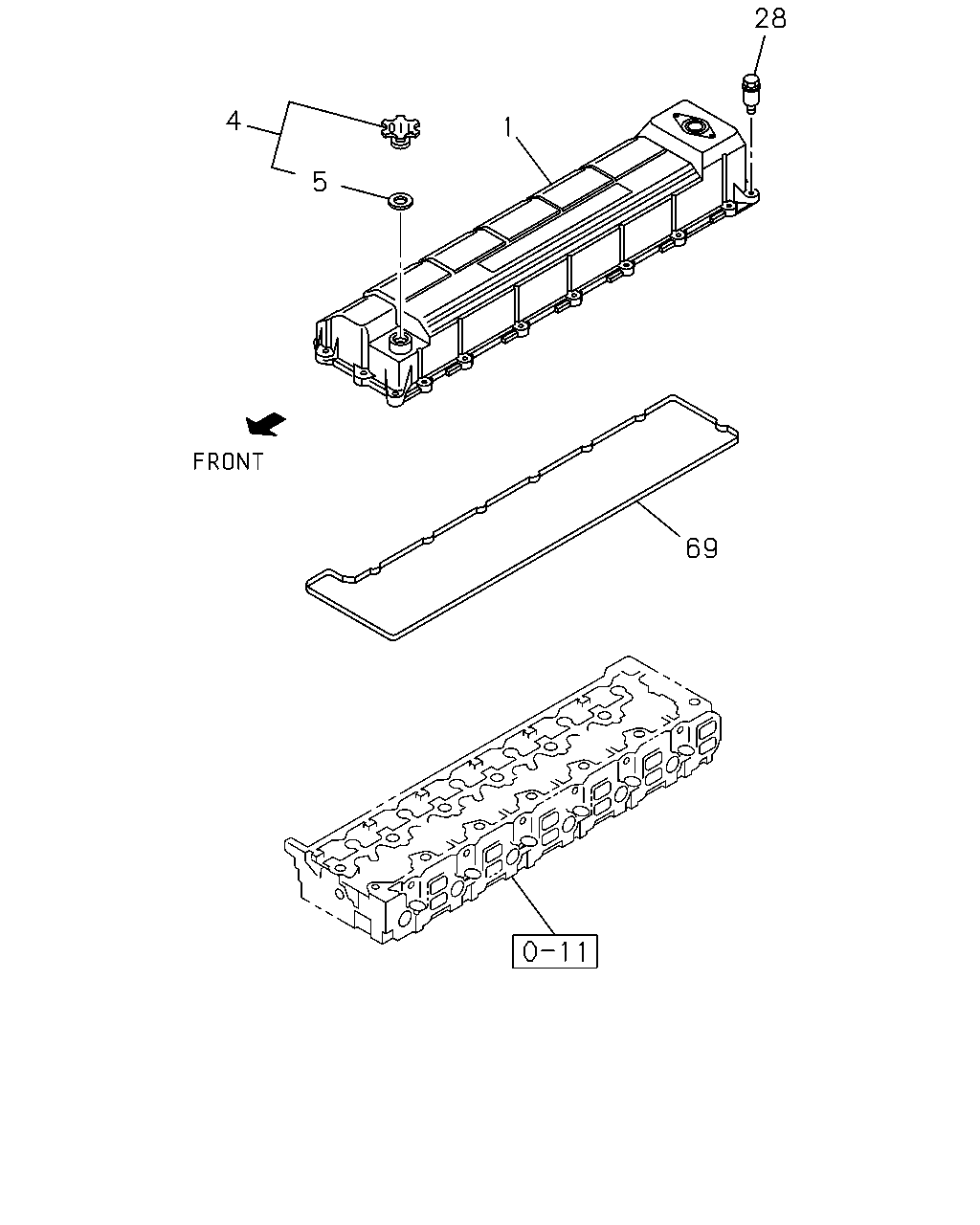

0-10A — CYLINDER HEAD COVER
(#5468) — 16 parça
Tümü
A - 6WA1 TC-S
B - 6WA1 TC-C
C - 6WA1 TC-N
D - 6WA1 TC-R
28
4
1
5
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
COVER; CYL HD
1-11180-408-0
01
1
9603-9605
●
1
COVER; CYL HD
1-11180-416-0
01
1
9606-9810
●
1
COVER; CYL HD
1-11180-416-0
01
1
9811-9904
●
●
1
COVER; CYL HD
1-11180-416-0
01
1
9905-
●
●
●
4
CAP; OIL FILLER
8-94399-723-0
01
1
9603-9810
●
4
CAP; OIL FILLER
8-94399-723-0
01
1
9811-9904
●
●
4
CAP; OIL FILLER
8-94399-723-0
01
1
9905-
●
●
●
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58
8-94399-689-0
01
1
9603-9810
●
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58
8-94399-689-0
01
1
9811-9904
●
●
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58
8-94399-689-0
01
1
9905-
●
●
●
28
BOLT; HD COVER
1-09040-103-0
20
1
9603-9810
●
28
BOLT; HD COVER
1-09040-103-0
20
1
9811-9904
●
●
28
BOLT; HD COVER
1-09040-103-0
20
1
9905-
●
●
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-11173-080-0
01
1
9603-9810
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-11173-080-0
01
1
9811-9904
●
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-11173-080-0
01
1
9905-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
