3-60 — BRAKE PIPING; VACUUM (#54674) — 2895 parça

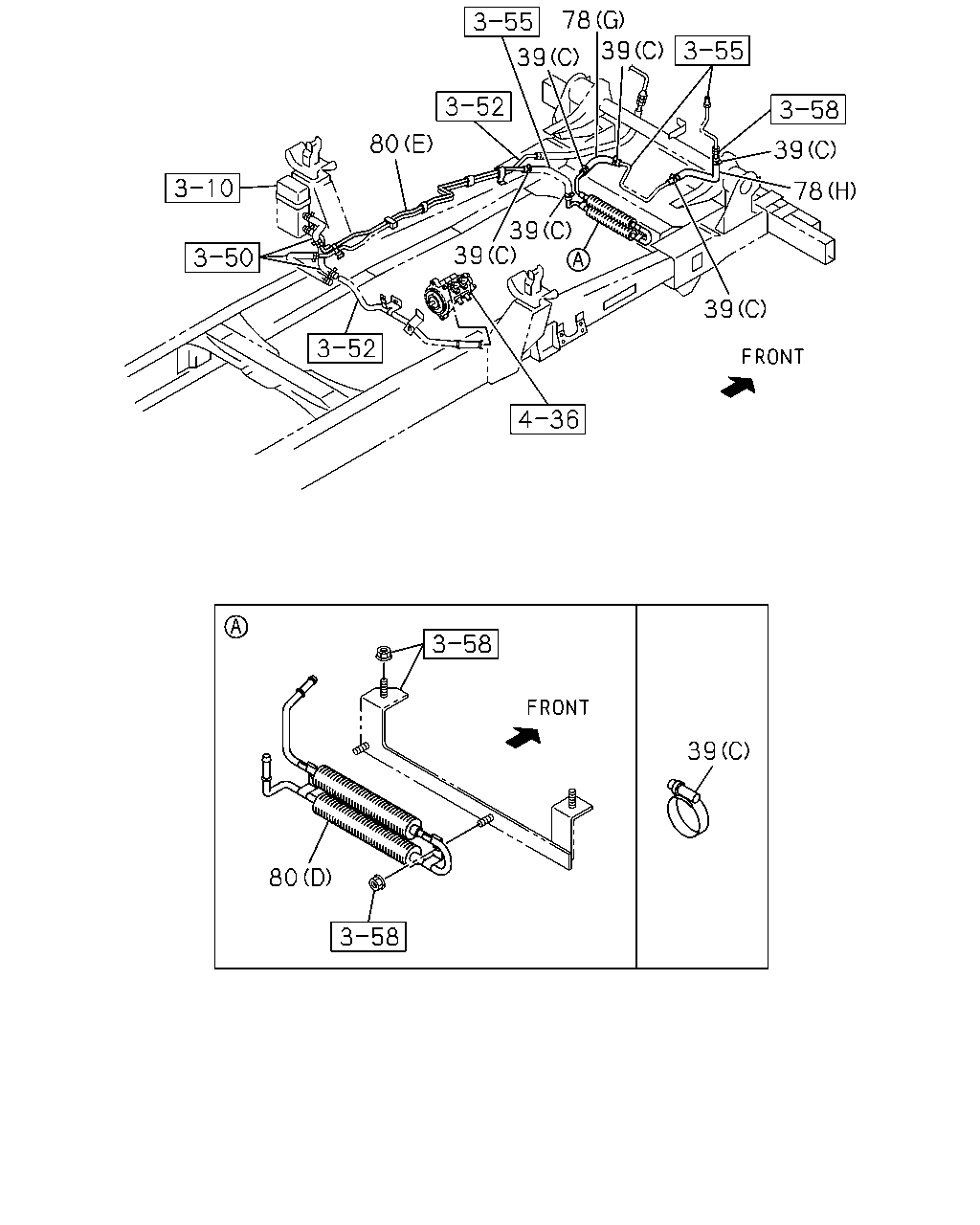

çizim 155859
78 39 39 80 39 78 39 39 39 39 80
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912-1205 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912-1205 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1206- ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1206- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0906 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0906 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0906 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0906 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 08 1 0710-0801 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 04 1 0802- ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0710-0808 ● ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0710-0906 ● ● ●
39 04.681 CLIP; HOSE,VAC
04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0710-0906 ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0907-1005 ● ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0907-1005 ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCS ENG(RJS) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0907-1005 ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1006- ● ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCS ENG(RJS) (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 06.672 (D) ID=21 		8-94242-034-0 02 1 0710-0711 ●
39 04.681 CLIP; HOSE,VAC
06.672 (D) ID=21 		8-94242-034-0 02 1 0710-0711 ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 0712-0906 ●
39 04.681 CLIP; HOSE,VAC
08.846 (D) ID=21.7 		8-97203-074-0 02 1 0712-0906 ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 0907- ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCS ENG(RJS) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98063-820-0 01 1 0710-0711 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98063-820-0 01 1 0710-0711 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98106-711-0 01 1 0712-0802 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98106-711-0 01 1 0712-0802 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98106-711-0 01 1 0803-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98106-711-0 01 1 0803-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98106-711-0 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98106-711-0 01 1 0804-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) (C) 		8-98106-711-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98106-711-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98092-678-0 01 1 0710-0802 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98092-678-0 01 1 0710-0802 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98092-678-0 01 1 0803-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98092-678-0 01 1 0803-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98092-678-0 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98092-678-0 01 1 0804-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) (B) 		8-98092-678-0 01 1 0907-1008 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98092-678-0 01 1 0907-1008 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) (B) 		8-98171-288-0 01 1 1009- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98171-288-0 01 1 1009- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (J) L=100 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0801 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (J) L=130 SERVICED BY L=3000 		0-08258-300-0 01 1 0802-0803 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (J) L=130 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-712-2 01 1 0710-0802 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97389-712-2 01 1 0710-0802 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-712-2 01 1 0803-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97389-712-2 01 1 0803-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-712-2 01 1 0804-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97389-712-2 01 1 0804-0906 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-712-2 01 1 0907-1205 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97389-712-2 01 1 0907-1205 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98220-704-0 01 1 1206- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98220-704-0 01 1 1206- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98034-104-4 01 1 0710-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98034-104-4 01 1 0804-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98034-104-4 01 1 0907-1103 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98189-106-0 01 1 1104- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98082-309-1 01 1 0710-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98082-309-1 01 1 0804-0903 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98133-654-1 01 1 0904-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98133-654-1 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (L) 		8-98057-462-0 01 1 0804-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (L) 		8-98057-462-0 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (M) 		8-98063-819-2 01 1 0804-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (M) 		8-98063-819-2 01 1 0907-1008 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (M) 		8-98171-287-0 01 1 1009- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (K) 		8-98112-680-0 01 1 0804-0906 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (K) 		8-98112-680-0 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (K) 		8-98112-680-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.686 (G) 		8-97386-589-0 01 1 0710-0906 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
04.686 (G) 		8-97386-589-0 01 1 0710-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.686 (G) 		8-97386-589-0 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.686 (G) 		8-97386-589-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) 04.686 (G) 		8-97386-589-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98041-427-3 01 1 0710-0808 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98041-427-3 01 1 0710-0808 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98129-223-0 01 1 0809-0906 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98129-223-0 01 1 0809-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98129-223-0 01 1 0907-0909 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98129-223-0 01 1 0907-0909 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) (H) 		8-98129-223-0 01 1 0907-0909 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98136-613-0 01 1 0910- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98136-613-0 01 1 0910- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) (H) 		8-98136-613-0 01 1 0910- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98080-833-1 01 1 0710- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98080-833-1 01 1 0710- ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-97389-728-2 01 1 0710-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-97389-728-2 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97389-728-2 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) (C) 		8-97389-728-2 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97389-728-2 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.681 (I) 		8-98096-135-0 01 1 0710-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
04.681 (I) 		8-98096-135-0 01 1 0710-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.681 (I) 		8-98096-135-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) 04.681 (I) 		8-98096-135-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) 03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98040-702-2 01 1 0710-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98040-702-2 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98040-702-2 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98040-702-2 01 1 0907-1103 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) (D) 		8-98040-702-2 01 1 0907-1103 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98189-103-0 01 1 1104- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) (D) 		8-98189-103-0 01 1 1104- ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIRCONDITIONER(C68),FRAME STRAIGHT TYPE <7KJ> (C) 		8-98135-521-0 01 1 0811-0906 ● ● ● ● ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIRCONDITIONER(C68),FRAME STRAIGHT TYPE <7KJ> (C) 		8-98135-521-0 01 1 0907- ● ● ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98058-595-0 01 1 0710-0803 ● ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98058-595-0 01 1 0804- ● ● ●
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98046-881-0 01 1 0710-0802 ● ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98046-881-0 01 1 0710-0802 ● ●
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98046-881-0 01 1 0803-0803 ● ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98046-881-0 01 1 0803-0803 ●
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98046-881-0 01 1 0804-0906 ● ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98046-881-0 01 1 0804-0906 ● ● ●
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98046-881-0 01 1 0907-1106 ● ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98046-881-0 01 1 0907-1106 ● ●
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98171-600-0 01 1 1107-1205 ● ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98171-600-0 01 1 1107-1205 ● ●
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98220-580-0 01 1 1206- ● ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98220-580-0 01 1 1206- ● ●
80 04.930 PIPE; VAC,ENG SIDE
(C) 		8-98051-652-0 01 1 0710-0802 ● ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98051-652-0 01 1 0710-0802 ● ●
80 04.930 PIPE; VAC,ENG SIDE
(C) 		8-98051-652-0 01 1 0803-0803 ● ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98051-652-0 01 1 0803-0803 ●
80 04.930 PIPE; VAC,ENG SIDE
(C) 		8-98051-652-0 01 1 0804-0810 ● ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98051-652-0 01 1 0804-0810 ● ● ●
80 04.930 PIPE; VAC,ENG SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98051-652-0 01 1 0811-0906 ● ● ● ● ●
80 04.930 PIPE; VAC,ENG SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98051-652-0 01 1 0907- ● ● ● ●
80 04.930 PIPE; VAC,ENG SIDE
HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98097-788-0 01 1 0710-0906 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98097-788-0 01 1 0907- ● ●
80 04.930 PIPE; VAC,ENG SIDE
HYDRO BRAKE BOOSTER(7QQ) 04.685 (D) 		8-97386-605-0 01 1 0710-0906 ● ● ●
80 04.930 PIPE; VAC,ENG SIDE
04.685 (D) 		8-97386-605-0 01 1 0710-0906 ●
80 04.930 PIPE; VAC,ENG SIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.685 (D) 		8-97386-605-0 01 1 0907- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.685 (D) 		8-97386-605-0 01 1 0907- ●
80 04.930 PIPE; VAC,ENG SIDE
4HK1-TCS ENG(RJS) 04.685 (D) 		8-97386-605-0 01 1 0907- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98058-596-0 01 1 0804- ● ●
80 04.930 PIPE; VAC,ENG SIDE
HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98092-258-1 01 1 0710-0906 ●
80 04.930 PIPE; VAC,ENG SIDE
(F) 		8-98092-258-1 01 1 0710-0906 ●
80 04.930 PIPE; VAC,ENG SIDE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98092-258-1 01 1 0907- ●
80 04.930 PIPE; VAC,ENG SIDE
4HK1-TCS ENG(RJS) (F) 		8-98092-258-1 01 1 0907- ●

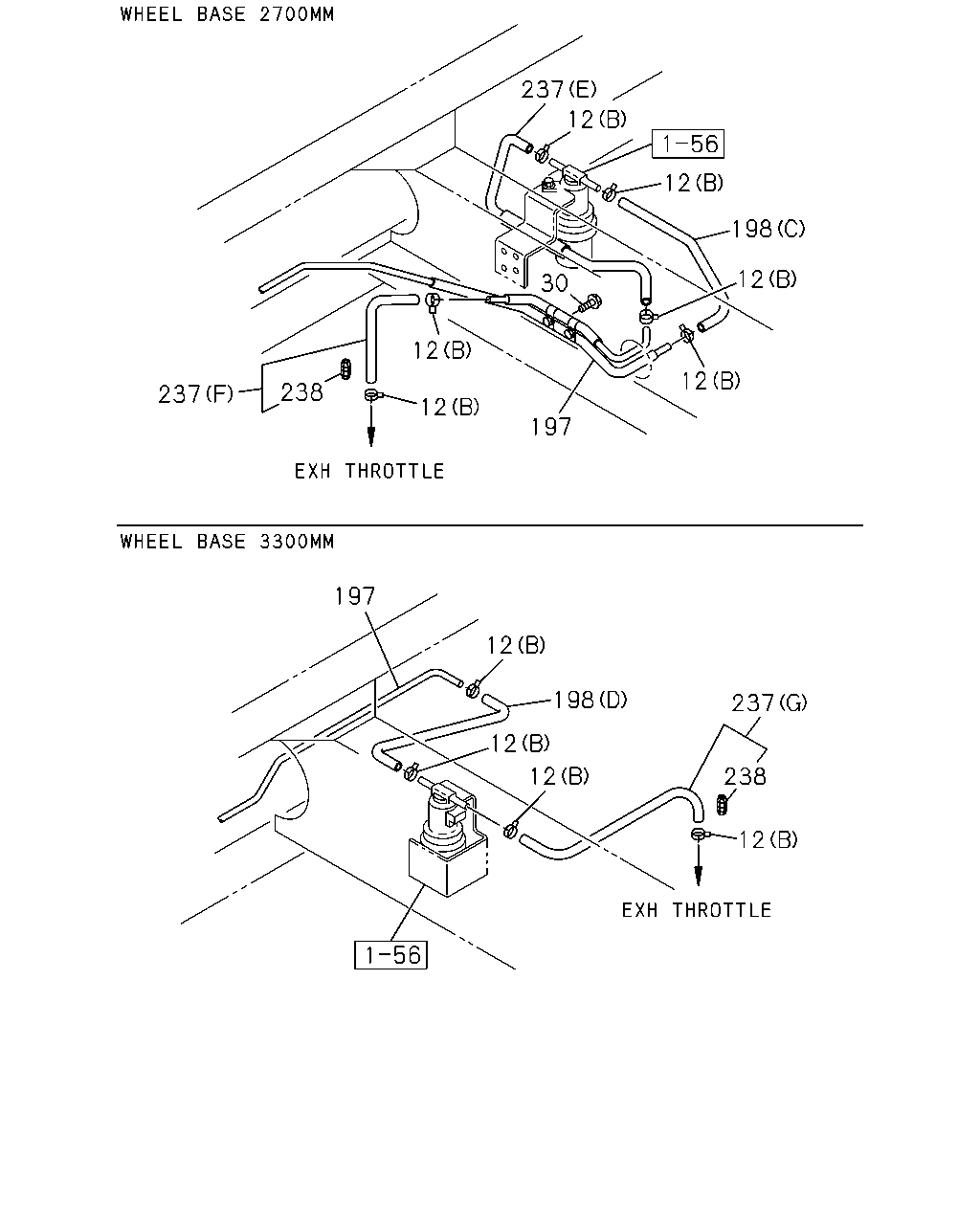

çizim 155872
237 12 12 198 12 30 12 12 238 237 12 197 197 12 198 237 12 12 238 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0803 ● ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0803 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0911 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) CATALYSIS CONTROL WITH DPD(8JM) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0911 ● ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0911 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) CATALYSIS CONTROL WITH DPD(8JM) FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ● ● ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 0710- ● ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ● ● ● ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ● ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 04 1 0710-0803 ● ● ●
12 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 04 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 04 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 04 1 0804-0911 ● ● ●
12 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16 		8-94238-568-0 04 1 0804-0911 ● ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 04 1 0804-0911 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ● ● ●
12 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ● ● ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 0710-0803 ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 0804- ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 0710-0803 ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 0804- ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 0710-0803 ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 0804- ● ● ●
30 04.686 BOLT; CLIP,VAC PIPE
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0710-0803 ●
30 04.686 BOLT; CLIP,VAC PIPE
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0804-0906 ●
30 04.686 BOLT; CLIP,VAC PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0907- ●

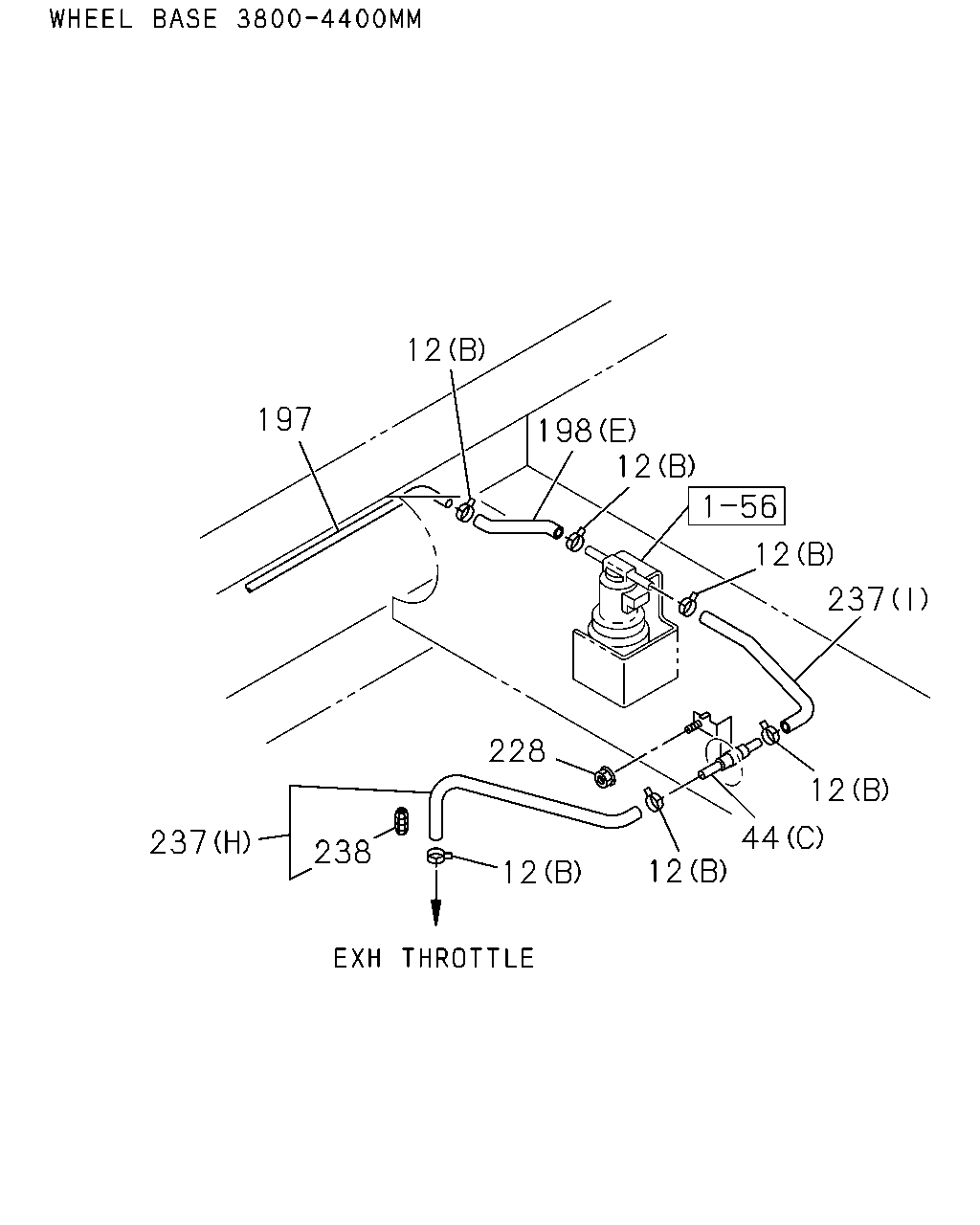

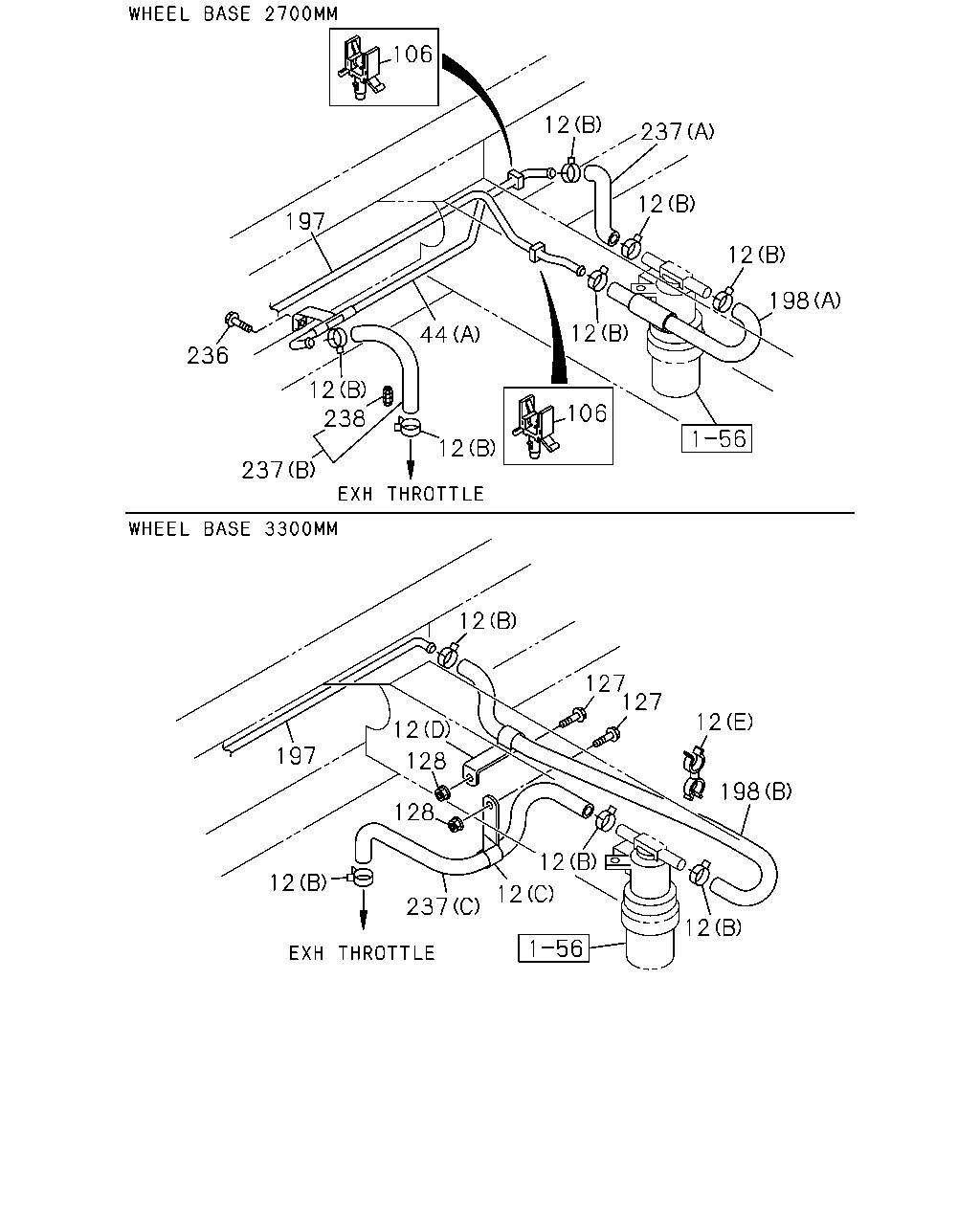

197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98034-371-1 01 1 0710-0803 ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98034-371-1 01 1 0804- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98034-372-1 01 1 0710-0801 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98083-557-0 01 1 0802-0803 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98083-557-0 01 1 0804- ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> 		8-98079-539-0 01 1 0710-0803 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98079-539-0 01 1 0804-0906 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98079-539-0 01 1 0907- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98034-373-1 01 1 0710-0801 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98083-558-0 01 1 0802-0803 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98083-558-0 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> 		8-98040-481-1 01 1 0710-0803 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98040-481-1 01 1 0804-0903 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-640-0 01 1 0904-0906 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-640-0 01 1 0907- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-640-0 01 1 0907- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> 		8-98040-482-1 01 1 0710-0803 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98040-482-1 01 1 0804-0903 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-641-0 01 1 0904-0906 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-641-0 01 1 0907- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-641-0 01 1 0907- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> 		8-98080-337-0 01 1 0710-0803 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98080-337-0 01 1 0804-0903 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-643-0 01 1 0904-0906 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-643-0 01 1 0907- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-643-0 01 1 0907- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-98040-483-2 01 1 0710-0803 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV 8-98040-483-2 01 1 0710-0803 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98040-483-2 01 1 0804-0903 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV 8-98040-483-2 01 1 0804-0903 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-642-0 01 1 0904-0906 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV 8-98133-642-0 01 1 0904-0906 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-642-0 01 1 0907- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-642-0 01 1 0907- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4HK1-TCS ENG(RJS) 		8-98133-642-0 01 1 0907- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> 03.630 (E) L=400 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=400 SERVICED BY L=3000 		0-08258-300-0 01 1 0804-0906 ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=400 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=400 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97373-197-0 01 1 0710-0803 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97373-197-0 01 1 0804- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98041-642-0 01 1 0710-0803 ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98041-642-0 01 1 0804- ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98035-890-2 01 1 0710-0803 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98035-890-2 01 1 0804-0906 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98035-890-2 01 1 0907- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> 03.630 (D) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (D) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0804-0906 ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (D) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (D) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> 03.630 (E) L=230 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=230 SERVICED BY L=3000 		0-08258-300-0 01 1 0804-0906 ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=230 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=230 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 03.630 (E) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
03.630 (E) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0804-0906 ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
03.630 (E) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0804-0906 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4HK1-TCS ENG(RJS) 03.630 (E) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (A) L=250 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (A) L=250 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98034-429-0 01 1 0710-0803 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98034-429-0 01 1 0804- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98034-430-0 01 1 0710-0803 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98034-430-0 01 1 0804-1008 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98171-279-0 01 1 1009- ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> (E) 		8-98035-889-0 01 1 0710-0803 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98035-889-0 01 1 0804-0906 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98035-889-0 01 1 0907- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98035-891-0 01 1 0710-0803 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (F) 		8-98035-891-0 01 1 0804-0906 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (F) 		8-98035-891-0 01 1 0907- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (D) L=180 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (D) L=180 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (G) 		8-97378-772-0 01 1 0710-0803 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (G) 		8-97378-772-0 01 1 0804-0906 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (G) 		8-97378-772-0 01 1 0907- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (G) 		8-97378-772-0 01 1 0907- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (H) 		8-97378-771-0 01 1 0710-0803 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (H) 		8-97378-771-0 01 1 0804-0906 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (H) 		8-97378-771-0 01 1 0907- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (H) 		8-97378-771-0 01 1 0907- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (I) 		8-98040-785-1 01 1 0710-0803 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(I) 		8-98040-785-1 01 1 0710-0803 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (I) 		8-98040-785-1 01 1 0804- ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(I) 		8-98040-785-1 01 1 0804- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (H) 		8-98097-542-0 01 1 0710-0710 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(H) 		8-98097-542-0 01 1 0710-0710 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (H) 		8-98101-554-0 01 1 0711-0803 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(H) 		8-98101-554-0 01 1 0711-0803 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (H) 		8-98101-554-0 01 1 0804-0906 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(H) 		8-98101-554-0 01 1 0804-0906 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (H) 		8-98101-554-0 01 1 0907- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (H) 		8-98101-554-0 01 1 0907- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCS ENG(RJS) (H) 		8-98101-554-0 01 1 0907- ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97377-521-0 01 1 0710-0802 ● ● ●
238 04.892 ORIFICE; VACUUM HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-97377-521-0 01 1 0710-0802 ● ● ●
238 04.892 ORIFICE; VACUUM HOSE
FRAME STRAIGHT TYPE<7KJ> 		8-97377-521-0 01 1 0710-0802 ●
238 04.892 ORIFICE; VACUUM HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-97377-521-0 01 1 0710-0802 ● ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97377-521-0 01 1 0803-0803 ● ● ●
238 04.892 ORIFICE; VACUUM HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-97377-521-0 01 1 0803-0803 ● ● ● ●
238 04.892 ORIFICE; VACUUM HOSE
FRAME STRAIGHT TYPE<7KJ> 		8-97377-521-0 01 1 0803-0803 ●
238 04.892 ORIFICE; VACUUM HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-97377-521-0 01 1 0803-0803 ● ● ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97377-521-0 01 1 0804-1008 ● ● ●
238 04.892 ORIFICE; VACUUM HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-97377-521-0 01 1 0804-1008 ● ● ● ●
238 04.892 ORIFICE; VACUUM HOSE
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-97377-521-0 01 1 0804-1008 ●
238 04.892 ORIFICE; VACUUM HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-97377-521-0 01 1 0804-1008 ● ● ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97377-521-0 01 1 1009- ● ●
238 04.892 ORIFICE; VACUUM HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-97377-521-0 01 1 1009- ● ● ● ●
238 04.892 ORIFICE; VACUUM HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-97377-521-0 01 1 1009- ● ● ● ●

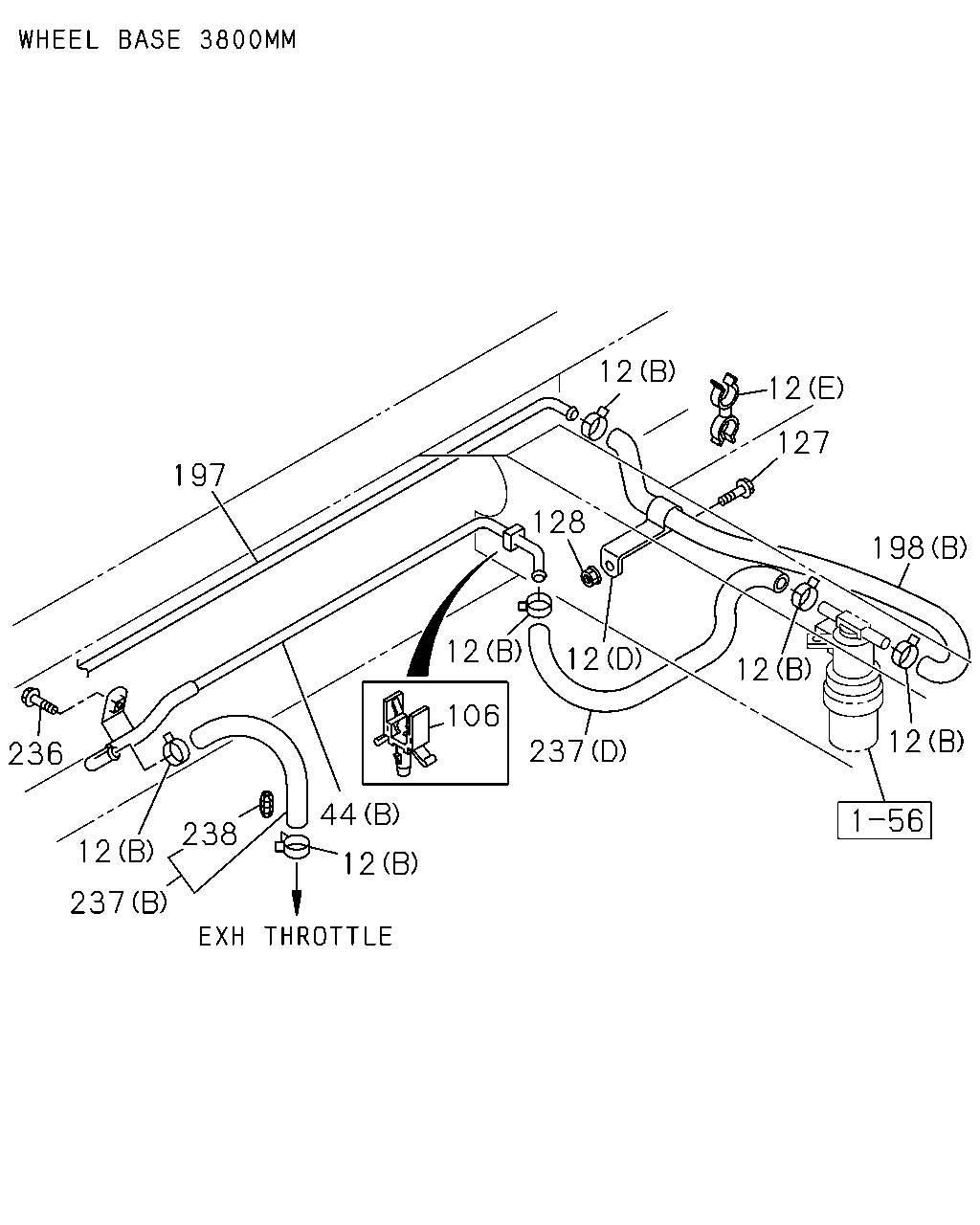

çizim 155877
12 12 127 197 128 198 12 12 12 106 12 237 236 44 238 12 12 237
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0803 ● ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0803 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0911 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) CATALYSIS CONTROL WITH DPD(8JM) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0911 ● ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0911 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) CATALYSIS CONTROL WITH DPD(8JM) FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ● ● ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 0710- ● ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ● ● ● ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ● ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 04 1 0710-0803 ● ● ●
12 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 04 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 04 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 04 1 0804-0911 ● ● ●
12 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16 		8-94238-568-0 04 1 0804-0911 ● ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 04 1 0804-0911 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ● ● ●
12 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ● ● ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 0710-0803 ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 0804- ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 0710-0803 ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 0804- ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 0710-0803 ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 0804- ● ● ●
44 04.930 PIPE; VAC,MAG VLV
(D) 		8-98063-777-0 01 1 0710-0802 ●
44 04.930 PIPE; VAC,MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98063-777-0 01 1 0710-0802 ● ●
44 04.930 PIPE; VAC,MAG VLV
(D) 		8-98063-777-0 01 1 0803-0803 ●
44 04.930 PIPE; VAC,MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98063-777-0 01 1 0803-0803 ●
44 04.930 PIPE; VAC,MAG VLV
(D) 		8-98063-777-0 01 1 0804-0906 ●
44 04.930 PIPE; VAC,MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98063-777-0 01 1 0804-0906 ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) (D) 		8-98063-777-0 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98063-777-0 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98034-374-0 01 1 0710-0710 ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98089-666-0 01 1 0711-0803 ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98089-666-0 01 1 0804- ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98095-039-0 01 1 0710-0803 ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98095-039-0 01 1 0804- ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98034-281-1 01 1 0710-0803 ● ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98034-281-1 01 1 0804-0906 ● ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98034-281-1 01 1 0907- ● ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (F) 		8-98070-194-0 01 1 0804-0906 ● ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (F) 		8-98070-194-0 01 1 0907- ● ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (G) 		8-98057-425-1 01 1 0804-0906 ● ● ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (G) 		8-98057-425-1 01 1 0907- ● ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (G) 		8-98057-425-1 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98040-807-1 01 1 0710-0803 ● ● ●
44 04.930 PIPE; VAC,MAG VLV
(C) 		8-98040-807-1 01 1 0710-0803 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98040-807-1 01 1 0804- ● ● ●
44 04.930 PIPE; VAC,MAG VLV
(C) 		8-98040-807-1 01 1 0804- ●
44 04.930 PIPE; VAC,MAG VLV
(E) 		8-98040-634-0 01 1 0710-0803 ● ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98040-634-0 01 1 0804-0906 ●
44 04.930 PIPE; VAC,MAG VLV
(E) 		8-98040-634-0 01 1 0804-0906 ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98040-634-0 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCS ENG(RJS) (E) 		8-98040-634-0 01 1 0907- ●
106 04.930 CLIP; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> ID=10 H=40 		8-94462-219-0 02 1 0710-0710 ● ●
106 04.930 CLIP; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> ID=10 H=40 		8-94462-219-0 01 1 0711-0803 ● ●
106 04.930 CLIP; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> ID=10 H=40 		8-94462-219-0 01 1 0804- ● ●
106 04.930 CLIP; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> ID=10 H=40 		8-94462-219-0 02 1 0711-0803 ●
106 04.930 CLIP; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> ID=10 H=40 		8-94462-219-0 02 1 0804- ●
127 04.930 BOLT; CLIP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0710-0803 ● ● ●
127 04.930 BOLT; CLIP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0804- ● ● ●
127 04.930 BOLT; CLIP
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0710-0803 ●
127 04.930 BOLT; CLIP
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0804- ●
128 04.930 NUT; CLIP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0710-0803 ● ● ●
128 04.930 NUT; CLIP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0804- ● ● ●
128 04.930 NUT; CLIP
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0710-0803 ●
128 04.930 NUT; CLIP
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98034-371-1 01 1 0710-0803 ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98034-371-1 01 1 0804- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98034-372-1 01 1 0710-0801 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98083-557-0 01 1 0802-0803 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98083-557-0 01 1 0804- ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> 		8-98079-539-0 01 1 0710-0803 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98079-539-0 01 1 0804-0906 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98079-539-0 01 1 0907- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98034-373-1 01 1 0710-0801 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98083-558-0 01 1 0802-0803 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98083-558-0 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> 		8-98040-481-1 01 1 0710-0803 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98040-481-1 01 1 0804-0903 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-640-0 01 1 0904-0906 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-640-0 01 1 0907- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-640-0 01 1 0907- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> 		8-98040-482-1 01 1 0710-0803 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98040-482-1 01 1 0804-0903 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-641-0 01 1 0904-0906 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-641-0 01 1 0907- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-641-0 01 1 0907- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> 		8-98080-337-0 01 1 0710-0803 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98080-337-0 01 1 0804-0903 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-643-0 01 1 0904-0906 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-643-0 01 1 0907- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-643-0 01 1 0907- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-98040-483-2 01 1 0710-0803 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV 8-98040-483-2 01 1 0710-0803 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98040-483-2 01 1 0804-0903 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV 8-98040-483-2 01 1 0804-0903 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-642-0 01 1 0904-0906 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV 8-98133-642-0 01 1 0904-0906 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-642-0 01 1 0907- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-642-0 01 1 0907- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4HK1-TCS ENG(RJS) 		8-98133-642-0 01 1 0907- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> 03.630 (E) L=400 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=400 SERVICED BY L=3000 		0-08258-300-0 01 1 0804-0906 ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=400 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=400 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97373-197-0 01 1 0710-0803 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97373-197-0 01 1 0804- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98041-642-0 01 1 0710-0803 ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98041-642-0 01 1 0804- ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98035-890-2 01 1 0710-0803 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98035-890-2 01 1 0804-0906 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98035-890-2 01 1 0907- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> 03.630 (D) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (D) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0804-0906 ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (D) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (D) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> 03.630 (E) L=230 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=230 SERVICED BY L=3000 		0-08258-300-0 01 1 0804-0906 ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=230 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=230 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 03.630 (E) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
03.630 (E) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0804-0906 ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
03.630 (E) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0804-0906 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4HK1-TCS ENG(RJS) 03.630 (E) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●

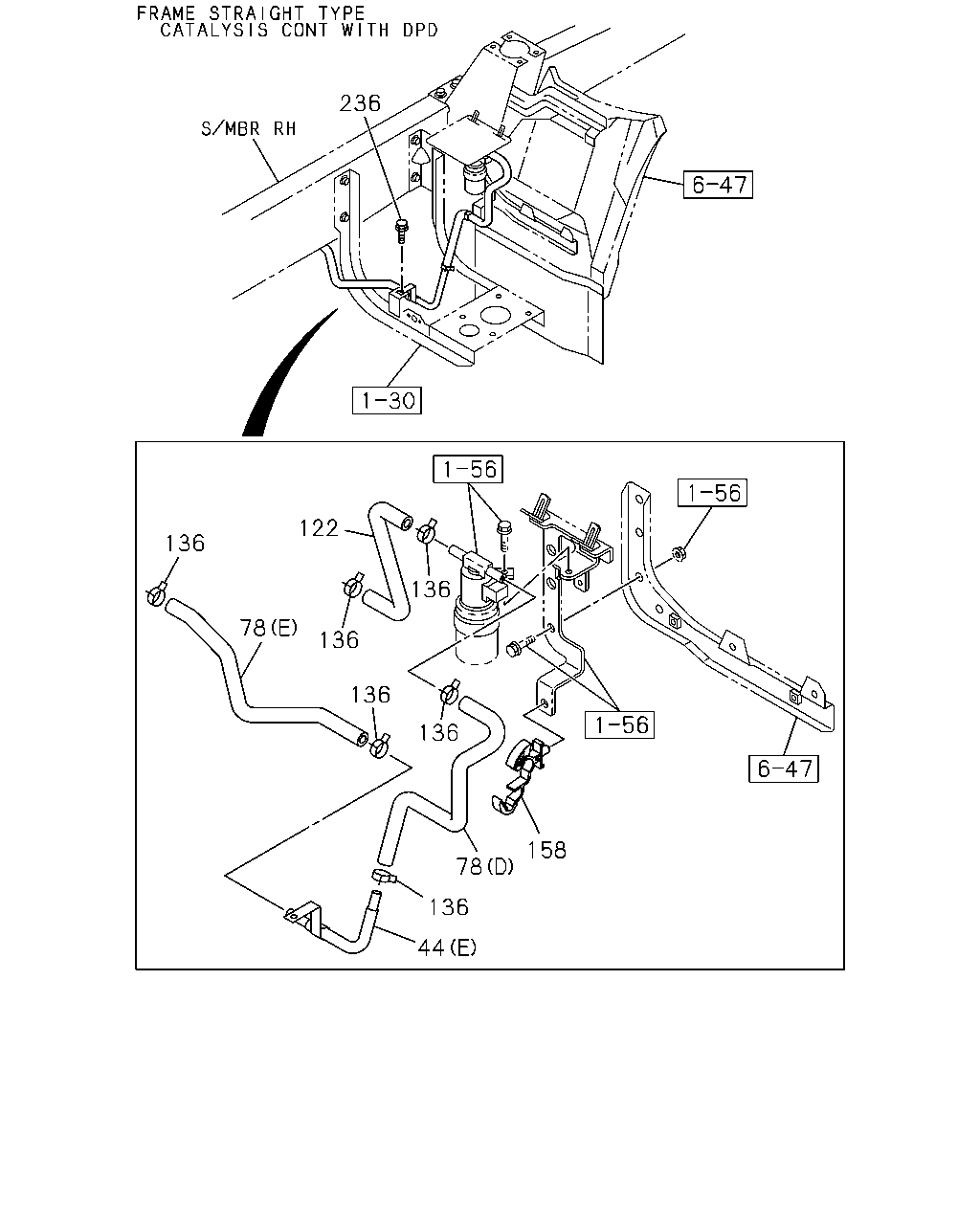

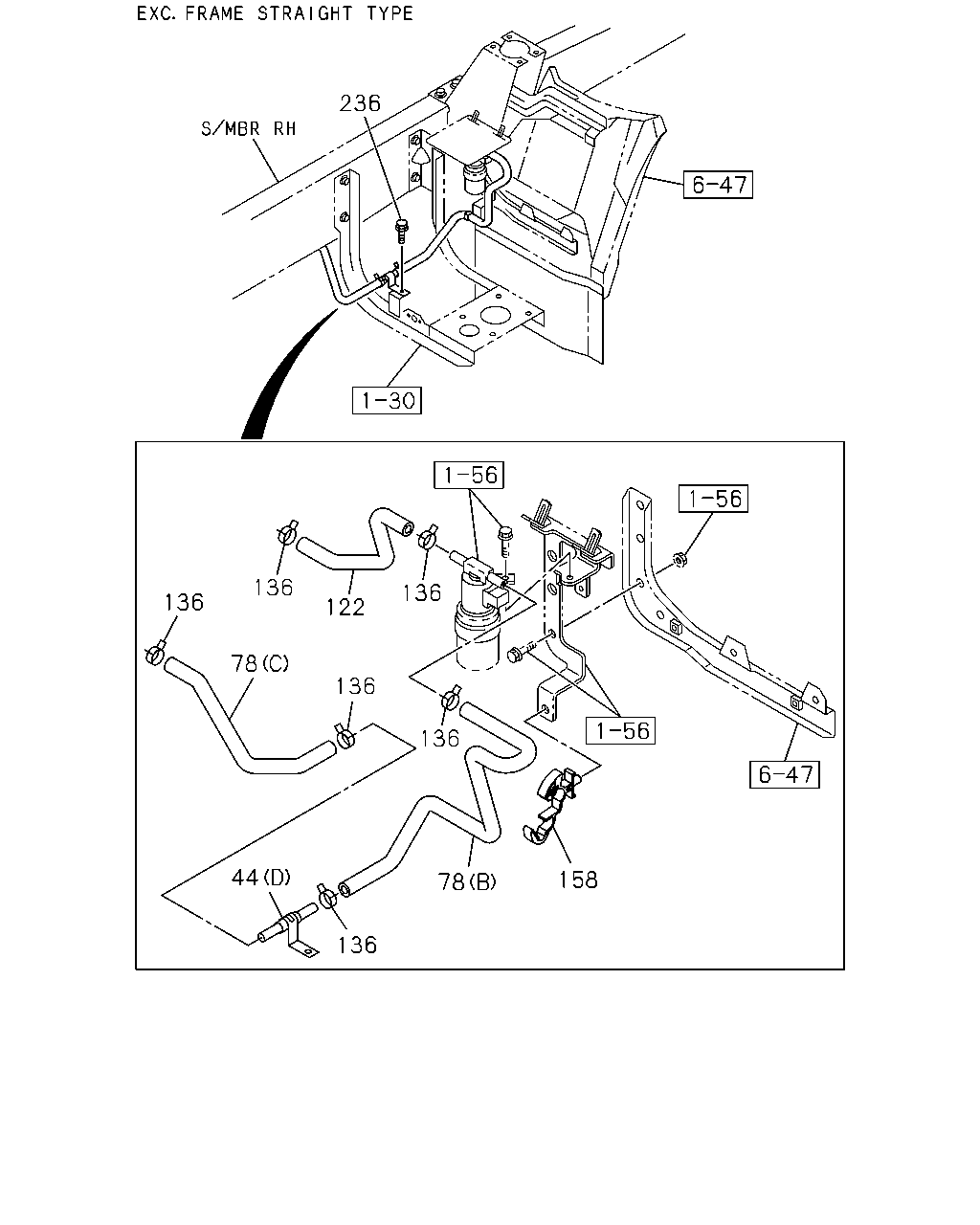

236 04.930 BOLT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0710-0803 ● ●
236 04.930 BOLT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0804- ● ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0710-0710 ● ● ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0711-0803 ● ● ●
236 04.930 BOLT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0711-0803 ● ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0804- ● ● ●
236 04.930 BOLT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0804- ● ●
236 04.930 BOLT; PIPE
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0710-0803 ● ●
236 04.930 BOLT; PIPE
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0804-0906 ●
236 04.930 BOLT; PIPE
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0804-0906 ●
236 04.930 BOLT; PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0907- ●
236 04.930 BOLT; PIPE
4HK1-TCS ENG(RJS) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0907- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (A) L=250 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (A) L=250 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98034-429-0 01 1 0710-0803 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98034-429-0 01 1 0804- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98034-430-0 01 1 0710-0803 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98034-430-0 01 1 0804-1008 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98171-279-0 01 1 1009- ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> (E) 		8-98035-889-0 01 1 0710-0803 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98035-889-0 01 1 0804-0906 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98035-889-0 01 1 0907- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98035-891-0 01 1 0710-0803 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (F) 		8-98035-891-0 01 1 0804-0906 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (F) 		8-98035-891-0 01 1 0907- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (D) L=180 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (D) L=180 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (G) 		8-97378-772-0 01 1 0710-0803 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (G) 		8-97378-772-0 01 1 0804-0906 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (G) 		8-97378-772-0 01 1 0907- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (G) 		8-97378-772-0 01 1 0907- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (H) 		8-97378-771-0 01 1 0710-0803 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (H) 		8-97378-771-0 01 1 0804-0906 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (H) 		8-97378-771-0 01 1 0907- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (H) 		8-97378-771-0 01 1 0907- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (I) 		8-98040-785-1 01 1 0710-0803 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(I) 		8-98040-785-1 01 1 0710-0803 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (I) 		8-98040-785-1 01 1 0804- ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(I) 		8-98040-785-1 01 1 0804- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (H) 		8-98097-542-0 01 1 0710-0710 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(H) 		8-98097-542-0 01 1 0710-0710 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (H) 		8-98101-554-0 01 1 0711-0803 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(H) 		8-98101-554-0 01 1 0711-0803 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (H) 		8-98101-554-0 01 1 0804-0906 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(H) 		8-98101-554-0 01 1 0804-0906 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (H) 		8-98101-554-0 01 1 0907- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (H) 		8-98101-554-0 01 1 0907- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCS ENG(RJS) (H) 		8-98101-554-0 01 1 0907- ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97377-521-0 01 1 0710-0802 ● ● ●
238 04.892 ORIFICE; VACUUM HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-97377-521-0 01 1 0710-0802 ● ● ●
238 04.892 ORIFICE; VACUUM HOSE
FRAME STRAIGHT TYPE<7KJ> 		8-97377-521-0 01 1 0710-0802 ●
238 04.892 ORIFICE; VACUUM HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-97377-521-0 01 1 0710-0802 ● ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97377-521-0 01 1 0803-0803 ● ● ●
238 04.892 ORIFICE; VACUUM HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-97377-521-0 01 1 0803-0803 ● ● ● ●
238 04.892 ORIFICE; VACUUM HOSE
FRAME STRAIGHT TYPE<7KJ> 		8-97377-521-0 01 1 0803-0803 ●
238 04.892 ORIFICE; VACUUM HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-97377-521-0 01 1 0803-0803 ● ● ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97377-521-0 01 1 0804-1008 ● ● ●
238 04.892 ORIFICE; VACUUM HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-97377-521-0 01 1 0804-1008 ● ● ● ●
238 04.892 ORIFICE; VACUUM HOSE
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-97377-521-0 01 1 0804-1008 ●
238 04.892 ORIFICE; VACUUM HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-97377-521-0 01 1 0804-1008 ● ● ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97377-521-0 01 1 1009- ● ●
238 04.892 ORIFICE; VACUUM HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-97377-521-0 01 1 1009- ● ● ● ●
238 04.892 ORIFICE; VACUUM HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-97377-521-0 01 1 1009- ● ● ● ●
çizim 155912
106 12 237 12 197 12 198 12 44 236 12 238 106 12 237 12 127 127 12 12 197 128 198 128 12 12 12 237 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0803 ● ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0803 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0911 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) CATALYSIS CONTROL WITH DPD(8JM) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0911 ● ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0911 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) CATALYSIS CONTROL WITH DPD(8JM) FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ● ● ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 0710- ● ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ● ● ● ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ● ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 04 1 0710-0803 ● ● ●
12 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 04 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 04 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 04 1 0804-0911 ● ● ●
12 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16 		8-94238-568-0 04 1 0804-0911 ● ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 04 1 0804-0911 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ● ● ●
12 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ● ● ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 0710-0803 ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 0804- ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 0710-0803 ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 0804- ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 0710-0803 ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 0804- ● ● ●
44 04.930 PIPE; VAC,MAG VLV
(D) 		8-98063-777-0 01 1 0710-0802 ●
44 04.930 PIPE; VAC,MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98063-777-0 01 1 0710-0802 ● ●
44 04.930 PIPE; VAC,MAG VLV
(D) 		8-98063-777-0 01 1 0803-0803 ●
44 04.930 PIPE; VAC,MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98063-777-0 01 1 0803-0803 ●
44 04.930 PIPE; VAC,MAG VLV
(D) 		8-98063-777-0 01 1 0804-0906 ●
44 04.930 PIPE; VAC,MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98063-777-0 01 1 0804-0906 ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) (D) 		8-98063-777-0 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98063-777-0 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98034-374-0 01 1 0710-0710 ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98089-666-0 01 1 0711-0803 ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98089-666-0 01 1 0804- ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98095-039-0 01 1 0710-0803 ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98095-039-0 01 1 0804- ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98034-281-1 01 1 0710-0803 ● ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98034-281-1 01 1 0804-0906 ● ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98034-281-1 01 1 0907- ● ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (F) 		8-98070-194-0 01 1 0804-0906 ● ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (F) 		8-98070-194-0 01 1 0907- ● ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (G) 		8-98057-425-1 01 1 0804-0906 ● ● ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (G) 		8-98057-425-1 01 1 0907- ● ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (G) 		8-98057-425-1 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98040-807-1 01 1 0710-0803 ● ● ●
44 04.930 PIPE; VAC,MAG VLV
(C) 		8-98040-807-1 01 1 0710-0803 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98040-807-1 01 1 0804- ● ● ●
44 04.930 PIPE; VAC,MAG VLV
(C) 		8-98040-807-1 01 1 0804- ●
44 04.930 PIPE; VAC,MAG VLV
(E) 		8-98040-634-0 01 1 0710-0803 ● ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98040-634-0 01 1 0804-0906 ●
44 04.930 PIPE; VAC,MAG VLV
(E) 		8-98040-634-0 01 1 0804-0906 ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98040-634-0 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCS ENG(RJS) (E) 		8-98040-634-0 01 1 0907- ●
106 04.930 CLIP; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> ID=10 H=40 		8-94462-219-0 02 1 0710-0710 ● ●
106 04.930 CLIP; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> ID=10 H=40 		8-94462-219-0 01 1 0711-0803 ● ●
106 04.930 CLIP; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> ID=10 H=40 		8-94462-219-0 01 1 0804- ● ●
106 04.930 CLIP; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> ID=10 H=40 		8-94462-219-0 02 1 0711-0803 ●
106 04.930 CLIP; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> ID=10 H=40 		8-94462-219-0 02 1 0804- ●
127 04.930 BOLT; CLIP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0710-0803 ● ● ●
127 04.930 BOLT; CLIP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0804- ● ● ●
127 04.930 BOLT; CLIP
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0710-0803 ●
127 04.930 BOLT; CLIP
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0804- ●
128 04.930 NUT; CLIP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0710-0803 ● ● ●
128 04.930 NUT; CLIP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0804- ● ● ●
128 04.930 NUT; CLIP
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0710-0803 ●
128 04.930 NUT; CLIP
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98034-371-1 01 1 0710-0803 ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98034-371-1 01 1 0804- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98034-372-1 01 1 0710-0801 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98083-557-0 01 1 0802-0803 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98083-557-0 01 1 0804- ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> 		8-98079-539-0 01 1 0710-0803 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98079-539-0 01 1 0804-0906 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98079-539-0 01 1 0907- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98034-373-1 01 1 0710-0801 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98083-558-0 01 1 0802-0803 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98083-558-0 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> 		8-98040-481-1 01 1 0710-0803 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98040-481-1 01 1 0804-0903 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-640-0 01 1 0904-0906 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-640-0 01 1 0907- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-640-0 01 1 0907- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> 		8-98040-482-1 01 1 0710-0803 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98040-482-1 01 1 0804-0903 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-641-0 01 1 0904-0906 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-641-0 01 1 0907- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-641-0 01 1 0907- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> 		8-98080-337-0 01 1 0710-0803 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98080-337-0 01 1 0804-0903 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-643-0 01 1 0904-0906 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-643-0 01 1 0907- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-643-0 01 1 0907- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-98040-483-2 01 1 0710-0803 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV 8-98040-483-2 01 1 0710-0803 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98040-483-2 01 1 0804-0903 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV 8-98040-483-2 01 1 0804-0903 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-642-0 01 1 0904-0906 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV 8-98133-642-0 01 1 0904-0906 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-642-0 01 1 0907- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-642-0 01 1 0907- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4HK1-TCS ENG(RJS) 		8-98133-642-0 01 1 0907- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> 03.630 (E) L=400 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=400 SERVICED BY L=3000 		0-08258-300-0 01 1 0804-0906 ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=400 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=400 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97373-197-0 01 1 0710-0803 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97373-197-0 01 1 0804- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98041-642-0 01 1 0710-0803 ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98041-642-0 01 1 0804- ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98035-890-2 01 1 0710-0803 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98035-890-2 01 1 0804-0906 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98035-890-2 01 1 0907- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> 03.630 (D) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (D) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0804-0906 ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (D) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (D) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> 03.630 (E) L=230 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=230 SERVICED BY L=3000 		0-08258-300-0 01 1 0804-0906 ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=230 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=230 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 03.630 (E) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
03.630 (E) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0804-0906 ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
03.630 (E) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0804-0906 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4HK1-TCS ENG(RJS) 03.630 (E) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
236 04.930 BOLT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0710-0803 ● ●
236 04.930 BOLT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0804- ● ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0710-0710 ● ● ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0711-0803 ● ● ●
236 04.930 BOLT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0711-0803 ● ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0804- ● ● ●
236 04.930 BOLT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0804- ● ●
236 04.930 BOLT; PIPE
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0710-0803 ● ●
236 04.930 BOLT; PIPE
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0804-0906 ●
236 04.930 BOLT; PIPE
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0804-0906 ●
236 04.930 BOLT; PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0907- ●
236 04.930 BOLT; PIPE
4HK1-TCS ENG(RJS) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0907- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (A) L=250 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (A) L=250 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98034-429-0 01 1 0710-0803 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98034-429-0 01 1 0804- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98034-430-0 01 1 0710-0803 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98034-430-0 01 1 0804-1008 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98171-279-0 01 1 1009- ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> (E) 		8-98035-889-0 01 1 0710-0803 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98035-889-0 01 1 0804-0906 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98035-889-0 01 1 0907- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98035-891-0 01 1 0710-0803 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (F) 		8-98035-891-0 01 1 0804-0906 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (F) 		8-98035-891-0 01 1 0907- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (D) L=180 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (D) L=180 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (G) 		8-97378-772-0 01 1 0710-0803 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (G) 		8-97378-772-0 01 1 0804-0906 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (G) 		8-97378-772-0 01 1 0907- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (G) 		8-97378-772-0 01 1 0907- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (H) 		8-97378-771-0 01 1 0710-0803 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (H) 		8-97378-771-0 01 1 0804-0906 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (H) 		8-97378-771-0 01 1 0907- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (H) 		8-97378-771-0 01 1 0907- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (I) 		8-98040-785-1 01 1 0710-0803 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(I) 		8-98040-785-1 01 1 0710-0803 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (I) 		8-98040-785-1 01 1 0804- ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(I) 		8-98040-785-1 01 1 0804- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (H) 		8-98097-542-0 01 1 0710-0710 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(H) 		8-98097-542-0 01 1 0710-0710 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (H) 		8-98101-554-0 01 1 0711-0803 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(H) 		8-98101-554-0 01 1 0711-0803 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (H) 		8-98101-554-0 01 1 0804-0906 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(H) 		8-98101-554-0 01 1 0804-0906 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (H) 		8-98101-554-0 01 1 0907- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (H) 		8-98101-554-0 01 1 0907- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCS ENG(RJS) (H) 		8-98101-554-0 01 1 0907- ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97377-521-0 01 1 0710-0802 ● ● ●
238 04.892 ORIFICE; VACUUM HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-97377-521-0 01 1 0710-0802 ● ● ●
238 04.892 ORIFICE; VACUUM HOSE
FRAME STRAIGHT TYPE<7KJ> 		8-97377-521-0 01 1 0710-0802 ●
238 04.892 ORIFICE; VACUUM HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-97377-521-0 01 1 0710-0802 ● ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97377-521-0 01 1 0803-0803 ● ● ●
238 04.892 ORIFICE; VACUUM HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-97377-521-0 01 1 0803-0803 ● ● ● ●
238 04.892 ORIFICE; VACUUM HOSE
FRAME STRAIGHT TYPE<7KJ> 		8-97377-521-0 01 1 0803-0803 ●
238 04.892 ORIFICE; VACUUM HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-97377-521-0 01 1 0803-0803 ● ● ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97377-521-0 01 1 0804-1008 ● ● ●
238 04.892 ORIFICE; VACUUM HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-97377-521-0 01 1 0804-1008 ● ● ● ●
238 04.892 ORIFICE; VACUUM HOSE
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-97377-521-0 01 1 0804-1008 ●
238 04.892 ORIFICE; VACUUM HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-97377-521-0 01 1 0804-1008 ● ● ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97377-521-0 01 1 1009- ● ●
238 04.892 ORIFICE; VACUUM HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-97377-521-0 01 1 1009- ● ● ● ●
238 04.892 ORIFICE; VACUUM HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-97377-521-0 01 1 1009- ● ● ● ●
çizim 155932
122 136 136 136 78 136 136 78 44 136 158 236 44 78 136 136
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
44 04.930 PIPE; VAC,MAG VLV
(D) 		8-98063-777-0 01 1 0710-0802 ●
44 04.930 PIPE; VAC,MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98063-777-0 01 1 0710-0802 ● ●
44 04.930 PIPE; VAC,MAG VLV
(D) 		8-98063-777-0 01 1 0803-0803 ●
44 04.930 PIPE; VAC,MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98063-777-0 01 1 0803-0803 ●
44 04.930 PIPE; VAC,MAG VLV
(D) 		8-98063-777-0 01 1 0804-0906 ●
44 04.930 PIPE; VAC,MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98063-777-0 01 1 0804-0906 ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) (D) 		8-98063-777-0 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98063-777-0 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98034-374-0 01 1 0710-0710 ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98089-666-0 01 1 0711-0803 ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98089-666-0 01 1 0804- ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98095-039-0 01 1 0710-0803 ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98095-039-0 01 1 0804- ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98034-281-1 01 1 0710-0803 ● ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98034-281-1 01 1 0804-0906 ● ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98034-281-1 01 1 0907- ● ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (F) 		8-98070-194-0 01 1 0804-0906 ● ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (F) 		8-98070-194-0 01 1 0907- ● ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (G) 		8-98057-425-1 01 1 0804-0906 ● ● ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (G) 		8-98057-425-1 01 1 0907- ● ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (G) 		8-98057-425-1 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98040-807-1 01 1 0710-0803 ● ● ●
44 04.930 PIPE; VAC,MAG VLV
(C) 		8-98040-807-1 01 1 0710-0803 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98040-807-1 01 1 0804- ● ● ●
44 04.930 PIPE; VAC,MAG VLV
(C) 		8-98040-807-1 01 1 0804- ●
44 04.930 PIPE; VAC,MAG VLV
(E) 		8-98040-634-0 01 1 0710-0803 ● ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98040-634-0 01 1 0804-0906 ●
44 04.930 PIPE; VAC,MAG VLV
(E) 		8-98040-634-0 01 1 0804-0906 ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98040-634-0 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCS ENG(RJS) (E) 		8-98040-634-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98063-820-0 01 1 0710-0711 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98063-820-0 01 1 0710-0711 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98106-711-0 01 1 0712-0802 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98106-711-0 01 1 0712-0802 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98106-711-0 01 1 0803-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98106-711-0 01 1 0803-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98106-711-0 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98106-711-0 01 1 0804-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) (C) 		8-98106-711-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98106-711-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98092-678-0 01 1 0710-0802 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98092-678-0 01 1 0710-0802 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98092-678-0 01 1 0803-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98092-678-0 01 1 0803-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98092-678-0 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98092-678-0 01 1 0804-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) (B) 		8-98092-678-0 01 1 0907-1008 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98092-678-0 01 1 0907-1008 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) (B) 		8-98171-288-0 01 1 1009- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98171-288-0 01 1 1009- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (J) L=100 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0801 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (J) L=130 SERVICED BY L=3000 		0-08258-300-0 01 1 0802-0803 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (J) L=130 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-712-2 01 1 0710-0802 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97389-712-2 01 1 0710-0802 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-712-2 01 1 0803-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97389-712-2 01 1 0803-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-712-2 01 1 0804-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97389-712-2 01 1 0804-0906 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-712-2 01 1 0907-1205 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97389-712-2 01 1 0907-1205 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98220-704-0 01 1 1206- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98220-704-0 01 1 1206- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98034-104-4 01 1 0710-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98034-104-4 01 1 0804-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98034-104-4 01 1 0907-1103 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98189-106-0 01 1 1104- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98082-309-1 01 1 0710-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98082-309-1 01 1 0804-0903 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98133-654-1 01 1 0904-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98133-654-1 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (L) 		8-98057-462-0 01 1 0804-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (L) 		8-98057-462-0 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (M) 		8-98063-819-2 01 1 0804-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (M) 		8-98063-819-2 01 1 0907-1008 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (M) 		8-98171-287-0 01 1 1009- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (K) 		8-98112-680-0 01 1 0804-0906 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (K) 		8-98112-680-0 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (K) 		8-98112-680-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.686 (G) 		8-97386-589-0 01 1 0710-0906 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
04.686 (G) 		8-97386-589-0 01 1 0710-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.686 (G) 		8-97386-589-0 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.686 (G) 		8-97386-589-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) 04.686 (G) 		8-97386-589-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98041-427-3 01 1 0710-0808 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98041-427-3 01 1 0710-0808 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98129-223-0 01 1 0809-0906 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98129-223-0 01 1 0809-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98129-223-0 01 1 0907-0909 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98129-223-0 01 1 0907-0909 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) (H) 		8-98129-223-0 01 1 0907-0909 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98136-613-0 01 1 0910- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98136-613-0 01 1 0910- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) (H) 		8-98136-613-0 01 1 0910- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98080-833-1 01 1 0710- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98080-833-1 01 1 0710- ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-97389-728-2 01 1 0710-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-97389-728-2 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97389-728-2 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) (C) 		8-97389-728-2 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97389-728-2 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.681 (I) 		8-98096-135-0 01 1 0710-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
04.681 (I) 		8-98096-135-0 01 1 0710-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.681 (I) 		8-98096-135-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) 04.681 (I) 		8-98096-135-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) 03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98040-702-2 01 1 0710-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98040-702-2 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98040-702-2 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98040-702-2 01 1 0907-1103 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) (D) 		8-98040-702-2 01 1 0907-1103 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98189-103-0 01 1 1104- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) (D) 		8-98189-103-0 01 1 1104- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98092-677-0 01 1 0710-0802 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 0710-0802 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98092-677-0 01 1 0803-0803 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 0803-0803 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98092-677-0 01 1 0804-0906 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 0804-0906 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB) 		8-98092-677-0 01 1 0907- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 0907- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
FRAME STRAIGHT TYPE<7KJ> 		8-98034-103-2 01 1 0710-1103 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
FRAME STRAIGHT TYPE<7KJ> 		8-98189-104-0 01 1 1104- ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-97389-721-1 01 1 0710-0803 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-97389-721-1 01 1 0804-0906 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97389-721-1 01 1 0804-0906 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB) 		8-97389-721-1 01 1 0907- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97389-721-1 01 1 0907- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98040-701-1 01 1 0710-0803 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
FRAME STRAIGHT TYPE<7KJ> 		8-98040-701-1 01 1 0804-0906 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98040-701-1 01 1 0804-0906 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 		8-98040-701-1 01 1 0907-1103 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4HK1-TCS ENG(RJS) 		8-98040-701-1 01 1 0907-1103 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 		8-98189-105-0 01 1 1104- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4HK1-TCS ENG(RJS) 		8-98189-105-0 01 1 1104- ●
136 04.681 CLIP; VAC HOSE
04.930 ID=16 		8-94238-568-0 02 1 0710-0802 ●
136 04.681 CLIP; VAC HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16 		8-94238-568-0 02 1 0710-0802 ● ●
136 04.681 CLIP; VAC HOSE
04.930 ID=16 		8-94238-568-0 02 1 0803-0803 ●
136 04.681 CLIP; VAC HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16 		8-94238-568-0 02 1 0803-0803 ●
136 04.681 CLIP; VAC HOSE
04.930 ID=16 		8-94238-568-0 02 1 0804-0906 ●
136 04.681 CLIP; VAC HOSE
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) 04.930 ID=16 		8-94238-568-0 02 1 0804-0906 ● ●
136 04.681 CLIP; VAC HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16 		8-94238-568-0 02 1 0804-0906 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB) 04.930 ID=16 		8-94238-568-0 02 1 0907-0911 ●
136 04.681 CLIP; VAC HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) 04.930 ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16 		8-94238-568-0 02 1 0907-0911 ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB) 03.162 ID=16 		8-98008-098-0 02 1 0912- ●
136 04.681 CLIP; VAC HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16 		8-98008-098-0 02 1 0912- ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 02 1 0912- ●
136 04.681 CLIP; VAC HOSE
04.930 ID=16 		8-94238-568-0 04 1 0710-0802 ● ●
136 04.681 CLIP; VAC HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16 		8-94238-568-0 04 1 0710-0802 ● ●
136 04.681 CLIP; VAC HOSE
04.930 ID=16 		8-94238-568-0 04 1 0803-0803 ● ●
136 04.681 CLIP; VAC HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16 		8-94238-568-0 04 1 0803-0803 ●
136 04.681 CLIP; VAC HOSE
04.930 ID=16 		8-94238-568-0 04 1 0804-0906 ● ●
136 04.681 CLIP; VAC HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16 		8-94238-568-0 04 1 0804-0906 ● ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB) 04.930 ID=16 		8-94238-568-0 04 1 0907-0911 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16 		8-94238-568-0 04 1 0907-0911 ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16 		8-94238-568-0 04 1 0907-0911 ●
136 04.681 CLIP; VAC HOSE
03.162 ID=16 		8-98008-098-0 04 1 0912- ● ●
136 04.681 CLIP; VAC HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 04 1 0912- ● ●
136 04.681 CLIP; VAC HOSE
FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16 		8-94238-568-0 06 1 0710-0911 ● ● ● ●
136 04.681 CLIP; VAC HOSE
FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 0912- ● ● ● ●
158 04.681 CLIP; HOSE
02.559 ID=14-20 		8-97061-603-0 01 1 0710-0906 ● ● ●
158 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) 02.559 ID=14-20 		8-97061-603-0 01 1 0907- ●
158 04.681 CLIP; HOSE
02.559 ID=14-20 		8-97061-603-0 01 1 0907- ●
158 04.681 CLIP; HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 ID=14-20 		8-97061-603-0 01 1 0907- ●
236 04.930 BOLT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0710-0803 ● ●
236 04.930 BOLT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0804- ● ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0710-0710 ● ● ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0711-0803 ● ● ●
236 04.930 BOLT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0711-0803 ● ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0804- ● ● ●
236 04.930 BOLT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0804- ● ●
236 04.930 BOLT; PIPE
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0710-0803 ● ●
236 04.930 BOLT; PIPE
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0804-0906 ●
236 04.930 BOLT; PIPE
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0804-0906 ●
236 04.930 BOLT; PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0907- ●
236 04.930 BOLT; PIPE
4HK1-TCS ENG(RJS) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0907- ●
çizim 156191
202 165 234 39 184 20 234 96 116 234 116 12 13 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0803 ● ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0803 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0911 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) CATALYSIS CONTROL WITH DPD(8JM) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0911 ● ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0911 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) CATALYSIS CONTROL WITH DPD(8JM) FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ● ● ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 0710- ● ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ● ● ● ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ● ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 04 1 0710-0803 ● ● ●
12 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 04 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 04 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 04 1 0804-0911 ● ● ●
12 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16 		8-94238-568-0 04 1 0804-0911 ● ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 04 1 0804-0911 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ● ● ●
12 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ● ● ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 0710-0803 ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 0804- ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 0710-0803 ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 0804- ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 0710-0803 ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 0804- ● ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 06 1 0710- ● ● ● ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 02 1 0710- ● ● ● ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 02 1 0710- ● ● ● ●
20 04.686 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 01 1 0710-0711 ● ● ● ● ● ●
20 04.686 NUT; BRKT
EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 0712- ● ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912-1205 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912-1205 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1206- ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1206- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0906 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0906 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0906 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0906 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 08 1 0710-0801 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 04 1 0802- ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0710-0808 ● ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0710-0906 ● ● ●
39 04.681 CLIP; HOSE,VAC
04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0710-0906 ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0907-1005 ● ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0907-1005 ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCS ENG(RJS) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0907-1005 ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1006- ● ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCS ENG(RJS) (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 06.672 (D) ID=21 		8-94242-034-0 02 1 0710-0711 ●
39 04.681 CLIP; HOSE,VAC
06.672 (D) ID=21 		8-94242-034-0 02 1 0710-0711 ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 0712-0906 ●
39 04.681 CLIP; HOSE,VAC
08.846 (D) ID=21.7 		8-97203-074-0 02 1 0712-0906 ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 0907- ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCS ENG(RJS) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 0907- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98046-550-0 01 1 0710-0906 ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98046-550-0 01 1 0710-0906 ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98046-550-0 01 1 0710-0906 ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98046-550-0 01 1 0907-1205 ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 		8-98046-550-0 01 1 0907-1205 ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98046-550-0 01 1 0907-1205 ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98220-579-0 01 1 1206- ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1206- ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1206- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 0710- ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 0710- ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 0710- ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98094-547-0 01 1 0710- ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0710-0802 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0710-0802 ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0803-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0803-0803 ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0804-0906 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0804-0906 ● ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0907- ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0907- ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0802 ● ●
116 04.931 HOSE; VAC,M/VAC
03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0802 ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0803-0803 ●
116 04.931 HOSE; VAC,M/VAC
03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0803-0803 ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ● ● ●
116 04.931 HOSE; VAC,M/VAC
03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 0710- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (H) 		8-98034-276-2 01 1 0710-0911 ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (H) 		8-98158-378-0 01 1 0912- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 0710- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 0710- ● ● ● ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0710-1001 ● ● ● ● ● ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1002- ● ● ● ●
165 04.686 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1002- ● ● ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1002- ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0710- ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (H) 		8-98255-548-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (H) 		8-98255-548-0 01 1 1312- ● ● ●
184 04.685 BRACKET; UNION FIX
(H) 		8-98255-548-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98255-541-0 01 1 1312- ● ● ●
184 04.685 BRACKET; UNION FIX
(F) 		8-98255-541-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98155-345-0 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98155-345-0 01 1 1002-1102 ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98183-467-1 01 1 1103- ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98183-467-1 01 1 1103- ● ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98155-991-0 01 1 1002-1102 ● ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98183-472-1 01 1 1103-1103 ● ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98193-145-0 01 1 1104- ● ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98156-526-0 01 1 1002- ● ● ●
184 04.685 BRACKET; UNION FIX
(B) 		8-98017-628-1 01 1 0710-0711 ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 0712- ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0710-1001 ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-686-1 01 1 0710-1001 ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-97389-686-1 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (A) 		8-97389-686-1 01 1 1002-1102 ● ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1103-1311 ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1103-1311 ● ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-98183-462-1 01 1 1103-1311 ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (G) 		8-98255-535-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (G) 		8-98255-535-0 01 1 1312- ● ● ●
184 04.685 BRACKET; UNION FIX
(G) 		8-98255-535-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-992-2 01 1 0710-1001 ● ● ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98041-992-2 01 1 0710-1001 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98041-992-2 01 1 1002-1102 ● ● ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98041-992-2 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-470-1 01 1 1103-1103 ● ● ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98183-470-1 01 1 1103-1103 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98193-144-0 01 1 1104-1311 ● ● ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98193-144-0 01 1 1104-1311 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-539-0 01 1 1312- ● ● ●
184 04.685 BRACKET; UNION FIX
(E) 		8-98255-539-0 01 1 1312- ●
202 04.686 SEAL
08.845 		8-97856-616-0 02 1 0710- ● ● ● ● ● ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 04 1 0710- ● ● ● ● ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 03 1 0710- ● ● ● ● ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 03 1 0710- ● ● ● ●
çizim 156197
116 39 39 184 184 184 165
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912-1205 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912-1205 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1206- ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1206- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0906 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0906 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0906 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0906 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 08 1 0710-0801 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 04 1 0802- ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0710-0808 ● ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0710-0906 ● ● ●
39 04.681 CLIP; HOSE,VAC
04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0710-0906 ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0907-1005 ● ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0907-1005 ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCS ENG(RJS) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0907-1005 ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1006- ● ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCS ENG(RJS) (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 06.672 (D) ID=21 		8-94242-034-0 02 1 0710-0711 ●
39 04.681 CLIP; HOSE,VAC
06.672 (D) ID=21 		8-94242-034-0 02 1 0710-0711 ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 0712-0906 ●
39 04.681 CLIP; HOSE,VAC
08.846 (D) ID=21.7 		8-97203-074-0 02 1 0712-0906 ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 0907- ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCS ENG(RJS) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 0907- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 0710- ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 0710- ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 0710- ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98094-547-0 01 1 0710- ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0710-0802 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0710-0802 ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0803-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0803-0803 ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0804-0906 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0804-0906 ● ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0907- ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0907- ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0802 ● ●
116 04.931 HOSE; VAC,M/VAC
03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0802 ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0803-0803 ●
116 04.931 HOSE; VAC,M/VAC
03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0803-0803 ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ● ● ●
116 04.931 HOSE; VAC,M/VAC
03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 0710- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (H) 		8-98034-276-2 01 1 0710-0911 ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (H) 		8-98158-378-0 01 1 0912- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 0710- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 0710- ● ● ● ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0710-1001 ● ● ● ● ● ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1002- ● ● ● ●
165 04.686 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1002- ● ● ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1002- ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0710- ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (H) 		8-98255-548-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (H) 		8-98255-548-0 01 1 1312- ● ● ●
184 04.685 BRACKET; UNION FIX
(H) 		8-98255-548-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98255-541-0 01 1 1312- ● ● ●
184 04.685 BRACKET; UNION FIX
(F) 		8-98255-541-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98155-345-0 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98155-345-0 01 1 1002-1102 ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98183-467-1 01 1 1103- ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98183-467-1 01 1 1103- ● ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98155-991-0 01 1 1002-1102 ● ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98183-472-1 01 1 1103-1103 ● ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98193-145-0 01 1 1104- ● ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98156-526-0 01 1 1002- ● ● ●
184 04.685 BRACKET; UNION FIX
(B) 		8-98017-628-1 01 1 0710-0711 ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 0712- ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0710-1001 ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-686-1 01 1 0710-1001 ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-97389-686-1 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (A) 		8-97389-686-1 01 1 1002-1102 ● ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1103-1311 ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1103-1311 ● ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-98183-462-1 01 1 1103-1311 ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (G) 		8-98255-535-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (G) 		8-98255-535-0 01 1 1312- ● ● ●
184 04.685 BRACKET; UNION FIX
(G) 		8-98255-535-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-992-2 01 1 0710-1001 ● ● ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98041-992-2 01 1 0710-1001 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98041-992-2 01 1 1002-1102 ● ● ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98041-992-2 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-470-1 01 1 1103-1103 ● ● ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98183-470-1 01 1 1103-1103 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98193-144-0 01 1 1104-1311 ● ● ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98193-144-0 01 1 1104-1311 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-539-0 01 1 1312- ● ● ●
184 04.685 BRACKET; UNION FIX
(E) 		8-98255-539-0 01 1 1312- ●
çizim 156203
116 39 39 39 39 165 165 165 184 184 184 184 120 12 12 12 12 12 12 13 13 157 157 157 157 203 116
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0803 ● ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0803 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0911 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) CATALYSIS CONTROL WITH DPD(8JM) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0911 ● ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0911 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) CATALYSIS CONTROL WITH DPD(8JM) FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ● ● ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 0710- ● ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ● ● ● ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ● ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 04 1 0710-0803 ● ● ●
12 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 04 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 04 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 04 1 0804-0911 ● ● ●
12 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16 		8-94238-568-0 04 1 0804-0911 ● ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 04 1 0804-0911 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ● ● ●
12 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ● ● ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 0710-0803 ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 0804- ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 0710-0803 ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 0804- ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 0710-0803 ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 0804- ● ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 06 1 0710- ● ● ● ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 02 1 0710- ● ● ● ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 02 1 0710- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912-1205 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912-1205 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1206- ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1206- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0906 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0906 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0906 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0906 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 08 1 0710-0801 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 04 1 0802- ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0710-0808 ● ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0710-0906 ● ● ●
39 04.681 CLIP; HOSE,VAC
04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0710-0906 ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0907-1005 ● ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0907-1005 ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCS ENG(RJS) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0907-1005 ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1006- ● ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCS ENG(RJS) (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 06.672 (D) ID=21 		8-94242-034-0 02 1 0710-0711 ●
39 04.681 CLIP; HOSE,VAC
06.672 (D) ID=21 		8-94242-034-0 02 1 0710-0711 ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 0712-0906 ●
39 04.681 CLIP; HOSE,VAC
08.846 (D) ID=21.7 		8-97203-074-0 02 1 0712-0906 ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 0907- ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCS ENG(RJS) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 0907- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 0710- ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 0710- ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 0710- ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98094-547-0 01 1 0710- ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0710-0802 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0710-0802 ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0803-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0803-0803 ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0804-0906 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0804-0906 ● ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0907- ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0907- ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0802 ● ●
116 04.931 HOSE; VAC,M/VAC
03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0802 ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0803-0803 ●
116 04.931 HOSE; VAC,M/VAC
03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0803-0803 ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ● ● ●
116 04.931 HOSE; VAC,M/VAC
03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 0710- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (H) 		8-98034-276-2 01 1 0710-0911 ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (H) 		8-98158-378-0 01 1 0912- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 0710- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 0710- ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-695-2 01 1 0710- ● ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98027-352-3 01 1 0710- ● ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-696-2 01 1 0710- ● ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98017-168-3 01 1 0710- ● ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98027-350-3 01 1 0710- ● ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98027-351-3 01 1 0710- ● ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98027-353-3 01 1 0710- ● ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98027-354-2 01 1 0710- ● ● ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98022-868-3 01 1 0710- ● ● ● ● ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0710-1001 ● ● ● ● ● ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1002- ● ● ● ●
165 04.686 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1002- ● ● ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1002- ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0710- ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (H) 		8-98255-548-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (H) 		8-98255-548-0 01 1 1312- ● ● ●
184 04.685 BRACKET; UNION FIX
(H) 		8-98255-548-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98255-541-0 01 1 1312- ● ● ●
184 04.685 BRACKET; UNION FIX
(F) 		8-98255-541-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98155-345-0 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98155-345-0 01 1 1002-1102 ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98183-467-1 01 1 1103- ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98183-467-1 01 1 1103- ● ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98155-991-0 01 1 1002-1102 ● ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98183-472-1 01 1 1103-1103 ● ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98193-145-0 01 1 1104- ● ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98156-526-0 01 1 1002- ● ● ●
184 04.685 BRACKET; UNION FIX
(B) 		8-98017-628-1 01 1 0710-0711 ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 0712- ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0710-1001 ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-686-1 01 1 0710-1001 ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-97389-686-1 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (A) 		8-97389-686-1 01 1 1002-1102 ● ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1103-1311 ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1103-1311 ● ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-98183-462-1 01 1 1103-1311 ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (G) 		8-98255-535-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (G) 		8-98255-535-0 01 1 1312- ● ● ●
184 04.685 BRACKET; UNION FIX
(G) 		8-98255-535-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-992-2 01 1 0710-1001 ● ● ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98041-992-2 01 1 0710-1001 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98041-992-2 01 1 1002-1102 ● ● ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98041-992-2 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-470-1 01 1 1103-1103 ● ● ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98183-470-1 01 1 1103-1103 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98193-144-0 01 1 1104-1311 ● ● ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98193-144-0 01 1 1104-1311 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-539-0 01 1 1312- ● ● ●
184 04.685 BRACKET; UNION FIX
(E) 		8-98255-539-0 01 1 1312- ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-94104-021-0 01 1 0710- ● ● ● ● ●
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 0710- ● ●
203 04.690 VALVE; CHECK
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-94386-540-0 01 1 0710- ● ● ●
çizim 156205
202 165 234 173 39 108 184 20 234 96 116 234 116 157 120 12 203 13 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0803 ● ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0803 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0911 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) CATALYSIS CONTROL WITH DPD(8JM) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0911 ● ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0911 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) CATALYSIS CONTROL WITH DPD(8JM) FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ● ● ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 0710- ● ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ● ● ● ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ● ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 04 1 0710-0803 ● ● ●
12 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 04 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 04 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 04 1 0804-0911 ● ● ●
12 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16 		8-94238-568-0 04 1 0804-0911 ● ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 04 1 0804-0911 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ● ● ●
12 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ● ● ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 0710-0803 ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 0804- ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 0710-0803 ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 0804- ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 0710-0803 ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 0804- ● ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 06 1 0710- ● ● ● ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 02 1 0710- ● ● ● ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 02 1 0710- ● ● ● ●
20 04.686 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 01 1 0710-0711 ● ● ● ● ● ●
20 04.686 NUT; BRKT
EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 0712- ● ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912-1205 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912-1205 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1206- ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1206- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0906 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0906 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0906 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0906 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 08 1 0710-0801 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 04 1 0802- ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0710-0808 ● ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0710-0906 ● ● ●
39 04.681 CLIP; HOSE,VAC
04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0710-0906 ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0907-1005 ● ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0907-1005 ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCS ENG(RJS) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0907-1005 ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1006- ● ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCS ENG(RJS) (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 06.672 (D) ID=21 		8-94242-034-0 02 1 0710-0711 ●
39 04.681 CLIP; HOSE,VAC
06.672 (D) ID=21 		8-94242-034-0 02 1 0710-0711 ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 0712-0906 ●
39 04.681 CLIP; HOSE,VAC
08.846 (D) ID=21.7 		8-97203-074-0 02 1 0712-0906 ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 0907- ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCS ENG(RJS) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 0907- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98046-550-0 01 1 0710-0906 ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98046-550-0 01 1 0710-0906 ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98046-550-0 01 1 0710-0906 ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98046-550-0 01 1 0907-1205 ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 		8-98046-550-0 01 1 0907-1205 ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98046-550-0 01 1 0907-1205 ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98220-579-0 01 1 1206- ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1206- ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1206- ● ● ●
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 0710-0803 ● ● ● ● ● ●
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 0804- ● ● ● ● ● ●
108 04.931 GROMMET; PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) 02.343 (B) ID=17 		8-94128-319-2 01 1 0804- ● ● ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 0710- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 0710- ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 0710- ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 0710- ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98094-547-0 01 1 0710- ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0710-0802 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0710-0802 ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0803-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0803-0803 ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0804-0906 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0804-0906 ● ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0907- ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0907- ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0802 ● ●
116 04.931 HOSE; VAC,M/VAC
03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0802 ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0803-0803 ●
116 04.931 HOSE; VAC,M/VAC
03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0803-0803 ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ● ● ●
116 04.931 HOSE; VAC,M/VAC
03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 0710- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (H) 		8-98034-276-2 01 1 0710-0911 ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (H) 		8-98158-378-0 01 1 0912- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 0710- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 0710- ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-695-2 01 1 0710- ● ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98027-352-3 01 1 0710- ● ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-696-2 01 1 0710- ● ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98017-168-3 01 1 0710- ● ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98027-350-3 01 1 0710- ● ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98027-351-3 01 1 0710- ● ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98027-353-3 01 1 0710- ● ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98027-354-2 01 1 0710- ● ● ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98022-868-3 01 1 0710- ● ● ● ● ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0710-1001 ● ● ● ● ● ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1002- ● ● ● ●
165 04.686 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1002- ● ● ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1002- ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0710- ● ● ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98055-936-1 01 1 0710-1012 ● ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98121-941-0 01 1 1101- ● ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98055-937-1 01 1 0710-1012 ● ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98121-940-0 01 1 1101- ● ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98022-870-1 01 1 0710-1012 ● ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98107-558-0 01 1 1101- ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (H) 		8-98255-548-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (H) 		8-98255-548-0 01 1 1312- ● ● ●
184 04.685 BRACKET; UNION FIX
(H) 		8-98255-548-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98255-541-0 01 1 1312- ● ● ●
184 04.685 BRACKET; UNION FIX
(F) 		8-98255-541-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98155-345-0 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98155-345-0 01 1 1002-1102 ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98183-467-1 01 1 1103- ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98183-467-1 01 1 1103- ● ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98155-991-0 01 1 1002-1102 ● ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98183-472-1 01 1 1103-1103 ● ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98193-145-0 01 1 1104- ● ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98156-526-0 01 1 1002- ● ● ●
184 04.685 BRACKET; UNION FIX
(B) 		8-98017-628-1 01 1 0710-0711 ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 0712- ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0710-1001 ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-686-1 01 1 0710-1001 ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-97389-686-1 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (A) 		8-97389-686-1 01 1 1002-1102 ● ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1103-1311 ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1103-1311 ● ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-98183-462-1 01 1 1103-1311 ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (G) 		8-98255-535-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (G) 		8-98255-535-0 01 1 1312- ● ● ●
184 04.685 BRACKET; UNION FIX
(G) 		8-98255-535-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-992-2 01 1 0710-1001 ● ● ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98041-992-2 01 1 0710-1001 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98041-992-2 01 1 1002-1102 ● ● ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98041-992-2 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-470-1 01 1 1103-1103 ● ● ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98183-470-1 01 1 1103-1103 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98193-144-0 01 1 1104-1311 ● ● ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98193-144-0 01 1 1104-1311 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-539-0 01 1 1312- ● ● ●
184 04.685 BRACKET; UNION FIX
(E) 		8-98255-539-0 01 1 1312- ●
202 04.686 SEAL
08.845 		8-97856-616-0 02 1 0710- ● ● ● ● ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-94104-021-0 01 1 0710- ● ● ● ● ●
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 0710- ● ●
203 04.690 VALVE; CHECK
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-94386-540-0 01 1 0710- ● ● ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 04 1 0710- ● ● ● ● ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 03 1 0710- ● ● ● ● ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 03 1 0710- ● ● ● ●
çizim 156207
236 122 136 136 78 136 136 136 158 78 136 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
44 04.930 PIPE; VAC,MAG VLV
(D) 		8-98063-777-0 01 1 0710-0802 ●
44 04.930 PIPE; VAC,MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98063-777-0 01 1 0710-0802 ● ●
44 04.930 PIPE; VAC,MAG VLV
(D) 		8-98063-777-0 01 1 0803-0803 ●
44 04.930 PIPE; VAC,MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98063-777-0 01 1 0803-0803 ●
44 04.930 PIPE; VAC,MAG VLV
(D) 		8-98063-777-0 01 1 0804-0906 ●
44 04.930 PIPE; VAC,MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98063-777-0 01 1 0804-0906 ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) (D) 		8-98063-777-0 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98063-777-0 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98034-374-0 01 1 0710-0710 ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98089-666-0 01 1 0711-0803 ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98089-666-0 01 1 0804- ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98095-039-0 01 1 0710-0803 ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98095-039-0 01 1 0804- ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98034-281-1 01 1 0710-0803 ● ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98034-281-1 01 1 0804-0906 ● ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98034-281-1 01 1 0907- ● ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (F) 		8-98070-194-0 01 1 0804-0906 ● ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (F) 		8-98070-194-0 01 1 0907- ● ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (G) 		8-98057-425-1 01 1 0804-0906 ● ● ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (G) 		8-98057-425-1 01 1 0907- ● ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (G) 		8-98057-425-1 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98040-807-1 01 1 0710-0803 ● ● ●
44 04.930 PIPE; VAC,MAG VLV
(C) 		8-98040-807-1 01 1 0710-0803 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98040-807-1 01 1 0804- ● ● ●
44 04.930 PIPE; VAC,MAG VLV
(C) 		8-98040-807-1 01 1 0804- ●
44 04.930 PIPE; VAC,MAG VLV
(E) 		8-98040-634-0 01 1 0710-0803 ● ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98040-634-0 01 1 0804-0906 ●
44 04.930 PIPE; VAC,MAG VLV
(E) 		8-98040-634-0 01 1 0804-0906 ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98040-634-0 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCS ENG(RJS) (E) 		8-98040-634-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98063-820-0 01 1 0710-0711 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98063-820-0 01 1 0710-0711 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98106-711-0 01 1 0712-0802 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98106-711-0 01 1 0712-0802 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98106-711-0 01 1 0803-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98106-711-0 01 1 0803-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98106-711-0 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98106-711-0 01 1 0804-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) (C) 		8-98106-711-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98106-711-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98092-678-0 01 1 0710-0802 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98092-678-0 01 1 0710-0802 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98092-678-0 01 1 0803-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98092-678-0 01 1 0803-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98092-678-0 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98092-678-0 01 1 0804-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) (B) 		8-98092-678-0 01 1 0907-1008 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98092-678-0 01 1 0907-1008 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) (B) 		8-98171-288-0 01 1 1009- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98171-288-0 01 1 1009- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (J) L=100 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0801 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (J) L=130 SERVICED BY L=3000 		0-08258-300-0 01 1 0802-0803 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (J) L=130 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-712-2 01 1 0710-0802 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97389-712-2 01 1 0710-0802 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-712-2 01 1 0803-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97389-712-2 01 1 0803-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-712-2 01 1 0804-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97389-712-2 01 1 0804-0906 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-712-2 01 1 0907-1205 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97389-712-2 01 1 0907-1205 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98220-704-0 01 1 1206- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98220-704-0 01 1 1206- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98034-104-4 01 1 0710-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98034-104-4 01 1 0804-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98034-104-4 01 1 0907-1103 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98189-106-0 01 1 1104- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98082-309-1 01 1 0710-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98082-309-1 01 1 0804-0903 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98133-654-1 01 1 0904-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98133-654-1 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (L) 		8-98057-462-0 01 1 0804-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (L) 		8-98057-462-0 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (M) 		8-98063-819-2 01 1 0804-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (M) 		8-98063-819-2 01 1 0907-1008 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (M) 		8-98171-287-0 01 1 1009- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (K) 		8-98112-680-0 01 1 0804-0906 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (K) 		8-98112-680-0 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (K) 		8-98112-680-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.686 (G) 		8-97386-589-0 01 1 0710-0906 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
04.686 (G) 		8-97386-589-0 01 1 0710-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.686 (G) 		8-97386-589-0 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.686 (G) 		8-97386-589-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) 04.686 (G) 		8-97386-589-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98041-427-3 01 1 0710-0808 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98041-427-3 01 1 0710-0808 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98129-223-0 01 1 0809-0906 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98129-223-0 01 1 0809-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98129-223-0 01 1 0907-0909 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98129-223-0 01 1 0907-0909 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) (H) 		8-98129-223-0 01 1 0907-0909 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98136-613-0 01 1 0910- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98136-613-0 01 1 0910- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) (H) 		8-98136-613-0 01 1 0910- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98080-833-1 01 1 0710- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98080-833-1 01 1 0710- ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-97389-728-2 01 1 0710-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-97389-728-2 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97389-728-2 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) (C) 		8-97389-728-2 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97389-728-2 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.681 (I) 		8-98096-135-0 01 1 0710-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
04.681 (I) 		8-98096-135-0 01 1 0710-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.681 (I) 		8-98096-135-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) 04.681 (I) 		8-98096-135-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) 03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98040-702-2 01 1 0710-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98040-702-2 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98040-702-2 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98040-702-2 01 1 0907-1103 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) (D) 		8-98040-702-2 01 1 0907-1103 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98189-103-0 01 1 1104- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) (D) 		8-98189-103-0 01 1 1104- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98092-677-0 01 1 0710-0802 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 0710-0802 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98092-677-0 01 1 0803-0803 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 0803-0803 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98092-677-0 01 1 0804-0906 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 0804-0906 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB) 		8-98092-677-0 01 1 0907- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 0907- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
FRAME STRAIGHT TYPE<7KJ> 		8-98034-103-2 01 1 0710-1103 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
FRAME STRAIGHT TYPE<7KJ> 		8-98189-104-0 01 1 1104- ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-97389-721-1 01 1 0710-0803 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-97389-721-1 01 1 0804-0906 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97389-721-1 01 1 0804-0906 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB) 		8-97389-721-1 01 1 0907- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97389-721-1 01 1 0907- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98040-701-1 01 1 0710-0803 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
FRAME STRAIGHT TYPE<7KJ> 		8-98040-701-1 01 1 0804-0906 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98040-701-1 01 1 0804-0906 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 		8-98040-701-1 01 1 0907-1103 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4HK1-TCS ENG(RJS) 		8-98040-701-1 01 1 0907-1103 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 		8-98189-105-0 01 1 1104- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4HK1-TCS ENG(RJS) 		8-98189-105-0 01 1 1104- ●
136 04.681 CLIP; VAC HOSE
04.930 ID=16 		8-94238-568-0 02 1 0710-0802 ●
136 04.681 CLIP; VAC HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16 		8-94238-568-0 02 1 0710-0802 ● ●
136 04.681 CLIP; VAC HOSE
04.930 ID=16 		8-94238-568-0 02 1 0803-0803 ●
136 04.681 CLIP; VAC HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16 		8-94238-568-0 02 1 0803-0803 ●
136 04.681 CLIP; VAC HOSE
04.930 ID=16 		8-94238-568-0 02 1 0804-0906 ●
136 04.681 CLIP; VAC HOSE
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) 04.930 ID=16 		8-94238-568-0 02 1 0804-0906 ● ●
136 04.681 CLIP; VAC HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16 		8-94238-568-0 02 1 0804-0906 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB) 04.930 ID=16 		8-94238-568-0 02 1 0907-0911 ●
136 04.681 CLIP; VAC HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) 04.930 ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16 		8-94238-568-0 02 1 0907-0911 ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB) 03.162 ID=16 		8-98008-098-0 02 1 0912- ●
136 04.681 CLIP; VAC HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16 		8-98008-098-0 02 1 0912- ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 02 1 0912- ●
136 04.681 CLIP; VAC HOSE
04.930 ID=16 		8-94238-568-0 04 1 0710-0802 ● ●
136 04.681 CLIP; VAC HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16 		8-94238-568-0 04 1 0710-0802 ● ●
136 04.681 CLIP; VAC HOSE
04.930 ID=16 		8-94238-568-0 04 1 0803-0803 ● ●
136 04.681 CLIP; VAC HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16 		8-94238-568-0 04 1 0803-0803 ●
136 04.681 CLIP; VAC HOSE
04.930 ID=16 		8-94238-568-0 04 1 0804-0906 ● ●
136 04.681 CLIP; VAC HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16 		8-94238-568-0 04 1 0804-0906 ● ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB) 04.930 ID=16 		8-94238-568-0 04 1 0907-0911 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16 		8-94238-568-0 04 1 0907-0911 ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16 		8-94238-568-0 04 1 0907-0911 ●
136 04.681 CLIP; VAC HOSE
03.162 ID=16 		8-98008-098-0 04 1 0912- ● ●
136 04.681 CLIP; VAC HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 04 1 0912- ● ●
136 04.681 CLIP; VAC HOSE
FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16 		8-94238-568-0 06 1 0710-0911 ● ● ● ●
136 04.681 CLIP; VAC HOSE
FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 0912- ● ● ● ●
158 04.681 CLIP; HOSE
02.559 ID=14-20 		8-97061-603-0 01 1 0710-0906 ● ● ●
158 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) 02.559 ID=14-20 		8-97061-603-0 01 1 0907- ●
158 04.681 CLIP; HOSE
02.559 ID=14-20 		8-97061-603-0 01 1 0907- ●
158 04.681 CLIP; HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 ID=14-20 		8-97061-603-0 01 1 0907- ●
236 04.930 BOLT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0710-0803 ● ●
236 04.930 BOLT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0804- ● ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0710-0710 ● ● ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0711-0803 ● ● ●
236 04.930 BOLT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0711-0803 ● ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0804- ● ● ●
236 04.930 BOLT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0804- ● ●
236 04.930 BOLT; PIPE
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0710-0803 ● ●
236 04.930 BOLT; PIPE
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0804-0906 ●
236 04.930 BOLT; PIPE
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0804-0906 ●
236 04.930 BOLT; PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0907- ●
236 04.930 BOLT; PIPE
4HK1-TCS ENG(RJS) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0907- ●
çizim 156208
202 165 234 173 12 12 184 116 163 20 234 173 96 157 120 116 234 12 234 203 13 39 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0803 ● ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0803 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0911 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) CATALYSIS CONTROL WITH DPD(8JM) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0911 ● ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0911 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) CATALYSIS CONTROL WITH DPD(8JM) FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ● ● ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 0710- ● ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ● ● ● ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ● ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 04 1 0710-0803 ● ● ●
12 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 04 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 04 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 04 1 0804-0911 ● ● ●
12 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16 		8-94238-568-0 04 1 0804-0911 ● ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 04 1 0804-0911 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ● ● ●
12 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ● ● ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 0710-0803 ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 0804- ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 0710-0803 ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 0804- ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 0710-0803 ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 0804- ● ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 06 1 0710- ● ● ● ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 02 1 0710- ● ● ● ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 02 1 0710- ● ● ● ●
20 04.686 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 01 1 0710-0711 ● ● ● ● ● ●
20 04.686 NUT; BRKT
EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 0712- ● ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912-1205 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912-1205 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1206- ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1206- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0906 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0906 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0906 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0906 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 08 1 0710-0801 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 04 1 0802- ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0710-0808 ● ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0710-0906 ● ● ●
39 04.681 CLIP; HOSE,VAC
04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0710-0906 ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0907-1005 ● ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0907-1005 ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCS ENG(RJS) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0907-1005 ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1006- ● ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCS ENG(RJS) (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 06.672 (D) ID=21 		8-94242-034-0 02 1 0710-0711 ●
39 04.681 CLIP; HOSE,VAC
06.672 (D) ID=21 		8-94242-034-0 02 1 0710-0711 ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 0712-0906 ●
39 04.681 CLIP; HOSE,VAC
08.846 (D) ID=21.7 		8-97203-074-0 02 1 0712-0906 ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 0907- ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCS ENG(RJS) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 0907- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98046-550-0 01 1 0710-0906 ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98046-550-0 01 1 0710-0906 ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98046-550-0 01 1 0710-0906 ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98046-550-0 01 1 0907-1205 ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 		8-98046-550-0 01 1 0907-1205 ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98046-550-0 01 1 0907-1205 ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98220-579-0 01 1 1206- ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1206- ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1206- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 0710- ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 0710- ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 0710- ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98094-547-0 01 1 0710- ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0710-0802 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0710-0802 ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0803-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0803-0803 ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0804-0906 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0804-0906 ● ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0907- ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0907- ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0802 ● ●
116 04.931 HOSE; VAC,M/VAC
03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0802 ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0803-0803 ●
116 04.931 HOSE; VAC,M/VAC
03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0803-0803 ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ● ● ●
116 04.931 HOSE; VAC,M/VAC
03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 0710- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (H) 		8-98034-276-2 01 1 0710-0911 ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (H) 		8-98158-378-0 01 1 0912- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 0710- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 0710- ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-695-2 01 1 0710- ● ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98027-352-3 01 1 0710- ● ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-696-2 01 1 0710- ● ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98017-168-3 01 1 0710- ● ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98027-350-3 01 1 0710- ● ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98027-351-3 01 1 0710- ● ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98027-353-3 01 1 0710- ● ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98027-354-2 01 1 0710- ● ● ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98022-868-3 01 1 0710- ● ● ● ● ●
163 04.681 JOINT; VAC HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.163 		8-97353-668-0 01 1 0710- ● ● ● ● ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0710-1001 ● ● ● ● ● ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1002- ● ● ● ●
165 04.686 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1002- ● ● ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1002- ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0710- ● ● ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98055-936-1 01 1 0710-1012 ● ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98121-941-0 01 1 1101- ● ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98055-937-1 01 1 0710-1012 ● ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98121-940-0 01 1 1101- ● ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98022-870-1 01 1 0710-1012 ● ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98107-558-0 01 1 1101- ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (H) 		8-98255-548-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (H) 		8-98255-548-0 01 1 1312- ● ● ●
184 04.685 BRACKET; UNION FIX
(H) 		8-98255-548-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98255-541-0 01 1 1312- ● ● ●
184 04.685 BRACKET; UNION FIX
(F) 		8-98255-541-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98155-345-0 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98155-345-0 01 1 1002-1102 ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98183-467-1 01 1 1103- ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98183-467-1 01 1 1103- ● ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98155-991-0 01 1 1002-1102 ● ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98183-472-1 01 1 1103-1103 ● ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98193-145-0 01 1 1104- ● ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98156-526-0 01 1 1002- ● ● ●
184 04.685 BRACKET; UNION FIX
(B) 		8-98017-628-1 01 1 0710-0711 ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 0712- ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0710-1001 ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-686-1 01 1 0710-1001 ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-97389-686-1 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (A) 		8-97389-686-1 01 1 1002-1102 ● ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1103-1311 ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1103-1311 ● ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-98183-462-1 01 1 1103-1311 ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (G) 		8-98255-535-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (G) 		8-98255-535-0 01 1 1312- ● ● ●
184 04.685 BRACKET; UNION FIX
(G) 		8-98255-535-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-992-2 01 1 0710-1001 ● ● ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98041-992-2 01 1 0710-1001 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98041-992-2 01 1 1002-1102 ● ● ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98041-992-2 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-470-1 01 1 1103-1103 ● ● ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98183-470-1 01 1 1103-1103 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98193-144-0 01 1 1104-1311 ● ● ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98193-144-0 01 1 1104-1311 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-539-0 01 1 1312- ● ● ●
184 04.685 BRACKET; UNION FIX
(E) 		8-98255-539-0 01 1 1312- ●
202 04.686 SEAL
08.845 		8-97856-616-0 02 1 0710- ● ● ● ● ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-94104-021-0 01 1 0710- ● ● ● ● ●
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 0710- ● ●
203 04.690 VALVE; CHECK
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-94386-540-0 01 1 0710- ● ● ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 04 1 0710- ● ● ● ● ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 03 1 0710- ● ● ● ● ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 03 1 0710- ● ● ● ●
çizim 156209
96 116 78 169 75 66 66 66 66 169 66 66 116 116 33 66 116 169 66 235 108 39 39 39 39
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
33 04.930 CLIP; VAC PIPE
EXC. HYDRO BRAKE BOOSTER(7QQ) ID=10 H=40 		8-94462-219-0 02 1 0710-0906 ● ● ● ● ●
33 04.930 CLIP; VAC PIPE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) ID=10 H=40 		8-94462-219-0 02 1 0710-0906 ● ● ● ●
33 04.930 CLIP; VAC PIPE
EXC. HYDRO BRAKE BOOSTER(7QQ) ID=10 H=40 		8-94462-219-0 02 1 0907- ● ● ● ● ●
33 04.930 CLIP; VAC PIPE
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) ID=10 H=40 		8-94462-219-0 02 1 0907- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912-1205 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912-1205 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1206- ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1206- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0906 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0906 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0906 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0906 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 08 1 0710-0801 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 04 1 0802- ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0710-0808 ● ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0710-0906 ● ● ●
39 04.681 CLIP; HOSE,VAC
04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0710-0906 ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0907-1005 ● ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0907-1005 ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCS ENG(RJS) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0907-1005 ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1006- ● ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCS ENG(RJS) (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 06.672 (D) ID=21 		8-94242-034-0 02 1 0710-0711 ●
39 04.681 CLIP; HOSE,VAC
06.672 (D) ID=21 		8-94242-034-0 02 1 0710-0711 ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 0712-0906 ●
39 04.681 CLIP; HOSE,VAC
08.846 (D) ID=21.7 		8-97203-074-0 02 1 0712-0906 ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 0907- ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCS ENG(RJS) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 0907- ●
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 02 1 0710-0803 ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 02 1 0804-0906 ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> ID=16 		8-94238-568-0 02 1 0804-0906 ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) ID=16 		8-94238-568-0 02 1 0804-0906 ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 02 1 0912- ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16 		8-98008-098-0 02 1 0912- ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> ID=16 		8-94238-568-0 06 1 0710-0911 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 0912- ● ● ● ●
75 04.930 NUT; CLIP,VAC HOSE
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0710- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98063-820-0 01 1 0710-0711 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98063-820-0 01 1 0710-0711 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98106-711-0 01 1 0712-0802 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98106-711-0 01 1 0712-0802 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98106-711-0 01 1 0803-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98106-711-0 01 1 0803-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98106-711-0 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98106-711-0 01 1 0804-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) (C) 		8-98106-711-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98106-711-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98092-678-0 01 1 0710-0802 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98092-678-0 01 1 0710-0802 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98092-678-0 01 1 0803-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98092-678-0 01 1 0803-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98092-678-0 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98092-678-0 01 1 0804-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) (B) 		8-98092-678-0 01 1 0907-1008 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98092-678-0 01 1 0907-1008 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) (B) 		8-98171-288-0 01 1 1009- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98171-288-0 01 1 1009- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (J) L=100 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0801 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (J) L=130 SERVICED BY L=3000 		0-08258-300-0 01 1 0802-0803 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (J) L=130 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-712-2 01 1 0710-0802 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97389-712-2 01 1 0710-0802 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-712-2 01 1 0803-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97389-712-2 01 1 0803-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-712-2 01 1 0804-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97389-712-2 01 1 0804-0906 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-712-2 01 1 0907-1205 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97389-712-2 01 1 0907-1205 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98220-704-0 01 1 1206- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98220-704-0 01 1 1206- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98034-104-4 01 1 0710-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98034-104-4 01 1 0804-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98034-104-4 01 1 0907-1103 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98189-106-0 01 1 1104- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98082-309-1 01 1 0710-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98082-309-1 01 1 0804-0903 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98133-654-1 01 1 0904-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98133-654-1 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (L) 		8-98057-462-0 01 1 0804-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (L) 		8-98057-462-0 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (M) 		8-98063-819-2 01 1 0804-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (M) 		8-98063-819-2 01 1 0907-1008 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (M) 		8-98171-287-0 01 1 1009- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (K) 		8-98112-680-0 01 1 0804-0906 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (K) 		8-98112-680-0 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (K) 		8-98112-680-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.686 (G) 		8-97386-589-0 01 1 0710-0906 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
04.686 (G) 		8-97386-589-0 01 1 0710-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.686 (G) 		8-97386-589-0 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.686 (G) 		8-97386-589-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) 04.686 (G) 		8-97386-589-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98041-427-3 01 1 0710-0808 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98041-427-3 01 1 0710-0808 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98129-223-0 01 1 0809-0906 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98129-223-0 01 1 0809-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98129-223-0 01 1 0907-0909 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98129-223-0 01 1 0907-0909 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) (H) 		8-98129-223-0 01 1 0907-0909 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98136-613-0 01 1 0910- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98136-613-0 01 1 0910- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) (H) 		8-98136-613-0 01 1 0910- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98080-833-1 01 1 0710- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98080-833-1 01 1 0710- ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-97389-728-2 01 1 0710-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-97389-728-2 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97389-728-2 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) (C) 		8-97389-728-2 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97389-728-2 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.681 (I) 		8-98096-135-0 01 1 0710-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
04.681 (I) 		8-98096-135-0 01 1 0710-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.681 (I) 		8-98096-135-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) 04.681 (I) 		8-98096-135-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) 03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98040-702-2 01 1 0710-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98040-702-2 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98040-702-2 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98040-702-2 01 1 0907-1103 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) (D) 		8-98040-702-2 01 1 0907-1103 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98189-103-0 01 1 1104- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) (D) 		8-98189-103-0 01 1 1104- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98046-550-0 01 1 0710-0906 ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98046-550-0 01 1 0710-0906 ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98046-550-0 01 1 0710-0906 ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98046-550-0 01 1 0907-1205 ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 		8-98046-550-0 01 1 0907-1205 ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98046-550-0 01 1 0907-1205 ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98220-579-0 01 1 1206- ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1206- ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1206- ● ● ●
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 0710-0803 ● ● ● ● ● ●
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 0804- ● ● ● ● ● ●
108 04.931 GROMMET; PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) 02.343 (B) ID=17 		8-94128-319-2 01 1 0804- ● ● ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 0710- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 0710- ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 0710- ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 0710- ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98094-547-0 01 1 0710- ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0710-0802 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0710-0802 ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0803-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0803-0803 ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0804-0906 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0804-0906 ● ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0907- ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0907- ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0802 ● ●
116 04.931 HOSE; VAC,M/VAC
03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0802 ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0803-0803 ●
116 04.931 HOSE; VAC,M/VAC
03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0803-0803 ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ● ● ●
116 04.931 HOSE; VAC,M/VAC
03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 0710- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (H) 		8-98034-276-2 01 1 0710-0911 ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (H) 		8-98158-378-0 01 1 0912- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 0710- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 0710- ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T), CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98048-903-0 01 1 0804-0906 ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T), CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98048-903-0 01 1 0907- ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T), CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98048-903-0 01 1 0907- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) EXC. CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98067-259-2 01 1 0804-0906 ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ), CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98067-259-2 01 1 0804-0906 ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98067-259-2 01 1 0907- ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ), CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98067-259-2 01 1 0907- ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98067-259-2 01 1 0907- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ), CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98067-259-2 01 1 0907- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98033-805-0 01 1 0710- ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98041-052-2 01 1 0710- ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (D) 		8-98040-479-3 01 1 0710-0803 ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
HYDRO BRAKE BOOSTER(7QQ) CATALYSIS CONTROL WITH DPD(8JM) EXC. POWER ASSIST CLUTCH(S2T) (D) 		8-98040-479-3 01 1 0804-0906 ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) CATALYSIS CONTROL WITH DPD(8JM) EXC. POWER ASSIST CLUTCH(S2T) (D) 		8-98040-479-3 01 1 0907- ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) 04.685 (C) 		8-98048-901-0 01 1 0710-0906 ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) 04.685 (C) 		8-98048-901-0 01 1 0907- ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-053-4 01 1 0710-0906 ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-053-4 01 1 0710-0906 ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-053-4 01 1 0907- ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-053-4 01 1 0907- ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98041-054-3 01 1 0710-0803 ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98041-054-3 01 1 0710-0803 ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98041-054-3 01 1 0804-0906 ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98041-054-3 01 1 0804-0906 ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98041-054-3 01 1 0907- ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98041-054-3 01 1 0907- ● ● ●
235 04.931 RUBBER; SUPPORT,PIPE
03.162 OD=16.5 L=50 		8-97214-235-0 01 1 0710-0803 ● ● ● ● ● ●
235 04.931 RUBBER; SUPPORT,PIPE
03.162 OD=16.5 L=50 		8-97214-235-0 01 1 0804- ● ● ● ● ● ●
235 04.931 RUBBER; SUPPORT,PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 OD=16.5 L=50 		8-97214-235-0 01 1 0804- ● ● ●
çizim 156211
116 169 75 66 66 116 66 66 169 116 66 66 66 116 169 66 235 108
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 02 1 0710-0803 ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 02 1 0804-0906 ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> ID=16 		8-94238-568-0 02 1 0804-0906 ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) ID=16 		8-94238-568-0 02 1 0804-0906 ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 02 1 0912- ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16 		8-98008-098-0 02 1 0912- ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> ID=16 		8-94238-568-0 06 1 0710-0911 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 0912- ● ● ● ●
75 04.930 NUT; CLIP,VAC HOSE
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0710- ● ● ● ●
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 0710-0803 ● ● ● ● ● ●
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 0804- ● ● ● ● ● ●
108 04.931 GROMMET; PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) 02.343 (B) ID=17 		8-94128-319-2 01 1 0804- ● ● ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 0710- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 0710- ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 0710- ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 0710- ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98094-547-0 01 1 0710- ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0710-0802 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0710-0802 ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0803-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0803-0803 ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0804-0906 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0804-0906 ● ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0907- ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0907- ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0802 ● ●
116 04.931 HOSE; VAC,M/VAC
03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0802 ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0803-0803 ●
116 04.931 HOSE; VAC,M/VAC
03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0803-0803 ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ● ● ●
116 04.931 HOSE; VAC,M/VAC
03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 0710- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (H) 		8-98034-276-2 01 1 0710-0911 ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (H) 		8-98158-378-0 01 1 0912- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 0710- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 0710- ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T), CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98048-903-0 01 1 0804-0906 ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T), CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98048-903-0 01 1 0907- ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T), CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98048-903-0 01 1 0907- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) EXC. CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98067-259-2 01 1 0804-0906 ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ), CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98067-259-2 01 1 0804-0906 ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98067-259-2 01 1 0907- ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ), CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98067-259-2 01 1 0907- ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98067-259-2 01 1 0907- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ), CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98067-259-2 01 1 0907- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98033-805-0 01 1 0710- ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98041-052-2 01 1 0710- ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (D) 		8-98040-479-3 01 1 0710-0803 ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
HYDRO BRAKE BOOSTER(7QQ) CATALYSIS CONTROL WITH DPD(8JM) EXC. POWER ASSIST CLUTCH(S2T) (D) 		8-98040-479-3 01 1 0804-0906 ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) CATALYSIS CONTROL WITH DPD(8JM) EXC. POWER ASSIST CLUTCH(S2T) (D) 		8-98040-479-3 01 1 0907- ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) 04.685 (C) 		8-98048-901-0 01 1 0710-0906 ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) 04.685 (C) 		8-98048-901-0 01 1 0907- ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-053-4 01 1 0710-0906 ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-053-4 01 1 0710-0906 ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-053-4 01 1 0907- ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-053-4 01 1 0907- ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98041-054-3 01 1 0710-0803 ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98041-054-3 01 1 0710-0803 ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98041-054-3 01 1 0804-0906 ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98041-054-3 01 1 0804-0906 ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98041-054-3 01 1 0907- ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98041-054-3 01 1 0907- ● ● ●
235 04.931 RUBBER; SUPPORT,PIPE
03.162 OD=16.5 L=50 		8-97214-235-0 01 1 0710-0803 ● ● ● ● ● ●
235 04.931 RUBBER; SUPPORT,PIPE
03.162 OD=16.5 L=50 		8-97214-235-0 01 1 0804- ● ● ● ● ● ●
235 04.931 RUBBER; SUPPORT,PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 OD=16.5 L=50 		8-97214-235-0 01 1 0804- ● ● ●
çizim 156214
39 116 39 165 165 165 184 184 184 184
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912-1205 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912-1205 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1206- ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1206- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0906 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0906 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0906 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0906 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 08 1 0710-0801 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 04 1 0802- ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0710-0808 ● ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0710-0906 ● ● ●
39 04.681 CLIP; HOSE,VAC
04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0710-0906 ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0907-1005 ● ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0907-1005 ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCS ENG(RJS) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0907-1005 ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1006- ● ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCS ENG(RJS) (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 06.672 (D) ID=21 		8-94242-034-0 02 1 0710-0711 ●
39 04.681 CLIP; HOSE,VAC
06.672 (D) ID=21 		8-94242-034-0 02 1 0710-0711 ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 0712-0906 ●
39 04.681 CLIP; HOSE,VAC
08.846 (D) ID=21.7 		8-97203-074-0 02 1 0712-0906 ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 0907- ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCS ENG(RJS) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 0907- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 0710- ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 0710- ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 0710- ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98094-547-0 01 1 0710- ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0710-0802 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0710-0802 ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0803-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0803-0803 ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0804-0906 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0804-0906 ● ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0907- ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0907- ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0802 ● ●
116 04.931 HOSE; VAC,M/VAC
03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0802 ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0803-0803 ●
116 04.931 HOSE; VAC,M/VAC
03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0803-0803 ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ● ● ●
116 04.931 HOSE; VAC,M/VAC
03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 0710- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (H) 		8-98034-276-2 01 1 0710-0911 ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (H) 		8-98158-378-0 01 1 0912- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 0710- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 0710- ● ● ● ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0710-1001 ● ● ● ● ● ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1002- ● ● ● ●
165 04.686 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1002- ● ● ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1002- ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0710- ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (H) 		8-98255-548-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (H) 		8-98255-548-0 01 1 1312- ● ● ●
184 04.685 BRACKET; UNION FIX
(H) 		8-98255-548-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98255-541-0 01 1 1312- ● ● ●
184 04.685 BRACKET; UNION FIX
(F) 		8-98255-541-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98155-345-0 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98155-345-0 01 1 1002-1102 ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98183-467-1 01 1 1103- ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98183-467-1 01 1 1103- ● ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98155-991-0 01 1 1002-1102 ● ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98183-472-1 01 1 1103-1103 ● ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98193-145-0 01 1 1104- ● ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98156-526-0 01 1 1002- ● ● ●
184 04.685 BRACKET; UNION FIX
(B) 		8-98017-628-1 01 1 0710-0711 ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 0712- ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0710-1001 ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-686-1 01 1 0710-1001 ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-97389-686-1 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (A) 		8-97389-686-1 01 1 1002-1102 ● ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1103-1311 ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1103-1311 ● ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-98183-462-1 01 1 1103-1311 ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (G) 		8-98255-535-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (G) 		8-98255-535-0 01 1 1312- ● ● ●
184 04.685 BRACKET; UNION FIX
(G) 		8-98255-535-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-992-2 01 1 0710-1001 ● ● ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98041-992-2 01 1 0710-1001 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98041-992-2 01 1 1002-1102 ● ● ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98041-992-2 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-470-1 01 1 1103-1103 ● ● ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98183-470-1 01 1 1103-1103 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98193-144-0 01 1 1104-1311 ● ● ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98193-144-0 01 1 1104-1311 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-539-0 01 1 1312- ● ● ●
184 04.685 BRACKET; UNION FIX
(E) 		8-98255-539-0 01 1 1312- ●
çizim 156215
236 136 136 136 122 78 136 136 44 158 78 136
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
44 04.930 PIPE; VAC,MAG VLV
(D) 		8-98063-777-0 01 1 0710-0802 ●
44 04.930 PIPE; VAC,MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98063-777-0 01 1 0710-0802 ● ●
44 04.930 PIPE; VAC,MAG VLV
(D) 		8-98063-777-0 01 1 0803-0803 ●
44 04.930 PIPE; VAC,MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98063-777-0 01 1 0803-0803 ●
44 04.930 PIPE; VAC,MAG VLV
(D) 		8-98063-777-0 01 1 0804-0906 ●
44 04.930 PIPE; VAC,MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98063-777-0 01 1 0804-0906 ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) (D) 		8-98063-777-0 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98063-777-0 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98034-374-0 01 1 0710-0710 ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98089-666-0 01 1 0711-0803 ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98089-666-0 01 1 0804- ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98095-039-0 01 1 0710-0803 ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98095-039-0 01 1 0804- ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98034-281-1 01 1 0710-0803 ● ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98034-281-1 01 1 0804-0906 ● ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98034-281-1 01 1 0907- ● ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (F) 		8-98070-194-0 01 1 0804-0906 ● ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (F) 		8-98070-194-0 01 1 0907- ● ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (G) 		8-98057-425-1 01 1 0804-0906 ● ● ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (G) 		8-98057-425-1 01 1 0907- ● ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (G) 		8-98057-425-1 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98040-807-1 01 1 0710-0803 ● ● ●
44 04.930 PIPE; VAC,MAG VLV
(C) 		8-98040-807-1 01 1 0710-0803 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98040-807-1 01 1 0804- ● ● ●
44 04.930 PIPE; VAC,MAG VLV
(C) 		8-98040-807-1 01 1 0804- ●
44 04.930 PIPE; VAC,MAG VLV
(E) 		8-98040-634-0 01 1 0710-0803 ● ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98040-634-0 01 1 0804-0906 ●
44 04.930 PIPE; VAC,MAG VLV
(E) 		8-98040-634-0 01 1 0804-0906 ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98040-634-0 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCS ENG(RJS) (E) 		8-98040-634-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98063-820-0 01 1 0710-0711 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98063-820-0 01 1 0710-0711 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98106-711-0 01 1 0712-0802 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98106-711-0 01 1 0712-0802 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98106-711-0 01 1 0803-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98106-711-0 01 1 0803-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98106-711-0 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98106-711-0 01 1 0804-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) (C) 		8-98106-711-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98106-711-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98092-678-0 01 1 0710-0802 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98092-678-0 01 1 0710-0802 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98092-678-0 01 1 0803-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98092-678-0 01 1 0803-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98092-678-0 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98092-678-0 01 1 0804-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) (B) 		8-98092-678-0 01 1 0907-1008 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98092-678-0 01 1 0907-1008 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) (B) 		8-98171-288-0 01 1 1009- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98171-288-0 01 1 1009- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (J) L=100 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0801 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (J) L=130 SERVICED BY L=3000 		0-08258-300-0 01 1 0802-0803 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (J) L=130 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-712-2 01 1 0710-0802 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97389-712-2 01 1 0710-0802 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-712-2 01 1 0803-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97389-712-2 01 1 0803-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-712-2 01 1 0804-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97389-712-2 01 1 0804-0906 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-712-2 01 1 0907-1205 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97389-712-2 01 1 0907-1205 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98220-704-0 01 1 1206- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98220-704-0 01 1 1206- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98034-104-4 01 1 0710-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98034-104-4 01 1 0804-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98034-104-4 01 1 0907-1103 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98189-106-0 01 1 1104- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98082-309-1 01 1 0710-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98082-309-1 01 1 0804-0903 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98133-654-1 01 1 0904-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98133-654-1 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (L) 		8-98057-462-0 01 1 0804-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (L) 		8-98057-462-0 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (M) 		8-98063-819-2 01 1 0804-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (M) 		8-98063-819-2 01 1 0907-1008 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (M) 		8-98171-287-0 01 1 1009- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (K) 		8-98112-680-0 01 1 0804-0906 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (K) 		8-98112-680-0 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (K) 		8-98112-680-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.686 (G) 		8-97386-589-0 01 1 0710-0906 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
04.686 (G) 		8-97386-589-0 01 1 0710-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.686 (G) 		8-97386-589-0 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.686 (G) 		8-97386-589-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) 04.686 (G) 		8-97386-589-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98041-427-3 01 1 0710-0808 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98041-427-3 01 1 0710-0808 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98129-223-0 01 1 0809-0906 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98129-223-0 01 1 0809-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98129-223-0 01 1 0907-0909 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98129-223-0 01 1 0907-0909 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) (H) 		8-98129-223-0 01 1 0907-0909 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98136-613-0 01 1 0910- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98136-613-0 01 1 0910- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) (H) 		8-98136-613-0 01 1 0910- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98080-833-1 01 1 0710- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98080-833-1 01 1 0710- ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-97389-728-2 01 1 0710-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-97389-728-2 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97389-728-2 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) (C) 		8-97389-728-2 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97389-728-2 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.681 (I) 		8-98096-135-0 01 1 0710-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
04.681 (I) 		8-98096-135-0 01 1 0710-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.681 (I) 		8-98096-135-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) 04.681 (I) 		8-98096-135-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) 03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98040-702-2 01 1 0710-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98040-702-2 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98040-702-2 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98040-702-2 01 1 0907-1103 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) (D) 		8-98040-702-2 01 1 0907-1103 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98189-103-0 01 1 1104- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) (D) 		8-98189-103-0 01 1 1104- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98092-677-0 01 1 0710-0802 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 0710-0802 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98092-677-0 01 1 0803-0803 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 0803-0803 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98092-677-0 01 1 0804-0906 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 0804-0906 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB) 		8-98092-677-0 01 1 0907- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 0907- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
FRAME STRAIGHT TYPE<7KJ> 		8-98034-103-2 01 1 0710-1103 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
FRAME STRAIGHT TYPE<7KJ> 		8-98189-104-0 01 1 1104- ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-97389-721-1 01 1 0710-0803 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-97389-721-1 01 1 0804-0906 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97389-721-1 01 1 0804-0906 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB) 		8-97389-721-1 01 1 0907- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97389-721-1 01 1 0907- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98040-701-1 01 1 0710-0803 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
FRAME STRAIGHT TYPE<7KJ> 		8-98040-701-1 01 1 0804-0906 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98040-701-1 01 1 0804-0906 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 		8-98040-701-1 01 1 0907-1103 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4HK1-TCS ENG(RJS) 		8-98040-701-1 01 1 0907-1103 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 		8-98189-105-0 01 1 1104- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4HK1-TCS ENG(RJS) 		8-98189-105-0 01 1 1104- ●
136 04.681 CLIP; VAC HOSE
04.930 ID=16 		8-94238-568-0 02 1 0710-0802 ●
136 04.681 CLIP; VAC HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16 		8-94238-568-0 02 1 0710-0802 ● ●
136 04.681 CLIP; VAC HOSE
04.930 ID=16 		8-94238-568-0 02 1 0803-0803 ●
136 04.681 CLIP; VAC HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16 		8-94238-568-0 02 1 0803-0803 ●
136 04.681 CLIP; VAC HOSE
04.930 ID=16 		8-94238-568-0 02 1 0804-0906 ●
136 04.681 CLIP; VAC HOSE
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) 04.930 ID=16 		8-94238-568-0 02 1 0804-0906 ● ●
136 04.681 CLIP; VAC HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16 		8-94238-568-0 02 1 0804-0906 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB) 04.930 ID=16 		8-94238-568-0 02 1 0907-0911 ●
136 04.681 CLIP; VAC HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) 04.930 ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16 		8-94238-568-0 02 1 0907-0911 ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB) 03.162 ID=16 		8-98008-098-0 02 1 0912- ●
136 04.681 CLIP; VAC HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16 		8-98008-098-0 02 1 0912- ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 02 1 0912- ●
136 04.681 CLIP; VAC HOSE
04.930 ID=16 		8-94238-568-0 04 1 0710-0802 ● ●
136 04.681 CLIP; VAC HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16 		8-94238-568-0 04 1 0710-0802 ● ●
136 04.681 CLIP; VAC HOSE
04.930 ID=16 		8-94238-568-0 04 1 0803-0803 ● ●
136 04.681 CLIP; VAC HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16 		8-94238-568-0 04 1 0803-0803 ●
136 04.681 CLIP; VAC HOSE
04.930 ID=16 		8-94238-568-0 04 1 0804-0906 ● ●
136 04.681 CLIP; VAC HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16 		8-94238-568-0 04 1 0804-0906 ● ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB) 04.930 ID=16 		8-94238-568-0 04 1 0907-0911 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16 		8-94238-568-0 04 1 0907-0911 ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16 		8-94238-568-0 04 1 0907-0911 ●
136 04.681 CLIP; VAC HOSE
03.162 ID=16 		8-98008-098-0 04 1 0912- ● ●
136 04.681 CLIP; VAC HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 04 1 0912- ● ●
136 04.681 CLIP; VAC HOSE
FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16 		8-94238-568-0 06 1 0710-0911 ● ● ● ●
136 04.681 CLIP; VAC HOSE
FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 0912- ● ● ● ●
158 04.681 CLIP; HOSE
02.559 ID=14-20 		8-97061-603-0 01 1 0710-0906 ● ● ●
158 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) 02.559 ID=14-20 		8-97061-603-0 01 1 0907- ●
158 04.681 CLIP; HOSE
02.559 ID=14-20 		8-97061-603-0 01 1 0907- ●
158 04.681 CLIP; HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 ID=14-20 		8-97061-603-0 01 1 0907- ●
236 04.930 BOLT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0710-0803 ● ●
236 04.930 BOLT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0804- ● ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0710-0710 ● ● ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0711-0803 ● ● ●
236 04.930 BOLT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0711-0803 ● ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0804- ● ● ●
236 04.930 BOLT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0804- ● ●
236 04.930 BOLT; PIPE
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0710-0803 ● ●
236 04.930 BOLT; PIPE
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0804-0906 ●
236 04.930 BOLT; PIPE
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0804-0906 ●
236 04.930 BOLT; PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0907- ●
236 04.930 BOLT; PIPE
4HK1-TCS ENG(RJS) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0907- ●
çizim 156244
78 108 80 39 39 80 80 98 116 85 66 116 96 39 39 78 66 80
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912-1205 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912-1205 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1206- ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1206- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0906 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0906 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0906 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0906 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 08 1 0710-0801 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 04 1 0802- ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0710-0808 ● ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0710-0906 ● ● ●
39 04.681 CLIP; HOSE,VAC
04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0710-0906 ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0907-1005 ● ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0907-1005 ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCS ENG(RJS) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0907-1005 ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1006- ● ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCS ENG(RJS) (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 06.672 (D) ID=21 		8-94242-034-0 02 1 0710-0711 ●
39 04.681 CLIP; HOSE,VAC
06.672 (D) ID=21 		8-94242-034-0 02 1 0710-0711 ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 0712-0906 ●
39 04.681 CLIP; HOSE,VAC
08.846 (D) ID=21.7 		8-97203-074-0 02 1 0712-0906 ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 0907- ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCS ENG(RJS) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 0907- ●
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 02 1 0710-0803 ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 02 1 0804-0906 ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> ID=16 		8-94238-568-0 02 1 0804-0906 ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) ID=16 		8-94238-568-0 02 1 0804-0906 ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 02 1 0912- ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16 		8-98008-098-0 02 1 0912- ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> ID=16 		8-94238-568-0 06 1 0710-0911 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 0912- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98063-820-0 01 1 0710-0711 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98063-820-0 01 1 0710-0711 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98106-711-0 01 1 0712-0802 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98106-711-0 01 1 0712-0802 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98106-711-0 01 1 0803-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98106-711-0 01 1 0803-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98106-711-0 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98106-711-0 01 1 0804-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) (C) 		8-98106-711-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98106-711-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98092-678-0 01 1 0710-0802 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98092-678-0 01 1 0710-0802 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98092-678-0 01 1 0803-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98092-678-0 01 1 0803-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98092-678-0 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98092-678-0 01 1 0804-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) (B) 		8-98092-678-0 01 1 0907-1008 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98092-678-0 01 1 0907-1008 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) (B) 		8-98171-288-0 01 1 1009- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98171-288-0 01 1 1009- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (J) L=100 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0801 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (J) L=130 SERVICED BY L=3000 		0-08258-300-0 01 1 0802-0803 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (J) L=130 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-712-2 01 1 0710-0802 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97389-712-2 01 1 0710-0802 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-712-2 01 1 0803-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97389-712-2 01 1 0803-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-712-2 01 1 0804-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97389-712-2 01 1 0804-0906 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-712-2 01 1 0907-1205 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97389-712-2 01 1 0907-1205 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98220-704-0 01 1 1206- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98220-704-0 01 1 1206- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98034-104-4 01 1 0710-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98034-104-4 01 1 0804-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98034-104-4 01 1 0907-1103 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98189-106-0 01 1 1104- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98082-309-1 01 1 0710-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98082-309-1 01 1 0804-0903 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98133-654-1 01 1 0904-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98133-654-1 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (L) 		8-98057-462-0 01 1 0804-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (L) 		8-98057-462-0 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (M) 		8-98063-819-2 01 1 0804-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (M) 		8-98063-819-2 01 1 0907-1008 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (M) 		8-98171-287-0 01 1 1009- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (K) 		8-98112-680-0 01 1 0804-0906 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (K) 		8-98112-680-0 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (K) 		8-98112-680-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.686 (G) 		8-97386-589-0 01 1 0710-0906 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
04.686 (G) 		8-97386-589-0 01 1 0710-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.686 (G) 		8-97386-589-0 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.686 (G) 		8-97386-589-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) 04.686 (G) 		8-97386-589-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98041-427-3 01 1 0710-0808 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98041-427-3 01 1 0710-0808 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98129-223-0 01 1 0809-0906 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98129-223-0 01 1 0809-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98129-223-0 01 1 0907-0909 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98129-223-0 01 1 0907-0909 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) (H) 		8-98129-223-0 01 1 0907-0909 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98136-613-0 01 1 0910- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98136-613-0 01 1 0910- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) (H) 		8-98136-613-0 01 1 0910- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98080-833-1 01 1 0710- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98080-833-1 01 1 0710- ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-97389-728-2 01 1 0710-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-97389-728-2 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97389-728-2 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) (C) 		8-97389-728-2 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97389-728-2 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.681 (I) 		8-98096-135-0 01 1 0710-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
04.681 (I) 		8-98096-135-0 01 1 0710-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.681 (I) 		8-98096-135-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) 04.681 (I) 		8-98096-135-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) 03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98040-702-2 01 1 0710-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98040-702-2 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98040-702-2 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98040-702-2 01 1 0907-1103 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) (D) 		8-98040-702-2 01 1 0907-1103 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98189-103-0 01 1 1104- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) (D) 		8-98189-103-0 01 1 1104- ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIRCONDITIONER(C68),FRAME STRAIGHT TYPE <7KJ> (C) 		8-98135-521-0 01 1 0811-0906 ● ● ● ● ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIRCONDITIONER(C68),FRAME STRAIGHT TYPE <7KJ> (C) 		8-98135-521-0 01 1 0907- ● ● ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98058-595-0 01 1 0710-0803 ● ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98058-595-0 01 1 0804- ● ● ●
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98046-881-0 01 1 0710-0802 ● ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98046-881-0 01 1 0710-0802 ● ●
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98046-881-0 01 1 0803-0803 ● ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98046-881-0 01 1 0803-0803 ●
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98046-881-0 01 1 0804-0906 ● ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98046-881-0 01 1 0804-0906 ● ● ●
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98046-881-0 01 1 0907-1106 ● ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98046-881-0 01 1 0907-1106 ● ●
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98171-600-0 01 1 1107-1205 ● ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98171-600-0 01 1 1107-1205 ● ●
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98220-580-0 01 1 1206- ● ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98220-580-0 01 1 1206- ● ●
80 04.930 PIPE; VAC,ENG SIDE
(C) 		8-98051-652-0 01 1 0710-0802 ● ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98051-652-0 01 1 0710-0802 ● ●
80 04.930 PIPE; VAC,ENG SIDE
(C) 		8-98051-652-0 01 1 0803-0803 ● ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98051-652-0 01 1 0803-0803 ●
80 04.930 PIPE; VAC,ENG SIDE
(C) 		8-98051-652-0 01 1 0804-0810 ● ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98051-652-0 01 1 0804-0810 ● ● ●
80 04.930 PIPE; VAC,ENG SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98051-652-0 01 1 0811-0906 ● ● ● ● ●
80 04.930 PIPE; VAC,ENG SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98051-652-0 01 1 0907- ● ● ● ●
80 04.930 PIPE; VAC,ENG SIDE
HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98097-788-0 01 1 0710-0906 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98097-788-0 01 1 0907- ● ●
80 04.930 PIPE; VAC,ENG SIDE
HYDRO BRAKE BOOSTER(7QQ) 04.685 (D) 		8-97386-605-0 01 1 0710-0906 ● ● ●
80 04.930 PIPE; VAC,ENG SIDE
04.685 (D) 		8-97386-605-0 01 1 0710-0906 ●
80 04.930 PIPE; VAC,ENG SIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.685 (D) 		8-97386-605-0 01 1 0907- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.685 (D) 		8-97386-605-0 01 1 0907- ●
80 04.930 PIPE; VAC,ENG SIDE
4HK1-TCS ENG(RJS) 04.685 (D) 		8-97386-605-0 01 1 0907- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98058-596-0 01 1 0804- ● ●
80 04.930 PIPE; VAC,ENG SIDE
HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98092-258-1 01 1 0710-0906 ●
80 04.930 PIPE; VAC,ENG SIDE
(F) 		8-98092-258-1 01 1 0710-0906 ●
80 04.930 PIPE; VAC,ENG SIDE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98092-258-1 01 1 0907- ●
80 04.930 PIPE; VAC,ENG SIDE
4HK1-TCS ENG(RJS) (F) 		8-98092-258-1 01 1 0907- ●
85 04.931 HOSE; VAC,ENG SIDE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIRCONDITIONER(C68),FRAME STRAIGHT TYPE <7KJ> 		8-98135-573-0 01 1 0811-0906 ● ● ● ● ●
85 04.931 HOSE; VAC,ENG SIDE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIRCONDITIONER(C68),FRAME STRAIGHT TYPE <7KJ> 		8-98135-573-0 01 1 0907- ● ● ● ●
85 04.931 HOSE; VAC,ENG SIDE 8-97389-705-2 01 1 0710-0802 ● ●
85 04.931 HOSE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97389-705-2 01 1 0710-0802 ● ●
85 04.931 HOSE; VAC,ENG SIDE 8-97389-705-2 01 1 0803-0803 ● ●
85 04.931 HOSE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97389-705-2 01 1 0803-0803 ●
85 04.931 HOSE; VAC,ENG SIDE 8-97389-705-2 01 1 0804-0810 ● ●
85 04.931 HOSE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97389-705-2 01 1 0804-0810 ● ● ●
85 04.931 HOSE; VAC,ENG SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97389-705-2 01 1 0811-0906 ● ● ● ● ●
85 04.931 HOSE; VAC,ENG SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97389-705-2 01 1 0907- ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98046-550-0 01 1 0710-0906 ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98046-550-0 01 1 0710-0906 ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98046-550-0 01 1 0710-0906 ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98046-550-0 01 1 0907-1205 ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 		8-98046-550-0 01 1 0907-1205 ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98046-550-0 01 1 0907-1205 ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98220-579-0 01 1 1206- ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1206- ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1206- ● ● ●
98 04.931 BOLT; VAC PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0710-0906 ● ● ● ● ● ●
98 04.931 BOLT; VAC PIPE FIX
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0710-0906 ● ● ● ●
98 04.931 BOLT; VAC PIPE FIX
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 M6X12 FLANGE 		0-28050-612-0 02 1 0907- ●
98 04.931 BOLT; VAC PIPE FIX
4HK1-TCS ENG(RJS) 03.162 M6X12 FLANGE 		0-28050-612-0 02 1 0907- ●
98 04.931 BOLT; VAC PIPE FIX
HYDRO BRAKE BOOSTER(7QQ) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0710-0906 ● ● ● ●
98 04.931 BOLT; VAC PIPE FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0710-0906 ● ● ● ●
98 04.931 BOLT; VAC PIPE FIX
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0907- ● ● ● ●
98 04.931 BOLT; VAC PIPE FIX
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0907- ● ● ● ●
98 04.931 BOLT; VAC PIPE FIX
HYDRO BRAKE BOOSTER(7QQ) 03.162 M6X12 FLANGE 		0-28050-612-0 02 1 0710-0906 ●
98 04.931 BOLT; VAC PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 02 1 0710-0906 ●
98 04.931 BOLT; VAC PIPE FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0907- ● ● ● ● ●
98 04.931 BOLT; VAC PIPE FIX
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0907- ● ● ● ●
98 04.931 BOLT; VAC PIPE FIX
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0907- ● ● ● ●
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 0710-0803 ● ● ● ● ● ●
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 0804- ● ● ● ● ● ●
108 04.931 GROMMET; PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) 02.343 (B) ID=17 		8-94128-319-2 01 1 0804- ● ● ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 0710- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 0710- ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 0710- ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 0710- ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98094-547-0 01 1 0710- ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0710-0802 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0710-0802 ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0803-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0803-0803 ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0804-0906 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0804-0906 ● ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0907- ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0907- ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0802 ● ●
116 04.931 HOSE; VAC,M/VAC
03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0802 ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0803-0803 ●
116 04.931 HOSE; VAC,M/VAC
03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0803-0803 ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ● ● ●
116 04.931 HOSE; VAC,M/VAC
03.630 (J) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 0710- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (H) 		8-98034-276-2 01 1 0710-0911 ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (H) 		8-98158-378-0 01 1 0912- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 0710- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 0710- ● ● ● ●
çizim 156245
12 197 198 12 12 237 228 12 44 12 237 238 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0803 ● ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0803 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0911 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) CATALYSIS CONTROL WITH DPD(8JM) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0911 ● ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0911 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) CATALYSIS CONTROL WITH DPD(8JM) FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ● ● ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 0710- ● ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ● ● ● ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ● ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 04 1 0710-0803 ● ● ●
12 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 04 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 04 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 04 1 0804-0911 ● ● ●
12 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16 		8-94238-568-0 04 1 0804-0911 ● ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 04 1 0804-0911 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ● ● ●
12 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ● ● ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 0710-0803 ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 0804- ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 0710-0803 ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 0804- ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 0710-0803 ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 0804- ● ● ●
44 04.930 PIPE; VAC,MAG VLV
(D) 		8-98063-777-0 01 1 0710-0802 ●
44 04.930 PIPE; VAC,MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98063-777-0 01 1 0710-0802 ● ●
44 04.930 PIPE; VAC,MAG VLV
(D) 		8-98063-777-0 01 1 0803-0803 ●
44 04.930 PIPE; VAC,MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98063-777-0 01 1 0803-0803 ●
44 04.930 PIPE; VAC,MAG VLV
(D) 		8-98063-777-0 01 1 0804-0906 ●
44 04.930 PIPE; VAC,MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98063-777-0 01 1 0804-0906 ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) (D) 		8-98063-777-0 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98063-777-0 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98034-374-0 01 1 0710-0710 ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98089-666-0 01 1 0711-0803 ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98089-666-0 01 1 0804- ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98095-039-0 01 1 0710-0803 ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98095-039-0 01 1 0804- ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98034-281-1 01 1 0710-0803 ● ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98034-281-1 01 1 0804-0906 ● ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98034-281-1 01 1 0907- ● ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (F) 		8-98070-194-0 01 1 0804-0906 ● ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (F) 		8-98070-194-0 01 1 0907- ● ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (G) 		8-98057-425-1 01 1 0804-0906 ● ● ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (G) 		8-98057-425-1 01 1 0907- ● ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (G) 		8-98057-425-1 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98040-807-1 01 1 0710-0803 ● ● ●
44 04.930 PIPE; VAC,MAG VLV
(C) 		8-98040-807-1 01 1 0710-0803 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98040-807-1 01 1 0804- ● ● ●
44 04.930 PIPE; VAC,MAG VLV
(C) 		8-98040-807-1 01 1 0804- ●
44 04.930 PIPE; VAC,MAG VLV
(E) 		8-98040-634-0 01 1 0710-0803 ● ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98040-634-0 01 1 0804-0906 ●
44 04.930 PIPE; VAC,MAG VLV
(E) 		8-98040-634-0 01 1 0804-0906 ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98040-634-0 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCS ENG(RJS) (E) 		8-98040-634-0 01 1 0907- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98034-371-1 01 1 0710-0803 ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98034-371-1 01 1 0804- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98034-372-1 01 1 0710-0801 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98083-557-0 01 1 0802-0803 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98083-557-0 01 1 0804- ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> 		8-98079-539-0 01 1 0710-0803 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98079-539-0 01 1 0804-0906 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98079-539-0 01 1 0907- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98034-373-1 01 1 0710-0801 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98083-558-0 01 1 0802-0803 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98083-558-0 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> 		8-98040-481-1 01 1 0710-0803 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98040-481-1 01 1 0804-0903 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-640-0 01 1 0904-0906 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-640-0 01 1 0907- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-640-0 01 1 0907- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> 		8-98040-482-1 01 1 0710-0803 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98040-482-1 01 1 0804-0903 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-641-0 01 1 0904-0906 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-641-0 01 1 0907- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-641-0 01 1 0907- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> 		8-98080-337-0 01 1 0710-0803 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98080-337-0 01 1 0804-0903 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-643-0 01 1 0904-0906 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-643-0 01 1 0907- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-643-0 01 1 0907- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-98040-483-2 01 1 0710-0803 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV 8-98040-483-2 01 1 0710-0803 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98040-483-2 01 1 0804-0903 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV 8-98040-483-2 01 1 0804-0903 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-642-0 01 1 0904-0906 ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV 8-98133-642-0 01 1 0904-0906 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-642-0 01 1 0907- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-98133-642-0 01 1 0907- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4HK1-TCS ENG(RJS) 		8-98133-642-0 01 1 0907- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> 03.630 (E) L=400 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=400 SERVICED BY L=3000 		0-08258-300-0 01 1 0804-0906 ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=400 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=400 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97373-197-0 01 1 0710-0803 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97373-197-0 01 1 0804- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98041-642-0 01 1 0710-0803 ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98041-642-0 01 1 0804- ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98035-890-2 01 1 0710-0803 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98035-890-2 01 1 0804-0906 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98035-890-2 01 1 0907- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> 03.630 (D) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (D) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0804-0906 ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (D) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (D) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> 03.630 (E) L=230 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=230 SERVICED BY L=3000 		0-08258-300-0 01 1 0804-0906 ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=230 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=230 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 03.630 (E) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
03.630 (E) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0804-0906 ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
03.630 (E) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0804-0906 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4HK1-TCS ENG(RJS) 03.630 (E) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
228 04.930 NUT; PIPE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0710-0803 ● ● ●
228 04.930 NUT; PIPE
01.062 M8 FLANGE 		0-91180-108-0 01 1 0710-0803 ●
228 04.930 NUT; PIPE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0804- ● ● ●
228 04.930 NUT; PIPE
01.062 M8 FLANGE 		0-91180-108-0 01 1 0804- ●
228 04.930 NUT; PIPE
03.162 M10 FLANGE 		0-91180-110-0 01 1 0710-0803 ● ●
228 04.930 NUT; PIPE
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0804-0906 ●
228 04.930 NUT; PIPE
03.162 M10 FLANGE 		0-91180-110-0 01 1 0804-0906 ●
228 04.930 NUT; PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0907- ●
228 04.930 NUT; PIPE
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0907- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (A) L=250 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (A) L=250 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98034-429-0 01 1 0710-0803 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98034-429-0 01 1 0804- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98034-430-0 01 1 0710-0803 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98034-430-0 01 1 0804-1008 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98171-279-0 01 1 1009- ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> (E) 		8-98035-889-0 01 1 0710-0803 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98035-889-0 01 1 0804-0906 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98035-889-0 01 1 0907- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98035-891-0 01 1 0710-0803 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (F) 		8-98035-891-0 01 1 0804-0906 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (F) 		8-98035-891-0 01 1 0907- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (D) L=180 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (D) L=180 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (G) 		8-97378-772-0 01 1 0710-0803 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (G) 		8-97378-772-0 01 1 0804-0906 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (G) 		8-97378-772-0 01 1 0907- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (G) 		8-97378-772-0 01 1 0907- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (H) 		8-97378-771-0 01 1 0710-0803 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (H) 		8-97378-771-0 01 1 0804-0906 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (H) 		8-97378-771-0 01 1 0907- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (H) 		8-97378-771-0 01 1 0907- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (I) 		8-98040-785-1 01 1 0710-0803 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(I) 		8-98040-785-1 01 1 0710-0803 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (I) 		8-98040-785-1 01 1 0804- ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(I) 		8-98040-785-1 01 1 0804- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (H) 		8-98097-542-0 01 1 0710-0710 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(H) 		8-98097-542-0 01 1 0710-0710 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (H) 		8-98101-554-0 01 1 0711-0803 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(H) 		8-98101-554-0 01 1 0711-0803 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (H) 		8-98101-554-0 01 1 0804-0906 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(H) 		8-98101-554-0 01 1 0804-0906 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (H) 		8-98101-554-0 01 1 0907- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (H) 		8-98101-554-0 01 1 0907- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCS ENG(RJS) (H) 		8-98101-554-0 01 1 0907- ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97377-521-0 01 1 0710-0802 ● ● ●
238 04.892 ORIFICE; VACUUM HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-97377-521-0 01 1 0710-0802 ● ● ●
238 04.892 ORIFICE; VACUUM HOSE
FRAME STRAIGHT TYPE<7KJ> 		8-97377-521-0 01 1 0710-0802 ●
238 04.892 ORIFICE; VACUUM HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-97377-521-0 01 1 0710-0802 ● ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97377-521-0 01 1 0803-0803 ● ● ●
238 04.892 ORIFICE; VACUUM HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-97377-521-0 01 1 0803-0803 ● ● ● ●
238 04.892 ORIFICE; VACUUM HOSE
FRAME STRAIGHT TYPE<7KJ> 		8-97377-521-0 01 1 0803-0803 ●
238 04.892 ORIFICE; VACUUM HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-97377-521-0 01 1 0803-0803 ● ● ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97377-521-0 01 1 0804-1008 ● ● ●
238 04.892 ORIFICE; VACUUM HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-97377-521-0 01 1 0804-1008 ● ● ● ●
238 04.892 ORIFICE; VACUUM HOSE
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-97377-521-0 01 1 0804-1008 ●
238 04.892 ORIFICE; VACUUM HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-97377-521-0 01 1 0804-1008 ● ● ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97377-521-0 01 1 1009- ● ●
238 04.892 ORIFICE; VACUUM HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-97377-521-0 01 1 1009- ● ● ● ●
238 04.892 ORIFICE; VACUUM HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 		8-97377-521-0 01 1 1009- ● ● ● ●
çizim 156359
78 39 39 39 39 78 39 80 78 39 39 39 39 80
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912-1205 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912-1205 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1206- ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1206- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0906 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0906 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0906 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0906 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 08 1 0710-0801 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 04 1 0802- ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0710-0808 ● ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0710-0906 ● ● ●
39 04.681 CLIP; HOSE,VAC
04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0710-0906 ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0907-1005 ● ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0907-1005 ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCS ENG(RJS) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0907-1005 ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1006- ● ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCS ENG(RJS) (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 06.672 (D) ID=21 		8-94242-034-0 02 1 0710-0711 ●
39 04.681 CLIP; HOSE,VAC
06.672 (D) ID=21 		8-94242-034-0 02 1 0710-0711 ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 0712-0906 ●
39 04.681 CLIP; HOSE,VAC
08.846 (D) ID=21.7 		8-97203-074-0 02 1 0712-0906 ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 0907- ●
39 04.681 CLIP; HOSE,VAC
4HK1-TCS ENG(RJS) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98063-820-0 01 1 0710-0711 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98063-820-0 01 1 0710-0711 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98106-711-0 01 1 0712-0802 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98106-711-0 01 1 0712-0802 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98106-711-0 01 1 0803-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98106-711-0 01 1 0803-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98106-711-0 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98106-711-0 01 1 0804-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) (C) 		8-98106-711-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98106-711-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98092-678-0 01 1 0710-0802 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98092-678-0 01 1 0710-0802 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98092-678-0 01 1 0803-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98092-678-0 01 1 0803-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98092-678-0 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98092-678-0 01 1 0804-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) (B) 		8-98092-678-0 01 1 0907-1008 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98092-678-0 01 1 0907-1008 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) (B) 		8-98171-288-0 01 1 1009- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98171-288-0 01 1 1009- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (J) L=100 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0801 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (J) L=130 SERVICED BY L=3000 		0-08258-300-0 01 1 0802-0803 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (J) L=130 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-712-2 01 1 0710-0802 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97389-712-2 01 1 0710-0802 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-712-2 01 1 0803-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97389-712-2 01 1 0803-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-712-2 01 1 0804-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97389-712-2 01 1 0804-0906 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-712-2 01 1 0907-1205 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97389-712-2 01 1 0907-1205 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98220-704-0 01 1 1206- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98220-704-0 01 1 1206- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98034-104-4 01 1 0710-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98034-104-4 01 1 0804-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98034-104-4 01 1 0907-1103 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98189-106-0 01 1 1104- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98082-309-1 01 1 0710-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98082-309-1 01 1 0804-0903 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98133-654-1 01 1 0904-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98133-654-1 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (L) 		8-98057-462-0 01 1 0804-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (L) 		8-98057-462-0 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (M) 		8-98063-819-2 01 1 0804-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (M) 		8-98063-819-2 01 1 0907-1008 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (M) 		8-98171-287-0 01 1 1009- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (K) 		8-98112-680-0 01 1 0804-0906 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (K) 		8-98112-680-0 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (K) 		8-98112-680-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.686 (G) 		8-97386-589-0 01 1 0710-0906 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
04.686 (G) 		8-97386-589-0 01 1 0710-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.686 (G) 		8-97386-589-0 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.686 (G) 		8-97386-589-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) 04.686 (G) 		8-97386-589-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98041-427-3 01 1 0710-0808 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98041-427-3 01 1 0710-0808 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98129-223-0 01 1 0809-0906 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98129-223-0 01 1 0809-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98129-223-0 01 1 0907-0909 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98129-223-0 01 1 0907-0909 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) (H) 		8-98129-223-0 01 1 0907-0909 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98136-613-0 01 1 0910- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98136-613-0 01 1 0910- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) (H) 		8-98136-613-0 01 1 0910- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98080-833-1 01 1 0710- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98080-833-1 01 1 0710- ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-97389-728-2 01 1 0710-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-97389-728-2 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97389-728-2 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) (C) 		8-97389-728-2 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97389-728-2 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.681 (I) 		8-98096-135-0 01 1 0710-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
04.681 (I) 		8-98096-135-0 01 1 0710-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.681 (I) 		8-98096-135-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) 04.681 (I) 		8-98096-135-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) 03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98040-702-2 01 1 0710-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98040-702-2 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98040-702-2 01 1 0804-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98040-702-2 01 1 0907-1103 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) (D) 		8-98040-702-2 01 1 0907-1103 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98189-103-0 01 1 1104- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) (D) 		8-98189-103-0 01 1 1104- ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIRCONDITIONER(C68),FRAME STRAIGHT TYPE <7KJ> (C) 		8-98135-521-0 01 1 0811-0906 ● ● ● ● ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIRCONDITIONER(C68),FRAME STRAIGHT TYPE <7KJ> (C) 		8-98135-521-0 01 1 0907- ● ● ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98058-595-0 01 1 0710-0803 ● ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98058-595-0 01 1 0804- ● ● ●
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98046-881-0 01 1 0710-0802 ● ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98046-881-0 01 1 0710-0802 ● ●
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98046-881-0 01 1 0803-0803 ● ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98046-881-0 01 1 0803-0803 ●
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98046-881-0 01 1 0804-0906 ● ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98046-881-0 01 1 0804-0906 ● ● ●
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98046-881-0 01 1 0907-1106 ● ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98046-881-0 01 1 0907-1106 ● ●
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98171-600-0 01 1 1107-1205 ● ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98171-600-0 01 1 1107-1205 ● ●
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98220-580-0 01 1 1206- ● ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98220-580-0 01 1 1206- ● ●
80 04.930 PIPE; VAC,ENG SIDE
(C) 		8-98051-652-0 01 1 0710-0802 ● ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98051-652-0 01 1 0710-0802 ● ●
80 04.930 PIPE; VAC,ENG SIDE
(C) 		8-98051-652-0 01 1 0803-0803 ● ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98051-652-0 01 1 0803-0803 ●
80 04.930 PIPE; VAC,ENG SIDE
(C) 		8-98051-652-0 01 1 0804-0810 ● ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98051-652-0 01 1 0804-0810 ● ● ●
80 04.930 PIPE; VAC,ENG SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98051-652-0 01 1 0811-0906 ● ● ● ● ●
80 04.930 PIPE; VAC,ENG SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98051-652-0 01 1 0907- ● ● ● ●
80 04.930 PIPE; VAC,ENG SIDE
HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98097-788-0 01 1 0710-0906 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98097-788-0 01 1 0907- ● ●
80 04.930 PIPE; VAC,ENG SIDE
HYDRO BRAKE BOOSTER(7QQ) 04.685 (D) 		8-97386-605-0 01 1 0710-0906 ● ● ●
80 04.930 PIPE; VAC,ENG SIDE
04.685 (D) 		8-97386-605-0 01 1 0710-0906 ●
80 04.930 PIPE; VAC,ENG SIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.685 (D) 		8-97386-605-0 01 1 0907- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.685 (D) 		8-97386-605-0 01 1 0907- ●
80 04.930 PIPE; VAC,ENG SIDE
4HK1-TCS ENG(RJS) 04.685 (D) 		8-97386-605-0 01 1 0907- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98058-596-0 01 1 0804- ● ●
80 04.930 PIPE; VAC,ENG SIDE
HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98092-258-1 01 1 0710-0906 ●
80 04.930 PIPE; VAC,ENG SIDE
(F) 		8-98092-258-1 01 1 0710-0906 ●
80 04.930 PIPE; VAC,ENG SIDE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98092-258-1 01 1 0907- ●
80 04.930 PIPE; VAC,ENG SIDE
4HK1-TCS ENG(RJS) (F) 		8-98092-258-1 01 1 0907- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
