3-55 — BRAKE PIPING; OIL,REAR (#54672) — 341 parça

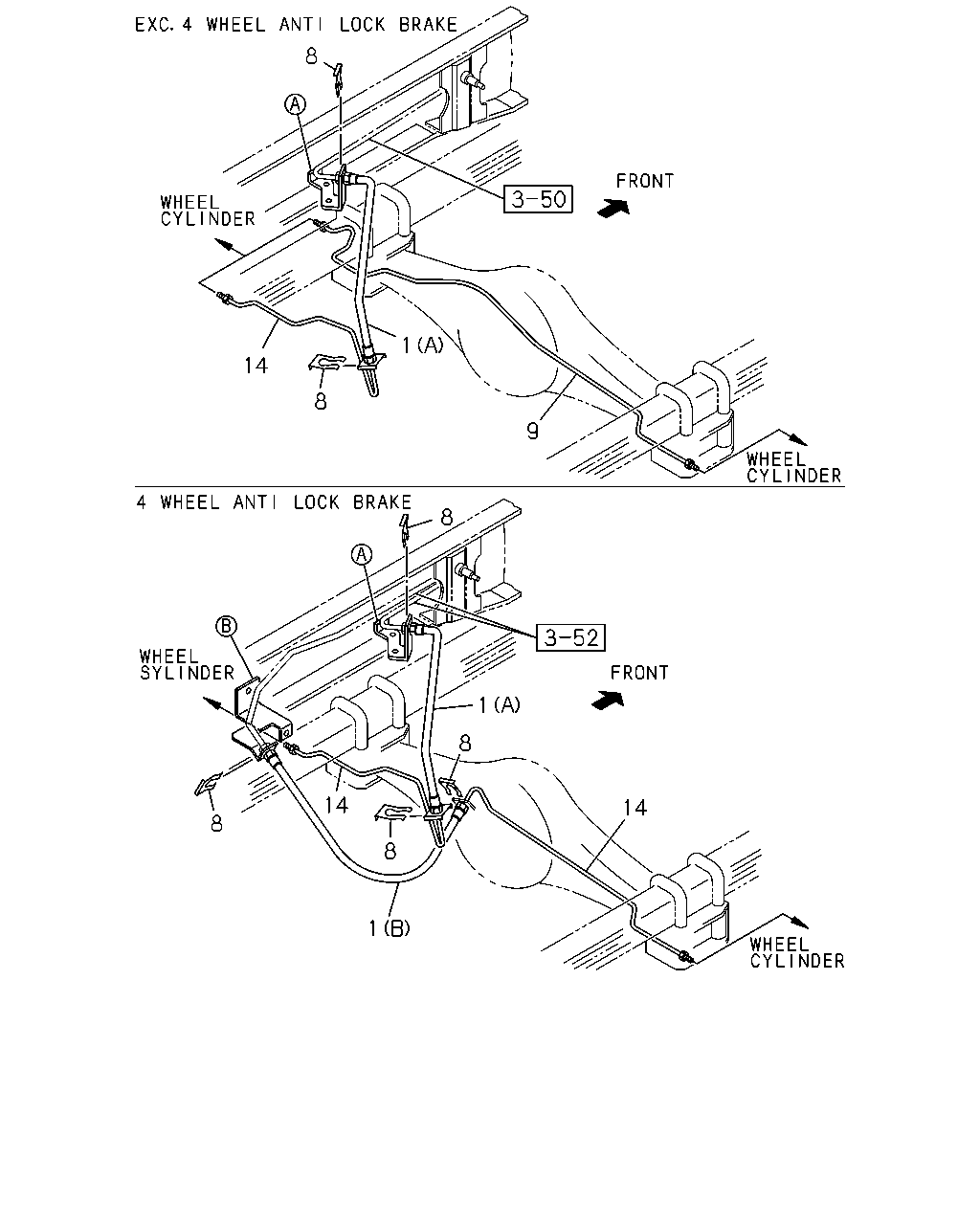

çizim 156182
8 1 14 8 9 8 1 8 14 14 8 8 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=345 		8-97230-284-1 01 1 0710-0802 ● ● ●
1 04.680 HOSE; FLEX,RR BRK
(B) L=345 		8-97230-284-1 01 1 0710-0802 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=345 		8-97230-284-1 01 1 0803-0803 ● ●
1 04.680 HOSE; FLEX,RR BRK
(B) L=345 		8-97230-284-1 01 1 0803-0803 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=345 		8-97230-284-1 01 1 0804- ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
(B) L=345 		8-97230-284-1 01 1 0804- ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=310 		8-97035-063-1 01 1 0710-0802 ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=310 		8-97035-063-1 01 1 0710-0802 ● ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=310 		8-97035-063-1 01 1 0803-0803 ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=310 		8-97035-063-1 01 1 0803-0803 ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=310 		8-97035-063-1 01 1 0804- ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=310 		8-97035-063-1 01 1 0804- ● ● ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) L=405 		8-97089-061-0 01 1 0710- ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-569-0 01 1 0710- ● ● ●
1 04.680 HOSE; FLEX,RR BRK
(C) 		8-97253-569-0 01 1 0710- ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-570-0 01 1 0710- ● ● ●
1 04.680 HOSE; FLEX,RR BRK
(C) 		8-97253-570-0 01 1 0710- ●
8 04.686 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 04 1 0710- ● ● ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 04 1 0710- ● ●
8 04.686 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 02 1 0710- ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4JJ1-TCC ENG(RDU) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-052-0 01 1 0804-0906 ●
9 04.685 PIPE; BRK,RR AXLE
4JJ1-TCC ENG(RDU) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) EXC. AUSTRALIA EQUIPMENT(B13),4 WHEELANTI LOCK BRAKE<JE5> 		8-98026-052-0 01 1 0907- ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 4.5-5.0TON(RPS) SMALL DOUBLE RR TIRE(6YE) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98072-007-0 01 1 0710- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98039-603-0 01 1 0710-0803 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98039-603-0 01 1 0804- ● ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-057-0 01 1 0710-0710 ● ●
9 04.685 PIPE; BRK,RR AXLE
EXC. AUSTRALIA EQUIPMENT(B13),4 WHEELANTI LOCK BRAKE<JE5> 		8-98026-057-0 01 1 0710-0710 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-057-0 01 1 0710-0803 ● ●
9 04.685 PIPE; BRK,RR AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-057-0 01 1 0710-0803 ●
9 04.685 PIPE; BRK,RR AXLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-057-0 01 1 0804-0804 ● ●
9 04.685 PIPE; BRK,RR AXLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-057-0 01 1 0804-0804 ●
9 04.685 PIPE; BRK,RR AXLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-057-0 01 1 0805-0906 ● ●
9 04.685 PIPE; BRK,RR AXLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AUSTRALIA EQUIPMENT(B13),4 WHEELANTI LOCK BRAKE<JE5> 		8-98026-057-0 01 1 0805-0906 ●
9 04.685 PIPE; BRK,RR AXLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. AUSTRALIA EQUIPMENT(B13),4 WHEELANTI LOCK BRAKE<JE5> 		8-98026-057-0 01 1 0907- ● ●
9 04.685 PIPE; BRK,RR AXLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) AUSTRALIA EQUIPMENT(B13) G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-057-0 01 1 0907- ●
9 04.685 PIPE; BRK,RR AXLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AUSTRALIA EQUIPMENT(B13),4 WHEELANTI LOCK BRAKE<JE5> 		8-98026-057-0 01 1 0907- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JJ1-TCC ENG(RDU) REAR AXLE HEAVY DUTY 320MM(6CP) AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX) 		8-98026-047-0 01 1 0907- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JJ1-TCC ENG(RDU) REAR AXLE HEAVY DUTY 320MM(6CP) AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX) 		8-98026-048-0 01 1 0907- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JJ1-TCC ENG(RDU) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-051-0 01 1 0804-0906 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JJ1-TCC ENG(RDU) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) EXC. AUSTRALIA EQUIPMENT(B13),4 WHEELANTI LOCK BRAKE<JE5> 		8-98026-051-0 01 1 0907- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 4.0-4.5TON(RPR) EXC. SMALL DOUBLE RR TIRE(6YE) 		8-98026-038-0 01 1 0710-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98026-038-0 01 1 0710-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 4.0-4.5TON(RPR) EXC. SMALL DOUBLE RR TIRE(6YE) 		8-98026-038-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98026-038-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 4.5-5.0TON(RPS) SMALL DOUBLE RR TIRE(6YE) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98027-461-0 01 1 0710-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98027-461-0 01 1 0710-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 4.5-5.0TON(RPS) SMALL DOUBLE RR TIRE(6YE) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98027-461-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98027-461-0 01 1 0804- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 4.0-4.5TON(RPR) EXC. SMALL DOUBLE RR TIRE(6YE) 		8-98089-413-0 01 1 0710- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98089-413-0 01 1 0710- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-97359-746-0 01 1 0710-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 		8-97359-746-0 01 1 0710-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0) 		8-97359-746-0 01 1 0710-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 0710-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 		8-97359-746-0 01 1 0710-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.5-7.0TON(RPW) 		8-97359-746-0 01 1 0710-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-97359-746-0 01 1 0804-0804 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 		8-97359-746-0 01 1 0804-0804 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0) 		8-97359-746-0 01 1 0804-0804 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 0804-0804 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 		8-97359-746-0 01 1 0804-0804 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.5-7.0TON(RPW) 		8-97359-746-0 01 1 0804-0804 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-97359-746-0 01 1 0804-0906 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 		8-97359-746-0 01 1 0804-0906 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0) 		8-97359-746-0 01 1 0804-0906 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 0804-0906 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 		8-97359-746-0 01 1 0804-0906 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.5-7.0TON(RPW) 		8-97359-746-0 01 1 0804-0906 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-97359-746-0 01 1 0907- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 		8-97359-746-0 01 1 0907- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0) 		8-97359-746-0 01 1 0907- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) EXC. AUSTRALIA EQUIPMENT(B13),4 WHEELANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 0907- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 		8-97359-746-0 01 1 0907- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.5-7.0TON(RPW) 		8-97359-746-0 01 1 0907- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-97359-747-0 01 1 0710-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 		8-97359-747-0 01 1 0710-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0) 		8-97359-747-0 01 1 0710-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 		8-97359-747-0 01 1 0710-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.5-7.0TON(RPW) 		8-97359-747-0 01 1 0710-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-97359-747-0 01 1 0804-0804 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 		8-97359-747-0 01 1 0804-0804 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0) 		8-97359-747-0 01 1 0804-0804 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 		8-97359-747-0 01 1 0804-0804 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.5-7.0TON(RPW) 		8-97359-747-0 01 1 0804-0804 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-97359-747-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 		8-97359-747-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0) 		8-97359-747-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 		8-97359-747-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.5-7.0TON(RPW) 		8-97359-747-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 0710-0710 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 0710-0710 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
EXC. AUSTRALIA EQUIPMENT(B13) 		8-97359-748-0 01 1 0710-0710 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 0710-0710 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 0710-0802 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 0710-0802 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AUSTRALIA EQUIPMENT(B13) 		8-97359-748-0 01 1 0710-0802 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 0710-0802 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 0710-0802 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 0803-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 0803-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCS ENG(RJS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 0803-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 0803-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 0804-0804 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 0804-0804 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 0804-0804 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 0804-0804 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 0805-0906 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 0805-0906 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AUSTRALIA EQUIPMENT(B13),4 WHEELANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 0805-0906 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 0805-0906 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 0907- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. AUSTRALIA EQUIPMENT(B13) 		8-97359-748-0 01 1 0907- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 0907- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AUSTRALIA EQUIPMENT(B13),4 WHEELANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 0907- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 0907- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97359-749-0 01 1 0710-0802 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AUSTRALIA EQUIPMENT(B13) 		8-97359-749-0 01 1 0710-0802 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97359-749-0 01 1 0710-0802 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97359-749-0 01 1 0803-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97359-749-0 01 1 0803-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97359-749-0 01 1 0804-0906 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97359-749-0 01 1 0804-0906 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97359-749-0 01 1 0907- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. AUSTRALIA EQUIPMENT(B13) 		8-97359-749-0 01 1 0907- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97359-749-0 01 1 0907- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98006-755-0 01 1 0710- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98006-755-0 01 1 0710- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98006-757-0 01 1 0710- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98006-757-0 01 1 0710- ●

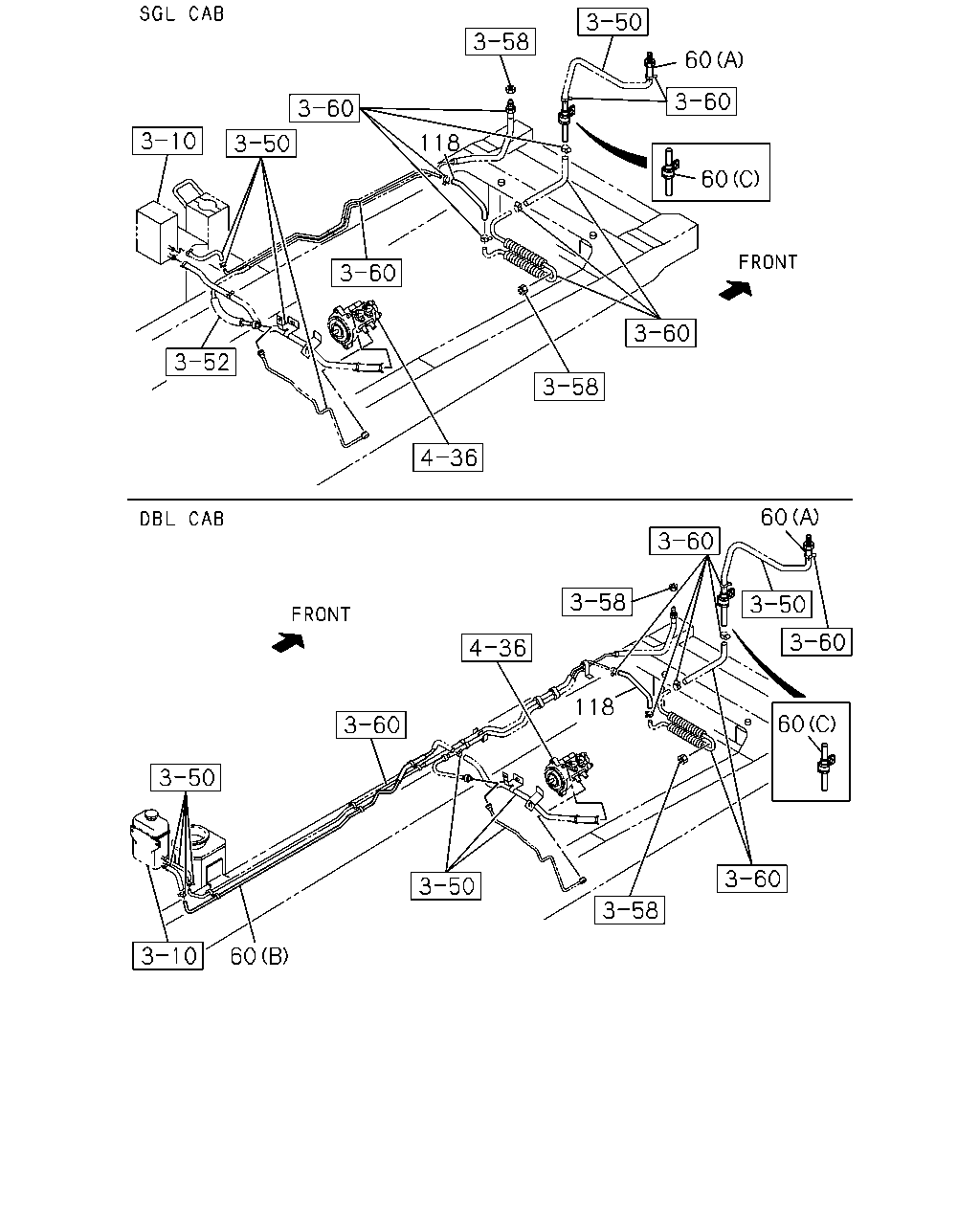

çizim 156196
60 118 60 60 118 60 60
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98041-326-1 01 1 0710-0906 ● ● ●
60 04.685 PIPE ASM; BRK
(D) 		8-98041-326-1 01 1 0710-0906 ●
60 04.685 PIPE ASM; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98041-326-1 01 1 0907- ● ●
60 04.685 PIPE ASM; BRK
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98041-326-1 01 1 0907- ●
60 04.685 PIPE ASM; BRK
4HK1-TCS ENG(RJS) (D) 		8-98041-326-1 01 1 0907- ●
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-549-0 01 1 0710-0906 ● ● ●
60 04.685 PIPE ASM; BRK
(A) 		8-98080-549-0 01 1 0710-0906 ●
60 04.685 PIPE ASM; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-549-0 01 1 0907- ● ●
60 04.685 PIPE ASM; BRK
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-549-0 01 1 0907- ●
60 04.685 PIPE ASM; BRK
4HK1-TCS ENG(RJS) (A) 		8-98080-549-0 01 1 0907- ●
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98088-313-1 01 1 0710-0906 ● ● ●
60 04.685 PIPE ASM; BRK
(C) 		8-98088-313-1 01 1 0710-0906 ●
60 04.685 PIPE ASM; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98088-313-1 01 1 0907- ● ●
60 04.685 PIPE ASM; BRK
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98088-313-1 01 1 0907- ●
60 04.685 PIPE ASM; BRK
4HK1-TCS ENG(RJS) (C) 		8-98088-313-1 01 1 0907- ●
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98092-259-1 01 1 0710-0906 ●
60 04.685 PIPE ASM; BRK
(B) 		8-98092-259-1 01 1 0710-0906 ●
60 04.685 PIPE ASM; BRK
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98092-259-1 01 1 0907- ●
60 04.685 PIPE ASM; BRK
4HK1-TCS ENG(RJS) (B) 		8-98092-259-1 01 1 0907- ●
118 04.680 HOSE; PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 		8-97181-217-2 01 1 0710-0906 ● ● ●
118 04.680 HOSE; PIPE TO PIPE 8-97181-217-2 01 1 0710-0906 ●
118 04.680 HOSE; PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 		8-97181-217-2 01 1 0907-1001 ● ●
118 04.680 HOSE; PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 		8-97181-217-2 01 1 0907-1001 ●
118 04.680 HOSE; PIPE TO PIPE
4HK1-TCS ENG(RJS) 		8-97181-217-2 01 1 0907-1001 ●
118 04.680 HOSE; PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 		8-98158-200-0 01 1 1002- ● ●
118 04.680 HOSE; PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 		8-98158-200-0 01 1 1002- ●
118 04.680 HOSE; PIPE TO PIPE
4HK1-TCS ENG(RJS) 		8-98158-200-0 01 1 1002- ●

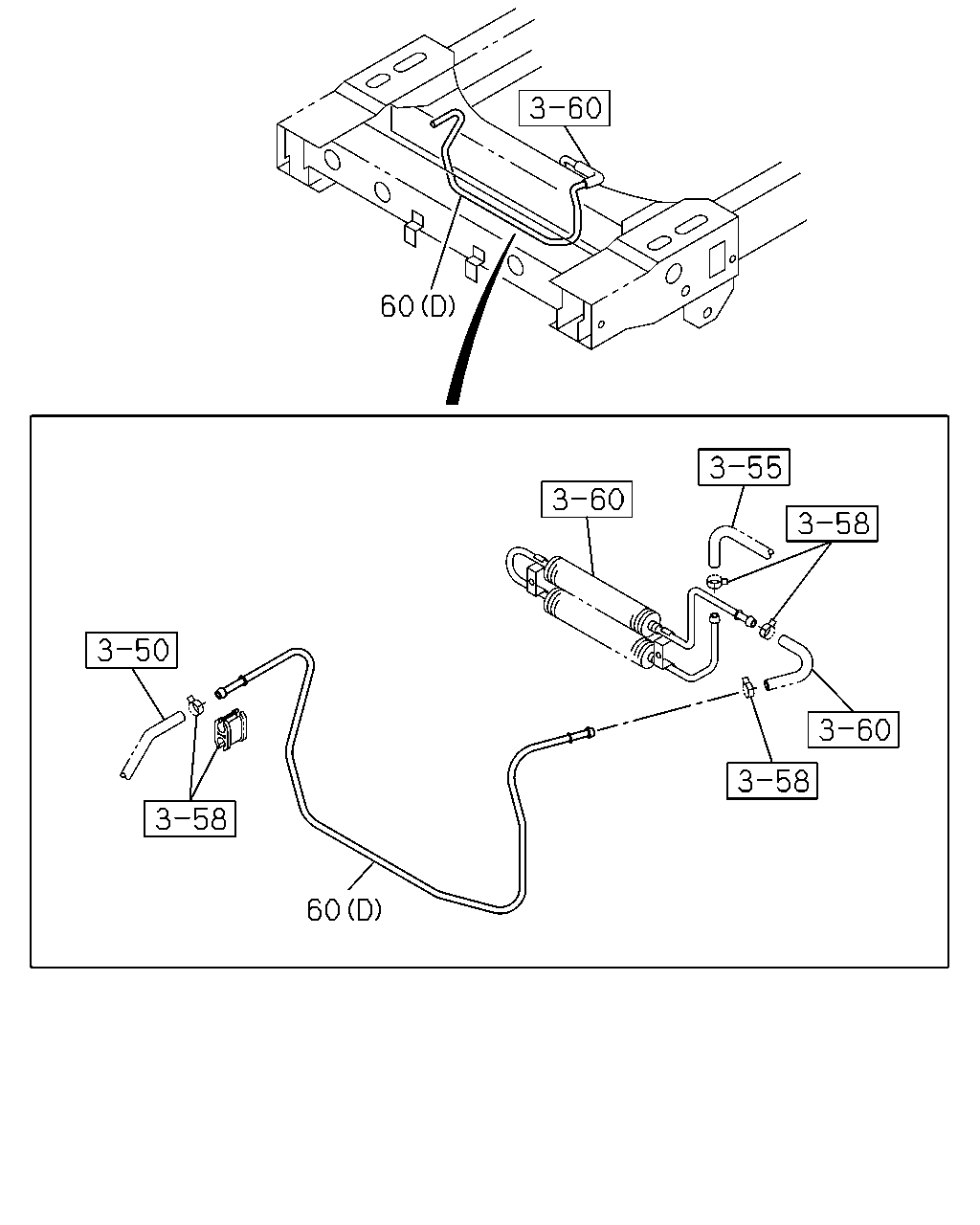

çizim 156206
60 60
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98041-326-1 01 1 0710-0906 ● ● ●
60 04.685 PIPE ASM; BRK
(D) 		8-98041-326-1 01 1 0710-0906 ●
60 04.685 PIPE ASM; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98041-326-1 01 1 0907- ● ●
60 04.685 PIPE ASM; BRK
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98041-326-1 01 1 0907- ●
60 04.685 PIPE ASM; BRK
4HK1-TCS ENG(RJS) (D) 		8-98041-326-1 01 1 0907- ●
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-549-0 01 1 0710-0906 ● ● ●
60 04.685 PIPE ASM; BRK
(A) 		8-98080-549-0 01 1 0710-0906 ●
60 04.685 PIPE ASM; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-549-0 01 1 0907- ● ●
60 04.685 PIPE ASM; BRK
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-549-0 01 1 0907- ●
60 04.685 PIPE ASM; BRK
4HK1-TCS ENG(RJS) (A) 		8-98080-549-0 01 1 0907- ●
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98088-313-1 01 1 0710-0906 ● ● ●
60 04.685 PIPE ASM; BRK
(C) 		8-98088-313-1 01 1 0710-0906 ●
60 04.685 PIPE ASM; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98088-313-1 01 1 0907- ● ●
60 04.685 PIPE ASM; BRK
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98088-313-1 01 1 0907- ●
60 04.685 PIPE ASM; BRK
4HK1-TCS ENG(RJS) (C) 		8-98088-313-1 01 1 0907- ●
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98092-259-1 01 1 0710-0906 ●
60 04.685 PIPE ASM; BRK
(B) 		8-98092-259-1 01 1 0710-0906 ●
60 04.685 PIPE ASM; BRK
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98092-259-1 01 1 0907- ●
60 04.685 PIPE ASM; BRK
4HK1-TCS ENG(RJS) (B) 		8-98092-259-1 01 1 0907- ●
çizim 156220
3 3 25 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98030-103-0 01 1 0710-0802 ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(B) 		8-98030-103-0 01 1 0710-0802 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98030-103-0 01 1 0803-0803 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(B) 		8-98030-103-0 01 1 0803-0803 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98030-103-0 01 1 0804-0903 ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(B) 		8-98030-103-0 01 1 0804-0903 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98117-514-0 01 1 0904-0906 ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(D) 		8-98117-514-0 01 1 0904-0906 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98117-514-1 01 1 0907- ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(D) 		8-98117-514-1 01 1 0907- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
04.845 (A) 		8-97205-199-1 01 1 0710-0802 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 04.845 (A) 		8-97205-199-1 01 1 0710-0802 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
04.845 (A) 		8-97205-199-1 01 1 0803-0803 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 04.845 (A) 		8-97205-199-1 01 1 0803-0803 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
04.845 (A) 		8-97205-199-1 01 1 0804-0906 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 04.845 (A) 		8-97205-199-1 01 1 0804-0906 ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
04.845 (A) 		8-97205-199-1 01 1 0907- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 04.845 (A) 		8-97205-199-1 01 1 0907- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 0710-0906 ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 0710-0906 ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(C) 		8-97205-714-1 01 1 0710-0906 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 0907- ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 0907- ● ● ● ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 0710- ● ● ● ● ● ●
25 04.686 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> M10 STRAIGHT 		0-92107-005-0 01 1 0710- ● ● ● ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 0710- ● ●

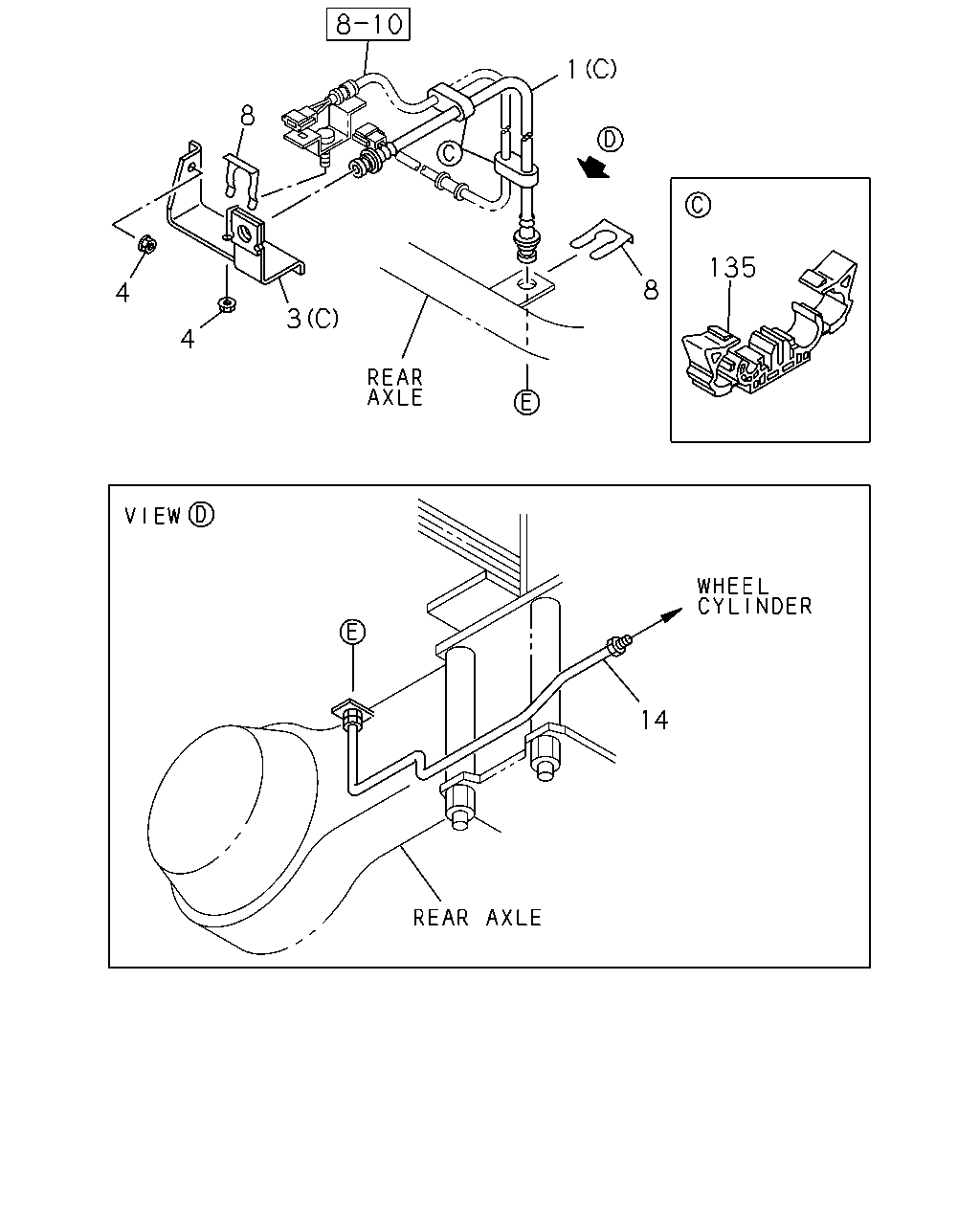

çizim 156226
1 8 135 8 4 4 14 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=345 		8-97230-284-1 01 1 0710-0802 ● ● ●
1 04.680 HOSE; FLEX,RR BRK
(B) L=345 		8-97230-284-1 01 1 0710-0802 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=345 		8-97230-284-1 01 1 0803-0803 ● ●
1 04.680 HOSE; FLEX,RR BRK
(B) L=345 		8-97230-284-1 01 1 0803-0803 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=345 		8-97230-284-1 01 1 0804- ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
(B) L=345 		8-97230-284-1 01 1 0804- ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=310 		8-97035-063-1 01 1 0710-0802 ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=310 		8-97035-063-1 01 1 0710-0802 ● ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=310 		8-97035-063-1 01 1 0803-0803 ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=310 		8-97035-063-1 01 1 0803-0803 ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=310 		8-97035-063-1 01 1 0804- ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=310 		8-97035-063-1 01 1 0804- ● ● ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) L=405 		8-97089-061-0 01 1 0710- ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-569-0 01 1 0710- ● ● ●
1 04.680 HOSE; FLEX,RR BRK
(C) 		8-97253-569-0 01 1 0710- ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-570-0 01 1 0710- ● ● ●
1 04.680 HOSE; FLEX,RR BRK
(C) 		8-97253-570-0 01 1 0710- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98030-103-0 01 1 0710-0802 ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(B) 		8-98030-103-0 01 1 0710-0802 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98030-103-0 01 1 0803-0803 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(B) 		8-98030-103-0 01 1 0803-0803 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98030-103-0 01 1 0804-0903 ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(B) 		8-98030-103-0 01 1 0804-0903 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98117-514-0 01 1 0904-0906 ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(D) 		8-98117-514-0 01 1 0904-0906 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98117-514-1 01 1 0907- ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(D) 		8-98117-514-1 01 1 0907- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
04.845 (A) 		8-97205-199-1 01 1 0710-0802 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 04.845 (A) 		8-97205-199-1 01 1 0710-0802 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
04.845 (A) 		8-97205-199-1 01 1 0803-0803 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 04.845 (A) 		8-97205-199-1 01 1 0803-0803 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
04.845 (A) 		8-97205-199-1 01 1 0804-0906 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 04.845 (A) 		8-97205-199-1 01 1 0804-0906 ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
04.845 (A) 		8-97205-199-1 01 1 0907- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 04.845 (A) 		8-97205-199-1 01 1 0907- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 0710-0906 ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 0710-0906 ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(C) 		8-97205-714-1 01 1 0710-0906 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 0907- ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 0907- ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0710- ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
01.062 M8 FLANGE 		0-91180-108-0 02 1 0710- ●
8 04.686 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 04 1 0710- ● ● ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 04 1 0710- ● ●
8 04.686 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 02 1 0710- ● ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JJ1-TCC ENG(RDU) REAR AXLE HEAVY DUTY 320MM(6CP) AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX) 		8-98026-047-0 01 1 0907- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JJ1-TCC ENG(RDU) REAR AXLE HEAVY DUTY 320MM(6CP) AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX) 		8-98026-048-0 01 1 0907- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JJ1-TCC ENG(RDU) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-051-0 01 1 0804-0906 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JJ1-TCC ENG(RDU) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) EXC. AUSTRALIA EQUIPMENT(B13),4 WHEELANTI LOCK BRAKE<JE5> 		8-98026-051-0 01 1 0907- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 4.0-4.5TON(RPR) EXC. SMALL DOUBLE RR TIRE(6YE) 		8-98026-038-0 01 1 0710-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98026-038-0 01 1 0710-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 4.0-4.5TON(RPR) EXC. SMALL DOUBLE RR TIRE(6YE) 		8-98026-038-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98026-038-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 4.5-5.0TON(RPS) SMALL DOUBLE RR TIRE(6YE) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98027-461-0 01 1 0710-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98027-461-0 01 1 0710-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 4.5-5.0TON(RPS) SMALL DOUBLE RR TIRE(6YE) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98027-461-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98027-461-0 01 1 0804- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 4.0-4.5TON(RPR) EXC. SMALL DOUBLE RR TIRE(6YE) 		8-98089-413-0 01 1 0710- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98089-413-0 01 1 0710- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-97359-746-0 01 1 0710-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 		8-97359-746-0 01 1 0710-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0) 		8-97359-746-0 01 1 0710-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 0710-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 		8-97359-746-0 01 1 0710-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.5-7.0TON(RPW) 		8-97359-746-0 01 1 0710-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-97359-746-0 01 1 0804-0804 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 		8-97359-746-0 01 1 0804-0804 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0) 		8-97359-746-0 01 1 0804-0804 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 0804-0804 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 		8-97359-746-0 01 1 0804-0804 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.5-7.0TON(RPW) 		8-97359-746-0 01 1 0804-0804 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-97359-746-0 01 1 0804-0906 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 		8-97359-746-0 01 1 0804-0906 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0) 		8-97359-746-0 01 1 0804-0906 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 0804-0906 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 		8-97359-746-0 01 1 0804-0906 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.5-7.0TON(RPW) 		8-97359-746-0 01 1 0804-0906 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-97359-746-0 01 1 0907- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 		8-97359-746-0 01 1 0907- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0) 		8-97359-746-0 01 1 0907- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) EXC. AUSTRALIA EQUIPMENT(B13),4 WHEELANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 0907- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 		8-97359-746-0 01 1 0907- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.5-7.0TON(RPW) 		8-97359-746-0 01 1 0907- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-97359-747-0 01 1 0710-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 		8-97359-747-0 01 1 0710-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0) 		8-97359-747-0 01 1 0710-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 		8-97359-747-0 01 1 0710-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.5-7.0TON(RPW) 		8-97359-747-0 01 1 0710-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-97359-747-0 01 1 0804-0804 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 		8-97359-747-0 01 1 0804-0804 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0) 		8-97359-747-0 01 1 0804-0804 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 		8-97359-747-0 01 1 0804-0804 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.5-7.0TON(RPW) 		8-97359-747-0 01 1 0804-0804 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-97359-747-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 		8-97359-747-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0) 		8-97359-747-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 		8-97359-747-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.5-7.0TON(RPW) 		8-97359-747-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 0710-0710 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 0710-0710 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
EXC. AUSTRALIA EQUIPMENT(B13) 		8-97359-748-0 01 1 0710-0710 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 0710-0710 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 0710-0802 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 0710-0802 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AUSTRALIA EQUIPMENT(B13) 		8-97359-748-0 01 1 0710-0802 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 0710-0802 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 0710-0802 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 0803-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 0803-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCS ENG(RJS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 0803-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 0803-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 0804-0804 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 0804-0804 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 0804-0804 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 0804-0804 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 0805-0906 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 0805-0906 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AUSTRALIA EQUIPMENT(B13),4 WHEELANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 0805-0906 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 0805-0906 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 0907- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. AUSTRALIA EQUIPMENT(B13) 		8-97359-748-0 01 1 0907- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 0907- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AUSTRALIA EQUIPMENT(B13),4 WHEELANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 0907- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 0907- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97359-749-0 01 1 0710-0802 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AUSTRALIA EQUIPMENT(B13) 		8-97359-749-0 01 1 0710-0802 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97359-749-0 01 1 0710-0802 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97359-749-0 01 1 0803-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97359-749-0 01 1 0803-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97359-749-0 01 1 0804-0906 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97359-749-0 01 1 0804-0906 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97359-749-0 01 1 0907- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. AUSTRALIA EQUIPMENT(B13) 		8-97359-749-0 01 1 0907- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97359-749-0 01 1 0907- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98006-755-0 01 1 0710- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98006-755-0 01 1 0710- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98006-757-0 01 1 0710- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98006-757-0 01 1 0710- ●
135 04.686 CLIP; FLEX HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97207-699-0 04 1 0710- ● ● ●
135 04.686 CLIP; FLEX HOSE 8-97207-699-0 04 1 0710- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
