◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NN ▶ 51157 - NN/NP/NQR-R EXC.EU5 ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#54671) — 546 parça

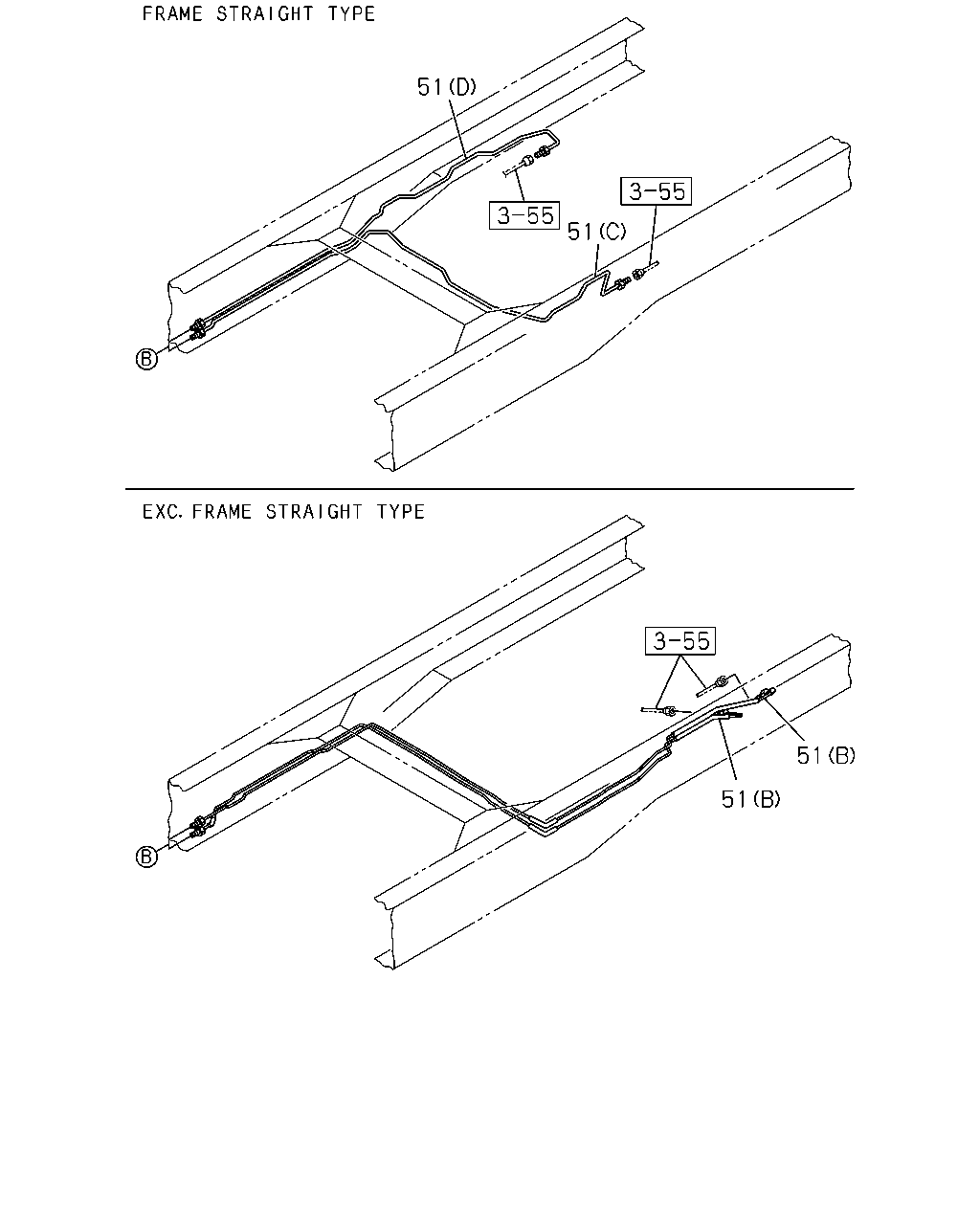

çizim 155939
51 51 51 51
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
51 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98136-043-0 01 1 0906-0906 ● ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98136-043-0 01 1 0907- ● ●
51 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98136-044-0 01 1 0906-0906 ● ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98136-044-0 01 1 0907- ● ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-519-1 01 1 0710-0906 ● ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-519-1 01 1 0907- ● ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-532-1 01 1 0710-0906 ● ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-532-1 01 1 0907- ● ●
51 04.685 PIPE; BRK
DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98051-642-1 01 1 0710-0711 ● ● ●
51 04.685 PIPE; BRK
DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-598-0 01 1 0712-0802 ● ● ●
51 04.685 PIPE; BRK
DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-598-0 01 1 0803-0803 ● ●
51 04.685 PIPE; BRK
DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-598-0 01 1 0804-0906 ● ● ● ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-598-0 01 1 0907- ● ● ●
51 04.685 PIPE; BRK
DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98051-643-1 01 1 0710-0802 ● ● ●
51 04.685 PIPE; BRK
DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98051-643-1 01 1 0803-0803 ● ●
51 04.685 PIPE; BRK
DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98051-643-1 01 1 0804-0906 ● ● ● ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98051-643-1 01 1 0907- ● ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 0710-0802 ● ● ●
51 04.685 PIPE; BRK
(B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 0710-0802 ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 0803-0803 ● ●
51 04.685 PIPE; BRK
(B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 0803-0803 ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 0804-0906 ● ● ● ●
51 04.685 PIPE; BRK
(B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 0804-0906 ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 0907- ● ● ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 0710-0802 ● ● ●
51 04.685 PIPE; BRK
(B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 0710-0802 ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 0803-0803 ● ●
51 04.685 PIPE; BRK
(B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 0803-0803 ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 0804-0906 ● ● ● ●
51 04.685 PIPE; BRK
(B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 0804-0906 ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 0907- ● ● ● ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98056-310-1 01 1 0710-0711 ● ● ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0712-0802 ● ● ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0803-0803 ● ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0804-0906 ● ● ● ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0907- ● ● ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0710-0802 ● ● ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0803-0803 ● ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0804-0906 ● ● ● ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0907- ● ● ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-776-1 01 1 0710-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-776-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-545-0 01 1 0710-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-545-0 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-521-1 01 1 0710-0802 ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-521-1 01 1 0803-0803 ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-521-1 01 1 0804-0906 ● ● ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-521-1 01 1 0907- ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-534-1 01 1 0710-0802 ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-534-1 01 1 0803-0803 ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-534-1 01 1 0804-0906 ● ● ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-534-1 01 1 0907- ● ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 0710-0905 ● ● ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,FRONT WIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 0906-0906 ● ● ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,FRONT WIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 0907- ● ● ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 0710-0905 ● ● ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,FRONT WIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 0906-0906 ● ● ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,FRONT WIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 0907- ● ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-777-1 01 1 0710-0906 ● ● ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-777-1 01 1 0907- ● ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-055-0 01 1 0710-0906 ● ● ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-055-0 01 1 0907- ● ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-778-1 01 1 0710-0906 ● ● ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-778-1 01 1 0907- ● ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 0710-0906 ● ● ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 0907- ● ● ●
51 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-057-0 01 1 0710-0906 ● ● ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-057-0 01 1 0907- ● ● ●
51 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98041-058-0 01 1 0710-0906 ● ● ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98041-058-0 01 1 0907- ● ● ●
51 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-779-1 01 1 0710-0906 ● ● ●
51 04.685 PIPE; BRK
(C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-779-1 01 1 0710-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-779-1 01 1 0907- ● ● ●
51 04.685 PIPE; BRK
(C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-779-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98047-143-0 01 1 0710-0906 ● ● ●
51 04.685 PIPE; BRK
(D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98047-143-0 01 1 0710-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98047-143-0 01 1 0907- ● ● ●
51 04.685 PIPE; BRK
(D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98047-143-0 01 1 0907- ●

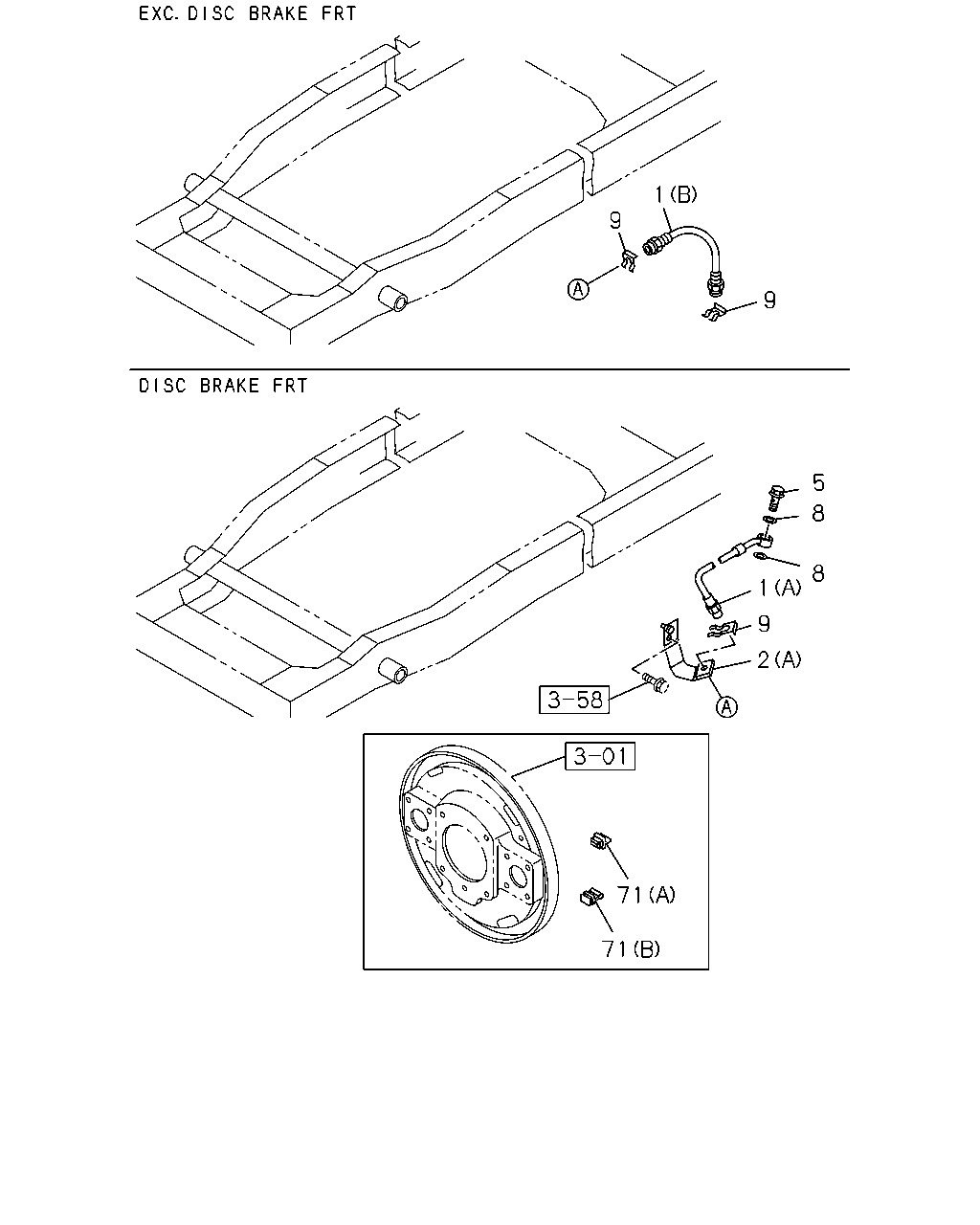

çizim 156166
1 9 9 5 8 8 1 9 2 71 71
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.680 HOSE; FLEX,FRT BRK
FRONT WIDE TREAD<7GV> EXC. DISC BRAKE FRT<J52> (B) 		8-97115-907-0 02 1 0905- ● ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. DISC BRAKE FRT<J52> (B) 		8-97039-543-1 02 1 0710-0903 ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. DISC BRAKE FRT<J52>,FRONT WIDE TREAD<7GV> (B) 		8-97039-543-1 02 1 0904- ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
DISC BRAKE FRT<J52> (A) 		8-97365-481-0 02 1 0710-0903 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
(A) 		8-97365-481-0 02 1 0710-0903 ●
1 04.680 HOSE; FLEX,FRT BRK
DISC BRAKE FRT<J52> EXC. FRONT WIDE TREAD<7GV> (A) 		8-97365-481-1 02 1 0904- ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
(A) 		8-97365-481-1 02 1 0904- ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),FRT&RR 225/70R19.5 19.5X6.00-127(CRR),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-14 6GSX16 -127 6-WHL/NUT(9BP) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (A) 		8-97365-482-0 02 1 0710-0809 ●
1 04.680 HOSE; FLEX,FRT BRK
(A) 		8-97365-482-0 02 1 0710-0809 ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),FRT&RR 225/70R19.5 19.5X6.00-127(CRR),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (A) 		8-97365-482-0 02 1 0810-0903 ●
1 04.680 HOSE; FLEX,FRT BRK
(A) 		8-97365-482-0 02 1 0810-0903 ●
1 04.680 HOSE; FLEX,FRT BRK
DISC BRAKE FRT<J52> EXC. FRONT WIDE TREAD<7GV> (A) 		8-97365-482-1 02 1 0904- ●
1 04.680 HOSE; FLEX,FRT BRK
(A) 		8-97365-482-1 02 1 0904- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98042-478-1 02 1 0710-0906 ● ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98042-478-1 02 1 0710-0906 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98042-478-1 01 1 0907-0907 ● ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98042-478-1 01 1 0907-0907 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98042-478-1 01 1 0907-0907 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98042-478-1 01 1 0907-0907 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4HK1-TCS ENG(RJS) (B) 		8-98042-478-1 01 1 0907-0907 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98042-478-1 01 1 0908-0909 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98042-478-1 01 1 0908-0909 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4HK1-TCS ENG(RJS) (B) 		8-98042-478-1 01 1 0908-0909 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98136-577-0 01 1 0908-0909 ● ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98136-577-0 01 1 0908-0909 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98136-577-0 01 1 0910- ● ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98136-577-0 01 1 0910- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98136-577-0 01 1 0910- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98136-577-0 01 1 0910- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4HK1-TCS ENG(RJS) (B) 		8-98136-577-0 01 1 0910- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> (A) 		8-98047-528-0 01 1 0710-0802 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98047-528-0 01 1 0710-0802 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-98047-528-0 01 1 0710-0802 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> (A) 		8-98047-528-0 01 1 0803-0803 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98047-528-0 01 1 0803-0803 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-98047-528-0 01 1 0803-0803 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> (A) 		8-98047-528-0 01 1 0804-0906 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98047-528-0 01 1 0804-0906 ● ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-98047-528-0 01 1 0804-0906 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4JJ1-TCS ENG(LFB) DISC BRAKE FRT<J52> (A) 		8-98047-528-1 01 1 0907- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98047-528-1 01 1 0907- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4JJ1-TCS ENG(LFB) (A) 		8-98047-528-1 01 1 0907- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4JJ1-TCC ENG(RDU) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98047-528-1 01 1 0907- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> (A) 		8-98047-527-0 01 1 0710-0802 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98047-527-0 01 1 0710-0802 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-98047-527-0 01 1 0710-0802 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> (A) 		8-98047-527-0 01 1 0803-0803 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98047-527-0 01 1 0803-0803 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-98047-527-0 01 1 0803-0803 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> (A) 		8-98047-527-0 01 1 0804-0906 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98047-527-0 01 1 0804-0906 ● ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-98047-527-0 01 1 0804-0906 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4JJ1-TCS ENG(LFB) DISC BRAKE FRT<J52> (A) 		8-98047-527-1 01 1 0907- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98047-527-1 01 1 0907- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4JJ1-TCS ENG(LFB) (A) 		8-98047-527-1 01 1 0907- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4JJ1-TCC ENG(RDU) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98047-527-1 01 1 0907- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-778-3 01 1 0710-0803 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> (A) 		8-97365-778-3 01 1 0710-0803 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-778-3 01 1 0804-0906 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-778-3 01 1 0907- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4HK1-TCN ENG(RDQ) DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-778-3 01 1 0907- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-776-3 01 1 0710-0803 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> (A) 		8-97365-776-3 01 1 0710-0803 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-776-3 01 1 0804-0906 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-776-3 01 1 0907- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4HK1-TCN ENG(RDQ) DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-776-3 01 1 0907- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-779-3 01 1 0710-0802 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-779-3 01 1 0710-0802 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> (A) 		8-97365-779-3 01 1 0803-0803 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-779-3 01 1 0803-0803 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-779-3 01 1 0804-0906 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-779-3 01 1 0804-0906 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-779-3 01 1 0907- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4HK1-TCS ENG(RJS) (A) 		8-97365-779-3 01 1 0907- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-777-3 01 1 0710-0802 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-777-3 01 1 0710-0802 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> (A) 		8-97365-777-3 01 1 0803-0803 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-777-3 01 1 0803-0803 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-777-3 01 1 0804-0906 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-777-3 01 1 0804-0906 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-777-3 01 1 0907- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4HK1-TCS ENG(RJS) (A) 		8-97365-777-3 01 1 0907- ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> M10X22 		8-98014-005-0 02 1 0710- ● ● ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-98014-005-0 02 1 0710- ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0710- ● ● ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0710- ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0710- ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. DISC BRAKE FRT<J52> 		8-97360-054-0 02 1 0710- ● ● ● ●
71 04.686 GROMMET; OIL PIPE
G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 05.002 (B) 		9-09756-034-0 02 1 0710- ● ● ●
71 04.686 GROMMET; OIL PIPE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 05.002 (A) 		8-97044-742-1 02 1 0710-0710 ● ●
71 04.686 GROMMET; OIL PIPE
EXC. DISC BRAKE FRT<J52> 05.002 (A) 		8-97044-742-1 02 1 0710-0710 ●
71 04.686 GROMMET; OIL PIPE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 05.002 (A) 		8-97044-742-1 02 1 0710-1402 ● ●
71 04.686 GROMMET; OIL PIPE
EXC. DISC BRAKE FRT<J52> 05.002 (A) 		8-97044-742-1 02 1 0710-1402 ●

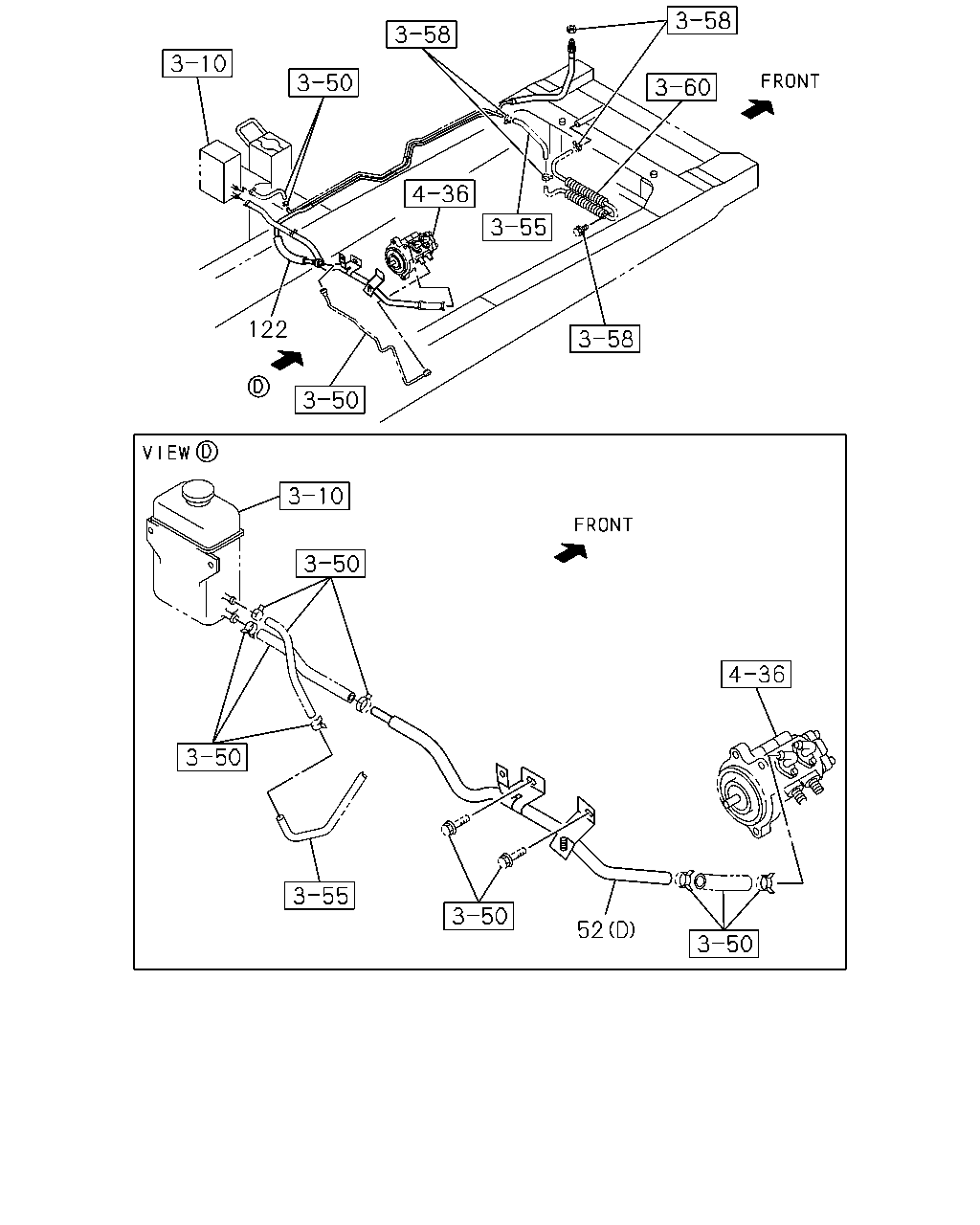

çizim 156180
122 52
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> EXC. DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98135-964-0 01 1 0906-0906 ● ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98135-964-0 01 1 0907- ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> EXC. DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98135-962-0 01 1 0906-0906 ● ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98135-962-0 01 1 0907- ● ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-318-0 01 1 0710-0906 ● ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-318-0 01 1 0907- ● ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-319-0 01 1 0710-0802 ● ● ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-319-0 01 1 0803-0803 ● ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-319-0 01 1 0804-0906 ● ● ● ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-319-0 01 1 0907- ● ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 0710-0802 ● ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 0710-0802 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 0803-0803 ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 0803-0803 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 0804-0906 ● ● ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 0804-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 0907- ● ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 0907- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 0710-0802 ● ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 0710-0802 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 0803-0803 ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 0803-0803 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 0804-0906 ● ● ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 0804-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 0907- ● ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 0907- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98056-320-2 01 1 0710-0802 ● ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98056-320-2 01 1 0803-0803 ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98056-320-2 01 1 0804-0906 ● ● ● ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98056-320-2 01 1 0907- ● ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98056-321-1 01 1 0710-0802 ● ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98056-321-1 01 1 0803-0803 ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98056-321-1 01 1 0804-0906 ● ● ● ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98056-321-1 01 1 0907- ● ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 0710- ● ● ● ●
52 04.685 PIPE; BRK
(A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 0710- ● ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-261-0 01 1 0710-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-261-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-415-0 01 1 0710-0802 ● ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-415-0 01 1 0803-0803 ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-415-0 01 1 0804-0906 ● ● ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-415-0 01 1 0907- ● ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-262-0 01 1 0710-0906 ● ● ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-262-0 01 1 0907- ● ● ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-263-0 01 1 0710-0906 ● ● ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-263-0 01 1 0907- ● ● ●
52 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-264-0 01 1 0710-0906 ● ● ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-264-0 01 1 0907- ● ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98033-765-2 01 1 0710-0906 ● ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98033-765-2 01 1 0710-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98033-765-2 01 1 0907- ● ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98033-766-4 01 1 0710-0906 ● ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98033-766-4 01 1 0710-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98033-766-4 01 1 0907- ● ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 0710-0905 ● ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 0906-0906 ● ● ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 0907- ● ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 0710-0905 ● ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 0906-0906 ● ● ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 0907- ● ● ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98036-162-0 01 1 0710- ● ● ● ●
122 04.685 PIPE ASM; BRK,2 WAY
HYDRO BRAKE BOOSTER(7QQ) 		8-98041-325-3 01 1 0710-0906 ● ●
122 04.685 PIPE ASM; BRK,2 WAY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 		8-98041-325-3 01 1 0907-0909 ● ●
122 04.685 PIPE ASM; BRK,2 WAY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) L=1839 		8-98136-573-0 01 1 0910- ● ●
122 04.685 PIPE ASM; BRK,2 WAY
HYDRO BRAKE BOOSTER(7QQ) 		8-98069-783-3 01 1 0710-0906 ●
122 04.685 PIPE ASM; BRK,2 WAY 8-98069-783-3 01 1 0710-0906 ●
122 04.685 PIPE ASM; BRK,2 WAY
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 		8-98069-783-3 01 1 0907-0909 ●
122 04.685 PIPE ASM; BRK,2 WAY
4HK1-TCS ENG(RJS) 		8-98069-783-3 01 1 0907-0909 ●
122 04.685 PIPE ASM; BRK,2 WAY
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) L=1958 		8-98136-574-0 01 1 0910- ●
122 04.685 PIPE ASM; BRK,2 WAY
4HK1-TCS ENG(RJS) L=1958 		8-98136-574-0 01 1 0910- ●

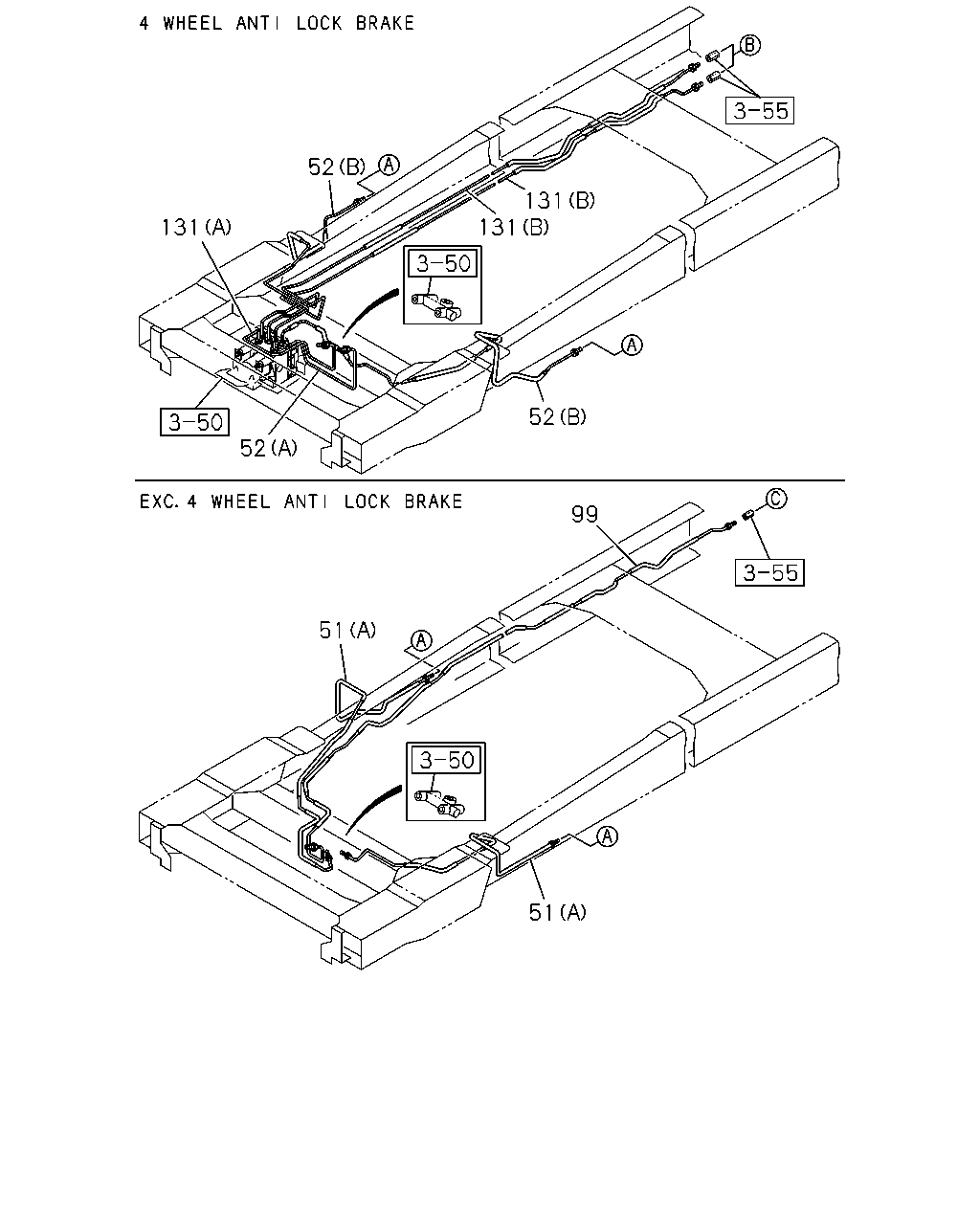

çizim 156192
52 131 131 131 52 52 99 51 51
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
51 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98136-043-0 01 1 0906-0906 ● ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98136-043-0 01 1 0907- ● ●
51 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98136-044-0 01 1 0906-0906 ● ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98136-044-0 01 1 0907- ● ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-519-1 01 1 0710-0906 ● ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-519-1 01 1 0907- ● ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-532-1 01 1 0710-0906 ● ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-532-1 01 1 0907- ● ●
51 04.685 PIPE; BRK
DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98051-642-1 01 1 0710-0711 ● ● ●
51 04.685 PIPE; BRK
DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-598-0 01 1 0712-0802 ● ● ●
51 04.685 PIPE; BRK
DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-598-0 01 1 0803-0803 ● ●
51 04.685 PIPE; BRK
DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-598-0 01 1 0804-0906 ● ● ● ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-598-0 01 1 0907- ● ● ●
51 04.685 PIPE; BRK
DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98051-643-1 01 1 0710-0802 ● ● ●
51 04.685 PIPE; BRK
DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98051-643-1 01 1 0803-0803 ● ●
51 04.685 PIPE; BRK
DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98051-643-1 01 1 0804-0906 ● ● ● ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98051-643-1 01 1 0907- ● ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 0710-0802 ● ● ●
51 04.685 PIPE; BRK
(B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 0710-0802 ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 0803-0803 ● ●
51 04.685 PIPE; BRK
(B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 0803-0803 ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 0804-0906 ● ● ● ●
51 04.685 PIPE; BRK
(B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 0804-0906 ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 0907- ● ● ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 0710-0802 ● ● ●
51 04.685 PIPE; BRK
(B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 0710-0802 ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 0803-0803 ● ●
51 04.685 PIPE; BRK
(B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 0803-0803 ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 0804-0906 ● ● ● ●
51 04.685 PIPE; BRK
(B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 0804-0906 ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 0907- ● ● ● ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98056-310-1 01 1 0710-0711 ● ● ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0712-0802 ● ● ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0803-0803 ● ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0804-0906 ● ● ● ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0907- ● ● ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0710-0802 ● ● ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0803-0803 ● ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0804-0906 ● ● ● ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0907- ● ● ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-776-1 01 1 0710-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-776-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-545-0 01 1 0710-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-545-0 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-521-1 01 1 0710-0802 ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-521-1 01 1 0803-0803 ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-521-1 01 1 0804-0906 ● ● ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-521-1 01 1 0907- ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-534-1 01 1 0710-0802 ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-534-1 01 1 0803-0803 ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-534-1 01 1 0804-0906 ● ● ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-534-1 01 1 0907- ● ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 0710-0905 ● ● ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,FRONT WIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 0906-0906 ● ● ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,FRONT WIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 0907- ● ● ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 0710-0905 ● ● ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,FRONT WIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 0906-0906 ● ● ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,FRONT WIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 0907- ● ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-777-1 01 1 0710-0906 ● ● ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-777-1 01 1 0907- ● ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-055-0 01 1 0710-0906 ● ● ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-055-0 01 1 0907- ● ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-778-1 01 1 0710-0906 ● ● ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-778-1 01 1 0907- ● ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 0710-0906 ● ● ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 0907- ● ● ●
51 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-057-0 01 1 0710-0906 ● ● ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-057-0 01 1 0907- ● ● ●
51 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98041-058-0 01 1 0710-0906 ● ● ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98041-058-0 01 1 0907- ● ● ●
51 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-779-1 01 1 0710-0906 ● ● ●
51 04.685 PIPE; BRK
(C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-779-1 01 1 0710-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-779-1 01 1 0907- ● ● ●
51 04.685 PIPE; BRK
(C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-779-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98047-143-0 01 1 0710-0906 ● ● ●
51 04.685 PIPE; BRK
(D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98047-143-0 01 1 0710-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98047-143-0 01 1 0907- ● ● ●
51 04.685 PIPE; BRK
(D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98047-143-0 01 1 0907- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> EXC. DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98135-964-0 01 1 0906-0906 ● ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98135-964-0 01 1 0907- ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> EXC. DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98135-962-0 01 1 0906-0906 ● ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98135-962-0 01 1 0907- ● ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-318-0 01 1 0710-0906 ● ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-318-0 01 1 0907- ● ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-319-0 01 1 0710-0802 ● ● ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-319-0 01 1 0803-0803 ● ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-319-0 01 1 0804-0906 ● ● ● ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-319-0 01 1 0907- ● ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 0710-0802 ● ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 0710-0802 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 0803-0803 ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 0803-0803 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 0804-0906 ● ● ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 0804-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 0907- ● ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 0907- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 0710-0802 ● ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 0710-0802 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 0803-0803 ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 0803-0803 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 0804-0906 ● ● ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 0804-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 0907- ● ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 0907- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98056-320-2 01 1 0710-0802 ● ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98056-320-2 01 1 0803-0803 ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98056-320-2 01 1 0804-0906 ● ● ● ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98056-320-2 01 1 0907- ● ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98056-321-1 01 1 0710-0802 ● ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98056-321-1 01 1 0803-0803 ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98056-321-1 01 1 0804-0906 ● ● ● ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98056-321-1 01 1 0907- ● ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 0710- ● ● ● ●
52 04.685 PIPE; BRK
(A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 0710- ● ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-261-0 01 1 0710-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-261-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-415-0 01 1 0710-0802 ● ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-415-0 01 1 0803-0803 ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-415-0 01 1 0804-0906 ● ● ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-415-0 01 1 0907- ● ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-262-0 01 1 0710-0906 ● ● ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-262-0 01 1 0907- ● ● ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-263-0 01 1 0710-0906 ● ● ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-263-0 01 1 0907- ● ● ●
52 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-264-0 01 1 0710-0906 ● ● ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-264-0 01 1 0907- ● ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98033-765-2 01 1 0710-0906 ● ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98033-765-2 01 1 0710-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98033-765-2 01 1 0907- ● ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98033-766-4 01 1 0710-0906 ● ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98033-766-4 01 1 0710-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98033-766-4 01 1 0907- ● ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 0710-0905 ● ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 0906-0906 ● ● ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 0907- ● ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 0710-0905 ● ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 0906-0906 ● ● ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 0907- ● ● ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98036-162-0 01 1 0710- ● ● ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR 		8-97389-415-2 01 1 0710-0802 ● ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR 		8-97389-415-2 01 1 0803-0803 ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR 		8-97389-415-2 01 1 0804-0906 ● ● ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR 		8-97389-415-2 01 1 0907- ● ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4/6WAY TO 2WAY,REAR 		8-98057-259-0 01 1 0710-0906 ● ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4/6WAY TO 2WAY,REAR 		8-98057-259-0 01 1 0907- ● ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-97389-420-1 01 1 0710-0802 ● ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-97389-420-1 01 1 0710-0802 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-97389-420-1 01 1 0803-0803 ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-97389-420-1 01 1 0803-0803 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-97389-420-1 01 1 0804-0906 ● ● ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-97389-420-1 01 1 0804-0906 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-97389-420-1 01 1 0907-1106 ● ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-97389-420-1 01 1 0907-1106 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98192-805-0 01 1 1107- ● ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98192-805-0 01 1 1107- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-97389-425-1 01 1 0710-0802 ● ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-97389-425-1 01 1 0710-0802 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-97389-425-1 01 1 0803-0803 ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-97389-425-1 01 1 0803-0803 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-97389-425-1 01 1 0804-0906 ● ● ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-97389-425-1 01 1 0804-0906 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-97389-425-1 01 1 0907-1106 ● ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-97389-425-1 01 1 0907-1106 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98192-818-0 01 1 1107- ● ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98192-818-0 01 1 1107- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,REAR 		8-97389-372-2 01 1 0710- ● ● ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(A) 4WAY TO HU,REAR 		8-97389-372-2 01 1 0710- ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 04.686 (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98033-767-1 01 1 0710-0906 ● ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
04.686 (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98033-767-1 01 1 0710-0906 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 04.686 (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98033-767-1 01 1 0907- ● ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
04.686 (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98033-767-1 01 1 0907- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 04.686 (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98033-768-1 01 1 0710-0906 ● ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
04.686 (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98033-768-1 01 1 0710-0906 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 04.686 (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98033-768-1 01 1 0907- ● ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
04.686 (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98033-768-1 01 1 0907- ●

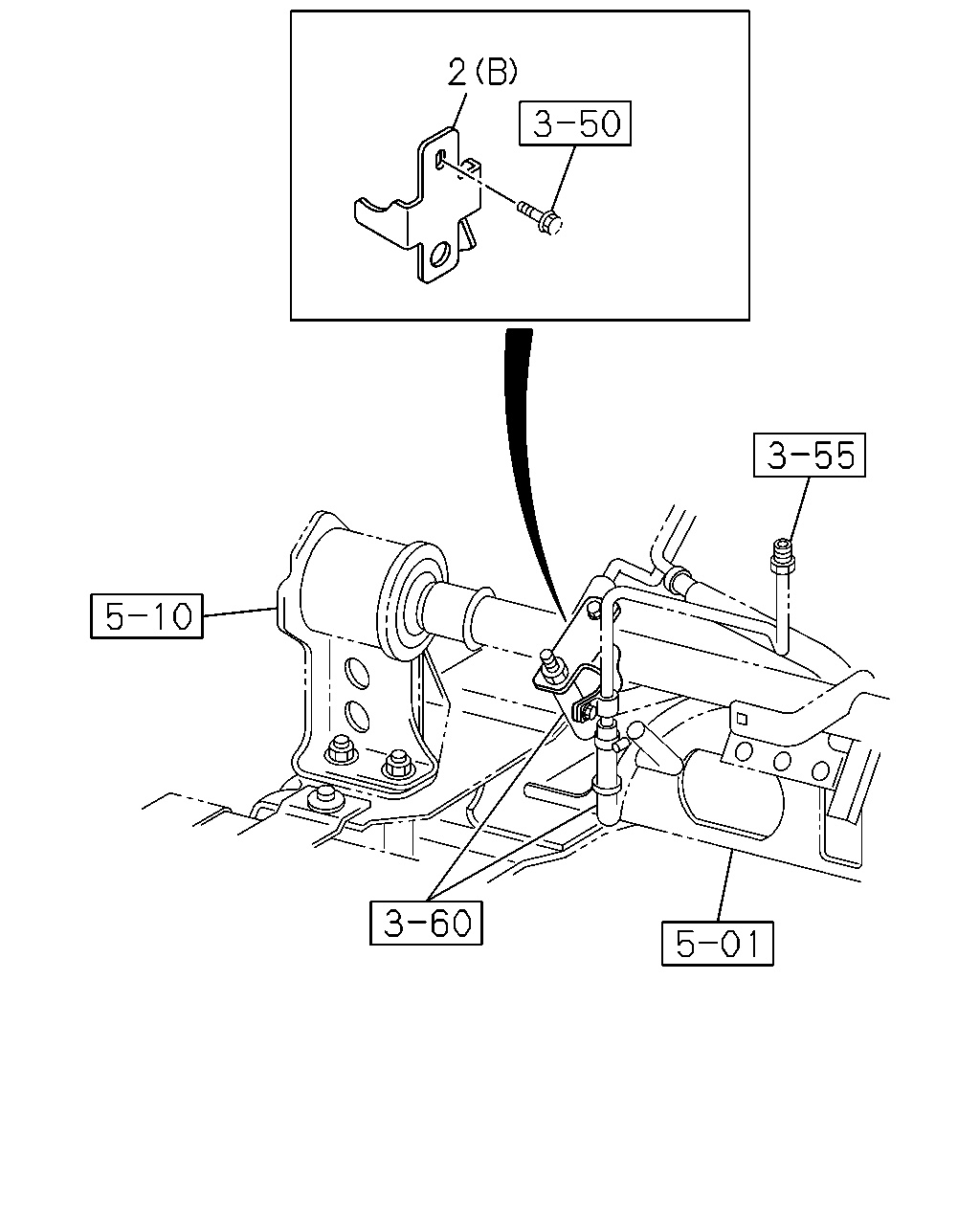

çizim 156204
2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98042-478-1 02 1 0710-0906 ● ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98042-478-1 02 1 0710-0906 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98042-478-1 01 1 0907-0907 ● ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98042-478-1 01 1 0907-0907 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98042-478-1 01 1 0907-0907 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98042-478-1 01 1 0907-0907 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4HK1-TCS ENG(RJS) (B) 		8-98042-478-1 01 1 0907-0907 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98042-478-1 01 1 0908-0909 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98042-478-1 01 1 0908-0909 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4HK1-TCS ENG(RJS) (B) 		8-98042-478-1 01 1 0908-0909 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98136-577-0 01 1 0908-0909 ● ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98136-577-0 01 1 0908-0909 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98136-577-0 01 1 0910- ● ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98136-577-0 01 1 0910- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98136-577-0 01 1 0910- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98136-577-0 01 1 0910- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4HK1-TCS ENG(RJS) (B) 		8-98136-577-0 01 1 0910- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> (A) 		8-98047-528-0 01 1 0710-0802 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98047-528-0 01 1 0710-0802 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-98047-528-0 01 1 0710-0802 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> (A) 		8-98047-528-0 01 1 0803-0803 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98047-528-0 01 1 0803-0803 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-98047-528-0 01 1 0803-0803 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> (A) 		8-98047-528-0 01 1 0804-0906 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98047-528-0 01 1 0804-0906 ● ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-98047-528-0 01 1 0804-0906 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4JJ1-TCS ENG(LFB) DISC BRAKE FRT<J52> (A) 		8-98047-528-1 01 1 0907- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98047-528-1 01 1 0907- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4JJ1-TCS ENG(LFB) (A) 		8-98047-528-1 01 1 0907- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4JJ1-TCC ENG(RDU) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98047-528-1 01 1 0907- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> (A) 		8-98047-527-0 01 1 0710-0802 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98047-527-0 01 1 0710-0802 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-98047-527-0 01 1 0710-0802 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> (A) 		8-98047-527-0 01 1 0803-0803 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98047-527-0 01 1 0803-0803 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-98047-527-0 01 1 0803-0803 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> (A) 		8-98047-527-0 01 1 0804-0906 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98047-527-0 01 1 0804-0906 ● ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-98047-527-0 01 1 0804-0906 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4JJ1-TCS ENG(LFB) DISC BRAKE FRT<J52> (A) 		8-98047-527-1 01 1 0907- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98047-527-1 01 1 0907- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4JJ1-TCS ENG(LFB) (A) 		8-98047-527-1 01 1 0907- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4JJ1-TCC ENG(RDU) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98047-527-1 01 1 0907- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-778-3 01 1 0710-0803 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> (A) 		8-97365-778-3 01 1 0710-0803 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-778-3 01 1 0804-0906 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-778-3 01 1 0907- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4HK1-TCN ENG(RDQ) DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-778-3 01 1 0907- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-776-3 01 1 0710-0803 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> (A) 		8-97365-776-3 01 1 0710-0803 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-776-3 01 1 0804-0906 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-776-3 01 1 0907- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4HK1-TCN ENG(RDQ) DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-776-3 01 1 0907- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-779-3 01 1 0710-0802 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-779-3 01 1 0710-0802 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> (A) 		8-97365-779-3 01 1 0803-0803 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-779-3 01 1 0803-0803 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-779-3 01 1 0804-0906 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-779-3 01 1 0804-0906 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-779-3 01 1 0907- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4HK1-TCS ENG(RJS) (A) 		8-97365-779-3 01 1 0907- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-777-3 01 1 0710-0802 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-777-3 01 1 0710-0802 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> (A) 		8-97365-777-3 01 1 0803-0803 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-777-3 01 1 0803-0803 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-777-3 01 1 0804-0906 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-777-3 01 1 0804-0906 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-777-3 01 1 0907- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4HK1-TCS ENG(RJS) (A) 		8-97365-777-3 01 1 0907- ●
çizim 156234
52
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> EXC. DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98135-964-0 01 1 0906-0906 ● ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98135-964-0 01 1 0907- ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> EXC. DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98135-962-0 01 1 0906-0906 ● ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98135-962-0 01 1 0907- ● ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-318-0 01 1 0710-0906 ● ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-318-0 01 1 0907- ● ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-319-0 01 1 0710-0802 ● ● ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-319-0 01 1 0803-0803 ● ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-319-0 01 1 0804-0906 ● ● ● ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-319-0 01 1 0907- ● ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 0710-0802 ● ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 0710-0802 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 0803-0803 ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 0803-0803 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 0804-0906 ● ● ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 0804-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 0907- ● ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 0907- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 0710-0802 ● ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 0710-0802 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 0803-0803 ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 0803-0803 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 0804-0906 ● ● ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 0804-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 0907- ● ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 0907- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98056-320-2 01 1 0710-0802 ● ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98056-320-2 01 1 0803-0803 ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98056-320-2 01 1 0804-0906 ● ● ● ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98056-320-2 01 1 0907- ● ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98056-321-1 01 1 0710-0802 ● ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98056-321-1 01 1 0803-0803 ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98056-321-1 01 1 0804-0906 ● ● ● ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98056-321-1 01 1 0907- ● ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 0710- ● ● ● ●
52 04.685 PIPE; BRK
(A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 0710- ● ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-261-0 01 1 0710-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-261-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-415-0 01 1 0710-0802 ● ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-415-0 01 1 0803-0803 ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-415-0 01 1 0804-0906 ● ● ●
52 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-415-0 01 1 0907- ● ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-262-0 01 1 0710-0906 ● ● ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-262-0 01 1 0907- ● ● ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-263-0 01 1 0710-0906 ● ● ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-263-0 01 1 0907- ● ● ●
52 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-264-0 01 1 0710-0906 ● ● ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-264-0 01 1 0907- ● ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98033-765-2 01 1 0710-0906 ● ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98033-765-2 01 1 0710-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98033-765-2 01 1 0907- ● ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98033-766-4 01 1 0710-0906 ● ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98033-766-4 01 1 0710-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98033-766-4 01 1 0907- ● ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 0710-0905 ● ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 0906-0906 ● ● ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 0907- ● ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 0710-0905 ● ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 0906-0906 ● ● ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 0907- ● ● ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98036-162-0 01 1 0710- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
