◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NN ▶ 51157 - NN/NP/NQR-R EXC.EU5 ▶ 3 - Brakes, Brake System ▶ 3-50 - BRAKE PIPING; OIL,MASTER CYLINDER ▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#54670) — 317 parça

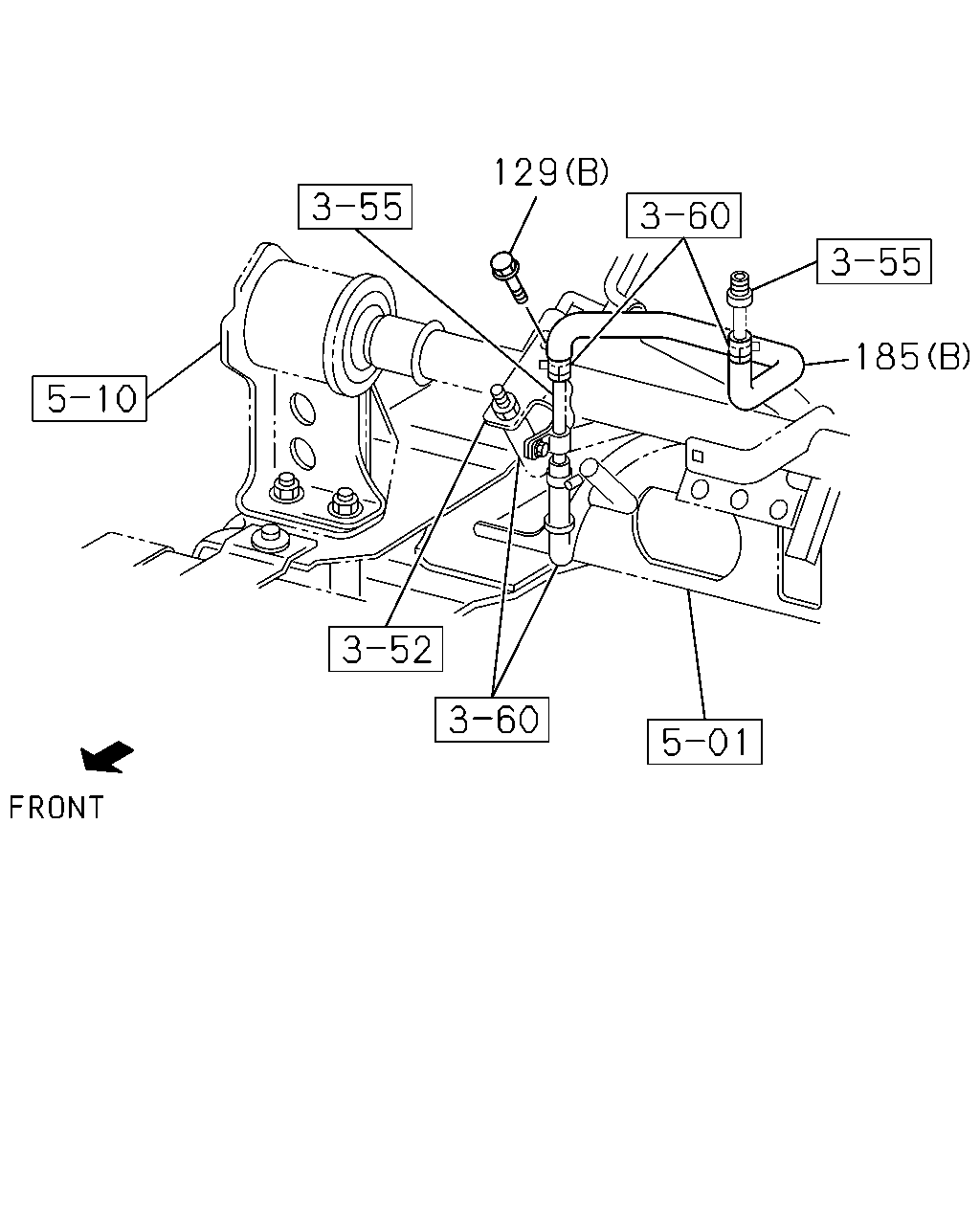

çizim 156164
129 185
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
129 04.710 BOLT; BRKT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 0710-0809 ● ● ● ● ● ●
129 04.710 BOLT; BRKT
08.857 (A) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 0710- ● ● ● ● ● ●
129 04.710 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 0710-0906 ● ● ●
129 04.710 BOLT; BRKT
03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 0710-0906 ●
129 04.710 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 0907- ● ●
129 04.710 BOLT; BRKT
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 0907- ●
129 04.710 BOLT; BRKT
4HK1-TCS ENG(RJS) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 0907- ●
185 04.681 HOSE; RUBBER,SUCTION
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98085-720-0 01 1 0710-0906 ● ● ●
185 04.681 HOSE; RUBBER,SUCTION
(B) 		8-98085-720-0 01 1 0710-0906 ●
185 04.681 HOSE; RUBBER,SUCTION
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98085-720-0 01 1 0907- ● ●
185 04.681 HOSE; RUBBER,SUCTION
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98085-720-0 01 1 0907- ●
185 04.681 HOSE; RUBBER,SUCTION
4HK1-TCS ENG(RJS) (B) 		8-98085-720-0 01 1 0907- ●
185 04.681 HOSE; RUBBER,SUCTION
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97330-513-0 01 1 0710- ● ● ● ●

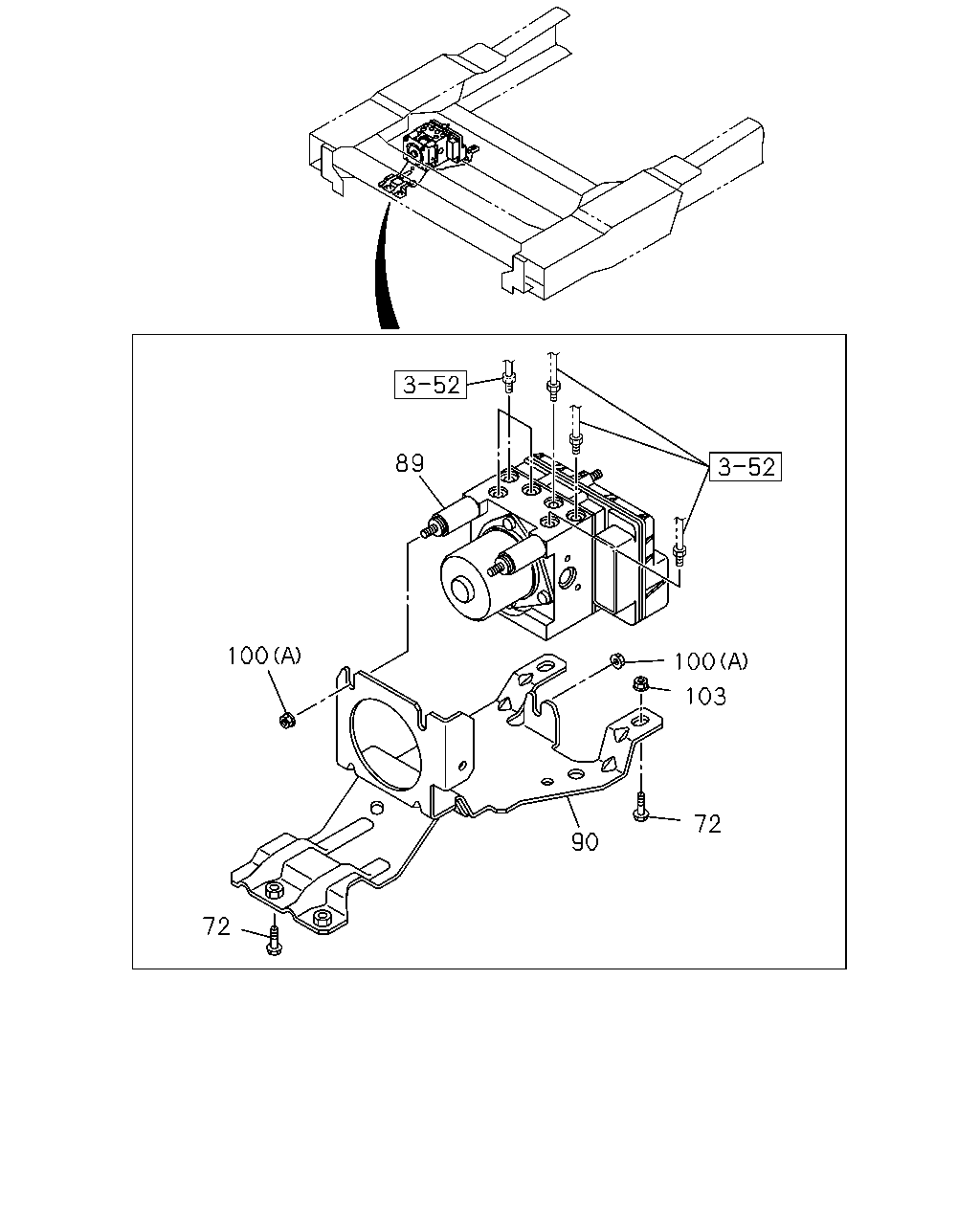

çizim 156173
89 100 100 103 72 90 72
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
72 04.686 BOLT; BRKT TO BODY
4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0710- ● ● ● ●
72 04.686 BOLT; BRKT TO BODY
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0710- ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98081-562-1 01 1 0710-1006 ● ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK 8-98081-562-1 01 1 0710-1006 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98158-007-1 01 1 1007- ● ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK 8-98158-007-1 01 1 1007- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 		8-98081-561-1 01 1 0710-1006 ● ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 		8-98158-006-1 01 1 1007- ● ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> HYDRO BRAKE BOOSTER(7QQ) 		8-98081-563-1 01 1 0710-1006 ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK 8-98081-563-1 01 1 0710-1006 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> HYDRO BRAKE BOOSTER(7QQ) 		8-98158-008-1 01 1 1007- ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK 8-98158-008-1 01 1 1007- ●
90 04.730 BRACKET; HYDRAULIC UNIT,ABS
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-320-0 01 1 0710- ● ● ● ●
90 04.730 BRACKET; HYDRAULIC UNIT,ABS 8-97385-320-0 01 1 0710- ● ●
100 04.730 NUT; HYDRAULIC UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (A) M8 FLANGE 		0-91180-108-0 03 1 0710- ● ● ● ●
100 04.730 NUT; HYDRAULIC UNIT
01.062 (A) M8 FLANGE 		0-91180-108-0 03 1 0710- ● ●
100 04.730 NUT; HYDRAULIC UNIT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97358-958-0 01 1 0710- ● ● ● ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0710- ● ● ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
01.062 M8 FLANGE 		0-91180-108-0 02 1 0710- ●

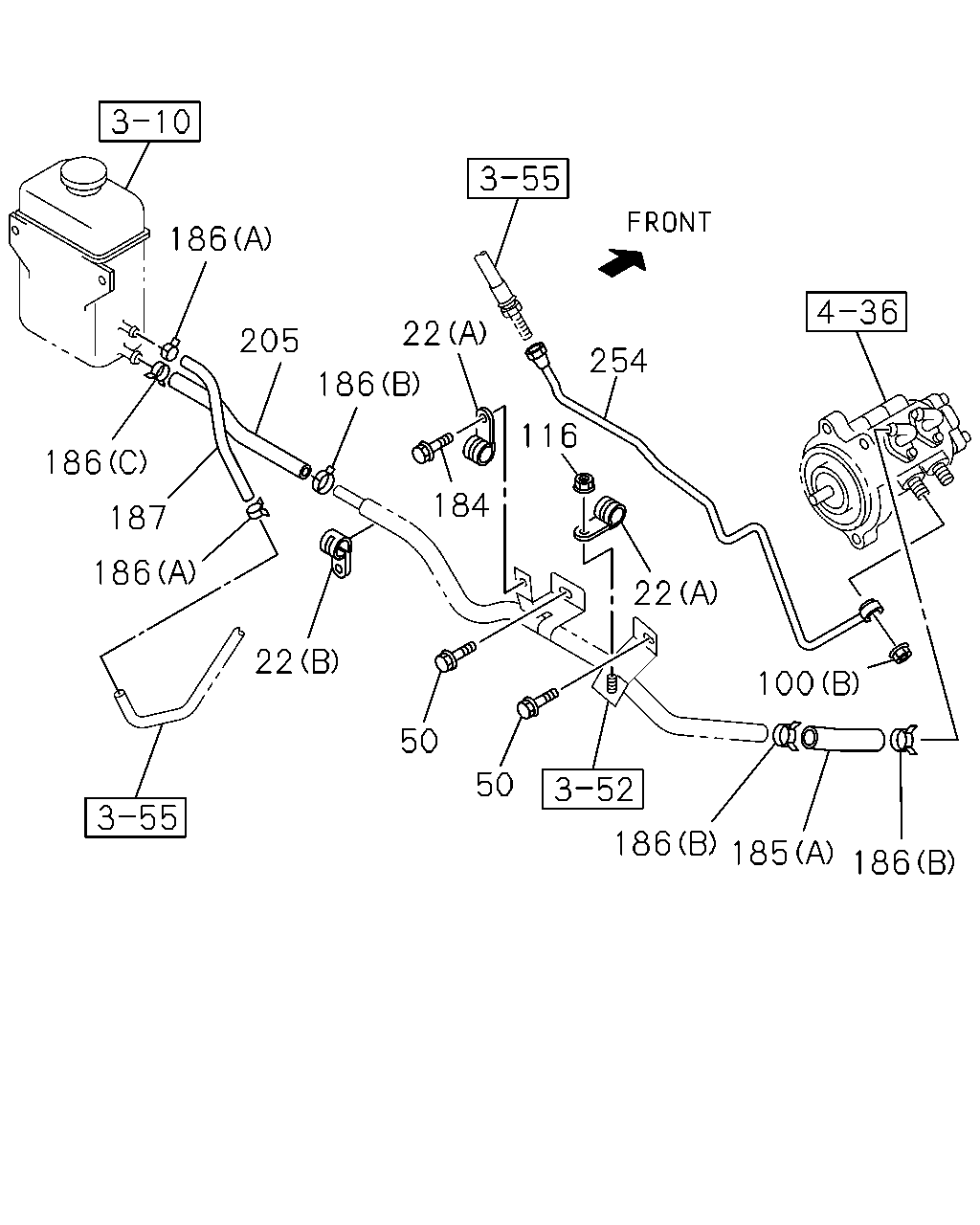

çizim 156199
186 22 205 254 186 116 186 184 187 186 22 22 100 50 50 186 185 186
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
22 04.685 CLIP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (A) ID=10 L=16.5 		8-98082-034-0 02 1 0710- ● ● ● ●
22 04.685 CLIP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (B) ID=17 L=21 		8-98082-035-0 01 1 0710- ● ● ● ●
50 04.710 BOLT; PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE 		0-28050-816-0 03 1 0710- ● ● ● ●
100 04.730 NUT; HYDRAULIC UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (A) M8 FLANGE 		0-91180-108-0 03 1 0710- ● ● ● ●
100 04.730 NUT; HYDRAULIC UNIT
01.062 (A) M8 FLANGE 		0-91180-108-0 03 1 0710- ● ●
100 04.730 NUT; HYDRAULIC UNIT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97358-958-0 01 1 0710- ● ● ● ●
116 04.686 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0710-0808 ● ● ● ●
116 04.686 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0809- ● ● ●
184 04.681 BOLT; CLIP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0809- ● ● ●
185 04.681 HOSE; RUBBER,SUCTION
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98085-720-0 01 1 0710-0906 ● ● ●
185 04.681 HOSE; RUBBER,SUCTION
(B) 		8-98085-720-0 01 1 0710-0906 ●
185 04.681 HOSE; RUBBER,SUCTION
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98085-720-0 01 1 0907- ● ●
185 04.681 HOSE; RUBBER,SUCTION
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98085-720-0 01 1 0907- ●
185 04.681 HOSE; RUBBER,SUCTION
4HK1-TCS ENG(RJS) (B) 		8-98085-720-0 01 1 0907- ●
185 04.681 HOSE; RUBBER,SUCTION
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97330-513-0 01 1 0710- ● ● ● ●
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=16 		8-94238-568-0 02 1 0710-0906 ● ● ●
186 04.681 CLIP; HOSE
04.930 (A) ID=16 		8-94238-568-0 02 1 0710-0906 ●
186 04.681 CLIP; HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
186 04.681 CLIP; HOSE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=16 		8-94238-568-0 02 1 0907-0911 ●
186 04.681 CLIP; HOSE
4HK1-TCS ENG(RJS) 04.930 (A) ID=16 		8-94238-568-0 02 1 0907-0911 ●
186 04.681 CLIP; HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (A) ID=16 		8-98008-098-0 02 1 0912- ● ●
186 04.681 CLIP; HOSE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (A) ID=16 		8-98008-098-0 02 1 0912- ●
186 04.681 CLIP; HOSE
4HK1-TCS ENG(RJS) 03.162 (A) ID=16 		8-98008-098-0 02 1 0912- ●
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER(7QQ) 06.672 (B) ID=21 		8-94242-034-0 01 1 0710-0906 ● ● ●
186 04.681 CLIP; HOSE
06.672 (B) ID=21 		8-94242-034-0 01 1 0710-0906 ●
186 04.681 CLIP; HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 06.672 (B) ID=21 		8-94242-034-0 01 1 0907-0911 ● ●
186 04.681 CLIP; HOSE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 06.672 (B) ID=21 		8-94242-034-0 01 1 0907-0911 ●
186 04.681 CLIP; HOSE
4HK1-TCS ENG(RJS) 06.672 (B) ID=21 		8-94242-034-0 01 1 0907-0911 ●
186 04.681 CLIP; HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B) ID=21 		8-98150-355-0 01 1 0912- ● ●
186 04.681 CLIP; HOSE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B) ID=21 		8-98150-355-0 01 1 0912- ●
186 04.681 CLIP; HOSE
4HK1-TCS ENG(RJS) (B) ID=21 		8-98150-355-0 01 1 0912- ●
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER(7QQ) 08.846 (C) ID=22 		8-94382-401-0 01 1 0710-0906 ● ● ●
186 04.681 CLIP; HOSE
08.846 (C) ID=22 		8-94382-401-0 01 1 0710-0906 ●
186 04.681 CLIP; HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 08.846 (C) ID=22 		8-94382-401-0 01 1 0907-1003 ● ●
186 04.681 CLIP; HOSE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 08.846 (C) ID=22 		8-94382-401-0 01 1 0907-1003 ●
186 04.681 CLIP; HOSE
4HK1-TCS ENG(RJS) 08.846 (C) ID=22 		8-94382-401-0 01 1 0907-1003 ●
186 04.681 CLIP; HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.278 (C) ID=22 		8-97359-141-0 01 1 1004- ● ●
186 04.681 CLIP; HOSE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.278 (C) ID=22 		8-97359-141-0 01 1 1004- ●
186 04.681 CLIP; HOSE
4HK1-TCS ENG(RJS) 03.278 (C) ID=22 		8-97359-141-0 01 1 1004- ●
186 04.681 CLIP; HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) 06.672 (B) ID=21 		8-94242-034-0 02 1 0710- ● ● ● ●
187 04.681 HOSE; RUBBER,OIL TANK
HYDRO BRAKE BOOSTER(7QQ) 06.671 L=220 SERVICED BY L=3000 		0-19809-300-0 01 1 0710-0906 ● ●
187 04.681 HOSE; RUBBER,OIL TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 06.671 L=220 SERVICED BY L=3000 		0-19809-300-0 01 1 0907- ● ●
187 04.681 HOSE; RUBBER,OIL TANK
HYDRO BRAKE BOOSTER(7QQ) 06.671 L=200 SERVICED BY L=3000 		0-19809-300-0 01 1 0710-0906 ●
187 04.681 HOSE; RUBBER,OIL TANK
06.671 L=200 SERVICED BY L=3000 		0-19809-300-0 01 1 0710-0906 ●
187 04.681 HOSE; RUBBER,OIL TANK
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 06.671 L=200 SERVICED BY L=3000 		0-19809-300-0 01 1 0907- ●
187 04.681 HOSE; RUBBER,OIL TANK
4HK1-TCS ENG(RJS) 06.671 L=200 SERVICED BY L=3000 		0-19809-300-0 01 1 0907- ●
205 04.681 HOSE; TANK TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 06.670 SERVICED BY L=300 		0-09814-300-0 01 1 0710-0906 ● ●
205 04.681 HOSE; TANK TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 06.670 SERVICED BY L=300 		0-09814-300-0 01 1 0907- ● ●
205 04.681 HOSE; TANK TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 06.670 L=200 SERVICED BY L=300 		0-09814-300-0 01 1 0710-0906 ●
205 04.681 HOSE; TANK TO PIPE
06.670 L=200 SERVICED BY L=300 		0-09814-300-0 01 1 0710-0906 ●
205 04.681 HOSE; TANK TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 06.670 L=200 SERVICED BY L=300 		0-09814-300-0 01 1 0907- ●
205 04.681 HOSE; TANK TO PIPE
4HK1-TCS ENG(RJS) 06.670 L=200 SERVICED BY L=300 		0-09814-300-0 01 1 0907- ●
254 04.685 PIPE; BRAKE,2WAY
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 		8-98036-161-0 01 1 0710-0803 ●
254 04.685 PIPE; BRAKE,2WAY
4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) 		8-98036-161-0 01 1 0710-0803 ●
254 04.685 PIPE; BRAKE,2WAY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) 		8-98036-161-0 01 1 0804- ● ●
254 04.685 PIPE; BRAKE,2WAY
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 		8-98053-548-0 01 1 0710- ●
254 04.685 PIPE; BRAKE,2WAY
4HK1-TCS ENG(RJS) 		8-98053-548-0 01 1 0710- ●

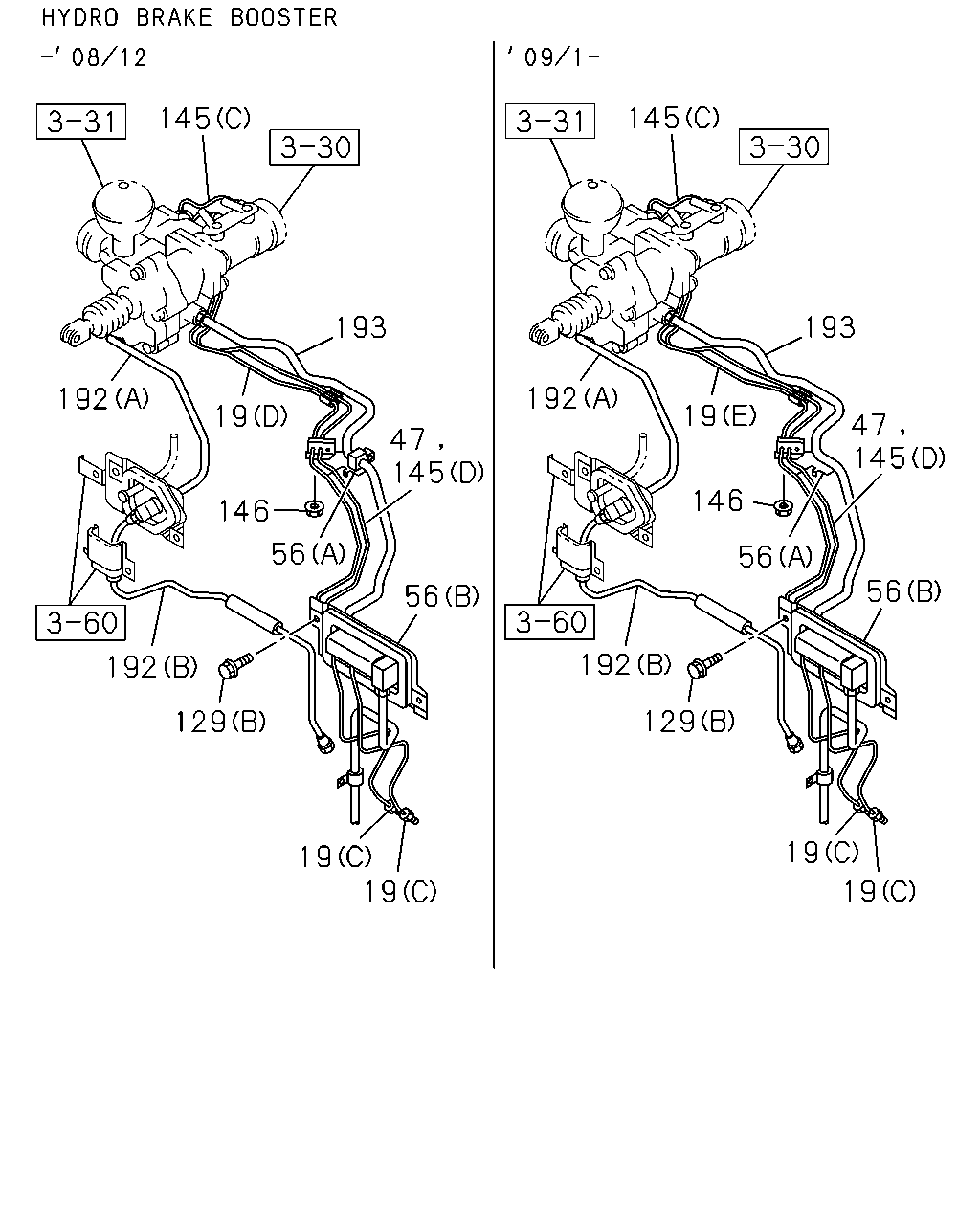

çizim 156200
145 145 193 193 192 192 19 19 47 145 47 145 146 146 56 56 56 56 192 192 129 129 19 19 19 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-97389-337-3 01 1 0710- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-337-3 01 1 0710- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-97389-366-1 02 1 0710-0906 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-366-1 02 1 0710-0906 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB) (A) 		8-97389-366-1 02 1 0907- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-366-1 02 1 0907- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-366-1 02 1 0907- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-366-1 02 1 0907- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98043-501-2 02 1 0710-0906 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(C) 		8-98043-501-2 02 1 0710-0906 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98043-501-2 02 1 0907- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98043-501-2 02 1 0907- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4HK1-TCS ENG(RJS) (C) 		8-98043-501-2 02 1 0907- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98070-478-1 01 1 0710-0812 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(D) 		8-98070-478-1 01 1 0710-0812 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98098-682-1 01 1 0901- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(E) 		8-98098-682-1 01 1 0901- ●
47 04.685 PIPE; OIL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98005-586-3 01 1 0710-0906 ●
47 04.685 PIPE; OIL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98005-586-3 01 1 0710-0906 ● ● ●
47 04.685 PIPE; OIL,FRT BRK 8-98005-586-3 01 1 0710-0906 ●
47 04.685 PIPE; OIL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> L=1173 		8-98133-413-0 01 1 0907- ●
47 04.685 PIPE; OIL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) L=1173 		8-98133-413-0 01 1 0907- ● ● ●
47 04.685 PIPE; OIL,FRT BRK
L=1173 		8-98133-413-0 01 1 0907- ●
47 04.685 PIPE; OIL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) 		8-98070-480-2 01 1 0710-0812 ● ● ●
47 04.685 PIPE; OIL,FRT BRK 8-98070-480-2 01 1 0710-0812 ●
47 04.685 PIPE; OIL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) L=1150 		8-98098-681-0 01 1 0901-0906 ● ● ●
47 04.685 PIPE; OIL,FRT BRK
L=1150 		8-98098-681-0 01 1 0901-0906 ●
47 04.685 PIPE; OIL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) L=1148 		8-98133-414-0 01 1 0907- ● ● ●
47 04.685 PIPE; OIL,FRT BRK
L=1148 		8-98133-414-0 01 1 0907- ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97389-282-1 01 1 0710-1005 ● ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-282-1 01 1 0710-1005 ● ● ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98154-265-1 01 1 1006- ● ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98154-265-1 01 1 1006- ● ● ●
56 04.686 BRACKET; UNION,BRK
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97389-281-1 01 1 0710-1005 ● ●
56 04.686 BRACKET; UNION,BRK
EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97389-281-1 01 1 0710-1005 ● ● ●
56 04.686 BRACKET; UNION,BRK
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98154-264-1 01 1 1006- ● ●
56 04.686 BRACKET; UNION,BRK
EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98154-264-1 01 1 1006- ● ● ●
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98077-185-2 01 1 0710-0812 ● ● ●
56 04.686 BRACKET; UNION,BRK
(A) 		8-98077-185-2 01 1 0710-0812 ●
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98098-679-0 01 1 0901- ● ● ●
56 04.686 BRACKET; UNION,BRK
(A) 		8-98098-679-0 01 1 0901- ●
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98056-776-1 01 1 0710-1005 ● ● ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98056-776-1 01 1 0710-1005 ●
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98154-267-1 01 1 1006- ● ● ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98154-267-1 01 1 1006- ●
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98041-939-1 01 1 0710-1005 ● ● ●
56 04.686 BRACKET; UNION,BRK
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98041-939-1 01 1 0710-1005 ●
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98154-266-1 01 1 1006- ● ● ●
56 04.686 BRACKET; UNION,BRK
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98154-266-1 01 1 1006- ●
129 04.710 BOLT; BRKT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 0710-0809 ● ● ● ● ● ●
129 04.710 BOLT; BRKT
08.857 (A) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 0710- ● ● ● ● ● ●
129 04.710 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 0710-0906 ● ● ●
129 04.710 BOLT; BRKT
03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 0710-0906 ●
129 04.710 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 0907- ● ●
129 04.710 BOLT; BRKT
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 0907- ●
129 04.710 BOLT; BRKT
4HK1-TCS ENG(RJS) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 0907- ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98042-422-0 01 1 0710-0906 ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98042-422-0 01 1 0710-0906 ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
(B) 		8-98042-422-0 01 1 0710-0906 ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) L=201 		8-98133-407-0 01 1 0907- ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) (B) L=201 		8-98133-407-0 01 1 0907- ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
(B) L=201 		8-98133-407-0 01 1 0907- ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97389-295-3 01 1 0710- ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-295-3 01 1 0710- ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-98070-482-2 01 1 0710-0812 ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-98098-680-1 01 1 0901- ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98075-345-0 01 1 0710-0906 ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
(C) 		8-98075-345-0 01 1 0710-0906 ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (C) L=268 		8-98133-409-0 01 1 0907- ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
(C) L=268 		8-98133-409-0 01 1 0907- ●
146 04.685 NUT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 00.777 M8 W/LK WASHER 		8-94279-050-0 01 1 0710- ● ● ●
146 04.685 NUT; BRKT
00.777 M8 W/LK WASHER 		8-94279-050-0 01 1 0710- ●
192 04.685 PIPE; PRESSURE
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98041-943-1 01 1 0710-0710 ● ● ●
192 04.685 PIPE; PRESSURE
(A) 		8-98041-943-1 01 1 0710-0710 ●
192 04.685 PIPE; PRESSURE
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98101-746-0 01 1 0710-0808 ● ● ●
192 04.685 PIPE; PRESSURE
(A) 		8-98101-746-0 01 1 0710-0808 ●
192 04.685 PIPE; PRESSURE
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98127-262-0 01 1 0809- ● ● ●
192 04.685 PIPE; PRESSURE
(A) 		8-98127-262-0 01 1 0809- ●
192 04.685 PIPE; PRESSURE
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98042-052-1 01 1 0710-1103 ● ● ●
192 04.685 PIPE; PRESSURE
(B) 		8-98042-052-1 01 1 0710-1103 ●
192 04.685 PIPE; PRESSURE
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98193-137-0 01 1 1104- ● ● ●
192 04.685 PIPE; PRESSURE
(B) 		8-98193-137-0 01 1 1104- ●
193 04.685 PIPE; RETURN
HYDRO BRAKE BOOSTER(7QQ) 		8-98067-717-1 01 1 0710-0812 ● ● ●
193 04.685 PIPE; RETURN 8-98067-717-1 01 1 0710-0812 ●
193 04.685 PIPE; RETURN
HYDRO BRAKE BOOSTER(7QQ) 		8-98098-683-0 01 1 0901- ● ● ●
193 04.685 PIPE; RETURN 8-98098-683-0 01 1 0901- ●

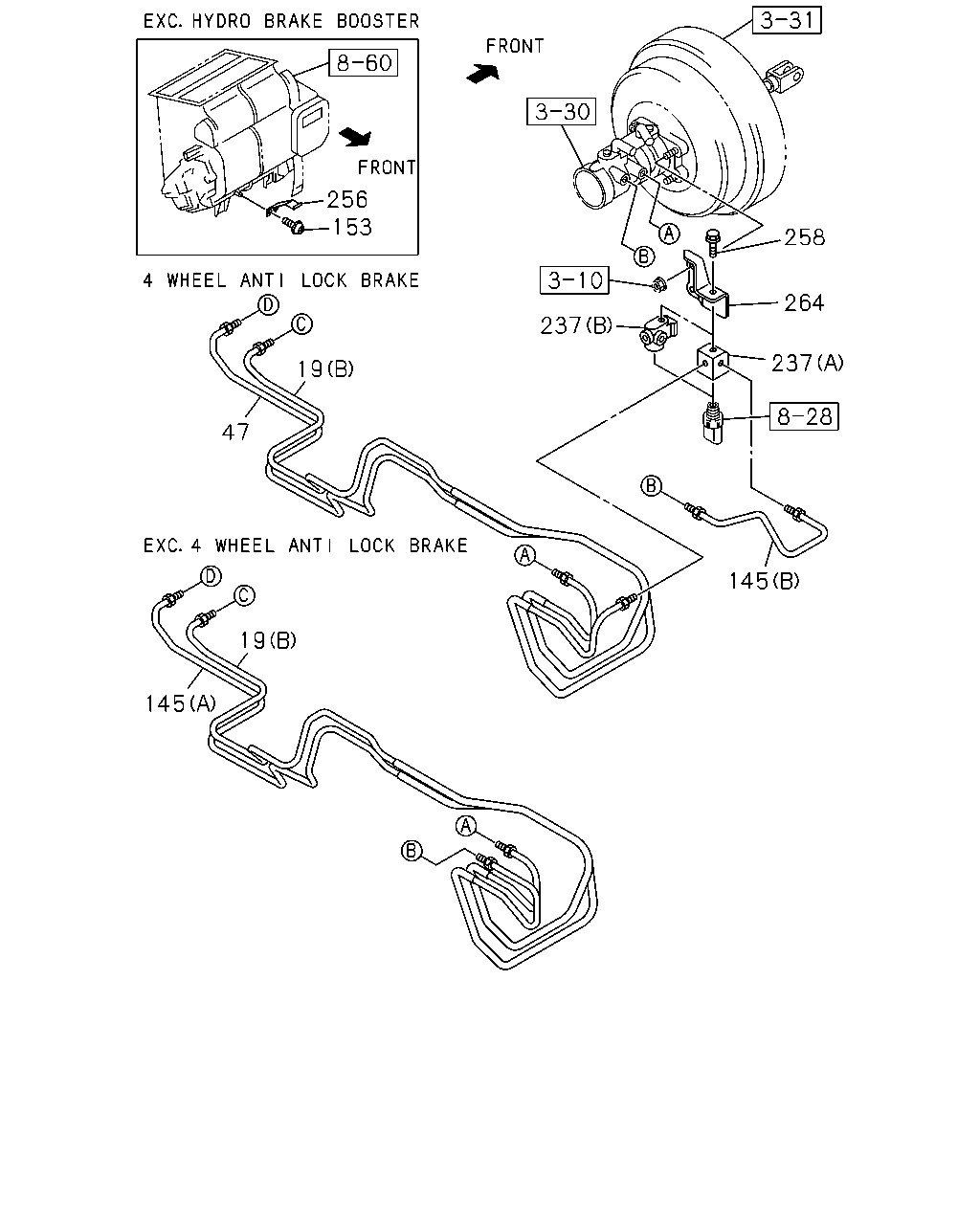

çizim 156255
256 153 258 264 237 237 19 47 145 19 145
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-97389-337-3 01 1 0710- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-337-3 01 1 0710- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-97389-366-1 02 1 0710-0906 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-366-1 02 1 0710-0906 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB) (A) 		8-97389-366-1 02 1 0907- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-366-1 02 1 0907- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-366-1 02 1 0907- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-366-1 02 1 0907- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98043-501-2 02 1 0710-0906 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(C) 		8-98043-501-2 02 1 0710-0906 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98043-501-2 02 1 0907- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98043-501-2 02 1 0907- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4HK1-TCS ENG(RJS) (C) 		8-98043-501-2 02 1 0907- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98070-478-1 01 1 0710-0812 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(D) 		8-98070-478-1 01 1 0710-0812 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98098-682-1 01 1 0901- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(E) 		8-98098-682-1 01 1 0901- ●
47 04.685 PIPE; OIL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98005-586-3 01 1 0710-0906 ●
47 04.685 PIPE; OIL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98005-586-3 01 1 0710-0906 ● ● ●
47 04.685 PIPE; OIL,FRT BRK 8-98005-586-3 01 1 0710-0906 ●
47 04.685 PIPE; OIL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> L=1173 		8-98133-413-0 01 1 0907- ●
47 04.685 PIPE; OIL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) L=1173 		8-98133-413-0 01 1 0907- ● ● ●
47 04.685 PIPE; OIL,FRT BRK
L=1173 		8-98133-413-0 01 1 0907- ●
47 04.685 PIPE; OIL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) 		8-98070-480-2 01 1 0710-0812 ● ● ●
47 04.685 PIPE; OIL,FRT BRK 8-98070-480-2 01 1 0710-0812 ●
47 04.685 PIPE; OIL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) L=1150 		8-98098-681-0 01 1 0901-0906 ● ● ●
47 04.685 PIPE; OIL,FRT BRK
L=1150 		8-98098-681-0 01 1 0901-0906 ●
47 04.685 PIPE; OIL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) L=1148 		8-98133-414-0 01 1 0907- ● ● ●
47 04.685 PIPE; OIL,FRT BRK
L=1148 		8-98133-414-0 01 1 0907- ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98042-422-0 01 1 0710-0906 ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98042-422-0 01 1 0710-0906 ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
(B) 		8-98042-422-0 01 1 0710-0906 ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) L=201 		8-98133-407-0 01 1 0907- ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) (B) L=201 		8-98133-407-0 01 1 0907- ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
(B) L=201 		8-98133-407-0 01 1 0907- ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97389-295-3 01 1 0710- ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-295-3 01 1 0710- ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-98070-482-2 01 1 0710-0812 ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-98098-680-1 01 1 0901- ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98075-345-0 01 1 0710-0906 ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
(C) 		8-98075-345-0 01 1 0710-0906 ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (C) L=268 		8-98133-409-0 01 1 0907- ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
(C) L=268 		8-98133-409-0 01 1 0907- ●
153 04.730 SCREW; BRKT FIX
04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 01 1 0710-0808 ● ● ● ● ● ●
153 04.730 SCREW; BRKT FIX
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60),FULLAUTO AIR CONDITIONER(C68) 04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 01 1 0809-0809 ● ● ● ● ● ●
153 04.730 SCREW; BRKT FIX
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60),COOLER WO/HEATER(C65),FULL AUTO AIR CONDITIONER(C68) 04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 01 1 0810-1001 ● ● ● ● ● ●
153 04.730 SCREW; BRKT FIX
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60),COOLER WO/HEATER(C65),FULL AUTO AIR CONDITIONER(C68) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 01 1 1002- ● ● ● ● ● ●
237 04.840 CONNECTOR; MODULATOR
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98007-865-3 01 1 0710-0906 ● ● ● ●
237 04.840 CONNECTOR; MODULATOR
(A) 		8-98007-865-3 01 1 0710-0906 ● ●
237 04.840 CONNECTOR; MODULATOR
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98111-748-1 01 1 0907- ● ● ● ●
237 04.840 CONNECTOR; MODULATOR
(B) 		8-98111-748-1 01 1 0907- ● ●
256 04.840 BRACKET; BRK PIPE 8-98034-784-1 01 1 0710-0808 ● ● ● ● ● ●
256 04.840 BRACKET; BRK PIPE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98034-784-1 01 1 0809-0809 ● ● ● ● ● ●
256 04.840 BRACKET; BRK PIPE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60),COOLER WO/HEATER(C65),FULL AUTO AIR CONDITIONER(C68) 		8-98034-784-1 01 1 0810-1001 ● ● ● ● ● ●
256 04.840 BRACKET; BRK PIPE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60),COOLER WO/HEATER(C65),FULL AUTO AIR CONDITIONER(C68) EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98034-784-1 01 1 1002-1005 ● ● ● ● ● ●
256 04.840 BRACKET; BRK PIPE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60),COOLER WO/HEATER(C65),FULL AUTO AIR CONDITIONER(C68) EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98163-521-0 01 1 1006- ● ● ● ● ● ●
258 04.730 BOLT; PIPE,BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0710- ● ● ● ●
258 04.730 BOLT; PIPE,BRK
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0710- ● ●
264 04.681 BRACKET; SENSOR,PRESSURE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97387-683-2 01 1 0710- ● ● ● ●
264 04.681 BRACKET; SENSOR,PRESSURE 8-97387-683-2 01 1 0710- ● ●

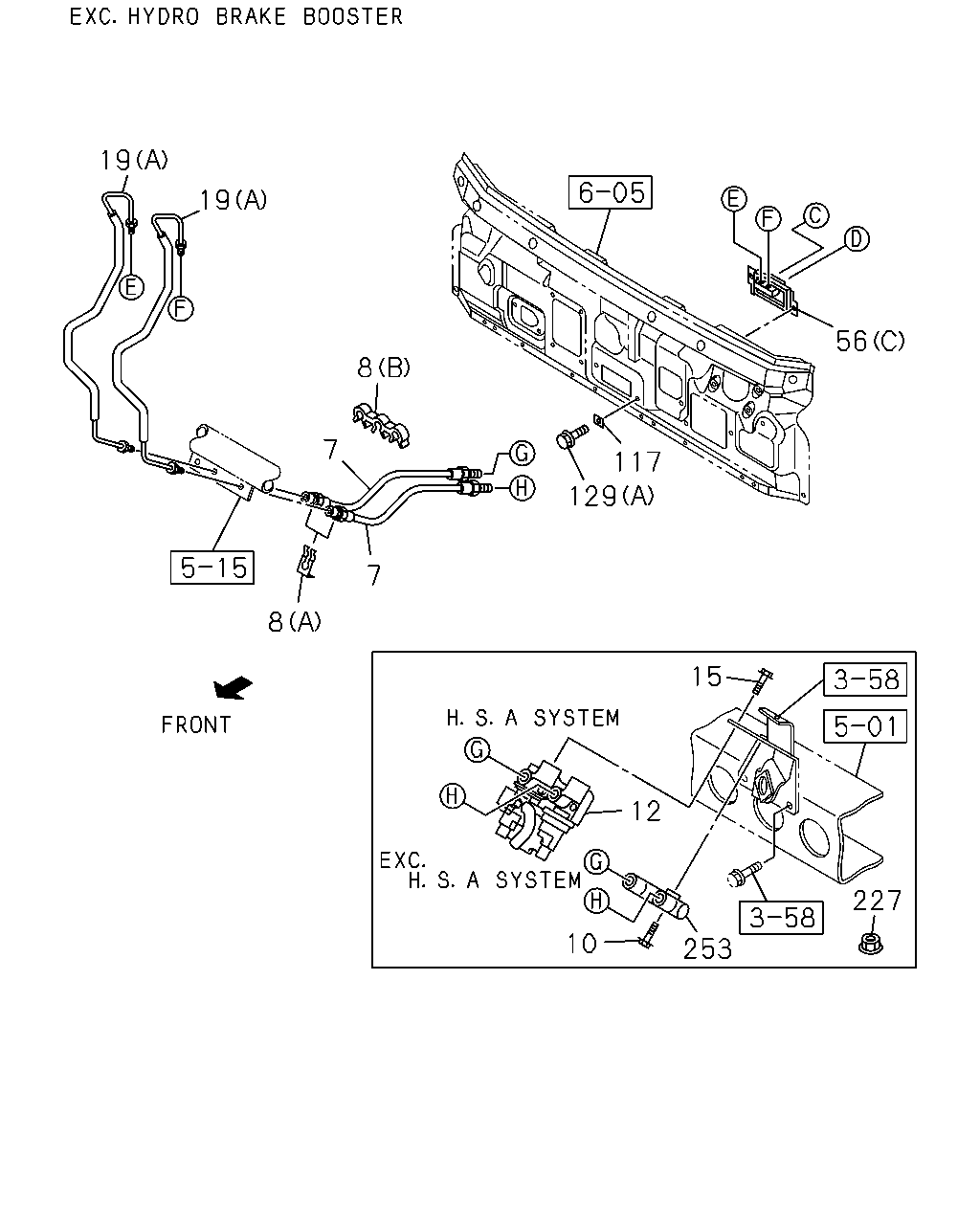

çizim 156262
19 19 56 8 7 117 129 7 8 15 12 227 10 253
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-98029-865-0 02 1 0710- ● ● ● ● ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
04.686 (B) 		8-97076-471-0 01 1 0710- ● ● ● ● ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
(A) 		8-97365-304-0 02 1 0710- ● ● ● ● ● ●
10 04.686 BOLT; JOINT
EXC. H.S.A SYSTEM<6EP> 00.685 M6X40 FLANGE 		0-28650-640-0 01 1 0710- ● ● ● ● ● ●
12 04.690 VALVE ASM; HSA
H.S.A SYSTEM<6EP> 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97331-331-2 01 1 0710-1107 ● ● ● ●
12 04.690 VALVE ASM; HSA
H.S.A SYSTEM<6EP> 		8-97331-331-2 01 1 0710-1107 ● ●
12 04.690 VALVE ASM; HSA
H.S.A SYSTEM<6EP> 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98159-364-1 01 1 1108-1112 ● ● ● ●
12 04.690 VALVE ASM; HSA
H.S.A SYSTEM<6EP> 		8-98159-364-1 01 1 1108-1112 ● ●
12 04.690 VALVE ASM; HSA
H.S.A SYSTEM<6EP> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98159-364-1 01 1 1201- ● ● ● ●
12 04.690 VALVE ASM; HSA
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98159-364-1 01 1 1201- ● ●
12 04.690 VALVE ASM; HSA
H.S.A SYSTEM<6EP> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97331-328-2 01 1 0710-1107 ● ● ● ●
12 04.690 VALVE ASM; HSA
H.S.A SYSTEM<6EP> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98173-768-0 01 1 1108-1112 ● ● ● ●
12 04.690 VALVE ASM; HSA
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98210-145-0 01 1 1201- ● ● ● ●
15 04.730 BOLT; HSA VALVE
H.S.A SYSTEM<6EP> 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0710-1112 ● ● ● ● ● ●
15 04.730 BOLT; HSA VALVE
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1201- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-97389-337-3 01 1 0710- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-337-3 01 1 0710- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-97389-366-1 02 1 0710-0906 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-366-1 02 1 0710-0906 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB) (A) 		8-97389-366-1 02 1 0907- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-366-1 02 1 0907- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-366-1 02 1 0907- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-366-1 02 1 0907- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98043-501-2 02 1 0710-0906 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(C) 		8-98043-501-2 02 1 0710-0906 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98043-501-2 02 1 0907- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98043-501-2 02 1 0907- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4HK1-TCS ENG(RJS) (C) 		8-98043-501-2 02 1 0907- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98070-478-1 01 1 0710-0812 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(D) 		8-98070-478-1 01 1 0710-0812 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98098-682-1 01 1 0901- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(E) 		8-98098-682-1 01 1 0901- ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97389-282-1 01 1 0710-1005 ● ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-282-1 01 1 0710-1005 ● ● ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98154-265-1 01 1 1006- ● ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98154-265-1 01 1 1006- ● ● ●
56 04.686 BRACKET; UNION,BRK
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97389-281-1 01 1 0710-1005 ● ●
56 04.686 BRACKET; UNION,BRK
EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97389-281-1 01 1 0710-1005 ● ● ●
56 04.686 BRACKET; UNION,BRK
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98154-264-1 01 1 1006- ● ●
56 04.686 BRACKET; UNION,BRK
EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98154-264-1 01 1 1006- ● ● ●
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98077-185-2 01 1 0710-0812 ● ● ●
56 04.686 BRACKET; UNION,BRK
(A) 		8-98077-185-2 01 1 0710-0812 ●
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98098-679-0 01 1 0901- ● ● ●
56 04.686 BRACKET; UNION,BRK
(A) 		8-98098-679-0 01 1 0901- ●
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98056-776-1 01 1 0710-1005 ● ● ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98056-776-1 01 1 0710-1005 ●
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98154-267-1 01 1 1006- ● ● ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98154-267-1 01 1 1006- ●
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98041-939-1 01 1 0710-1005 ● ● ●
56 04.686 BRACKET; UNION,BRK
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98041-939-1 01 1 0710-1005 ●
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98154-266-1 01 1 1006- ● ● ●
56 04.686 BRACKET; UNION,BRK
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98154-266-1 01 1 1006- ●
117 04.686 SEAL; UNION,BRK PIPE JOINT
08.845 		8-97856-616-0 02 1 0710- ● ● ● ● ● ●
129 04.710 BOLT; BRKT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 0710-0809 ● ● ● ● ● ●
129 04.710 BOLT; BRKT
08.857 (A) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 0710- ● ● ● ● ● ●
129 04.710 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 0710-0906 ● ● ●
129 04.710 BOLT; BRKT
03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 0710-0906 ●
129 04.710 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 0907- ● ●
129 04.710 BOLT; BRKT
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 0907- ●
129 04.710 BOLT; BRKT
4HK1-TCS ENG(RJS) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 0907- ●
227 04.685 NUT; JOINT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0710-0802 ● ● ● ●
227 04.685 NUT; JOINT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0710-0802 ● ●
227 04.685 NUT; JOINT
01.062 M8 FLANGE 		0-91180-108-0 02 1 0710-0802 ● ●
227 04.685 NUT; JOINT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0803-0803 ● ● ●
227 04.685 NUT; JOINT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0803-0803 ●
227 04.685 NUT; JOINT
01.062 M8 FLANGE 		0-91180-108-0 02 1 0803-0803 ● ● ●
227 04.685 NUT; JOINT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0804-0906 ● ● ● ● ●
227 04.685 NUT; JOINT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0804-0906 ● ● ●
227 04.685 NUT; JOINT
01.062 M8 FLANGE 		0-91180-108-0 02 1 0804-0906 ●
227 04.685 NUT; JOINT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0907- ● ● ● ●
227 04.685 NUT; JOINT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0907- ● ● ●
227 04.685 NUT; JOINT
01.062 M8 FLANGE 		0-91180-108-0 02 1 0907- ●
253 04.840 JOINT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. H.S.A SYSTEM<6EP> 		8-97038-940-1 01 1 0710-0906 ● ● ● ●
253 04.840 JOINT
EXC. H.S.A SYSTEM<6EP> 		8-97038-940-1 01 1 0710-0906 ● ●
253 04.840 JOINT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. H.S.A SYSTEM<6EP> 		8-97038-940-1 01 1 0907- ● ● ● ● ● ●
253 04.840 JOINT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, H.S.A SYSTEM<6EP> 04.686 		5-47456-009-1 01 1 0710-0906 ● ● ● ●
253 04.840 JOINT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, H.S.A SYSTEM<6EP> 04.686 		5-47456-009-1 01 1 0907- ● ● ● ●
çizim 156356
130 130 131
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
130 04.686 BRACKET; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B) 		8-98141-581-0 02 1 0906- ● ●
130 04.686 BRACKET; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97080-060-2 02 1 0710- ● ● ● ●
130 04.686 BRACKET; SPEED SENSOR
(A) 		8-97080-060-2 02 1 0710- ● ●
131 04.710 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0710- ● ● ● ●
131 04.710 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
