3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER (#54669) — 60 parça
çizim 156198
1 17 16 24 15 12 11 23 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.901 MASTER VAC ASM; BRK
DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.5-6.0TON(RPU),G.V.W . 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97162-800-1 01 1 0710-0711 ● ● ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97162-800-1 01 1 0710-0711 ● ●
1 04.901 MASTER VAC ASM; BRK 8-97162-800-1 01 1 0710-0711 ●
1 04.901 MASTER VAC ASM; BRK
DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.5-6.0TON(RPU),G.V.W . 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97162-800-1 01 1 0712- ● ● ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97162-800-1 01 1 0712- ● ●
1 04.901 MASTER VAC ASM; BRK
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97162-800-1 01 1 0712- ●
1 04.901 MASTER VAC ASM; BRK 8-97162-800-1 01 1 0712- ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.5-6.0TON(RPU), G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTER(7QQ) 		8-97162-798-1 01 1 0710- ● ● ●
3 04.906 RETAINER; FRT SHELL,M/VAC 9-83315-319-0 01 1 0710-0711 ● ●
3 04.906 RETAINER; FRT SHELL,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 		9-83315-319-0 01 1 0710-0711 ● ●
3 04.906 RETAINER; FRT SHELL,M/VAC 9-83315-319-0 01 1 0712- ● ●
3 04.906 RETAINER; FRT SHELL,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 		9-83315-319-0 01 1 0712- ● ● ●
11 04.906 FILTER; M/VAC 8-97205-576-0 01 1 0710-0711 ● ●
11 04.906 FILTER; M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97205-576-0 01 1 0710-0711 ● ●
11 04.906 FILTER; M/VAC 8-97205-576-0 01 1 0712- ● ●
11 04.906 FILTER; M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97205-576-0 01 1 0712- ● ● ●
12 04.906 SILENCER; M/VAC 8-97205-577-0 01 1 0710-0711 ● ●
12 04.906 SILENCER; M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97205-577-0 01 1 0710-0711 ● ●
12 04.906 SILENCER; M/VAC 8-97205-577-0 01 1 0712- ● ●
12 04.906 SILENCER; M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97205-577-0 01 1 0712- ● ● ●
15 04.906 RETAINER; GUARD,M/VAC 8-94375-083-0 01 1 0710-0711 ● ●
15 04.906 RETAINER; GUARD,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-94375-083-0 01 1 0710-0711 ● ●
15 04.906 RETAINER; GUARD,M/VAC 8-94375-083-0 01 1 0712- ● ●
15 04.906 RETAINER; GUARD,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-94375-083-0 01 1 0712- ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
M10 		1-52139-008-0 01 1 0710-0711 ● ●
16 04.662 NUT; VLV ROD,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) M10 		1-52139-008-0 01 1 0710-0711 ● ●
16 04.662 NUT; VLV ROD,M/VAC
M10 		1-52139-008-0 01 1 0712- ● ●
16 04.662 NUT; VLV ROD,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) M10 		1-52139-008-0 01 1 0712- ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC 8-97224-610-0 01 1 0710-0711 ● ●
17 04.662 CLEVIS; YOKE,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97224-610-0 01 1 0710-0711 ● ●
17 04.662 CLEVIS; YOKE,M/VAC 8-97224-610-0 01 1 0712- ● ●
17 04.662 CLEVIS; YOKE,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97224-610-0 01 1 0712- ● ● ●
23 04.910 SEAL; M/VAC
DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.5-6.0TON(RPU),G.V.W . 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97079-350-0 01 1 0710-0711 ● ● ●
23 04.910 SEAL; M/VAC
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97079-350-0 01 1 0710-0711 ● ●
23 04.910 SEAL; M/VAC 8-97079-350-0 01 1 0710-0711 ●
23 04.910 SEAL; M/VAC
DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.5-6.0TON(RPU),G.V.W . 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97079-350-0 01 1 0712- ● ● ●
23 04.910 SEAL; M/VAC
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97079-350-0 01 1 0712- ● ●
23 04.910 SEAL; M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97079-350-0 01 1 0712- ●
23 04.910 SEAL; M/VAC 8-97079-350-0 01 1 0712- ●
23 04.910 SEAL; M/VAC
G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.5-6.0TON(RPU), G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTER(7QQ) 		8-97261-943-0 01 1 0710- ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC 8-97205-578-0 01 1 0710-0711 ● ●
24 04.906 GUARD; VLV BODY,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97205-578-0 01 1 0710-0711 ● ●
24 04.906 GUARD; VLV BODY,M/VAC 8-97205-578-0 01 1 0712- ● ●
24 04.906 GUARD; VLV BODY,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97205-578-0 01 1 0712- ● ● ●

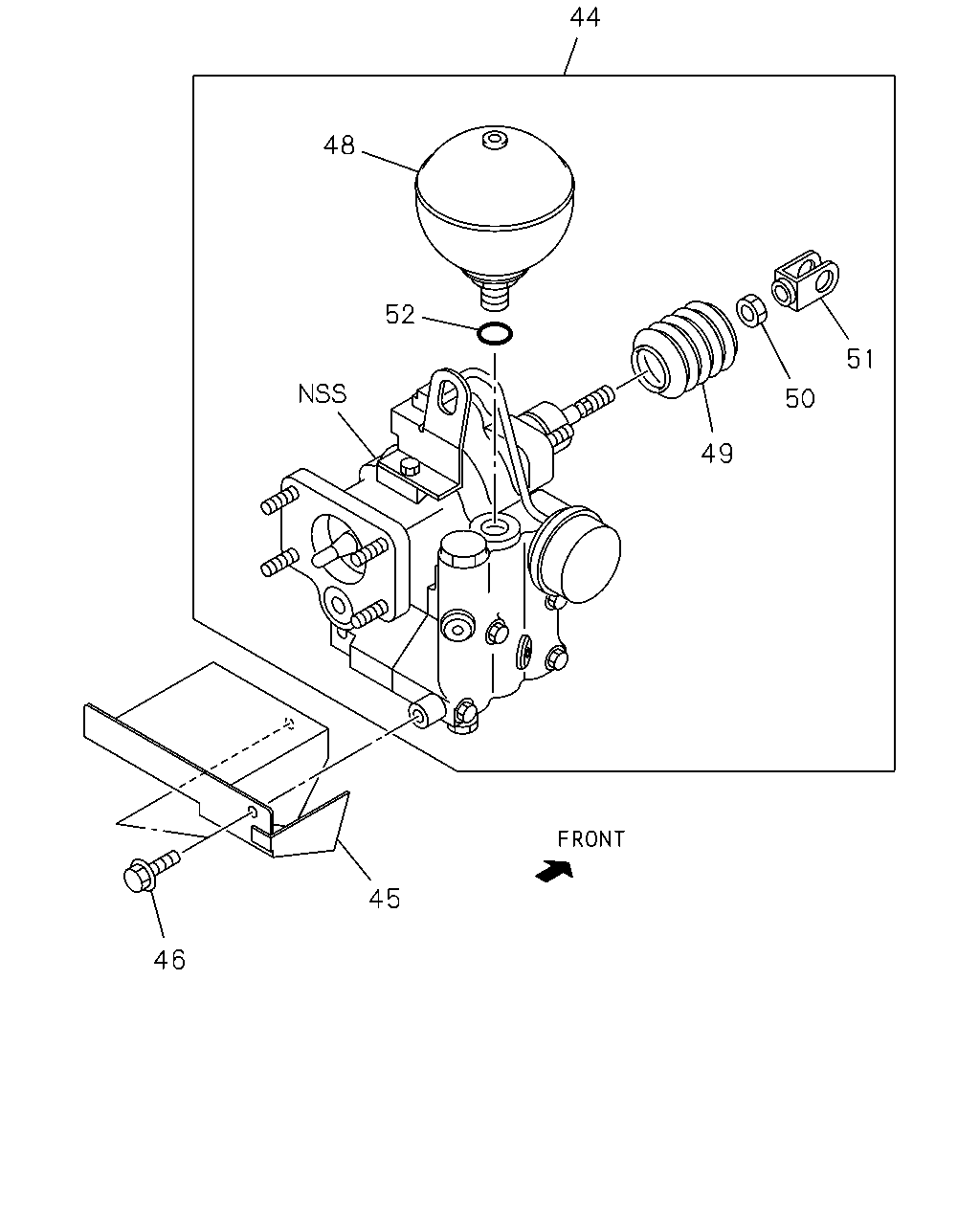

çizim 156201
44 48 52 51 50 49 45 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
44 04.901 BOOSTER; HYDRAULIC BRK
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER(7QQ) 		8-98031-414-0 01 1 0710- ● ● ●
44 04.901 BOOSTER; HYDRAULIC BRK 8-98031-414-0 01 1 0710- ●
45 04.901 PROTECTOR; HEAT
HYDRO BRAKE BOOSTER(7QQ) 		8-98031-415-1 01 1 0710- ● ● ●
45 04.901 PROTECTOR; HEAT 8-98031-415-1 01 1 0710- ●
46 04.901 BOLT; HEAT PROTECTOR
HYDRO BRAKE BOOSTER(7QQ) 03.671 M6X10 FLANGE 		0-28050-610-0 02 1 0710- ● ● ●
46 04.901 BOLT; HEAT PROTECTOR
03.671 M6X10 FLANGE 		0-28050-610-0 02 1 0710- ●
48 04.906 ACCUMULATOR; HYDRO BOOSTER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER(7QQ) 		8-98038-346-0 01 1 0710- ● ● ●
48 04.906 ACCUMULATOR; HYDRO BOOSTER 8-98038-346-0 01 1 0710- ●
49 04.906 GUARD; HYDRO BRK BOOSTER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER(7QQ) 		8-97191-043-0 01 1 0710- ● ● ●
49 04.906 GUARD; HYDRO BRK BOOSTER 8-97191-043-0 01 1 0710- ●
50 04.906 NUT; HYDRO BRK BOOSTER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER(7QQ) 		8-98038-349-0 01 1 0710- ● ● ●
50 04.906 NUT; HYDRO BRK BOOSTER 8-98038-349-0 01 1 0710- ●
51 04.906 CLEVIS; HYDRO BRK BOOSTER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER(7QQ) 		8-98038-347-0 01 1 0710- ● ● ●
51 04.906 CLEVIS; HYDRO BRK BOOSTER 8-98038-347-0 01 1 0710- ●
52 04.906 GASKET; HYDRO BRK BOOSTER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER(7QQ) 04.910 		8-97191-038-0 01 1 0710- ● ● ●
52 04.906 GASKET; HYDRO BRK BOOSTER
04.910 		8-97191-038-0 01 1 0710- ●
