◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NN ▶ 51157 - NN/NP/NQR-R EXC.EU5 ▶ 3 - Brakes, Brake System ▶ 3-15 - ANTILOCK BRAKE SYSTEM(A.B.S.) ▶
3-15 — ANTILOCK BRAKE SYSTEM(A.B.S.) (#54666) — 314 parça

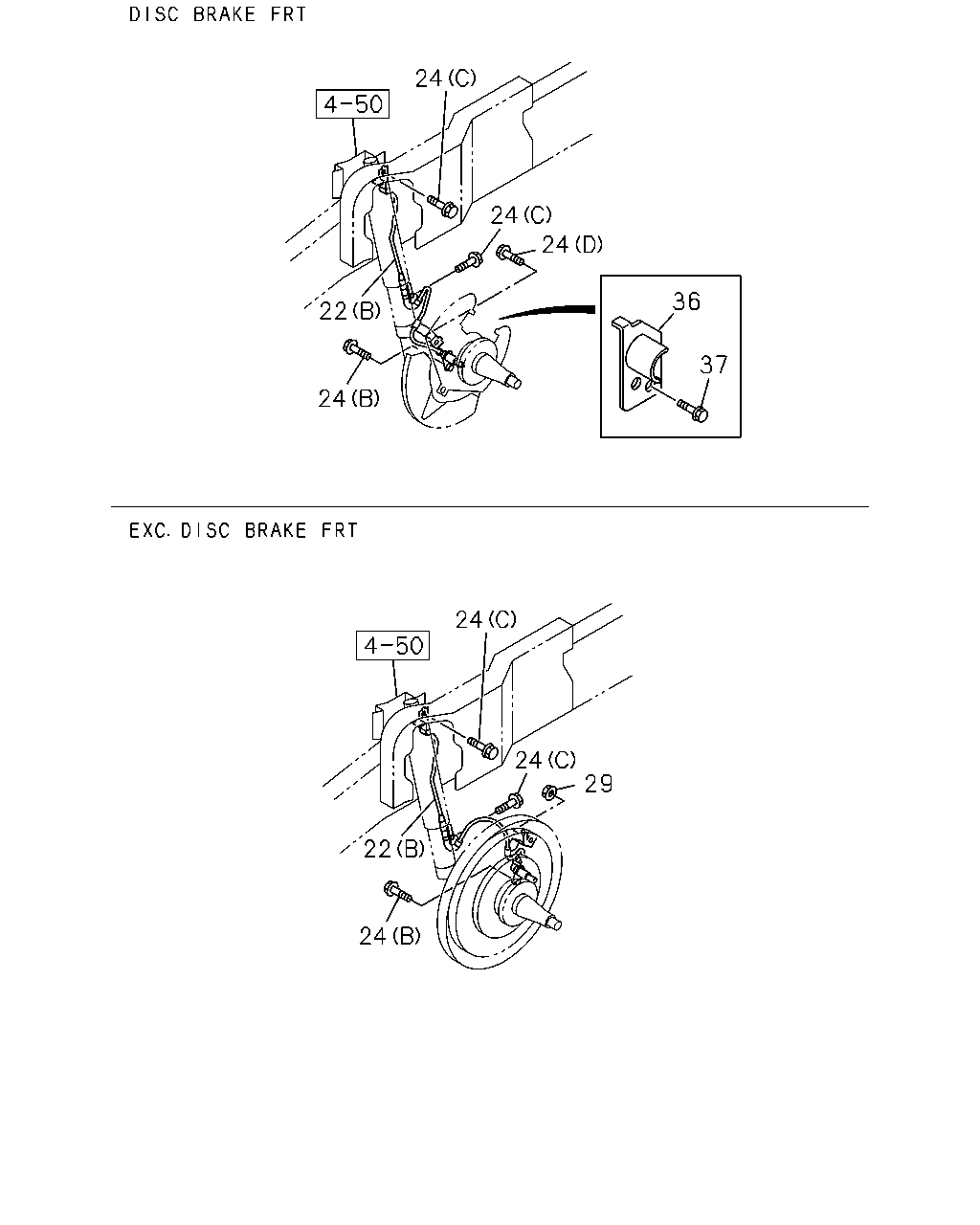

çizim 156158
24 24 24 22 36 37 24 24 24 29 22 24
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
22 04.710 SENSOR; SPEED
EXC. SMALL DOUBLE RR TIRE(6YE) (A) 		8-97388-899-0 02 1 0710-0710 ●
22 04.710 SENSOR; SPEED
(A) 		8-97388-899-0 02 1 0710-0710 ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/9(HC6) EXC. SMALL DOUBLE RR TIRE(6YE) (A) 		8-97388-899-0 02 1 0710-0906 ●
22 04.710 SENSOR; SPEED
(A) 		8-97388-899-0 02 1 0710-0906 ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/9(HC6) EXC. SMALL DOUBLE RR TIRE(6YE) (A) 		8-97388-899-0 02 1 0907-1007 ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/9(HC6),FINAL GEARRATIO 41/8(RU1),FINAL GEAR RATIO 43/ 9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97388-899-0 02 1 0907-1007 ●
22 04.710 SENSOR; SPEED
(A) 		8-97388-899-0 02 1 0907-1007 ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/9(HC6) EXC. SMALL DOUBLE RR TIRE(6YE) (A) 		8-97388-899-1 02 1 1008-1401 ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/9(HC6),FINAL GEARRATIO 41/8(RU1),FINAL GEAR RATIO 43/ 9(S2J) AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX) (A) 		8-97388-899-1 02 1 1008-1401 ●
22 04.710 SENSOR; SPEED
(A) 		8-97388-899-1 02 1 1008-1401 ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/9(HC6) EXC. SMALL DOUBLE RR TIRE(6YE) (A) 		8-98219-351-0 02 1 1402- ●
22 04.710 SENSOR; SPEED
(A) 		8-98219-351-0 02 1 1402- ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/9(HC6),FINAL GEARRATIO 41/8(RU1),FINAL GEAR RATIO 43/ 9(S2J) AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX) (A) 		8-98244-877-0 02 1 1402- ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B) 		8-98006-185-0 01 1 0710-1408 ● ● ● ●
22 04.710 SENSOR; SPEED
(B) 		8-98006-185-0 01 1 0710-1408 ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B) 		8-98219-392-0 01 1 1409- ● ● ● ●
22 04.710 SENSOR; SPEED
(B) 		8-98219-392-0 01 1 1409- ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B) 		8-98006-184-0 01 1 0710-1408 ● ● ● ●
22 04.710 SENSOR; SPEED
(B) 		8-98006-184-0 01 1 0710-1408 ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B) 		8-98219-391-0 01 1 1409- ● ● ● ●
22 04.710 SENSOR; SPEED
(B) 		8-98219-391-0 01 1 1409- ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (B) 		8-98006-187-0 01 1 0710-0905 ● ● ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>,FRONT WIDE TREAD<7GV> (B) 		8-98006-187-0 01 1 0906-1408 ● ● ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>,FRONT WIDE TREAD<7GV> (B) 		8-98219-394-0 01 1 1409- ● ● ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (B) 		8-98006-186-0 01 1 0710-0905 ● ● ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>,FRONT WIDE TREAD<7GV> (B) 		8-98006-186-0 01 1 0906-1408 ● ● ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>,FRONT WIDE TREAD<7GV> (B) 		8-98219-393-0 01 1 1409- ● ● ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> EXC. DISC BRAKE FRT<J52> (B) 		8-98132-212-0 01 1 0906- ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> EXC. DISC BRAKE FRT<J52> (B) 		8-98132-211-0 01 1 0906- ● ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98002-215-0 02 1 0710-0710 ●
22 04.710 SENSOR; SPEED
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98002-215-0 02 1 0710-0710 ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 43/9(S2J) HYDRO BRAKE BOOSTER(7QQ) EXC. AUSTRALIA EQUIPMENT(B13) (A) 		8-98002-215-0 02 1 0710-0710 ●
22 04.710 SENSOR; SPEED
(A) 		8-98002-215-0 02 1 0710-0710 ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98002-215-0 02 1 0710-0802 ●
22 04.710 SENSOR; SPEED
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98002-215-0 02 1 0710-0802 ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 43/9(S2J) HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98002-215-0 02 1 0710-0802 ●
22 04.710 SENSOR; SPEED
(A) 		8-98002-215-0 02 1 0710-0802 ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98002-215-0 02 1 0803-0803 ● ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98002-215-0 02 1 0803-0803 ● ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J),FI NAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98002-215-0 02 1 0804-0906 ● ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98002-215-0 02 1 0907-1007 ● ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/8(RU1) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98002-215-0 02 1 0907-1007 ● ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/9(HC6),FINAL GEARRATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98002-215-0 02 1 0907-1007 ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW) (A) 		8-98002-215-1 02 1 1008-1401 ● ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) (A) 		8-98002-215-1 02 1 1008-1401 ● ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) (A) 		8-98002-215-1 02 1 1008-1401 ● ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/9(HC6) AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) (A) 		8-98002-215-1 02 1 1008-1401 ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/9(HC6) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. AUSTRALIA EQUIPMENT(B13) (A) 		8-98002-215-1 02 1 1008-1401 ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW) 04.110 (A) 		8-98219-354-0 02 1 1402- ● ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 04.110 (A) 		8-98219-354-0 02 1 1402- ● ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 04.110 (A) 		8-98219-354-0 02 1 1402- ● ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/9(HC6) AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 04.110 (A) 		8-98219-354-0 02 1 1402- ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/9(HC6) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. AUSTRALIA EQUIPMENT(B13) 04.110 (A) 		8-98219-354-0 02 1 1402- ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98002-216-0 02 1 0710-0710 ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 43/9(S2J) AUSTRALIA EQUIPMENT(B13) HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98002-216-0 02 1 0710-0710 ●
22 04.710 SENSOR; SPEED
(A) 		8-98002-216-0 02 1 0710-0710 ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98002-216-0 02 1 0710-0803 ●
22 04.710 SENSOR; SPEED
(A) 		8-98002-216-0 02 1 0710-0803 ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) (A) 		8-98002-216-0 02 1 0804-1007 ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (A) 		8-98002-216-0 02 1 0804-1007 ●
22 04.710 SENSOR; SPEED
(A) 		8-98002-216-0 02 1 0804-1007 ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98002-216-1 02 1 1008-1401 ●
22 04.710 SENSOR; SPEED
(A) 		8-98002-216-1 02 1 1008-1401 ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98219-355-0 02 1 1402- ●
22 04.710 SENSOR; SPEED
(A) 		8-98219-355-0 02 1 1402- ●
24 04.730 BOLT; SENSOR
EXC. SMALL DOUBLE RR TIRE(6YE) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0710-0802 ●
24 04.730 BOLT; SENSOR
HYDRO BRAKE BOOSTER(7QQ) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0710-0802 ● ● ●
24 04.730 BOLT; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/10(S7C) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0710-0802 ●
24 04.730 BOLT; SENSOR
03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0710-0802 ● ●
24 04.730 BOLT; SENSOR
EXC. SMALL DOUBLE RR TIRE(6YE) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0803-0803 ●
24 04.730 BOLT; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0803-0803 ● ●
24 04.730 BOLT; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0803-0803 ●
24 04.730 BOLT; SENSOR
03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0803-0803 ● ●
24 04.730 BOLT; SENSOR
EXC. SMALL DOUBLE RR TIRE(6YE) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0803-0803 ●
24 04.730 BOLT; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0803-0803 ● ●
24 04.730 BOLT; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0803-0803 ●
24 04.730 BOLT; SENSOR
03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0803-0803 ● ●
24 04.730 BOLT; SENSOR
EXC. SMALL DOUBLE RR TIRE(6YE) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0804-0804 ●
24 04.730 BOLT; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0804-0804 ● ●
24 04.730 BOLT; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0804-0804 ●
24 04.730 BOLT; SENSOR
03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0804-0804 ● ●
24 04.730 BOLT; SENSOR
EXC. SMALL DOUBLE RR TIRE(6YE) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0804-1007 ●
24 04.730 BOLT; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J),FI NAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0804-1007 ● ●
24 04.730 BOLT; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0804-1007 ●
24 04.730 BOLT; SENSOR
03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0804-1007 ● ●
24 04.730 BOLT; SENSOR
FINAL GEAR RATIO 41/9(HC6) EXC. SMALL DOUBLE RR TIRE(6YE) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 1008-1401 ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 1008-1401 ● ● ●
24 04.730 BOLT; SENSOR
03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 1008-1401 ● ●
24 04.730 BOLT; SENSOR
FINAL GEAR RATIO 41/9(HC6) EXC. SMALL DOUBLE RR TIRE(6YE) 09.242 (A) M6X16 FLANGE 		0-28050-616-0 02 1 1402- ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (A) M6X16 FLANGE 		0-28050-616-0 02 1 1402- ● ● ●
24 04.730 BOLT; SENSOR
09.242 (A) M6X16 FLANGE 		0-28050-616-0 02 1 1402- ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0710-1310 ● ● ● ●
24 04.730 BOLT; SENSOR
03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0710-1310 ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (B) M6X16 FLANGE 		0-28050-616-0 02 1 1311- ● ● ● ●
24 04.730 BOLT; SENSOR
09.242 (B) M6X16 FLANGE 		0-28050-616-0 02 1 1311- ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 0710-0909 ● ● ● ●
24 04.730 BOLT; SENSOR
02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 0710-0909 ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> 02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 0910- ● ● ● ●
24 04.730 BOLT; SENSOR
02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 0910- ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 0710-0909 ● ● ● ●
24 04.730 BOLT; SENSOR
06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 0710-0909 ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 0910-1111 ● ● ● ●
24 04.730 BOLT; SENSOR
06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 0910-1111 ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 1112- ● ● ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> EXC. DISC BRAKE FRT<J52> 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 1112- ● ●
24 04.730 BOLT; SENSOR
06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 1112- ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 0710- ● ● ● ●
24 04.730 BOLT; SENSOR
06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 0710- ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> 06.216 (C) M8X25 FLANGE 		0-28650-825-0 04 1 0910- ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> EXC. DISC BRAKE FRT<J52> 02.343 (C) M8X16 FLANGE 		0-28050-816-0 02 1 1112- ● ●
29 04.730 NUT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0710-0909 ● ● ● ●
29 04.730 NUT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>,FRONT WIDE TREAD<7GV> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0910- ● ● ● ●
29 04.730 NUT
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> 01.062 M8 FLANGE 		0-91180-108-0 04 1 0910- ● ●
36 04.710 PROTECTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 04.337 		8-98188-198-0 01 1 1108- ● ●
36 04.710 PROTECTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 04.337 		8-98188-199-0 01 1 1108- ● ●
37 04.710 BOLT; PROTECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 03.671 M6X10 FLANGE 		0-28050-610-0 02 1 1108- ● ●

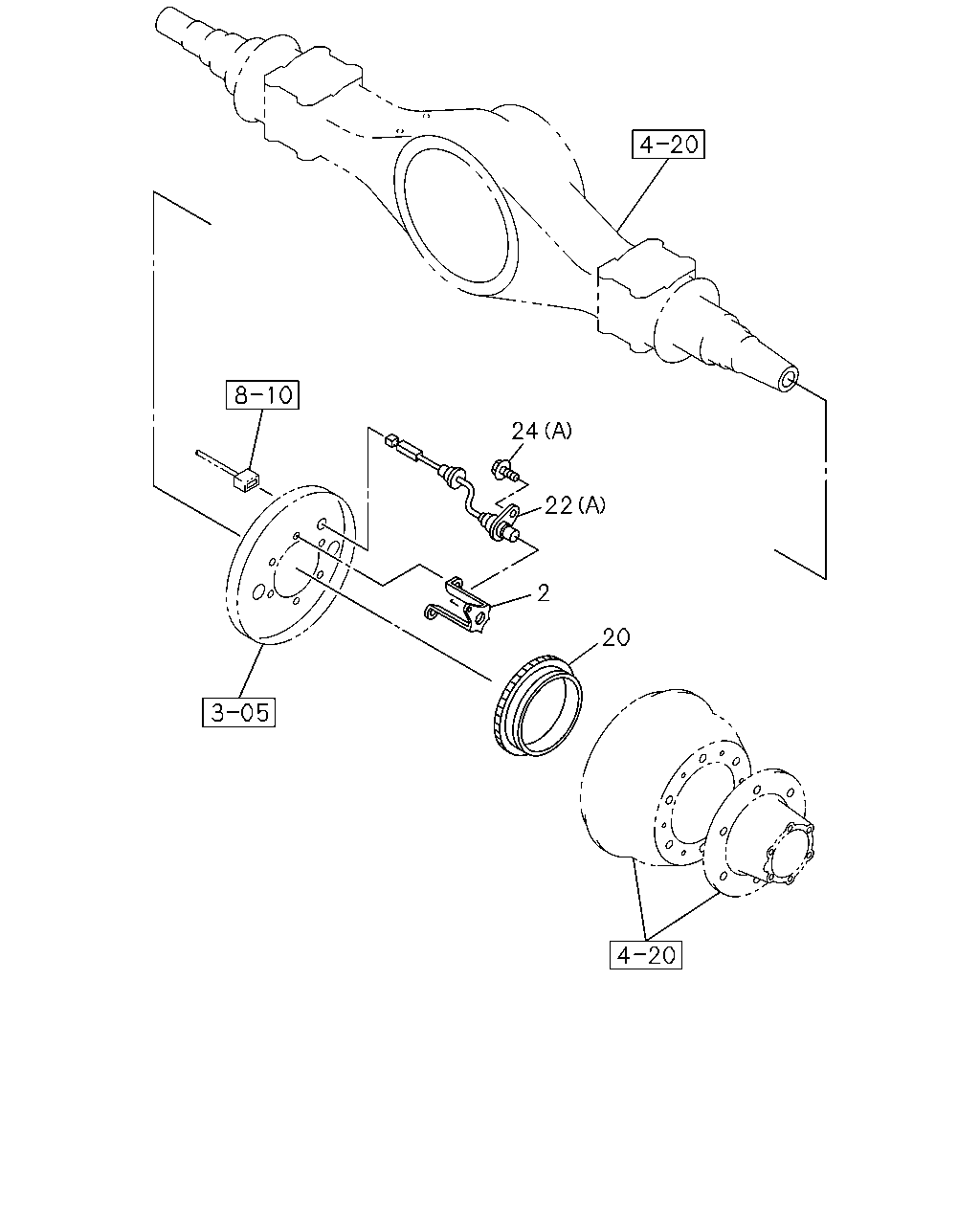

çizim 156168
24 22 2 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 04.730 BRACKET; SENSOR
EXC. SMALL DOUBLE RR TIRE(6YE) 		8-98000-019-1 02 1 0710-0710 ●
2 04.730 BRACKET; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/10(S7C) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98000-019-1 02 1 0710-0710 ●
2 04.730 BRACKET; SENSOR 8-98000-019-1 02 1 0710-0710 ●
2 04.730 BRACKET; SENSOR
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98000-019-1 02 1 0710-0710 ●
2 04.730 BRACKET; SENSOR
EXC. SMALL DOUBLE RR TIRE(6YE) 		8-98000-019-1 02 1 0710-0803 ●
2 04.730 BRACKET; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/8(RU1) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98000-019-1 02 1 0710-0803 ●
2 04.730 BRACKET; SENSOR
FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98000-019-1 02 1 0710-0803 ●
2 04.730 BRACKET; SENSOR 8-98000-019-1 02 1 0710-0803 ●
2 04.730 BRACKET; SENSOR
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98000-019-1 02 1 0710-0803 ●
2 04.730 BRACKET; SENSOR
EXC. SMALL DOUBLE RR TIRE(6YE) 		8-98000-019-1 02 1 0804-0906 ●
2 04.730 BRACKET; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98000-019-1 02 1 0804-0906 ● ●
2 04.730 BRACKET; SENSOR
FINAL GEAR RATIO 41/8(RU1) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98000-019-1 02 1 0804-0906 ● ●
2 04.730 BRACKET; SENSOR 8-98000-019-1 02 1 0804-0906 ●
2 04.730 BRACKET; SENSOR
EXC. SMALL DOUBLE RR TIRE(6YE) 		8-98000-019-1 02 1 0907-1007 ●
2 04.730 BRACKET; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98000-019-1 02 1 0907-1007 ● ●
2 04.730 BRACKET; SENSOR
FINAL GEAR RATIO 41/8(RU1) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98000-019-1 02 1 0907-1007 ● ●
2 04.730 BRACKET; SENSOR
FINAL GEAR RATIO 41/9(HC6),FINAL GEARRATIO 41/8(RU1),FINAL GEAR RATIO 43/ 9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98000-019-1 02 1 0907-1007 ●
2 04.730 BRACKET; SENSOR 8-98000-019-1 02 1 0907-1007 ●
2 04.730 BRACKET; SENSOR
FINAL GEAR RATIO 41/9(HC6) EXC. SMALL DOUBLE RR TIRE(6YE) 		8-98000-019-2 02 1 1008- ●
2 04.730 BRACKET; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW) 		8-98000-019-2 02 1 1008- ● ●
2 04.730 BRACKET; SENSOR
FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-98000-019-2 02 1 1008- ● ●
2 04.730 BRACKET; SENSOR
FINAL GEAR RATIO 41/9(HC6),FINAL GEARRATIO 41/8(RU1),FINAL GEAR RATIO 43/ 9(S2J) AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX) 		8-98000-019-2 02 1 1008- ●
2 04.730 BRACKET; SENSOR 8-98000-019-2 02 1 1008- ●
2 04.730 BRACKET; SENSOR
HYDRO BRAKE BOOSTER(7QQ) 		8-98002-440-0 02 1 0710-0710 ● ●
2 04.730 BRACKET; SENSOR
FINAL GEAR RATIO 43/9(S2J) HYDRO BRAKE BOOSTER(7QQ) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98002-440-0 02 1 0710-0710 ●
2 04.730 BRACKET; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) 		8-98002-440-0 02 1 0710-0802 ● ●
2 04.730 BRACKET; SENSOR
FINAL GEAR RATIO 41/8(RU1) G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98002-440-0 02 1 0710-0802 ● ●
2 04.730 BRACKET; SENSOR
FINAL GEAR RATIO 43/9(S2J) HYDRO BRAKE BOOSTER(7QQ) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98002-440-0 02 1 0710-0802 ●
2 04.730 BRACKET; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) 		8-98002-440-0 02 1 0803-0803 ● ●
2 04.730 BRACKET; SENSOR
FINAL GEAR RATIO 41/8(RU1) G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98002-440-0 02 1 0803-0803 ● ●
2 04.730 BRACKET; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) 		8-98002-440-0 02 1 0803-0803 ● ●
2 04.730 BRACKET; SENSOR
FINAL GEAR RATIO 41/8(RU1) G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98002-440-0 02 1 0803-0803 ● ●
2 04.730 BRACKET; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) 		8-98002-440-0 02 1 0804-0906 ● ●
2 04.730 BRACKET; SENSOR
FINAL GEAR RATIO 41/8(RU1) G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98002-440-0 02 1 0804-0906 ● ●
2 04.730 BRACKET; SENSOR
FINAL GEAR RATIO 41/9(HC6) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98002-440-0 02 1 0804-0906 ●
2 04.730 BRACKET; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) 		8-98002-440-0 02 1 0907-1007 ● ●
2 04.730 BRACKET; SENSOR
FINAL GEAR RATIO 41/8(RU1) G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98002-440-0 02 1 0907-1007 ● ●
2 04.730 BRACKET; SENSOR
FINAL GEAR RATIO 41/9(HC6) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98002-440-1 02 1 1008- ●
2 04.730 BRACKET; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J),FI NAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-98002-440-1 02 1 1008- ●
2 04.730 BRACKET; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-98002-440-1 02 1 1008- ●
2 04.730 BRACKET; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) HYDRO BRAKE BOOSTER(7QQ) 		8-98002-441-0 02 1 0710-0710 ●
2 04.730 BRACKET; SENSOR
FINAL GEAR RATIO 43/9(S2J) AUSTRALIA EQUIPMENT(B13) HYDRO BRAKE BOOSTER(7QQ) 		8-98002-441-0 02 1 0710-0710 ●
2 04.730 BRACKET; SENSOR 8-98002-441-0 02 1 0710-0710 ●
2 04.730 BRACKET; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) HYDRO BRAKE BOOSTER(7QQ) 		8-98002-441-0 02 1 0710-0803 ●
2 04.730 BRACKET; SENSOR 8-98002-441-0 02 1 0710-0803 ●
2 04.730 BRACKET; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) 		8-98002-441-0 02 1 0804-1007 ●
2 04.730 BRACKET; SENSOR
FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) 		8-98002-441-0 02 1 0804-1007 ●
2 04.730 BRACKET; SENSOR 8-98002-441-0 02 1 0804-1007 ●
2 04.730 BRACKET; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98002-441-1 02 1 1008- ●
2 04.730 BRACKET; SENSOR 8-98002-441-1 02 1 1008- ●
20 04.710 ROTOR; SENSOR
EXC. SMALL DOUBLE RR TIRE(6YE) 		8-97234-459-2 02 1 0710-0710 ●
20 04.710 ROTOR; SENSOR 8-97234-459-2 02 1 0710-0710 ●
20 04.710 ROTOR; SENSOR
FINAL GEAR RATIO 41/9(HC6) EXC. SMALL DOUBLE RR TIRE(6YE) 		8-97234-459-3 02 1 0710- ●
20 04.710 ROTOR; SENSOR 8-97234-459-3 02 1 0710- ●
20 04.710 ROTOR; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97206-774-3 02 1 0710-0803 ●
20 04.710 ROTOR; SENSOR
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97206-774-3 02 1 0710-0803 ●
20 04.710 ROTOR; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97206-774-4 02 1 0804-0906 ● ●
20 04.710 ROTOR; SENSOR
FINAL GEAR RATIO 41/8(RU1) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97206-774-4 02 1 0804-0906 ● ●
20 04.710 ROTOR; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97206-774-4 02 1 0907-1007 ● ●
20 04.710 ROTOR; SENSOR
FINAL GEAR RATIO 41/8(RU1) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97206-774-4 02 1 0907-1007 ● ●
20 04.710 ROTOR; SENSOR
FINAL GEAR RATIO 41/9(HC6),FINAL GEARRATIO 41/8(RU1),FINAL GEAR RATIO 43/ 9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97206-774-4 02 1 0907-1007 ●
20 04.710 ROTOR; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW) 		8-97206-774-4 02 1 1008- ● ●
20 04.710 ROTOR; SENSOR
FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-97206-774-4 02 1 1008- ● ●
20 04.710 ROTOR; SENSOR
FINAL GEAR RATIO 41/9(HC6),FINAL GEARRATIO 41/8(RU1),FINAL GEAR RATIO 43/ 9(S2J) AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX) 		8-97206-774-4 02 1 1008- ●
20 04.710 ROTOR; SENSOR
HYDRO BRAKE BOOSTER(7QQ) 		8-97206-775-3 02 1 0710-0802 ● ●
20 04.710 ROTOR; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) HYDRO BRAKE BOOSTER(7QQ) 		8-97206-775-3 02 1 0710-0802 ●
20 04.710 ROTOR; SENSOR 8-97206-775-3 02 1 0710-0802 ●
20 04.710 ROTOR; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) 		8-97206-775-3 02 1 0803-0803 ● ●
20 04.710 ROTOR; SENSOR
FINAL GEAR RATIO 41/8(RU1) G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97206-775-3 02 1 0803-0803 ● ●
20 04.710 ROTOR; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) 		8-97206-775-3 02 1 0803-0803 ●
20 04.710 ROTOR; SENSOR 8-97206-775-3 02 1 0803-0803 ●
20 04.710 ROTOR; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) 		8-97206-775-3 02 1 0803-0803 ● ●
20 04.710 ROTOR; SENSOR
FINAL GEAR RATIO 41/8(RU1) G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97206-775-3 02 1 0803-0803 ● ●
20 04.710 ROTOR; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97206-775-3 02 1 0803-0803 ●
20 04.710 ROTOR; SENSOR 8-97206-775-3 02 1 0803-0803 ●
20 04.710 ROTOR; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) 		8-97206-775-3 02 1 0804-0804 ● ●
20 04.710 ROTOR; SENSOR
FINAL GEAR RATIO 41/8(RU1) G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97206-775-3 02 1 0804-0804 ● ●
20 04.710 ROTOR; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97206-775-3 02 1 0804-0804 ●
20 04.710 ROTOR; SENSOR 8-97206-775-3 02 1 0804-0804 ●
20 04.710 ROTOR; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) 		8-97206-775-3 02 1 0804-1007 ● ●
20 04.710 ROTOR; SENSOR
FINAL GEAR RATIO 41/8(RU1) G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97206-775-3 02 1 0804-1007 ● ●
20 04.710 ROTOR; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97206-775-3 02 1 0804-1007 ●
20 04.710 ROTOR; SENSOR 8-97206-775-3 02 1 0804-1007 ●
20 04.710 ROTOR; SENSOR
FINAL GEAR RATIO 41/9(HC6) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX) EXC. AUSTRALIA EQUIPMENT(B13) 		8-97206-775-3 02 1 1008- ●
20 04.710 ROTOR; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J),FI NAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97206-775-3 02 1 1008- ●
20 04.710 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97206-775-3 02 1 1008- ●
20 04.710 ROTOR; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97206-775-3 02 1 1008- ●
20 04.710 ROTOR; SENSOR 8-97206-775-3 02 1 1008- ●
22 04.710 SENSOR; SPEED
EXC. SMALL DOUBLE RR TIRE(6YE) (A) 		8-97388-899-0 02 1 0710-0710 ●
22 04.710 SENSOR; SPEED
(A) 		8-97388-899-0 02 1 0710-0710 ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/9(HC6) EXC. SMALL DOUBLE RR TIRE(6YE) (A) 		8-97388-899-0 02 1 0710-0906 ●
22 04.710 SENSOR; SPEED
(A) 		8-97388-899-0 02 1 0710-0906 ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/9(HC6) EXC. SMALL DOUBLE RR TIRE(6YE) (A) 		8-97388-899-0 02 1 0907-1007 ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/9(HC6),FINAL GEARRATIO 41/8(RU1),FINAL GEAR RATIO 43/ 9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97388-899-0 02 1 0907-1007 ●
22 04.710 SENSOR; SPEED
(A) 		8-97388-899-0 02 1 0907-1007 ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/9(HC6) EXC. SMALL DOUBLE RR TIRE(6YE) (A) 		8-97388-899-1 02 1 1008-1401 ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/9(HC6),FINAL GEARRATIO 41/8(RU1),FINAL GEAR RATIO 43/ 9(S2J) AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX) (A) 		8-97388-899-1 02 1 1008-1401 ●
22 04.710 SENSOR; SPEED
(A) 		8-97388-899-1 02 1 1008-1401 ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/9(HC6) EXC. SMALL DOUBLE RR TIRE(6YE) (A) 		8-98219-351-0 02 1 1402- ●
22 04.710 SENSOR; SPEED
(A) 		8-98219-351-0 02 1 1402- ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/9(HC6),FINAL GEARRATIO 41/8(RU1),FINAL GEAR RATIO 43/ 9(S2J) AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX) (A) 		8-98244-877-0 02 1 1402- ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B) 		8-98006-185-0 01 1 0710-1408 ● ● ● ●
22 04.710 SENSOR; SPEED
(B) 		8-98006-185-0 01 1 0710-1408 ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B) 		8-98219-392-0 01 1 1409- ● ● ● ●
22 04.710 SENSOR; SPEED
(B) 		8-98219-392-0 01 1 1409- ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B) 		8-98006-184-0 01 1 0710-1408 ● ● ● ●
22 04.710 SENSOR; SPEED
(B) 		8-98006-184-0 01 1 0710-1408 ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B) 		8-98219-391-0 01 1 1409- ● ● ● ●
22 04.710 SENSOR; SPEED
(B) 		8-98219-391-0 01 1 1409- ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (B) 		8-98006-187-0 01 1 0710-0905 ● ● ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>,FRONT WIDE TREAD<7GV> (B) 		8-98006-187-0 01 1 0906-1408 ● ● ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>,FRONT WIDE TREAD<7GV> (B) 		8-98219-394-0 01 1 1409- ● ● ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (B) 		8-98006-186-0 01 1 0710-0905 ● ● ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>,FRONT WIDE TREAD<7GV> (B) 		8-98006-186-0 01 1 0906-1408 ● ● ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>,FRONT WIDE TREAD<7GV> (B) 		8-98219-393-0 01 1 1409- ● ● ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> EXC. DISC BRAKE FRT<J52> (B) 		8-98132-212-0 01 1 0906- ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> EXC. DISC BRAKE FRT<J52> (B) 		8-98132-211-0 01 1 0906- ● ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98002-215-0 02 1 0710-0710 ●
22 04.710 SENSOR; SPEED
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98002-215-0 02 1 0710-0710 ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 43/9(S2J) HYDRO BRAKE BOOSTER(7QQ) EXC. AUSTRALIA EQUIPMENT(B13) (A) 		8-98002-215-0 02 1 0710-0710 ●
22 04.710 SENSOR; SPEED
(A) 		8-98002-215-0 02 1 0710-0710 ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98002-215-0 02 1 0710-0802 ●
22 04.710 SENSOR; SPEED
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98002-215-0 02 1 0710-0802 ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 43/9(S2J) HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98002-215-0 02 1 0710-0802 ●
22 04.710 SENSOR; SPEED
(A) 		8-98002-215-0 02 1 0710-0802 ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98002-215-0 02 1 0803-0803 ● ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98002-215-0 02 1 0803-0803 ● ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J),FI NAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98002-215-0 02 1 0804-0906 ● ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98002-215-0 02 1 0907-1007 ● ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/8(RU1) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98002-215-0 02 1 0907-1007 ● ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/9(HC6),FINAL GEARRATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98002-215-0 02 1 0907-1007 ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW) (A) 		8-98002-215-1 02 1 1008-1401 ● ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) (A) 		8-98002-215-1 02 1 1008-1401 ● ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) (A) 		8-98002-215-1 02 1 1008-1401 ● ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/9(HC6) AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) (A) 		8-98002-215-1 02 1 1008-1401 ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/9(HC6) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. AUSTRALIA EQUIPMENT(B13) (A) 		8-98002-215-1 02 1 1008-1401 ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW) 04.110 (A) 		8-98219-354-0 02 1 1402- ● ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 04.110 (A) 		8-98219-354-0 02 1 1402- ● ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 04.110 (A) 		8-98219-354-0 02 1 1402- ● ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/9(HC6) AUSTRALIA EQUIPMENT(B13) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 04.110 (A) 		8-98219-354-0 02 1 1402- ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/9(HC6) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. AUSTRALIA EQUIPMENT(B13) 04.110 (A) 		8-98219-354-0 02 1 1402- ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98002-216-0 02 1 0710-0710 ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 43/9(S2J) AUSTRALIA EQUIPMENT(B13) HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98002-216-0 02 1 0710-0710 ●
22 04.710 SENSOR; SPEED
(A) 		8-98002-216-0 02 1 0710-0710 ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98002-216-0 02 1 0710-0803 ●
22 04.710 SENSOR; SPEED
(A) 		8-98002-216-0 02 1 0710-0803 ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) (A) 		8-98002-216-0 02 1 0804-1007 ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (A) 		8-98002-216-0 02 1 0804-1007 ●
22 04.710 SENSOR; SPEED
(A) 		8-98002-216-0 02 1 0804-1007 ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98002-216-1 02 1 1008-1401 ●
22 04.710 SENSOR; SPEED
(A) 		8-98002-216-1 02 1 1008-1401 ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98219-355-0 02 1 1402- ●
22 04.710 SENSOR; SPEED
(A) 		8-98219-355-0 02 1 1402- ●
24 04.730 BOLT; SENSOR
EXC. SMALL DOUBLE RR TIRE(6YE) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0710-0802 ●
24 04.730 BOLT; SENSOR
HYDRO BRAKE BOOSTER(7QQ) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0710-0802 ● ● ●
24 04.730 BOLT; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/10(S7C) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0710-0802 ●
24 04.730 BOLT; SENSOR
03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0710-0802 ● ●
24 04.730 BOLT; SENSOR
EXC. SMALL DOUBLE RR TIRE(6YE) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0803-0803 ●
24 04.730 BOLT; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0803-0803 ● ●
24 04.730 BOLT; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0803-0803 ●
24 04.730 BOLT; SENSOR
03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0803-0803 ● ●
24 04.730 BOLT; SENSOR
EXC. SMALL DOUBLE RR TIRE(6YE) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0803-0803 ●
24 04.730 BOLT; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0803-0803 ● ●
24 04.730 BOLT; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0803-0803 ●
24 04.730 BOLT; SENSOR
03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0803-0803 ● ●
24 04.730 BOLT; SENSOR
EXC. SMALL DOUBLE RR TIRE(6YE) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0804-0804 ●
24 04.730 BOLT; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0804-0804 ● ●
24 04.730 BOLT; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0804-0804 ●
24 04.730 BOLT; SENSOR
03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0804-0804 ● ●
24 04.730 BOLT; SENSOR
EXC. SMALL DOUBLE RR TIRE(6YE) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0804-1007 ●
24 04.730 BOLT; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J),FI NAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0804-1007 ● ●
24 04.730 BOLT; SENSOR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0804-1007 ●
24 04.730 BOLT; SENSOR
03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0804-1007 ● ●
24 04.730 BOLT; SENSOR
FINAL GEAR RATIO 41/9(HC6) EXC. SMALL DOUBLE RR TIRE(6YE) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 1008-1401 ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 1008-1401 ● ● ●
24 04.730 BOLT; SENSOR
03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 1008-1401 ● ●
24 04.730 BOLT; SENSOR
FINAL GEAR RATIO 41/9(HC6) EXC. SMALL DOUBLE RR TIRE(6YE) 09.242 (A) M6X16 FLANGE 		0-28050-616-0 02 1 1402- ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (A) M6X16 FLANGE 		0-28050-616-0 02 1 1402- ● ● ●
24 04.730 BOLT; SENSOR
09.242 (A) M6X16 FLANGE 		0-28050-616-0 02 1 1402- ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0710-1310 ● ● ● ●
24 04.730 BOLT; SENSOR
03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0710-1310 ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (B) M6X16 FLANGE 		0-28050-616-0 02 1 1311- ● ● ● ●
24 04.730 BOLT; SENSOR
09.242 (B) M6X16 FLANGE 		0-28050-616-0 02 1 1311- ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 0710-0909 ● ● ● ●
24 04.730 BOLT; SENSOR
02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 0710-0909 ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> 02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 0910- ● ● ● ●
24 04.730 BOLT; SENSOR
02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 0910- ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 0710-0909 ● ● ● ●
24 04.730 BOLT; SENSOR
06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 0710-0909 ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 0910-1111 ● ● ● ●
24 04.730 BOLT; SENSOR
06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 0910-1111 ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 1112- ● ● ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> EXC. DISC BRAKE FRT<J52> 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 1112- ● ●
24 04.730 BOLT; SENSOR
06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 1112- ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 0710- ● ● ● ●
24 04.730 BOLT; SENSOR
06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 0710- ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> 06.216 (C) M8X25 FLANGE 		0-28650-825-0 04 1 0910- ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> EXC. DISC BRAKE FRT<J52> 02.343 (C) M8X16 FLANGE 		0-28050-816-0 02 1 1112- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
