◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NN ▶ 51157 - NN/NP/NQR-R EXC.EU5 ▶ 3 - Brakes, Brake System ▶ 3-01 - FRONT WHEEL BRAKE ▶
3-01 — FRONT WHEEL BRAKE (#54660) — 279 parça
çizim 156160
66 66 72 66 66
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
66 05.815 BOLT; OIL SHIELD COVER
DISC BRAKE FRT<J52> (B) M14X43 		8-97168-638-1 06 1 0710- ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
(B) M14X43 		8-97168-638-1 06 1 0710- ●
66 05.815 BOLT; OIL SHIELD COVER
DISC BRAKE FRT<J52> (A) M14X23.5 		8-97359-814-0 02 1 0710- ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
(A) M14X23.5 		8-97359-814-0 02 1 0710- ●
66 05.815 BOLT; OIL SHIELD COVER
G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (D) M12X33 		8-98009-493-2 08 1 0710- ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 05.002 (D) M14X40 		8-98007-879-0 08 1 0710-0710 ● ●
66 05.815 BOLT; OIL SHIELD COVER
EXC. DISC BRAKE FRT<J52> 05.002 (D) M14X40 		8-98007-879-0 08 1 0710-0710 ●
66 05.815 BOLT; OIL SHIELD COVER
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 05.002 (D) M14X40 		8-98007-879-0 08 1 0710- ● ●
66 05.815 BOLT; OIL SHIELD COVER
EXC. DISC BRAKE FRT<J52> 05.002 (D) M14X40 		8-98007-879-0 08 1 0710- ●
66 05.815 BOLT; OIL SHIELD COVER
DISC BRAKE FRT<J52> (C) M14X43 		8-97168-638-1 08 1 0710- ●
66 05.815 BOLT; OIL SHIELD COVER
(C) M14X43 		8-97168-638-1 08 1 0710- ●
72 05.815 NUT; OIL SHIELD COVER
DISC BRAKE FRT<J52> 		8-97359-815-0 06 1 0710- ● ● ●
72 05.815 NUT; OIL SHIELD COVER 8-97359-815-0 06 1 0710- ●
72 05.815 NUT; OIL SHIELD COVER
G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 05.002 M12 		0-91110-512-0 08 1 0710- ● ● ●
72 05.815 NUT; OIL SHIELD COVER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 07.833 M14 		0-91110-514-0 08 1 0710-0710 ● ●
72 05.815 NUT; OIL SHIELD COVER
EXC. DISC BRAKE FRT<J52> 07.833 M14 		0-91110-514-0 08 1 0710-0710 ●
72 05.815 NUT; OIL SHIELD COVER
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 07.833 M14 		0-91110-514-0 08 1 0710- ● ●
72 05.815 NUT; OIL SHIELD COVER
EXC. DISC BRAKE FRT<J52> 07.833 M14 		0-91110-514-0 08 1 0710- ●
72 05.815 NUT; OIL SHIELD COVER
DISC BRAKE FRT<J52> 		8-97359-815-0 08 1 0710- ●
72 05.815 NUT; OIL SHIELD COVER 8-97359-815-0 08 1 0710- ●

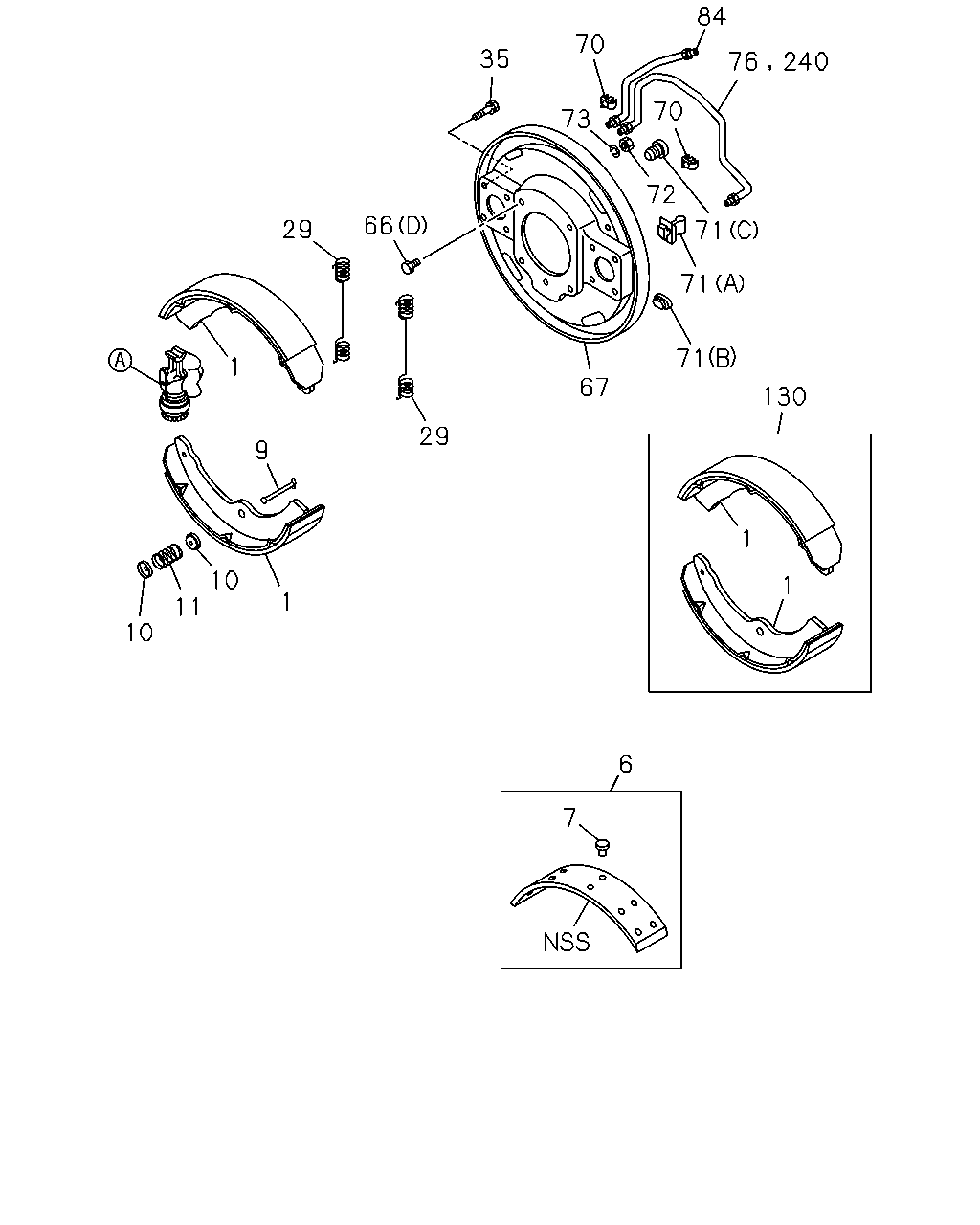

çizim 156181
84 70 35 70 73 72 66 29 71 71 71 1 67 130 29 9 1 10 1 1 11 10 6 7 76 240
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 05.017 SHOE; BRK,FRT
G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97287-778-0 04 1 0710- ● ● ●
1 05.017 SHOE; BRK,FRT
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97201-061-0 04 1 0710-0710 ●
1 05.017 SHOE; BRK,FRT
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97201-061-0 04 1 0710- ● ●
1 05.017 SHOE; BRK,FRT
G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 		8-97188-455-0 04 1 0710- ● ●
1 05.017 SHOE; BRK,FRT
G.V.W. 7.0-7.5TON(RPX) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 		8-97188-455-0 04 1 0710- ●
1 05.017 SHOE; BRK,FRT
EXC. DISC BRAKE FRT<J52> 		8-97188-455-0 04 1 0710- ●
6 05.018 LINING KIT; FRT BRK
G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		5-87831-801-0 01 1 0710- ● ● ●
6 05.018 LINING KIT; FRT BRK
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		5-87831-774-0 01 1 0710-0710 ●
6 05.018 LINING KIT; FRT BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		5-87831-774-0 01 1 0710- ● ●
6 05.018 LINING KIT; FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 		5-87831-692-0 01 1 0710- ● ●
6 05.018 LINING KIT; FRT BRK
G.V.W. 7.0-7.5TON(RPX) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 		5-87831-692-0 01 1 0710- ●
6 05.018 LINING KIT; FRT BRK
EXC. DISC BRAKE FRT<J52> 		5-87831-692-0 01 1 0710- ●
6 05.018 LINING KIT; FRT BRK
G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> BEST VALUE PARTS 		5-87610-121-0 01 1 0710- ● ● ●
6 05.018 LINING KIT; FRT BRK
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> BEST VALUE PARTS 		5-87610-120-0 01 1 0710-0710 ●
6 05.018 LINING KIT; FRT BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> BEST VALUE PARTS 		5-87610-120-0 01 1 0710- ● ●
6 05.018 LINING KIT; FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> BEST VALUE PARTS 		5-87610-119-0 01 1 0710- ● ●
6 05.018 LINING KIT; FRT BRK
G.V.W. 7.0-7.5TON(RPX) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> BEST VALUE PARTS 		5-87610-119-0 01 1 0710- ●
6 05.018 LINING KIT; FRT BRK
EXC. DISC BRAKE FRT<J52> BEST VALUE PARTS 		5-87610-119-0 01 1 0710- ●
7 05.019 RIVET; LINING,FRT BRK
G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		1-09732-029-0 40 1 0710- ● ● ●
7 05.019 RIVET; LINING,FRT BRK
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		1-09732-029-0 48 1 0710-0710 ●
7 05.019 RIVET; LINING,FRT BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		1-09732-029-0 48 1 0710- ● ●
7 05.019 RIVET; LINING,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 		1-09732-029-0 64 1 0710- ● ●
7 05.019 RIVET; LINING,FRT BRK
G.V.W. 7.0-7.5TON(RPX) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 		1-09732-029-0 64 1 0710- ●
7 05.019 RIVET; LINING,FRT BRK
EXC. DISC BRAKE FRT<J52> 		1-09732-029-0 64 1 0710- ●
9 05.026 PIN; SHOE HOLDER
G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 05.043 		5-47162-001-0 04 1 0710- ● ● ●
9 05.026 PIN; SHOE HOLDER
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 05.043 		8-97022-089-0 04 1 0710-0710 ●
9 05.026 PIN; SHOE HOLDER
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 05.043 		8-97022-089-0 04 1 0710- ● ●
9 05.026 PIN; SHOE HOLDER
G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 05.043 		8-97122-870-0 04 1 0710- ● ●
9 05.026 PIN; SHOE HOLDER
G.V.W. 7.0-7.5TON(RPX) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 05.043 		8-97122-870-0 04 1 0710- ●
9 05.026 PIN; SHOE HOLDER
EXC. DISC BRAKE FRT<J52> 05.043 		8-97122-870-0 04 1 0710- ●
10 05.043 CUP; SHOE HOLDING
EXC. DISC BRAKE FRT<J52> 		9-47165-096-0 08 1 0710- ● ● ● ●
11 05.027 SPRING; SHOE HOLDING
EXC. DISC BRAKE FRT<J52> 05.043 		5-09580-101-1 04 1 0710- ● ● ● ●
29 05.026 SPRING; RETURN,FRT BRK SHOE
G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		5-09583-118-0 04 1 0710- ● ● ●
29 05.026 SPRING; RETURN,FRT BRK SHOE
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97022-087-0 04 1 0710-0710 ●
29 05.026 SPRING; RETURN,FRT BRK SHOE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97022-087-0 04 1 0710- ● ●
29 05.026 SPRING; RETURN,FRT BRK SHOE
G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 		8-97122-869-0 04 1 0710- ● ●
29 05.026 SPRING; RETURN,FRT BRK SHOE
G.V.W. 7.0-7.5TON(RPX) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 		8-97122-869-0 04 1 0710- ●
29 05.026 SPRING; RETURN,FRT BRK SHOE
EXC. DISC BRAKE FRT<J52> 		8-97122-869-0 04 1 0710- ●
35 04.665 BOLT; FRT WHEEL CYL
G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		5-09030-016-1 16 1 0710- ● ● ●
35 04.665 BOLT; FRT WHEEL CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 		8-97081-305-0 16 1 0710-0710 ● ●
35 04.665 BOLT; FRT WHEEL CYL
EXC. DISC BRAKE FRT<J52> 		8-97081-305-0 16 1 0710-0710 ●
35 04.665 BOLT; FRT WHEEL CYL
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 		8-97081-305-0 16 1 0710- ● ●
35 04.665 BOLT; FRT WHEEL CYL
EXC. DISC BRAKE FRT<J52> 		8-97081-305-0 16 1 0710- ●
66 05.815 BOLT; OIL SHIELD COVER
DISC BRAKE FRT<J52> (B) M14X43 		8-97168-638-1 06 1 0710- ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
(B) M14X43 		8-97168-638-1 06 1 0710- ●
66 05.815 BOLT; OIL SHIELD COVER
DISC BRAKE FRT<J52> (A) M14X23.5 		8-97359-814-0 02 1 0710- ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
(A) M14X23.5 		8-97359-814-0 02 1 0710- ●
66 05.815 BOLT; OIL SHIELD COVER
G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (D) M12X33 		8-98009-493-2 08 1 0710- ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 05.002 (D) M14X40 		8-98007-879-0 08 1 0710-0710 ● ●
66 05.815 BOLT; OIL SHIELD COVER
EXC. DISC BRAKE FRT<J52> 05.002 (D) M14X40 		8-98007-879-0 08 1 0710-0710 ●
66 05.815 BOLT; OIL SHIELD COVER
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 05.002 (D) M14X40 		8-98007-879-0 08 1 0710- ● ●
66 05.815 BOLT; OIL SHIELD COVER
EXC. DISC BRAKE FRT<J52> 05.002 (D) M14X40 		8-98007-879-0 08 1 0710- ●
66 05.815 BOLT; OIL SHIELD COVER
DISC BRAKE FRT<J52> (C) M14X43 		8-97168-638-1 08 1 0710- ●
66 05.815 BOLT; OIL SHIELD COVER
(C) M14X43 		8-97168-638-1 08 1 0710- ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97302-589-0 01 1 0710- ● ● ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97302-588-0 01 1 0710- ● ● ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-98072-848-0 01 1 0710-0710 ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-98072-848-0 01 1 0710- ● ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-98072-847-0 01 1 0710-0710 ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-98072-847-0 01 1 0710- ● ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97160-411-0 01 1 0710- ● ●
67 05.001 PLATE; BACK,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97160-411-0 01 1 0710- ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97160-410-0 01 1 0710- ● ●
67 05.001 PLATE; BACK,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97160-410-0 01 1 0710- ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTER(7QQ) 		8-97122-859-0 01 1 0710- ● ●
67 05.001 PLATE; BACK,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTER(7QQ) 		8-97122-859-0 01 1 0710- ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTER(7QQ) 		8-97122-858-0 01 1 0710- ● ●
67 05.001 PLATE; BACK,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTER(7QQ) 		8-97122-858-0 01 1 0710- ●
67 05.001 PLATE; BACK,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 		8-97358-869-0 01 1 0710- ● ●
67 05.001 PLATE; BACK,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 		8-97358-869-0 01 1 0710- ●
67 05.001 PLATE; BACK,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 		8-97358-868-0 01 1 0710- ● ●
67 05.001 PLATE; BACK,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 		8-97358-868-0 01 1 0710- ●
70 04.685 CLIP; PIPE HOLD
G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-94128-306-0 02 1 0710- ● ● ●
70 04.685 CLIP; PIPE HOLD
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 		8-97022-086-0 04 1 0710-0710 ● ●
70 04.685 CLIP; PIPE HOLD
EXC. DISC BRAKE FRT<J52> 		8-97022-086-0 04 1 0710-0710 ●
70 04.685 CLIP; PIPE HOLD
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 		8-97022-086-0 04 1 0710- ● ●
70 04.685 CLIP; PIPE HOLD
EXC. DISC BRAKE FRT<J52> 		8-97022-086-0 04 1 0710- ●
71 05.002 GROMMET; CHECK HOLE
G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B) 		8-94171-287-0 02 1 0710- ● ● ●
71 05.002 GROMMET; CHECK HOLE
G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) 		9-09756-034-0 02 1 0710- ● ● ●
71 05.002 GROMMET; CHECK HOLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B) 		8-97017-507-0 02 1 0710-0710 ● ●
71 05.002 GROMMET; CHECK HOLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B) 		8-97017-507-0 02 1 0710-0710 ●
71 05.002 GROMMET; CHECK HOLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B) 		8-97017-507-0 02 1 0710- ● ●
71 05.002 GROMMET; CHECK HOLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B) 		8-97017-507-0 02 1 0710- ●
71 05.002 GROMMET; CHECK HOLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) 		8-97044-742-1 02 1 0710-0710 ● ●
71 05.002 GROMMET; CHECK HOLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) 		8-97044-742-1 02 1 0710-0710 ●
71 05.002 GROMMET; CHECK HOLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) 		8-97044-742-1 02 1 0710- ● ●
71 05.002 GROMMET; CHECK HOLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) 		8-97044-742-1 02 1 0710- ●
71 05.002 GROMMET; CHECK HOLE
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 04.670 (C) 		1-47154-008-0 04 1 0710- ● ●
71 05.002 GROMMET; CHECK HOLE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 04.670 (C) 		1-47154-008-0 04 1 0710- ●
71 05.002 GROMMET; CHECK HOLE
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> (B) 		8-97017-507-0 06 1 0710- ● ●
71 05.002 GROMMET; CHECK HOLE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (B) 		8-97017-507-0 06 1 0710- ●
72 05.815 NUT; OIL SHIELD COVER
DISC BRAKE FRT<J52> 		8-97359-815-0 06 1 0710- ● ● ●
72 05.815 NUT; OIL SHIELD COVER 8-97359-815-0 06 1 0710- ●
72 05.815 NUT; OIL SHIELD COVER
G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 05.002 M12 		0-91110-512-0 08 1 0710- ● ● ●
72 05.815 NUT; OIL SHIELD COVER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 07.833 M14 		0-91110-514-0 08 1 0710-0710 ● ●
72 05.815 NUT; OIL SHIELD COVER
EXC. DISC BRAKE FRT<J52> 07.833 M14 		0-91110-514-0 08 1 0710-0710 ●
72 05.815 NUT; OIL SHIELD COVER
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 07.833 M14 		0-91110-514-0 08 1 0710- ● ●
72 05.815 NUT; OIL SHIELD COVER
EXC. DISC BRAKE FRT<J52> 07.833 M14 		0-91110-514-0 08 1 0710- ●
72 05.815 NUT; OIL SHIELD COVER
DISC BRAKE FRT<J52> 		8-97359-815-0 08 1 0710- ●
72 05.815 NUT; OIL SHIELD COVER 8-97359-815-0 08 1 0710- ●
73 05.815 WASHER; LK,OIL SHIELD COVER
G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 07.347 ID=12.2 		0-91510-812-0 08 1 0710- ● ● ●
73 05.815 WASHER; LK,OIL SHIELD COVER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 06.174 ID=14.2 		0-91510-814-0 08 1 0710-0710 ● ●
73 05.815 WASHER; LK,OIL SHIELD COVER
EXC. DISC BRAKE FRT<J52> 06.174 ID=14.2 		0-91510-814-0 08 1 0710-0710 ●
73 05.815 WASHER; LK,OIL SHIELD COVER
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 06.174 ID=14.2 		0-91510-814-0 08 1 0710- ● ●
73 05.815 WASHER; LK,OIL SHIELD COVER
EXC. DISC BRAKE FRT<J52> 06.174 ID=14.2 		0-91510-814-0 08 1 0710- ●
76 04.685 PIPE; OIL,BACKWARD,FRT BRK
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97079-847-0 02 1 0710-0710 ● ●
76 04.685 PIPE; OIL,BACKWARD,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97079-847-0 02 1 0710-0710 ●
76 04.685 PIPE; OIL,BACKWARD,FRT BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97079-847-0 02 1 0710- ● ●
76 04.685 PIPE; OIL,BACKWARD,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97079-847-0 02 1 0710- ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-94154-918-0 01 1 0710- ● ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-94154-917-0 01 1 0710- ● ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 		8-97039-677-0 01 1 0710-0710 ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
EXC. DISC BRAKE FRT<J52> 		8-97039-677-0 01 1 0710-0710 ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 		8-97039-677-0 01 1 0710- ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
EXC. DISC BRAKE FRT<J52> 		8-97039-677-0 01 1 0710- ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 		8-97039-676-0 01 1 0710-0710 ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
EXC. DISC BRAKE FRT<J52> 		8-97039-676-0 01 1 0710-0710 ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 		8-97039-676-0 01 1 0710- ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
EXC. DISC BRAKE FRT<J52> 		8-97039-676-0 01 1 0710- ●
130 05.017 SHOE KIT; BRK,FRT
G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		5-87832-047-0 01 1 0710- ● ● ●
130 05.017 SHOE KIT; BRK,FRT
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		5-87831-775-0 01 1 0710-0710 ●
130 05.017 SHOE KIT; BRK,FRT
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		5-87831-775-0 01 1 0710- ● ●
130 05.017 SHOE KIT; BRK,FRT
G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 		5-87831-693-0 01 1 0710- ● ●
130 05.017 SHOE KIT; BRK,FRT
G.V.W. 7.0-7.5TON(RPX) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 		5-87831-693-0 01 1 0710- ●
130 05.017 SHOE KIT; BRK,FRT
EXC. DISC BRAKE FRT<J52> 		5-87831-693-0 01 1 0710- ●
240 04.685 PIPE; OIL,FRT BRK
G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-94154-916-0 02 1 0710- ● ● ●
240 04.685 PIPE; OIL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 		8-97079-847-0 02 1 0710- ● ●
240 04.685 PIPE; OIL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 		8-97079-847-0 02 1 0710- ●
çizim 156216
15 15 17 16 17 16 18 255 302 19 24 254 253 24 25 25 252 26
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) FRONT 		8-97170-950-0 01 1 0710- ● ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) REAR 		8-97170-952-0 01 1 0710- ● ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) FRONT 		8-97170-951-0 01 1 0710- ● ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) REAR 		8-97170-953-0 01 1 0710- ● ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) REAR 		8-97139-819-0 01 1 0710-0710 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) REAR 		8-97139-819-0 01 1 0710- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) FRONT 		8-97139-821-0 01 1 0710-0710 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) FRONT 		8-97139-821-0 01 1 0710- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) REAR 		8-97139-818-0 01 1 0710-0710 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) REAR 		8-97139-818-0 01 1 0710- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) FRONT 		8-97139-820-0 01 1 0710-0710 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) FRONT 		8-97139-820-0 01 1 0710- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) FRONT 		8-97353-574-0 01 1 0710- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) FRONT 		8-97353-574-0 01 1 0710- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) REAR 		8-97353-576-0 01 1 0710- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) REAR 		8-97353-576-0 01 1 0710- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) FRONT 		8-97353-573-0 01 1 0710- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) FRONT 		8-97353-573-0 01 1 0710- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) REAR 		8-97353-575-0 01 1 0710- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) REAR 		8-97353-575-0 01 1 0710- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTER(7QQ) (A) REAR 		8-97144-796-0 01 1 0710- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTER(7QQ) (A) REAR 		8-97144-796-0 01 1 0710- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTER(7QQ) (A) FRONT 		8-97144-798-0 01 1 0710- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTER(7QQ) (A) FRONT 		8-97144-798-0 01 1 0710- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTER(7QQ) (A) REAR 		8-97144-795-0 01 1 0710- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTER(7QQ) (A) REAR 		8-97144-795-0 01 1 0710- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTER(7QQ) (A) FRONT 		8-97144-797-0 01 1 0710- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTER(7QQ) (A) FRONT 		8-97144-797-0 01 1 0710- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> (B) FRONT 		8-98081-291-0 01 1 0710- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (B) FRONT 		8-98081-291-0 01 1 0710- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> (B) REAR 		8-98081-293-0 01 1 0710- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (B) REAR 		8-98081-293-0 01 1 0710- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> (B) FRONT 		8-98081-290-0 01 1 0710- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (B) FRONT 		8-98081-290-0 01 1 0710- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> (B) REAR 		8-98081-292-0 01 1 0710- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (B) REAR 		8-98081-292-0 01 1 0710- ●
16 04.666 SCREW; BLEEDER,FRT BRK
G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		9-47615-027-0 02 1 0710-0710 ● ● ●
16 04.666 SCREW; BLEEDER,FRT BRK
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		9-47615-027-0 02 1 0710-0710 ● ●
16 04.666 SCREW; BLEEDER,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		9-47615-027-0 02 1 0710-0710 ●
16 04.666 SCREW; BLEEDER,FRT BRK
G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		9-47615-027-0 02 1 0710-0710 ● ● ●
16 04.666 SCREW; BLEEDER,FRT BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		9-47615-027-0 02 1 0710-0710 ● ●
16 04.666 SCREW; BLEEDER,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		9-47615-027-0 02 1 0710-0710 ●
16 04.666 SCREW; BLEEDER,FRT BRK
G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		9-47615-027-0 02 1 0711-0711 ● ● ●
16 04.666 SCREW; BLEEDER,FRT BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		9-47615-027-0 02 1 0711-0711 ● ●
16 04.666 SCREW; BLEEDER,FRT BRK
G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-98050-476-0 02 1 0712-0809 ● ● ●
16 04.666 SCREW; BLEEDER,FRT BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-98050-476-0 02 1 0712-0809 ● ●
16 04.666 SCREW; BLEEDER,FRT BRK
G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-98050-476-0 02 1 0810- ● ● ●
16 04.666 SCREW; BLEEDER,FRT BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-98050-476-0 02 1 0810- ● ●
16 04.666 SCREW; BLEEDER,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 		8-98050-477-0 02 1 0710-0710 ● ●
16 04.666 SCREW; BLEEDER,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 		8-98050-477-0 02 1 0710-0710 ●
16 04.666 SCREW; BLEEDER,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 		8-98050-477-0 02 1 0711-0802 ● ●
16 04.666 SCREW; BLEEDER,FRT BRK
EXC. DISC BRAKE FRT<J52> 		8-98050-477-0 02 1 0711-0802 ●
16 04.666 SCREW; BLEEDER,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 		8-98050-477-0 02 1 0803- ● ●
16 04.666 SCREW; BLEEDER,FRT BRK
G.V.W. 7.0-7.5TON(RPX) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 		8-98050-477-0 02 1 0803- ●
16 04.666 SCREW; BLEEDER,FRT BRK
EXC. DISC BRAKE FRT<J52> 		8-98050-477-0 02 1 0803- ●
17 04.666 CAP; BLEEDER,FRT WHEEL CYL
G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		1-47619-009-0 02 1 0710-0710 ● ● ●
17 04.666 CAP; BLEEDER,FRT WHEEL CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		1-47619-009-0 02 1 0710-0710 ● ●
17 04.666 CAP; BLEEDER,FRT WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		1-47619-009-0 02 1 0710-0710 ●
17 04.666 CAP; BLEEDER,FRT WHEEL CYL
G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		1-47619-009-0 02 1 0710-0710 ● ● ●
17 04.666 CAP; BLEEDER,FRT WHEEL CYL
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		1-47619-009-0 02 1 0710-0710 ● ●
17 04.666 CAP; BLEEDER,FRT WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		1-47619-009-0 02 1 0710-0710 ●
17 04.666 CAP; BLEEDER,FRT WHEEL CYL
G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		1-47619-009-0 02 1 0711-0711 ● ● ●
17 04.666 CAP; BLEEDER,FRT WHEEL CYL
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		1-47619-009-0 02 1 0711-0711 ● ●
17 04.666 CAP; BLEEDER,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 		8-98050-479-0 02 1 0710-0710 ● ●
17 04.666 CAP; BLEEDER,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 		8-98050-479-0 02 1 0710-0710 ●
17 04.666 CAP; BLEEDER,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 		8-98050-479-0 02 1 0711-0711 ● ●
17 04.666 CAP; BLEEDER,FRT WHEEL CYL
EXC. DISC BRAKE FRT<J52> 		8-98050-479-0 02 1 0711-0711 ●
17 04.666 CAP; BLEEDER,FRT WHEEL CYL
EXC. DISC BRAKE FRT<J52> 		8-98050-479-0 02 1 0712- ● ● ● ●
18 05.107 STOPPER; ADJ SCREW
G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-94128-486-0 04 1 0710-0710 ● ● ●
18 05.107 STOPPER; ADJ SCREW
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-94128-486-0 04 1 0710-0710 ● ●
18 05.107 STOPPER; ADJ SCREW
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-94128-486-0 04 1 0710-0710 ●
18 05.107 STOPPER; ADJ SCREW
G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-94128-486-0 04 1 0710-0802 ● ● ●
18 05.107 STOPPER; ADJ SCREW
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-94128-486-0 04 1 0710-0802 ● ●
18 05.107 STOPPER; ADJ SCREW
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-94128-486-0 04 1 0710-0802 ●
18 05.107 STOPPER; ADJ SCREW
G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW), G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-94128-486-0 04 1 0803- ● ● ●
18 05.107 STOPPER; ADJ SCREW
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-94128-486-0 04 1 0803- ●
19 05.107 SCREW; STOPPER SETTING
G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-94128-727-0 04 1 0710-0710 ● ● ●
19 05.107 SCREW; STOPPER SETTING
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-94128-727-0 04 1 0710-0710 ● ●
19 05.107 SCREW; STOPPER SETTING
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-94128-727-0 04 1 0710-0710 ●
19 05.107 SCREW; STOPPER SETTING
G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-94128-727-0 04 1 0710-0802 ● ● ●
19 05.107 SCREW; STOPPER SETTING
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-94128-727-0 04 1 0710-0802 ● ●
19 05.107 SCREW; STOPPER SETTING
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-94128-727-0 04 1 0710-0802 ●
19 05.107 SCREW; STOPPER SETTING
G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW), G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-94128-727-0 04 1 0803- ● ● ●
19 05.107 SCREW; STOPPER SETTING
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-94128-727-0 04 1 0803- ●
24 04.668 PISTON; FRT WHEEL CYL
G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97078-621-0 04 1 0710- ● ● ●
24 04.668 PISTON; FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97353-579-0 04 1 0710- ● ●
24 04.668 PISTON; FRT WHEEL CYL
HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97353-579-0 04 1 0710- ●
24 04.668 PISTON; FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTER(7QQ) 		8-94414-700-1 04 1 0710-0710 ● ●
24 04.668 PISTON; FRT WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-94414-700-1 04 1 0710-0710 ●
24 04.668 PISTON; FRT WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTER(7QQ) 		8-94414-700-1 04 1 0710-0710 ●
24 04.668 PISTON; FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTER(7QQ) 		8-94414-700-1 04 1 0710- ● ●
24 04.668 PISTON; FRT WHEEL CYL
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-94414-700-1 04 1 0710- ● ●
24 04.668 PISTON; FRT WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTER(7QQ) 		8-94414-700-1 04 1 0710- ●
24 04.668 PISTON; FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 		8-97349-731-0 02 1 0710- ● ●
24 04.668 PISTON; FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 		8-97349-731-0 02 1 0710- ●
24 04.668 PISTON; FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 		8-97349-732-0 02 1 0710- ● ●
24 04.668 PISTON; FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 		8-97349-732-0 02 1 0710- ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97078-623-0 04 1 0710- ● ● ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 04.666 		8-94414-702-0 04 1 0710-0710 ● ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 04.666 		8-94414-702-0 04 1 0710-0710 ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 04.666 		8-94414-702-0 04 1 0710- ● ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 04.666 		8-94414-702-0 04 1 0710- ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 04.666 		8-97349-741-0 02 1 0710- ● ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 04.666 		8-97349-741-0 02 1 0710- ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 04.666 		8-97349-742-0 02 1 0710- ● ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 04.666 		8-97349-742-0 02 1 0710- ●
26 04.667 CUP SET; FRT WHEEL CYL
G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		5-87831-602-0 01 1 0710- ● ● ●
26 04.667 CUP SET; FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 04.665 		5-87832-080-0 01 1 0710- ● ●
26 04.667 CUP SET; FRT WHEEL CYL
HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 04.665 		5-87832-080-0 01 1 0710- ●
26 04.667 CUP SET; FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTER(7QQ) 04.665 		5-87831-598-0 01 1 0710-0710 ● ●
26 04.667 CUP SET; FRT WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 04.665 		5-87831-598-0 01 1 0710-0710 ●
26 04.667 CUP SET; FRT WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTER(7QQ) 04.665 		5-87831-598-0 01 1 0710-0710 ●
26 04.667 CUP SET; FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTER(7QQ) 04.665 		5-87831-598-0 01 1 0710- ● ●
26 04.667 CUP SET; FRT WHEEL CYL
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 04.665 		5-87831-598-0 01 1 0710- ● ●
26 04.667 CUP SET; FRT WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTER(7QQ) 04.665 		5-87831-598-0 01 1 0710- ●
26 04.667 CUP SET; FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 04.665 		5-87832-051-0 01 1 0710- ● ●
26 04.667 CUP SET; FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 04.665 		5-87832-051-0 01 1 0710- ●
252 04.665 GEAR; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 		8-97358-894-0 02 1 0710- ● ●
252 04.665 GEAR; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 		8-97358-894-0 02 1 0710- ●
252 04.665 GEAR; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 		8-97358-895-0 02 1 0710- ● ●
252 04.665 GEAR; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 		8-97358-895-0 02 1 0710- ●
253 04.665 WASHER; THRUST
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 05.110 		8-97349-736-0 04 1 0710- ● ●
253 04.665 WASHER; THRUST
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 05.110 		8-97349-736-0 04 1 0710- ●
254 04.665 SPRING; ADJ LEVER
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 05.107 		8-97349-745-0 04 1 0710- ● ●
254 04.665 SPRING; ADJ LEVER
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 05.107 		8-97349-745-0 04 1 0710- ●
255 04.665 LEVER; ADJ
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 05.103 		8-97349-743-0 02 1 0710- ● ●
255 04.665 LEVER; ADJ
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 05.103 		8-97349-743-0 02 1 0710- ●
255 04.665 LEVER; ADJ
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 05.103 		8-97349-744-0 02 1 0710- ● ●
255 04.665 LEVER; ADJ
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 05.103 		8-97349-744-0 02 1 0710- ●
302 04.665 SCREW; ADJ LEVER
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 04.666 		8-97349-747-0 04 1 0710- ● ●
302 04.665 SCREW; ADJ LEVER
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 04.666 		8-97349-747-0 04 1 0710- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
